8-75 — CONDENSER (#46620) — 73 parça

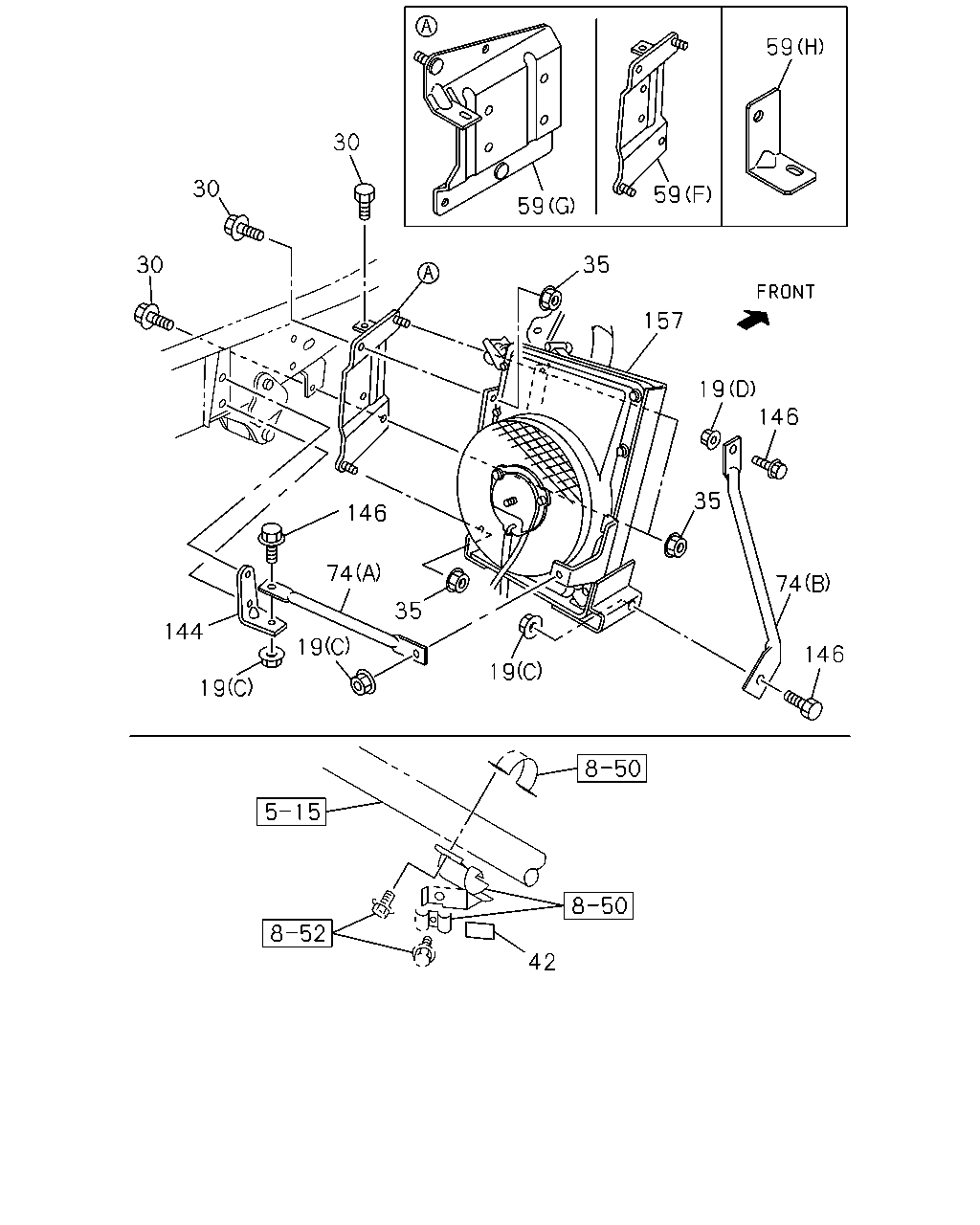

59 30 30 59 59 35 30 157 19 146 35 146 74 74 35 144 19 146 19 19 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
19	09.190 NUT; BRKT 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 01.540 (C) M8 FLANGE	0-91180-208-0	02	1	0612-	●	●	●	●
19	09.190 NUT; BRKT ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 07.829 (A) M6 FLANGE	5-09440-004-0	13	1	0612-	●	●	●	●	●	●
19	09.190 NUT; BRKT ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 02.400 (B) M8	9-88410-303-0	02	1	0612-	●	●	●	●	●	●
19	09.190 NUT; BRKT 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	0612-		●	●		●	●
19	09.190 NUT; BRKT 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 05.816 (D) M12 FLANGE	0-91180-212-0	01	1	0612-		●	●		●	●
30	09.190 BOLT; CONDENSER,A/C 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 03.405 M10X25 FLANGE	0-28681-025-0	04	1	0612-0708	●	●	●	●
30	09.190 BOLT; CONDENSER,A/C 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 00.029 M10X25 FLANGE	0-28651-025-0	04	1	0709-	●	●	●	●
30	09.190 BOLT; CONDENSER,A/C 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 03.405 M10X25 FLANGE	0-28681-025-0	07	1	0612-0708		●	●		●	●
30	09.190 BOLT; CONDENSER,A/C 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 00.029 M10X25 FLANGE	0-28651-025-0	07	1	0709-		●	●		●	●
35	09.190 NUT; CONDENSER,A/C 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 08.917 M10 FLANGE	0-91150-210-0	08	1	0612-0708	●	●	●	●
35	09.190 NUT; CONDENSER,A/C 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 04.085 M10 FLANGE	0-91180-210-0	08	1	0709-	●	●	●	●
35	09.190 NUT; CONDENSER,A/C 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 05.816 M12 FLANGE	0-91180-212-0	02	1	0612-	●	●	●	●
35	09.190 NUT; CONDENSER,A/C 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 08.917 M10 FLANGE	0-91150-210-0	11	1	0612-0708		●	●		●	●
35	09.190 NUT; CONDENSER,A/C 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 04.085 M10 FLANGE	0-91180-210-0	11	1	0709-		●	●		●	●
42	09.190 GASKET; CONDENSER 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-97254-487-0	01	1	0612-	●	●	●	●
59	09.190 BRACKET; CONDENSER 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 03.444 (F)	8-97036-725-0	01	1	0612-	●	●	●	●
59	09.190 BRACKET; CONDENSER 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97068-538-0	01	1	0612-	●	●	●	●
59	09.190 BRACKET; CONDENSER 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (H)	8-97229-048-0	01	1	0612-	●	●	●	●
59	09.190 BRACKET; CONDENSER ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97068-537-0	01	1	0612-	●	●	●	●	●	●
59	09.190 BRACKET; CONDENSER ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (E)	8-97068-540-0	01	1	0612-	●	●	●	●	●	●
59	09.190 BRACKET; CONDENSER ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97109-281-1	01	1	0612-	●	●	●	●	●	●
59	09.190 BRACKET; CONDENSER ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97122-232-0	01	1	0612-	●	●	●	●	●	●
59	09.190 BRACKET; CONDENSER 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.216 (G)	8-97184-619-0	01	1	0612-		●	●		●	●
59	09.190 BRACKET; CONDENSER 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98073-638-0	01	1	0612-		●	●		●	●
74	09.190 STAY; CONDENSER 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97036-727-0	01	1	0612-	●	●	●	●
74	09.190 STAY; CONDENSER 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.216 (A)	8-97184-621-0	01	1	0612-		●	●		●	●
74	09.190 STAY; CONDENSER 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.216 (B)	8-97185-004-0	01	1	0612-		●	●		●	●
144	09.190 BRACKET; FAN 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 03.444	8-97036-724-0	01	1	0612-	●	●	●	●
144	09.190 BRACKET; FAN 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.196	8-97125-033-0	01	1	0612-		●	●		●	●
146	09.190 BOLT; STAY 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0612-0708	●	●	●	●
146	09.190 BOLT; STAY 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0709-	●	●	●	●
146	09.190 BOLT; STAY 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 03.895 M12X25 FLANGE	0-28651-225-0	01	1	0612-		●	●		●	●
146	09.190 BOLT; STAY 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	0612-0708		●	●		●	●
146	09.190 BOLT; STAY 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0709-		●	●		●	●
157	09.190 CONDENSER & FAN ASM 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-98043-038-0	01	1	0612-	●	●	●	●
157	09.190 CONDENSER & FAN ASM 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-97184-618-0	01	1	0612-		●	●		●	●

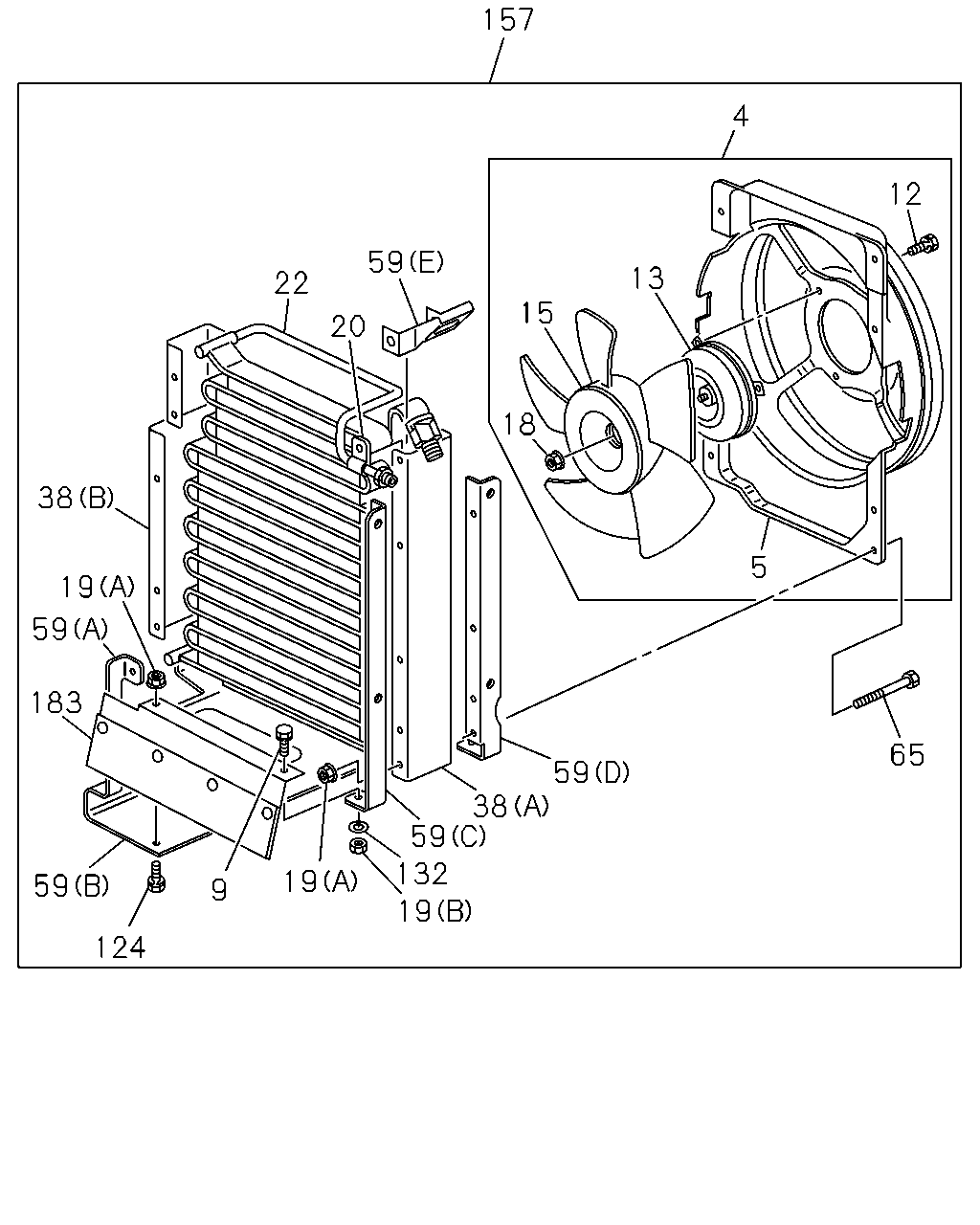

157 4 12 59 13 22 15 20 18 38 5 19 59 183 65 59 38 59 132 19 19 59 9 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	09.216 MOTOR ASM; FAN 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-98073-831-0	01	1	0612-	●	●	●	●
4	09.216 MOTOR ASM; FAN 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-98073-639-0	01	1	0612-		●	●		●	●
5	09.216 SHROUD; FAN MOTOR 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-97135-192-1	01	1	0612-	●	●	●	●
5	09.216 SHROUD; FAN MOTOR 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-98073-832-0	01	1	0612-		●	●		●	●
9	09.190 BOLT; BRKT 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 03.895 M12X25 FLANGE	0-28651-225-0	02	1	0612-	●	●	●	●
9	09.190 BOLT; BRKT ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0612-0708	●	●	●	●	●	●
9	09.190 BOLT; BRKT ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0709-	●	●	●	●	●	●
12	09.196 BOLT; FAN MOTOR ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 03.330	8-94247-717-0	01	1	0612-	●	●	●	●	●	●
13	09.215 MOTOR; FAN ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-98073-640-0	01	1	0612-	●	●	●	●	●	●
15	09.216 FAN; MOTOR ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	1-83539-232-0	01	1	0612-	●	●	●	●	●	●
18	09.190 NUT; FAN,CENTER ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 16.176 M6	9-09110-406-0	01	1	0612-	●	●	●	●	●	●
19	09.190 NUT; BRKT 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 01.540 (C) M8 FLANGE	0-91180-208-0	02	1	0612-	●	●	●	●
19	09.190 NUT; BRKT ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 07.829 (A) M6 FLANGE	5-09440-004-0	13	1	0612-	●	●	●	●	●	●
19	09.190 NUT; BRKT ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 02.400 (B) M8	9-88410-303-0	02	1	0612-	●	●	●	●	●	●
19	09.190 NUT; BRKT 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	0612-		●	●		●	●
19	09.190 NUT; BRKT 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 05.816 (D) M12 FLANGE	0-91180-212-0	01	1	0612-		●	●		●	●
20	09.190 CLIP; CONDENSER ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-97109-278-0	01	1	0612-	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-98073-641-0	01	1	0612-	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-97135-194-0	01	1	0612-		●	●		●	●
38	09.190 PLATE; CONDENSER ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97122-231-0	01	1	0612-	●	●	●	●	●	●
38	09.190 PLATE; CONDENSER ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97135-190-0	01	1	0612-	●	●	●	●	●	●
59	09.190 BRACKET; CONDENSER 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 03.444 (F)	8-97036-725-0	01	1	0612-	●	●	●	●
59	09.190 BRACKET; CONDENSER 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97068-538-0	01	1	0612-	●	●	●	●
59	09.190 BRACKET; CONDENSER 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (H)	8-97229-048-0	01	1	0612-	●	●	●	●
59	09.190 BRACKET; CONDENSER ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97068-537-0	01	1	0612-	●	●	●	●	●	●
59	09.190 BRACKET; CONDENSER ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (E)	8-97068-540-0	01	1	0612-	●	●	●	●	●	●
59	09.190 BRACKET; CONDENSER ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97109-281-1	01	1	0612-	●	●	●	●	●	●
59	09.190 BRACKET; CONDENSER ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97122-232-0	01	1	0612-	●	●	●	●	●	●
59	09.190 BRACKET; CONDENSER 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.216 (G)	8-97184-619-0	01	1	0612-		●	●		●	●
59	09.190 BRACKET; CONDENSER 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98073-638-0	01	1	0612-		●	●		●	●
65	09.216 BOLT; SHROUD ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-97135-721-0	10	1	0612-	●	●	●	●	●	●
124	09.169 BOLT; BRKT ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 03.302	1-15619-282-0	02	1	0612-	●	●	●	●	●	●
124	09.169 BOLT; BRKT ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.242	1-15729-562-0	02	1	0612-	●	●	●	●	●	●
132	09.190 WASHER; BRKT ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 00.669 ID=8	1-14319-034-0	02	1	0612-	●	●	●	●	●	●
157	09.190 CONDENSER & FAN ASM 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-98043-038-0	01	1	0612-	●	●	●	●
157	09.190 CONDENSER & FAN ASM 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-97184-618-0	01	1	0612-		●	●		●	●
183	09.190 GUIDE; AIR ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-97122-235-0	01	1	0612-	●	●	●	●	●	●
