Isuzu WW
▶
TRUCKS
▶
NPR
▶
50949 - NPR/NQR(EUROPE)-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

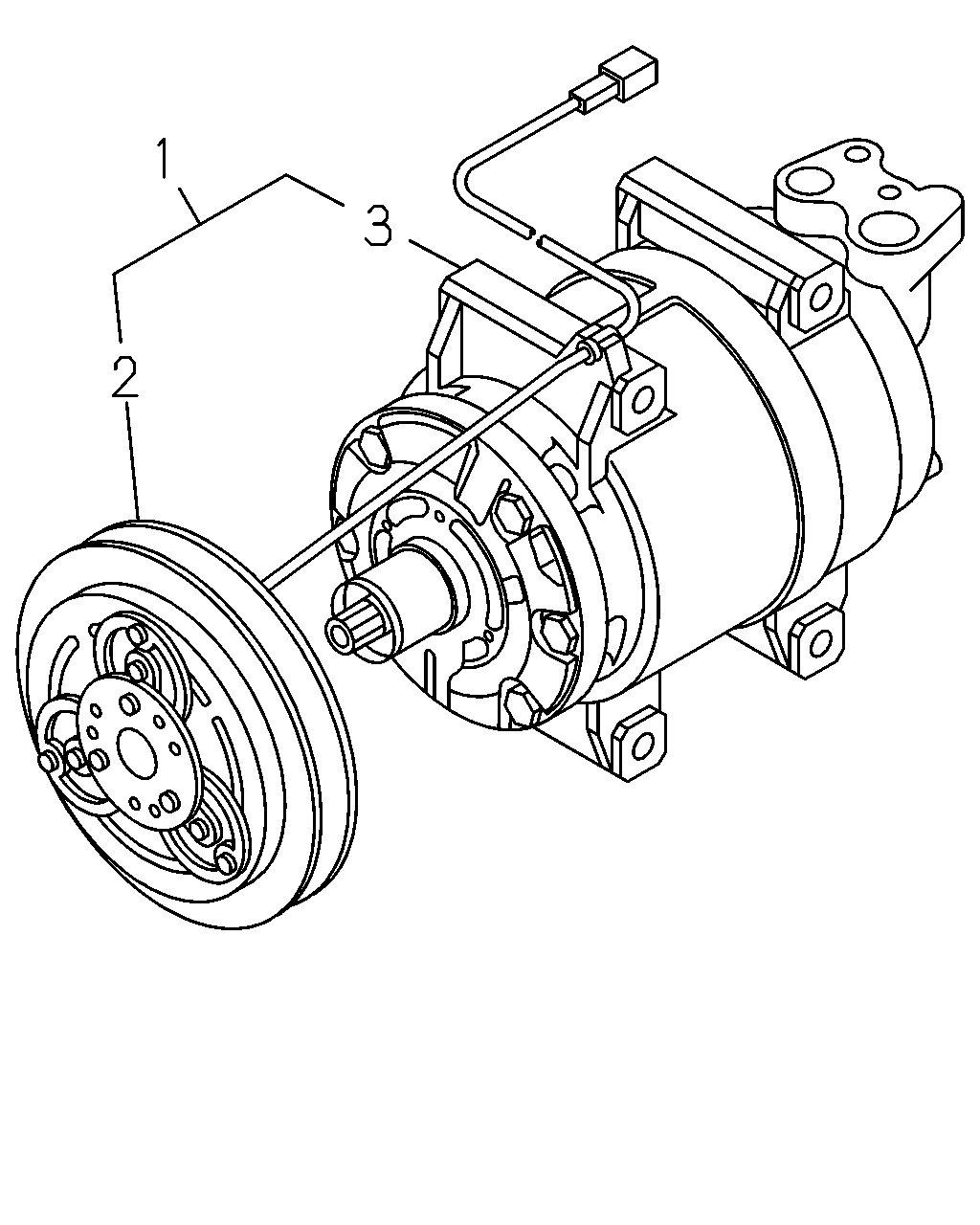

8-71 - COMPRESSOR; AIR CONDITIONING
▶
8-71 — COMPRESSOR; AIR CONDITIONING
(#46617) — 6 parça
Tümü
A - NPC6SC
B - NPC6SF
C - NPC6SK
D - NPC6WF
E - NPC6SS
F - NPC6WS
1
3
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
09.170 COMPRESSOR ASM; A/C
4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) VALEO
8-98000-988-1
01
1
0612-
●
●
●
●
1
09.170 COMPRESSOR ASM; A/C
4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) BOSCH
8-97320-403-2
01
1
0612-
●
●
●
●
2
09.188 CLUTCH; MAGNET,A/C
4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)
8-98042-534-1
01
1
0612-
●
●
●
●
2
09.188 CLUTCH; MAGNET,A/C
4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)
8-97377-823-0
01
1
0612-
●
●
●
●
3
09.170 COMPRESSOR ASM; A/C
4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)
8-98042-531-0
01
1
0612-
●
●
●
●
3
09.170 COMPRESSOR ASM; A/C
4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)
8-97377-822-2
01
1
0612-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
