Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#46614) — 107 parça

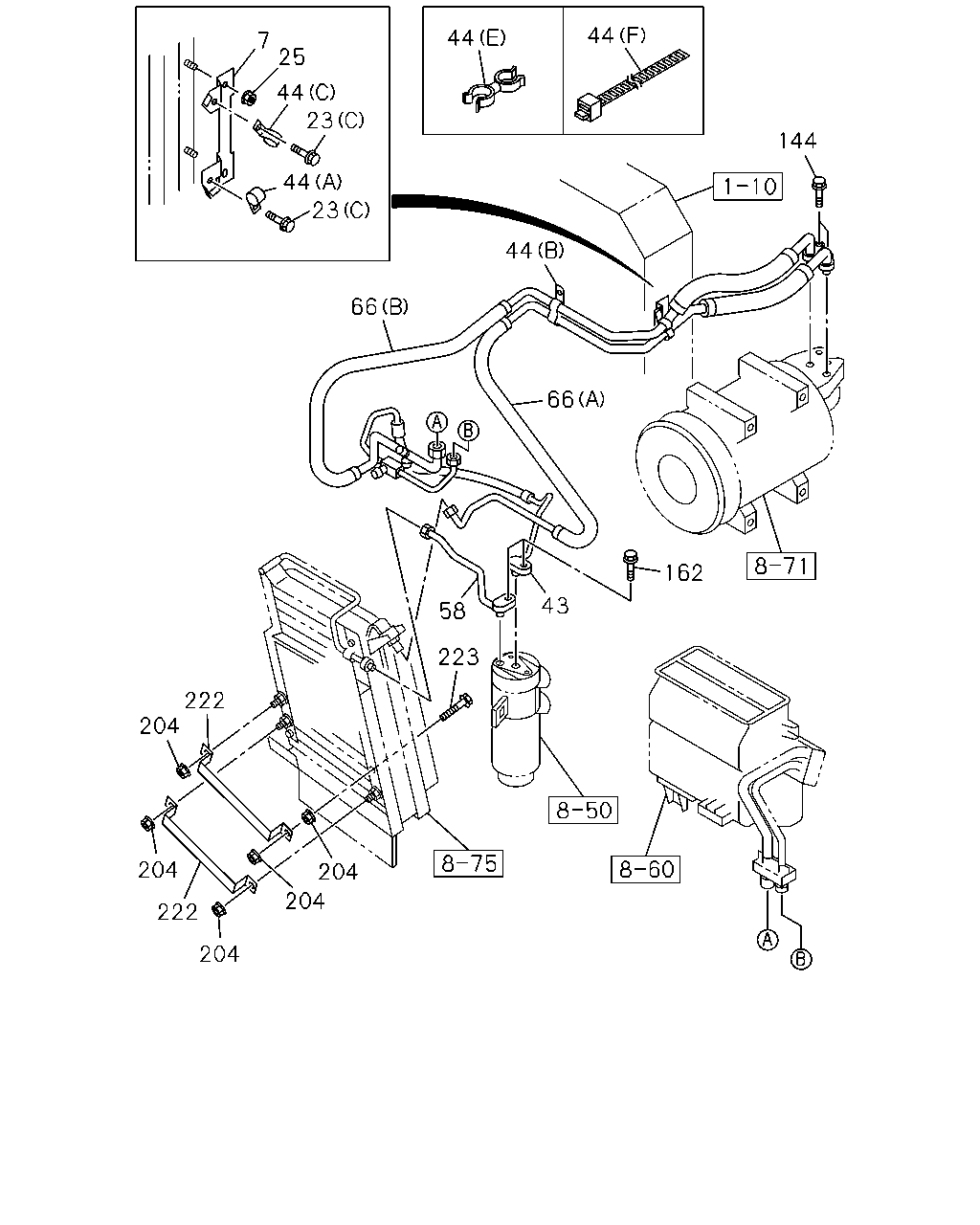

44 44 7 25 44 23 144 44 23 44 66 66 162 43 58 223 222 204 204 204 204 222 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
7	09.242 BRACKET; FLEX HOSE,A/C 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	0612-	●	●	●	●
7	09.242 BRACKET; FLEX HOSE,A/C 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-97371-874-0	01	1	0612-		●	●		●	●
23	09.171 BOLT; BRKT 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) M6X12 FLANGE	0-28050-612-0	03	1	0612-	●	●	●	●
23	09.171 BOLT; BRKT 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X20 FLANGE	0-28650-620-0	02	1	0612-		●	●		●	●
23	09.171 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 03.670 (A) M6X20 FLANGE	0-28080-620-0	01	1	0302-0506	●	●	●	●	●	●	●
25	09.171 NUT; BRKT 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	0612-	●	●	●	●
25	09.171 NUT; BRKT 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91180-208-0	01	1	0612-		●	●		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-98043-381-0	01	1	0612-	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.290	8-98010-218-0	01	1	0612-		●	●		●	●
44	09.242 CLIP; FLEX HOSE 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 04.686 (A) ID=16 L=20	0-95235-532-0	01	1	0612-	●	●	●	●
44	09.242 CLIP; FLEX HOSE 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98033-179-0	01	1	0612-	●	●	●	●
44	09.242 CLIP; FLEX HOSE 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (C) ID=13 H=12 L=20	8-98038-485-0	01	1	0612-	●	●	●	●
44	09.242 CLIP; FLEX HOSE 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97358-649-0	01	1	0612-		●	●		●	●
44	09.242 CLIP; FLEX HOSE 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 04.104 (E) ID=12 & 16.5	8-94400-865-0	01	1	0612-	●	●	●	●
44	09.242 CLIP; FLEX HOSE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 08.852 (F) L=350	8-94152-256-1	01	1	0612-	●	●	●	●	●	●
44	09.242 CLIP; FLEX HOSE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 02.559 (F) L=250	5-09707-030-1	10	1	0612-	●	●	●	●	●	●
58	09.220 PIPE; CONDENSER TO RECEIVER TANK 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-98043-037-0	01	1	0612-	●	●	●	●
58	09.220 PIPE; CONDENSER TO RECEIVER TANK 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.260	8-97388-163-0	01	1	0612-		●	●		●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98043-036-0	01	1	0612-		●	●		●	●
66	09.225 HOSE; FLEX,A/C 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98043-034-0	01	1	0612-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98043-382-0	01	1	0612-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98043-035-0	01	1	0612-		●	●		●	●
144	09.242 BOLT; CONN TO CMPR ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0612-0708	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0709-	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0302-0506	●	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 02.334 M6X25 FLANGE	0-28680-625-0	02	1	0612-0708	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	02	1	0709-	●	●	●	●	●	●
204	09.216 NUT ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91180-208-0	05	1	0612-	●	●	●	●	●	●
222	09.171 GUARD; CONDENSER ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 08.845	8-97119-894-1	02	1	0612-	●	●	●	●	●	●
223	09.242 BOLT; GUARD,CONDENSER ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0612-	●	●	●	●	●	●

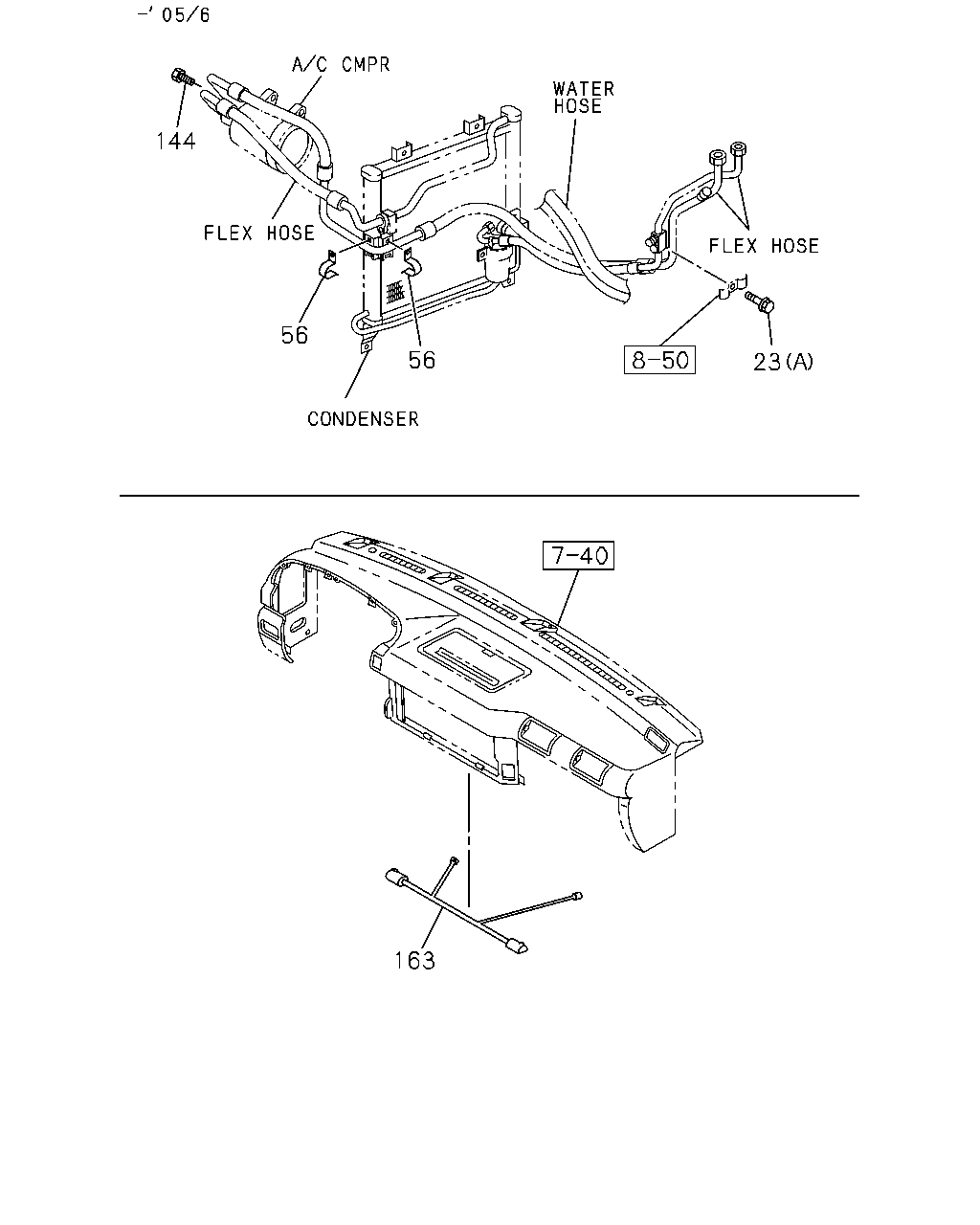

144 56 56 23 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
23	09.171 BOLT; BRKT 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) M6X12 FLANGE	0-28050-612-0	03	1	0612-	●	●	●	●
23	09.171 BOLT; BRKT 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X20 FLANGE	0-28650-620-0	02	1	0612-		●	●		●	●
23	09.171 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 03.670 (A) M6X20 FLANGE	0-28080-620-0	01	1	0302-0506	●	●	●	●	●	●	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97024-716-0	02	1	0302-0506	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0612-0708	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0709-	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0302-0506	●	●	●	●	●	●	●
163	09.225 HARNESS; WIRE 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-98044-971-1	01	1	0612-	●	●	●	●
163	09.225 HARNESS; WIRE 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.211	8-97122-951-2	01	1	0612-		●	●		●	●

50 43 148 147 50 66 67 67 147 148 67 66 67 57 58 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-98043-381-0	01	1	0612-	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.290	8-98010-218-0	01	1	0612-		●	●		●	●
50	09.222 GASKET; FLEX HOSE,A/C ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.195	8-97161-776-0	02	1	0612-	●	●	●	●	●	●
57	09.222 GASKET; CONDENSER TO RECEIVER TA 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.195 (A)	8-97161-776-0	02	1	0612-	●	●	●	●
57	09.222 GASKET; CONDENSER TO RECEIVER TA 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.195 (A)	8-97161-776-0	01	1	0612-		●	●		●	●
57	09.222 GASKET; CONDENSER TO RECEIVER TA 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97313-659-0	01	1	0612-		●	●		●	●
58	09.220 PIPE; CONDENSER TO RECEIVER TANK 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-98043-037-0	01	1	0612-	●	●	●	●
58	09.220 PIPE; CONDENSER TO RECEIVER TANK 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.260	8-97388-163-0	01	1	0612-		●	●		●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98043-036-0	01	1	0612-		●	●		●	●
66	09.225 HOSE; FLEX,A/C 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98043-034-0	01	1	0612-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98043-382-0	01	1	0612-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98043-035-0	01	1	0612-		●	●		●	●
67	09.260 GASKET; FLEX HOSE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (A) ID=15.5	8-97161-777-0	01	1	0612-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.225 (C) ID=18.3	8-97161-778-0	01	1	0612-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (B) ID=21.3	8-97223-125-0	01	1	0612-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.222 (D) ID=10.8	8-94113-331-0	01	1	0612-		●	●		●	●
147	09.242 CAP; FLEX HOSE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H	8-97083-101-0	01	1	0612-	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	0612-	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97083-100-0	01	1	0612-	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.198 (B)	8-97083-892-0	01	1	0612-	●	●	●	●	●	●

50 148 147 43 50 67 66 67 67 67 66 148 147 57 58 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-98043-381-0	01	1	0612-	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.290	8-98010-218-0	01	1	0612-		●	●		●	●
50	09.222 GASKET; FLEX HOSE,A/C ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.195	8-97161-776-0	02	1	0612-	●	●	●	●	●	●
57	09.222 GASKET; CONDENSER TO RECEIVER TA 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.195 (A)	8-97161-776-0	02	1	0612-	●	●	●	●
57	09.222 GASKET; CONDENSER TO RECEIVER TA 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.195 (A)	8-97161-776-0	01	1	0612-		●	●		●	●
57	09.222 GASKET; CONDENSER TO RECEIVER TA 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97313-659-0	01	1	0612-		●	●		●	●
58	09.220 PIPE; CONDENSER TO RECEIVER TANK 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-98043-037-0	01	1	0612-	●	●	●	●
58	09.220 PIPE; CONDENSER TO RECEIVER TANK 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.260	8-97388-163-0	01	1	0612-		●	●		●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98043-036-0	01	1	0612-		●	●		●	●
66	09.225 HOSE; FLEX,A/C 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98043-034-0	01	1	0612-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98043-382-0	01	1	0612-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98043-035-0	01	1	0612-		●	●		●	●
67	09.260 GASKET; FLEX HOSE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (A) ID=15.5	8-97161-777-0	01	1	0612-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.225 (C) ID=18.3	8-97161-778-0	01	1	0612-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (B) ID=21.3	8-97223-125-0	01	1	0612-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.222 (D) ID=10.8	8-94113-331-0	01	1	0612-		●	●		●	●
147	09.242 CAP; FLEX HOSE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H	8-97083-101-0	01	1	0612-	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	0612-	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97083-100-0	01	1	0612-	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.198 (B)	8-97083-892-0	01	1	0612-	●	●	●	●	●	●

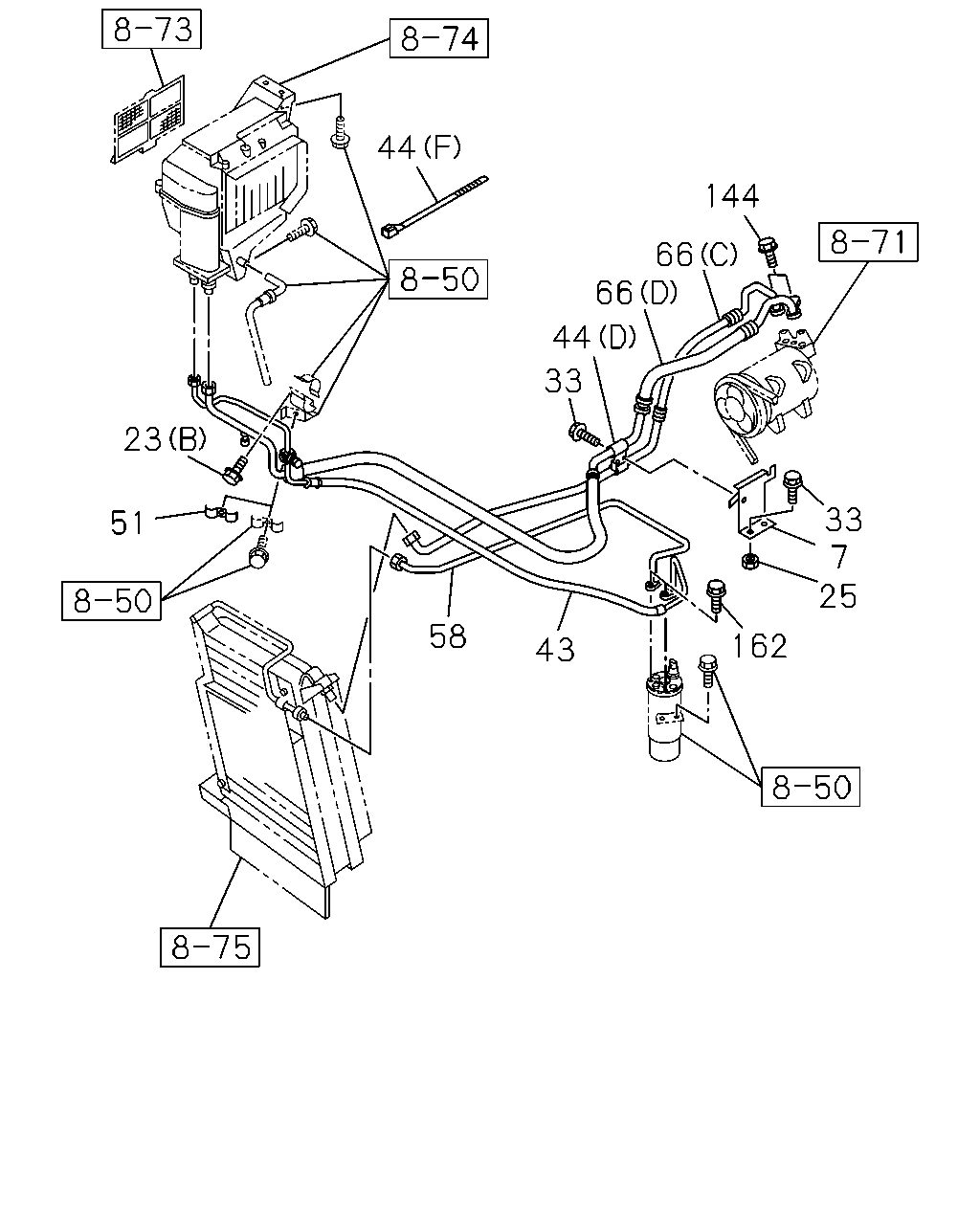

44 144 66 66 44 33 23 33 7 25 51 58 162 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
7	09.242 BRACKET; FLEX HOSE,A/C 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	0612-	●	●	●	●
7	09.242 BRACKET; FLEX HOSE,A/C 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-97371-874-0	01	1	0612-		●	●		●	●
23	09.171 BOLT; BRKT 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) M6X12 FLANGE	0-28050-612-0	03	1	0612-	●	●	●	●
23	09.171 BOLT; BRKT 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X20 FLANGE	0-28650-620-0	02	1	0612-		●	●		●	●
23	09.171 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 03.670 (A) M6X20 FLANGE	0-28080-620-0	01	1	0302-0506	●	●	●	●	●	●	●
25	09.171 NUT; BRKT 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	0612-	●	●	●	●
25	09.171 NUT; BRKT 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91180-208-0	01	1	0612-		●	●		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-98043-381-0	01	1	0612-	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.290	8-98010-218-0	01	1	0612-		●	●		●	●
44	09.242 CLIP; FLEX HOSE 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 04.686 (A) ID=16 L=20	0-95235-532-0	01	1	0612-	●	●	●	●
44	09.242 CLIP; FLEX HOSE 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98033-179-0	01	1	0612-	●	●	●	●
44	09.242 CLIP; FLEX HOSE 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (C) ID=13 H=12 L=20	8-98038-485-0	01	1	0612-	●	●	●	●
44	09.242 CLIP; FLEX HOSE 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97358-649-0	01	1	0612-		●	●		●	●
44	09.242 CLIP; FLEX HOSE 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 04.104 (E) ID=12 & 16.5	8-94400-865-0	01	1	0612-	●	●	●	●
44	09.242 CLIP; FLEX HOSE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 08.852 (F) L=350	8-94152-256-1	01	1	0612-	●	●	●	●	●	●
44	09.242 CLIP; FLEX HOSE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 02.559 (F) L=250	5-09707-030-1	10	1	0612-	●	●	●	●	●	●
51	09.242 BRACKET; PIPE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.226	8-97090-310-1	01	1	0612-	●	●	●	●	●	●
58	09.220 PIPE; CONDENSER TO RECEIVER TANK 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60)	8-98043-037-0	01	1	0612-	●	●	●	●
58	09.220 PIPE; CONDENSER TO RECEIVER TANK 4HK1-TCC ENG(RDV) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.260	8-97388-163-0	01	1	0612-		●	●		●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98043-036-0	01	1	0612-		●	●		●	●
66	09.225 HOSE; FLEX,A/C 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98043-034-0	01	1	0612-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1 ENG(LFB) ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98043-382-0	01	1	0612-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98043-035-0	01	1	0612-		●	●		●	●
144	09.242 BOLT; CONN TO CMPR ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0612-0708	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0709-	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0302-0506	●	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 02.334 M6X25 FLANGE	0-28680-625-0	02	1	0612-0708	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	02	1	0709-	●	●	●	●	●	●
