Sayfa 8-45 - Isuzu EPC

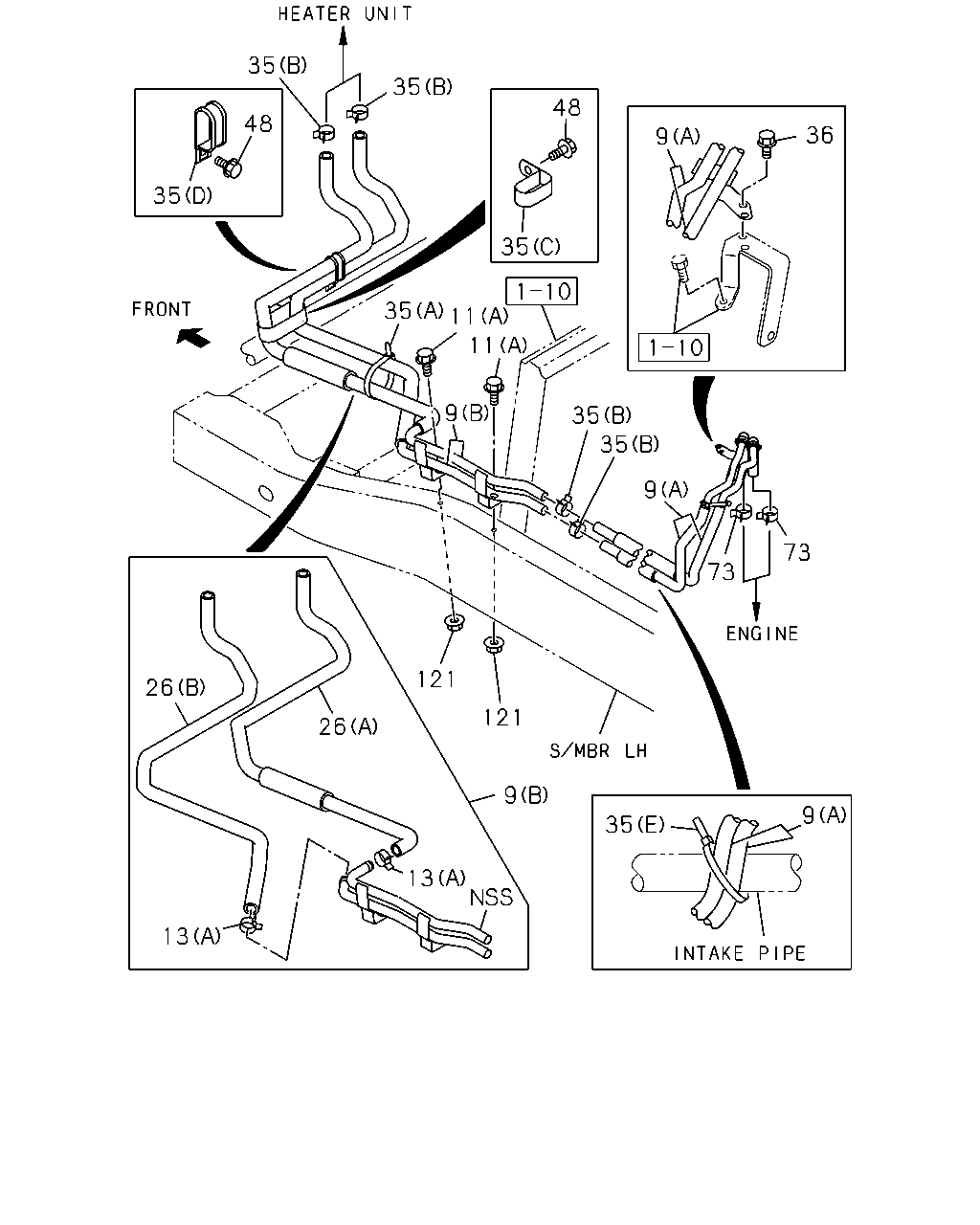

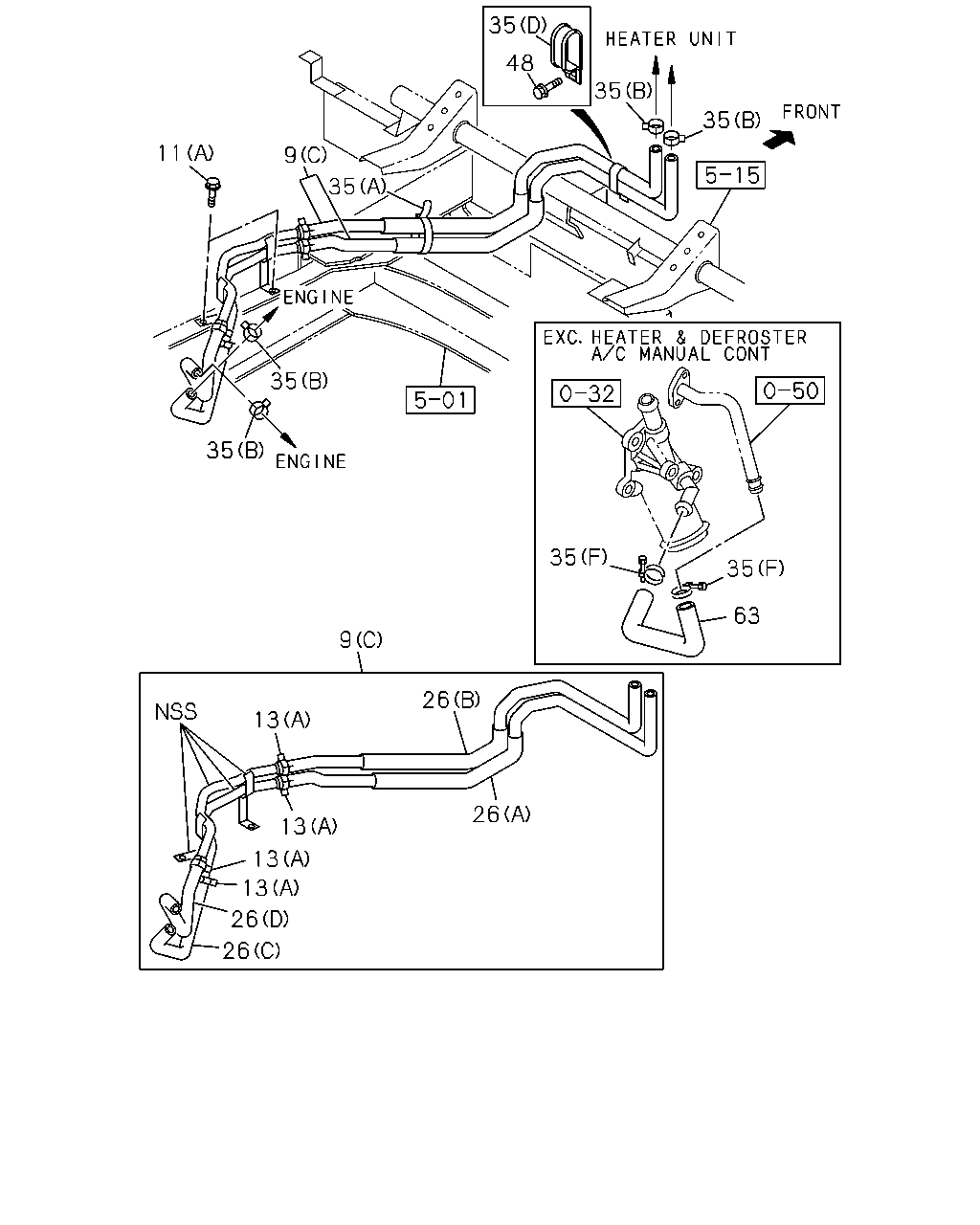

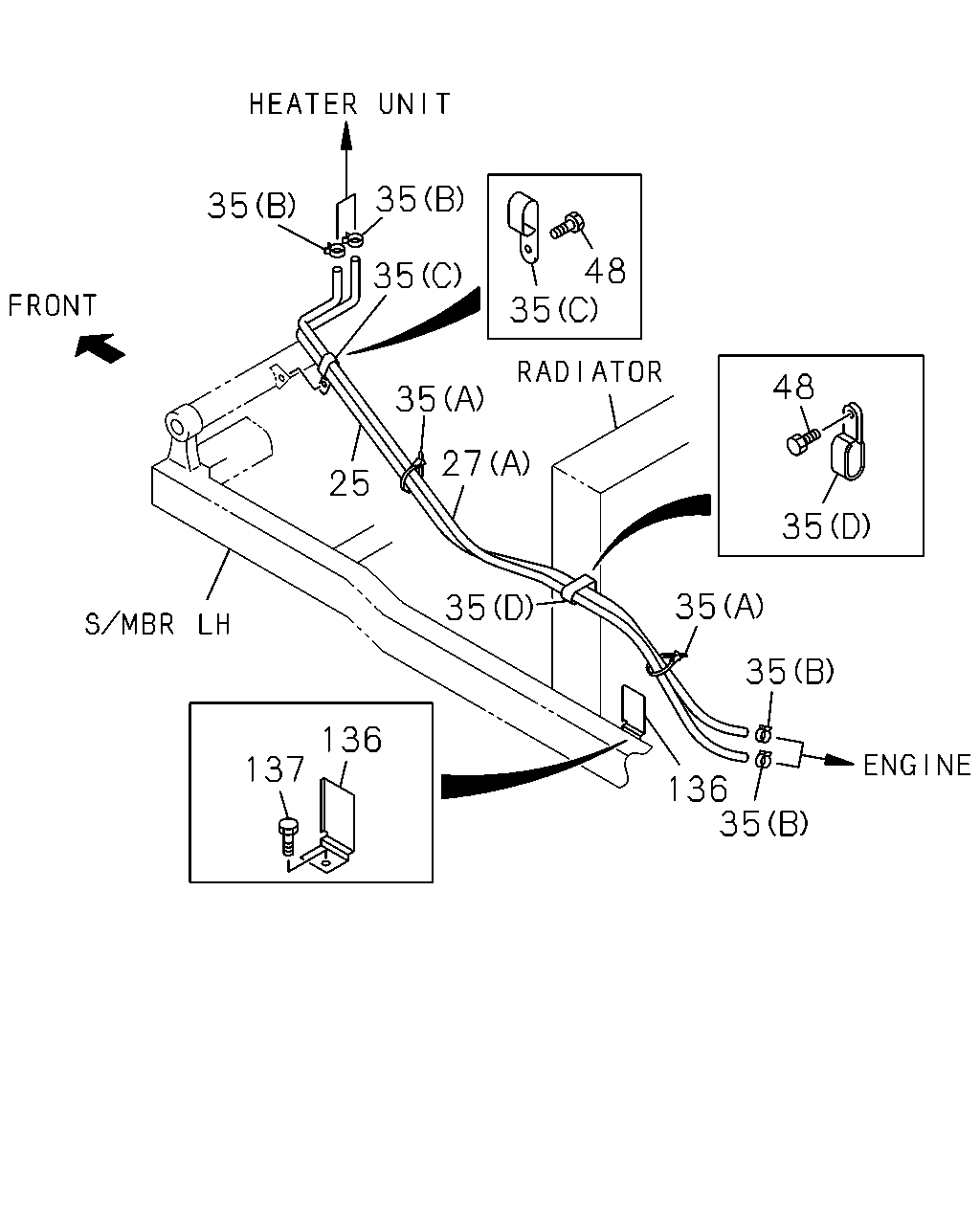

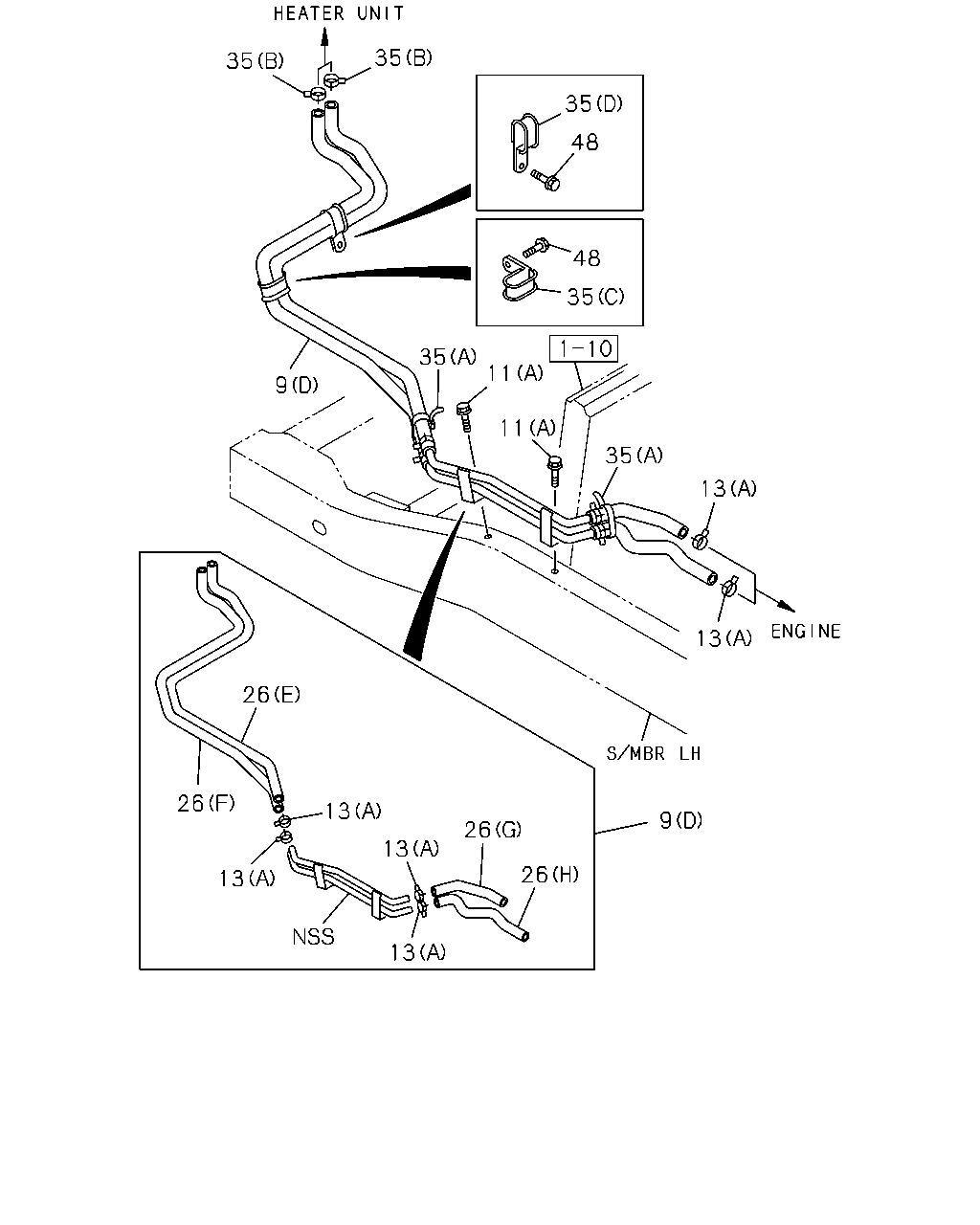

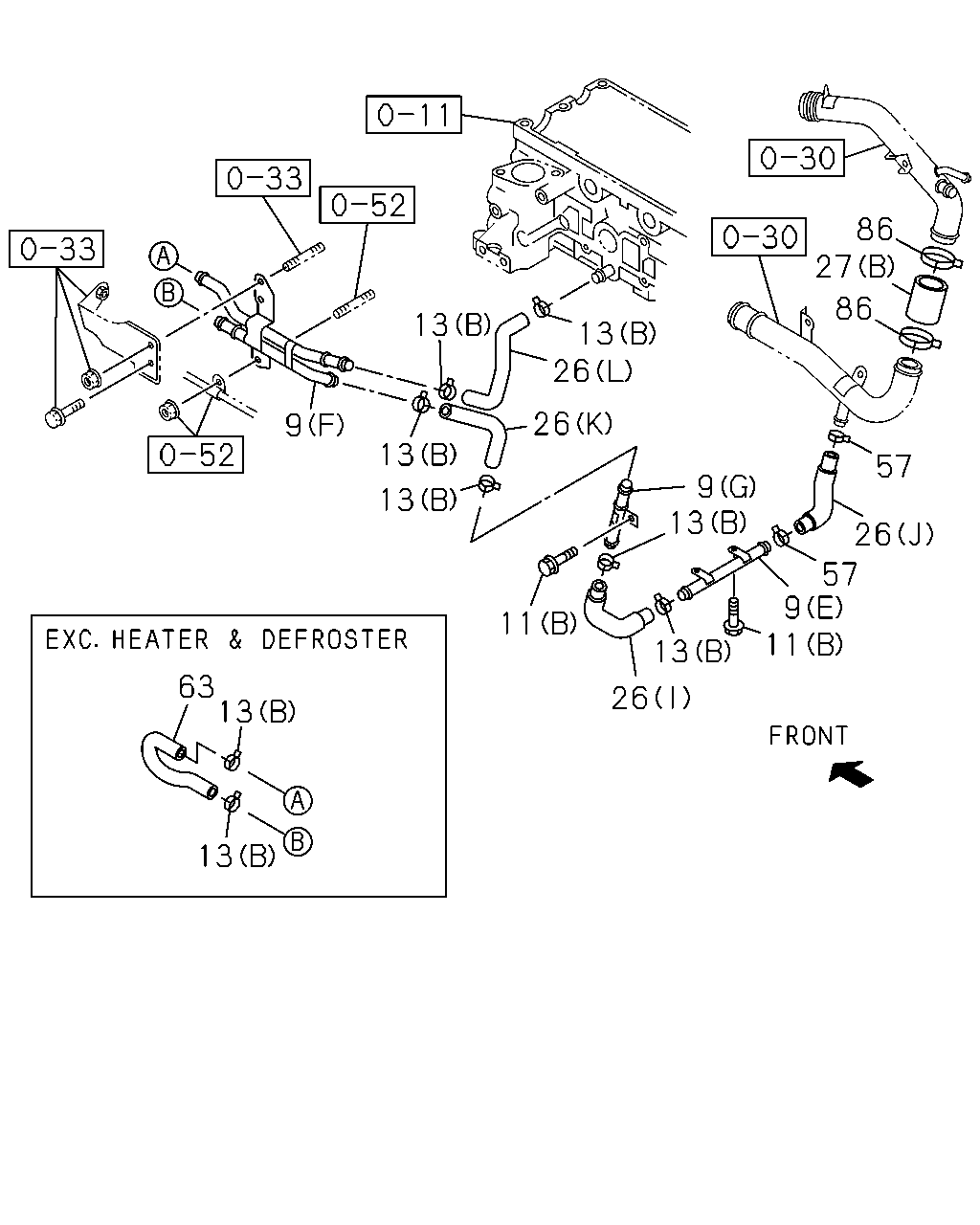

8-45 — HEATER PIPING (#46612) — 358 parça

35 35 35 48 48 35 35 11 9 11 35 13 13 26 26 13 9 26 13 26 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (F)	8-98028-829-1	01	1	0607-	●	●	●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (D)	8-97386-894-2	01	1	0607-	●	●	●	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) (A)	8-97301-466-0	01	1	0302-0506	●	●		●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A)	8-97301-466-0	01	1	0507-0606	●	●		●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (E)	8-97383-035-1	01	1	0607-	●	●	●	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97205-279-1	01	1	0302-0506	●	●		●
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97333-099-2	01	1	0507-0606		●	●	●	●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (G)	8-97381-481-3	01	1	0607-	●	●	●	●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (B)	8-97205-279-2	01	1	0507-0606	●	●		●
9	08.846 PIPE; HTR 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (C)	8-97333-099-2	01	1	0607-		●	●		●	●
11	08.845 BOLT; HTR PIPE 4JJ1 ENG(LFB) 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	0607-	●	●	●	●
11	08.845 BOLT; HTR PIPE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0302-0506	●	●		●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●	●	●	●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606	●	●	●	●	●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) 01.166 (B) ID=20.8	8-94125-862-1	06	1	0607-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) EXC. HEATER & DEFROSTER(C41) 01.166 (B) ID=20.8	8-94125-862-1	02	1	0607-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	02	1	0302-0506	●	●		●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	04	1	0507-0606		●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	04	1	0607-	●			●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	04	1	0607-		●	●
13	08.846 CLIP; HTR HOSE 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	04	1	0607-					●	●
13	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	02	1	0507-0606	●	●		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	02	1	0607-0610	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) 03.278 (A) ID=22	8-97359-141-0	02	1	0611-	●	●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (I)	8-98000-099-1	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (J)	8-98000-101-2	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (G)	8-98050-277-0	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (H)	8-98050-278-0	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (E)	8-98050-280-0	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (F)	8-98050-282-0	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97239-076-0	01	1	0302-0506	●	●		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97373-830-0	01	1	0507-0606		●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (L)	8-97383-048-1	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97239-077-0	01	1	0302-0506	●	●		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97373-831-0	01	1	0507-0606		●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (K)	0-03516-240-0	01	1	0607-0910	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (K)	8-98143-868-0	01	1	0911-	●	●	●	●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A)	8-97239-076-0	01	1	0507-0606	●	●		●
26	08.846 HOSE; HTR 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (A)	8-97373-830-0	01	1	0607-		●	●		●	●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (B)	8-97239-077-0	01	1	0507-0606	●	●		●
26	08.846 HOSE; HTR 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (B)	8-97373-831-0	01	1	0607-		●	●		●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97373-832-0	01	1	0507-0606		●	●	●	●	●
26	08.846 HOSE; HTR 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (C)	8-97373-832-0	01	1	0607-		●	●		●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97373-833-0	01	1	0507-0606		●	●	●	●	●
26	08.846 HOSE; HTR 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (D)	8-97373-833-0	01	1	0607-		●	●		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	0302-0506	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	0507-0606	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-006-0	01	1	0607-0610	●			●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-006-0	01	1	0607-0610		●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-006-0	01	1	0607-0610					●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0611-	●			●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0611-		●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0611-					●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	04	1	0302-0506	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0507-0606	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0607-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0607-	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0302-0506	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0302-0506	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0302-0506	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0507-0606	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0607-0610	●			●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0607-0610		●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0607-0610					●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.846 (D) B=18	8-97359-144-0	01	1	0611-	●			●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (D) B=18	8-97359-144-0	01	1	0611-		●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (D) B=18	8-97359-144-0	01	1	0611-					●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.483 (E) L=450	1-09707-142-1	01	1	0302-0506	●	●		●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 03.483 (E) L=450	1-09707-142-1	01	1	0507-0606	●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B) ID=22	8-94382-401-0	02	1	0607-0610	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 03.278 (B) ID=22	8-97359-141-0	02	1	0611-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0302-0506	●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	04	1	0507-0606	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (F) ID=25	8-94233-115-0	02	1	0508-0606		●	●		●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (F) ID=25	8-94233-115-0	02	1	0508-0606				●
35	08.852 CLIP; WATER HOSE 4HK1-TCC ENG(RDV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (F) ID=25	8-94233-115-0	02	1	0607-		●	●		●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0302-0506	●	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0507-0512	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-0606	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0607-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0302-0506	●	●	●	●	●	●	●

86 27 86 13 13 26 26 9 13 57 9 13 13 26 57 9 11 11 13 63 13 26 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (F)	8-98028-829-1	01	1	0607-	●	●	●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (D)	8-97386-894-2	01	1	0607-	●	●	●	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) (A)	8-97301-466-0	01	1	0302-0506	●	●		●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A)	8-97301-466-0	01	1	0507-0606	●	●		●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (E)	8-97383-035-1	01	1	0607-	●	●	●	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97205-279-1	01	1	0302-0506	●	●		●
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97333-099-2	01	1	0507-0606		●	●	●	●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (G)	8-97381-481-3	01	1	0607-	●	●	●	●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (B)	8-97205-279-2	01	1	0507-0606	●	●		●
9	08.846 PIPE; HTR 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (C)	8-97333-099-2	01	1	0607-		●	●		●	●
11	08.845 BOLT; HTR PIPE 4JJ1 ENG(LFB) 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	0607-	●	●	●	●
11	08.845 BOLT; HTR PIPE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0302-0506	●	●		●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●	●	●	●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606	●	●	●	●	●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) 01.166 (B) ID=20.8	8-94125-862-1	06	1	0607-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) EXC. HEATER & DEFROSTER(C41) 01.166 (B) ID=20.8	8-94125-862-1	02	1	0607-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	02	1	0302-0506	●	●		●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	04	1	0507-0606		●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	04	1	0607-	●			●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	04	1	0607-		●	●
13	08.846 CLIP; HTR HOSE 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	04	1	0607-					●	●
13	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	02	1	0507-0606	●	●		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	02	1	0607-0610	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) 03.278 (A) ID=22	8-97359-141-0	02	1	0611-	●	●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (I)	8-98000-099-1	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (J)	8-98000-101-2	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (G)	8-98050-277-0	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (H)	8-98050-278-0	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (E)	8-98050-280-0	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (F)	8-98050-282-0	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97239-076-0	01	1	0302-0506	●	●		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97373-830-0	01	1	0507-0606		●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (L)	8-97383-048-1	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97239-077-0	01	1	0302-0506	●	●		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97373-831-0	01	1	0507-0606		●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (K)	0-03516-240-0	01	1	0607-0910	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (K)	8-98143-868-0	01	1	0911-	●	●	●	●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A)	8-97239-076-0	01	1	0507-0606	●	●		●
26	08.846 HOSE; HTR 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (A)	8-97373-830-0	01	1	0607-		●	●		●	●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (B)	8-97239-077-0	01	1	0507-0606	●	●		●
26	08.846 HOSE; HTR 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (B)	8-97373-831-0	01	1	0607-		●	●		●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97373-832-0	01	1	0507-0606		●	●	●	●	●
26	08.846 HOSE; HTR 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (C)	8-97373-832-0	01	1	0607-		●	●		●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97373-833-0	01	1	0507-0606		●	●	●	●	●
26	08.846 HOSE; HTR 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (D)	8-97373-833-0	01	1	0607-		●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97148-861-2	01	1	0302-0506	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1 ENG(LFB) (B)	8-98009-701-0	01	1	0607-	●	●	●	●
57	08.846 CLIP; HOSE 4JJ1 ENG(LFB) 01.166 ID=20.8	8-94125-862-1	02	1	0607-	●	●	●	●
63	08.846 HOSE; WATER 4HK1-TCC ENG(RDV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540	8-94134-250-1	01	1	0607-		●	●		●	●
63	08.846 HOSE; WATER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540	8-94134-250-1	01	1	0508-0606		●	●		●	●
63	08.846 HOSE; WATER 4HK1-TCN ENG(RDQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540	8-94134-250-1	01	1	0508-0606				●
63	08.846 HOSE; WATER 4JJ1 ENG(LFB) EXC. HEATER & DEFROSTER(C41)	8-98015-119-3	01	1	0607-	●	●	●	●
86	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) 01.166 ID=40.5	8-97313-472-0	02	1	0607-	●	●	●	●

35 48 35 35 11 9 35 35 35 35 35 63 9 26 13 26 13 13 13 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (F)	8-98028-829-1	01	1	0607-	●	●	●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (D)	8-97386-894-2	01	1	0607-	●	●	●	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) (A)	8-97301-466-0	01	1	0302-0506	●	●		●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A)	8-97301-466-0	01	1	0507-0606	●	●		●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (E)	8-97383-035-1	01	1	0607-	●	●	●	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97205-279-1	01	1	0302-0506	●	●		●
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97333-099-2	01	1	0507-0606		●	●	●	●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (G)	8-97381-481-3	01	1	0607-	●	●	●	●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (B)	8-97205-279-2	01	1	0507-0606	●	●		●
9	08.846 PIPE; HTR 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (C)	8-97333-099-2	01	1	0607-		●	●		●	●
11	08.845 BOLT; HTR PIPE 4JJ1 ENG(LFB) 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	0607-	●	●	●	●
11	08.845 BOLT; HTR PIPE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0302-0506	●	●		●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●	●	●	●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606	●	●	●	●	●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) 01.166 (B) ID=20.8	8-94125-862-1	06	1	0607-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) EXC. HEATER & DEFROSTER(C41) 01.166 (B) ID=20.8	8-94125-862-1	02	1	0607-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	02	1	0302-0506	●	●		●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	04	1	0507-0606		●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	04	1	0607-	●			●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	04	1	0607-		●	●
13	08.846 CLIP; HTR HOSE 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	04	1	0607-					●	●
13	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	02	1	0507-0606	●	●		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	02	1	0607-0610	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) 03.278 (A) ID=22	8-97359-141-0	02	1	0611-	●	●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (I)	8-98000-099-1	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (J)	8-98000-101-2	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (G)	8-98050-277-0	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (H)	8-98050-278-0	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (E)	8-98050-280-0	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (F)	8-98050-282-0	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97239-076-0	01	1	0302-0506	●	●		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97373-830-0	01	1	0507-0606		●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (L)	8-97383-048-1	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97239-077-0	01	1	0302-0506	●	●		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97373-831-0	01	1	0507-0606		●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (K)	0-03516-240-0	01	1	0607-0910	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (K)	8-98143-868-0	01	1	0911-	●	●	●	●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A)	8-97239-076-0	01	1	0507-0606	●	●		●
26	08.846 HOSE; HTR 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (A)	8-97373-830-0	01	1	0607-		●	●		●	●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (B)	8-97239-077-0	01	1	0507-0606	●	●		●
26	08.846 HOSE; HTR 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (B)	8-97373-831-0	01	1	0607-		●	●		●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97373-832-0	01	1	0507-0606		●	●	●	●	●
26	08.846 HOSE; HTR 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (C)	8-97373-832-0	01	1	0607-		●	●		●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97373-833-0	01	1	0507-0606		●	●	●	●	●
26	08.846 HOSE; HTR 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (D)	8-97373-833-0	01	1	0607-		●	●		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	0302-0506	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	0507-0606	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-006-0	01	1	0607-0610	●			●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-006-0	01	1	0607-0610		●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-006-0	01	1	0607-0610					●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0611-	●			●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0611-		●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0611-					●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	04	1	0302-0506	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0507-0606	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0607-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0607-	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0302-0506	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0302-0506	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0302-0506	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0507-0606	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0607-0610	●			●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0607-0610		●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0607-0610					●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.846 (D) B=18	8-97359-144-0	01	1	0611-	●			●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (D) B=18	8-97359-144-0	01	1	0611-		●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (D) B=18	8-97359-144-0	01	1	0611-					●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.483 (E) L=450	1-09707-142-1	01	1	0302-0506	●	●		●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 03.483 (E) L=450	1-09707-142-1	01	1	0507-0606	●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B) ID=22	8-94382-401-0	02	1	0607-0610	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 03.278 (B) ID=22	8-97359-141-0	02	1	0611-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0302-0506	●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	04	1	0507-0606	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (F) ID=25	8-94233-115-0	02	1	0508-0606		●	●		●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (F) ID=25	8-94233-115-0	02	1	0508-0606				●
35	08.852 CLIP; WATER HOSE 4HK1-TCC ENG(RDV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (F) ID=25	8-94233-115-0	02	1	0607-		●	●		●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0302-0506	●	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0507-0512	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-0606	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0607-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0302-0506	●	●	●	●	●	●	●
63	08.846 HOSE; WATER 4HK1-TCC ENG(RDV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540	8-94134-250-1	01	1	0607-		●	●		●	●
63	08.846 HOSE; WATER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540	8-94134-250-1	01	1	0508-0606		●	●		●	●
63	08.846 HOSE; WATER 4HK1-TCN ENG(RDQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540	8-94134-250-1	01	1	0508-0606				●
63	08.846 HOSE; WATER 4JJ1 ENG(LFB) EXC. HEATER & DEFROSTER(C41)	8-98015-119-3	01	1	0607-	●	●	●	●

35 35 48 48 36 9 35 35 35 11 11 9 35 35 9 73 73 121 26 121 26 9 9 35 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (F)	8-98028-829-1	01	1	0607-	●	●	●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (D)	8-97386-894-2	01	1	0607-	●	●	●	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) (A)	8-97301-466-0	01	1	0302-0506	●	●		●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A)	8-97301-466-0	01	1	0507-0606	●	●		●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (E)	8-97383-035-1	01	1	0607-	●	●	●	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97205-279-1	01	1	0302-0506	●	●		●
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97333-099-2	01	1	0507-0606		●	●	●	●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (G)	8-97381-481-3	01	1	0607-	●	●	●	●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (B)	8-97205-279-2	01	1	0507-0606	●	●		●
9	08.846 PIPE; HTR 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (C)	8-97333-099-2	01	1	0607-		●	●		●	●
11	08.845 BOLT; HTR PIPE 4JJ1 ENG(LFB) 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	0607-	●	●	●	●
11	08.845 BOLT; HTR PIPE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0302-0506	●	●		●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●	●	●	●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606	●	●	●	●	●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) 01.166 (B) ID=20.8	8-94125-862-1	06	1	0607-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) EXC. HEATER & DEFROSTER(C41) 01.166 (B) ID=20.8	8-94125-862-1	02	1	0607-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	02	1	0302-0506	●	●		●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	04	1	0507-0606		●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	04	1	0607-	●			●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	04	1	0607-		●	●
13	08.846 CLIP; HTR HOSE 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	04	1	0607-					●	●
13	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	02	1	0507-0606	●	●		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	02	1	0607-0610	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) 03.278 (A) ID=22	8-97359-141-0	02	1	0611-	●	●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (I)	8-98000-099-1	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (J)	8-98000-101-2	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (G)	8-98050-277-0	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (H)	8-98050-278-0	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (E)	8-98050-280-0	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (F)	8-98050-282-0	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97239-076-0	01	1	0302-0506	●	●		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97373-830-0	01	1	0507-0606		●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (L)	8-97383-048-1	01	1	0607-	●	●	●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97239-077-0	01	1	0302-0506	●	●		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97373-831-0	01	1	0507-0606		●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (K)	0-03516-240-0	01	1	0607-0910	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (K)	8-98143-868-0	01	1	0911-	●	●	●	●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A)	8-97239-076-0	01	1	0507-0606	●	●		●
26	08.846 HOSE; HTR 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (A)	8-97373-830-0	01	1	0607-		●	●		●	●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (B)	8-97239-077-0	01	1	0507-0606	●	●		●
26	08.846 HOSE; HTR 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (B)	8-97373-831-0	01	1	0607-		●	●		●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97373-832-0	01	1	0507-0606		●	●	●	●	●
26	08.846 HOSE; HTR 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (C)	8-97373-832-0	01	1	0607-		●	●		●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97373-833-0	01	1	0507-0606		●	●	●	●	●
26	08.846 HOSE; HTR 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (D)	8-97373-833-0	01	1	0607-		●	●		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	0302-0506	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	0507-0606	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-006-0	01	1	0607-0610	●			●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-006-0	01	1	0607-0610		●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-006-0	01	1	0607-0610					●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0611-	●			●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0611-		●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0611-					●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	04	1	0302-0506	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0507-0606	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0607-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0607-	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0302-0506	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0302-0506	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0302-0506	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0507-0606	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0607-0610	●			●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0607-0610		●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0607-0610					●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.846 (D) B=18	8-97359-144-0	01	1	0611-	●			●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (D) B=18	8-97359-144-0	01	1	0611-		●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (D) B=18	8-97359-144-0	01	1	0611-					●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.483 (E) L=450	1-09707-142-1	01	1	0302-0506	●	●		●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 03.483 (E) L=450	1-09707-142-1	01	1	0507-0606	●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B) ID=22	8-94382-401-0	02	1	0607-0610	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 03.278 (B) ID=22	8-97359-141-0	02	1	0611-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0302-0506	●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	04	1	0507-0606	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (F) ID=25	8-94233-115-0	02	1	0508-0606		●	●		●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (F) ID=25	8-94233-115-0	02	1	0508-0606				●
35	08.852 CLIP; WATER HOSE 4HK1-TCC ENG(RDV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (F) ID=25	8-94233-115-0	02	1	0607-		●	●		●	●
36	08.846 BOLT; BRKT 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0302-0307	●	●		●
36	08.846 BOLT; BRKT 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0308-0506	●	●		●
36	08.846 BOLT; BRKT 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0507-0512	●	●		●
36	08.846 BOLT; BRKT 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-0606	●	●		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0302-0506	●	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0507-0512	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-0606	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0607-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0302-0506	●	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.166 ID=25	9-09915-642-2	02	1	0302-0310	●	●		●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0311-0506	●	●		●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0507-0606	●	●		●
121	08.845 NUT; PIPE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	02	1	0302-0506	●	●		●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602	●	●		●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0606	●	●		●

35 35 48 35 35 48 35 27 25 35 35 35 35 136 137 136 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97148-860-3	01	1	0302-0506	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97148-861-2	01	1	0302-0506	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1 ENG(LFB) (B)	8-98009-701-0	01	1	0607-	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	0302-0506	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	0507-0606	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-006-0	01	1	0607-0610	●			●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-006-0	01	1	0607-0610		●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (C)	5-83574-006-0	01	1	0607-0610					●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0611-	●			●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0611-		●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (C)	8-98029-677-0	01	1	0611-					●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	04	1	0302-0506	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0507-0606	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0607-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0607-	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0302-0506	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0302-0506	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0302-0506	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0507-0606	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0607-0610	●			●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0607-0610		●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0607-0610					●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.846 (D) B=18	8-97359-144-0	01	1	0611-	●			●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (D) B=18	8-97359-144-0	01	1	0611-		●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) 08.846 (D) B=18	8-97359-144-0	01	1	0611-					●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.483 (E) L=450	1-09707-142-1	01	1	0302-0506	●	●		●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 03.483 (E) L=450	1-09707-142-1	01	1	0507-0606	●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B) ID=22	8-94382-401-0	02	1	0607-0610	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 03.278 (B) ID=22	8-97359-141-0	02	1	0611-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0302-0506	●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	04	1	0507-0606	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (F) ID=25	8-94233-115-0	02	1	0508-0606		●	●		●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (F) ID=25	8-94233-115-0	02	1	0508-0606				●
35	08.852 CLIP; WATER HOSE 4HK1-TCC ENG(RDV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (F) ID=25	8-94233-115-0	02	1	0607-		●	●		●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0302-0506	●	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0507-0512	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-0606	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0607-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0302-0506	●	●	●	●	●	●	●
136	08.846 GUIDE; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SPEED LIMITER 90KM<NMJ>	8-97378-109-0	01	1	0408-0506	●	●	●	●	●	●	●
136	08.846 GUIDE; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. SPEED LIMITER 90KM<NMJ>	8-98011-924-0	01	1	0503-0506	●	●	●	●	●	●	●
136	08.846 GUIDE; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97183-818-2	01	1	0302-0407	●	●	●	●	●	●	●
136	08.846 GUIDE; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. SPEED LIMITER 90KM<NMJ>	8-97183-818-2	01	1	0408-0502	●	●	●	●	●	●	●
137	08.846 BOLT; GUIDE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0302-0506	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
