8-40 — HEATER SYSTEM (#46611) — 114 parça

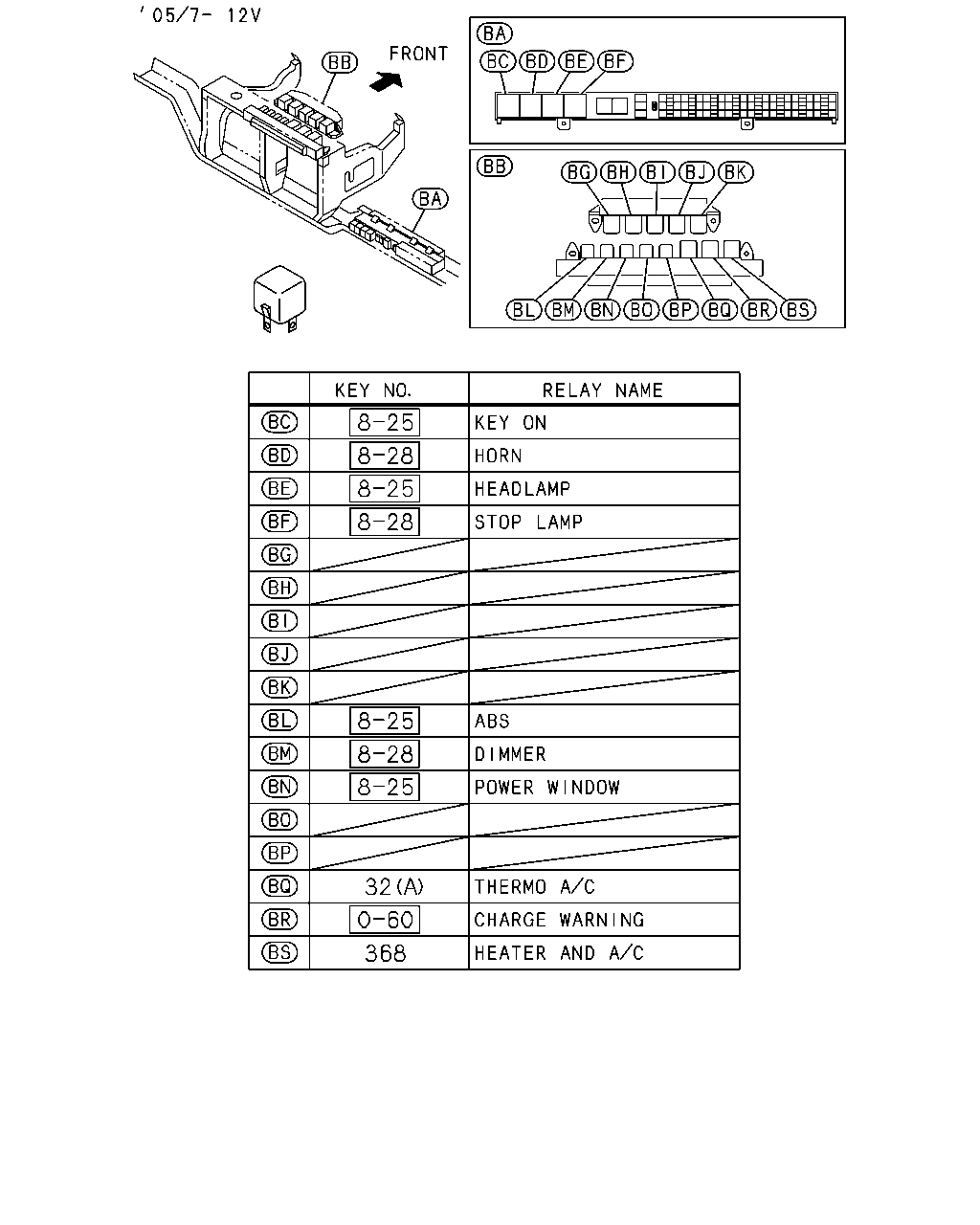

çizim 12710
32 368
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 02.510 (A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ● ● ● ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 02.510 (A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0507-0606 ● ● ● ● ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 (A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0607- ● ● ● ● ● ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 (A) 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 08.852 (A) 12V 20A 		8-97060-926-1 01 1 0507-0606 ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 (A) 12V 20A 		8-97060-926-1 01 1 0507-0606 ● ●
32 02.440 RELAY; A/C
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 02.510 (B) 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ● ●
368 09.277 RELAY; HEATER AND A/C
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
368 09.277 RELAY; HEATER AND A/C
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ●
368 09.277 RELAY; HEATER AND A/C
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0507-0606 ● ●
368 09.277 RELAY; HEATER AND A/C
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0507-0606 ● ● ●
368 09.277 RELAY; HEATER AND A/C
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0607- ● ● ● ● ● ●
368 09.277 RELAY; HEATER AND A/C
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
368 09.277 RELAY; HEATER AND A/C
08.852 12V 20A 		8-97060-926-1 01 1 0507-0606 ●
368 09.277 RELAY; HEATER AND A/C
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0507-0606 ● ●

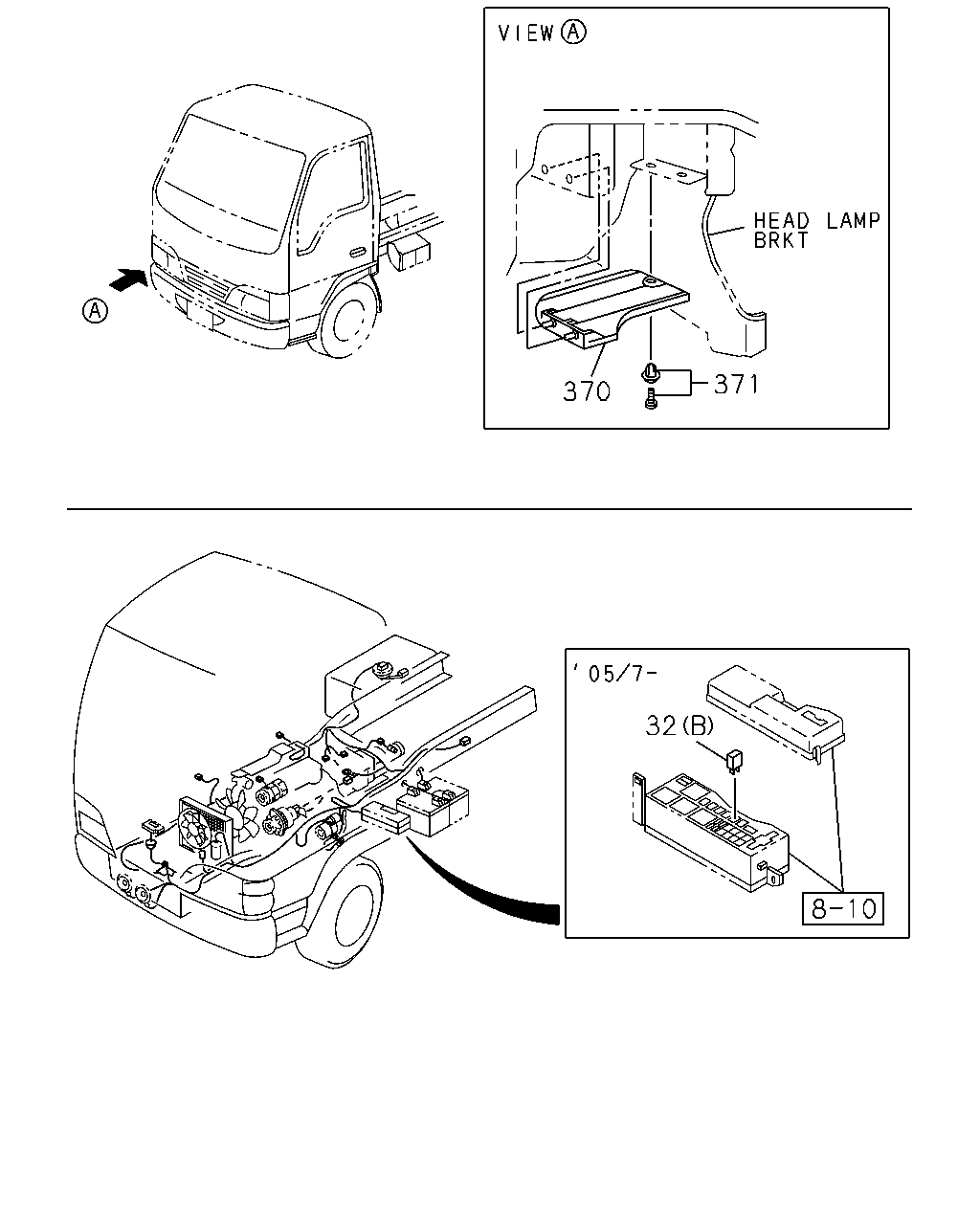

çizim 14003
371 370 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 02.510 (A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ● ● ● ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 02.510 (A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0507-0606 ● ● ● ● ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 (A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0607- ● ● ● ● ● ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 (A) 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 08.852 (A) 12V 20A 		8-97060-926-1 01 1 0507-0606 ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 (A) 12V 20A 		8-97060-926-1 01 1 0507-0606 ● ●
32 02.440 RELAY; A/C
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 02.510 (B) 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ● ●
370 08.866 PLATE; BAFFLE,BLOWER UNIT 8-97856-617-1 01 1 0302-0506 ● ● ● ● ● ● ●
370 08.866 PLATE; BAFFLE,BLOWER UNIT 8-97856-617-1 01 1 0507- ● ● ● ● ● ●
371 08.866 FASTENER; BAFFLE PLATE
12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 01 1 0302-0506 ● ● ● ● ● ● ●
371 08.866 FASTENER; BAFFLE PLATE
12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 01 1 0507- ● ● ● ● ● ●

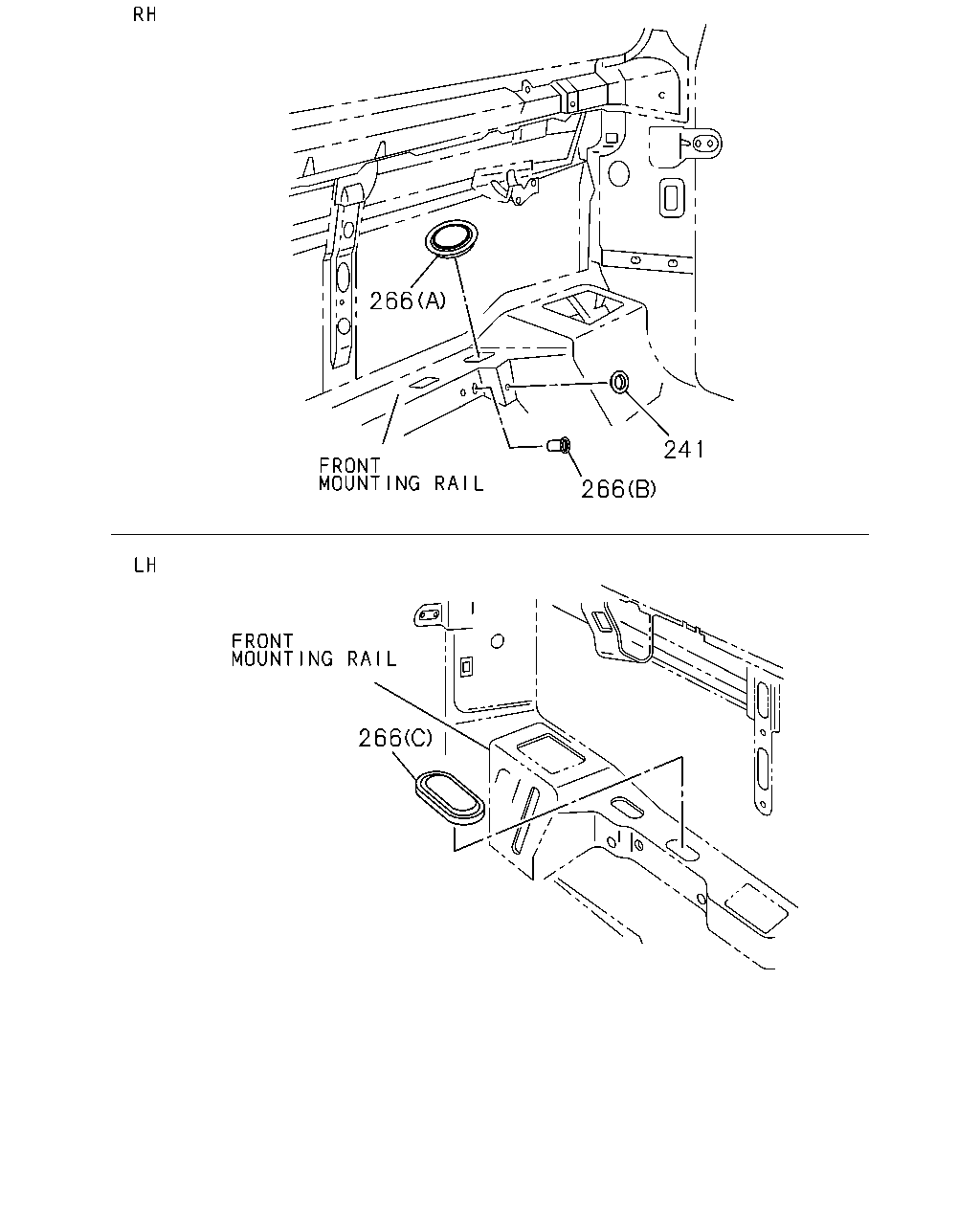

çizim 51985
266 241 266 266
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97037-392-0 01 1 0302-0506 ● ● ● ● ● ● ●
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97037-392-0 01 1 0507- ● ● ● ● ● ●
266 08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) H=78 B=37 		8-97036-019-0 01 1 0302-0506 ● ● ● ● ● ● ●
266 08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) H=78 B=37 		8-97036-019-0 01 1 0507- ● ● ● ● ● ●
266 08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.211 (B) OD=13 		9-09756-019-0 01 1 0302-0506 ● ● ● ● ● ● ●
266 08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.211 (B) OD=13 		9-09756-019-0 01 1 0507- ● ● ● ● ● ●
266 08.845 PLUG; HTR HOLE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.5 B=29.5 		8-97036-020-0 01 1 0302-0506 ● ● ● ● ● ● ●
266 08.845 PLUG; HTR HOLE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.5 B=29.5 		8-97036-020-0 01 1 0507- ● ● ● ● ● ●

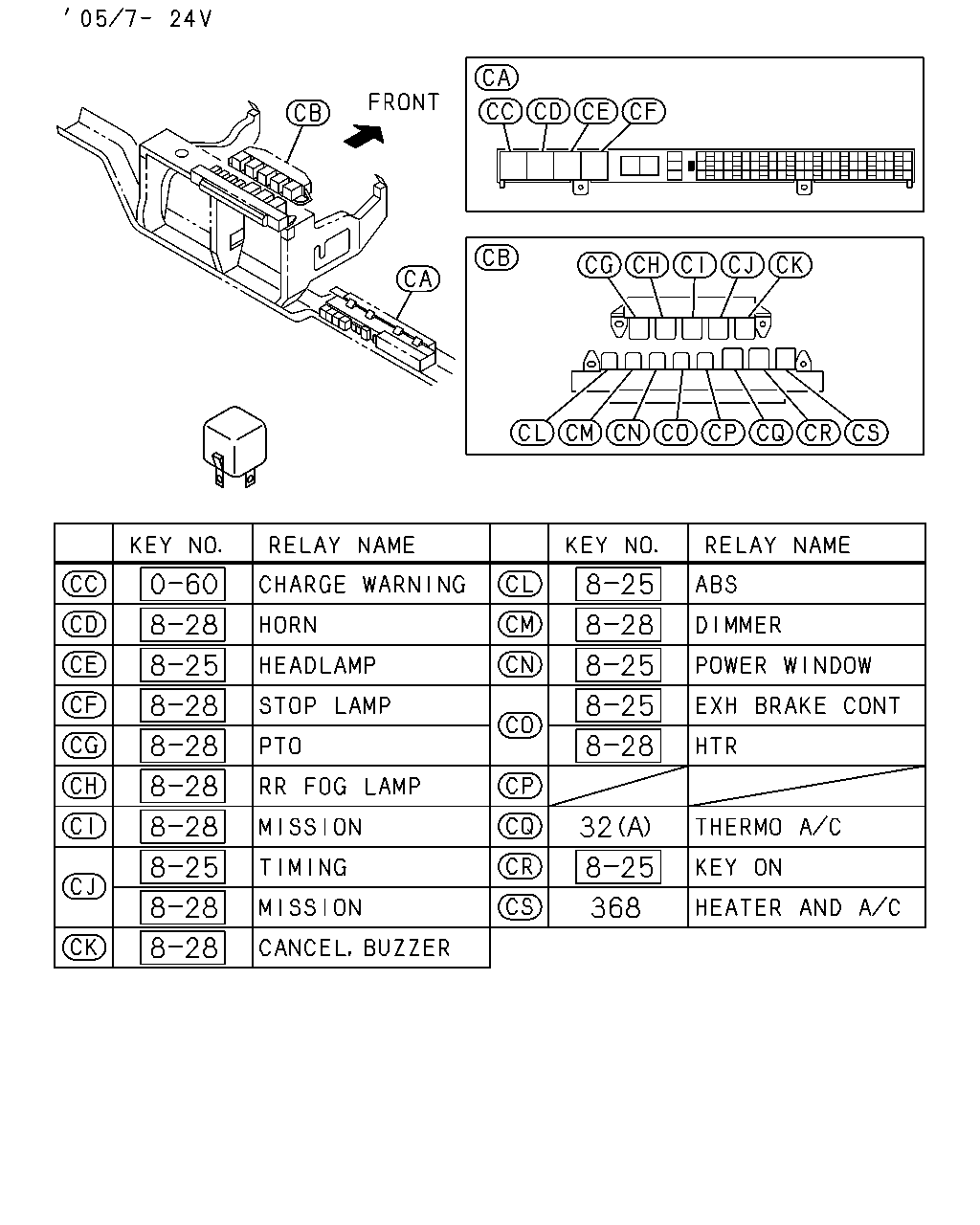

çizim 52625
32 368
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 02.510 (A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ● ● ● ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 02.510 (A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0507-0606 ● ● ● ● ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 (A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0607- ● ● ● ● ● ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 (A) 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 08.852 (A) 12V 20A 		8-97060-926-1 01 1 0507-0606 ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 (A) 12V 20A 		8-97060-926-1 01 1 0507-0606 ● ●
32 02.440 RELAY; A/C
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 02.510 (B) 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ● ●
368 09.277 RELAY; HEATER AND A/C
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
368 09.277 RELAY; HEATER AND A/C
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ●
368 09.277 RELAY; HEATER AND A/C
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0507-0606 ● ●
368 09.277 RELAY; HEATER AND A/C
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0507-0606 ● ● ●
368 09.277 RELAY; HEATER AND A/C
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0607- ● ● ● ● ● ●
368 09.277 RELAY; HEATER AND A/C
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
368 09.277 RELAY; HEATER AND A/C
08.852 12V 20A 		8-97060-926-1 01 1 0507-0606 ●
368 09.277 RELAY; HEATER AND A/C
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0507-0606 ● ●
çizim 52791
368 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 02.510 (A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ● ● ● ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 02.510 (A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0507-0606 ● ● ● ● ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 (A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0607- ● ● ● ● ● ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 (A) 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 08.852 (A) 12V 20A 		8-97060-926-1 01 1 0507-0606 ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 (A) 12V 20A 		8-97060-926-1 01 1 0507-0606 ● ●
32 02.440 RELAY; A/C
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 02.510 (B) 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ● ●
368 09.277 RELAY; HEATER AND A/C
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
368 09.277 RELAY; HEATER AND A/C
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ●
368 09.277 RELAY; HEATER AND A/C
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0507-0606 ● ●
368 09.277 RELAY; HEATER AND A/C
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0507-0606 ● ● ●
368 09.277 RELAY; HEATER AND A/C
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0607- ● ● ● ● ● ●
368 09.277 RELAY; HEATER AND A/C
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
368 09.277 RELAY; HEATER AND A/C
08.852 12V 20A 		8-97060-926-1 01 1 0507-0606 ●
368 09.277 RELAY; HEATER AND A/C
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0507-0606 ● ●

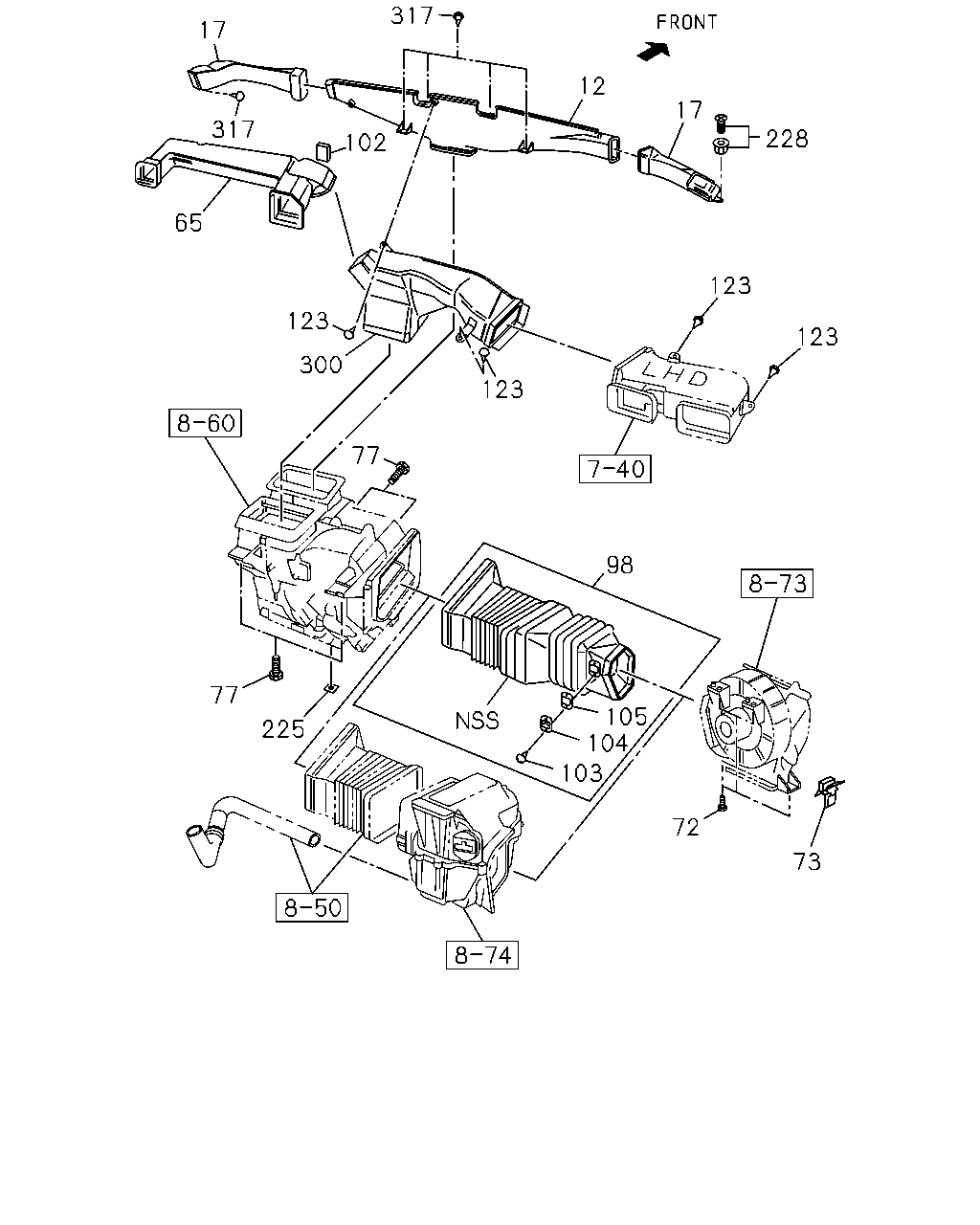

çizim 54023
317 17 12 17 317 228 102 65 123 123 123 300 123 77 98 77 105 104 225 103 72 73
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
12 09.779 NOZZLE; DEFROSTER 8-97069-818-0 01 1 0302-0506 ● ● ● ● ● ● ●
12 09.779 NOZZLE; DEFROSTER 8-97069-818-0 01 1 0507- ● ● ● ● ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-97262-693-0 01 1 0302-0506 ● ● ● ● ● ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-97262-693-0 01 1 0507- ● ● ● ● ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-97262-700-0 01 1 0302-0506 ● ● ● ● ● ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-97262-700-0 01 1 0507- ● ● ● ● ● ●
65 09.786 DUCT; VENT,DRIVER SIDE 8-97262-696-0 01 1 0302-0506 ● ● ● ● ● ● ●
65 09.786 DUCT; VENT,DRIVER SIDE 8-97262-696-0 01 1 0507- ● ● ● ● ● ●
72 08.857 BOLT; BLOWER UNIT
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0302-0506 ● ● ● ● ● ● ●
72 08.857 BOLT; BLOWER UNIT
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0507-0512 ● ● ● ● ● ●
72 08.857 BOLT; BLOWER UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0601- ● ● ● ● ● ●
72 08.857 BOLT; BLOWER UNIT
M8X35 		8-97103-452-0 02 1 0302-0506 ● ● ● ● ● ● ●
72 08.857 BOLT; BLOWER UNIT
M8X35 		8-97103-452-0 02 1 0507- ● ● ● ● ● ●
73 08.807 CLIP; HARNESS TO BLOWER UNIT
09.787 		8-94337-654-0 01 1 0302-0506 ● ● ● ● ● ● ●
73 08.807 CLIP; HARNESS TO BLOWER UNIT
09.787 		8-94337-654-0 01 1 0507- ● ● ● ● ● ●
77 08.845 BOLT; HTR UNIT
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0302-0506 ● ● ● ● ● ● ●
77 08.845 BOLT; HTR UNIT
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0507-0512 ● ● ● ● ● ●
77 08.845 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0601- ● ● ● ● ● ●
77 08.845 BOLT; HTR UNIT
M8X25 		8-97103-451-0 02 1 0302-0506 ● ● ● ● ● ● ●
77 08.845 BOLT; HTR UNIT
M8X25 		8-97103-451-0 02 1 0507- ● ● ● ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97262-810-0 01 1 0302-0506 ● ● ● ● ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97374-887-0 01 1 0507-0606 ● ● ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97374-887-0 01 1 0607- ● ● ● ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60),VOLTAGE 24V<7AE> 		8-97262-808-0 01 1 0302-0506 ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97357-910-0 01 1 0507-0606 ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60),VOLTAGE 24V<7AE> 		8-97357-910-0 01 1 0507-0606 ● ●
102 09.262 LINING; HTR DUCT 8-97145-038-0 01 1 0302-0506 ● ● ● ● ● ● ●
102 09.262 LINING; HTR DUCT 8-97145-038-0 01 1 0507- ● ● ● ● ● ●
103 08.855 SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.789 M4X16 TAPPING 		1-83579-114-0 02 1 0302-0506 ● ● ● ● ● ● ●
103 08.855 SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.789 M4X16 TAPPING 		1-83579-114-0 02 1 0507- ● ● ● ● ● ●
104 08.855 RESISTOR; HTR DUCT
VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60) 09.277 		8-97234-546-0 01 1 0302-0506 ● ● ● ● ● ● ●
104 08.855 RESISTOR; HTR DUCT
VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97358-389-0 02 1 0507-0606 ● ● ● ● ●
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97358-389-0 02 1 0607- ● ● ● ● ● ●
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60),VOLTAGE 24V<7AE> 09.277 		8-97234-545-0 01 1 0302-0506 ● ● ●
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97357-912-0 01 1 0507-0606 ●
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60),VOLTAGE 24V<7AE> 		8-97357-912-0 01 1 0507-0606 ● ●
105 08.856 PLATE; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97020-761-0 01 1 0302-0506 ● ● ● ● ● ● ●
105 08.856 PLATE; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97020-761-0 01 1 0507- ● ● ● ● ● ●
123 09.786 SCREW; DUCT
09.264 M5X12 W/PL WASHER 		8-97147-069-0 02 1 0302-0506 ● ● ● ● ● ● ●
123 09.786 SCREW; DUCT
09.264 M5X12 W/PL WASHER 		8-97147-069-0 02 1 0507-0612 ● ● ● ● ● ●
123 09.786 SCREW; DUCT
04.681 M5X12 TAPPING 		0-72180-512-0 02 1 0701- ● ● ● ● ● ●
225 08.845 SEAL; WATER 8-97856-616-0 04 1 0302-0506 ● ● ● ● ● ● ●
225 08.845 SEAL; WATER 8-97856-616-0 04 1 0507- ● ● ● ● ● ●
228 09.780 CLIP; DEFROSTER
12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 01 1 0302-0506 ● ● ● ● ● ● ●
228 09.780 CLIP; DEFROSTER
12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 01 1 0507- ● ● ● ● ● ●
300 09.264 DUCT; VENT,CENTER 8-97262-697-0 01 1 0302-0506 ● ● ● ● ● ● ●
300 09.264 DUCT; VENT,CENTER 8-97262-697-0 01 1 0507- ● ● ● ● ● ●
317 09.264 SCREW; DEFROSTER NOZZLE
M5X12 W/PL WASHER 		8-97147-069-0 06 1 0302-0506 ● ● ● ● ● ● ●
317 09.264 SCREW; DEFROSTER NOZZLE
M5X12 W/PL WASHER 		8-97147-069-0 06 1 0507-0612 ● ● ● ● ● ●
317 09.264 SCREW; DEFROSTER NOZZLE
04.681 M5X12 TAPPING 		0-72180-512-0 06 1 0701- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
