◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50949 - NPR/NQR(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#46610) — 216 parça

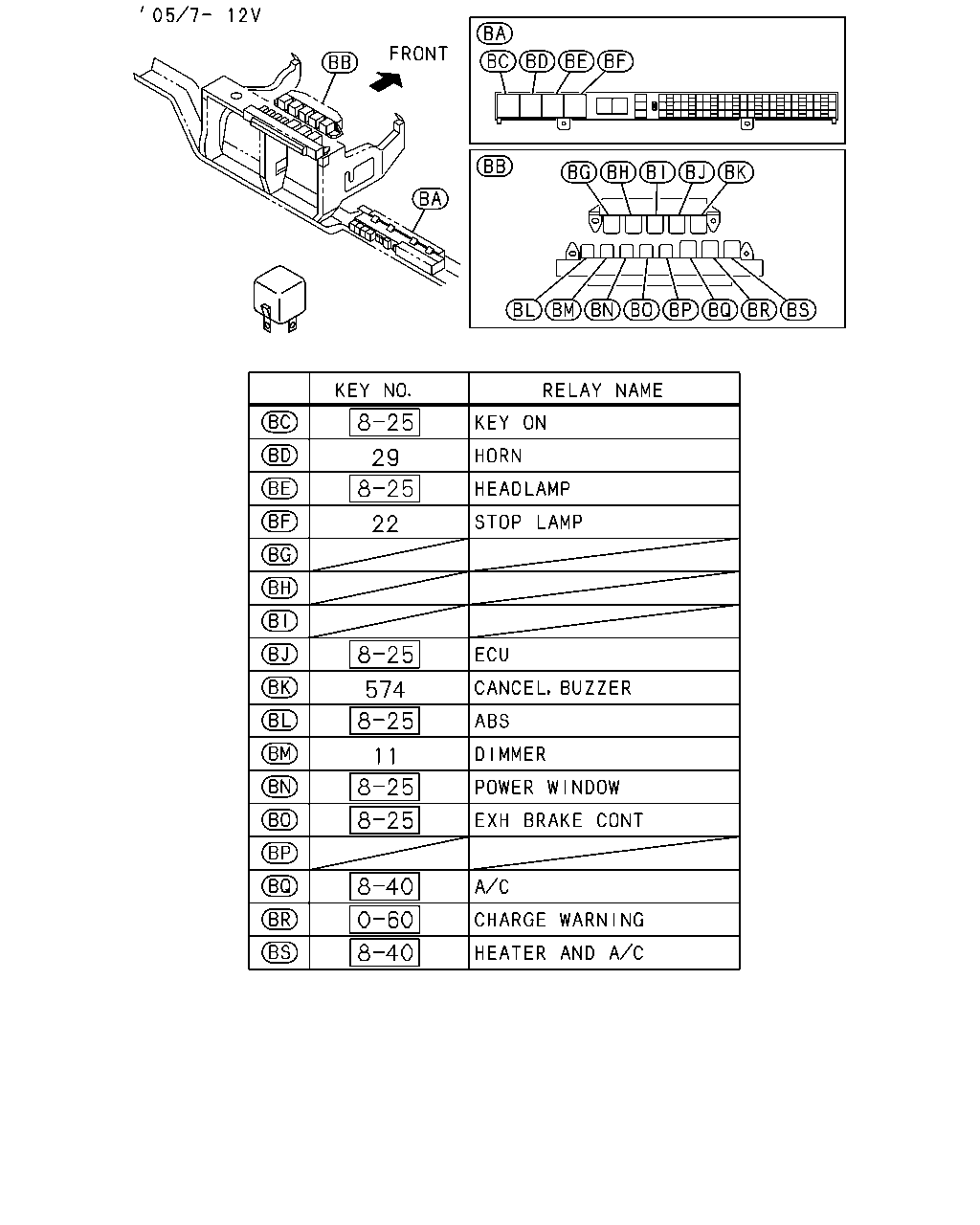

çizim 12744
29 22 574 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
11 02.485 RELAY; DIMMER
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ● ● ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
11 02.485 RELAY; DIMMER
02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ● ● ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
22 02.679 RELAY; STOP LAMP
02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
29 02.815 RELAY; HORN
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ● ● ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
29 02.815 RELAY; HORN
02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0507-0606 ●
574 02.510 RELAY; CANCEL,BUZZER
VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ●
574 02.510 RELAY; CANCEL,BUZZER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ●
574 02.510 RELAY; CANCEL,BUZZER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ●

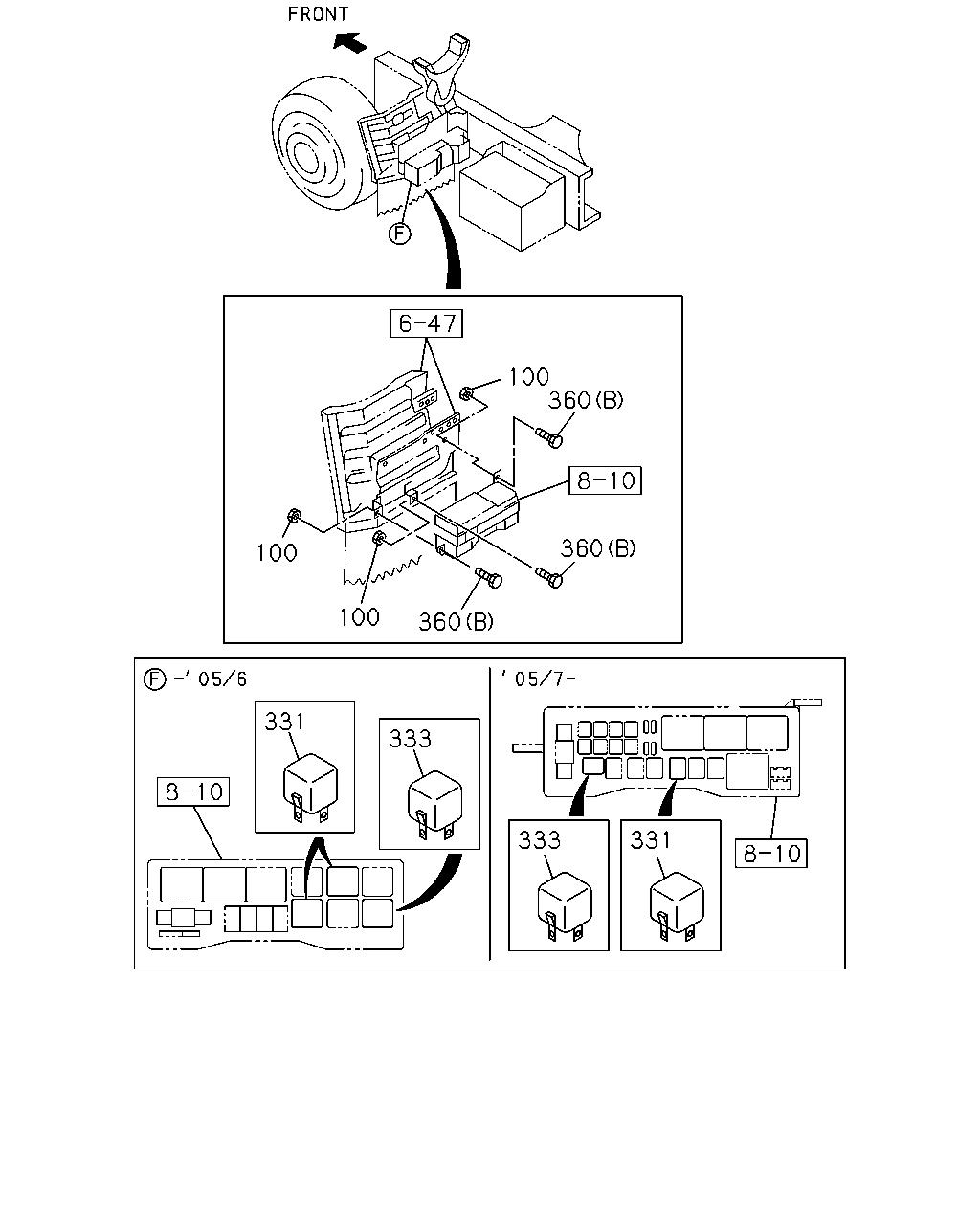

çizim 12778
100 360 360 100 100 360 331 333 333 331
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
100 09.277 NUT; RELAY BOX COVER
4JH1 ENG(RJX),4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 03 1 0302-0506 ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 03 1 0302-0506 ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 07.633 M8 FLANGE 		0-91150-108-0 03 1 0507-0602 ● ● ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 03 1 0603-0606 ● ● ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
01.062 M8 FLANGE 		0-91180-108-0 03 1 0607- ● ● ● ● ● ●
331 02.510 RELAY; A/C
4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
331 02.510 RELAY; A/C
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ● ●
333 09.277 RELAY; MARKER LAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
333 09.277 RELAY; MARKER LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ●
333 09.277 RELAY; MARKER LAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
333 09.277 RELAY; MARKER LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ●
333 09.277 RELAY; MARKER LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ● ● ●
333 09.277 RELAY; MARKER LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
333 09.277 RELAY; MARKER LAMP
02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ●
333 09.277 RELAY; MARKER LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0302-0506 ● ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0507- ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4JH1 ENG(RJX),4HE1 ENG(RLY) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0302-0506 ● ● ●
360 02.483 BOLT; RELAY BOX
4HE1 ENG(RLY) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0302-0506 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 0601-0606 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 0607- ● ● ● ● ● ●
çizim 51988
22 11 29 574 123
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
11 02.485 RELAY; DIMMER
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ● ● ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
11 02.485 RELAY; DIMMER
02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ● ● ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
22 02.679 RELAY; STOP LAMP
02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
29 02.815 RELAY; HORN
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ● ● ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
29 02.815 RELAY; HORN
02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ●
123 02.270 RELAY; HTR
4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
123 02.270 RELAY; HTR
4JH1-TC ENG(RDM) FUEL SEDIMENTER WITH HEATER<6HU> EXC. REAR HEATER<C35> 08.852 12V 20A 		8-97060-926-1 01 1 0507-0606 ● ● ●
123 02.270 RELAY; HTR
4JH1-TC ENG(RDM) REAR HEATER<C35> 08.852 12V 20A 		8-97060-926-1 01 1 0507-0606 ●
123 02.270 RELAY; HTR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ● ● ●
123 02.270 RELAY; HTR
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0507-0606 ●
574 02.510 RELAY; CANCEL,BUZZER
VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ●
574 02.510 RELAY; CANCEL,BUZZER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ●
574 02.510 RELAY; CANCEL,BUZZER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ●
çizim 52510
377 376 624 376 624 377
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
376 03.342 BOLT; RELAY
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ●
376 03.342 BOLT; RELAY
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ● ● ● ●
376 03.342 BOLT; RELAY
EXC. VOLTAGE 24V<7AE> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ●
376 03.342 BOLT; RELAY
EXC. VOLTAGE 24V<7AE> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ●
377 02.892 NUT; RELAY
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ●
377 02.892 NUT; RELAY
07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ● ● ● ●
377 02.892 NUT; RELAY
EXC. VOLTAGE 24V<7AE> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
377 02.892 NUT; RELAY
EXC. VOLTAGE 24V<7AE> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
624 02.892 RELAY; SIDE TURN
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97363-873-0 01 1 0302-0506 ●
624 02.892 RELAY; SIDE TURN
VOLTAGE 24V<7AE> 		8-97363-873-0 01 1 0302-0506 ●
624 02.892 RELAY; SIDE TURN 8-97363-873-0 01 1 0302-0506 ● ● ●
624 02.892 RELAY; SIDE TURN
EXC. VOLTAGE 24V<7AE> 		8-97363-874-0 01 1 0302-0606 ●

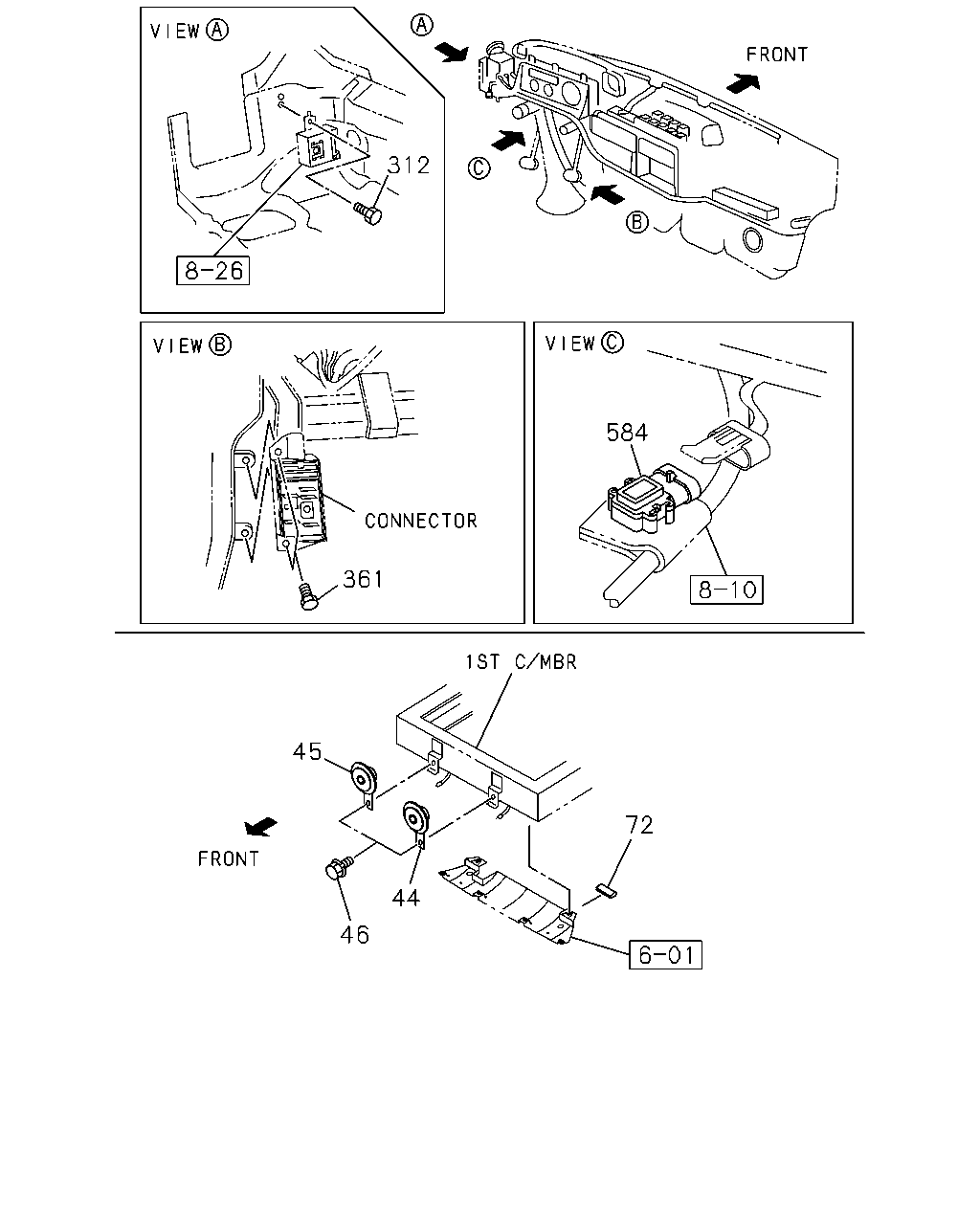

çizim 53098
312 584 361 45 72 44 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
44 02.810 HORN; HIGH NOTE
VOLTAGE 24V<7AE> 		8-97211-741-1 01 1 0302-0506 ● ● ●
44 02.810 HORN; HIGH NOTE 8-97211-741-1 01 1 0302-0506 ● ● ● ●
44 02.810 HORN; HIGH NOTE
VOLTAGE 24V<7AE> 		8-97211-741-1 01 1 0507-0606 ● ●
44 02.810 HORN; HIGH NOTE 8-97211-741-1 01 1 0507-0606 ● ● ●
44 02.810 HORN; HIGH NOTE 8-97211-741-1 01 1 0607- ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
EXC. VOLTAGE 24V<7AE> 		8-97211-743-1 01 1 0302-0506 ● ● ●
44 02.810 HORN; HIGH NOTE 8-97211-743-1 01 1 0507-0606 ●
44 02.810 HORN; HIGH NOTE
EXC. VOLTAGE 24V<7AE> 		8-97211-743-1 01 1 0507-0606 ● ●
45 02.810 HORN; LOW NOTE
VOLTAGE 24V<7AE> 		8-97211-740-1 01 1 0302-0506 ● ● ●
45 02.810 HORN; LOW NOTE 8-97211-740-1 01 1 0302-0506 ● ● ● ●
45 02.810 HORN; LOW NOTE
VOLTAGE 24V<7AE> 		8-97211-740-1 01 1 0507-0606 ● ●
45 02.810 HORN; LOW NOTE 8-97211-740-1 01 1 0507-0606 ● ● ●
45 02.810 HORN; LOW NOTE 8-97211-740-1 01 1 0607- ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE
EXC. VOLTAGE 24V<7AE> 		8-97211-744-1 01 1 0302-0506 ● ● ●
45 02.810 HORN; LOW NOTE 8-97211-744-1 01 1 0507-0606 ●
45 02.810 HORN; LOW NOTE
EXC. VOLTAGE 24V<7AE> 		8-97211-744-1 01 1 0507-0606 ● ●
46 02.812 BOLT; HORN TO BODY
02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0302-0506 ● ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0507-1004 ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1005- ● ● ● ● ● ●
72 02.760 PROTECTOR; RELAY
PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 03.008 L=80 		5-22439-006-0 01 1 0302-0506 ● ● ●
72 02.760 PROTECTOR; RELAY
PTO TRANSMISSION SIDE(V66) 03.008 L=80 		5-22439-006-0 01 1 0302-0506 ● ● ● ●
72 02.760 PROTECTOR; RELAY
PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 03.008 L=80 		5-22439-006-0 01 1 0507-0606 ● ● ● ● ●
72 02.760 PROTECTOR; RELAY
PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 03.008 L=80 		5-22439-006-0 01 1 0607-0707 ● ●
72 02.760 PROTECTOR; RELAY
PTO TRANSMISSION SIDE(V66) 03.008 L=80 		5-22439-006-0 01 1 0607-0707 ● ●
312 09.765 BOLT; BUZZER
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0302-0506 ● ● ● ● ● ● ●
312 09.765 BOLT; BUZZER
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0507- ● ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0302-0506 ● ● ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0507- ● ● ● ● ● ●
584 02.440 SENSOR; PRESSURE
4HK1-TCC ENG(RDV) 		8-28180-175-0 01 1 0811-0811 ● ● ● ●
584 02.440 SENSOR; PRESSURE
4JJ1 ENG(LFB) 		8-28180-175-0 01 1 0812- ● ●
584 02.440 SENSOR; PRESSURE
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 		8-28180-175-0 01 1 0812- ● ●
584 02.440 SENSOR; PRESSURE
4HK1-TCC ENG(RDV) 		8-28180-175-0 01 1 0812- ● ●
584 02.440 SENSOR; PRESSURE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.510 		8-09350-899-1 01 1 0507-0606 ● ● ● ● ●
584 02.440 SENSOR; PRESSURE
4JJ1 ENG(LFB) 02.510 		8-09350-899-1 01 1 0607-0810 ● ●
584 02.440 SENSOR; PRESSURE
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 02.510 		8-09350-899-1 01 1 0607-0810 ● ●
584 02.440 SENSOR; PRESSURE
4HK1-TCC ENG(RDV) 02.510 		8-09350-899-1 01 1 0607-0810 ● ●
584 02.440 SENSOR; PRESSURE
4JJ1 ENG(LFB) 02.510 		8-09350-899-1 01 1 0811-0811 ● ● ● ●

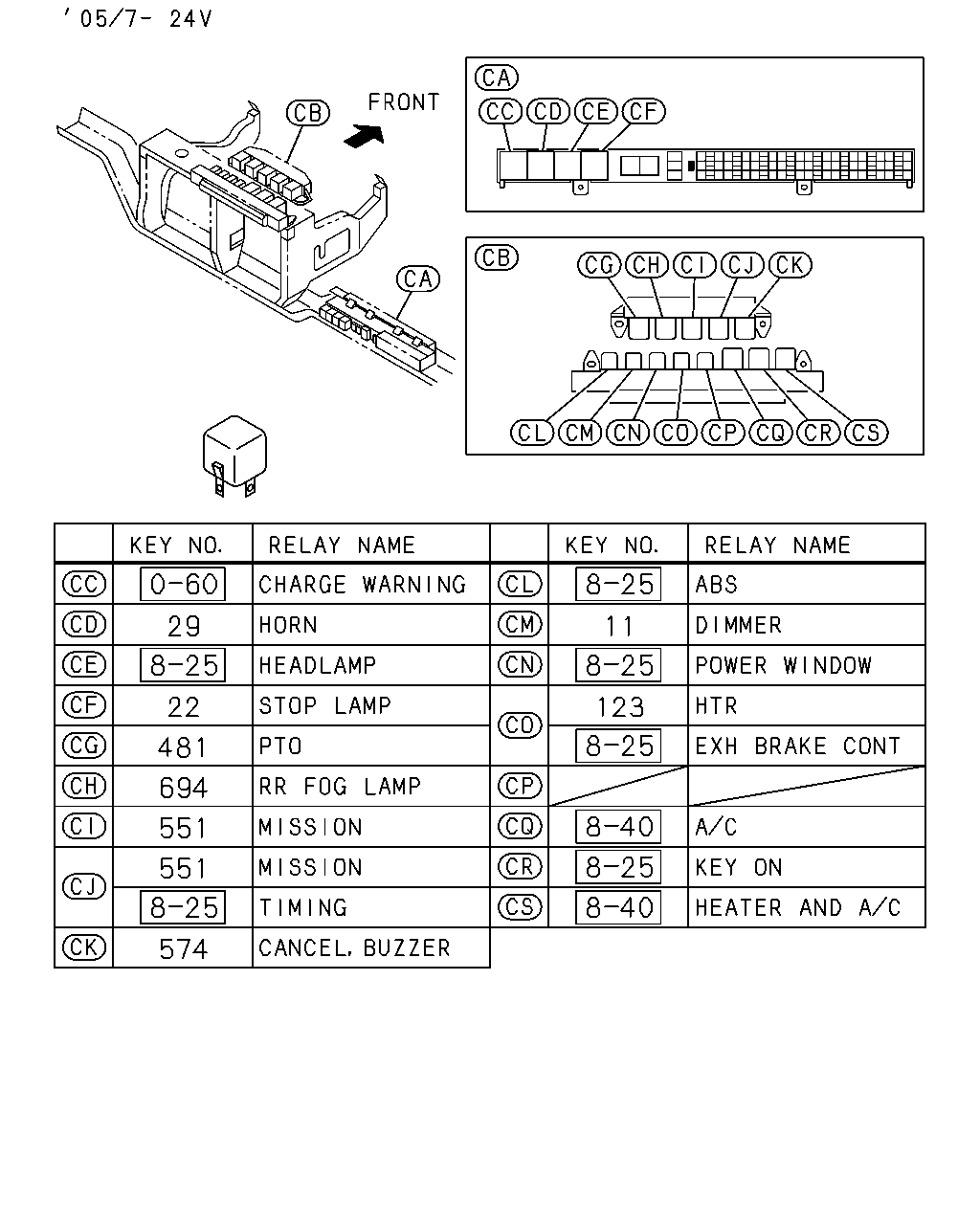

çizim 54056
29 11 22 123 481 694 551 551 574
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
11 02.485 RELAY; DIMMER
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ● ● ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
11 02.485 RELAY; DIMMER
02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ● ● ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
22 02.679 RELAY; STOP LAMP
02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
29 02.815 RELAY; HORN
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ● ● ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
29 02.815 RELAY; HORN
02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ●
123 02.270 RELAY; HTR
4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
123 02.270 RELAY; HTR
4JH1-TC ENG(RDM) FUEL SEDIMENTER WITH HEATER<6HU> EXC. REAR HEATER<C35> 08.852 12V 20A 		8-97060-926-1 01 1 0507-0606 ● ● ●
123 02.270 RELAY; HTR
4JH1-TC ENG(RDM) REAR HEATER<C35> 08.852 12V 20A 		8-97060-926-1 01 1 0507-0606 ●
123 02.270 RELAY; HTR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ● ● ●
123 02.270 RELAY; HTR
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ● ● ●
481 04.439 RELAY; PTO
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) PTO TRANSMISSION SIDE(V66) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0611- ● ● ● ● ● ●
551 02.510 RELAY; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF) 08.852 24V 10A PANASONIC 		8-97173-035-1 02 1 0507-0606 ● ● ● ● ●
551 02.510 RELAY; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF) 08.852 24V 10A PANASONIC 		8-97173-035-1 02 1 0607- ● ● ● ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0507-0606 ●
574 02.510 RELAY; CANCEL,BUZZER
VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ●
574 02.510 RELAY; CANCEL,BUZZER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ●
574 02.510 RELAY; CANCEL,BUZZER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ●
694 09.277 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ● ● ●

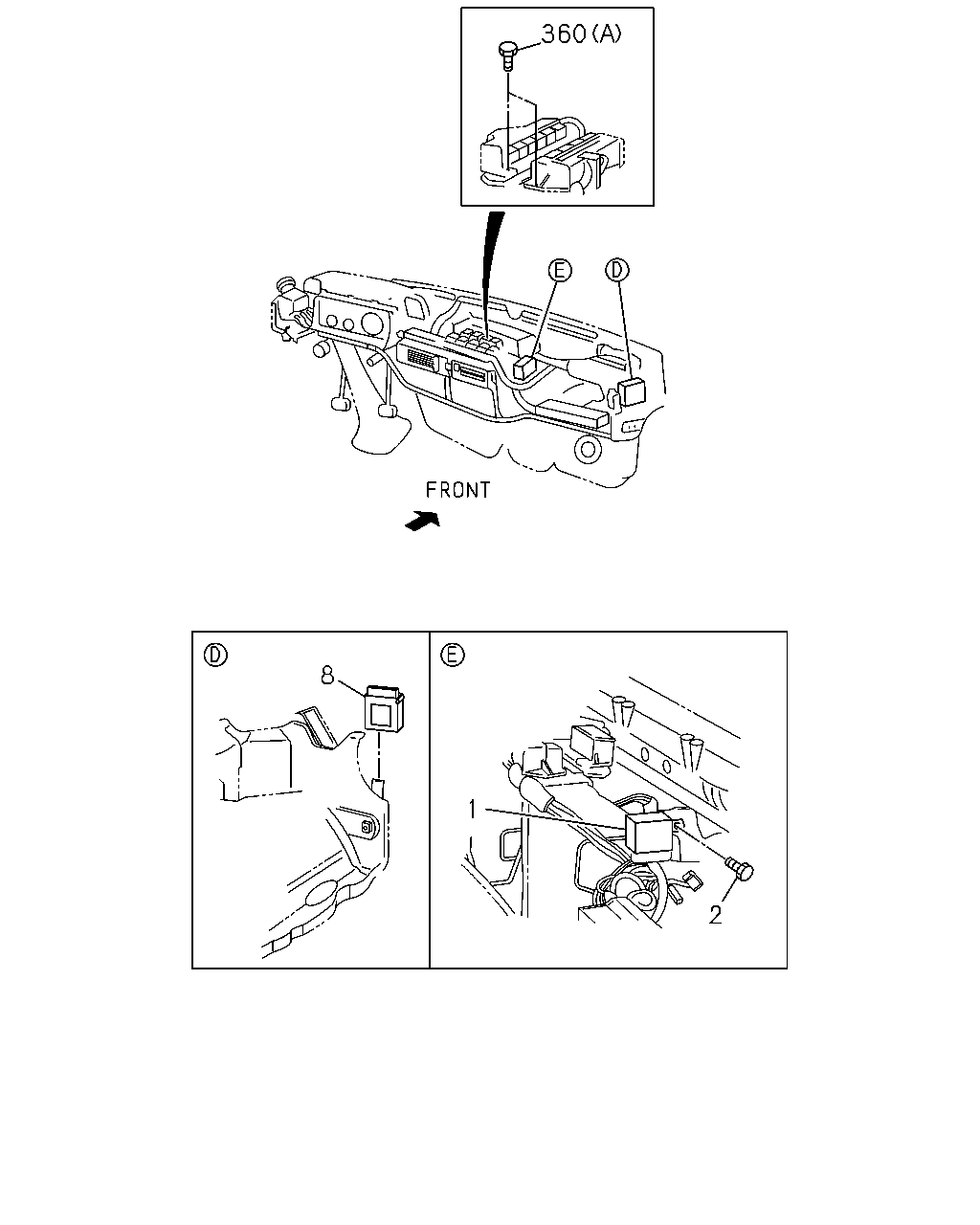

çizim 54990
360 8 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> 		8-97360-084-0 01 1 0302-0506 ● ●
1 02.575 UNIT; FLASHER 8-97360-084-0 01 1 0302-0506 ● ● ●
1 02.575 UNIT; FLASHER
ISRAEL COUNTRY(CV4) VOLTAGE 24V<7AE> 		8-97360-084-0 01 1 0507-0606 ● ● ●
1 02.575 UNIT; FLASHER 8-97360-084-1 01 1 0607- ●
1 02.575 UNIT; FLASHER
ISRAEL COUNTRY(CV4) 		8-97360-084-1 01 1 0607- ● ● ●
1 02.575 UNIT; FLASHER
EXC. VOLTAGE 24V<7AE> 		8-97228-398-0 01 1 0302-0506 ● ●
1 02.575 UNIT; FLASHER 8-97228-398-0 01 1 0507-0606 ●
1 02.575 UNIT; FLASHER
EXC. VOLTAGE 24V<7AE> 		8-97228-398-0 01 1 0507-0606 ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> 		8-97360-085-0 01 1 0302-0506 ●
1 02.575 UNIT; FLASHER 8-97360-085-0 01 1 0302-0506 ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> EXC. ISRAEL COUNTRY(CV4) 		8-97360-085-0 01 1 0507-0606 ● ● ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> 		8-97360-085-0 01 1 0507-0606 ● ●
1 02.575 UNIT; FLASHER
EXC. ISRAEL COUNTRY(CV4) 		8-97360-085-1 01 1 0607- ● ● ●
1 02.575 UNIT; FLASHER 8-97360-085-1 01 1 0607- ● ●
1 02.575 UNIT; FLASHER
EXC. VOLTAGE 24V<7AE> 		8-97304-037-0 01 1 0302-0606 ●
2 02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0302-0506 ● ● ● ● ● ● ●
2 02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0507- ● ● ● ● ● ●
8 16.067 RELAY; WIPER
VOLTAGE 24V<7AE> 		8-97363-983-0 01 1 0302-0506 ● ● ●
8 16.067 RELAY; WIPER 8-97363-983-0 01 1 0302-0506 ● ● ● ●
8 16.067 RELAY; WIPER
VOLTAGE 24V<7AE> 		8-97363-983-0 01 1 0507-0606 ● ●
8 16.067 RELAY; WIPER 8-97363-983-0 01 1 0507-0606 ● ● ●
8 16.067 RELAY; WIPER 8-97363-983-0 01 1 0607- ● ● ● ● ● ●
8 16.067 RELAY; WIPER
EXC. VOLTAGE 24V<7AE> 		8-97363-984-0 01 1 0302-0506 ● ● ●
8 16.067 RELAY; WIPER 8-97363-984-0 01 1 0507-0606 ●
8 16.067 RELAY; WIPER
EXC. VOLTAGE 24V<7AE> 		8-97363-984-0 01 1 0507-0606 ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0302-0506 ● ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0507- ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4JH1 ENG(RJX),4HE1 ENG(RLY) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0302-0506 ● ● ●
360 02.483 BOLT; RELAY BOX
4HE1 ENG(RLY) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0302-0506 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 0601-0606 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 0607- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
