◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10A - CYLINDER HEAD COVER ▶
0-10A — CYLINDER HEAD COVER (#4661) — 21 parça

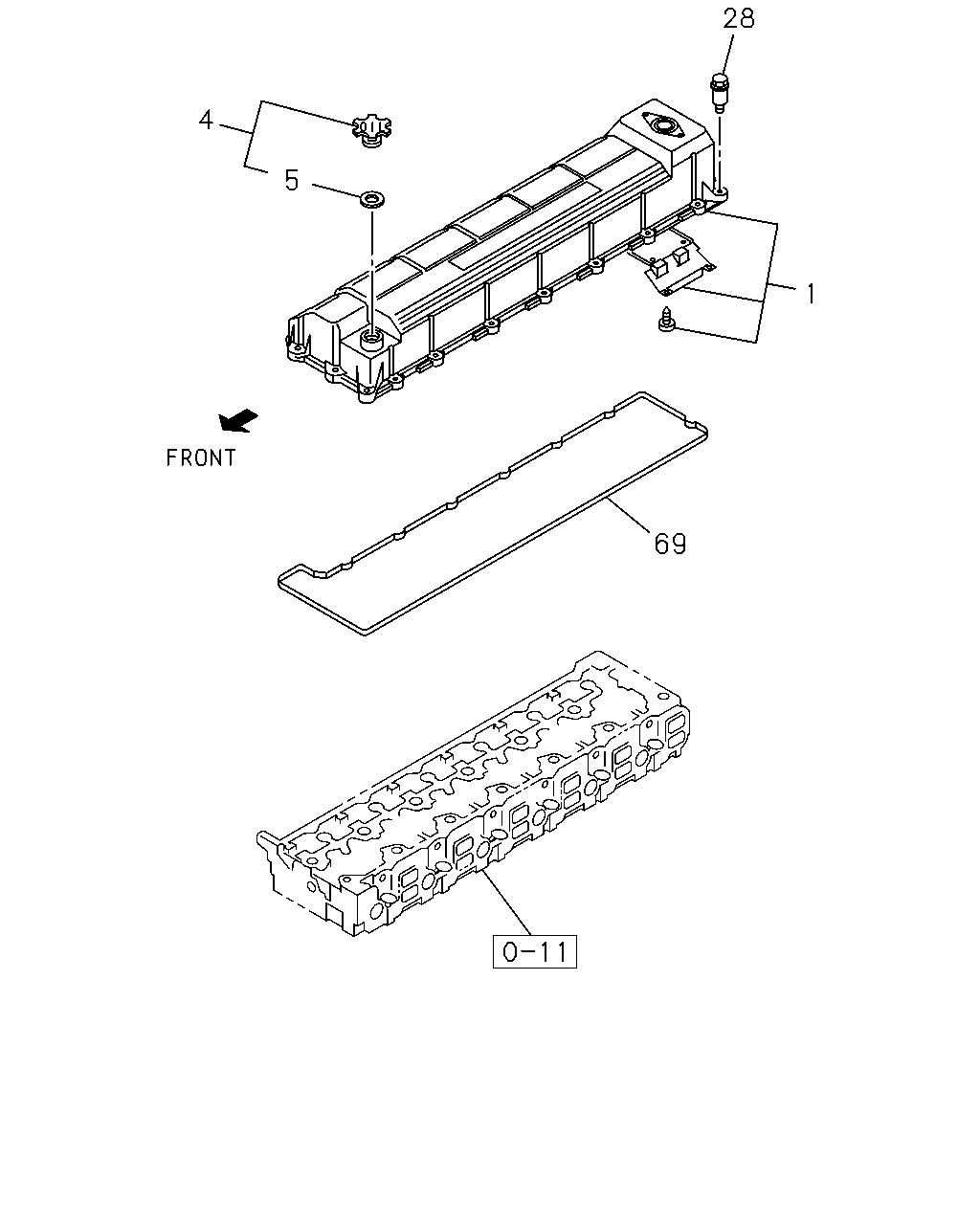

çizim 41851
28 4 5 1 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 COVER; CYL HD 1-11180-408-0 01 1 9603-9605 ●
1 COVER; CYL HD 1-11180-416-0 01 1 9606-9706 ●
1 COVER; CYL HD 1-11180-416-0 01 1 9707-9802 ● ●
1 COVER; CYL HD 1-11180-416-0 01 1 9803-9904 ● ● ●
1 COVER; CYL HD 1-11180-416-0 01 1 9905- ● ● ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9603-9705 ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9706-9802 ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9803-9904 ● ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9905- ● ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 9603-9706 ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 9707-9804 ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 9805-9904 ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 9905- ● ● ● ●
28 BOLT; HD COVER 1-09040-103-0 20 1 9603-9706 ●
28 BOLT; HD COVER 1-09040-103-0 20 1 9707-9804 ● ●
28 BOLT; HD COVER 1-09040-103-0 20 1 9805-9904 ● ● ●
28 BOLT; HD COVER 1-09040-103-0 20 1 9905- ● ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11173-080-0 01 1 9603-9706 ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11173-080-0 01 1 9707-9804 ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11173-080-0 01 1 9805-9904 ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11173-080-0 01 1 9905- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
