8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#46609) — 71 parça

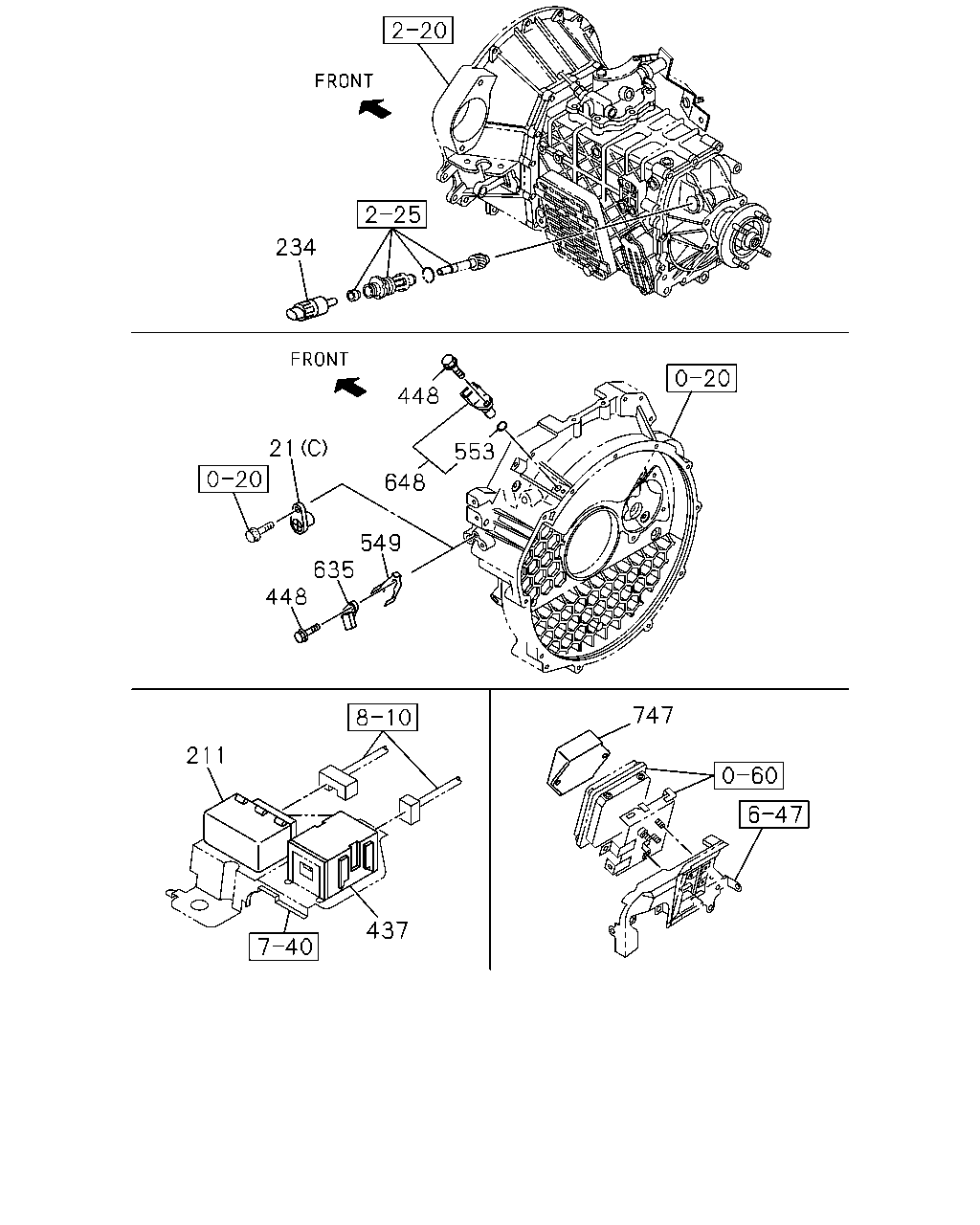

çizim 13564
234 448 21 553 648 549 635 448 747 211 437
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0302-0506 ● ● ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0302-0506 ● ● ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0507-0606 ● ● ● ● ● ●
21 09.744 COVER; HOLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-97136-694-0 01 1 0607- ● ● ● ● ● ●
21 09.744 COVER; HOLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97136-694-0 01 1 0607- ● ● ● ● ● ●
21 09.744 COVER; HOLE
ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0302-0506 ● ● ● ● ● ● ●
21 09.744 COVER; HOLE
ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 0507-0606 ● ● ● ● ● ●
21 09.744 COVER; HOLE
ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0607- ● ● ● ● ● ●
21 09.744 COVER; HOLE
4HK1-TCC ENG(RDV) 09.748 (C) 		8-97101-974-0 01 1 0607- ● ● ● ●
211 02.487 RESISTOR; SW
ADJUST HEADLAMP<6RC> 		8-97359-130-1 01 1 0507- ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0302-0506 ● ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4JH1-TC ENG(RDM) 4 PULSE ALUMINUM 		8-97256-525-0 01 1 0507-0606 ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 25 PULSE ALUMINUM 		8-97328-058-0 01 1 0507-0606 ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0607- ● ● ● ● ● ●
437 10.485 CONVERTER; DC
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> KOITO 		8-97359-129-0 01 1 0507-0606 ● ● ● ● ●
437 10.485 CONVERTER; DC
ADJUST HEADLAMP<6RC> KOITO 		8-97359-129-0 01 1 0607- ● ● ● ● ● ●
448 02.500 BOLT; SENSOR
4HE1 ENG(RLY) HEATER & DEFROSTER(C41) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0302-0506 ● ● ● ● ● ● ●
448 02.500 BOLT; SENSOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0507-0512 ● ● ● ● ●
448 02.500 BOLT; SENSOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0601-0606 ● ● ● ● ●
448 02.500 BOLT; SENSOR
4HK1-TCC ENG(RDV) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0607- ● ● ● ●
549 02.510 SHEET
4HE1 ENG(RLY) HEATER & DEFROSTER(C41) 09.743 		8-97161-633-2 01 1 0302-0506 ● ● ● ● ● ● ●
553 02.500 GASKET
4HK1-TCC ENG(RDV) 00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0607- ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HE1 ENG(RLY) HEATER & DEFROSTER(C41) YAZAKI 		8-97214-325-0 01 1 0302-0506 ● ● ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) DENSO 		8-97306-113-1 01 1 0507-0606 ● ● ● ● ●
648 03.682 SENSOR; CRANK ANGLE
4HK1-TCC ENG(RDV) 		8-97606-943-0 01 1 0607- ● ● ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER
4HK1-TCC ENG(RDV) 		8-97387-785-0 01 1 0607-0703 ● ● ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER
4HK1-TCC ENG(RDV) 		8-98077-118-2 01 1 0704-1012 ● ● ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER
4HK1-TCC ENG(RDV) 		8-98162-807-0 01 1 1101- ● ● ● ●

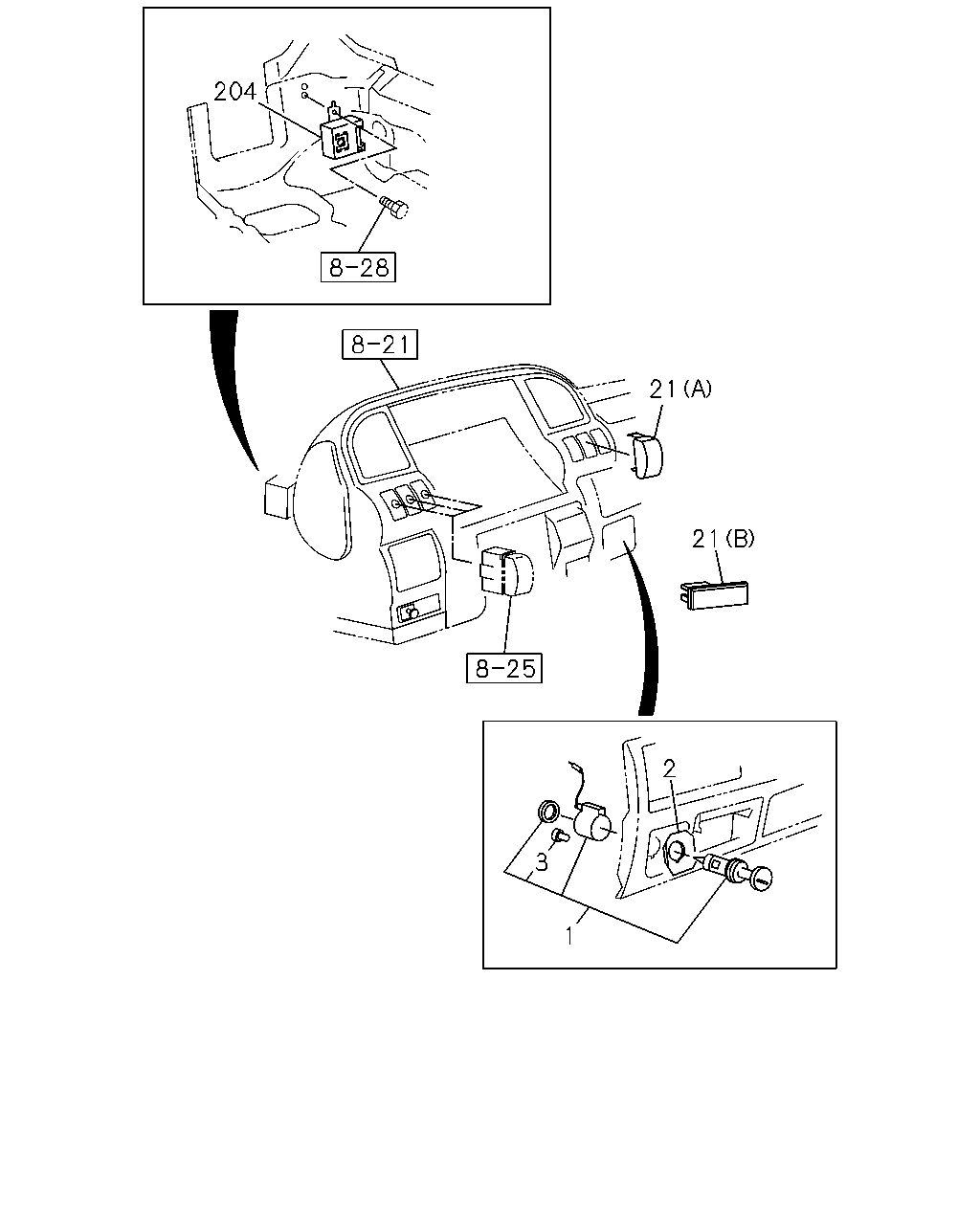

çizim 53068
204 21 21 2 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 09.709 LIGHTER; CIGAR
VOLTAGE 24V<7AE> 		8-97320-325-0 01 1 0302-0506 ● ● ●
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0302-0506 ● ● ● ●
1 09.709 LIGHTER; CIGAR
VOLTAGE 24V<7AE> 		8-97320-325-0 01 1 0507-0606 ● ●
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0507-0606 ● ● ●
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0607- ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> 		8-97320-322-0 01 1 0302-0506 ● ● ●
1 09.709 LIGHTER; CIGAR 8-97320-322-0 01 1 0507-0606 ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> 		8-97320-322-0 01 1 0507-0606 ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0302-0506 ● ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0507-0706 ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-98091-060-0 01 1 0707- ● ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
VOLTAGE 24V<7AE> 28V 1.8W 		8-97173-159-0 01 1 0302-0506 ● ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0302-0506 ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
VOLTAGE 24V<7AE> 28V 1.8W 		8-97173-159-0 01 1 0507-0606 ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0507-0606 ● ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0607- ● ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 14V 1.4W 		8-97173-160-0 01 1 0302-0506 ● ● ●
3 08.991 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 0507-0606 ●
3 08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 14V 1.4W 		8-97173-160-0 01 1 0507-0606 ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0302-0506 ● ● ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0302-0506 ● ● ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0507-0606 ● ● ● ● ● ●
21 09.744 COVER; HOLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-97136-694-0 01 1 0607- ● ● ● ● ● ●
21 09.744 COVER; HOLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97136-694-0 01 1 0607- ● ● ● ● ● ●
21 09.744 COVER; HOLE
ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0302-0506 ● ● ● ● ● ● ●
21 09.744 COVER; HOLE
ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 0507-0606 ● ● ● ● ● ●
21 09.744 COVER; HOLE
ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0607- ● ● ● ● ● ●
21 09.744 COVER; HOLE
4HK1-TCC ENG(RDV) 09.748 (C) 		8-97101-974-0 01 1 0607- ● ● ● ●
204 02.195 BUZZER; KEY REMIND
09.765 		8-97036-649-0 01 1 0302-0506 ● ● ● ● ● ● ●
204 02.195 BUZZER; KEY REMIND
09.765 		8-97036-649-0 01 1 0507- ● ● ● ● ● ●
çizim 54834
69 694 646 263
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
69 02.458 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.594 M6 FLANGE 		0-91150-106-0 04 1 0507-0602 ● ● ● ● ●
69 02.458 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M6 FLANGE 		0-91180-106-0 04 1 0603-0606 ● ● ● ● ●
69 02.458 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M6 FLANGE 		0-91180-106-0 04 1 0607- ● ● ● ● ● ●
263 04.115 BOLT; CONT UNIT
4HE1 ENG(RLY) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0302-0506 ● ● ● ● ● ● ●
646 02.510 CONTROL UNIT; ENG
4JH1 ENG(RJX) 		8-97260-385-5 01 1 0302-0407 ● ● ●
646 02.510 CONTROL UNIT; ENG
4JH1 ENG(RJX) EXC. SPEED LIMITER 90KM<NMJ> 		8-97260-385-5 01 1 0408-0506 ● ● ●
646 02.510 CONTROL UNIT; ENG
4JH1-TC ENG(RDM) 		8-97260-385-6 01 1 0507-0606 ●
646 02.510 CONTROL UNIT; ENG
4JH1-TC ENG(RDM) G.V.W. 3.5-4.0TON(RPQ) 		8-97260-385-6 01 1 0507-0606 ● ●
646 02.510 CONTROL UNIT; ENG
4JH1 ENG(RJX) SPEED LIMITER 90KM<NMJ> 		8-97376-336-0 01 1 0408-0506 ● ● ●
646 02.510 CONTROL UNIT; ENG
4JH1-TC ENG(RDM) G.V.W. 5.0-5.5TON(RPT) 		8-97376-336-1 01 1 0507-0606 ●
694 02.510 CONTROL UNIT; SMOOTHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-519-0 01 1 0507-0606 ● ● ● ● ●
694 02.510 CONTROL UNIT; SMOOTHER
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98018-856-3 01 1 0607- ● ● ● ●
694 02.510 CONTROL UNIT; SMOOTHER
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98023-586-3 01 1 0607- ● ● ● ●
