◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50949 - NPR/NQR(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#46608) — 342 parça
çizim 13150
39 321
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 		8-97177-214-0 01 1 0302-0506 ● ● ● ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 		8-97177-214-0 01 1 0507-0606 ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97177-214-0 01 1 0507-0606 ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97177-214-0 01 1 0607- ● ● ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97359-591-0 01 1 0302-0506 ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97359-591-0 01 1 0507-0606 ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97359-591-0 01 1 0507-0606 ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 0302-0506 ● ● ● ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 0507-0612 ● ● ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0701-1101 ● ● ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102- ● ● ● ● ● ●
çizim 51537
85 531 550 12 315
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HE1 ENG(RLY) VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
531 02.515 RELAY; ECU
4JH1 ENG(RJX) 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
531 02.515 RELAY; ECU
4JH1-TC ENG(RDM) 08.852 12V 20A 		8-97060-926-1 01 1 0507-0606 ● ● ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
550 02.510 RELAY; ABS
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ●
550 02.510 RELAY; ABS
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
550 02.510 RELAY; ABS
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ● ●
çizim 51936
610 85 531 550 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ●
531 02.515 RELAY; ECU
4JH1 ENG(RJX) 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
531 02.515 RELAY; ECU
4JH1-TC ENG(RDM) 08.852 12V 20A 		8-97060-926-1 01 1 0507-0606 ● ● ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
550 02.510 RELAY; ABS
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ●
550 02.510 RELAY; ABS
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
550 02.510 RELAY; ABS
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ● ●
610 02.510 RELAY; KEY ON
12V 20A 		8-97173-037-1 01 1 0507-0606 ●
610 02.510 RELAY; KEY ON
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ●
610 02.510 RELAY; KEY ON
VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0507-0606 ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0507-0606 ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0607- ● ● ● ● ● ●

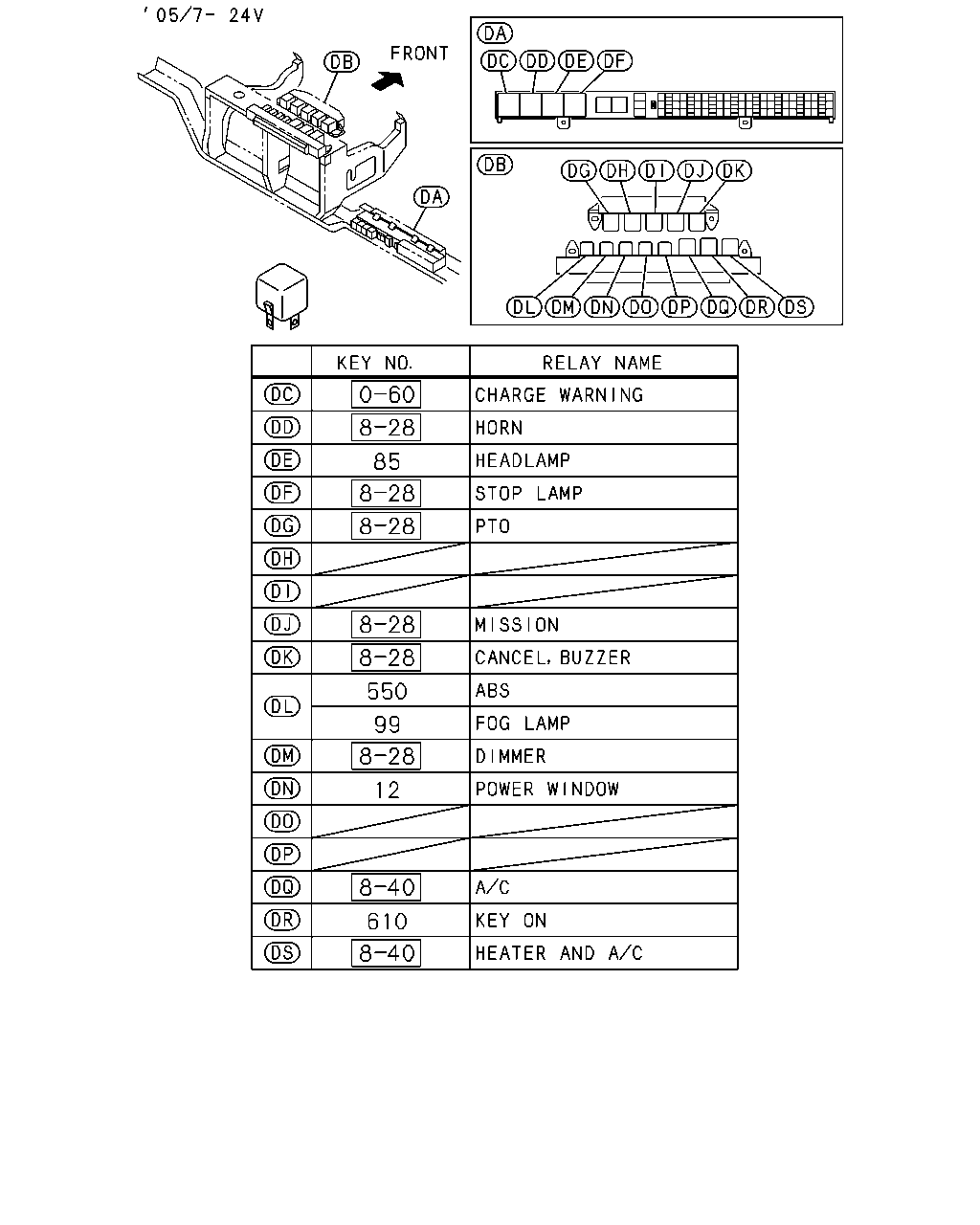

çizim 52761
85 550 99 12 610
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ● ● ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
550 02.510 RELAY; ABS
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ●
550 02.510 RELAY; ABS
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
550 02.510 RELAY; ABS
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ● ●
610 02.510 RELAY; KEY ON
12V 20A 		8-97173-037-1 01 1 0507-0606 ●
610 02.510 RELAY; KEY ON
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ●
610 02.510 RELAY; KEY ON
VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0507-0606 ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0507-0606 ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0607- ● ● ● ● ● ●

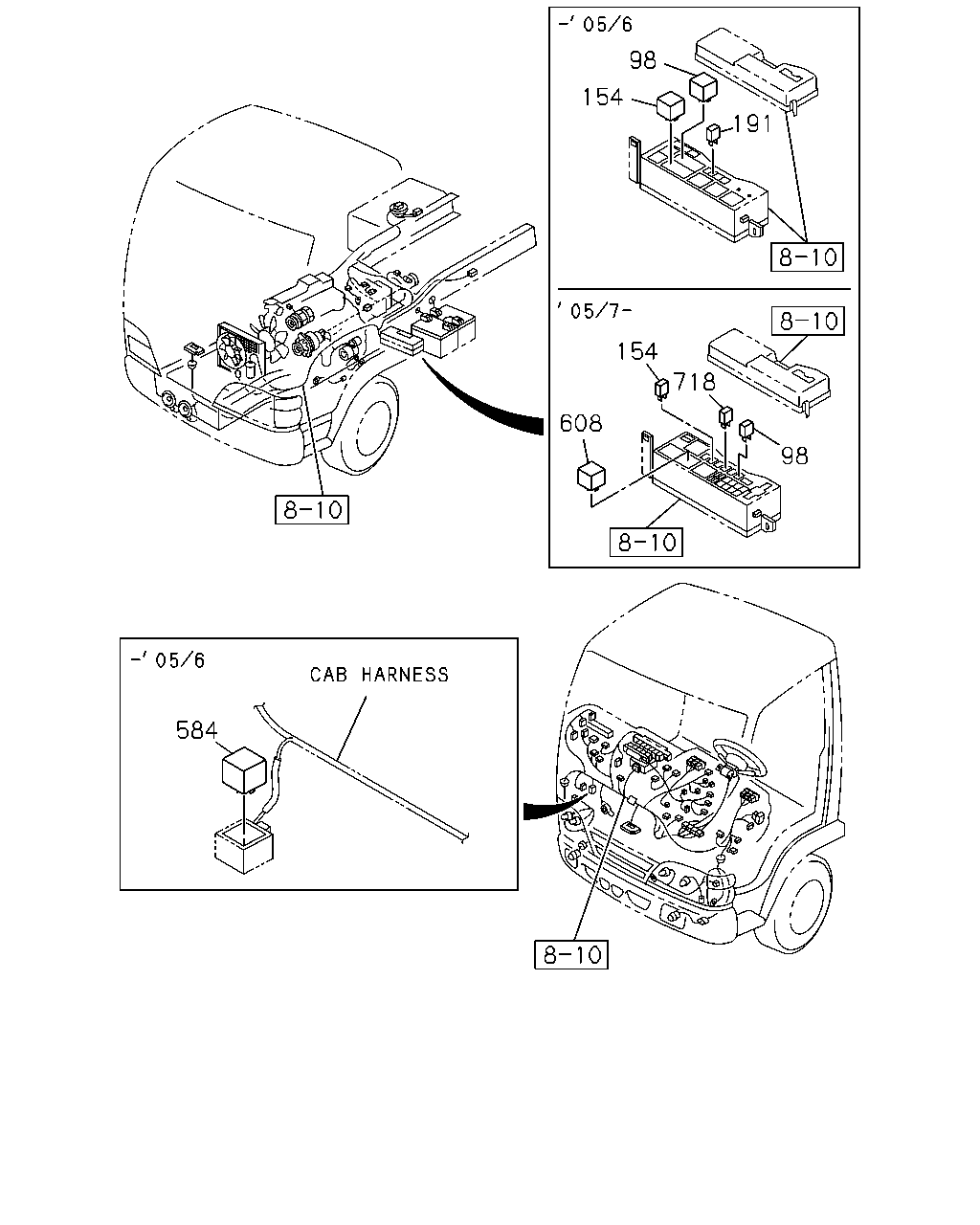

çizim 53190
98 154 191 154 718 608 98 584
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
98 02.485 RELAY; RR FOG LAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ●
98 02.485 RELAY; RR FOG LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ●
98 02.485 RELAY; RR FOG LAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ●
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ●
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607-0608 ● ● ● ● ● ●
98 02.485 RELAY; RR FOG LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
98 02.485 RELAY; RR FOG LAMP
02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ●
98 02.485 RELAY; RR FOG LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ●
154 09.277 RELAY; CONDENSER FAN
4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
154 09.277 RELAY; CONDENSER FAN
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0606 ● ● ●
154 09.277 RELAY; CONDENSER FAN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HE1 ENG(RLY) VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0506 ● ● ● ● ● ● ●
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0302-0506 ● ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITUBA 		8-97238-540-0 01 1 0507-0606 ● ● ● ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITUBA 		8-97238-540-0 01 1 0607- ● ● ● ● ● ●
718 02.510 RELAY; DPD
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ● ● ●

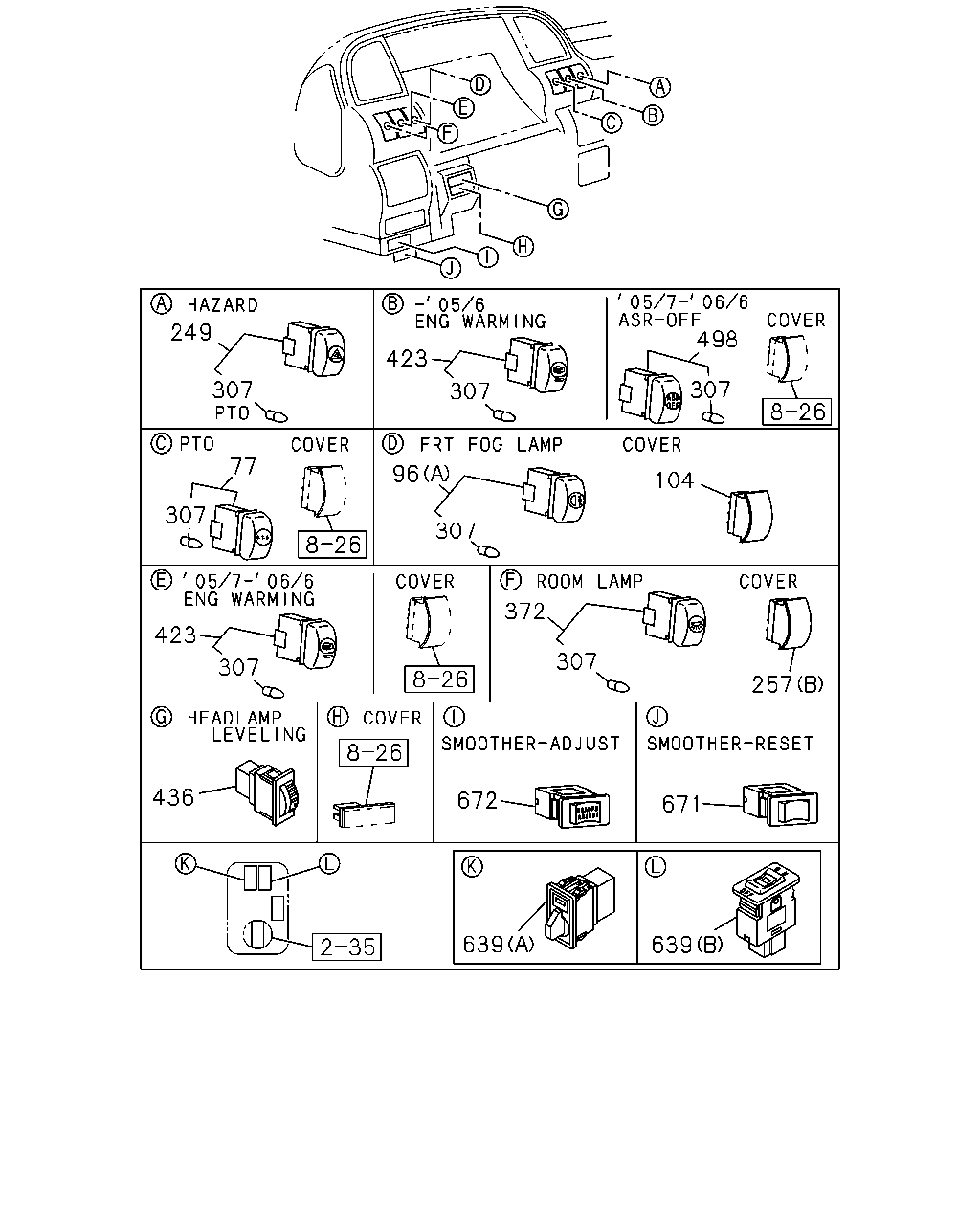

çizim 53219
498 249 423 307 307 307 77 96 104 307 307 372 423 307 307 257 436 672 671 639 639
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82340-537-0 01 1 0507-0606 ● ● ● ● ●
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82340-537-0 01 1 0607- ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> (A) 		8-97206-021-1 01 1 0302-0506 ● ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
VOLTAGE 24V<7AE> (A) 		8-97206-021-1 01 1 0507-0606 ● ●
96 02.485 SWITCH; FOG LAMP
(A) 		8-97206-021-1 01 1 0507-0606 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> (A) 		8-97206-020-1 01 1 0302-0506 ● ● ●
96 02.485 SWITCH; FOG LAMP
(A) 		8-97206-020-1 01 1 0507-0606 ●
96 02.485 SWITCH; FOG LAMP
EXC. VOLTAGE 24V<7AE> (A) 		8-97206-020-1 01 1 0507-0606 ● ●
96 02.485 SWITCH; FOG LAMP
EXC. ROOM LAMP SWITCH<7KL> (B) 		8-97364-308-1 01 1 0607- ● ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 0302-0506 ● ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97202-475-0 01 1 0302-0506 ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-475-0 01 1 0302-0506 ● ● ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97202-475-0 01 1 0507-0606 ● ●
249 02.485 SWITCH; HAZARD 8-97202-475-0 01 1 0507-0606 ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-475-0 01 1 0607- ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97202-476-0 01 1 0302-0506 ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-476-0 01 1 0507-0606 ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97202-476-0 01 1 0507-0606 ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 16.494 (A) 		8-94229-914-1 01 1 0302-0506 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0507-0606 ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), TRANSMISSION CONTROL-SMOOTHER(8GF) 16.494 (A) 		8-94229-914-1 01 1 0507-0606 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), TRANSMISSION CONTROL-SMOOTHER(8GF) 16.494 (A) 		8-94229-914-1 01 1 0607- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (B) 		8-97136-694-0 01 1 0302-0506 ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (B) 		8-97136-694-0 01 1 0507-0606 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
09.744 (B) 		8-97136-694-0 01 1 0507-0606 ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> 09.744 (B) 		8-97136-694-0 01 1 0507-0606 ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> 09.744 (B) 		8-97136-694-0 01 1 0607- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 16.494 (A) 		8-94229-914-1 02 1 0302- ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0302-0506 ● ● ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0507-0606 ● ● ● ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 0607- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 02 1 0607- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
4JJ1 ENG(LFB) 28V 40MA 		8-97116-331-0 02 1 0607- ● ●
307 08.991 BULB ASM; SW
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 28V 40MA 		8-97116-331-0 02 1 0607- ● ●
307 08.991 BULB ASM; SW
4HK1-TCC ENG(RDV) 28V 40MA 		8-97116-331-0 02 1 0607- ● ●
307 08.991 BULB ASM; SW
4HE1 ENG(RLY) 28V 40MA 		8-97116-331-0 02 1 0302-0506 ● ● ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0302-0506 ● ● ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0302-0506 ● ● ● ● ● ● ●
307 08.991 BULB ASM; SW
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 28V 40MA 		8-97116-331-0 02 1 0507-0606 ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0507-0606 ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0507-0606 ● ● ● ● ●
307 08.991 BULB ASM; SW
EXC. ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0607- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 01 1 0607- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0302-0504 ● ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0302-0504 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0505-0506 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 14V 60MA 		8-97116-329-0 01 1 0507-0606 ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0507-0606 ● ●
307 08.991 BULB ASM; SW
4JH1 ENG(RJX) 14V 60MA 		8-97116-329-0 01 1 0302-0504 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0302-0504 ● ● ●
307 08.991 BULB ASM; SW
4JH1 ENG(RJX) 14V 60MA 		8-97116-329-0 02 1 0505-0506 ● ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0505-0506 ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0505-0506 ● ● ●
307 08.991 BULB ASM; SW
4JH1-TC ENG(RDM) 14V 60MA 		8-97116-329-0 02 1 0507-0606 ● ● ●
307 08.991 BULB ASM; SW
14V 60MA 		8-97116-329-0 02 1 0507-0606 ●
307 08.991 BULB ASM; SW
14V 60MA 		8-97116-329-0 02 1 0507-0606 ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0507-0606 ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0507-0606 ● ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 		8-97136-693-0 01 1 0302-0506 ● ● ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 		8-97136-693-0 01 1 0507-0606 ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 		8-97136-692-0 01 1 0302-0506 ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-692-0 01 1 0507-0606 ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 		8-97136-692-0 01 1 0507-0606 ● ●
423 03.883 SWITCH; ENG WARMING
4HE1 ENG(RLY) 		8-97136-814-1 01 1 0302-0506 ● ● ● ● ● ● ●
423 03.883 SWITCH; ENG WARMING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97136-814-1 01 1 0507-0606 ● ● ● ●
423 03.883 SWITCH; ENG WARMING
4HK1-TCN ENG(RDQ) 		8-97136-814-1 01 1 0507-0606 ●
423 03.883 SWITCH; ENG WARMING
4JH1 ENG(RJX) 		8-97140-965-1 01 1 0302-0506 ● ● ●
423 03.883 SWITCH; ENG WARMING
4JH1-TC ENG(RDM) 		8-97140-965-1 01 1 0507-0606 ● ● ●
423 03.883 SWITCH; ENG WARMING
4JJ1 ENG(LFB) 		8-97136-814-1 01 1 0607- ● ●
423 03.883 SWITCH; ENG WARMING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 		8-97136-814-1 01 1 0607- ● ●
423 03.883 SWITCH; ENG WARMING
4HK1-TCC ENG(RDV) 		8-97136-814-1 01 1 0607- ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97260-401-1 01 1 0302-0506 ● ● ● ● ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97260-401-1 01 1 0507- ● ● ● ● ● ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97140-601-0 01 1 0507-0606 ● ●
498 03.883 SWITCH; ASR 8-97140-601-0 01 1 0507-0606 ● ● ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97140-601-0 01 1 0607- ● ● ●
498 03.883 SWITCH; ASR 8-97140-601-0 01 1 0607- ● ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		1-82350-361-0 01 1 0507-0606 ● ● ● ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		1-82350-361-0 01 1 0607- ● ● ● ● ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97331-179-0 01 1 0507-0606 ● ● ● ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97331-179-0 01 1 0607- ● ● ● ● ● ●
671 02.895 SWITCH; SMOOTHER,RESET
TRANSMISSION CONTROL-SMOOTHER(8GF) 16.263 		8-97329-833-0 01 1 0507-0606 ● ● ● ● ●
671 02.895 SWITCH; SMOOTHER,RESET
TRANSMISSION CONTROL-SMOOTHER(8GF) 16.263 		8-97329-833-0 01 1 0607- ● ● ● ● ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97329-781-0 01 1 0507-0606 ● ● ● ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97329-781-0 01 1 0607- ● ● ● ● ● ●

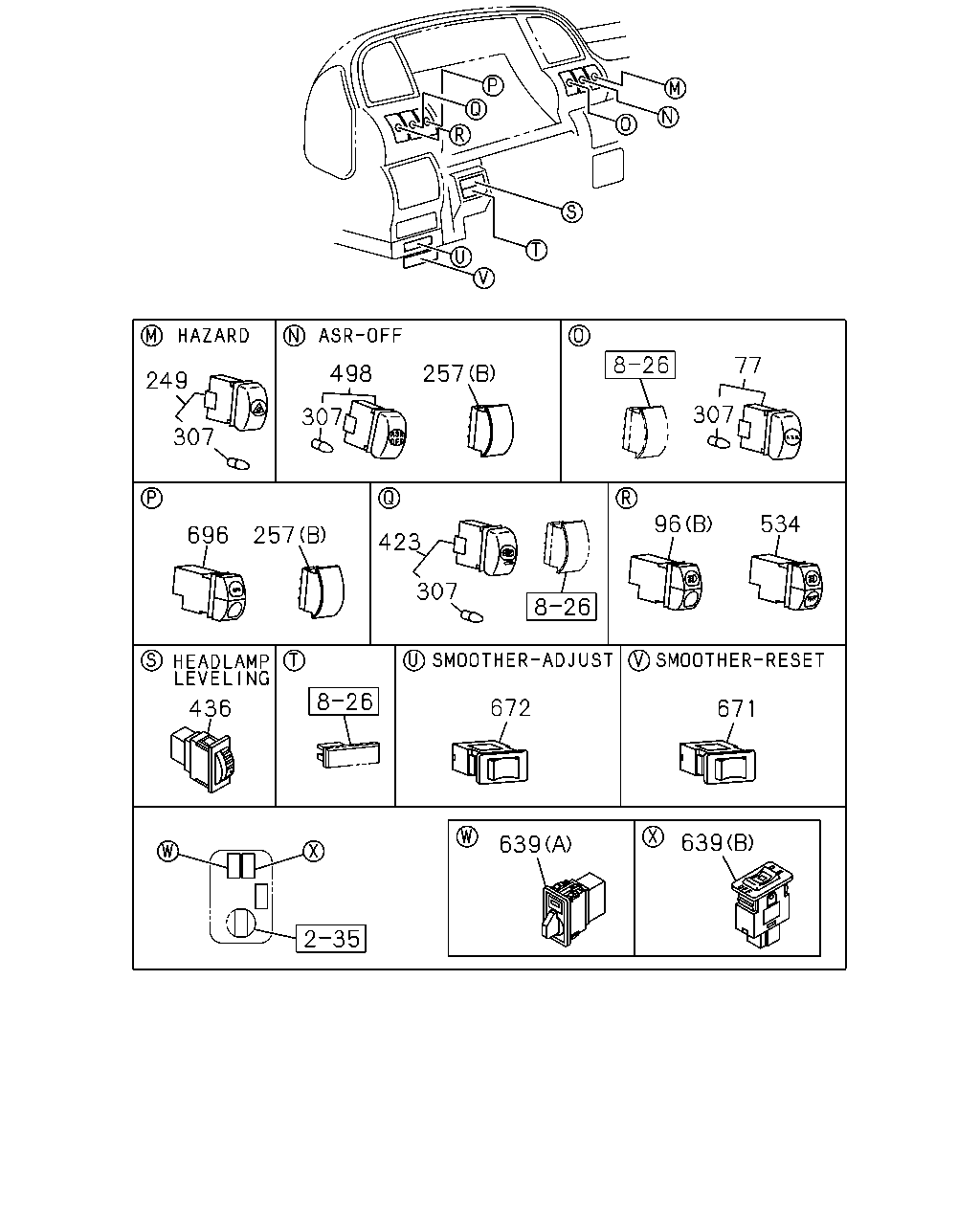

çizim 55066
77 498 257 249 307 307 307 96 534 696 257 423 307 672 436 671 639 639
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82340-537-0 01 1 0507-0606 ● ● ● ● ●
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82340-537-0 01 1 0607- ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> (A) 		8-97206-021-1 01 1 0302-0506 ● ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
VOLTAGE 24V<7AE> (A) 		8-97206-021-1 01 1 0507-0606 ● ●
96 02.485 SWITCH; FOG LAMP
(A) 		8-97206-021-1 01 1 0507-0606 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> (A) 		8-97206-020-1 01 1 0302-0506 ● ● ●
96 02.485 SWITCH; FOG LAMP
(A) 		8-97206-020-1 01 1 0507-0606 ●
96 02.485 SWITCH; FOG LAMP
EXC. VOLTAGE 24V<7AE> (A) 		8-97206-020-1 01 1 0507-0606 ● ●
96 02.485 SWITCH; FOG LAMP
EXC. ROOM LAMP SWITCH<7KL> (B) 		8-97364-308-1 01 1 0607- ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97202-475-0 01 1 0302-0506 ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-475-0 01 1 0302-0506 ● ● ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97202-475-0 01 1 0507-0606 ● ●
249 02.485 SWITCH; HAZARD 8-97202-475-0 01 1 0507-0606 ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-475-0 01 1 0607- ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97202-476-0 01 1 0302-0506 ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-476-0 01 1 0507-0606 ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97202-476-0 01 1 0507-0606 ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 16.494 (A) 		8-94229-914-1 01 1 0302-0506 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0507-0606 ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), TRANSMISSION CONTROL-SMOOTHER(8GF) 16.494 (A) 		8-94229-914-1 01 1 0507-0606 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), TRANSMISSION CONTROL-SMOOTHER(8GF) 16.494 (A) 		8-94229-914-1 01 1 0607- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (B) 		8-97136-694-0 01 1 0302-0506 ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (B) 		8-97136-694-0 01 1 0507-0606 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
09.744 (B) 		8-97136-694-0 01 1 0507-0606 ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> 09.744 (B) 		8-97136-694-0 01 1 0507-0606 ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> 09.744 (B) 		8-97136-694-0 01 1 0607- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 16.494 (A) 		8-94229-914-1 02 1 0302- ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0302-0506 ● ● ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0507-0606 ● ● ● ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 0607- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 02 1 0607- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
4JJ1 ENG(LFB) 28V 40MA 		8-97116-331-0 02 1 0607- ● ●
307 08.991 BULB ASM; SW
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 28V 40MA 		8-97116-331-0 02 1 0607- ● ●
307 08.991 BULB ASM; SW
4HK1-TCC ENG(RDV) 28V 40MA 		8-97116-331-0 02 1 0607- ● ●
307 08.991 BULB ASM; SW
4HE1 ENG(RLY) 28V 40MA 		8-97116-331-0 02 1 0302-0506 ● ● ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0302-0506 ● ● ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0302-0506 ● ● ● ● ● ● ●
307 08.991 BULB ASM; SW
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 28V 40MA 		8-97116-331-0 02 1 0507-0606 ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0507-0606 ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0507-0606 ● ● ● ● ●
307 08.991 BULB ASM; SW
EXC. ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0607- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 01 1 0607- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0302-0504 ● ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0302-0504 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0505-0506 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 14V 60MA 		8-97116-329-0 01 1 0507-0606 ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0507-0606 ● ●
307 08.991 BULB ASM; SW
4JH1 ENG(RJX) 14V 60MA 		8-97116-329-0 01 1 0302-0504 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0302-0504 ● ● ●
307 08.991 BULB ASM; SW
4JH1 ENG(RJX) 14V 60MA 		8-97116-329-0 02 1 0505-0506 ● ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0505-0506 ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0505-0506 ● ● ●
307 08.991 BULB ASM; SW
4JH1-TC ENG(RDM) 14V 60MA 		8-97116-329-0 02 1 0507-0606 ● ● ●
307 08.991 BULB ASM; SW
14V 60MA 		8-97116-329-0 02 1 0507-0606 ●
307 08.991 BULB ASM; SW
14V 60MA 		8-97116-329-0 02 1 0507-0606 ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0507-0606 ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0507-0606 ● ●
423 03.883 SWITCH; ENG WARMING
4HE1 ENG(RLY) 		8-97136-814-1 01 1 0302-0506 ● ● ● ● ● ● ●
423 03.883 SWITCH; ENG WARMING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97136-814-1 01 1 0507-0606 ● ● ● ●
423 03.883 SWITCH; ENG WARMING
4HK1-TCN ENG(RDQ) 		8-97136-814-1 01 1 0507-0606 ●
423 03.883 SWITCH; ENG WARMING
4JH1 ENG(RJX) 		8-97140-965-1 01 1 0302-0506 ● ● ●
423 03.883 SWITCH; ENG WARMING
4JH1-TC ENG(RDM) 		8-97140-965-1 01 1 0507-0606 ● ● ●
423 03.883 SWITCH; ENG WARMING
4JJ1 ENG(LFB) 		8-97136-814-1 01 1 0607- ● ●
423 03.883 SWITCH; ENG WARMING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 		8-97136-814-1 01 1 0607- ● ●
423 03.883 SWITCH; ENG WARMING
4HK1-TCC ENG(RDV) 		8-97136-814-1 01 1 0607- ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97260-401-1 01 1 0302-0506 ● ● ● ● ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97260-401-1 01 1 0507- ● ● ● ● ● ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97140-601-0 01 1 0507-0606 ● ●
498 03.883 SWITCH; ASR 8-97140-601-0 01 1 0507-0606 ● ● ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97140-601-0 01 1 0607- ● ● ●
498 03.883 SWITCH; ASR 8-97140-601-0 01 1 0607- ● ● ●
534 02.780 SWITCH SET; FOG & ROOM
ROOM LAMP SWITCH<7KL> 		8-97140-585-0 01 1 0607- ● ● ● ● ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		1-82350-361-0 01 1 0507-0606 ● ● ● ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		1-82350-361-0 01 1 0607- ● ● ● ● ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97331-179-0 01 1 0507-0606 ● ● ● ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97331-179-0 01 1 0607- ● ● ● ● ● ●
671 02.895 SWITCH; SMOOTHER,RESET
TRANSMISSION CONTROL-SMOOTHER(8GF) 16.263 		8-97329-833-0 01 1 0507-0606 ● ● ● ● ●
671 02.895 SWITCH; SMOOTHER,RESET
TRANSMISSION CONTROL-SMOOTHER(8GF) 16.263 		8-97329-833-0 01 1 0607- ● ● ● ● ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97329-781-0 01 1 0507-0606 ● ● ● ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97329-781-0 01 1 0607- ● ● ● ● ● ●
696 02.780 SWITCH; DPD 8-97366-763-2 01 1 0607- ● ● ● ● ● ●

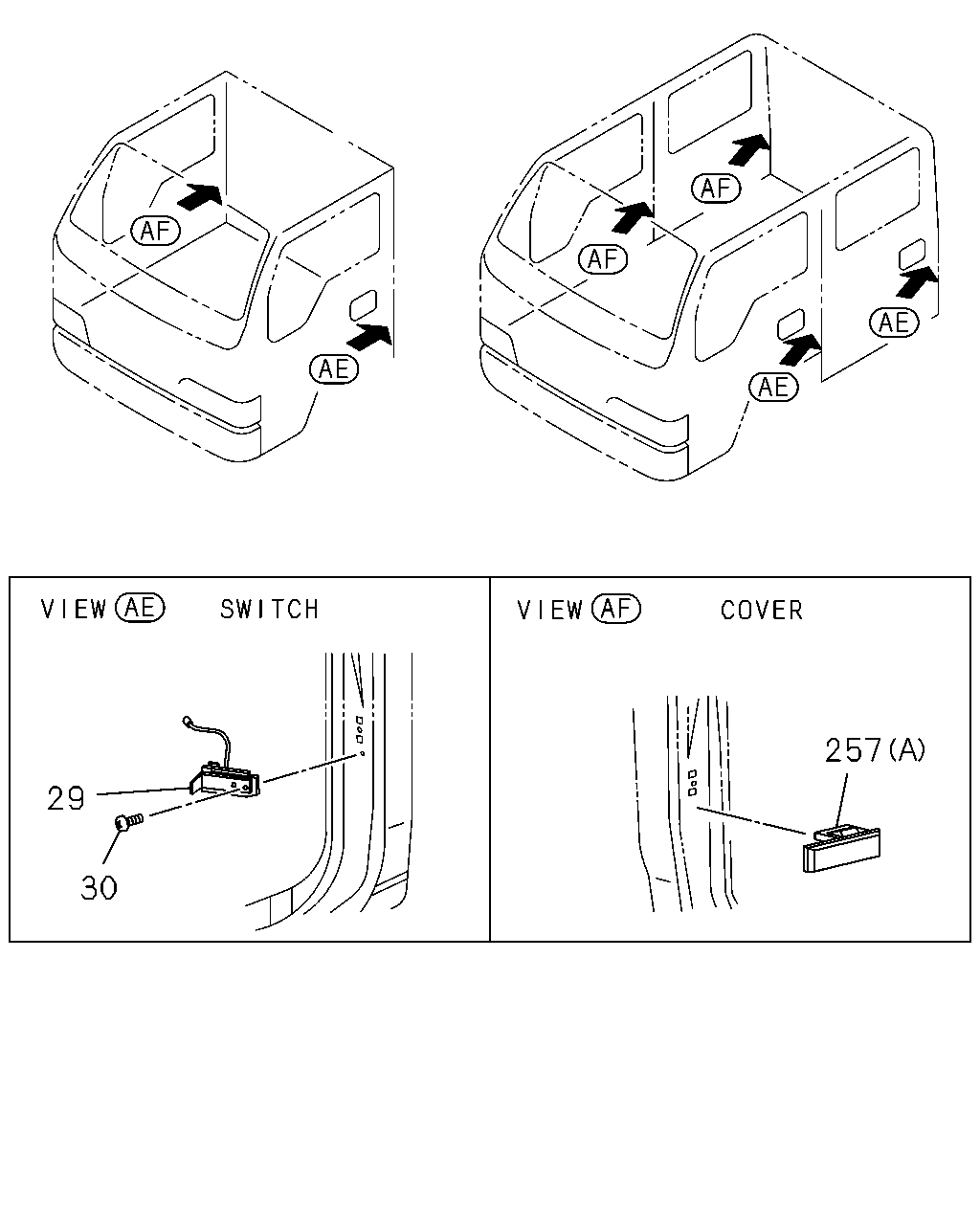

çizim 55067
257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97855-032-3 02 1 0302-0506 ● ● ● ● ●
29 16.263 SWITCH; DOOR
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 		8-97855-032-3 02 1 0302-0506 ● ●
29 16.263 SWITCH; DOOR 8-97855-032-3 01 1 0507-0606 ●
29 16.263 SWITCH; DOOR
EXC. ROOM LAMP W/ALL DOORS SW(SDF), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97855-032-3 01 1 0507-0606 ● ● ●
29 16.263 SWITCH; DOOR
EXC. ROOM LAMP W/ALL DOORS SW(SDF), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97855-032-3 01 1 0607- ● ● ● ●
29 16.263 SWITCH; DOOR
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 		8-97855-032-3 01 1 0302-0506 ● ● ● ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97855-032-3 02 1 0507-0606 ● ● ●
29 16.263 SWITCH; DOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97855-032-3 02 1 0507-0606 ● ● ●
29 16.263 SWITCH; DOOR
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 		8-97855-032-3 02 1 0507-0606 ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97855-032-3 02 1 0607- ● ● ● ●
29 16.263 SWITCH; DOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97855-032-3 02 1 0607- ● ● ● ●
29 16.263 SWITCH; DOOR
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 		8-97855-032-3 02 1 0607- ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97855-032-3 04 1 0302- ● ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) M5X16 		8-94279-341-0 02 1 0302-0506 ● ● ● ● ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) M5X16 		8-94279-341-0 02 1 0302-0506 ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 0507-0606 ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), TRANSMISSION CONTROL-SMOOTHER(8GF) M5X16 		8-94279-341-0 01 1 0507-0606 ● ● ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), TRANSMISSION CONTROL-SMOOTHER(8GF) M5X16 		8-94279-341-0 01 1 0607- ● ● ● ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) M5X16 		8-94279-341-0 01 1 0302-0506 ● ● ● ● ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M5X16 		8-94279-341-0 02 1 0507-0606 ● ● ●
30 16.263 SCREW; DOOR SW
TRANSMISSION CONTROL-SMOOTHER(8GF) M5X16 		8-94279-341-0 02 1 0507-0606 ● ● ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) M5X16 		8-94279-341-0 02 1 0507-0606 ● ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M5X16 		8-94279-341-0 02 1 0607- ● ● ● ●
30 16.263 SCREW; DOOR SW
TRANSMISSION CONTROL-SMOOTHER(8GF) M5X16 		8-94279-341-0 02 1 0607- ● ● ● ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) M5X16 		8-94279-341-0 02 1 0607- ● ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) M5X16 		8-94279-341-0 04 1 0302- ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 16.494 (A) 		8-94229-914-1 01 1 0302-0506 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0507-0606 ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), TRANSMISSION CONTROL-SMOOTHER(8GF) 16.494 (A) 		8-94229-914-1 01 1 0507-0606 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), TRANSMISSION CONTROL-SMOOTHER(8GF) 16.494 (A) 		8-94229-914-1 01 1 0607- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (B) 		8-97136-694-0 01 1 0302-0506 ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (B) 		8-97136-694-0 01 1 0507-0606 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
09.744 (B) 		8-97136-694-0 01 1 0507-0606 ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> 09.744 (B) 		8-97136-694-0 01 1 0507-0606 ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> 09.744 (B) 		8-97136-694-0 01 1 0607- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 16.494 (A) 		8-94229-914-1 02 1 0302- ● ●

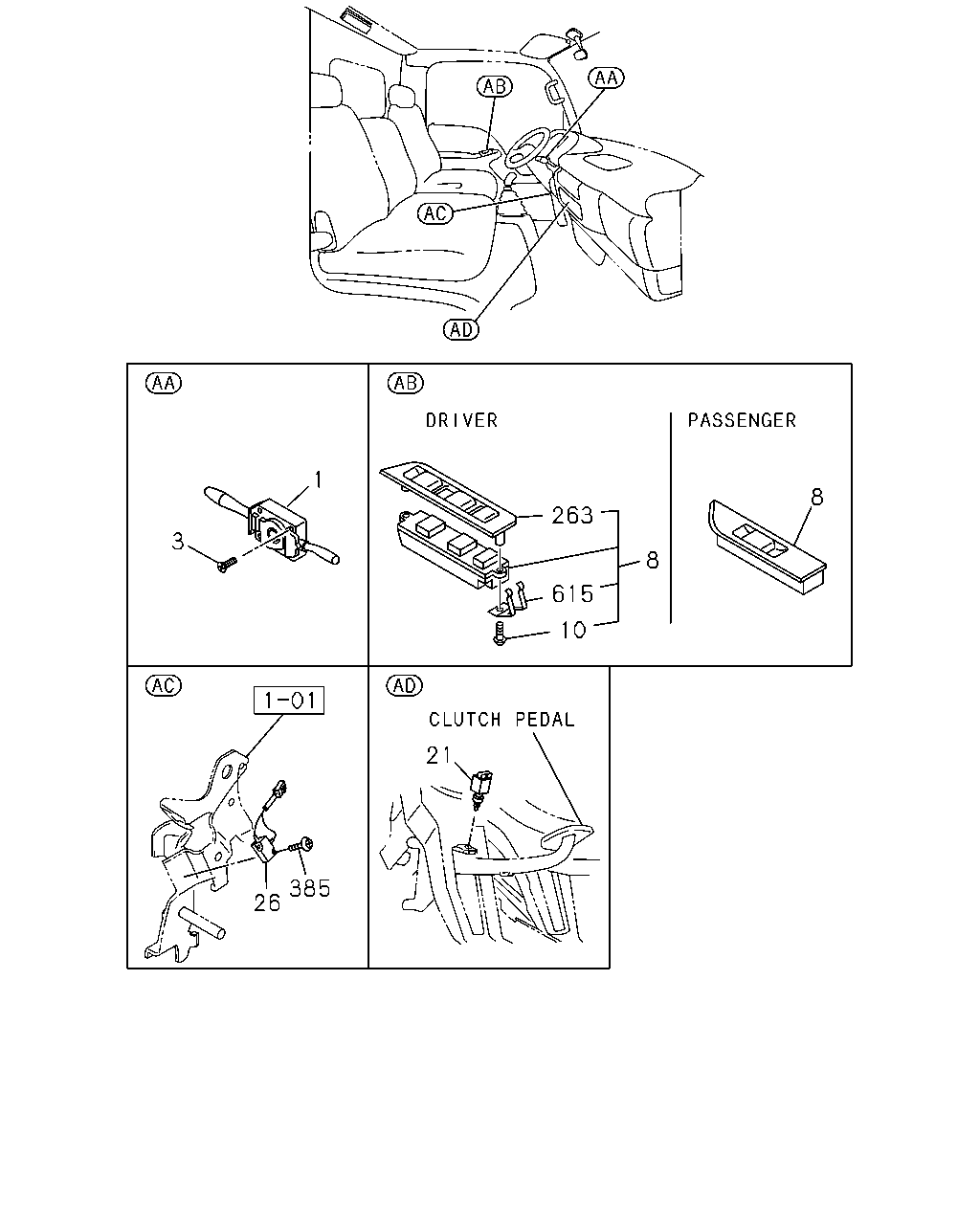

çizim 55073
1 8 263 3 8 615 10 21 385 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.895 SWITCH; COMB 8-97364-078-0 01 1 0302-0506 ● ● ● ● ● ● ●
1 02.895 SWITCH; COMB 8-97383-521-0 01 1 0507- ● ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 0302-0506 ● ● ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 0507-0604 ● ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		0-36220-520-0 04 1 0605-0612 ● ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 04 1 0701- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97214-399-0 01 1 0302-0506 ● ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97214-399-0 01 1 0507-0703 ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98075-446-0 01 1 0704-0907 ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98147-236-0 01 1 0908- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97315-178-0 01 1 0302-0506 ● ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97315-178-0 01 1 0507-0606 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97315-178-0 01 1 0507-0606 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97315-178-0 01 1 0607-0907 ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98147-226-0 01 1 0908- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97364-113-0 01 1 0302-0506 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97364-113-0 01 1 0507-0606 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97364-113-0 01 1 0507-0606 ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 0302-0506 ● ● ● ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 0507- ● ● ● ● ● ●
21 02.575 SWITCH; CLU
4HE1 ENG(RLY) 		8-97358-248-0 01 1 0302-0506 ● ● ● ● ● ● ●
21 02.575 SWITCH; CLU
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0507-0606 ● ● ● ●
21 02.575 SWITCH; CLU
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0507-0606 ●
21 02.575 SWITCH; CLU
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0607- ● ● ● ● ● ●
21 02.575 SWITCH; CLU
4JH1 ENG(RJX) 		8-97260-603-0 01 1 0302-0506 ● ● ●
21 02.575 SWITCH; CLU
4JH1-TC ENG(RDM) 		8-97260-603-0 01 1 0507-0606 ● ● ●
26 03.636 SWITCH; ACCEL
4HE1 ENG(RLY) 		8-97855-192-0 01 1 0302-0506 ● ● ● ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-236-0 01 1 0302-0506 ● ● ● ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-236-0 01 1 0507- ● ● ● ● ● ●
385 08.909 SCREW; ACCEL SW
4HE1 ENG(RLY) 03.451 M3X16 TAPPING 		0-71280-316-0 02 1 0302-0506 ● ● ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 0302-0506 ● ● ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 0507- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
