◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50949 - NPR/NQR(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#46607) — 1270 parça

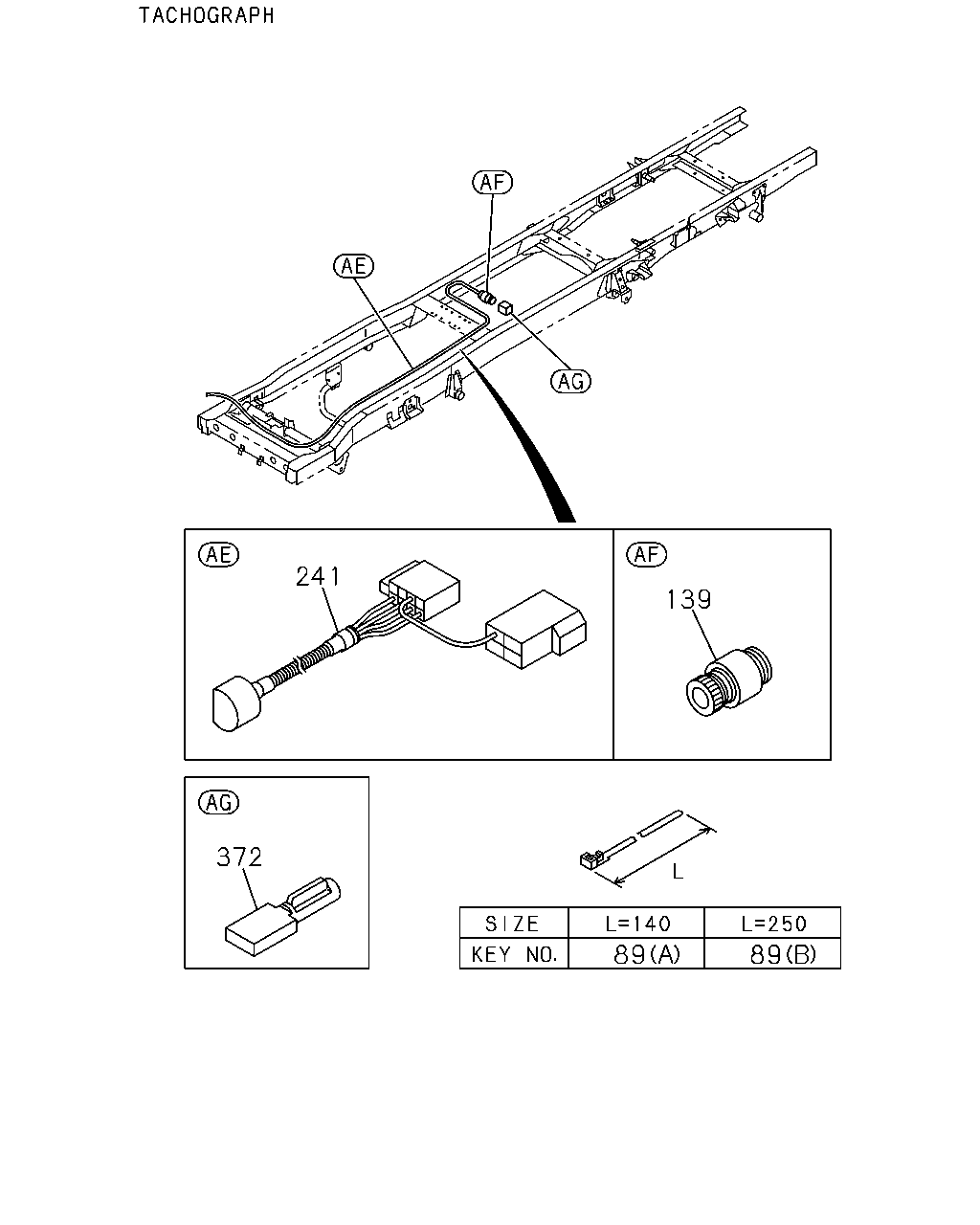

çizim 12709
241 139 372 89 89
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
89 09.761 CLIP; HARNESS
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 02.559 (B) L=250 		5-09707-030-1 15 1 0302-0506 ● ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 02.559 (B) L=250 		5-09707-030-1 15 1 0507-0512 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> LEYLAND EQUIPMENT<S9Z> 02.559 (B) L=250 		5-09707-030-1 15 1 0601-0604 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 02.559 (B) L=250 		5-09707-030-1 15 1 0605-0606 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> 02.559 (B) L=250 		5-09707-030-1 15 1 0607-0607 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 02.559 (B) L=250 		5-09707-030-1 15 1 0608- ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EUROPEAN BASIC EQUIPMENT(EK4) (C) 		8-97253-928-0 01 1 0607-0607 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EUROPEAN BASIC EQUIPMENT(EK4) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97253-928-0 01 1 0607-0607 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (C) 		8-97253-928-0 01 1 0608- ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> 03.162 (A) L=140 		5-09707-031-1 02 1 0302-0506 ● ● ●
89 09.761 CLIP; HARNESS
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> 03.162 (A) L=140 		5-09707-031-1 02 1 0507-0512 ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB> 03.162 (A) L=140 		5-09707-031-1 01 1 0601-0606 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 03.162 (A) L=140 		5-09707-031-1 01 1 0607- ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> LEYLAND EQUIPMENT<S9Z> EXC. VOLTAGE 24V<7AE> 03.162 (A) L=140 		5-09707-031-1 02 1 0601-0604 ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> 03.162 (A) L=140 		5-09707-031-1 02 1 0605-0606 ● ● ●
89 09.761 CLIP; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-97253-928-0 01 1 0507-0606 ● ● ● ● ●
139 09.750 SENSOR; SPD,CLUSTER METER
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97160-802-0 01 1 0302-0506 ● ● ● ● ● ● ●
139 09.750 SENSOR; SPD,CLUSTER METER
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97160-802-0 01 1 0507-0604 ● ● ● ● ● ●
139 09.750 SENSOR; SPD,CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97160-802-0 01 1 0605-0606 ● ● ● ● ● ●
139 09.750 SENSOR; SPD,CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> 		8-97160-802-0 01 1 0607-0607 ● ● ● ● ● ●
139 09.750 SENSOR; SPD,CLUSTER METER
TACHOGRAPH DIGITAL<EBB> 		8-98035-238-0 01 1 0601-0606 ● ● ● ● ● ●
139 09.750 SENSOR; SPD,CLUSTER METER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 		8-98035-238-0 01 1 0607- ● ● ● ● ● ●
241 02.480 HARNESS; SPEEDOMETER
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97160-804-0 01 1 0302-0506 ● ● ● ● ● ● ●
241 02.480 HARNESS; SPEEDOMETER
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97160-804-0 01 1 0507-0604 ● ● ● ● ● ●
241 02.480 HARNESS; SPEEDOMETER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97160-804-0 01 1 0605-0606 ● ● ● ● ● ●
241 02.480 HARNESS; SPEEDOMETER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> 		8-97160-804-0 01 1 0607-0607 ● ● ● ● ● ●
241 02.480 HARNESS; SPEEDOMETER
TACHOGRAPH DIGITAL<EBB> 		8-98035-237-0 01 1 0601-0606 ● ● ● ● ● ●
241 02.480 HARNESS; SPEEDOMETER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 		8-98035-237-0 01 1 0607- ● ● ● ● ● ●
372 09.750 SHAFT; DRIVE,SPEED
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97160-805-0 01 1 0302-0506 ● ● ● ● ● ● ●
372 09.750 SHAFT; DRIVE,SPEED
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97160-805-0 01 1 0507-0512 ● ● ● ● ● ●
372 09.750 SHAFT; DRIVE,SPEED
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> LEYLAND EQUIPMENT<S9Z> 		8-97160-805-0 01 1 0601-0604 ● ● ● ● ● ●
372 09.750 SHAFT; DRIVE,SPEED
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97160-805-0 01 1 0605-0606 ● ● ● ● ● ●
372 09.750 SHAFT; DRIVE,SPEED
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> 		8-97160-805-0 01 1 0607-0607 ● ● ● ● ● ●
372 09.750 SHAFT; DRIVE,SPEED
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 		8-97160-805-0 01 1 0608- ● ● ● ● ● ●

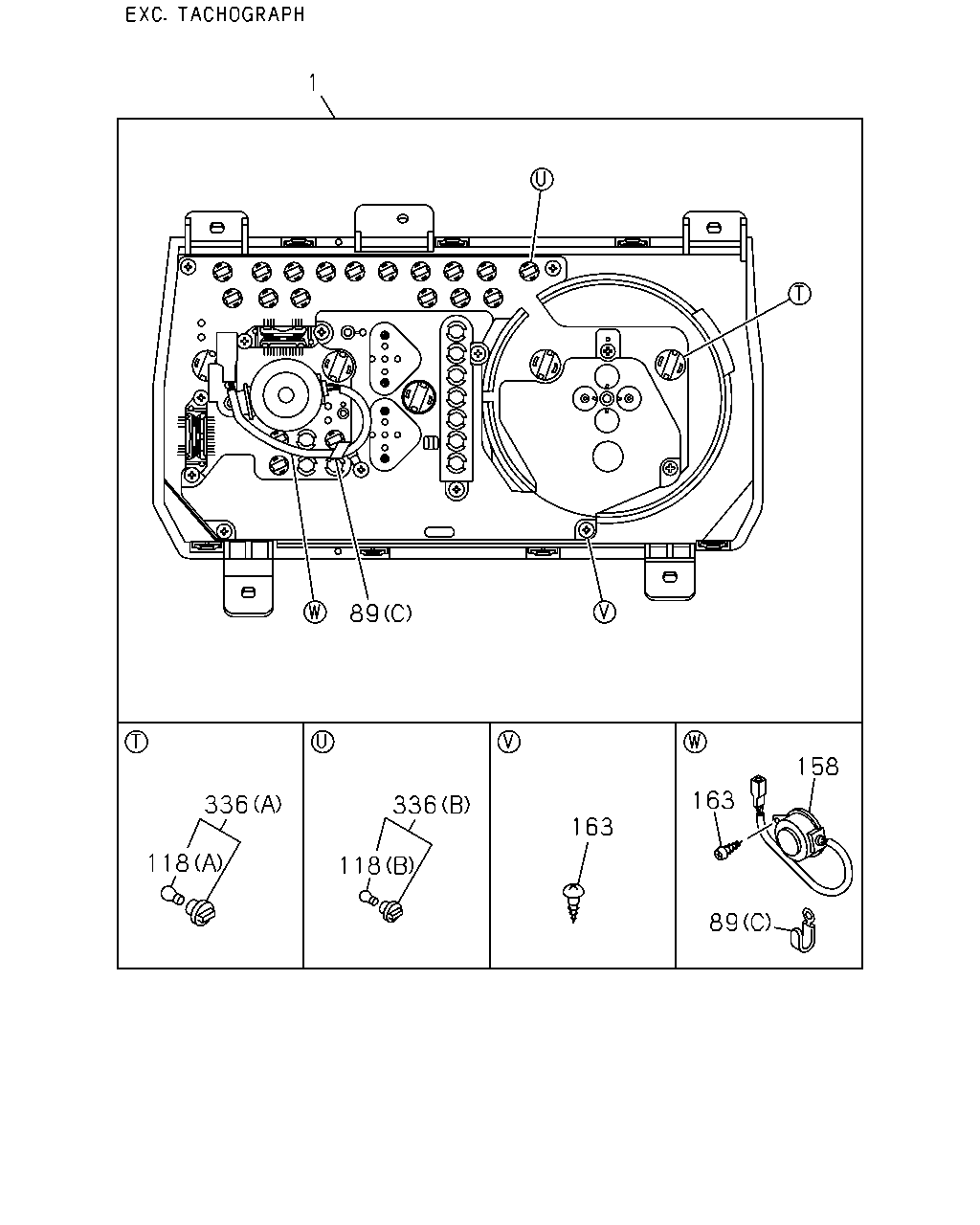

çizim 13504
1 89 158 163 336 336 163 118 118 89
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97249-250-0 01 1 0302-0402 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. ISRAEL COUNTRY(CV4) 		8-97249-250-0 01 1 0403-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-533-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-533-1 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97249-252-0 01 1 0302-0402 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), TACHOMETER<U16> 		8-97249-252-0 01 1 0403-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-531-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-531-1 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-253-0 01 1 0302-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97249-253-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-513-3 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-513-3 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-246-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97249-246-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-246-0 01 1 0302-0506 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0608- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-645-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97260-645-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97383-485-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97383-485-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97260-647-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97383-489-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97260-646-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97383-488-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97260-644-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-644-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97383-484-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97383-484-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-530-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-98000-518-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98000-518-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-98000-518-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98000-518-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98055-735-0 01 1 0608-0808 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98124-890-0 01 1 0809- ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 02.559 (B) L=250 		5-09707-030-1 15 1 0302-0506 ● ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 02.559 (B) L=250 		5-09707-030-1 15 1 0507-0512 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> LEYLAND EQUIPMENT<S9Z> 02.559 (B) L=250 		5-09707-030-1 15 1 0601-0604 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 02.559 (B) L=250 		5-09707-030-1 15 1 0605-0606 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> 02.559 (B) L=250 		5-09707-030-1 15 1 0607-0607 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 02.559 (B) L=250 		5-09707-030-1 15 1 0608- ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EUROPEAN BASIC EQUIPMENT(EK4) (C) 		8-97253-928-0 01 1 0607-0607 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EUROPEAN BASIC EQUIPMENT(EK4) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97253-928-0 01 1 0607-0607 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (C) 		8-97253-928-0 01 1 0608- ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> 03.162 (A) L=140 		5-09707-031-1 02 1 0302-0506 ● ● ●
89 09.761 CLIP; HARNESS
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> 03.162 (A) L=140 		5-09707-031-1 02 1 0507-0512 ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB> 03.162 (A) L=140 		5-09707-031-1 01 1 0601-0606 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 03.162 (A) L=140 		5-09707-031-1 01 1 0607- ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> LEYLAND EQUIPMENT<S9Z> EXC. VOLTAGE 24V<7AE> 03.162 (A) L=140 		5-09707-031-1 02 1 0601-0604 ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> 03.162 (A) L=140 		5-09707-031-1 02 1 0605-0606 ● ● ●
89 09.761 CLIP; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-97253-928-0 01 1 0507-0606 ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 12V SOCKET COLOR BLACK 		8-97185-535-0 AR 1 0302-0606 ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 12V SOCKET COLOR BLACK 		8-97185-536-0 AR 1 0302-0606 ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 12V SOCKET COLOR BLUE 		8-97185-537-0 AR 1 0302-0606 ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 AR 1 0302-0606 ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 AR 1 0302-0606 ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 AR 1 0302-0606 ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 28V 1.8W 		8-97305-177-0 AR 1 0507- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 28V 3W 		8-97305-178-0 AR 1 0507- ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HE1 ENG(RLY) 24V 		8-97185-519-0 01 1 0302-0402 ● ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 24V 		8-97185-519-0 01 1 0302-0402 ● ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> 24V 		8-97185-519-0 01 1 0403-0506 ● ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HE1 ENG(RLY) 24V 		8-97185-519-0 01 1 0403-0506 ● ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> 		8-98003-830-0 01 1 0507-0606 ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98003-830-0 01 1 0507-0606 ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 		8-98003-830-0 01 1 0507-0606 ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98003-830-0 01 1 0507-0606 ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EUROPEAN BASIC EQUIPMENT(EK4) 		8-98003-830-0 01 1 0607-0607 ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EUROPEAN BASIC EQUIPMENT(EK4) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98003-830-0 01 1 0607-0607 ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 		8-98003-830-0 01 1 0608- ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 		8-97185-520-0 01 1 0302-0506 ● ● ●
158 09.765 BUZZER; VAC WARNING
4JH1 ENG(RJX) 12V 		8-97185-520-0 01 1 0302-0506 ● ● ●
158 09.765 BUZZER; VAC WARNING
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 		8-97185-520-0 01 1 0507-0606 ● ● ●
158 09.765 BUZZER; VAC WARNING
4JH1-TC ENG(RDM) 12V 		8-97185-520-0 01 1 0507-0606 ● ● ●
163 08.977 SCREW; BUZZER 8-97185-527-0 01 1 0302-0402 ● ● ● ● ● ● ●
163 08.977 SCREW; BUZZER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-527-0 01 1 0302-0402 ● ● ● ● ● ● ●
163 08.977 SCREW; BUZZER 8-97185-527-0 01 1 0403-0506 ● ● ● ● ● ● ●
163 08.977 SCREW; BUZZER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-527-0 01 1 0403-0506 ● ● ● ● ● ● ●
163 08.977 SCREW; BUZZER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-527-0 01 1 0507-0606 ● ● ●
163 08.977 SCREW; BUZZER
4JH1-TC ENG(RDM) 		8-97185-527-0 01 1 0507-0606 ● ● ●
163 08.977 SCREW; BUZZER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-099-0 02 1 0507-0606 ● ● ● ● ●
163 08.977 SCREW; BUZZER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-099-0 02 1 0507-0606 ● ● ● ● ●
163 08.977 SCREW; BUZZER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-099-0 02 1 0507-0606 ● ● ● ● ●
163 08.977 SCREW; BUZZER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-099-0 02 1 0507-0606 ● ● ● ● ●
163 08.977 SCREW; BUZZER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-099-0 02 1 0607-0607 ● ● ● ● ● ●
163 08.977 SCREW; BUZZER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-099-0 02 1 0607-0607 ● ● ● ● ● ●
163 08.977 SCREW; BUZZER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 		8-97185-099-0 02 1 0608- ● ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EUROPEAN BASIC EQUIPMENT(EK4) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97185-091-0 19 1 0507-0509 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EUROPEAN BASIC EQUIPMENT(EK4) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97185-091-0 19 1 0507-0509 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EUROPEAN BASIC EQUIPMENT(EK4) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97185-091-0 20 1 0510-0606 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EUROPEAN BASIC EQUIPMENT(EK4) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97185-091-0 20 1 0510-0606 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> (B) 		8-97185-091-0 18 1 0607-0607 ● ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97185-091-0 19 1 0608- ● ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-091-0 17 1 0507-0509 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97185-091-0 17 1 0507-0509 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-091-0 18 1 0510-0606 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97185-091-0 18 1 0510-0606 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97185-091-0 20 1 0607-0607 ● ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97185-091-0 20 1 0607-0607 ● ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> (A) 		8-97185-093-0 05 1 0507-0606 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-093-0 05 1 0507-0606 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> (A) 		8-97185-093-0 03 1 0607-0607 ● ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A) 		8-97185-093-0 05 1 0608- ● ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> (B) 		8-97185-091-0 18 1 0507-0509 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-091-0 18 1 0507-0509 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> (B) 		8-97185-091-0 19 1 0510-0606 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-091-0 19 1 0510-0606 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> (B) 		8-97185-091-0 19 1 0607-0607 ● ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-091-0 19 1 0607-0607 ● ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97185-091-0 20 1 0608- ● ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97185-093-0 03 1 0507-0606 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-093-0 03 1 0507-0606 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97185-093-0 03 1 0507-0606 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> (A) 		8-97185-093-0 05 1 0607-0607 ● ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-093-0 05 1 0607-0607 ● ● ● ● ● ●

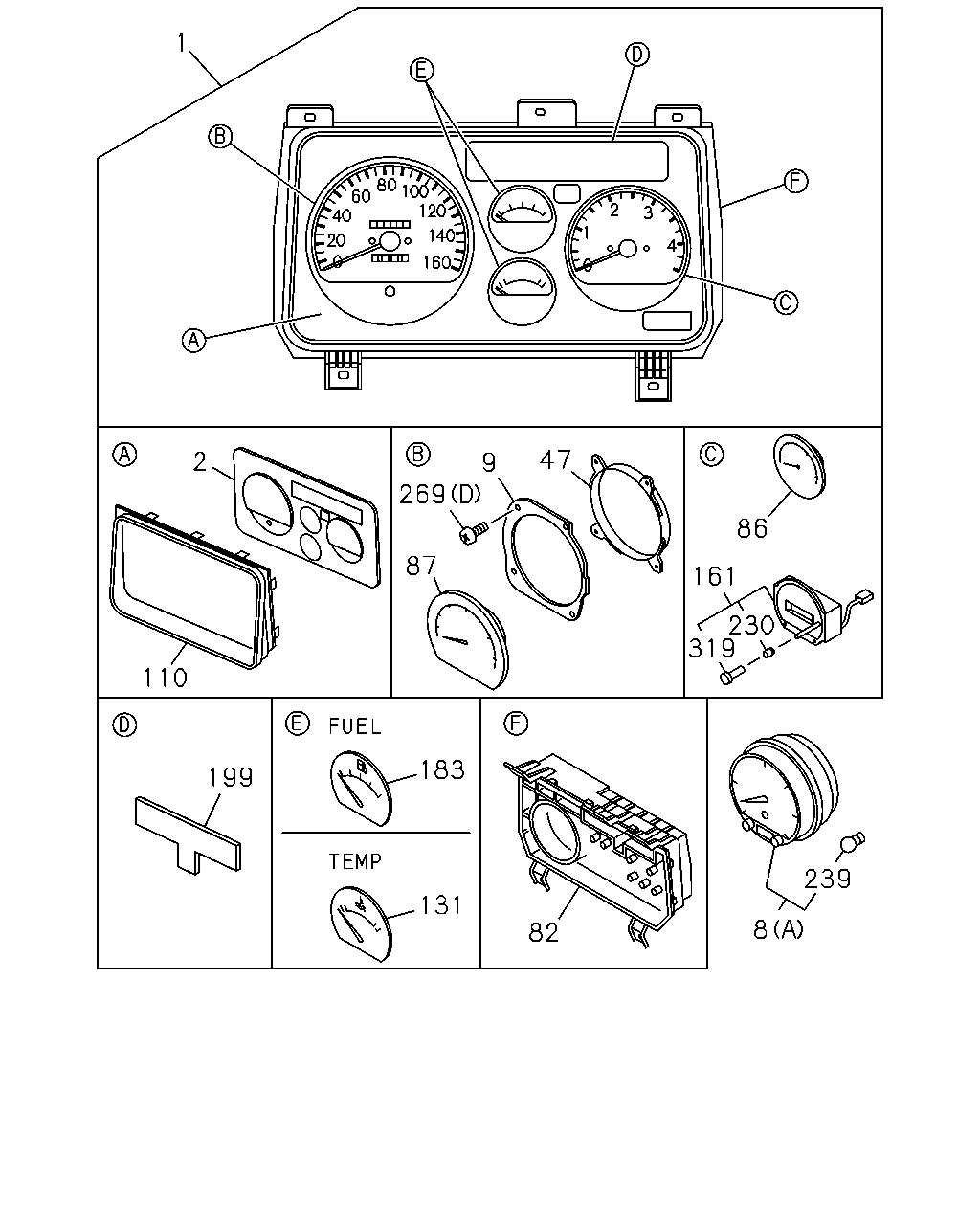

çizim 51052
1 47 2 9 269 86 87 161 230 319 110 183 199 239 131 8 82
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97249-250-0 01 1 0302-0402 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. ISRAEL COUNTRY(CV4) 		8-97249-250-0 01 1 0403-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-533-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-533-1 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97249-252-0 01 1 0302-0402 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), TACHOMETER<U16> 		8-97249-252-0 01 1 0403-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-531-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-531-1 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-253-0 01 1 0302-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97249-253-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-513-3 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-513-3 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-246-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97249-246-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-246-0 01 1 0302-0506 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0608- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-645-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97260-645-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97383-485-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97383-485-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97260-647-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97383-489-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97260-646-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97383-488-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97260-644-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-644-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97383-484-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97383-484-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-530-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-98000-518-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98000-518-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-98000-518-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98000-518-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98055-735-0 01 1 0608-0808 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98124-890-0 01 1 0809- ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-445-0 01 1 0302-0402 ● ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4) 		8-97185-445-0 01 1 0403-0506 ● ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-445-0 01 1 0403-0506 ● ● ●
2 09.735 PANEL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-445-0 01 1 0507-0606 ● ● ●
2 09.735 PANEL; CLUSTER
4JH1 ENG(RJX),4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-443-0 01 1 0302-0506 ● ● ●
2 09.735 PANEL; CLUSTER
4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-443-0 01 1 0302-0506 ● ● ●
2 09.735 PANEL; CLUSTER
4HE1 ENG(RLY) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-443-0 01 1 0302-0506 ● ● ● ●
2 09.735 PANEL; CLUSTER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-443-0 01 1 0507-0606 ● ● ●
2 09.735 PANEL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-443-0 01 1 0507-0606 ● ● ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-047-0 01 1 0507-0606 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-047-0 01 1 0507-0606 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-047-0 01 1 0507-0606 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-047-0 01 1 0507-0606 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-047-0 01 1 0607-0607 ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-047-0 01 1 0607-0607 ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 		8-97185-047-0 01 1 0608- ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-048-0 01 1 0507-0606 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-048-0 01 1 0507-0606 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97185-048-0 01 1 0607-0607 ● ● ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> (B) 		8-98035-622-0 01 1 0601-0606 ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> EXC. VOLTAGE 24V<7AE> (B) 		8-98035-622-0 01 1 0601-0606 ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> VOLTAGE 24V<7AE> (A) 		8-97182-353-0 01 1 0302-0506 ● ● ● ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> VOLTAGE 24V<7AE> (A) 		8-97182-353-0 01 1 0507-0604 ● ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> VOLTAGE 24V<7AE> (A) 		8-97182-353-0 01 1 0605-0606 ● ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97182-353-0 01 1 0607-0607 ● ● ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> (A) 		8-97183-885-0 01 1 0302-0506 ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> (A) 		8-97183-885-0 01 1 0507-0604 ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (A) 		8-97183-885-0 01 1 0605-0606 ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> (A) 		8-97183-885-0 01 1 0605-0606 ● ●

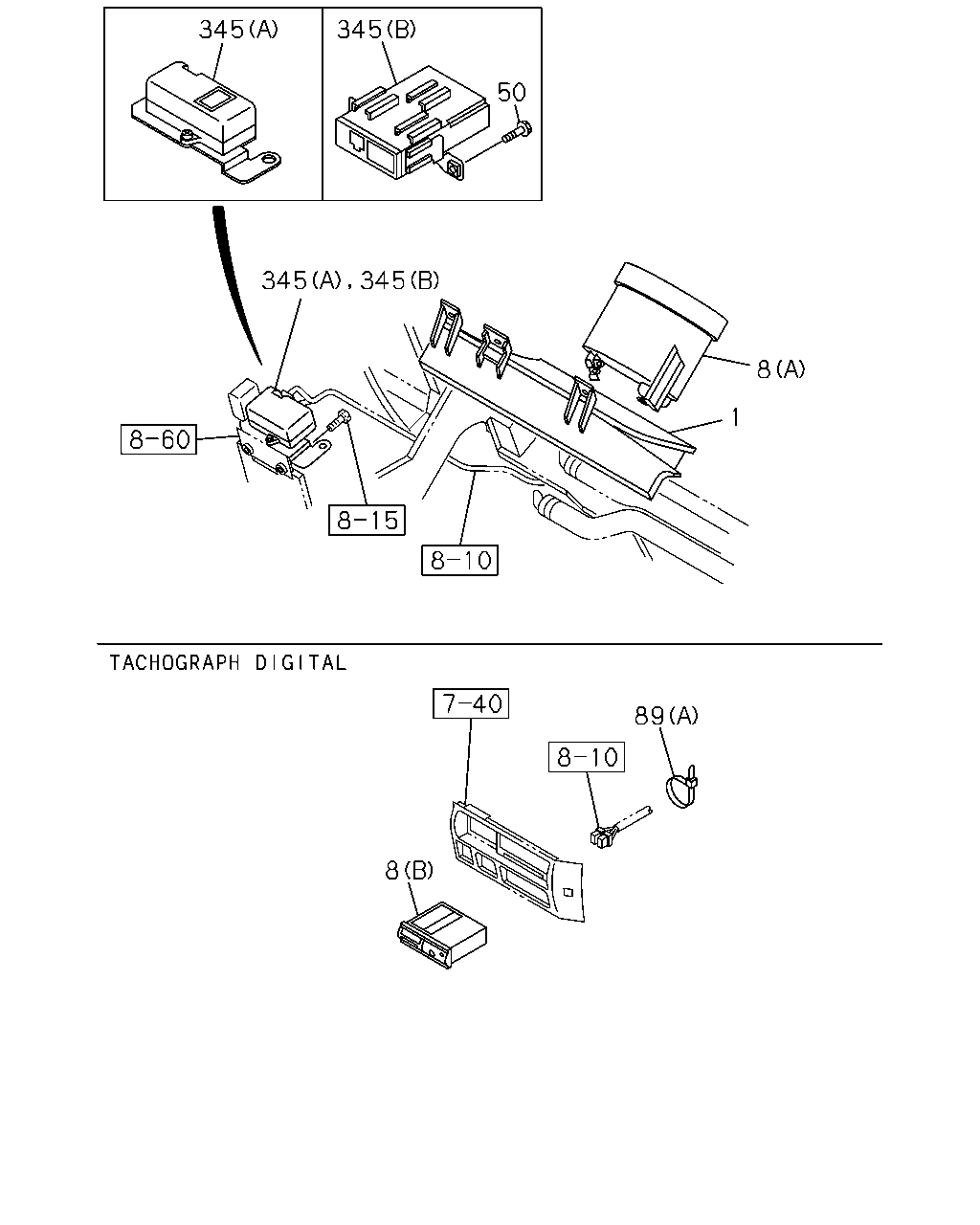

8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> VOLTAGE 24V<7AE> (B) 		8-98035-623-0 01 1 0601-0606 ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> (B) 		8-98035-623-0 01 1 0601-0606 ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98035-623-0 01 1 0607-1008 ● ● ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98178-336-0 01 1 1009-1107 ● ● ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98197-290-0 01 1 1108- ● ● ● ● ● ●

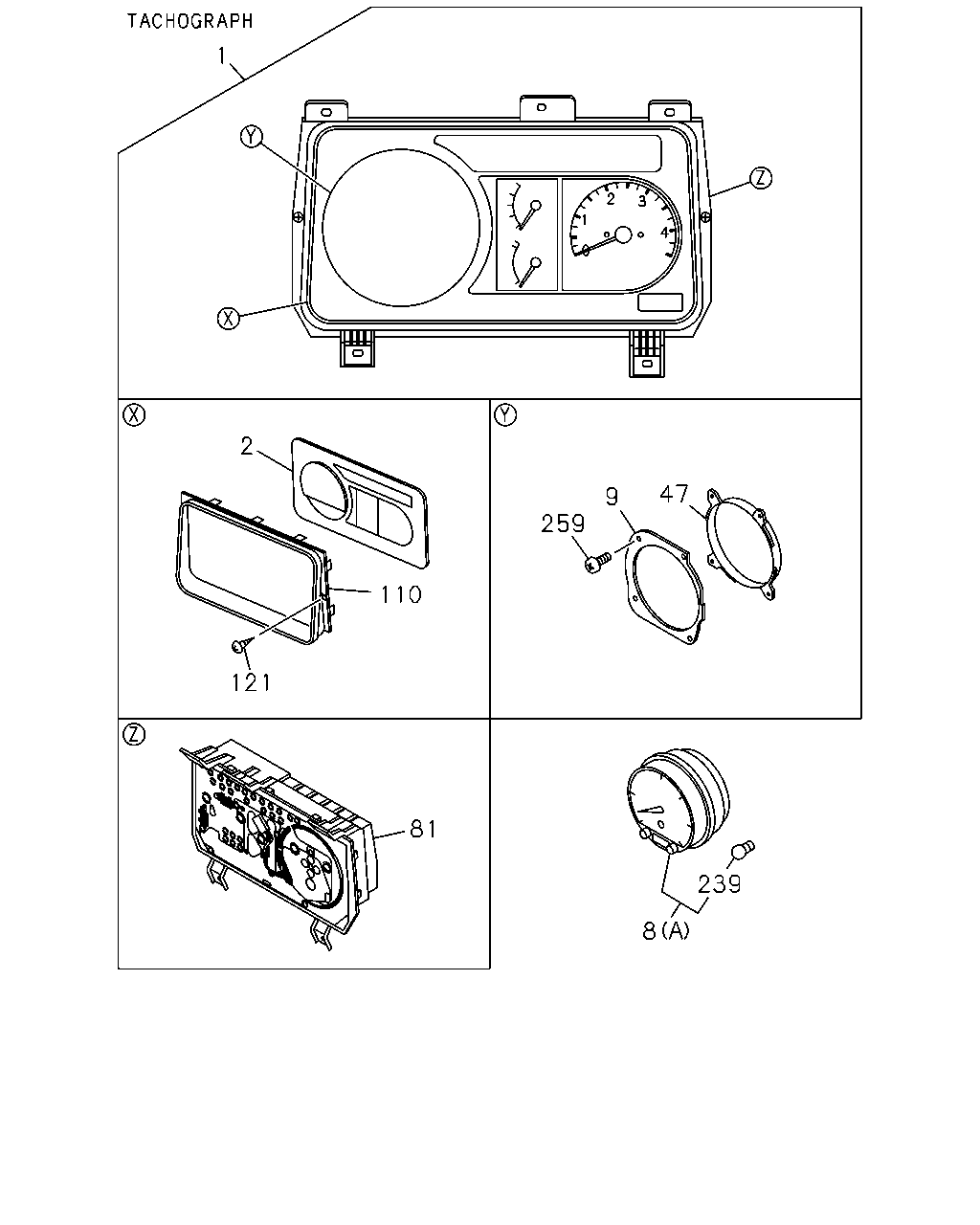

9 09.748 PLATE; BASE,TACHOGRAPH,CLUSTER M
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-531-0 01 1 0302-0402 ● ● ● ● ● ● ●
9 09.748 PLATE; BASE,TACHOGRAPH,CLUSTER M
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4) 		8-97185-531-0 01 1 0403-0506 ● ● ● ● ● ● ●
9 09.748 PLATE; BASE,TACHOGRAPH,CLUSTER M
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-531-0 01 1 0403-0506 ● ● ●
9 09.748 PLATE; BASE,TACHOGRAPH,CLUSTER M
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-531-0 01 1 0507-0606 ● ● ●
9 09.748 PLATE; BASE,TACHOGRAPH,CLUSTER M
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-102-0 01 1 0507-0606 ● ● ● ● ●
9 09.748 PLATE; BASE,TACHOGRAPH,CLUSTER M
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-102-0 01 1 0507-0606 ● ● ● ● ●
9 09.748 PLATE; BASE,TACHOGRAPH,CLUSTER M
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97185-102-0 01 1 0607-0607 ● ● ● ● ● ●
47 09.748 COVER; TACHOGRAPH,CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-530-0 01 1 0302-0402 ● ● ● ● ● ● ●
47 09.748 COVER; TACHOGRAPH,CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4) 		8-97185-530-0 01 1 0403-0506 ● ● ● ● ● ● ●
47 09.748 COVER; TACHOGRAPH,CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-530-0 01 1 0403-0506 ● ● ●
47 09.748 COVER; TACHOGRAPH,CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-530-0 01 1 0507-0606 ● ● ●
47 09.748 COVER; TACHOGRAPH,CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-103-0 01 1 0507-0606 ● ● ● ● ●
47 09.748 COVER; TACHOGRAPH,CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-103-0 01 1 0507-0606 ● ● ● ● ●
47 09.748 COVER; TACHOGRAPH,CLUSTER METER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97185-103-0 01 1 0607-0607 ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-449-0 01 1 0302-0402 ● ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4) 		8-97185-449-0 01 1 0403-0506 ● ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-449-0 01 1 0403-0506 ● ● ●
82 09.743 CASE ASM; CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-449-0 01 1 0507-0606 ● ● ●
82 09.743 CASE ASM; CLUSTER METER
4JH1 ENG(RJX),4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-448-0 01 1 0302-0506 ● ● ●
82 09.743 CASE ASM; CLUSTER METER
4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-448-0 01 1 0302-0506 ● ● ●
82 09.743 CASE ASM; CLUSTER METER
4HE1 ENG(RLY) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-448-0 01 1 0302-0506 ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-448-0 01 1 0507-0606 ● ● ●
82 09.743 CASE ASM; CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-448-0 01 1 0507-0606 ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4HE1 ENG(RLY) TACHOMETER<U16> 		8-97218-460-0 01 1 0302-0402 ● ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97218-460-0 01 1 0302-0402 ● ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4HE1 ENG(RLY) TACHOMETER<U16> 		8-97218-460-0 01 1 0403-0506 ● ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> 		8-97218-460-0 01 1 0403-0506 ● ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97307-050-0 01 1 0302-0506 ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4JH1 ENG(RJX) TACHOMETER<U16> 		8-97307-050-0 01 1 0302-0506 ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98002-116-0 01 1 0507-0606 ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4JH1-TC ENG(RDM) TACHOMETER<U16> 		8-98002-116-0 01 1 0507-0606 ● ● ●
87 09.761 SPEEDOMETER
4JH1 ENG(RJX),4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-456-0 01 1 0302-0506 ● ● ●
87 09.761 SPEEDOMETER
4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-456-0 01 1 0302-0506 ● ● ●
87 09.761 SPEEDOMETER
4HE1 ENG(RLY) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-456-0 01 1 0302-0506 ● ● ● ●
87 09.761 SPEEDOMETER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-98002-107-0 01 1 0507-0606 ● ● ●
87 09.761 SPEEDOMETER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98002-107-0 01 1 0507-0606 ● ● ●

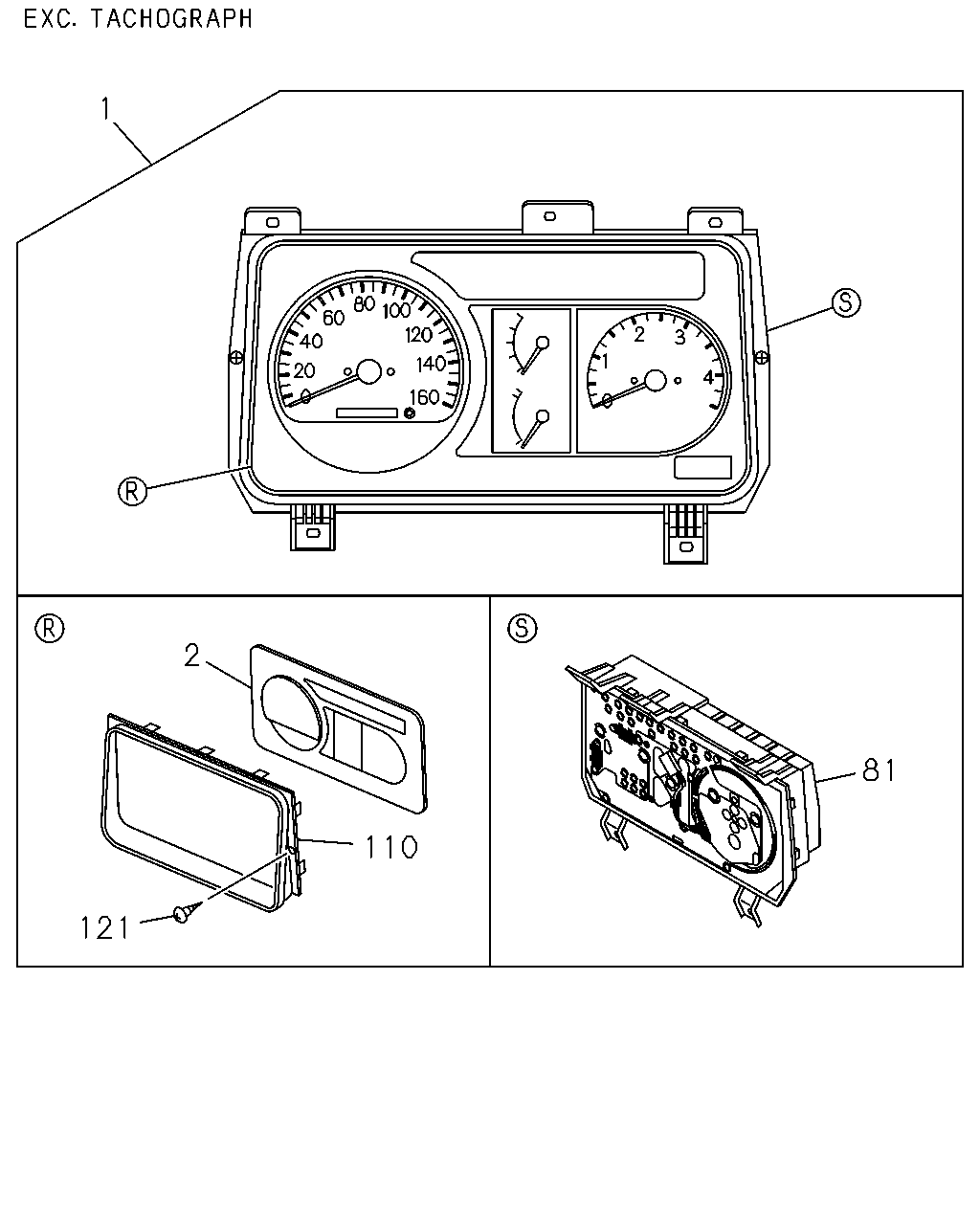

110 09.748 GLASS; CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-452-0 01 1 0302-0506 ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-452-0 01 1 0302-0506 ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-452-0 01 1 0507-0606 ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1-TC ENG(RDM) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-452-0 01 1 0507-0606 ● ● ●
110 09.748 GLASS; CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-451-0 01 1 0302-0506 ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97185-451-0 01 1 0302-0506 ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97185-451-0 01 1 0507-0606 ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-451-0 01 1 0507-0606 ● ● ●
110 09.748 GLASS; CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97185-454-0 01 1 0302-0402 ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. ISRAEL COUNTRY(CV4) 		8-97185-454-0 01 1 0403-0506 ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97185-454-0 01 1 0507-0606 ● ● ●
110 09.748 GLASS; CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97185-453-0 01 1 0302-0402 ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-453-0 01 1 0302-0402 ● ● ●
110 09.748 GLASS; CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), TACHOMETER<U16> 		8-97185-453-0 01 1 0403-0506 ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-453-0 01 1 0403-0506 ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97185-453-0 01 1 0507-0606 ● ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-045-0 01 1 0507-0606 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-045-0 01 1 0507-0606 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-045-0 01 1 0507-0606 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-045-0 01 1 0507-0606 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-045-0 01 1 0607-0607 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-045-0 01 1 0607-0607 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 		8-97185-045-0 01 1 0608- ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-046-0 01 1 0507-0606 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-046-0 01 1 0507-0606 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97185-046-0 01 1 0607-0607 ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4HE1 ENG(RLY) 		8-97185-475-0 01 1 0302-0402 ● ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-475-0 01 1 0302-0402 ● ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-475-0 01 1 0403-0506 ● ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4HE1 ENG(RLY) 		8-97185-475-0 01 1 0403-0506 ● ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-476-0 01 1 0302-0506 ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4JH1 ENG(RJX) 		8-97185-476-0 01 1 0302-0506 ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98002-122-0 01 1 0507-0606 ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4JH1-TC ENG(RDM) 		8-98002-122-0 01 1 0507-0606 ● ● ●
161 09.772 CLOCK; CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97185-462-0 01 1 0302-0402 ● ● ● ● ● ● ●
161 09.772 CLOCK; CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-462-0 01 1 0302-0402 ● ● ● ● ● ● ●
161 09.772 CLOCK; CLUSTER METER
EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97185-462-0 01 1 0302-0402 ● ● ●
161 09.772 CLOCK; CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97185-462-0 01 1 0403-0506 ● ● ● ● ● ● ●
161 09.772 CLOCK; CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-462-0 01 1 0403-0506 ● ● ● ● ● ● ●
161 09.772 CLOCK; CLUSTER METER
EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97185-462-0 01 1 0403-0506 ● ● ●
161 09.772 CLOCK; CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-98002-110-0 01 1 0507-0606 ● ● ●
161 09.772 CLOCK; CLUSTER METER
4JH1-TC ENG(RDM) EXC. TACHOMETER<U16> 		8-98002-110-0 01 1 0507-0606 ● ● ●
183 03.107 GAUGE; FUEL 8-97185-473-0 01 1 0302-0402 ● ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-473-0 01 1 0302-0402 ● ● ● ● ● ● ●
183 03.107 GAUGE; FUEL 8-97185-473-0 01 1 0403-0506 ● ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-473-0 01 1 0403-0506 ● ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98002-118-0 01 1 0507-0606 ● ● ●
183 03.107 GAUGE; FUEL
4JH1-TC ENG(RDM) 		8-98002-118-0 01 1 0507-0606 ● ● ●
199 09.772 LENS; WARNING LAMP 8-97210-305-0 01 1 0302-0402 ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97210-305-0 01 1 0302-0402 ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP 8-97210-305-0 01 1 0403-0506 ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> 		8-97210-305-0 01 1 0403-0506 ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98002-124-0 01 1 0507-0606 ● ● ●
199 09.772 LENS; WARNING LAMP
4JH1-TC ENG(RDM) 		8-98002-124-0 01 1 0507-0606 ● ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97185-644-0 01 1 0302-0402 ● ● ● ● ● ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-644-0 01 1 0302-0402 ● ● ● ● ● ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97185-644-0 01 1 0302-0402 ● ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-644-0 01 1 0302-0402 ● ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-644-0 01 1 0403-0506 ● ● ● ● ● ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-644-0 01 1 0403-0506 ● ● ● ● ● ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-644-0 01 1 0403-0506 ● ● ● ● ● ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97185-644-0 01 1 0403-0506 ● ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-644-0 01 1 0507-0606 ● ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4JH1-TC ENG(RDM) EXC. TACHOMETER<U16> 		8-97185-644-0 01 1 0507-0606 ● ● ●
239 08.991 BULB; TACHOGRAPH
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97356-179-0 02 1 0302-0506 ● ● ● ● ● ● ●
239 08.991 BULB; TACHOGRAPH
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97356-179-0 02 1 0507-0604 ● ● ● ● ● ●
239 08.991 BULB; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97356-179-0 02 1 0605-0606 ● ● ● ● ● ●
239 08.991 BULB; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> 		8-97356-179-0 02 1 0607-0607 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
08.225 (F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0302-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
08.225 (F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0507- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(A) 		8-97185-525-0 06 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-525-0 06 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(A) 		8-97185-525-0 06 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-525-0 06 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-525-0 06 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) (A) 		8-97185-525-0 06 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (D) 		8-97185-532-0 04 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4) (D) 		8-97185-532-0 04 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (D) 		8-97185-532-0 04 1 0403-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (D) 		8-97185-532-0 04 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 08 1 0302-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> (E) 		8-97185-524-0 08 1 0302-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> (E) 		8-97185-524-0 03 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) (B) 		8-97185-523-0 01 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-523-0 01 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-523-0 01 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) (B) 		8-97185-523-0 01 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) (C) 		8-97185-528-0 05 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 05 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 05 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) (C) 		8-97185-528-0 05 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 08.977 (G) 		8-97185-099-0 02 1 0507-0606 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 08.977 (G) 		8-97185-099-0 02 1 0507-0606 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 08.977 (G) 		8-97185-099-0 02 1 0607-0607 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0302-0303 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0302-0303 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0302-0303 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0302-0303 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX),4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0403-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> (E) 		8-97185-524-0 02 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> (E) 		8-97185-524-0 02 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (E) 		8-97185-524-0 02 1 0302-0402 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), TACHOMETER<U16> (E) 		8-97185-524-0 02 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (E) 		8-97185-524-0 02 1 0403-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 08 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> (E) 		8-97185-524-0 08 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 02 1 0302-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) (C) 		8-97185-528-0 02 1 0302-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 02 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) (C) 		8-97185-528-0 02 1 0507-0606 ● ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97185-522-0 01 1 0302-0402 ● ● ● ● ● ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-522-0 01 1 0302-0402 ● ● ● ● ● ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97185-522-0 01 1 0302-0402 ● ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-522-0 01 1 0302-0402 ● ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-522-0 01 1 0403-0506 ● ● ● ● ● ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-522-0 01 1 0403-0506 ● ● ● ● ● ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-522-0 01 1 0403-0506 ● ● ● ● ● ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97185-522-0 01 1 0403-0506 ● ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-522-0 01 1 0507-0606 ● ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
4JH1-TC ENG(RDM) EXC. TACHOMETER<U16> 		8-97185-522-0 01 1 0507-0606 ● ● ●

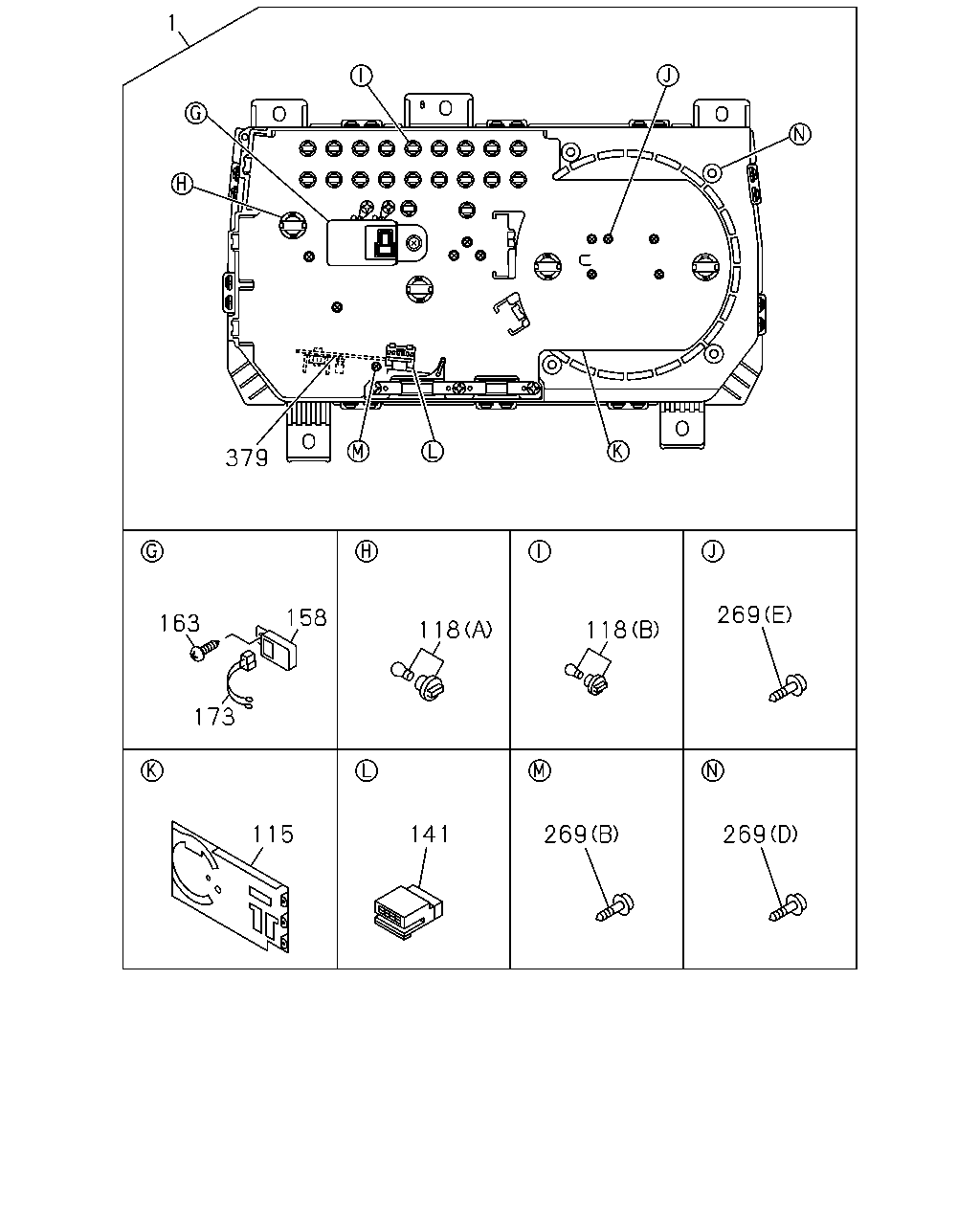

çizim 51899
1 379 269 158 163 118 118 173 115 269 269 141
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97249-250-0 01 1 0302-0402 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. ISRAEL COUNTRY(CV4) 		8-97249-250-0 01 1 0403-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-533-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-533-1 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97249-252-0 01 1 0302-0402 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), TACHOMETER<U16> 		8-97249-252-0 01 1 0403-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-531-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-531-1 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-253-0 01 1 0302-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97249-253-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-513-3 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-513-3 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-246-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97249-246-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-246-0 01 1 0302-0506 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0608- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-645-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97260-645-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97383-485-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97383-485-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97260-647-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97383-489-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97260-646-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97383-488-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97260-644-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-644-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97383-484-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97383-484-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-530-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-98000-518-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98000-518-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-98000-518-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98000-518-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98055-735-0 01 1 0608-0808 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98124-890-0 01 1 0809- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97210-314-0 01 1 0302-0402 ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. ISRAEL COUNTRY(CV4) 		8-97210-314-0 01 1 0403-0506 ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97210-315-0 01 1 0302-0402 ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), TACHOMETER<U16> 		8-97210-315-0 01 1 0403-0506 ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97210-602-0 01 1 0302-0506 ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97210-602-0 01 1 0302-0506 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97210-603-0 01 1 0302-0506 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97210-603-0 01 1 0302-0506 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97210-603-0 01 1 0302-0506 ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97307-051-0 01 1 0302-0506 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JH1 ENG(RJX) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97307-051-0 01 1 0302-0506 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97307-051-0 01 1 0507-0606 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JH1-TC ENG(RDM) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97307-051-0 01 1 0507-0606 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97307-054-0 01 1 0302-0506 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97307-054-0 01 1 0507-0606 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97307-053-0 01 1 0302-0506 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97307-053-0 01 1 0507-0606 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97307-052-0 01 1 0302-0506 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97307-052-0 01 1 0302-0506 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97307-052-0 01 1 0507-0606 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97307-052-0 01 1 0507-0606 ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 12V SOCKET COLOR BLACK 		8-97185-535-0 AR 1 0302-0606 ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 12V SOCKET COLOR BLACK 		8-97185-536-0 AR 1 0302-0606 ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 12V SOCKET COLOR BLUE 		8-97185-537-0 AR 1 0302-0606 ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 AR 1 0302-0606 ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 AR 1 0302-0606 ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 AR 1 0302-0606 ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 28V 1.8W 		8-97305-177-0 AR 1 0507- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 28V 3W 		8-97305-178-0 AR 1 0507- ● ● ● ● ● ●
141 09.744 CONNECTOR; CLUSTER METER
4HE1 ENG(RLY) 		8-97185-513-0 01 1 0302-0402 ● ● ● ● ● ● ●
141 09.744 CONNECTOR; CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-513-0 01 1 0302-0402 ● ● ● ● ● ● ●
141 09.744 CONNECTOR; CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-513-0 01 1 0403-0506 ● ● ● ● ● ● ●
141 09.744 CONNECTOR; CLUSTER METER
4HE1 ENG(RLY) 		8-97185-513-0 01 1 0403-0506 ● ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HE1 ENG(RLY) 24V 		8-97185-519-0 01 1 0302-0402 ● ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 24V 		8-97185-519-0 01 1 0302-0402 ● ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> 24V 		8-97185-519-0 01 1 0403-0506 ● ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HE1 ENG(RLY) 24V 		8-97185-519-0 01 1 0403-0506 ● ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> 		8-98003-830-0 01 1 0507-0606 ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98003-830-0 01 1 0507-0606 ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 		8-98003-830-0 01 1 0507-0606 ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98003-830-0 01 1 0507-0606 ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EUROPEAN BASIC EQUIPMENT(EK4) 		8-98003-830-0 01 1 0607-0607 ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EUROPEAN BASIC EQUIPMENT(EK4) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98003-830-0 01 1 0607-0607 ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 		8-98003-830-0 01 1 0608- ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 		8-97185-520-0 01 1 0302-0506 ● ● ●
158 09.765 BUZZER; VAC WARNING
4JH1 ENG(RJX) 12V 		8-97185-520-0 01 1 0302-0506 ● ● ●
158 09.765 BUZZER; VAC WARNING
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 		8-97185-520-0 01 1 0507-0606 ● ● ●
158 09.765 BUZZER; VAC WARNING
4JH1-TC ENG(RDM) 12V 		8-97185-520-0 01 1 0507-0606 ● ● ●
163 08.977 SCREW; BUZZER 8-97185-527-0 01 1 0302-0402 ● ● ● ● ● ● ●
163 08.977 SCREW; BUZZER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-527-0 01 1 0302-0402 ● ● ● ● ● ● ●
163 08.977 SCREW; BUZZER 8-97185-527-0 01 1 0403-0506 ● ● ● ● ● ● ●
163 08.977 SCREW; BUZZER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-527-0 01 1 0403-0506 ● ● ● ● ● ● ●
163 08.977 SCREW; BUZZER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-527-0 01 1 0507-0606 ● ● ●
163 08.977 SCREW; BUZZER
4JH1-TC ENG(RDM) 		8-97185-527-0 01 1 0507-0606 ● ● ●
163 08.977 SCREW; BUZZER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-099-0 02 1 0507-0606 ● ● ● ● ●
163 08.977 SCREW; BUZZER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-099-0 02 1 0507-0606 ● ● ● ● ●
163 08.977 SCREW; BUZZER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-099-0 02 1 0507-0606 ● ● ● ● ●
163 08.977 SCREW; BUZZER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-099-0 02 1 0507-0606 ● ● ● ● ●
163 08.977 SCREW; BUZZER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-099-0 02 1 0607-0607 ● ● ● ● ● ●
163 08.977 SCREW; BUZZER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-099-0 02 1 0607-0607 ● ● ● ● ● ●
163 08.977 SCREW; BUZZER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 		8-97185-099-0 02 1 0608- ● ● ● ● ● ●
173 09.744 WIRE; LEAD 8-97185-643-0 01 1 0302-0402 ● ● ● ● ● ● ●
173 09.744 WIRE; LEAD
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-643-0 01 1 0302-0402 ● ● ● ● ● ● ●
173 09.744 WIRE; LEAD 8-97185-643-0 01 1 0403-0506 ● ● ● ● ● ● ●
173 09.744 WIRE; LEAD
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-643-0 01 1 0403-0506 ● ● ● ● ● ● ●
173 09.744 WIRE; LEAD
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-643-0 01 1 0507-0606 ● ● ●
173 09.744 WIRE; LEAD
4JH1-TC ENG(RDM) 		8-97185-643-0 01 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
08.225 (F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0302-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
08.225 (F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0507- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(A) 		8-97185-525-0 06 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-525-0 06 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(A) 		8-97185-525-0 06 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-525-0 06 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-525-0 06 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) (A) 		8-97185-525-0 06 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (D) 		8-97185-532-0 04 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4) (D) 		8-97185-532-0 04 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (D) 		8-97185-532-0 04 1 0403-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (D) 		8-97185-532-0 04 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 08 1 0302-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> (E) 		8-97185-524-0 08 1 0302-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> (E) 		8-97185-524-0 03 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) (B) 		8-97185-523-0 01 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-523-0 01 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-523-0 01 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) (B) 		8-97185-523-0 01 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) (C) 		8-97185-528-0 05 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 05 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 05 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) (C) 		8-97185-528-0 05 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 08.977 (G) 		8-97185-099-0 02 1 0507-0606 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 08.977 (G) 		8-97185-099-0 02 1 0507-0606 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 08.977 (G) 		8-97185-099-0 02 1 0607-0607 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0302-0303 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0302-0303 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0302-0303 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0302-0303 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX),4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0403-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> (E) 		8-97185-524-0 02 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> (E) 		8-97185-524-0 02 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (E) 		8-97185-524-0 02 1 0302-0402 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), TACHOMETER<U16> (E) 		8-97185-524-0 02 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (E) 		8-97185-524-0 02 1 0403-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 08 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> (E) 		8-97185-524-0 08 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 02 1 0302-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) (C) 		8-97185-528-0 02 1 0302-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 02 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) (C) 		8-97185-528-0 02 1 0507-0606 ● ● ●
379 09.744 CIRCUIT; DROP
4HE1 ENG(RLY) 		8-97185-512-0 01 1 0302-0402 ● ● ● ● ● ● ●
379 09.744 CIRCUIT; DROP
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-512-0 01 1 0302-0402 ● ● ● ● ● ● ●
379 09.744 CIRCUIT; DROP
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-512-0 01 1 0403-0506 ● ● ● ● ● ● ●
379 09.744 CIRCUIT; DROP
4HE1 ENG(RLY) 		8-97185-512-0 01 1 0403-0506 ● ● ● ● ● ● ●
çizim 51943
1 2 81 110 121
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97249-250-0 01 1 0302-0402 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. ISRAEL COUNTRY(CV4) 		8-97249-250-0 01 1 0403-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-533-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-533-1 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97249-252-0 01 1 0302-0402 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), TACHOMETER<U16> 		8-97249-252-0 01 1 0403-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-531-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-531-1 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-253-0 01 1 0302-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97249-253-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-513-3 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-513-3 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-246-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97249-246-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-246-0 01 1 0302-0506 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0608- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-645-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97260-645-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97383-485-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97383-485-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97260-647-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97383-489-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97260-646-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97383-488-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97260-644-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-644-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97383-484-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97383-484-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-530-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-98000-518-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98000-518-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-98000-518-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98000-518-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98055-735-0 01 1 0608-0808 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98124-890-0 01 1 0809- ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-445-0 01 1 0302-0402 ● ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4) 		8-97185-445-0 01 1 0403-0506 ● ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-445-0 01 1 0403-0506 ● ● ●
2 09.735 PANEL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-445-0 01 1 0507-0606 ● ● ●
2 09.735 PANEL; CLUSTER
4JH1 ENG(RJX),4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-443-0 01 1 0302-0506 ● ● ●
2 09.735 PANEL; CLUSTER
4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-443-0 01 1 0302-0506 ● ● ●
2 09.735 PANEL; CLUSTER
4HE1 ENG(RLY) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-443-0 01 1 0302-0506 ● ● ● ●
2 09.735 PANEL; CLUSTER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-443-0 01 1 0507-0606 ● ● ●
2 09.735 PANEL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-443-0 01 1 0507-0606 ● ● ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-047-0 01 1 0507-0606 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-047-0 01 1 0507-0606 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-047-0 01 1 0507-0606 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-047-0 01 1 0507-0606 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-047-0 01 1 0607-0607 ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-047-0 01 1 0607-0607 ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 		8-97185-047-0 01 1 0608- ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-048-0 01 1 0507-0606 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-048-0 01 1 0507-0606 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97185-048-0 01 1 0607-0607 ● ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98003-834-0 01 1 0507-0606 ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16>, TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98003-834-0 01 1 0507-0606 ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98020-256-0 01 1 0507-0606 ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98003-835-0 01 1 0507-0606 ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98003-835-0 01 1 0507-0606 ● ● ● ● ●
81 09.735 METER SUB ASM
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98003-835-0 01 1 0607-0607 ● ● ● ● ● ●
81 09.735 METER SUB ASM
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98003-835-0 01 1 0607-0607 ● ● ● ● ● ●
81 09.735 METER SUB ASM
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98003-835-0 01 1 0608- ● ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98020-258-0 01 1 0507-0606 ● ● ● ● ●
81 09.735 METER SUB ASM
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98020-258-0 01 1 0607-0607 ● ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98020-257-0 01 1 0507-0606 ● ● ● ● ●
81 09.735 METER SUB ASM
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98020-257-0 01 1 0607-0607 ● ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 09.743 		8-98003-836-0 01 1 0507-0606 ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 09.743 		8-98003-836-0 01 1 0507-0606 ● ● ● ● ●
81 09.735 METER SUB ASM
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 09.743 		8-98003-836-0 01 1 0607-0607 ● ● ● ● ● ●
81 09.735 METER SUB ASM
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 09.743 		8-98003-836-0 01 1 0607-0607 ● ● ● ● ● ●
81 09.735 METER SUB ASM
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98003-836-0 01 1 0608-0808 ● ● ● ● ● ●
81 09.735 METER SUB ASM
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98127-296-0 01 1 0809- ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-452-0 01 1 0302-0506 ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-452-0 01 1 0302-0506 ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-452-0 01 1 0507-0606 ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1-TC ENG(RDM) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-452-0 01 1 0507-0606 ● ● ●
110 09.748 GLASS; CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-451-0 01 1 0302-0506 ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97185-451-0 01 1 0302-0506 ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97185-451-0 01 1 0507-0606 ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-451-0 01 1 0507-0606 ● ● ●
110 09.748 GLASS; CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97185-454-0 01 1 0302-0402 ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. ISRAEL COUNTRY(CV4) 		8-97185-454-0 01 1 0403-0506 ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97185-454-0 01 1 0507-0606 ● ● ●
110 09.748 GLASS; CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97185-453-0 01 1 0302-0402 ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-453-0 01 1 0302-0402 ● ● ●
110 09.748 GLASS; CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), TACHOMETER<U16> 		8-97185-453-0 01 1 0403-0506 ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-453-0 01 1 0403-0506 ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97185-453-0 01 1 0507-0606 ● ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-045-0 01 1 0507-0606 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-045-0 01 1 0507-0606 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-045-0 01 1 0507-0606 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-045-0 01 1 0507-0606 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-045-0 01 1 0607-0607 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-045-0 01 1 0607-0607 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 		8-97185-045-0 01 1 0608- ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-046-0 01 1 0507-0606 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-046-0 01 1 0507-0606 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97185-046-0 01 1 0607-0607 ● ● ● ● ● ●
121 09.744 SCREW; PANEL FIX,CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> 		8-97185-100-0 02 1 0507-0606 ● ● ● ● ●
121 09.744 SCREW; PANEL FIX,CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-100-0 02 1 0507-0606 ● ● ● ● ●
121 09.744 SCREW; PANEL FIX,CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-100-0 02 1 0507-0606 ● ● ● ● ●
121 09.744 SCREW; PANEL FIX,CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-100-0 02 1 0507-0606 ● ● ● ● ●
121 09.744 SCREW; PANEL FIX,CLUSTER METER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EUROPEAN BASIC EQUIPMENT(EK4) 		8-97185-100-0 02 1 0607-0607 ● ● ● ● ● ●
121 09.744 SCREW; PANEL FIX,CLUSTER METER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EUROPEAN BASIC EQUIPMENT(EK4) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-100-0 02 1 0607-0607 ● ● ● ● ● ●
121 09.744 SCREW; PANEL FIX,CLUSTER METER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 		8-97185-100-0 02 1 0608- ● ● ● ● ● ●
çizim 52090
1 89 158 163 269 163 336 336 118 118 89
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97249-250-0 01 1 0302-0402 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. ISRAEL COUNTRY(CV4) 		8-97249-250-0 01 1 0403-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-533-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-533-1 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97249-252-0 01 1 0302-0402 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), TACHOMETER<U16> 		8-97249-252-0 01 1 0403-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-531-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-531-1 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-253-0 01 1 0302-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97249-253-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-513-3 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-513-3 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-246-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97249-246-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-246-0 01 1 0302-0506 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0608- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-645-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97260-645-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97383-485-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97383-485-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97260-647-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97383-489-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97260-646-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97383-488-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97260-644-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-644-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97383-484-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97383-484-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-530-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-98000-518-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98000-518-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-98000-518-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98000-518-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98055-735-0 01 1 0608-0808 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98124-890-0 01 1 0809- ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 02.559 (B) L=250 		5-09707-030-1 15 1 0302-0506 ● ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 02.559 (B) L=250 		5-09707-030-1 15 1 0507-0512 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> LEYLAND EQUIPMENT<S9Z> 02.559 (B) L=250 		5-09707-030-1 15 1 0601-0604 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 02.559 (B) L=250 		5-09707-030-1 15 1 0605-0606 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> 02.559 (B) L=250 		5-09707-030-1 15 1 0607-0607 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 02.559 (B) L=250 		5-09707-030-1 15 1 0608- ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EUROPEAN BASIC EQUIPMENT(EK4) (C) 		8-97253-928-0 01 1 0607-0607 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EUROPEAN BASIC EQUIPMENT(EK4) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97253-928-0 01 1 0607-0607 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (C) 		8-97253-928-0 01 1 0608- ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> 03.162 (A) L=140 		5-09707-031-1 02 1 0302-0506 ● ● ●
89 09.761 CLIP; HARNESS
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> 03.162 (A) L=140 		5-09707-031-1 02 1 0507-0512 ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB> 03.162 (A) L=140 		5-09707-031-1 01 1 0601-0606 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 03.162 (A) L=140 		5-09707-031-1 01 1 0607- ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> LEYLAND EQUIPMENT<S9Z> EXC. VOLTAGE 24V<7AE> 03.162 (A) L=140 		5-09707-031-1 02 1 0601-0604 ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> 03.162 (A) L=140 		5-09707-031-1 02 1 0605-0606 ● ● ●
89 09.761 CLIP; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-97253-928-0 01 1 0507-0606 ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 12V SOCKET COLOR BLACK 		8-97185-535-0 AR 1 0302-0606 ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 12V SOCKET COLOR BLACK 		8-97185-536-0 AR 1 0302-0606 ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 12V SOCKET COLOR BLUE 		8-97185-537-0 AR 1 0302-0606 ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 AR 1 0302-0606 ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 AR 1 0302-0606 ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 AR 1 0302-0606 ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 28V 1.8W 		8-97305-177-0 AR 1 0507- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 28V 3W 		8-97305-178-0 AR 1 0507- ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HE1 ENG(RLY) 24V 		8-97185-519-0 01 1 0302-0402 ● ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 24V 		8-97185-519-0 01 1 0302-0402 ● ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> 24V 		8-97185-519-0 01 1 0403-0506 ● ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HE1 ENG(RLY) 24V 		8-97185-519-0 01 1 0403-0506 ● ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> 		8-98003-830-0 01 1 0507-0606 ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98003-830-0 01 1 0507-0606 ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 		8-98003-830-0 01 1 0507-0606 ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98003-830-0 01 1 0507-0606 ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EUROPEAN BASIC EQUIPMENT(EK4) 		8-98003-830-0 01 1 0607-0607 ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EUROPEAN BASIC EQUIPMENT(EK4) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98003-830-0 01 1 0607-0607 ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 		8-98003-830-0 01 1 0608- ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 		8-97185-520-0 01 1 0302-0506 ● ● ●
158 09.765 BUZZER; VAC WARNING
4JH1 ENG(RJX) 12V 		8-97185-520-0 01 1 0302-0506 ● ● ●
158 09.765 BUZZER; VAC WARNING
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 		8-97185-520-0 01 1 0507-0606 ● ● ●
158 09.765 BUZZER; VAC WARNING
4JH1-TC ENG(RDM) 12V 		8-97185-520-0 01 1 0507-0606 ● ● ●
163 08.977 SCREW; BUZZER 8-97185-527-0 01 1 0302-0402 ● ● ● ● ● ● ●
163 08.977 SCREW; BUZZER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-527-0 01 1 0302-0402 ● ● ● ● ● ● ●
163 08.977 SCREW; BUZZER 8-97185-527-0 01 1 0403-0506 ● ● ● ● ● ● ●
163 08.977 SCREW; BUZZER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-527-0 01 1 0403-0506 ● ● ● ● ● ● ●
163 08.977 SCREW; BUZZER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-527-0 01 1 0507-0606 ● ● ●
163 08.977 SCREW; BUZZER
4JH1-TC ENG(RDM) 		8-97185-527-0 01 1 0507-0606 ● ● ●
163 08.977 SCREW; BUZZER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-099-0 02 1 0507-0606 ● ● ● ● ●
163 08.977 SCREW; BUZZER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-099-0 02 1 0507-0606 ● ● ● ● ●
163 08.977 SCREW; BUZZER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-099-0 02 1 0507-0606 ● ● ● ● ●
163 08.977 SCREW; BUZZER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-099-0 02 1 0507-0606 ● ● ● ● ●
163 08.977 SCREW; BUZZER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-099-0 02 1 0607-0607 ● ● ● ● ● ●
163 08.977 SCREW; BUZZER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-099-0 02 1 0607-0607 ● ● ● ● ● ●
163 08.977 SCREW; BUZZER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 		8-97185-099-0 02 1 0608- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
08.225 (F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0302-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
08.225 (F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0507- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(A) 		8-97185-525-0 06 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-525-0 06 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(A) 		8-97185-525-0 06 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-525-0 06 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-525-0 06 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) (A) 		8-97185-525-0 06 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (D) 		8-97185-532-0 04 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4) (D) 		8-97185-532-0 04 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (D) 		8-97185-532-0 04 1 0403-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (D) 		8-97185-532-0 04 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 08 1 0302-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> (E) 		8-97185-524-0 08 1 0302-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> (E) 		8-97185-524-0 03 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) (B) 		8-97185-523-0 01 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-523-0 01 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-523-0 01 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) (B) 		8-97185-523-0 01 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) (C) 		8-97185-528-0 05 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 05 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 05 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) (C) 		8-97185-528-0 05 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 08.977 (G) 		8-97185-099-0 02 1 0507-0606 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 08.977 (G) 		8-97185-099-0 02 1 0507-0606 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 08.977 (G) 		8-97185-099-0 02 1 0607-0607 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0302-0303 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0302-0303 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0302-0303 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0302-0303 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX),4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0403-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> (E) 		8-97185-524-0 02 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> (E) 		8-97185-524-0 02 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (E) 		8-97185-524-0 02 1 0302-0402 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), TACHOMETER<U16> (E) 		8-97185-524-0 02 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (E) 		8-97185-524-0 02 1 0403-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 08 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> (E) 		8-97185-524-0 08 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 02 1 0302-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) (C) 		8-97185-528-0 02 1 0302-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 02 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) (C) 		8-97185-528-0 02 1 0507-0606 ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EUROPEAN BASIC EQUIPMENT(EK4) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97185-091-0 19 1 0507-0509 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EUROPEAN BASIC EQUIPMENT(EK4) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97185-091-0 19 1 0507-0509 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EUROPEAN BASIC EQUIPMENT(EK4) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97185-091-0 20 1 0510-0606 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EUROPEAN BASIC EQUIPMENT(EK4) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97185-091-0 20 1 0510-0606 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> (B) 		8-97185-091-0 18 1 0607-0607 ● ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97185-091-0 19 1 0608- ● ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-091-0 17 1 0507-0509 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97185-091-0 17 1 0507-0509 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-091-0 18 1 0510-0606 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97185-091-0 18 1 0510-0606 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97185-091-0 20 1 0607-0607 ● ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97185-091-0 20 1 0607-0607 ● ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> (A) 		8-97185-093-0 05 1 0507-0606 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-093-0 05 1 0507-0606 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> (A) 		8-97185-093-0 03 1 0607-0607 ● ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (A) 		8-97185-093-0 05 1 0608- ● ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> (B) 		8-97185-091-0 18 1 0507-0509 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-091-0 18 1 0507-0509 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> (B) 		8-97185-091-0 19 1 0510-0606 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-091-0 19 1 0510-0606 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> (B) 		8-97185-091-0 19 1 0607-0607 ● ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-091-0 19 1 0607-0607 ● ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97185-091-0 20 1 0608- ● ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97185-093-0 03 1 0507-0606 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-093-0 03 1 0507-0606 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97185-093-0 03 1 0507-0606 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> (A) 		8-97185-093-0 05 1 0607-0607 ● ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-093-0 05 1 0607-0607 ● ● ● ● ● ●
çizim 52407
1 314 269 269 314 269
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97249-250-0 01 1 0302-0402 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. ISRAEL COUNTRY(CV4) 		8-97249-250-0 01 1 0403-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-533-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-533-1 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97249-252-0 01 1 0302-0402 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), TACHOMETER<U16> 		8-97249-252-0 01 1 0403-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-531-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-531-1 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-253-0 01 1 0302-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97249-253-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-513-3 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-513-3 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-246-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97249-246-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-246-0 01 1 0302-0506 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0608- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-645-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97260-645-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97383-485-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97383-485-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97260-647-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97383-489-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97260-646-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97383-488-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97260-644-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-644-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97383-484-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97383-484-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-530-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-98000-518-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98000-518-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-98000-518-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98000-518-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98055-735-0 01 1 0608-0808 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98124-890-0 01 1 0809- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
08.225 (F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0302-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
08.225 (F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0507- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(A) 		8-97185-525-0 06 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-525-0 06 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(A) 		8-97185-525-0 06 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-525-0 06 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-525-0 06 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) (A) 		8-97185-525-0 06 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (D) 		8-97185-532-0 04 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4) (D) 		8-97185-532-0 04 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (D) 		8-97185-532-0 04 1 0403-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (D) 		8-97185-532-0 04 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 08 1 0302-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> (E) 		8-97185-524-0 08 1 0302-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> (E) 		8-97185-524-0 03 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) (B) 		8-97185-523-0 01 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-523-0 01 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-523-0 01 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) (B) 		8-97185-523-0 01 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) (C) 		8-97185-528-0 05 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 05 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 05 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) (C) 		8-97185-528-0 05 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 08.977 (G) 		8-97185-099-0 02 1 0507-0606 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 08.977 (G) 		8-97185-099-0 02 1 0507-0606 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 08.977 (G) 		8-97185-099-0 02 1 0607-0607 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0302-0303 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0302-0303 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0302-0303 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0302-0303 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX),4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0403-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> (E) 		8-97185-524-0 02 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> (E) 		8-97185-524-0 02 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (E) 		8-97185-524-0 02 1 0302-0402 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), TACHOMETER<U16> (E) 		8-97185-524-0 02 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (E) 		8-97185-524-0 02 1 0403-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 08 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> (E) 		8-97185-524-0 08 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 02 1 0302-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) (C) 		8-97185-528-0 02 1 0302-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 02 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) (C) 		8-97185-528-0 02 1 0507-0606 ● ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HE1 ENG(RLY) (A) 		8-97185-515-0 01 1 0302-0402 ● ● ● ● ● ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-515-0 01 1 0302-0402 ● ● ● ● ● ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-515-0 01 1 0403-0506 ● ● ● ● ● ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HE1 ENG(RLY) (A) 		8-97185-515-0 01 1 0403-0506 ● ● ● ● ● ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HE1 ENG(RLY) (B) 		8-97185-516-0 01 1 0302-0402 ● ● ● ● ● ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-516-0 01 1 0302-0402 ● ● ● ● ● ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-516-0 01 1 0403-0506 ● ● ● ● ● ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HE1 ENG(RLY) (B) 		8-97185-516-0 01 1 0403-0506 ● ● ● ● ● ● ●
çizim 54060
345 345 50 345 8 1 89 8 345
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97249-250-0 01 1 0302-0402 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. ISRAEL COUNTRY(CV4) 		8-97249-250-0 01 1 0403-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-533-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-533-1 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97249-252-0 01 1 0302-0402 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), TACHOMETER<U16> 		8-97249-252-0 01 1 0403-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-531-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-531-1 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-253-0 01 1 0302-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97249-253-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-513-3 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-513-3 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-246-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97249-246-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-246-0 01 1 0302-0506 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0608- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-645-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97260-645-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97383-485-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97383-485-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97260-647-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97383-489-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97260-646-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97383-488-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97260-644-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-644-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97383-484-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97383-484-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-530-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-98000-518-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98000-518-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-98000-518-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98000-518-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98055-735-0 01 1 0608-0808 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98124-890-0 01 1 0809- ● ● ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> (B) 		8-98035-622-0 01 1 0601-0606 ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> EXC. VOLTAGE 24V<7AE> (B) 		8-98035-622-0 01 1 0601-0606 ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> VOLTAGE 24V<7AE> (A) 		8-97182-353-0 01 1 0302-0506 ● ● ● ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> VOLTAGE 24V<7AE> (A) 		8-97182-353-0 01 1 0507-0604 ● ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> VOLTAGE 24V<7AE> (A) 		8-97182-353-0 01 1 0605-0606 ● ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97182-353-0 01 1 0607-0607 ● ● ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> (A) 		8-97183-885-0 01 1 0302-0506 ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> (A) 		8-97183-885-0 01 1 0507-0604 ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (A) 		8-97183-885-0 01 1 0605-0606 ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> (A) 		8-97183-885-0 01 1 0605-0606 ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> VOLTAGE 24V<7AE> (B) 		8-98035-623-0 01 1 0601-0606 ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> (B) 		8-98035-623-0 01 1 0601-0606 ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98035-623-0 01 1 0607-1008 ● ● ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98178-336-0 01 1 1009-1107 ● ● ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98197-290-0 01 1 1108- ● ● ● ● ● ●
50 03.342 BOLT; FIX
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> VOLTAGE 24V<7AE> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0601-0601 ● ● ● ● ●
50 03.342 BOLT; FIX
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> VOLTAGE 24V<7AE> 04.930 M6X20 FLANGE 		0-28680-620-0 04 1 0507-0512 ● ● ● ● ●
50 03.342 BOLT; FIX
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> VOLTAGE 24V<7AE> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0601-0601 ● ● ● ● ●
50 03.342 BOLT; FIX
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> VOLTAGE 24V<7AE> 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0601-0606 ● ● ● ● ●
50 03.342 BOLT; FIX
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> VOLTAGE 24V<7AE> 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0601-0606 ● ● ● ● ●
50 03.342 BOLT; FIX
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0607-0607 ● ● ● ● ● ●
50 03.342 BOLT; FIX
TACHOGRAPH DIGITAL<EBB> 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0608- ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 02.559 (B) L=250 		5-09707-030-1 15 1 0302-0506 ● ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 02.559 (B) L=250 		5-09707-030-1 15 1 0507-0512 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> LEYLAND EQUIPMENT<S9Z> 02.559 (B) L=250 		5-09707-030-1 15 1 0601-0604 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 02.559 (B) L=250 		5-09707-030-1 15 1 0605-0606 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> 02.559 (B) L=250 		5-09707-030-1 15 1 0607-0607 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 02.559 (B) L=250 		5-09707-030-1 15 1 0608- ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EUROPEAN BASIC EQUIPMENT(EK4) (C) 		8-97253-928-0 01 1 0607-0607 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EUROPEAN BASIC EQUIPMENT(EK4) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97253-928-0 01 1 0607-0607 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (C) 		8-97253-928-0 01 1 0608- ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> 03.162 (A) L=140 		5-09707-031-1 02 1 0302-0506 ● ● ●
89 09.761 CLIP; HARNESS
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> 03.162 (A) L=140 		5-09707-031-1 02 1 0507-0512 ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB> 03.162 (A) L=140 		5-09707-031-1 01 1 0601-0606 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 03.162 (A) L=140 		5-09707-031-1 01 1 0607- ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> LEYLAND EQUIPMENT<S9Z> EXC. VOLTAGE 24V<7AE> 03.162 (A) L=140 		5-09707-031-1 02 1 0601-0604 ● ● ●
89 09.761 CLIP; HARNESS
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> 03.162 (A) L=140 		5-09707-031-1 02 1 0605-0606 ● ● ●
89 09.761 CLIP; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-97253-928-0 01 1 0507-0606 ● ● ● ● ●
345 09.743 CONTROL UNIT; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> VOLTAGE 24V<7AE> (A) 		8-97183-332-2 01 1 0302-0506 ● ● ●
345 09.743 CONTROL UNIT; TACHOGRAPH
(A) 		8-97183-332-2 01 1 0302-0506 ● ● ● ●
345 09.743 CONTROL UNIT; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> VOLTAGE 24V<7AE> (B) 		8-98009-472-0 01 1 0507-0512 ● ● ● ● ●
345 09.743 CONTROL UNIT; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> VOLTAGE 24V<7AE> (B) 		8-98009-472-0 01 1 0601-0606 ● ● ● ● ●
345 09.743 CONTROL UNIT; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (B) 		8-98009-472-0 01 1 0607-0607 ● ● ● ● ● ●
345 09.743 CONTROL UNIT; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> (B) 		8-98009-472-0 01 1 0608- ● ● ● ● ● ●
345 09.743 CONTROL UNIT; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> (A) 		8-97183-331-2 01 1 0302-0506 ● ● ●
345 09.743 CONTROL UNIT; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (A) 		8-98018-845-0 01 1 0507-0512 ●
345 09.743 CONTROL UNIT; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> (A) 		8-98018-845-0 01 1 0507-0512 ● ●
345 09.743 CONTROL UNIT; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> (A) 		8-98018-845-0 01 1 0601-0606 ● ● ●
çizim 54412
2 47 9 259 110 121 81 239 8 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97249-250-0 01 1 0302-0402 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. ISRAEL COUNTRY(CV4) 		8-97249-250-0 01 1 0403-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-533-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-533-1 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97249-252-0 01 1 0302-0402 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), TACHOMETER<U16> 		8-97249-252-0 01 1 0403-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-531-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-531-1 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-253-0 01 1 0302-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97249-253-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-513-3 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-513-3 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-246-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97249-246-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-246-0 01 1 0302-0506 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0608- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-645-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97260-645-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97383-485-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97383-485-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97260-647-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97383-489-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97260-646-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97383-488-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97260-644-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-644-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97383-484-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97383-484-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-530-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-98000-518-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98000-518-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-98000-518-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98000-518-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98055-735-0 01 1 0608-0808 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98124-890-0 01 1 0809- ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-445-0 01 1 0302-0402 ● ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4) 		8-97185-445-0 01 1 0403-0506 ● ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-445-0 01 1 0403-0506 ● ● ●
2 09.735 PANEL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-445-0 01 1 0507-0606 ● ● ●
2 09.735 PANEL; CLUSTER
4JH1 ENG(RJX),4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-443-0 01 1 0302-0506 ● ● ●
2 09.735 PANEL; CLUSTER
4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-443-0 01 1 0302-0506 ● ● ●
2 09.735 PANEL; CLUSTER
4HE1 ENG(RLY) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-443-0 01 1 0302-0506 ● ● ● ●
2 09.735 PANEL; CLUSTER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-443-0 01 1 0507-0606 ● ● ●
2 09.735 PANEL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-443-0 01 1 0507-0606 ● ● ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-047-0 01 1 0507-0606 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-047-0 01 1 0507-0606 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-047-0 01 1 0507-0606 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-047-0 01 1 0507-0606 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-047-0 01 1 0607-0607 ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-047-0 01 1 0607-0607 ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 		8-97185-047-0 01 1 0608- ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-048-0 01 1 0507-0606 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-048-0 01 1 0507-0606 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97185-048-0 01 1 0607-0607 ● ● ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> (B) 		8-98035-622-0 01 1 0601-0606 ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> EXC. VOLTAGE 24V<7AE> (B) 		8-98035-622-0 01 1 0601-0606 ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> VOLTAGE 24V<7AE> (A) 		8-97182-353-0 01 1 0302-0506 ● ● ● ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> VOLTAGE 24V<7AE> (A) 		8-97182-353-0 01 1 0507-0604 ● ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> VOLTAGE 24V<7AE> (A) 		8-97182-353-0 01 1 0605-0606 ● ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97182-353-0 01 1 0607-0607 ● ● ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> (A) 		8-97183-885-0 01 1 0302-0506 ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> (A) 		8-97183-885-0 01 1 0507-0604 ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (A) 		8-97183-885-0 01 1 0605-0606 ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. VOLTAGE 24V<7AE> (A) 		8-97183-885-0 01 1 0605-0606 ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> VOLTAGE 24V<7AE> (B) 		8-98035-623-0 01 1 0601-0606 ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> (B) 		8-98035-623-0 01 1 0601-0606 ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98035-623-0 01 1 0607-1008 ● ● ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98178-336-0 01 1 1009-1107 ● ● ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98197-290-0 01 1 1108- ● ● ● ● ● ●
9 09.748 PLATE; BASE,TACHOGRAPH,CLUSTER M
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-531-0 01 1 0302-0402 ● ● ● ● ● ● ●
9 09.748 PLATE; BASE,TACHOGRAPH,CLUSTER M
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4) 		8-97185-531-0 01 1 0403-0506 ● ● ● ● ● ● ●
9 09.748 PLATE; BASE,TACHOGRAPH,CLUSTER M
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-531-0 01 1 0403-0506 ● ● ●
9 09.748 PLATE; BASE,TACHOGRAPH,CLUSTER M
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-531-0 01 1 0507-0606 ● ● ●
9 09.748 PLATE; BASE,TACHOGRAPH,CLUSTER M
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-102-0 01 1 0507-0606 ● ● ● ● ●
9 09.748 PLATE; BASE,TACHOGRAPH,CLUSTER M
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-102-0 01 1 0507-0606 ● ● ● ● ●
9 09.748 PLATE; BASE,TACHOGRAPH,CLUSTER M
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97185-102-0 01 1 0607-0607 ● ● ● ● ● ●
47 09.748 COVER; TACHOGRAPH,CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-530-0 01 1 0302-0402 ● ● ● ● ● ● ●
47 09.748 COVER; TACHOGRAPH,CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4) 		8-97185-530-0 01 1 0403-0506 ● ● ● ● ● ● ●
47 09.748 COVER; TACHOGRAPH,CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-530-0 01 1 0403-0506 ● ● ●
47 09.748 COVER; TACHOGRAPH,CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-530-0 01 1 0507-0606 ● ● ●
47 09.748 COVER; TACHOGRAPH,CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-103-0 01 1 0507-0606 ● ● ● ● ●
47 09.748 COVER; TACHOGRAPH,CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-103-0 01 1 0507-0606 ● ● ● ● ●
47 09.748 COVER; TACHOGRAPH,CLUSTER METER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97185-103-0 01 1 0607-0607 ● ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98003-834-0 01 1 0507-0606 ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16>, TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98003-834-0 01 1 0507-0606 ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98020-256-0 01 1 0507-0606 ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98003-835-0 01 1 0507-0606 ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98003-835-0 01 1 0507-0606 ● ● ● ● ●
81 09.735 METER SUB ASM
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98003-835-0 01 1 0607-0607 ● ● ● ● ● ●
81 09.735 METER SUB ASM
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98003-835-0 01 1 0607-0607 ● ● ● ● ● ●
81 09.735 METER SUB ASM
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98003-835-0 01 1 0608- ● ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98020-258-0 01 1 0507-0606 ● ● ● ● ●
81 09.735 METER SUB ASM
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98020-258-0 01 1 0607-0607 ● ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98020-257-0 01 1 0507-0606 ● ● ● ● ●
81 09.735 METER SUB ASM
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98020-257-0 01 1 0607-0607 ● ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 09.743 		8-98003-836-0 01 1 0507-0606 ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 09.743 		8-98003-836-0 01 1 0507-0606 ● ● ● ● ●
81 09.735 METER SUB ASM
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 09.743 		8-98003-836-0 01 1 0607-0607 ● ● ● ● ● ●
81 09.735 METER SUB ASM
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 09.743 		8-98003-836-0 01 1 0607-0607 ● ● ● ● ● ●
81 09.735 METER SUB ASM
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98003-836-0 01 1 0608-0808 ● ● ● ● ● ●
81 09.735 METER SUB ASM
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98127-296-0 01 1 0809- ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-452-0 01 1 0302-0506 ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-452-0 01 1 0302-0506 ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-452-0 01 1 0507-0606 ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1-TC ENG(RDM) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-452-0 01 1 0507-0606 ● ● ●
110 09.748 GLASS; CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-451-0 01 1 0302-0506 ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97185-451-0 01 1 0302-0506 ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97185-451-0 01 1 0507-0606 ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-451-0 01 1 0507-0606 ● ● ●
110 09.748 GLASS; CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97185-454-0 01 1 0302-0402 ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. ISRAEL COUNTRY(CV4) 		8-97185-454-0 01 1 0403-0506 ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97185-454-0 01 1 0507-0606 ● ● ●
110 09.748 GLASS; CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97185-453-0 01 1 0302-0402 ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-453-0 01 1 0302-0402 ● ● ●
110 09.748 GLASS; CLUSTER METER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), TACHOMETER<U16> 		8-97185-453-0 01 1 0403-0506 ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-453-0 01 1 0403-0506 ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97185-453-0 01 1 0507-0606 ● ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-045-0 01 1 0507-0606 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-045-0 01 1 0507-0606 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-045-0 01 1 0507-0606 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-045-0 01 1 0507-0606 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97185-045-0 01 1 0607-0607 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-045-0 01 1 0607-0607 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 		8-97185-045-0 01 1 0608- ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-046-0 01 1 0507-0606 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-046-0 01 1 0507-0606 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97185-046-0 01 1 0607-0607 ● ● ● ● ● ●
121 09.744 SCREW; PANEL FIX,CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> 		8-97185-100-0 02 1 0507-0606 ● ● ● ● ●
121 09.744 SCREW; PANEL FIX,CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-100-0 02 1 0507-0606 ● ● ● ● ●
121 09.744 SCREW; PANEL FIX,CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-100-0 02 1 0507-0606 ● ● ● ● ●
121 09.744 SCREW; PANEL FIX,CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97185-100-0 02 1 0507-0606 ● ● ● ● ●
121 09.744 SCREW; PANEL FIX,CLUSTER METER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EUROPEAN BASIC EQUIPMENT(EK4) 		8-97185-100-0 02 1 0607-0607 ● ● ● ● ● ●
121 09.744 SCREW; PANEL FIX,CLUSTER METER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EUROPEAN BASIC EQUIPMENT(EK4) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-100-0 02 1 0607-0607 ● ● ● ● ● ●
121 09.744 SCREW; PANEL FIX,CLUSTER METER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 		8-97185-100-0 02 1 0608- ● ● ● ● ● ●
239 08.991 BULB; TACHOGRAPH
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97356-179-0 02 1 0302-0506 ● ● ● ● ● ● ●
239 08.991 BULB; TACHOGRAPH
LEYLAND EQUIPMENT<S9Z> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97356-179-0 02 1 0507-0604 ● ● ● ● ● ●
239 08.991 BULB; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97356-179-0 02 1 0605-0606 ● ● ● ● ● ●
239 08.991 BULB; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> 		8-97356-179-0 02 1 0607-0607 ● ● ● ● ● ●
259 09.772 SCREW; TACHOGRAPH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 		8-97192-556-0 02 1 0507-0606 ● ● ● ● ●
259 09.772 SCREW; TACHOGRAPH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97192-556-0 02 1 0507-0606 ● ● ● ● ●
259 09.772 SCREW; TACHOGRAPH
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97192-556-0 02 1 0607-0607 ● ● ● ● ● ●
çizim 55458
270 1 11 151 355 227 269 270 270
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97249-250-0 01 1 0302-0402 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. ISRAEL COUNTRY(CV4) 		8-97249-250-0 01 1 0403-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-533-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-533-1 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97249-252-0 01 1 0302-0402 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), TACHOMETER<U16> 		8-97249-252-0 01 1 0403-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-531-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-531-1 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-253-0 01 1 0302-0506 ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97249-253-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-513-3 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-513-3 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-246-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97249-246-0 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-246-0 01 1 0302-0506 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-514-4 01 1 0608- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-645-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97260-645-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97383-485-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-97383-485-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97260-647-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97383-489-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97260-646-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97383-488-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97260-644-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-644-1 01 1 0302-0506 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> 		8-97383-484-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97383-484-0 01 1 0507-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-530-1 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-98000-518-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98000-518-4 01 1 0507-0606 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> 		8-98000-518-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98000-518-4 01 1 0607-0607 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98055-735-0 01 1 0608-0808 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98124-890-0 01 1 0809- ● ● ● ● ● ●
11 09.743 CLUSTER ASM; METER
BLACK 		8-97195-965-2 01 1 0302-0506 ● ● ● ● ● ● ●
11 09.743 CLUSTER ASM; METER
BLACK 		8-97195-965-2 01 1 0507- ● ● ● ● ● ●
151 09.747 CLIP; METER CLUSTER 8-97217-066-0 07 1 0302-0506 ● ● ● ● ● ● ●
151 09.747 CLIP; METER CLUSTER 8-97217-066-0 07 1 0507- ● ● ● ● ● ●
227 09.743 BEZEL; METER
ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) BLACK 		8-97994-861-0 01 1 0302-0506 ● ● ● ● ● ● ●
227 09.743 BEZEL; METER
ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) BLACK 		8-97994-861-0 01 1 0507- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
08.225 (F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0302-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
08.225 (F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0507- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(A) 		8-97185-525-0 06 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-525-0 06 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(A) 		8-97185-525-0 06 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-525-0 06 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-525-0 06 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) (A) 		8-97185-525-0 06 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (D) 		8-97185-532-0 04 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4) (D) 		8-97185-532-0 04 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (D) 		8-97185-532-0 04 1 0403-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (D) 		8-97185-532-0 04 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 08 1 0302-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> (E) 		8-97185-524-0 08 1 0302-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> (E) 		8-97185-524-0 03 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) (B) 		8-97185-523-0 01 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-523-0 01 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-523-0 01 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) (B) 		8-97185-523-0 01 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) (C) 		8-97185-528-0 05 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 05 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 05 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) (C) 		8-97185-528-0 05 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 08.977 (G) 		8-97185-099-0 02 1 0507-0606 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16>,TRANSMISSION CONTROL-SMOOTHER(8GF) 08.977 (G) 		8-97185-099-0 02 1 0507-0606 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 08.977 (G) 		8-97185-099-0 02 1 0607-0607 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0302-0303 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0302-0303 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0302-0303 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0302-0303 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX),4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0304-0402 ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 07 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9>,TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0403-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> (E) 		8-97185-524-0 02 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> (E) 		8-97185-524-0 02 1 0302-0402 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (E) 		8-97185-524-0 02 1 0302-0402 ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. ISRAEL COUNTRY(CV4), TACHOMETER<U16> (E) 		8-97185-524-0 02 1 0403-0506 ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (E) 		8-97185-524-0 02 1 0403-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97185-524-0 08 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> (E) 		8-97185-524-0 08 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 02 1 0302-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) (C) 		8-97185-528-0 02 1 0302-0506 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 02 1 0507-0606 ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) (C) 		8-97185-528-0 02 1 0507-0606 ● ● ●
270 09.743 CUSHION; METER CLUSTER
16.085 (A) 15X30 T=5 		8-94270-366-2 01 1 0302-0506 ● ● ● ● ● ● ●
270 09.743 CUSHION; METER CLUSTER
16.085 (A) 15X30 T=5 		8-94270-366-2 01 1 0507- ● ● ● ● ● ●
270 09.743 CUSHION; METER CLUSTER
(B) 6X30 T=2 		8-94270-378-1 02 1 0302-0506 ● ● ● ● ● ● ●
270 09.743 CUSHION; METER CLUSTER
(B) 6X30 T=2 		8-94270-378-1 02 1 0507- ● ● ● ● ● ●
355 09.748 GRILLE; VENT
BLACK 		8-97195-967-1 01 1 0302-0506 ● ● ● ● ● ● ●
355 09.748 GRILLE; VENT
BLACK 		8-97195-967-1 01 1 0507- ● ● ● ● ● ●
355 09.748 GRILLE; VENT
BLACK 		8-97195-966-1 01 1 0302-0506 ● ● ● ● ● ● ●
355 09.748 GRILLE; VENT
BLACK 		8-97195-966-1 01 1 0507- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
