◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50949 - NPR/NQR(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶

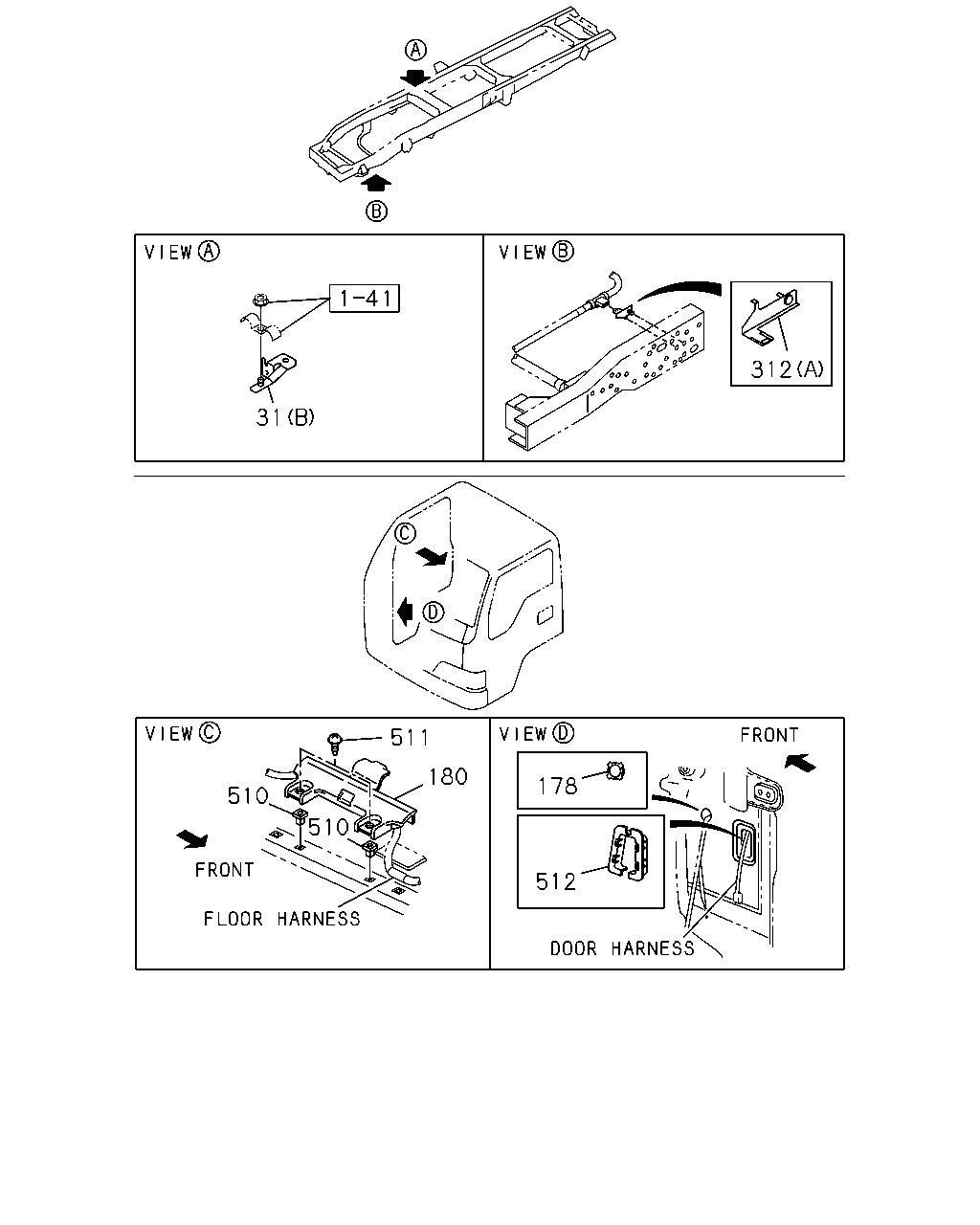

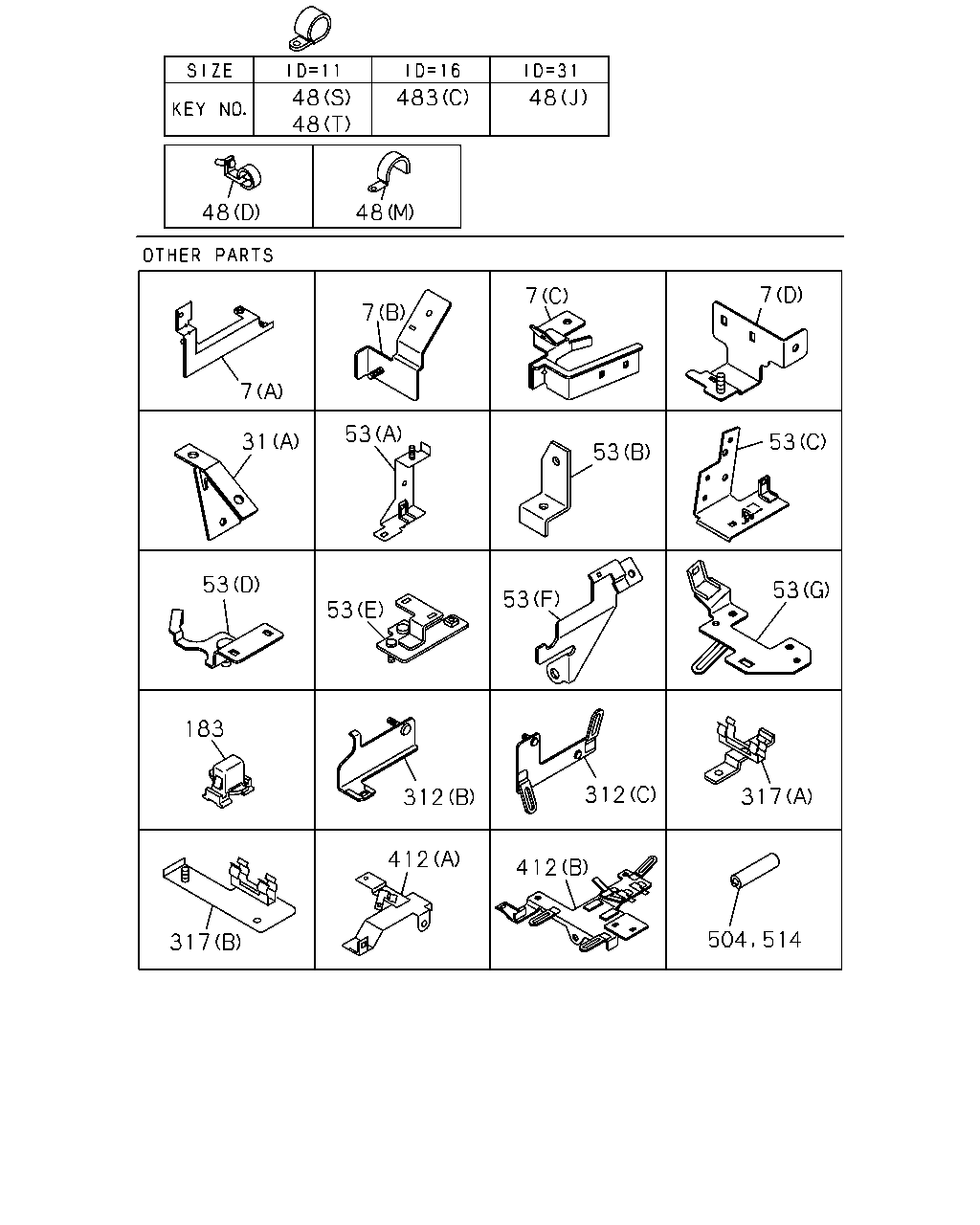

8-15 — FIXING PARTS; WIRING HARNESS (#46606) — 899 parça
çizim 13391
150 150 8 386 38 480 139 38 150 516 377 386 377 386 516 239 8 38 139 239 516 38 139 150 304 139 304 139 19 38 219 64 139 219 294 515 219 294 515 524 219 294 469 515 519 525 519
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 02.559 BOLT; BRKT,CONNECTOR
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ● ● ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0302-0506 ● ● ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0507- ● ● ● ● ● ●
19 02.559 BOLT; PROTECTOR
4JH1 ENG(RJX),4HE1 ENG(RLY) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0302-0506 ● ● ●
19 02.559 BOLT; PROTECTOR
4HE1 ENG(RLY) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0302-0506 ● ● ● ●
19 02.559 BOLT; PROTECTOR
03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0507-0507 ● ● ● ● ● ●
19 02.559 BOLT; PROTECTOR
4JH1-TC ENG(RDM) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0507-0512 ●
19 02.559 BOLT; PROTECTOR
4JH1-TC ENG(RDM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0507-0512 ● ●
19 02.559 BOLT; PROTECTOR
FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0507-0512 ● ●
19 02.559 BOLT; PROTECTOR
03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0507-0512 ● ● ●
19 02.559 BOLT; PROTECTOR
4JH1-TC ENG(RDM) 02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0601-0606 ●
19 02.559 BOLT; PROTECTOR
4JH1-TC ENG(RDM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0601-0606 ● ●
19 02.559 BOLT; PROTECTOR
FRAME STRAIGHT TYPE<7KJ> 02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0601-0606 ● ●
19 02.559 BOLT; PROTECTOR
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0601-0606 ● ● ●
19 02.559 BOLT; PROTECTOR
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0607- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU> (A) M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ● ●
38 02.559 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ●
38 02.559 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) FUEL SEDIMENTER WITH HEATER<6HU> (A) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ●
38 02.559 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HK1-TCN ENG(RDQ) (A) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ●
38 02.559 BOLT; CLIP,HARNESS
HYDRO BRAKE BOOSTER<7QQ> (A) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ●
38 02.559 BOLT; CLIP,HARNESS
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) FUEL SEDIMENTER WITH HEATER<6HU> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ●
38 02.559 BOLT; CLIP,HARNESS
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HK1-TCN ENG(RDQ) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ●
38 02.559 BOLT; CLIP,HARNESS
HYDRO BRAKE BOOSTER<7QQ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ●
38 02.559 BOLT; CLIP,HARNESS
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HK1-TCC ENG(RDV) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ●
38 02.559 BOLT; CLIP,HARNESS
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ●
38 02.559 BOLT; CLIP,HARNESS
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1 ENG(LFB) 02.343 (E) M8X12 FLANGE 		0-28050-812-0 01 1 0607- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 0302-0506 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 0507-0512 ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 0507-0512 ● ●
38 02.559 BOLT; CLIP,HARNESS
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0601-0606 ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0601-0606 ● ●
38 02.559 BOLT; CLIP,HARNESS
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0607- ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0607- ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 0302-0506 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) 04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 0302-0506 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0302-0506 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0302-0506 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0302-0506 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0302-0506 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0507-0512 ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0507-0512 ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0507-0512 ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0507-0512 ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 0601-0606 ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 0601-0606 ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 0601-0606 ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 0601-0606 ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 0607- ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 0607- ● ●
64 02.559 SCREW; CLIP
16.742 M4X16 TAPPING 		1-09981-477-0 01 1 0302-0506 ● ●
64 02.559 SCREW; CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) 16.742 M4X16 TAPPING 		1-09981-477-0 01 1 0507-0606 ● ● ●
64 02.559 SCREW; CLIP
16.742 M4X16 TAPPING 		1-09981-477-0 01 1 0507-0606 ● ●
64 02.559 SCREW; CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) 16.742 M4X16 TAPPING 		1-09981-477-0 01 1 0607- ● ● ● ●
64 02.559 SCREW; CLIP
16.742 M4X16 TAPPING 		1-09981-477-0 01 1 0607- ● ●
139 02.559 BOLT; BRKT
01.062 (B) M8X16 FLANGE 		0-28080-816-0 03 1 0302-0506 ● ● ● ● ● ● ●
139 02.559 BOLT; BRKT
01.062 (B) M8X16 FLANGE 		0-28080-816-0 03 1 0507-0512 ● ● ● ● ● ●
139 02.559 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 03 1 0601- ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4JJ1 ENG(LFB) 06.216 (E) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ● ●
139 02.559 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (C) M8X10 W/LK WASHER 		8-97025-916-0 02 1 0302-0506 ● ● ●
139 02.559 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (C) M8X10 W/LK WASHER 		8-97025-916-0 02 1 0507-0606 ●
139 02.559 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (C) M8X10 W/LK WASHER 		8-97025-916-0 02 1 0507-0606 ● ●
139 02.559 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (C) M8X10 W/LK WASHER 		8-97025-916-0 02 1 0607-0610 ● ●
139 02.559 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (C) M8X10 W/LK WASHER 		8-97025-916-0 02 1 0607-0610 ●
139 02.559 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (C) M8X10 W/LK WASHER 		8-97025-916-0 02 1 0607-0610 ●
139 02.559 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (C) M8X10 W/LK WASHER 		8-98029-928-0 02 1 0611- ● ●
139 02.559 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (C) M8X10 W/LK WASHER 		8-98029-928-0 02 1 0611- ●
139 02.559 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (C) M8X10 W/LK WASHER 		8-98029-928-0 02 1 0611- ●
139 02.559 BOLT; BRKT
4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97028-451-3 01 1 0302-0506 ● ● ●
139 02.559 BOLT; BRKT
(A) 		8-97028-451-3 01 1 0507-0606 ●
139 02.559 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97028-451-3 01 1 0507-0606 ● ●
139 02.559 BOLT; BRKT
(A) 		8-97028-451-3 01 1 0607- ● ●
139 02.559 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97028-451-3 01 1 0607- ● ●
139 02.559 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (D) M8X35 FLANGE 		0-28680-835-0 02 1 0507-0512 ● ● ● ● ●
139 02.559 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 (D) M8X35 FLANGE 		0-28650-835-0 02 1 0601-0606 ● ● ● ● ●
139 02.559 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 (D) M8X35 FLANGE 		0-28650-835-0 02 1 0607- ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4HK1-TCC ENG(RDV) 00.029 (F) M10X30 FLANGE 		0-28651-030-0 02 1 0607- ● ● ● ●
150 02.343 BOLT; CLIP
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 02.500 (B) M6X10 FLANGE 		0-28080-610-0 01 1 0302-0506 ● ● ●
150 02.343 BOLT; CLIP
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.500 (B) M6X10 FLANGE 		0-28080-610-0 01 1 0507-0512 ● ● ●
150 02.343 BOLT; CLIP
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 03.671 (B) M6X10 FLANGE 		0-28050-610-0 01 1 0601-0606 ● ● ●
150 02.343 BOLT; CLIP
4HK1-TCC ENG(RDV) 03.671 (B) M6X10 FLANGE 		0-28050-610-0 01 1 0607- ● ● ● ●
150 02.343 BOLT; CLIP
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0302-0506 ● ● ●
150 02.343 BOLT; CLIP
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0507-0512 ● ● ● ● ● ●
150 02.343 BOLT; CLIP
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) (A) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0606 ● ● ● ● ● ●
150 02.343 BOLT; CLIP
4HK1-TCC ENG(RDV) (A) M8X12 FLANGE 		0-28050-812-0 01 1 0607- ● ● ● ●
150 02.343 BOLT; CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 0507-0512 ● ● ● ● ●
150 02.343 BOLT; CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0606 ● ● ● ● ●
150 02.343 BOLT; CLIP
4HK1-TCC ENG(RDV) (C) M8X16 FLANGE 		0-28050-816-0 01 1 0607- ● ● ● ●
150 02.343 BOLT; CLIP
4HK1-TCC ENG(RDV) 00.662 (D) M8X14 FLANGE 		0-28080-814-0 01 1 0607- ● ● ● ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ● ● ● ● ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ● ● ●
219 02.559 NUT
4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ● ●
219 02.559 NUT
4HE1 ENG(RLY) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ● ● ● ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ● ● ● ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ● ● ●
219 02.559 NUT
4JH1-TC ENG(RDM) FUEL SEDIMENTER WITH HEATER<6HU> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ●
219 02.559 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ●
219 02.559 NUT
4HK1-TCN ENG(RDQ) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
219 02.559 NUT
HYDRO BRAKE BOOSTER<7QQ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
219 02.559 NUT
01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ● ● ●
219 02.559 NUT
4JH1-TC ENG(RDM) FUEL SEDIMENTER WITH HEATER<6HU> 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ●
219 02.559 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ●
219 02.559 NUT
01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ●
219 02.559 NUT
4HK1-TCN ENG(RDQ) 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
219 02.559 NUT
HYDRO BRAKE BOOSTER<7QQ> 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
219 02.559 NUT
01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ● ● ● ●
219 02.559 NUT
4HK1-TCC ENG(RDV) 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ●
219 02.559 NUT
01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ●
219 02.559 NUT
01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ●
219 02.559 NUT
4HE1 ENG(RLY) 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0302-0303 ● ● ● ● ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0304-0506 ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0304-0506 ● ● ● ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0302-0506 ● ● ●
219 02.559 NUT
04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ● ●
219 02.559 NUT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ● ●
219 02.559 NUT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0607- ● ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0607- ● ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97108-658-0 01 1 0302-0506 ● ● ●
219 02.559 NUT
(D) 		8-97108-658-0 01 1 0507-0606 ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97108-658-0 01 1 0507-0606 ● ●
219 02.559 NUT
4HK1-TCC ENG(RDV) 01.062 (B) M6 FLANGE 		0-91180-106-0 04 1 0607- ● ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 07.829 (B) M6 FLANGE 		5-09440-004-0 01 1 0302-0506 ● ● ●
219 02.559 NUT
4JH1 ENG(RJX) 04.594 (B) M6 FLANGE 		0-91150-106-0 03 1 0302-0303 ● ● ●
219 02.559 NUT
4JH1 ENG(RJX) 04.594 (B) M6 FLANGE 		0-91150-106-0 03 1 0304-0506 ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 03 1 0304-0506 ● ● ●
219 02.559 NUT
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 04.594 (B) M6 FLANGE 		0-91150-106-0 04 1 0507-0602 ● ● ● ● ● ●
219 02.559 NUT
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 01.062 (B) M6 FLANGE 		0-91180-106-0 04 1 0603-0606 ● ● ● ● ● ●
219 02.559 NUT
4JJ1 ENG(LFB) 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0607- ● ● ● ●
219 02.559 NUT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0607- ● ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0607- ● ●
219 02.559 NUT
4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0302-0506 ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0302-0506 ● ● ●
239 02.559 BOLT; GRAND
02.343 (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0302-0506 ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
02.343 (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0507-1004 ● ● ● ● ● ●
239 02.559 BOLT; GRAND
02.343 (B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ● ● ● ● ●
294 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 02 1 0302-0506 ● ● ● ● ● ● ●
294 02.559 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ● ●
294 02.559 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ● ●
294 02.559 NUT
01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ● ● ● ●
294 02.559 NUT
4HE1 ENG(RLY) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0302-0506 ● ● ● ● ● ● ●
294 02.559 NUT
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0302-0506 ● ● ●
294 02.559 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0507-0602 ● ● ● ● ●
294 02.559 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0603-0606 ● ● ● ● ●
294 02.559 NUT
4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0607- ● ●
294 02.559 NUT
4HK1-TCC ENG(RDV) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0607- ● ●
294 02.559 NUT
04.785 (B) M10 FLANGE 		0-91150-110-0 01 1 0302-0506 ● ● ●
294 02.559 NUT
M/T MZZ6F(RSR) 04.785 (B) M10 FLANGE 		0-91150-110-0 01 1 0302-0506 ● ● ● ●
294 02.559 NUT
M/T MYY5T(RSM) 07.633 (C) M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ●
294 02.559 NUT
M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 (C) M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ● ●
294 02.559 NUT
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 (C) M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ●
294 02.559 NUT
M/T MYY5T(RSM) 01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ●
294 02.559 NUT
M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ● ● ● ●
294 02.559 NUT
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ●
294 02.559 NUT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0607- ● ● ● ● ● ●
294 02.559 NUT
M/T MYY5T(RSM) 04.785 (B) M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ● ●
294 02.559 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.785 (B) M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ● ● ● ● ●
294 02.559 NUT
M/T MYY5T(RSM),M/T MZZ6F(RSR) 04.785 (B) M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ● ● ● ●
294 02.559 NUT
M/T MYY5T(RSM) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ● ●
294 02.559 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ● ● ● ● ●
294 02.559 NUT
M/T MYY5T(RSM),M/T MZZ6F(RSR) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ● ● ● ●
294 02.559 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0607- ● ● ● ● ● ●
294 02.559 NUT
M/T MYY5T(RSM) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0607- ●
294 02.559 NUT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0607- ●
294 02.559 NUT
M/T MZZ6F(RSR),M/T MYY6S(RST) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0607- ●
294 02.559 NUT
M/T MZZ6F(RSR) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0607- ● ●
294 02.559 NUT
M/T MYY5T(RSM),M/T MYY6S(RST) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0607- ●
304 02.483 BOLT; ENG HARNESS CLIP
4HK1-TCC ENG(RDV) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0607- ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4HK1-TCC ENG(RDV) 00.029 (B) M10X16 FLANGE 		0-28151-016-0 01 1 0607- ● ● ● ●
377 02.559 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0302-0506 ● ● ● ● ● ● ●
377 02.559 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0507-1004 ● ● ● ● ● ●
377 02.559 BOLT; CAB EARTH
02.343 (B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ● ● ● ● ●
386 02.559 BOLT; GRAND HARNESS
02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0302-0506 ● ● ● ● ● ● ●
386 02.559 BOLT; GRAND HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0507-1004 ● ● ● ● ● ●
386 02.559 BOLT; GRAND HARNESS
02.343 (C) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ● ● ● ● ●
469 02.559 NUT; PROTECTOR
4JH1 ENG(RJX),4HE1 ENG(RLY) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0302-0506 ● ● ●
469 02.559 NUT; PROTECTOR
4HE1 ENG(RLY) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0302-0506 ● ● ● ●
469 02.559 NUT; PROTECTOR
04.785 M10 FLANGE 		0-91150-110-0 01 1 0507-0507 ● ● ● ● ● ●
469 02.559 NUT; PROTECTOR
4JH1-TC ENG(RDM) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ●
469 02.559 NUT; PROTECTOR
4JH1-TC ENG(RDM) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ● ●
469 02.559 NUT; PROTECTOR
FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ● ●
469 02.559 NUT; PROTECTOR
04.785 M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ● ● ●
469 02.559 NUT; PROTECTOR
4JH1-TC ENG(RDM) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ●
469 02.559 NUT; PROTECTOR
4JH1-TC ENG(RDM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ● ●
469 02.559 NUT; PROTECTOR
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ● ●
469 02.559 NUT; PROTECTOR
03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ● ● ●
469 02.559 NUT; PROTECTOR
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0607- ● ●
469 02.559 NUT; PROTECTOR
03.162 M10 FLANGE 		0-91180-110-0 01 1 0607- ● ●
480 02.483 BOLT; BRKT
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0607- ● ●
480 02.483 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0607- ● ●
515 02.559 NUT; BRKT
4HE1 ENG(RLY) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ● ● ● ● ● ● ●
515 02.559 NUT; BRKT
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ●
515 02.559 NUT; BRKT
M/T MYY5T(RSM),M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
515 02.559 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
515 02.559 NUT; BRKT
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TOOL & STORAGE BOX<VK2> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
515 02.559 NUT; BRKT
M/T MYY5T(RSM),M/T MZZ6F(RSR) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ●
515 02.559 NUT; BRKT
FLOOR REMOTE SHIFT<M11> EXC. TOOL & STORAGE BOX<VK2> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ●
515 02.559 NUT; BRKT
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
515 02.559 NUT; BRKT
FLOOR REMOTE SHIFT<M11> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
515 02.559 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ●
515 02.559 NUT; BRKT
M/T MYY5T(RSM),M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
515 02.559 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
515 02.559 NUT; BRKT
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TOOL & STORAGE BOX<VK2> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
515 02.559 NUT; BRKT
M/T MYY5T(RSM),M/T MZZ6F(RSR) 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ●
515 02.559 NUT; BRKT
FLOOR REMOTE SHIFT<M11> EXC. TOOL & STORAGE BOX<VK2> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ●
515 02.559 NUT; BRKT
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
515 02.559 NUT; BRKT
FLOOR REMOTE SHIFT<M11> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
515 02.559 NUT; BRKT
4JJ1 ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ● ●
515 02.559 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ● ●
515 02.559 NUT; BRKT
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TOOL & STORAGE BOX<VK2> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ●
515 02.559 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0607- ●
515 02.559 NUT; BRKT
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0607- ●
515 02.559 NUT; BRKT
M/T MZZ6F(RSR) 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ●
515 02.559 NUT; BRKT
EXC. TOOL & STORAGE BOX<VK2> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0607- ●
515 02.559 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0607- ● ● ● ● ● ●
515 02.559 NUT; BRKT
4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 0302-0506 ● ● ●
515 02.559 NUT; BRKT
04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 0507-0602 ●
515 02.559 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 0507-0602 ● ●
515 02.559 NUT; BRKT
01.062 (A) M6 FLANGE 		0-91180-106-0 02 1 0603-0606 ●
515 02.559 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M6 FLANGE 		0-91180-106-0 02 1 0603-0606 ● ●
515 02.559 NUT; BRKT
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0607- ● ●
515 02.559 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0607- ● ●
515 02.559 NUT; BRKT
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 04.785 (C) M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ● ● ● ● ●
515 02.559 NUT; BRKT
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ● ● ● ● ●
515 02.559 NUT; BRKT
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0607- ● ●
515 02.559 NUT; BRKT
03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0607- ● ●
516 02.559 BOLT; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 0701- ● ●
516 02.559 BOLT; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 0701- ●
516 02.559 BOLT; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 0701- ●
516 02.559 BOLT; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ● ● ●
516 02.559 BOLT; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> (A) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ●
516 02.559 BOLT; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ●
516 02.559 BOLT; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ●
516 02.559 BOLT; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ●
516 02.559 BOLT; HARNESS
4JJ1 ENG(LFB) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 0607- ● ● ● ●
519 02.559 NUT; EARTH CABLE
4HE1 ENG(RLY) 04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0302-0506 ● ● ● ● ● ● ●
519 02.559 NUT; EARTH CABLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ● ● ● ●
519 02.559 NUT; EARTH CABLE
4HK1-TCN ENG(RDQ) 04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ●
519 02.559 NUT; EARTH CABLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ● ● ● ● ●
519 02.559 NUT; EARTH CABLE
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0607- ● ● ● ● ● ●
519 02.559 NUT; EARTH CABLE
4JH1 ENG(RJX) 05.586 (B) M12 FLANGE 		0-91150-112-0 01 1 0302-0506 ● ● ●
519 02.559 NUT; EARTH CABLE
4JH1-TC ENG(RDM) 05.586 (B) M12 FLANGE 		0-91150-112-0 01 1 0507-0602 ● ● ●
519 02.559 NUT; EARTH CABLE
4JH1-TC ENG(RDM) 02.042 (B) M12 FLANGE 		0-91180-112-0 01 1 0603-0606 ● ● ●
524 02.559 NUT; HARNESS
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE 		0-91150-208-0 01 1 0302-0506 ● ● ●
524 02.559 NUT; HARNESS
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE 		0-91150-208-0 01 1 0507-0602 ● ● ●
524 02.559 NUT; HARNESS
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0603-0606 ● ● ●
525 02.559 NUT; CLIP
4HE1 ENG(RLY) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0302-0506 ● ● ● ● ● ● ●
çizim 52559
22 102 14 16 22 48 220 488 551 48 14 16 22 48 102 220 483 16 205 48 142 488 14 16 483 48 464 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
14 02.559 CLIP; BAND,HARNESS
03.162 (A) L=140 		5-09707-031-1 01 1 0302-0506 ● ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
03.162 (A) L=140 		5-09707-031-1 01 1 0507- ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4HK1-TCC ENG(RDV) (B) L=250 		5-09707-030-1 01 1 0607- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4HK1-TCC ENG(RDV) 09.242 (C) L=150 		8-97355-273-0 02 1 0607- ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (I) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (E) ID=14 L=47 		5-09700-319-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.589 (B) ID=27 		5-09700-323-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=12 		5-09700-331-0 AR 1 0302-0302 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=250 		5-09707-030-1 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (F) L=140 		5-09707-031-1 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.525 (C) T=4.5 & 9 		5-09709-023-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(D) T=6.0 		5-09709-024-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=100 		8-94327-067-1 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (J) ID=10 & 16 		8-94413-325-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=100 		8-94442-388-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=60 		8-94457-053-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (H) ID=22 & 22 		8-94464-837-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) L=36.5 		8-97019-892-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (K) ID=6 & 10-13 		8-97069-515-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) ID=12.5-14.5 		8-97087-726-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(L) ID=15-32 		8-97174-404-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.150 (G) ID=12 		8-97367-983-0 AR 1 0303-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(S) L=135 		1-09987-143-1 AR 1 0502-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(S) L=135 		1-09987-143-1 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (I) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (E) ID=14 L=47 		5-09700-319-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.589 (B) ID=27 		5-09700-323-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=250 		5-09707-030-1 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (F) L=140 		5-09707-031-1 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.525 (C) T=4.5 & 9 		5-09709-023-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(D) T=6.0 		5-09709-024-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=100 		8-94327-067-1 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (J) ID=10 & 16 		8-94413-325-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=100 		8-94442-388-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=60 		8-94457-053-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (H) ID=22 & 22 		8-94464-837-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) L=36.5 		8-97019-892-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (K) ID=6 & 10-13 		8-97069-515-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) ID=12.5-14.5 		8-97087-726-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(L) ID=15-32 		8-97174-404-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.150 (G) ID=12 		8-97367-983-0 AR 1 0507- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1 ENG(LFB) 03.425 (D) ID=6 & 8.3 		8-94167-742-0 01 1 0607- ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1 ENG(LFB) 03.162 (E) ID=13.2 & 14.5 		8-94475-649-0 01 1 0607- ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1 ENG(LFB) 04.104 (F) ID=12 & 6.8 		8-97125-842-0 01 1 0607- ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) L=250 		5-09707-030-1 01 1 0507-0606 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) L=250 		5-09707-030-1 01 1 0507-0606 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCC ENG(RDV) (C) L=250 		5-09707-030-1 02 1 0607- ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (A) L=140 		5-09707-031-1 03 1 0507-0606 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1 ENG(LFB) 03.162 (A) L=140 		5-09707-031-1 01 1 0607- ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (B) L=170 		5-09707-054-0 02 1 0507-0606 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCC ENG(RDV) (G) ID=12 		8-97329-630-0 01 1 0607- ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.197 (M) ID=32 L=75 		1-09700-702-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=33 L=63 		1-09700-807-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) ID=31 L=30 		1-09700-969-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) ID=32 L=35 		1-09701-244-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(E) L=170.3 		1-09987-182-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (N) ID=14 L=47 		5-09700-319-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (B) ID=27 		5-09700-323-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.446 (O) ID=12 B=14 ID=8.5 		5-09700-350-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (A) L=140 		5-09707-031-1 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) T=6.0 		5-09709-012-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (L) T=4.5 & 9 		5-09709-023-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) T=6.0 		5-09709-024-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (G) T=9.2 & 9 		5-09709-025-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (H) L=330 		5-09709-118-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=20 		8-94169-650-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.115 (K) T=9 & 10.5 		8-97041-091-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=9 		8-97063-874-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=30 W/STUD 		8-97078-642-2 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (S) ID=11 L=28 		9-09525-055-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.197 (M) ID=32 L=75 		1-09700-702-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=33 L=63 		1-09700-807-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) ID=31 L=30 		1-09700-969-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) ID=32 L=35 		1-09701-244-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(E) L=170.3 		1-09987-182-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (N) ID=14 L=47 		5-09700-319-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (B) ID=27 		5-09700-323-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.446 (O) ID=12 B=14 ID=8.5 		5-09700-350-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (A) L=140 		5-09707-031-1 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) T=6.0 		5-09709-012-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (L) T=4.5 & 9 		5-09709-023-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) T=6.0 		5-09709-024-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (G) T=9.2 & 9 		5-09709-025-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (H) L=330 		5-09709-118-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=20 		8-94169-650-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.115 (K) T=9 & 10.5 		8-97041-091-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=9 		8-97063-874-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=30 W/STUD 		8-97078-642-2 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (S) ID=11 L=28 		9-09525-055-0 AR 1 0507-0606 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(T) ID=11 L=50 		9-09525-085-0 AR 1 0507-0606 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=11 L=28 		0-95235-055-0 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(T) ID=20 ID=11 L=50 		0-95235-085-0 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(X) ID=40 L=90 		1-09701-290-0 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.483 (U) L=450 		1-09707-142-1 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) ID=20 		5-09700-321-0 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(V) L=250 		5-09707-030-1 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=42 W/STUD 		8-97363-356-0 AR 1 0607- ● ● ● ● ● ●
102 02.559 CLIP; BAND
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (A) L=140 		5-09707-031-1 01 1 0507-0508 ● ● ● ● ●
102 02.559 CLIP; BAND
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (B) L=170 		5-09707-054-0 01 1 0507-0606 ● ● ● ● ●
102 02.559 CLIP; BAND
4HK1-TCC ENG(RDV) 03.162 (A) L=140 		5-09707-031-1 02 1 0607- ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
(A) L=170.3 		1-09987-182-0 01 1 0302-0506 ● ● ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
M/T MYY5T(RSM) (A) L=170.3 		1-09987-182-0 01 1 0507-0606 ●
142 02.559 CLIP; HARNESS,ENG
M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=170.3 		1-09987-182-0 01 1 0507-0606 ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=170.3 		1-09987-182-0 01 1 0507-0606 ●
142 02.559 CLIP; HARNESS,ENG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=170.3 		1-09987-182-0 01 1 0607- ● ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4HE1 ENG(RLY) 03.483 (B) 		8-97101-436-0 01 1 0302-0506 ● ● ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4HK1-TCS ENG(RJS) 03.483 (B) 		8-97101-436-0 01 1 0507-0511 ● ● ● ●
205 02.559 CLIP; BACK LAMP HARNESS
L=135 		1-09987-143-1 01 1 0302-0506 ● ● ●
205 02.559 CLIP; BACK LAMP HARNESS
M/T MZZ6F(RSR) L=135 		1-09987-143-1 01 1 0302-0506 ● ● ● ●
205 02.559 CLIP; BACK LAMP HARNESS
M/T MYY5T(RSM) L=135 		1-09987-143-1 01 1 0507-0606 ● ●
205 02.559 CLIP; BACK LAMP HARNESS
M/T MYY5T(RSM),M/T MZZ6F(RSR) L=135 		1-09987-143-1 01 1 0507-0606 ● ● ● ●
205 02.559 CLIP; BACK LAMP HARNESS
L=135 		1-09987-143-1 01 1 0607- ● ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
4HE1 ENG(RLY) M/T MYY5T(RSM) VOLTAGE 24V<7AE> 03.162 (A) L=140 		5-09707-031-1 01 1 0302-0506 ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) L=250 		5-09707-030-1 01 1 0507-0606 ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
4HK1-TCN ENG(RDQ) (B) L=250 		5-09707-030-1 01 1 0507-0606 ●
220 02.559 CLIP; HARNESS TO CABLE
(B) L=250 		5-09707-030-1 01 1 0607- ● ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
4JH1 ENG(RJX) 03.162 (A) L=140 		5-09707-031-1 02 1 0302-0506 ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
4JH1-TC ENG(RDM) 03.162 (A) L=140 		5-09707-031-1 02 1 0507-0606 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0302-0506 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1 ENG(RJX) 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0302-0506 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1-TC ENG(RDM) 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0507-0606 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 02.587 (A) L=112 		8-94232-618-0 01 1 0302-0506 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1 ENG(RJX) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0302-0506 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0302-0506 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1-TC ENG(RDM) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0507-0606 ● ● ●
483 02.559 CLIP; ENG HARNESS
4HE1 ENG(RLY) HEATER & DEFROSTER(C41) 03.162 (B) L=140 		5-09707-031-1 02 1 0302-0506 ● ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 04.342 (A) L=197 		1-83574-032-0 01 1 0302-0506 ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 04.342 (A) L=197 		1-83574-032-0 01 1 0507-0606 ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 02.343 (C) ID=16 L=20 		9-09525-535-0 01 1 0302-0506 ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.343 (C) ID=16 L=20 		9-09525-535-0 01 1 0507-0606 ● ● ●
483 02.559 CLIP; ENG HARNESS
4HK1-TCC ENG(RDV) 02.483 (D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0607- ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
(B) L=170.3 		1-09987-182-0 02 1 0302-0506 ● ● ● ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
(B) L=170.3 		1-09987-182-0 02 1 0507- ● ● ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
(A) L=250 		5-09707-030-1 01 1 0302-0506 ● ● ● ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
(A) L=250 		5-09707-030-1 01 1 0302-0506 ● ● ● ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
(A) L=250 		5-09707-030-1 01 1 0507- ● ● ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
(A) L=250 		5-09707-030-1 01 1 0507- ● ● ● ● ● ●
551 02.559 CLIP; HARNESS,SIDE TURN
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) T=6.0 		5-09709-024-0 02 1 0302-0506 ●
551 02.559 CLIP; HARNESS,SIDE TURN
EXC. FRAME STRAIGHT TYPE<7KJ> (A) T=6.0 		5-09709-024-0 02 1 0302-0506 ● ●
551 02.559 CLIP; HARNESS,SIDE TURN
FRAME STRAIGHT TYPE<7KJ> (B) L=250 		5-09707-030-1 01 1 0302-0407 ● ●
551 02.559 CLIP; HARNESS,SIDE TURN
(B) L=250 		5-09707-030-1 01 1 0302-0407 ● ● ●
551 02.559 CLIP; HARNESS,SIDE TURN
FRAME STRAIGHT TYPE<7KJ> EXC. SPEED LIMITER 90KM<NMJ> (B) L=250 		5-09707-030-1 01 1 0408-0506 ● ●
551 02.559 CLIP; HARNESS,SIDE TURN
EXC. SPEED LIMITER 90KM<NMJ> (B) L=250 		5-09707-030-1 01 1 0408-0506 ● ● ●
çizim 54006
53 53 53 31 53 53 412
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97362-859-0 03 1 0302-0506 ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(A) 		8-97362-859-0 03 1 0507-0606 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97362-859-0 03 1 0507-0606 ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(A) 		8-97362-859-0 02 1 0607- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97362-859-0 02 1 0607- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)L=47 		8-97042-635-0 01 1 0302-0506 ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HE1 ENG(RLY) (B)L=47 		8-97042-635-0 01 1 0302-0506 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)L=47 		8-97042-635-0 01 1 0507-0606 ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B)L=47 		8-97042-635-0 01 1 0607- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HK1-TCC ENG(RDV) (B)L=47 		8-97042-635-0 01 1 0607- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)L=73 		8-97077-845-0 02 1 0302-0506 ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HE1 ENG(RLY) (B)L=73 		8-97077-845-0 02 1 0302-0506 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)L=73 		8-97077-845-0 02 1 0507-0606 ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B)L=73 		8-97077-845-0 02 1 0607- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HK1-TCC ENG(RDV) (B)L=73 		8-97077-845-0 02 1 0607- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(C) 		8-98019-633-0 01 1 0607- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98019-633-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
(D) 		8-98003-048-0 01 1 0507-0606 ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98003-048-0 01 1 0507-0606 ● ●
53 02.483 BRACKET; HARNESS
(D) 		8-98003-048-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98003-048-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
4HE1 ENG(RLY) (A) 		8-97352-527-0 01 1 0302-0506 ● ● ● ● ● ● ●
53 02.483 BRACKET; HARNESS
M/T MYY5T(RSM),M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97352-527-0 01 1 0507-0606 ●
53 02.483 BRACKET; HARNESS
M/T MYY5T(RSM),M/T MZZ6F(RSR) (A) 		8-97352-527-0 01 1 0507-0606 ● ● ●
53 02.483 BRACKET; HARNESS
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97352-527-0 01 1 0507-0606 ●
53 02.483 BRACKET; HARNESS
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97352-527-0 01 1 0607- ● ● ● ●
53 02.483 BRACKET; HARNESS
4JH1 ENG(RJX) (C) 		8-97357-140-0 01 1 0302-0506 ● ● ●
53 02.483 BRACKET; HARNESS
(C) 		8-97357-140-0 01 1 0507-0606 ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97357-140-0 01 1 0507-0606 ● ●
53 02.483 BRACKET; HARNESS
(C) 		8-97357-140-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97357-140-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
4JH1 ENG(RJX) (B) 		8-97359-614-0 01 1 0302-0506 ● ● ●
53 02.483 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-97373-512-1 01 1 0507-0606 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (I) 		8-98030-988-2 01 1 0607- ● ● ● ● ● ●
53 02.483 BRACKET; HARNESS
4JH1-TC ENG(RDM) (B) 		8-97359-614-0 01 1 0507-0606 ● ● ●
53 02.483 BRACKET; HARNESS
4JJ1 ENG(LFB) (B) 		8-97359-614-0 01 1 0607- ● ● ● ●
53 02.483 BRACKET; HARNESS
(H) 		8-98026-091-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98026-091-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
(L) 		8-98042-587-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (L) 		8-98042-587-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (K) 		8-98041-060-0 01 1 0607- ●
53 02.483 BRACKET; HARNESS
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (K) 		8-98041-060-0 01 1 0607- ●
53 02.483 BRACKET; HARNESS
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) (K) 		8-98041-060-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (E) 		8-98003-050-0 01 1 0507-0606 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98003-050-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
(E) 		8-98003-050-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97373-532-2 01 1 0507-0606 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97373-532-2 01 1 0607-0611 ● ● ● ● ● ●
53 02.483 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-98018-899-1 01 1 0612- ● ● ● ● ● ●
53 02.483 BRACKET; HARNESS
4HK1-TCC ENG(RDV) (J) 		8-98039-606-0 01 1 0607- ● ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
(A) 		8-97324-451-1 01 1 0302-0506 ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
M/T MZZ6F(RSR) (A) 		8-97324-451-1 01 1 0302-0506 ● ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
M/T MYY5T(RSM) (A) 		8-97324-451-1 01 1 0507-0606 ●
412 02.559 BRACKET; HARNESS,TRANS
M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97324-451-1 01 1 0507-0606 ● ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97324-451-1 01 1 0507-0606 ●
412 02.559 BRACKET; HARNESS,TRANS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97324-451-1 01 1 0607- ● ● ● ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97369-191-3 01 1 0507-0606 ● ● ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97369-191-3 01 1 0607- ● ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98041-059-1 01 1 0607- ● ● ● ●
çizim 55072
16 16 397 16 264 48 464 16 264 483 142 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 02.559 CLIP; HARNESS
16.065 (I) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (E) ID=14 L=47 		5-09700-319-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.589 (B) ID=27 		5-09700-323-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=12 		5-09700-331-0 AR 1 0302-0302 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=250 		5-09707-030-1 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (F) L=140 		5-09707-031-1 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.525 (C) T=4.5 & 9 		5-09709-023-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(D) T=6.0 		5-09709-024-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=100 		8-94327-067-1 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (J) ID=10 & 16 		8-94413-325-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=100 		8-94442-388-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=60 		8-94457-053-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (H) ID=22 & 22 		8-94464-837-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) L=36.5 		8-97019-892-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (K) ID=6 & 10-13 		8-97069-515-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) ID=12.5-14.5 		8-97087-726-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(L) ID=15-32 		8-97174-404-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.150 (G) ID=12 		8-97367-983-0 AR 1 0303-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(S) L=135 		1-09987-143-1 AR 1 0502-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(S) L=135 		1-09987-143-1 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (I) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (E) ID=14 L=47 		5-09700-319-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.589 (B) ID=27 		5-09700-323-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=250 		5-09707-030-1 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (F) L=140 		5-09707-031-1 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.525 (C) T=4.5 & 9 		5-09709-023-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(D) T=6.0 		5-09709-024-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=100 		8-94327-067-1 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (J) ID=10 & 16 		8-94413-325-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=100 		8-94442-388-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=60 		8-94457-053-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (H) ID=22 & 22 		8-94464-837-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) L=36.5 		8-97019-892-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (K) ID=6 & 10-13 		8-97069-515-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) ID=12.5-14.5 		8-97087-726-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(L) ID=15-32 		8-97174-404-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.150 (G) ID=12 		8-97367-983-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.197 (M) ID=32 L=75 		1-09700-702-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=33 L=63 		1-09700-807-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) ID=31 L=30 		1-09700-969-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) ID=32 L=35 		1-09701-244-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(E) L=170.3 		1-09987-182-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (N) ID=14 L=47 		5-09700-319-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (B) ID=27 		5-09700-323-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.446 (O) ID=12 B=14 ID=8.5 		5-09700-350-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (A) L=140 		5-09707-031-1 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) T=6.0 		5-09709-012-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (L) T=4.5 & 9 		5-09709-023-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) T=6.0 		5-09709-024-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (G) T=9.2 & 9 		5-09709-025-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (H) L=330 		5-09709-118-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=20 		8-94169-650-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.115 (K) T=9 & 10.5 		8-97041-091-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=9 		8-97063-874-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=30 W/STUD 		8-97078-642-2 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (S) ID=11 L=28 		9-09525-055-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.197 (M) ID=32 L=75 		1-09700-702-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=33 L=63 		1-09700-807-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) ID=31 L=30 		1-09700-969-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) ID=32 L=35 		1-09701-244-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(E) L=170.3 		1-09987-182-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (N) ID=14 L=47 		5-09700-319-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (B) ID=27 		5-09700-323-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.446 (O) ID=12 B=14 ID=8.5 		5-09700-350-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (A) L=140 		5-09707-031-1 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) T=6.0 		5-09709-012-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (L) T=4.5 & 9 		5-09709-023-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) T=6.0 		5-09709-024-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (G) T=9.2 & 9 		5-09709-025-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (H) L=330 		5-09709-118-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=20 		8-94169-650-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.115 (K) T=9 & 10.5 		8-97041-091-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=9 		8-97063-874-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=30 W/STUD 		8-97078-642-2 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (S) ID=11 L=28 		9-09525-055-0 AR 1 0507-0606 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(T) ID=11 L=50 		9-09525-085-0 AR 1 0507-0606 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=11 L=28 		0-95235-055-0 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(T) ID=20 ID=11 L=50 		0-95235-085-0 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(X) ID=40 L=90 		1-09701-290-0 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.483 (U) L=450 		1-09707-142-1 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) ID=20 		5-09700-321-0 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(V) L=250 		5-09707-030-1 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=42 W/STUD 		8-97363-356-0 AR 1 0607- ● ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
(A) L=170.3 		1-09987-182-0 01 1 0302-0506 ● ● ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
M/T MYY5T(RSM) (A) L=170.3 		1-09987-182-0 01 1 0507-0606 ●
142 02.559 CLIP; HARNESS,ENG
M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=170.3 		1-09987-182-0 01 1 0507-0606 ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=170.3 		1-09987-182-0 01 1 0507-0606 ●
142 02.559 CLIP; HARNESS,ENG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=170.3 		1-09987-182-0 01 1 0607- ● ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4HE1 ENG(RLY) 03.483 (B) 		8-97101-436-0 01 1 0302-0506 ● ● ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4HK1-TCS ENG(RJS) 03.483 (B) 		8-97101-436-0 01 1 0507-0511 ● ● ● ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.343 (A) ID=10 & 16 		8-94413-325-0 02 1 0302-0506 ● ● ● ● ● ● ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.694 (B) ID=6 & 10-13 		8-97069-515-0 01 1 0302-0506 ● ● ● ● ● ● ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.694 (B) ID=6 & 10-13 		8-97069-515-0 01 1 0507- ● ● ● ● ● ●
397 02.559 CLIP; RR DOOR HARNESS
AUTO DOOR LOCK<AU4> 10.154 ID=7 		8-97014-713-0 02 1 0302- ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0302-0506 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1 ENG(RJX) 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0302-0506 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1-TC ENG(RDM) 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0507-0606 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 02.587 (A) L=112 		8-94232-618-0 01 1 0302-0506 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1 ENG(RJX) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0302-0506 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0302-0506 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1-TC ENG(RDM) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0507-0606 ● ● ●
483 02.559 CLIP; ENG HARNESS
4HE1 ENG(RLY) HEATER & DEFROSTER(C41) 03.162 (B) L=140 		5-09707-031-1 02 1 0302-0506 ● ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 04.342 (A) L=197 		1-83574-032-0 01 1 0302-0506 ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 04.342 (A) L=197 		1-83574-032-0 01 1 0507-0606 ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 02.343 (C) ID=16 L=20 		9-09525-535-0 01 1 0302-0506 ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.343 (C) ID=16 L=20 		9-09525-535-0 01 1 0507-0606 ● ● ●
483 02.559 CLIP; ENG HARNESS
4HK1-TCC ENG(RDV) 02.483 (D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0607- ● ● ● ●
çizim 55534
312 31 511 180 178 510 510 512
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97362-859-0 03 1 0302-0506 ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(A) 		8-97362-859-0 03 1 0507-0606 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97362-859-0 03 1 0507-0606 ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(A) 		8-97362-859-0 02 1 0607- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97362-859-0 02 1 0607- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)L=47 		8-97042-635-0 01 1 0302-0506 ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HE1 ENG(RLY) (B)L=47 		8-97042-635-0 01 1 0302-0506 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)L=47 		8-97042-635-0 01 1 0507-0606 ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B)L=47 		8-97042-635-0 01 1 0607- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HK1-TCC ENG(RDV) (B)L=47 		8-97042-635-0 01 1 0607- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)L=73 		8-97077-845-0 02 1 0302-0506 ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HE1 ENG(RLY) (B)L=73 		8-97077-845-0 02 1 0302-0506 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)L=73 		8-97077-845-0 02 1 0507-0606 ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B)L=73 		8-97077-845-0 02 1 0607- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HK1-TCC ENG(RDV) (B)L=73 		8-97077-845-0 02 1 0607- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(C) 		8-98019-633-0 01 1 0607- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98019-633-0 01 1 0607- ● ●
178 02.559 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 0302-0506 ● ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 0507- ● ● ● ● ● ●
180 02.559 COVER; HARNESS 8-97856-130-4 02 1 0302-0506 ● ● ● ● ● ● ●
180 02.559 COVER; HARNESS 8-97856-130-4 02 1 0507- ● ● ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97017-072-2 01 1 0302-0506 ● ● ●
312 02.559 BRACKET; CLIP HARNESS
4HE1 ENG(RLY) (A) 		8-97017-072-2 01 1 0302-0506 ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97017-072-2 01 1 0507-0606 ● ●
312 02.559 BRACKET; CLIP HARNESS
(A) 		8-97017-072-2 01 1 0507-0606 ● ● ●
312 02.559 BRACKET; CLIP HARNESS
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97017-072-2 01 1 0607- ● ●
312 02.559 BRACKET; CLIP HARNESS
(A) 		8-97017-072-2 01 1 0607- ● ●
312 02.559 BRACKET; CLIP HARNESS
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97357-050-0 01 1 0302-0506 ● ● ●
312 02.559 BRACKET; CLIP HARNESS
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97357-051-1 01 1 0302-0506 ● ● ●
510 02.559 GROMMET; SCREW
04.931 H=15 		8-94463-268-1 04 1 0302-0506 ● ● ● ● ● ● ●
510 02.559 GROMMET; SCREW
04.931 H=15 		8-94463-268-1 04 1 0507- ● ● ● ● ● ●
511 02.559 SCREW; HARNESS COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 0302-0506 ● ● ● ● ● ● ●
511 02.559 SCREW; HARNESS COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 0507-0604 ● ● ● ● ● ●
511 02.559 SCREW; HARNESS COVER
16.800 M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 0605-0702 ● ● ● ● ● ●
511 02.559 SCREW; HARNESS COVER
04.681 M5X12 TAPPING 		0-72180-512-0 04 1 0703- ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS 8-97072-950-0 02 1 0302-0506 ● ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS 8-97072-950-0 02 1 0507- ● ● ● ● ● ●
çizim 55817
16 48 208 464 48 16 551 48 16 48 48 48 48 16 48 48 16 48 48 16 22 48 49 16 208 48 22 22 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 02.559 CLIP; HARNESS
16.065 (I) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (E) ID=14 L=47 		5-09700-319-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.589 (B) ID=27 		5-09700-323-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=12 		5-09700-331-0 AR 1 0302-0302 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=250 		5-09707-030-1 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (F) L=140 		5-09707-031-1 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.525 (C) T=4.5 & 9 		5-09709-023-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(D) T=6.0 		5-09709-024-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=100 		8-94327-067-1 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (J) ID=10 & 16 		8-94413-325-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=100 		8-94442-388-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=60 		8-94457-053-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (H) ID=22 & 22 		8-94464-837-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) L=36.5 		8-97019-892-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (K) ID=6 & 10-13 		8-97069-515-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) ID=12.5-14.5 		8-97087-726-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(L) ID=15-32 		8-97174-404-0 AR 1 0302-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.150 (G) ID=12 		8-97367-983-0 AR 1 0303-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(S) L=135 		1-09987-143-1 AR 1 0502-0506 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(S) L=135 		1-09987-143-1 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (I) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (E) ID=14 L=47 		5-09700-319-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.589 (B) ID=27 		5-09700-323-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=250 		5-09707-030-1 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (F) L=140 		5-09707-031-1 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.525 (C) T=4.5 & 9 		5-09709-023-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(D) T=6.0 		5-09709-024-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=100 		8-94327-067-1 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (J) ID=10 & 16 		8-94413-325-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=100 		8-94442-388-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=60 		8-94457-053-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (H) ID=22 & 22 		8-94464-837-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) L=36.5 		8-97019-892-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (K) ID=6 & 10-13 		8-97069-515-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) ID=12.5-14.5 		8-97087-726-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(L) ID=15-32 		8-97174-404-0 AR 1 0507- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.150 (G) ID=12 		8-97367-983-0 AR 1 0507- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1 ENG(LFB) 03.425 (D) ID=6 & 8.3 		8-94167-742-0 01 1 0607- ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1 ENG(LFB) 03.162 (E) ID=13.2 & 14.5 		8-94475-649-0 01 1 0607- ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1 ENG(LFB) 04.104 (F) ID=12 & 6.8 		8-97125-842-0 01 1 0607- ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) L=250 		5-09707-030-1 01 1 0507-0606 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) L=250 		5-09707-030-1 01 1 0507-0606 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCC ENG(RDV) (C) L=250 		5-09707-030-1 02 1 0607- ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (A) L=140 		5-09707-031-1 03 1 0507-0606 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1 ENG(LFB) 03.162 (A) L=140 		5-09707-031-1 01 1 0607- ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (B) L=170 		5-09707-054-0 02 1 0507-0606 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCC ENG(RDV) (G) ID=12 		8-97329-630-0 01 1 0607- ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.197 (M) ID=32 L=75 		1-09700-702-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=33 L=63 		1-09700-807-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) ID=31 L=30 		1-09700-969-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) ID=32 L=35 		1-09701-244-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(E) L=170.3 		1-09987-182-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (N) ID=14 L=47 		5-09700-319-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (B) ID=27 		5-09700-323-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.446 (O) ID=12 B=14 ID=8.5 		5-09700-350-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (A) L=140 		5-09707-031-1 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) T=6.0 		5-09709-012-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (L) T=4.5 & 9 		5-09709-023-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) T=6.0 		5-09709-024-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (G) T=9.2 & 9 		5-09709-025-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (H) L=330 		5-09709-118-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=20 		8-94169-650-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.115 (K) T=9 & 10.5 		8-97041-091-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=9 		8-97063-874-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=30 W/STUD 		8-97078-642-2 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (S) ID=11 L=28 		9-09525-055-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.197 (M) ID=32 L=75 		1-09700-702-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=33 L=63 		1-09700-807-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) ID=31 L=30 		1-09700-969-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) ID=32 L=35 		1-09701-244-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(E) L=170.3 		1-09987-182-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (N) ID=14 L=47 		5-09700-319-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (B) ID=27 		5-09700-323-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.446 (O) ID=12 B=14 ID=8.5 		5-09700-350-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (A) L=140 		5-09707-031-1 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) T=6.0 		5-09709-012-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (L) T=4.5 & 9 		5-09709-023-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) T=6.0 		5-09709-024-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (G) T=9.2 & 9 		5-09709-025-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (H) L=330 		5-09709-118-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=20 		8-94169-650-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.115 (K) T=9 & 10.5 		8-97041-091-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=9 		8-97063-874-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=30 W/STUD 		8-97078-642-2 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (S) ID=11 L=28 		9-09525-055-0 AR 1 0507-0606 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(T) ID=11 L=50 		9-09525-085-0 AR 1 0507-0606 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=11 L=28 		0-95235-055-0 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(T) ID=20 ID=11 L=50 		0-95235-085-0 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(X) ID=40 L=90 		1-09701-290-0 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.483 (U) L=450 		1-09707-142-1 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) ID=20 		5-09700-321-0 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(V) L=250 		5-09707-030-1 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=42 W/STUD 		8-97363-356-0 AR 1 0607- ● ● ● ● ● ●
49 02.559 CLIP; GEN HARNESS
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0302-0506 ● ● ●
49 02.559 CLIP; GEN HARNESS
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0507-0606 ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JH1 ENG(RJX) 01.240 (A) ID=14 L=47 		5-09700-319-0 02 1 0302-0506 ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JH1 ENG(RJX) 01.240 (B) T=5.5 		5-09709-047-0 01 1 0302-0506 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0302-0506 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1 ENG(RJX) 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0302-0506 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1-TC ENG(RDM) 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0507-0606 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 02.587 (A) L=112 		8-94232-618-0 01 1 0302-0506 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1 ENG(RJX) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0302-0506 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0302-0506 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1-TC ENG(RDM) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0507-0606 ● ● ●
551 02.559 CLIP; HARNESS,SIDE TURN
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) T=6.0 		5-09709-024-0 02 1 0302-0506 ●
551 02.559 CLIP; HARNESS,SIDE TURN
EXC. FRAME STRAIGHT TYPE<7KJ> (A) T=6.0 		5-09709-024-0 02 1 0302-0506 ● ●
551 02.559 CLIP; HARNESS,SIDE TURN
FRAME STRAIGHT TYPE<7KJ> (B) L=250 		5-09707-030-1 01 1 0302-0407 ● ●
551 02.559 CLIP; HARNESS,SIDE TURN
(B) L=250 		5-09707-030-1 01 1 0302-0407 ● ● ●
551 02.559 CLIP; HARNESS,SIDE TURN
FRAME STRAIGHT TYPE<7KJ> EXC. SPEED LIMITER 90KM<NMJ> (B) L=250 		5-09707-030-1 01 1 0408-0506 ● ●
551 02.559 CLIP; HARNESS,SIDE TURN
EXC. SPEED LIMITER 90KM<NMJ> (B) L=250 		5-09707-030-1 01 1 0408-0506 ● ● ●
çizim 55838
48 48 483 48 48 48 7 7 7 7 53 31 53 53 53 53 53 53 183 312 317 312 412 412 317 504 514
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
7 02.559 BRACKET; CONNECTOR
(A) 		8-97094-992-1 01 1 0302-0506 ● ● ● ● ● ● ●
7 02.559 BRACKET; CONNECTOR
(A) 		8-97094-992-1 01 1 0507- ● ● ● ● ● ●
7 02.559 BRACKET; CONNECTOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98003-671-1 01 1 0507-0606 ● ● ● ● ●
7 02.559 BRACKET; CONNECTOR
(B) 		8-98003-671-1 01 1 0607- ● ● ● ● ● ●
7 02.559 BRACKET; CONNECTOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98003-672-0 01 1 0507-0606 ● ● ● ● ●
7 02.559 BRACKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98019-630-0 01 1 0607- ● ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97362-859-0 03 1 0302-0506 ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(A) 		8-97362-859-0 03 1 0507-0606 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97362-859-0 03 1 0507-0606 ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(A) 		8-97362-859-0 02 1 0607- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97362-859-0 02 1 0607- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)L=47 		8-97042-635-0 01 1 0302-0506 ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HE1 ENG(RLY) (B)L=47 		8-97042-635-0 01 1 0302-0506 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)L=47 		8-97042-635-0 01 1 0507-0606 ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B)L=47 		8-97042-635-0 01 1 0607- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HK1-TCC ENG(RDV) (B)L=47 		8-97042-635-0 01 1 0607- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)L=73 		8-97077-845-0 02 1 0302-0506 ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HE1 ENG(RLY) (B)L=73 		8-97077-845-0 02 1 0302-0506 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)L=73 		8-97077-845-0 02 1 0507-0606 ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B)L=73 		8-97077-845-0 02 1 0607- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HK1-TCC ENG(RDV) (B)L=73 		8-97077-845-0 02 1 0607- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(C) 		8-98019-633-0 01 1 0607- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98019-633-0 01 1 0607- ● ●
48 02.559 CLIP; FRAME HARNESS
04.197 (M) ID=32 L=75 		1-09700-702-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=33 L=63 		1-09700-807-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) ID=31 L=30 		1-09700-969-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) ID=32 L=35 		1-09701-244-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(E) L=170.3 		1-09987-182-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (N) ID=14 L=47 		5-09700-319-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (B) ID=27 		5-09700-323-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.446 (O) ID=12 B=14 ID=8.5 		5-09700-350-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (A) L=140 		5-09707-031-1 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) T=6.0 		5-09709-012-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (L) T=4.5 & 9 		5-09709-023-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) T=6.0 		5-09709-024-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (G) T=9.2 & 9 		5-09709-025-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (H) L=330 		5-09709-118-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=20 		8-94169-650-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.115 (K) T=9 & 10.5 		8-97041-091-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=9 		8-97063-874-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=30 W/STUD 		8-97078-642-2 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (S) ID=11 L=28 		9-09525-055-0 AR 1 0302-0506 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.197 (M) ID=32 L=75 		1-09700-702-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=33 L=63 		1-09700-807-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) ID=31 L=30 		1-09700-969-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) ID=32 L=35 		1-09701-244-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(E) L=170.3 		1-09987-182-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (N) ID=14 L=47 		5-09700-319-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (B) ID=27 		5-09700-323-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.446 (O) ID=12 B=14 ID=8.5 		5-09700-350-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (A) L=140 		5-09707-031-1 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) T=6.0 		5-09709-012-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (L) T=4.5 & 9 		5-09709-023-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) T=6.0 		5-09709-024-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (G) T=9.2 & 9 		5-09709-025-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (H) L=330 		5-09709-118-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=20 		8-94169-650-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.115 (K) T=9 & 10.5 		8-97041-091-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=9 		8-97063-874-0 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=30 W/STUD 		8-97078-642-2 AR 1 0507- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (S) ID=11 L=28 		9-09525-055-0 AR 1 0507-0606 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(T) ID=11 L=50 		9-09525-085-0 AR 1 0507-0606 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=11 L=28 		0-95235-055-0 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(T) ID=20 ID=11 L=50 		0-95235-085-0 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(X) ID=40 L=90 		1-09701-290-0 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.483 (U) L=450 		1-09707-142-1 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) ID=20 		5-09700-321-0 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(V) L=250 		5-09707-030-1 AR 1 0607- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=42 W/STUD 		8-97363-356-0 AR 1 0607- ● ● ● ● ● ●
53 02.483 BRACKET; HARNESS
(D) 		8-98003-048-0 01 1 0507-0606 ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98003-048-0 01 1 0507-0606 ● ●
53 02.483 BRACKET; HARNESS
(D) 		8-98003-048-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98003-048-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
4HE1 ENG(RLY) (A) 		8-97352-527-0 01 1 0302-0506 ● ● ● ● ● ● ●
53 02.483 BRACKET; HARNESS
M/T MYY5T(RSM),M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97352-527-0 01 1 0507-0606 ●
53 02.483 BRACKET; HARNESS
M/T MYY5T(RSM),M/T MZZ6F(RSR) (A) 		8-97352-527-0 01 1 0507-0606 ● ● ●
53 02.483 BRACKET; HARNESS
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97352-527-0 01 1 0507-0606 ●
53 02.483 BRACKET; HARNESS
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97352-527-0 01 1 0607- ● ● ● ●
53 02.483 BRACKET; HARNESS
4JH1 ENG(RJX) (C) 		8-97357-140-0 01 1 0302-0506 ● ● ●
53 02.483 BRACKET; HARNESS
(C) 		8-97357-140-0 01 1 0507-0606 ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97357-140-0 01 1 0507-0606 ● ●
53 02.483 BRACKET; HARNESS
(C) 		8-97357-140-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97357-140-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
4JH1 ENG(RJX) (B) 		8-97359-614-0 01 1 0302-0506 ● ● ●
53 02.483 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-97373-512-1 01 1 0507-0606 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (I) 		8-98030-988-2 01 1 0607- ● ● ● ● ● ●
53 02.483 BRACKET; HARNESS
4JH1-TC ENG(RDM) (B) 		8-97359-614-0 01 1 0507-0606 ● ● ●
53 02.483 BRACKET; HARNESS
4JJ1 ENG(LFB) (B) 		8-97359-614-0 01 1 0607- ● ● ● ●
53 02.483 BRACKET; HARNESS
(H) 		8-98026-091-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98026-091-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
(L) 		8-98042-587-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (L) 		8-98042-587-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (K) 		8-98041-060-0 01 1 0607- ●
53 02.483 BRACKET; HARNESS
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (K) 		8-98041-060-0 01 1 0607- ●
53 02.483 BRACKET; HARNESS
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) (K) 		8-98041-060-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (E) 		8-98003-050-0 01 1 0507-0606 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98003-050-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
(E) 		8-98003-050-0 01 1 0607- ● ●
53 02.483 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97373-532-2 01 1 0507-0606 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97373-532-2 01 1 0607-0611 ● ● ● ● ● ●
53 02.483 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-98018-899-1 01 1 0612- ● ● ● ● ● ●
53 02.483 BRACKET; HARNESS
4HK1-TCC ENG(RDV) (J) 		8-98039-606-0 01 1 0607- ● ● ● ●
183 02.559 CLIP; CONNECTOR
L=15 		8-94315-436-1 02 1 0302- ● ●
312 02.559 BRACKET; CLIP HARNESS
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97017-072-2 01 1 0302-0506 ● ● ●
312 02.559 BRACKET; CLIP HARNESS
4HE1 ENG(RLY) (A) 		8-97017-072-2 01 1 0302-0506 ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97017-072-2 01 1 0507-0606 ● ●
312 02.559 BRACKET; CLIP HARNESS
(A) 		8-97017-072-2 01 1 0507-0606 ● ● ●
312 02.559 BRACKET; CLIP HARNESS
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97017-072-2 01 1 0607- ● ●
312 02.559 BRACKET; CLIP HARNESS
(A) 		8-97017-072-2 01 1 0607- ● ●
312 02.559 BRACKET; CLIP HARNESS
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97357-050-0 01 1 0302-0506 ● ● ●
312 02.559 BRACKET; CLIP HARNESS
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97357-051-1 01 1 0302-0506 ● ● ●
317 02.559 CLAMP; CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A) 		8-94466-377-0 01 1 0302-0506 ● ● ●
317 02.559 CLAMP; CONNECTOR
4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94466-377-0 01 1 0302-0506 ● ● ●
317 02.559 CLAMP; CONNECTOR
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94466-377-0 01 1 0302-0506 ● ●
317 02.559 CLAMP; CONNECTOR
4JH1-TC ENG(RDM) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94466-377-0 01 1 0507-0606 ● ● ●
317 02.559 CLAMP; CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> (B) 		8-94366-903-0 01 1 0302-0506 ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
(A) 		8-97324-451-1 01 1 0302-0506 ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
M/T MZZ6F(RSR) (A) 		8-97324-451-1 01 1 0302-0506 ● ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
M/T MYY5T(RSM) (A) 		8-97324-451-1 01 1 0507-0606 ●
412 02.559 BRACKET; HARNESS,TRANS
M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97324-451-1 01 1 0507-0606 ● ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97324-451-1 01 1 0507-0606 ●
412 02.559 BRACKET; HARNESS,TRANS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97324-451-1 01 1 0607- ● ● ● ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97369-191-3 01 1 0507-0606 ● ● ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97369-191-3 01 1 0607- ● ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98041-059-1 01 1 0607- ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HE1 ENG(RLY) HEATER & DEFROSTER(C41) 03.162 (B) L=140 		5-09707-031-1 02 1 0302-0506 ● ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 04.342 (A) L=197 		1-83574-032-0 01 1 0302-0506 ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 04.342 (A) L=197 		1-83574-032-0 01 1 0507-0606 ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 02.343 (C) ID=16 L=20 		9-09525-535-0 01 1 0302-0506 ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.343 (C) ID=16 L=20 		9-09525-535-0 01 1 0507-0606 ● ● ●
483 02.559 CLIP; ENG HARNESS
4HK1-TCC ENG(RDV) 02.483 (D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0607- ● ● ● ●
504 02.559 PROTECTOR; HARNESS
04.785 L=200 		8-97096-423-0 01 1 0302-0506 ● ● ● ● ● ● ●
504 02.559 PROTECTOR; HARNESS
04.785 L=200 		8-97096-423-0 01 1 0507- ● ● ● ● ● ●
504 02.559 PROTECTOR; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.008 L=80 		5-22439-006-0 01 1 0507-0606 ● ● ● ● ●
504 02.559 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.008 L=80 		5-22439-006-0 01 1 0507-0606 ● ● ● ●
504 02.559 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) 03.008 L=80 		5-22439-006-0 01 1 0507-0606 ●
504 02.559 PROTECTOR; HARNESS
03.008 L=80 		5-22439-006-0 01 1 0607- ● ● ● ● ● ●
504 02.559 PROTECTOR; HARNESS
4HK1-TCC ENG(RDV) 03.008 L=80 		5-22439-006-0 01 1 0607- ● ● ● ●
504 02.559 PROTECTOR; HARNESS
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.008 L=80 		5-22439-006-0 01 1 0607- ● ●
504 02.559 PROTECTOR; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.008 L=80 		5-22439-006-0 01 1 0607- ● ●
514 02.559 FINISHER; HARNESS
16.550 L=120 SERVICED BY L=2040 		1-71997-513-1 01 1 0302-0506 ● ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4JH1-TC ENG(RDM) 16.550 L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0507-0606 ● ● ●
514 02.559 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0607- ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 L=120 SERVICED BY L=2040 		1-71997-513-1 03 1 0302-0506 ● ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 L=120 SERVICED BY L=2040 		1-71997-513-1 01 1 0507- ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0302-0506 ● ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 L=120 SERVICED BY L=2040 		1-71997-513-1 03 1 0507-0606 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 L=120 SERVICED BY L=2040 		1-71997-513-1 02 1 0607- ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HE1 ENG(RLY) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0302-0503 ● ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0504-0506 ● ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0507-0507 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0507-0507 ● ● ● ●
514 02.559 FINISHER; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0507-0507 ● ● ● ●
514 02.559 FINISHER; HARNESS
4HK1-TCN ENG(RDQ) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0507-0507 ●
514 02.559 FINISHER; HARNESS
4HK1-TCN ENG(RDQ) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0507-0507 ●
514 02.559 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0507-0606 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0507-0606 ● ● ● ●
514 02.559 FINISHER; HARNESS
4HK1-TCN ENG(RDQ) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0507-0606 ●
514 02.559 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 02 1 0607- ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
ADJUST HEADLAMP<6RC> 03.885 L=50 		8-94270-377-1 01 1 0507-0508 ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
