8-10 — WIRING HARNESS AND FUSE (#46605) — 916 parça

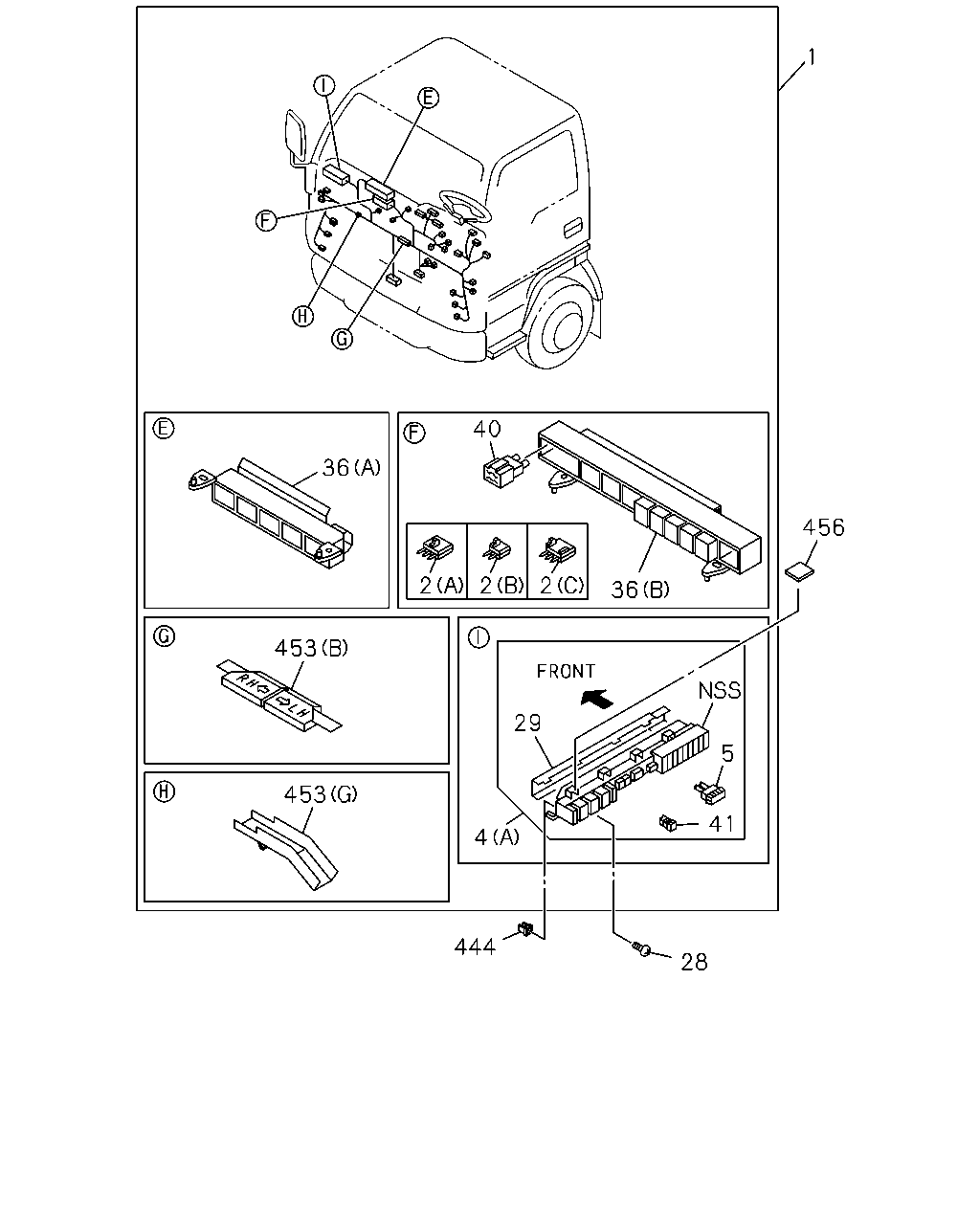

çizim 52514
1 40 36 456 2 2 2 36 453 29 5 453 41 4 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 		8-97377-849-1 01 1 0408-0506 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97377-849-1 01 1 0408-0506 ● ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) 		8-97331-676-2 01 1 0302-0506 ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-612-1 01 1 0507-0606 ● ● ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-360-3 01 1 0607-0610 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-360-3 01 1 0607-0610 ● ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-360-3 01 1 0607-0610 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-115-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-115-0 01 1 0611- ● ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-115-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97323-316-2 01 1 0302-0310 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97374-125-1 01 1 0311-0407 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> 		8-97374-125-1 01 1 0408-0506 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ>, VEHICLECATEGORY NQR<7NQ> 		8-97374-125-1 01 1 0408-0506 ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-98017-023-2 01 1 0507-0512 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-98017-023-2 01 1 0507-0512 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-98035-287-0 01 1 0601-0606 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-98035-287-0 01 1 0601-0606 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> VEHICLE CATEGORY NQR<7NQ> 		8-97377-851-1 01 1 0408-0506 ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 		8-97377-851-1 01 1 0408-0506 ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) VEHICLE CATEGORY NQR<7NQ> 		8-97323-317-2 01 1 0302-0310 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) VEHICLE CATEGORY NQR<7NQ> 		8-97374-127-1 01 1 0311-0407 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) VEHICLE CATEGORY NQR<7NQ> EXC. SPEED LIMITER 90KM<NMJ> 		8-97374-127-1 01 1 0408-0506 ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> 		8-97374-127-1 01 1 0408-0506 ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-611-1 01 1 0507-0606 ● ● ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-359-3 01 1 0607-0609 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-359-3 01 1 0607-0609 ● ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-359-3 01 1 0607-0609 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98059-512-0 01 1 0610-0610 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98059-512-0 01 1 0610-0610 ● ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98059-512-0 01 1 0610-0610 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-114-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-114-0 01 1 0611- ● ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-114-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 		8-97310-066-3 01 1 0302-0310 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 		8-97374-126-1 01 1 0311-0407 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> 		8-97374-126-1 01 1 0408-0506 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-98017-024-2 01 1 0507-0512 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-98035-288-0 01 1 0601-0606 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 		8-97377-850-1 01 1 0408-0506 ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) 		8-97331-677-2 01 1 0302-0506 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-614-1 01 1 0507-0606 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-614-1 01 1 0507-0606 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-119-3 01 1 0607-0610 ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-119-3 01 1 0607-0610 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-117-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-117-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 		8-97310-068-3 01 1 0302-0310 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 		8-97374-128-1 01 1 0311-0407 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> 		8-97374-128-1 01 1 0408-0506 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-613-1 01 1 0507-0606 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-613-1 01 1 0507-0606 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-361-3 01 1 0607-0610 ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-361-3 01 1 0607-0610 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-116-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-116-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 		8-97377-852-1 01 1 0408-0506 ●
2 02.483 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 AR 1 0302-0506 ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0302-0506 ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0302-0506 ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 AR 1 0507- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0507- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0507- ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
(A) 		8-97214-415-0 01 1 0302-0506 ● ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
(A) 		8-97187-921-1 01 1 0507- ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> (B) 		8-94364-546-0 01 1 0408-0506 ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 0302-0506 ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 0302-0506 ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A CLEAR 		5-82516-005-0 AR 1 0302-0506 ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 0507- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 0507- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW 		8-97062-024-0 AR 1 0507- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 30A PINK 		8-97183-643-0 AR 1 0507- ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0302-0506 ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0507-0604 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102- ● ● ● ● ● ●
29 02.483 COVER; FUSE BOX 8-97074-955-0 01 1 0507- ● ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 0302-0506 ● ● ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97187-918-1 01 1 0507- ● ● ● ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-1 01 1 0302-0506 ● ● ● ● ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-2 01 1 0507- ● ● ● ● ● ●
40 02.483 BOX; DIODE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NATURAL 8P 		8-97200-753-0 01 1 0507-0606 ● ● ● ●
40 02.483 BOX; DIODE
4HK1-TCN ENG(RDQ) NATURAL 8P 		8-97200-753-0 01 1 0507-0606 ●
40 02.483 BOX; DIODE
BLACK 8P 		8-97078-064-1 01 1 0607- ● ● ● ● ● ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0302-0506 ● ● ● ● ● ● ●
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 0507- ● ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0302-0506 ● ● ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0507- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0302-0506 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0507- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97093-668-1 01 1 0302-0407 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> (C) 		8-97093-668-1 01 1 0408-0506 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) (C) 		8-97093-668-1 01 1 0408-0506 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (C) 		8-97093-668-1 01 1 0408-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (C) 		8-97093-668-1 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97093-668-1 01 1 0507-0606 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (D) 		8-97062-169-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97062-169-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97062-169-0 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCC ENG(RDV) (D) 		8-97062-169-0 01 1 0607- ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-591-1 01 1 0302-0407 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> (A) 		8-97120-591-1 01 1 0408-0506 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) (A) 		8-97120-591-1 01 1 0408-0506 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (A) 		8-97120-591-1 01 1 0408-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (A) 		8-97120-591-1 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97120-591-1 01 1 0507-0606 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6F(RSR) (D) 		8-97062-169-0 01 1 0302-0407 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> (D) 		8-97062-169-0 01 1 0408-0506 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) (D) 		8-97062-169-0 01 1 0408-0506 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-97062-169-0 01 1 0507-0606 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97120-591-1 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCC ENG(RDV) (A) 		8-97120-591-1 01 1 0607- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (E) 		8-94417-716-0 01 1 0302-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (E) 		8-94417-716-0 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (E) 		8-94417-716-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-94417-716-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (F) 		8-94482-169-0 01 1 0302-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (F) 		8-94482-169-0 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (F) 		8-94482-169-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-94482-169-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (G) 		8-97088-615-0 01 1 0509-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) EXC. HYDRO BRAKE BOOSTER<7QQ> (G) 		8-97088-615-0 01 1 0509-0606 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-97088-615-0 01 1 0607- ● ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0302-0506 ● ● ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0507- ● ● ● ● ● ●

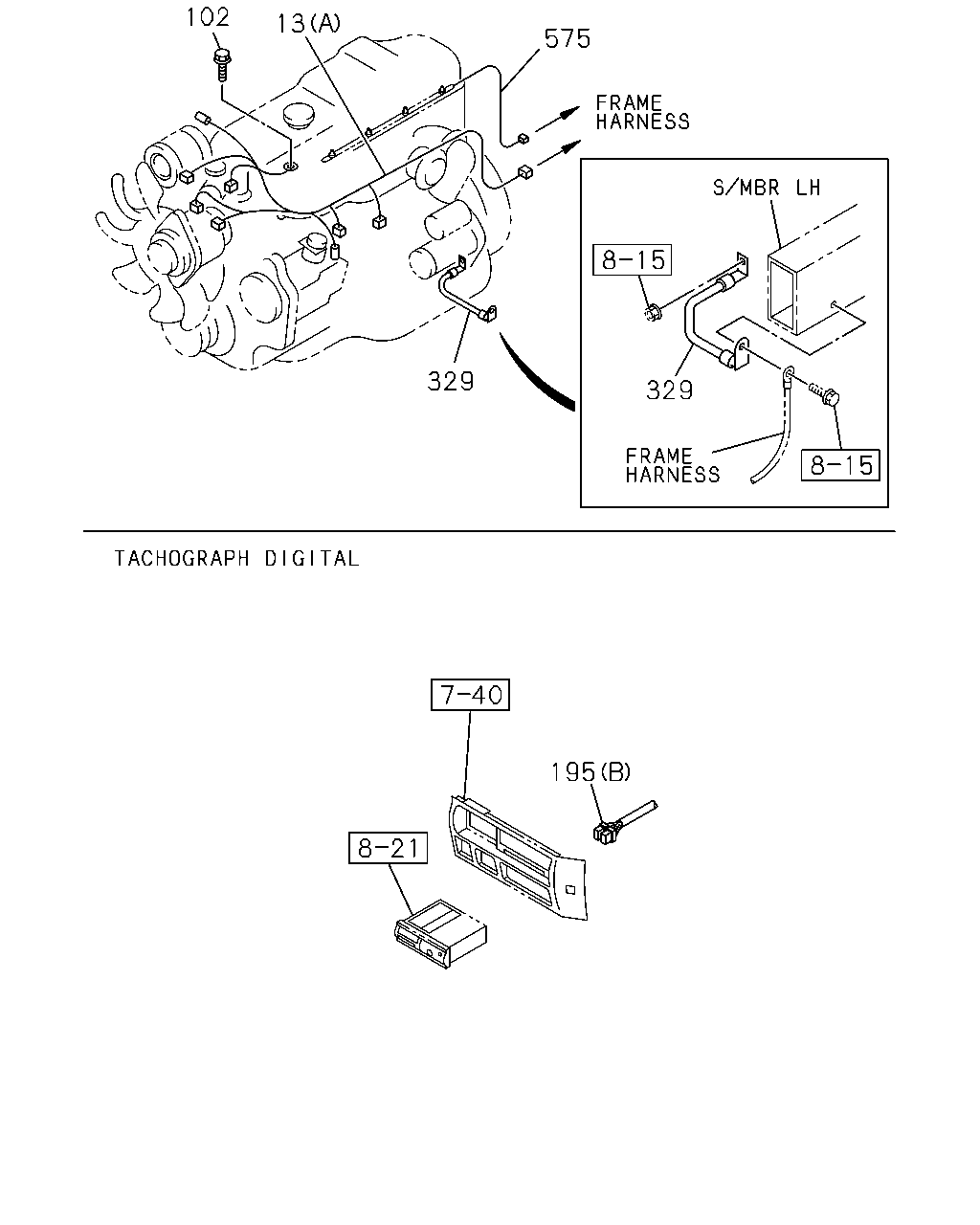

çizim 53037
102 13 575 329 329 195
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) HEATER & DEFROSTER(C41) (A) 		8-97356-989-0 01 1 0302-0506 ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97332-133-2 01 1 0507-0606 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCC ENG(RDV) (B) 		8-97332-133-3 01 1 0607- ● ● ● ●
13 02.525 HARNESS; ENG
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) GENERATOR 12V80A(K97) (A) 		8-97261-132-5 01 1 0302-0506 ● ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) GENERATOR 12V80A(K97) (A) 		8-97261-132-5 01 1 0507-0606 ● ● ●
13 02.525 HARNESS; ENG
4JJ1 ENG(LFB) (A) 		8-97388-801-7 01 1 0607-0703 ● ● ● ●
13 02.525 HARNESS; ENG
4JJ1 ENG(LFB) (A) 		8-98083-033-3 01 1 0704-1006 ● ● ● ●
13 02.525 HARNESS; ENG
4JJ1 ENG(LFB) (A) 		8-98147-727-0 01 1 1007- ● ● ● ●
13 02.525 HARNESS; ENG
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) EXC. GENERATOR 12V80A(K97) (A) 		8-97240-032-6 01 1 0302-0506 ● ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) EXC. GENERATOR 12V80A(K97) (A) 		8-97240-032-6 01 1 0507-0606 ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98020-041-0 01 1 0507-0509 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98023-708-0 01 1 0510-0606 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCC ENG(RDV) (A) 		8-97386-194-6 01 1 0607- ● ● ● ●
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCC ENG(RDV) 02.042 M10X25 FLANGE 		0-28151-025-0 01 1 0607- ● ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) (A) 		8-97306-681-0 01 1 0302-0506 ● ● ● ● ● ● ●
195 01.150 HARNESS; EXT
TACHOGRAPH DIGITAL<EBB> (B) 		8-98034-981-0 01 1 0601-0606 ● ● ● ● ● ●
195 01.150 HARNESS; EXT
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98034-981-0 01 1 0607- ● ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97182-112-0 01 1 0302-0506 ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HE1 ENG(RLY) 		8-97182-112-0 01 1 0302-0506 ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97182-112-0 01 1 0507-0606 ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97182-112-0 01 1 0507-0606 ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97182-112-0 01 1 0507-0606 ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98043-363-0 01 1 0607- ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98043-363-0 01 1 0607- ● ●
329 02.480 CABLE; ENG TO FRAME
4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-249-1 01 1 0302-0506 ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-595-0 01 1 0507-0606 ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-595-0 01 1 0507-0606 ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-595-0 01 1 0507-0606 ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-595-0 01 1 0607- ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-595-0 01 1 0607- ● ●
329 02.480 CABLE; ENG TO FRAME
4JH1 ENG(RJX) 		8-97261-191-0 01 1 0302-0506 ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JH1-TC ENG(RDM) 		8-97261-191-0 01 1 0507-0606 ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JJ1 ENG(LFB) 		8-98028-588-0 01 1 0607- ● ● ● ●
575 02.525 HARNESS; GLOW PLUG
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 		8-97212-328-0 01 1 0302-0506 ● ● ●
575 02.525 HARNESS; GLOW PLUG
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 		8-97212-328-0 01 1 0507-0606 ● ● ●

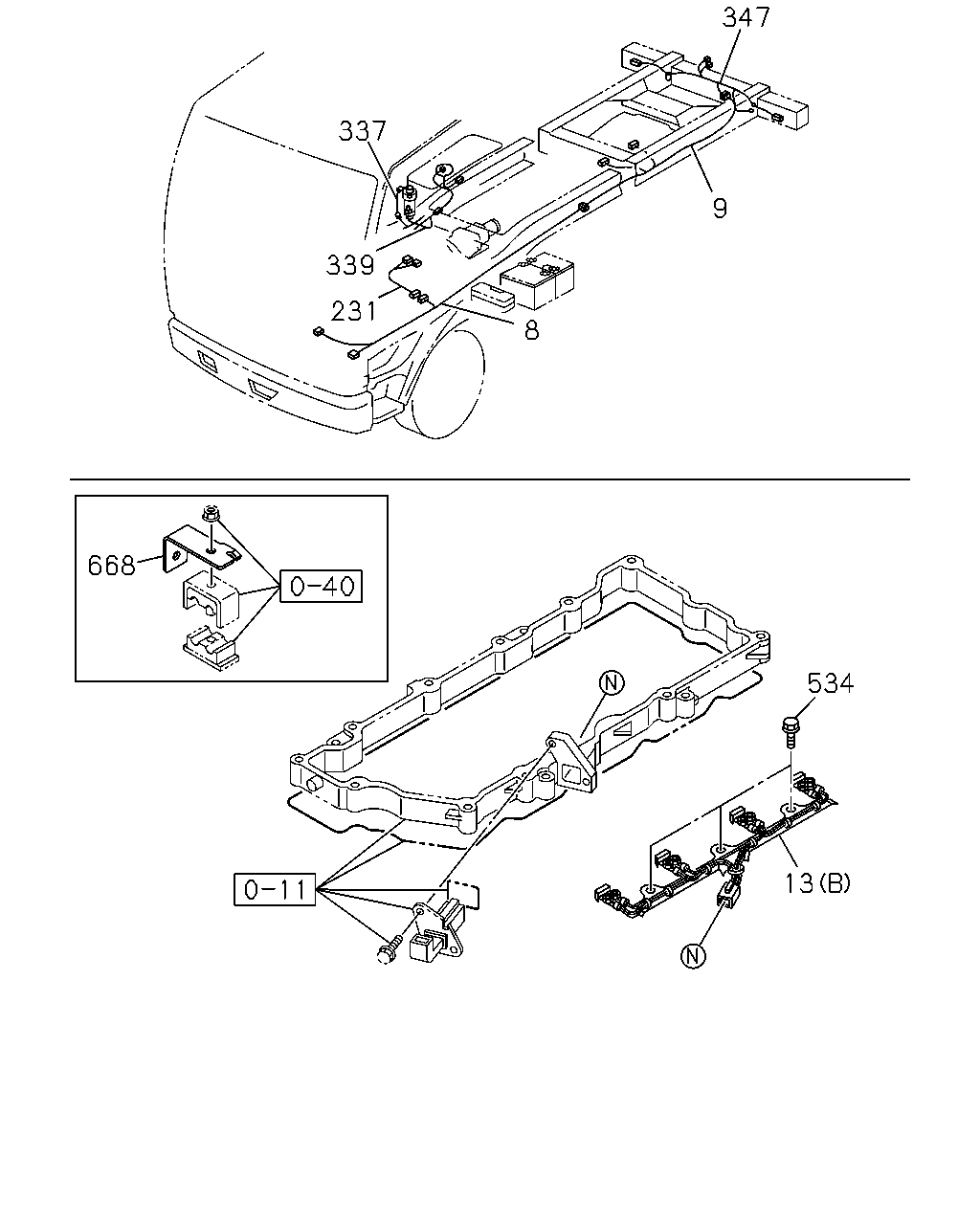

çizim 53067
347 337 9 339 231 8 668 534 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) 		8-97359-691-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97359-691-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-912-3 01 1 0507-0606 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-408-3 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-408-3 01 1 0607- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) 		8-97359-675-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. SPEED LIMITER 90KM<NMJ>, GENERATOR 24V80A(7YN) 		8-97359-675-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> GENERATOR 24V80A(7YN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-911-3 01 1 0507-0606 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> GENERATOR 24V80A(7YN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-407-3 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-407-3 01 1 0607- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> EXC. GENERATOR 24V80A(7YN) 		8-97377-861-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-660-3 01 1 0302-0506 ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-026-2 01 1 0507-0606 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-384-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98019-384-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98019-384-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98019-380-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98019-380-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-379-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-379-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-658-3 01 1 0302-0506 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-025-1 01 1 0507-0606 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-383-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-383-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-383-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97359-692-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ>, VEHICLECATEGORY NQR<7NQ> 		8-97359-692-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> GENERATOR 24V80A(7YN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-913-3 01 1 0507-0606 ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-122-4 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> EXC. VEHICLE CATEGORY NQR<7NQ>, GENERATOR 24V80A(7YN) 		8-97377-862-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> VEHICLE CATEGORY NQR<7NQ> EXC. GENERATOR 24V80A(7YN) 		8-97377-870-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> EXC. GENERATOR 24V80A(7YN) 		8-97359-686-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> EXC. SPEED LIMITER 90KM<NMJ>, GENERATOR 24V80A(7YN) 		8-97359-686-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-914-3 01 1 0507-0606 ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-123-4 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> GENERATOR 24V80A(7YN) 		8-97359-695-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97359-695-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. GENERATOR 24V80A(7YN), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-907-3 01 1 0507-0606 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. GENERATOR 24V80A(7YN), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-403-3 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) EXC. GENERATOR 24V80A(7YN), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-403-3 01 1 0607- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. VEHICLE CATEGORY NQR<7NQ>, GENERATOR 24V80A(7YN) 		8-97359-676-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. SPEED LIMITER 90KM<NMJ>, VEHICLECATEGORY NQR<7NQ>,GENERATOR 24V80A(7YN) 		8-97359-676-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GENERATOR 24V80A(7YN) 		8-98010-910-3 01 1 0507-0606 ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GENERATOR 24V80A(7YN) 		8-98019-406-4 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-661-3 01 1 0302-0506 ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GENERATOR 24V80A(7YN) 		8-98010-908-3 01 1 0507-0606 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GENERATOR 24V80A(7YN) 		8-98019-404-3 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GENERATOR 24V80A(7YN) 		8-98019-404-3 01 1 0607- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97359-693-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ>, VEHICLECATEGORY NQR<7NQ> 		8-97359-693-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> EXC. VEHICLE CATEGORY NQR<7NQ>, GENERATOR 24V80A(7YN) 		8-97377-863-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> VEHICLE CATEGORY NQR<7NQ> EXC. GENERATOR 24V80A(7YN) 		8-97377-871-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> EXC. GENERATOR 24V80A(7YN) 		8-97359-687-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> EXC. SPEED LIMITER 90KM<NMJ>, GENERATOR 24V80A(7YN) 		8-97359-687-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> GENERATOR 24V80A(7YN) 		8-97359-696-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97359-696-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. GENERATOR 24V80A(7YN), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-909-3 01 1 0507-0606 ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) EXC. GENERATOR 24V80A(7YN), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-405-4 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. VEHICLE CATEGORY NQR<7NQ>, GENERATOR 24V80A(7YN) 		8-97359-677-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. SPEED LIMITER 90KM<NMJ>, VEHICLECATEGORY NQR<7NQ>,GENERATOR 24V80A(7YN) 		8-97359-677-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) 		8-97359-697-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97359-697-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) 		8-97359-688-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. SPEED LIMITER 90KM<NMJ>, GENERATOR 24V80A(7YN) 		8-97359-688-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> EXC. GENERATOR 24V80A(7YN) 		8-97377-872-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) 		8-97359-698-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97359-698-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) 		8-97359-689-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. SPEED LIMITER 90KM<NMJ>, GENERATOR 24V80A(7YN) 		8-97359-689-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> EXC. GENERATOR 24V80A(7YN) 		8-97377-873-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) 		8-97359-694-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97359-694-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) 		8-97359-678-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. SPEED LIMITER 90KM<NMJ>, GENERATOR 24V80A(7YN) 		8-97359-678-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> EXC. GENERATOR 24V80A(7YN) 		8-97377-864-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98019-382-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-386-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-385-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-381-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) 		8-97359-699-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97359-699-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) 		8-97359-690-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. SPEED LIMITER 90KM<NMJ>, GENERATOR 24V80A(7YN) 		8-97359-690-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> EXC. GENERATOR 24V80A(7YN) 		8-97377-874-1 01 1 0408-0506 ●
9 02.480 HARNESS; FRAME,RR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-063-1 01 1 0507-0606 ●
9 02.480 HARNESS; FRAME,RR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98019-412-0 01 1 0607- ●
9 02.480 HARNESS; FRAME,RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-060-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-066-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98000-800-1 01 1 0507-0606 ●
9 02.480 HARNESS; FRAME,RR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98019-414-0 01 1 0607- ●
9 02.480 HARNESS; FRAME,RR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-064-1 01 1 0507-0606 ● ●
9 02.480 HARNESS; FRAME,RR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98019-413-0 01 1 0607- ●
9 02.480 HARNESS; FRAME,RR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98019-413-0 01 1 0607- ●
9 02.480 HARNESS; FRAME,RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97377-061-1 01 1 0507-0606 ● ●
9 02.480 HARNESS; FRAME,RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97377-061-1 01 1 0607- ●
9 02.480 HARNESS; FRAME,RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-061-1 01 1 0607- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98000-801-1 01 1 0507-0606 ●
9 02.480 HARNESS; FRAME,RR
FRAME STRAIGHT TYPE<7KJ> 		8-98000-801-1 01 1 0607- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98000-803-1 01 1 0507-0606 ●
9 02.480 HARNESS; FRAME,RR 8-98000-803-1 01 1 0607- ● ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98000-804-2 01 1 0507-0606 ●
9 02.480 HARNESS; FRAME,RR
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98000-783-1 01 1 0507-0606 ●
9 02.480 HARNESS; FRAME,RR
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98000-800-1 01 1 0607- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98000-805-2 01 1 0507-0606 ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) HEATER & DEFROSTER(C41) (A) 		8-97356-989-0 01 1 0302-0506 ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97332-133-2 01 1 0507-0606 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCC ENG(RDV) (B) 		8-97332-133-3 01 1 0607- ● ● ● ●
13 02.525 HARNESS; ENG
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) GENERATOR 12V80A(K97) (A) 		8-97261-132-5 01 1 0302-0506 ● ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) GENERATOR 12V80A(K97) (A) 		8-97261-132-5 01 1 0507-0606 ● ● ●
13 02.525 HARNESS; ENG
4JJ1 ENG(LFB) (A) 		8-97388-801-7 01 1 0607-0703 ● ● ● ●
13 02.525 HARNESS; ENG
4JJ1 ENG(LFB) (A) 		8-98083-033-3 01 1 0704-1006 ● ● ● ●
13 02.525 HARNESS; ENG
4JJ1 ENG(LFB) (A) 		8-98147-727-0 01 1 1007- ● ● ● ●
13 02.525 HARNESS; ENG
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) EXC. GENERATOR 12V80A(K97) (A) 		8-97240-032-6 01 1 0302-0506 ● ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) EXC. GENERATOR 12V80A(K97) (A) 		8-97240-032-6 01 1 0507-0606 ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98020-041-0 01 1 0507-0509 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98023-708-0 01 1 0510-0606 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCC ENG(RDV) (A) 		8-97386-194-6 01 1 0607- ● ● ● ●
231 02.480 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-511-2 01 1 0507-0606 ● ● ● ● ●
231 02.480 HARNESS; TRANS
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-511-2 01 1 0607- ● ● ● ●
231 02.480 HARNESS; TRANS
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98043-226-1 01 1 0607- ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97261-149-0 01 1 0302-0506 ● ● ●
337 02.530 HARNESS; EXT,HTR
4JH1-TC ENG(RDM) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97261-149-0 01 1 0507-0606 ● ● ●
339 02.530 HARNESS; EXT,FUEL
4JH1 ENG(RJX) 02.480 		8-94318-759-0 02 1 0302-0506 ●
339 02.530 HARNESS; EXT,FUEL
4JH1-TC ENG(RDM) 02.480 		8-94318-759-0 02 1 0507-0606 ●
347 02.480 HARNESS; CABLE,RR BODY
DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-658-0 01 1 0302-0302 ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
DOOR MIRROR WIDE ANGLE<7QF> 		8-97364-154-0 01 1 0303-0506 ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
DOOR MIRROR WIDE ANGLE<7QF> 		8-97364-154-0 01 1 0507- ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 0302-0302 ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97364-153-0 01 1 0303-0506 ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97364-153-0 01 1 0507- ● ● ● ● ● ●
534 02.483 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.683 M10X55 FLANGE 		8-94399-863-1 03 1 0507-0606 ● ● ● ● ●
534 02.483 BOLT
4HK1-TCC ENG(RDV) 00.683 M10X55 FLANGE 		8-94399-863-1 03 1 0607-0805 ● ● ● ●
534 02.483 BOLT
4HK1-TCC ENG(RDV) 00.683 M10X55 FLANGE 		8-97365-449-0 03 1 0806- ● ● ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCC ENG(RDV) 		8-98001-095-0 01 1 0702- ● ● ● ●

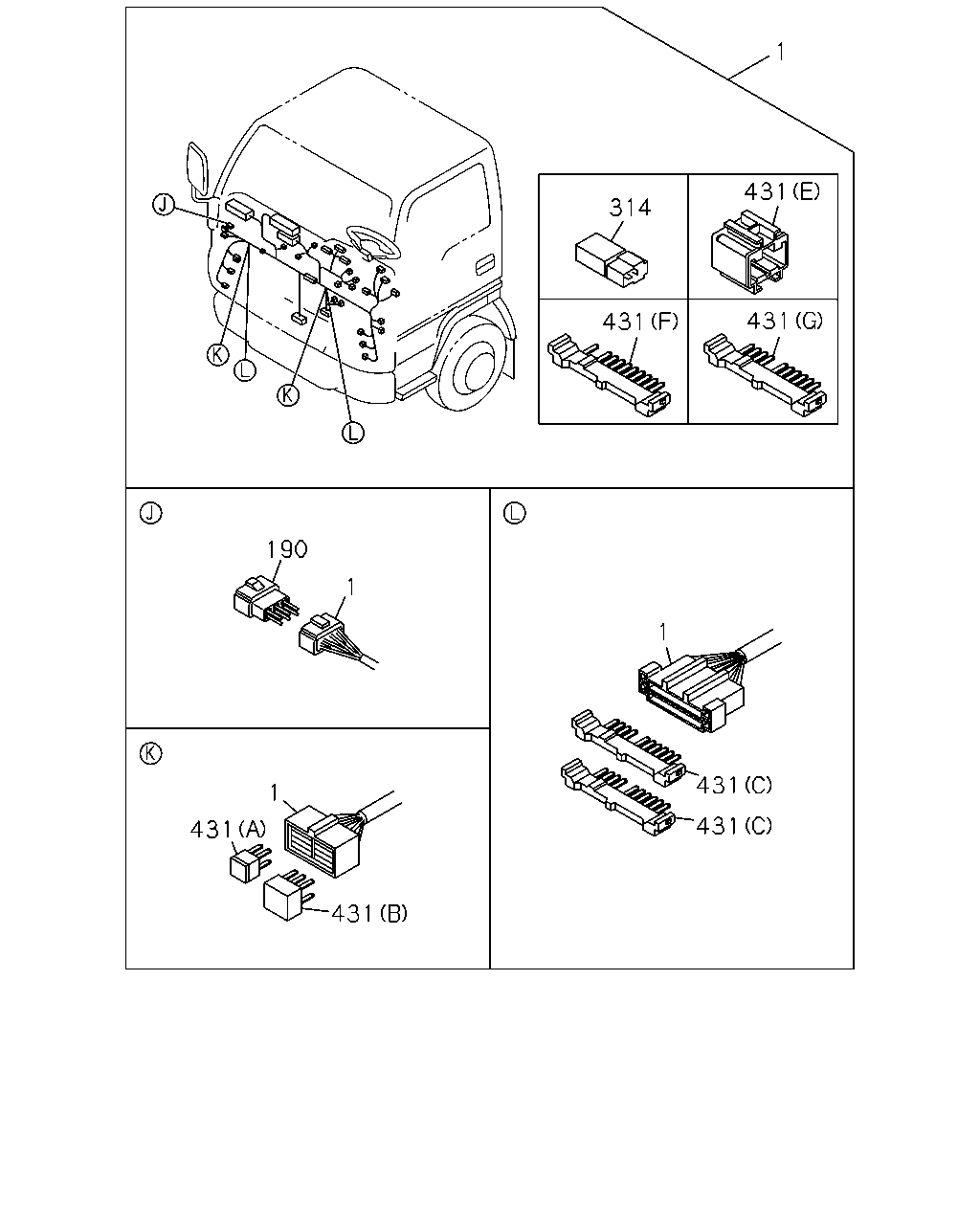

çizim 53218
1 431 314 431 431 190 1 1 431 1 431 431 431
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 		8-97377-849-1 01 1 0408-0506 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97377-849-1 01 1 0408-0506 ● ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) 		8-97331-676-2 01 1 0302-0506 ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-612-1 01 1 0507-0606 ● ● ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-360-3 01 1 0607-0610 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-360-3 01 1 0607-0610 ● ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-360-3 01 1 0607-0610 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-115-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-115-0 01 1 0611- ● ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-115-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97323-316-2 01 1 0302-0310 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97374-125-1 01 1 0311-0407 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> 		8-97374-125-1 01 1 0408-0506 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ>, VEHICLECATEGORY NQR<7NQ> 		8-97374-125-1 01 1 0408-0506 ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-98017-023-2 01 1 0507-0512 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-98017-023-2 01 1 0507-0512 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-98035-287-0 01 1 0601-0606 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-98035-287-0 01 1 0601-0606 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> VEHICLE CATEGORY NQR<7NQ> 		8-97377-851-1 01 1 0408-0506 ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 		8-97377-851-1 01 1 0408-0506 ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) VEHICLE CATEGORY NQR<7NQ> 		8-97323-317-2 01 1 0302-0310 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) VEHICLE CATEGORY NQR<7NQ> 		8-97374-127-1 01 1 0311-0407 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) VEHICLE CATEGORY NQR<7NQ> EXC. SPEED LIMITER 90KM<NMJ> 		8-97374-127-1 01 1 0408-0506 ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> 		8-97374-127-1 01 1 0408-0506 ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-611-1 01 1 0507-0606 ● ● ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-359-3 01 1 0607-0609 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-359-3 01 1 0607-0609 ● ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-359-3 01 1 0607-0609 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98059-512-0 01 1 0610-0610 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98059-512-0 01 1 0610-0610 ● ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98059-512-0 01 1 0610-0610 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-114-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-114-0 01 1 0611- ● ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-114-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 		8-97310-066-3 01 1 0302-0310 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 		8-97374-126-1 01 1 0311-0407 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> 		8-97374-126-1 01 1 0408-0506 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-98017-024-2 01 1 0507-0512 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-98035-288-0 01 1 0601-0606 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 		8-97377-850-1 01 1 0408-0506 ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) 		8-97331-677-2 01 1 0302-0506 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-614-1 01 1 0507-0606 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-614-1 01 1 0507-0606 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-119-3 01 1 0607-0610 ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-119-3 01 1 0607-0610 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-117-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-117-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 		8-97310-068-3 01 1 0302-0310 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 		8-97374-128-1 01 1 0311-0407 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> 		8-97374-128-1 01 1 0408-0506 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-613-1 01 1 0507-0606 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-613-1 01 1 0507-0606 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-361-3 01 1 0607-0610 ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-361-3 01 1 0607-0610 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-116-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-116-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 		8-97377-852-1 01 1 0408-0506 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JH1-TC ENG(RDM) 		5-82690-411-0 01 1 0507-0606 ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JH1-TC ENG(RDM) EXC. HYDRO BRAKE BOOSTER<7QQ> 		5-82690-411-0 01 1 0507-0606 ●
314 02.510 RESISTOR; HARNESS
BLUE 		1-82691-204-0 02 1 0607- ● ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
(E) 3P & 3P 		1-82698-170-0 03 1 0607- ● ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
(G) 10P BLUE 		1-82699-598-0 01 1 0607- ● ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
(F) 10P BROWN 		1-82699-601-0 01 1 0607- ● ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 6P 		8-97381-428-0 01 1 0606-0606 ● ● ●
431 02.530 CONNECTOR; JOINT
4JJ1 ENG(LFB) (D) 6P 		8-97381-428-0 02 1 0607- ● ●
431 02.530 CONNECTOR; JOINT
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 6P 		8-97381-428-0 02 1 0607- ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (C) 10P GREEN 		1-82699-599-0 04 1 0507-0606 ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) 10P GREEN 		1-82699-599-0 04 1 0507-0606 ●
431 02.530 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 02 1 0607- ● ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (A) 4P 		8-97077-939-0 02 1 0507-0606 ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 4P 		8-97077-939-0 02 1 0507-0606 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 0607- ● ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (B) 6P 		8-97077-941-0 02 1 0507-0606 ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 6P 		8-97077-941-0 02 1 0507-0606 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 0607- ● ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 6P 		8-97381-428-0 01 1 0607- ●
431 02.530 CONNECTOR; JOINT
4HK1-TCC ENG(RDV) (D) 6P 		8-97381-428-0 01 1 0607- ● ● ●

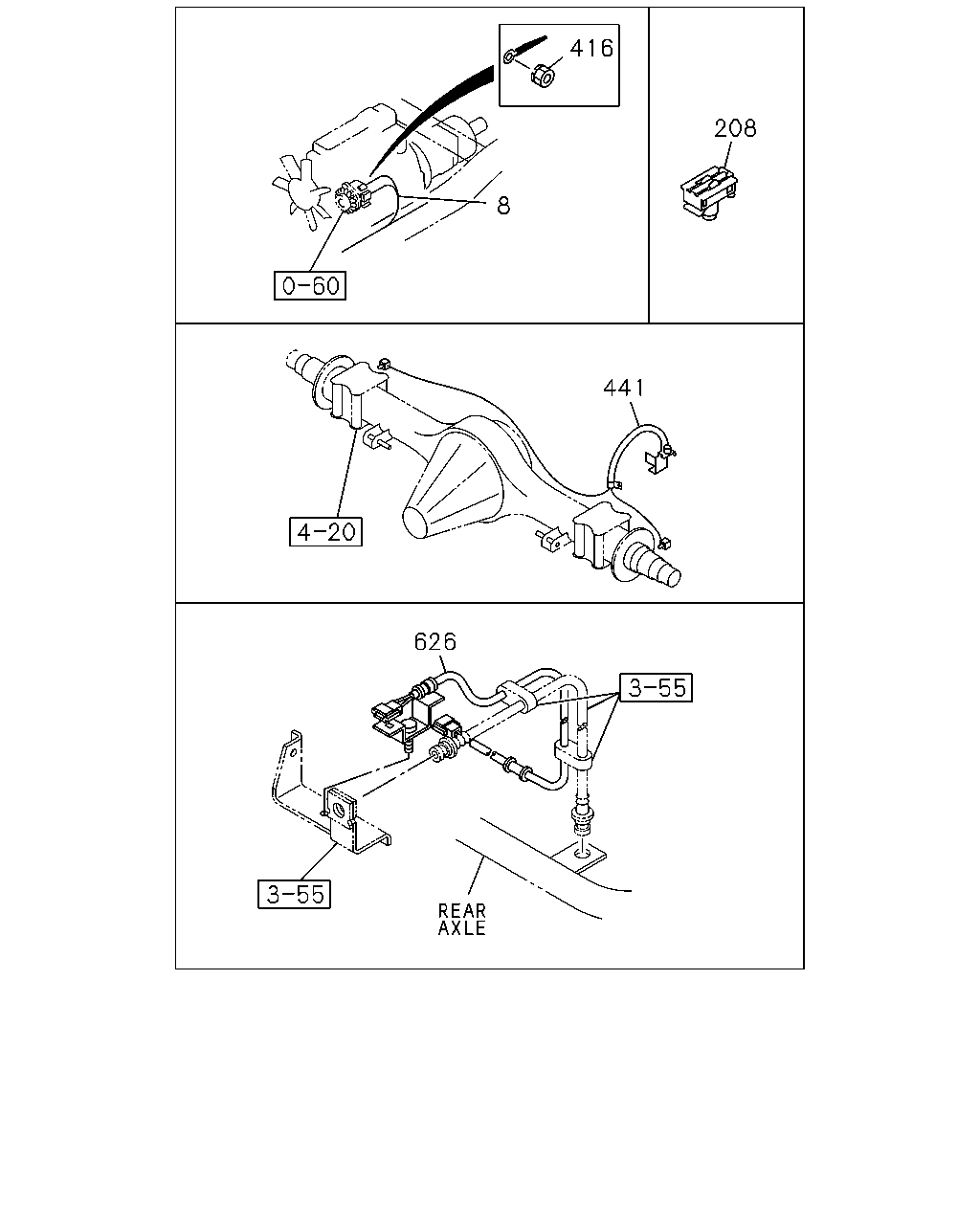

çizim 54002
416 208 8 441 626
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) 		8-97359-691-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97359-691-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-912-3 01 1 0507-0606 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-408-3 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-408-3 01 1 0607- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) 		8-97359-675-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. SPEED LIMITER 90KM<NMJ>, GENERATOR 24V80A(7YN) 		8-97359-675-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> GENERATOR 24V80A(7YN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-911-3 01 1 0507-0606 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> GENERATOR 24V80A(7YN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-407-3 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-407-3 01 1 0607- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> EXC. GENERATOR 24V80A(7YN) 		8-97377-861-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-660-3 01 1 0302-0506 ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-026-2 01 1 0507-0606 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-384-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98019-384-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98019-384-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98019-380-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98019-380-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-379-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-379-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-658-3 01 1 0302-0506 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-025-1 01 1 0507-0606 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-383-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-383-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-383-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97359-692-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ>, VEHICLECATEGORY NQR<7NQ> 		8-97359-692-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> GENERATOR 24V80A(7YN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-913-3 01 1 0507-0606 ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-122-4 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> EXC. VEHICLE CATEGORY NQR<7NQ>, GENERATOR 24V80A(7YN) 		8-97377-862-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> VEHICLE CATEGORY NQR<7NQ> EXC. GENERATOR 24V80A(7YN) 		8-97377-870-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> EXC. GENERATOR 24V80A(7YN) 		8-97359-686-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> EXC. SPEED LIMITER 90KM<NMJ>, GENERATOR 24V80A(7YN) 		8-97359-686-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-914-3 01 1 0507-0606 ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-123-4 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> GENERATOR 24V80A(7YN) 		8-97359-695-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97359-695-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. GENERATOR 24V80A(7YN), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-907-3 01 1 0507-0606 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. GENERATOR 24V80A(7YN), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-403-3 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) EXC. GENERATOR 24V80A(7YN), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-403-3 01 1 0607- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. VEHICLE CATEGORY NQR<7NQ>, GENERATOR 24V80A(7YN) 		8-97359-676-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. SPEED LIMITER 90KM<NMJ>, VEHICLECATEGORY NQR<7NQ>,GENERATOR 24V80A(7YN) 		8-97359-676-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GENERATOR 24V80A(7YN) 		8-98010-910-3 01 1 0507-0606 ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GENERATOR 24V80A(7YN) 		8-98019-406-4 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-661-3 01 1 0302-0506 ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GENERATOR 24V80A(7YN) 		8-98010-908-3 01 1 0507-0606 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GENERATOR 24V80A(7YN) 		8-98019-404-3 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GENERATOR 24V80A(7YN) 		8-98019-404-3 01 1 0607- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97359-693-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ>, VEHICLECATEGORY NQR<7NQ> 		8-97359-693-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> EXC. VEHICLE CATEGORY NQR<7NQ>, GENERATOR 24V80A(7YN) 		8-97377-863-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> VEHICLE CATEGORY NQR<7NQ> EXC. GENERATOR 24V80A(7YN) 		8-97377-871-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> EXC. GENERATOR 24V80A(7YN) 		8-97359-687-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> EXC. SPEED LIMITER 90KM<NMJ>, GENERATOR 24V80A(7YN) 		8-97359-687-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> GENERATOR 24V80A(7YN) 		8-97359-696-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97359-696-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. GENERATOR 24V80A(7YN), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-909-3 01 1 0507-0606 ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) EXC. GENERATOR 24V80A(7YN), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-405-4 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. VEHICLE CATEGORY NQR<7NQ>, GENERATOR 24V80A(7YN) 		8-97359-677-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. SPEED LIMITER 90KM<NMJ>, VEHICLECATEGORY NQR<7NQ>,GENERATOR 24V80A(7YN) 		8-97359-677-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) 		8-97359-697-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97359-697-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) 		8-97359-688-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. SPEED LIMITER 90KM<NMJ>, GENERATOR 24V80A(7YN) 		8-97359-688-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> EXC. GENERATOR 24V80A(7YN) 		8-97377-872-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) 		8-97359-698-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97359-698-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) 		8-97359-689-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. SPEED LIMITER 90KM<NMJ>, GENERATOR 24V80A(7YN) 		8-97359-689-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> EXC. GENERATOR 24V80A(7YN) 		8-97377-873-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) 		8-97359-694-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97359-694-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) 		8-97359-678-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. SPEED LIMITER 90KM<NMJ>, GENERATOR 24V80A(7YN) 		8-97359-678-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> EXC. GENERATOR 24V80A(7YN) 		8-97377-864-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98019-382-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-386-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-385-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-381-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) 		8-97359-699-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97359-699-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) 		8-97359-690-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. SPEED LIMITER 90KM<NMJ>, GENERATOR 24V80A(7YN) 		8-97359-690-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> EXC. GENERATOR 24V80A(7YN) 		8-97377-874-1 01 1 0408-0506 ●
208 02.483 HOLDER; CONNECTOR
4HE1 ENG(RLY) HEATER & DEFROSTER(C41) 		8-94459-973-1 01 1 0302-0506 ● ● ● ● ● ● ●
416 02.559 NUT; TERMINAL
4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0302-0506 ● ● ●
416 02.559 NUT; TERMINAL
4HE1 ENG(RLY) VOLTAGE 24V<7AE> GENERATOR 24V80A(7YN) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0302-0506 ● ● ●
416 02.559 NUT; TERMINAL
4HE1 ENG(RLY) GENERATOR 24V80A(7YN) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0302-0506 ● ● ● ●
416 02.559 NUT; TERMINAL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0507-0606 ● ● ● ● ●
416 02.559 NUT; TERMINAL
4HK1-TCC ENG(RDV) 04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0607- ● ● ● ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97308-225-4 01 1 0302-0506 ● ● ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97308-225-4 01 1 0507-0606 ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97308-225-4 01 1 0507-0606 ● ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97308-225-4 01 1 0607- ● ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97308-225-4 01 1 0607- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97308-225-4 01 1 0607- ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97253-968-1 01 1 0302-0506 ● ● ●
626 02.480 HARNESS; FLEX HOSE 8-97253-968-1 01 1 0302-0506 ● ● ● ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97253-968-1 01 1 0507-0606 ● ●
626 02.480 HARNESS; FLEX HOSE 8-97253-968-1 01 1 0507-0606 ● ● ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97253-968-1 01 1 0607- ●
626 02.480 HARNESS; FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> 		8-97253-968-1 01 1 0607- ●
626 02.480 HARNESS; FLEX HOSE 8-97253-968-1 01 1 0607- ● ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97253-969-1 01 1 0302-0506 ● ● ●
626 02.480 HARNESS; FLEX HOSE 8-97253-969-1 01 1 0302-0506 ● ● ● ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97253-969-1 01 1 0507-0606 ● ●
626 02.480 HARNESS; FLEX HOSE 8-97253-969-1 01 1 0507-0606 ● ● ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97253-969-1 01 1 0607- ●
626 02.480 HARNESS; FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> 		8-97253-969-1 01 1 0607- ●
626 02.480 HARNESS; FLEX HOSE 8-97253-969-1 01 1 0607- ● ●
çizim 55085
18 18 204 18 434 18 204 87 128 62 85 85 195
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> FRONT DOOR 		8-97226-669-0 01 1 1011- ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1011- ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0302-0506 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0507- ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0302-0506 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0507-1009 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-820-0 01 1 1010-1010 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-820-0 01 1 1011- ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0302-0506 ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0507- ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0302-0506 ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0507-1009 ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1011- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 0302- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-760-3 01 1 0302- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-761-2 01 1 0302- ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-758-2 01 1 0302- ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-759-2 01 1 0302- ● ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 01 1 0302- ● ●
85 06.495 HARNESS; ROOM LAMP 8-97307-518-0 01 1 0302-0302 ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-161-0 01 1 0303-0506 ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-161-0 01 1 0507- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97312-297-0 01 1 0302-0302 ● ●
85 06.495 HARNESS; ROOM LAMP
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97364-163-0 01 1 0303- ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 		8-97309-727-0 01 1 0302-0302 ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 		8-97364-162-0 01 1 0303- ● ●
87 02.480 HARNESS; EXT,ROOM LAMP
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 		8-97075-747-0 01 1 0302- ● ●
128 02.480 HARNESS; BODY,RR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97300-349-0 01 1 0302-0302 ● ●
128 02.480 HARNESS; BODY,RR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97364-164-0 01 1 0303- ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) (A) 		8-97306-681-0 01 1 0302-0506 ● ● ● ● ● ● ●
195 01.150 HARNESS; EXT
TACHOGRAPH DIGITAL<EBB> (B) 		8-98034-981-0 01 1 0601-0606 ● ● ● ● ● ●
195 01.150 HARNESS; EXT
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98034-981-0 01 1 0607- ● ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0302-0302 ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 0303-0506 ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MYY5T(RSM) 		8-97364-140-0 01 1 0507-0606 ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-140-0 01 1 0507-0606 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-140-0 01 1 0607- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97162-631-2 01 1 0302-0302 ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97364-145-0 01 1 0303-0506 ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-145-0 01 1 0507-0606 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-145-0 01 1 0507-0606 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-145-0 01 1 0607- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-145-0 01 1 0607- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-874-2 01 1 0507-0606 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-874-2 01 1 0607- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-626-4 01 1 0302-0302 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-143-0 01 1 0303-0506 ● ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-143-0 01 1 0507-0606 ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-143-0 01 1 0507-0606 ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MYY5T(RSM),M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-143-0 01 1 0607- ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-143-0 01 1 0607- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 0302-0302 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-146-0 01 1 0303- ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-875-2 01 1 0507- ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97388-449-0 01 1 0507-0606 ● ● ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> 		8-97388-449-0 01 1 0607- ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCC ENG(RDV) 		8-97388-449-0 01 1 0607- ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97388-448-0 01 1 0507-0606 ● ● ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ) 		8-97388-448-0 01 1 0507-0606 ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4JJ1 ENG(LFB) 		8-97388-448-0 01 1 0607- ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97388-448-0 01 1 0607- ● ●
çizim 55086
8 453 431 184 94 174 174 27 35 453 453 174 94 184 174 27 453 453 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) 		8-97359-691-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97359-691-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-912-3 01 1 0507-0606 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-408-3 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-408-3 01 1 0607- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) 		8-97359-675-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. SPEED LIMITER 90KM<NMJ>, GENERATOR 24V80A(7YN) 		8-97359-675-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> GENERATOR 24V80A(7YN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-911-3 01 1 0507-0606 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> GENERATOR 24V80A(7YN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-407-3 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-407-3 01 1 0607- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> EXC. GENERATOR 24V80A(7YN) 		8-97377-861-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-660-3 01 1 0302-0506 ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-026-2 01 1 0507-0606 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-384-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98019-384-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98019-384-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98019-380-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98019-380-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-379-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-379-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-658-3 01 1 0302-0506 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-025-1 01 1 0507-0606 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-383-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-383-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-383-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97359-692-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ>, VEHICLECATEGORY NQR<7NQ> 		8-97359-692-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> GENERATOR 24V80A(7YN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-913-3 01 1 0507-0606 ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-122-4 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> EXC. VEHICLE CATEGORY NQR<7NQ>, GENERATOR 24V80A(7YN) 		8-97377-862-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> VEHICLE CATEGORY NQR<7NQ> EXC. GENERATOR 24V80A(7YN) 		8-97377-870-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> EXC. GENERATOR 24V80A(7YN) 		8-97359-686-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> EXC. SPEED LIMITER 90KM<NMJ>, GENERATOR 24V80A(7YN) 		8-97359-686-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-914-3 01 1 0507-0606 ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-123-4 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> GENERATOR 24V80A(7YN) 		8-97359-695-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97359-695-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. GENERATOR 24V80A(7YN), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-907-3 01 1 0507-0606 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. GENERATOR 24V80A(7YN), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-403-3 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) EXC. GENERATOR 24V80A(7YN), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-403-3 01 1 0607- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. VEHICLE CATEGORY NQR<7NQ>, GENERATOR 24V80A(7YN) 		8-97359-676-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. SPEED LIMITER 90KM<NMJ>, VEHICLECATEGORY NQR<7NQ>,GENERATOR 24V80A(7YN) 		8-97359-676-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GENERATOR 24V80A(7YN) 		8-98010-910-3 01 1 0507-0606 ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GENERATOR 24V80A(7YN) 		8-98019-406-4 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-661-3 01 1 0302-0506 ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GENERATOR 24V80A(7YN) 		8-98010-908-3 01 1 0507-0606 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GENERATOR 24V80A(7YN) 		8-98019-404-3 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GENERATOR 24V80A(7YN) 		8-98019-404-3 01 1 0607- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97359-693-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ>, VEHICLECATEGORY NQR<7NQ> 		8-97359-693-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> EXC. VEHICLE CATEGORY NQR<7NQ>, GENERATOR 24V80A(7YN) 		8-97377-863-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> VEHICLE CATEGORY NQR<7NQ> EXC. GENERATOR 24V80A(7YN) 		8-97377-871-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> EXC. GENERATOR 24V80A(7YN) 		8-97359-687-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> EXC. SPEED LIMITER 90KM<NMJ>, GENERATOR 24V80A(7YN) 		8-97359-687-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> GENERATOR 24V80A(7YN) 		8-97359-696-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97359-696-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. GENERATOR 24V80A(7YN), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-909-3 01 1 0507-0606 ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCC ENG(RDV) EXC. GENERATOR 24V80A(7YN), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-405-4 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. VEHICLE CATEGORY NQR<7NQ>, GENERATOR 24V80A(7YN) 		8-97359-677-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. SPEED LIMITER 90KM<NMJ>, VEHICLECATEGORY NQR<7NQ>,GENERATOR 24V80A(7YN) 		8-97359-677-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) 		8-97359-697-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97359-697-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) 		8-97359-688-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. SPEED LIMITER 90KM<NMJ>, GENERATOR 24V80A(7YN) 		8-97359-688-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> EXC. GENERATOR 24V80A(7YN) 		8-97377-872-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) 		8-97359-698-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97359-698-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) 		8-97359-689-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. SPEED LIMITER 90KM<NMJ>, GENERATOR 24V80A(7YN) 		8-97359-689-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> EXC. GENERATOR 24V80A(7YN) 		8-97377-873-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) 		8-97359-694-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97359-694-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) 		8-97359-678-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. SPEED LIMITER 90KM<NMJ>, GENERATOR 24V80A(7YN) 		8-97359-678-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> EXC. GENERATOR 24V80A(7YN) 		8-97377-864-1 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98019-382-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-386-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-385-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-381-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) 		8-97359-699-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97359-699-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) 		8-97359-690-2 01 1 0302-0407 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. SPEED LIMITER 90KM<NMJ>, GENERATOR 24V80A(7YN) 		8-97359-690-2 01 1 0408-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) SPEED LIMITER 90KM<NMJ> EXC. GENERATOR 24V80A(7YN) 		8-97377-874-1 01 1 0408-0506 ●
27 08.965 FUSE UNIT
15A BLUE 		5-82516-003-0 AR 1 0302-0506 ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
10A MINI RED 		8-97062-022-0 AR 1 0507- ● ● ● ● ● ●
27 08.965 FUSE UNIT
15A MINI BLUE 		8-97062-023-0 AR 1 0507- ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 0302-0407 ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97063-150-1 01 1 0408-0506 ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) 		8-97063-150-1 01 1 0408-0506 ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4JH1 ENG(RJX) 		8-97063-150-1 01 1 0408-0506 ● ● ●
35 02.530 BOX; RELAY & FUSE
4JH1-TC ENG(RDM) 		8-97377-739-0 01 1 0507-0606 ● ● ●
35 02.530 BOX; RELAY & FUSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. GENERATOR 24V80A(7YN) 		8-97377-739-0 01 1 0507-0606 ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4JJ1 ENG(LFB) 		8-97377-739-0 01 1 0607-0608 ● ●
35 02.530 BOX; RELAY & FUSE
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-739-0 01 1 0607-0608 ● ●
35 02.530 BOX; RELAY & FUSE
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. GENERATOR 24V80A(7YN) 		8-97377-739-0 01 1 0607-0608 ●
35 02.530 BOX; RELAY & FUSE
4HK1-TCC ENG(RDV) EXC. GENERATOR 24V80A(7YN) 		8-97377-739-0 01 1 0607-0608 ● ● ●
35 02.530 BOX; RELAY & FUSE
4JJ1 ENG(LFB) 		8-97377-739-0 01 1 0609-0611 ● ●
35 02.530 BOX; RELAY & FUSE
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-739-0 01 1 0609-0611 ● ●
35 02.530 BOX; RELAY & FUSE
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. GENERATOR 24V80A(7YN) 		8-97377-739-0 01 1 0609-0611 ●
35 02.530 BOX; RELAY & FUSE
4HK1-TCC ENG(RDV) EXC. GENERATOR 24V80A(7YN) 		8-97377-739-0 01 1 0609-0611 ● ●
35 02.530 BOX; RELAY & FUSE
4HK1-TCC ENG(RDV) 		8-97377-739-0 01 1 0609-0611 ●
35 02.530 BOX; RELAY & FUSE
4JJ1 ENG(LFB) 		8-97377-739-0 01 1 0612- ● ●
35 02.530 BOX; RELAY & FUSE
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-739-0 01 1 0612- ● ●
35 02.530 BOX; RELAY & FUSE
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. GENERATOR 24V80A(7YN) 		8-97377-739-0 01 1 0612- ●
35 02.530 BOX; RELAY & FUSE
4HK1-TCC ENG(RDV) EXC. GENERATOR 24V80A(7YN) 		8-97377-739-0 01 1 0612- ● ● ●
35 02.530 BOX; RELAY & FUSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> GENERATOR 24V80A(7YN) 		8-97381-429-0 01 1 0507-0606 ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> GENERATOR 24V80A(7YN) 		8-97381-429-0 01 1 0607-0608 ●
35 02.530 BOX; RELAY & FUSE
4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) 		8-97381-429-0 01 1 0607-0608 ● ● ●
35 02.530 BOX; RELAY & FUSE
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> GENERATOR 24V80A(7YN) 		8-97381-429-0 01 1 0609-0611 ●
35 02.530 BOX; RELAY & FUSE
4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) 		8-97381-429-0 01 1 0609-0611 ● ●
35 02.530 BOX; RELAY & FUSE
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> GENERATOR 24V80A(7YN) 		8-97381-429-0 01 1 0612- ●
35 02.530 BOX; RELAY & FUSE
4HK1-TCC ENG(RDV) GENERATOR 24V80A(7YN) 		8-97381-429-0 01 1 0612- ● ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 4P-1.5A 		8-94381-730-0 AR 1 0302-0506 ● ● ● ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 4P-1.5A 		8-94381-730-0 AR 1 0507- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 60A YELLOW 		8-94388-303-1 AR 1 0302- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-1 AR 1 0302- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 100A BLUE 		8-94388-306-0 AR 1 0302- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-94468-662-0 AR 1 0302- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 50A RED 		8-94468-663-0 AR 1 0302- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 0302- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 120A WHITE 		1-82516-028-1 AR 1 0507- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-97183-643-0 AR 1 0507- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-97183-644-0 AR 1 0507- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 50A RED 		8-97183-645-0 AR 1 0507- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 0507- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 10A MINI RED 		8-97062-022-0 AR 1 0607- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 15A MINI BLUE 		8-97062-023-0 AR 1 0607- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1 ENG(LFB) 		8-97377-741-0 01 1 0607- ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-741-0 01 1 0607- ● ●
184 02.559 COVER; RELAY & FUSE BOX
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-741-0 01 1 0607- ●
184 02.559 COVER; RELAY & FUSE BOX
4HK1-TCC ENG(RDV) 		8-97377-741-0 01 1 0607- ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 0302-0407 ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> 		8-97063-152-1 01 1 0408-0506 ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) 		8-97063-152-1 01 1 0408-0506 ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JH1 ENG(RJX) 		8-97063-152-1 01 1 0408-0506 ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JH1-TC ENG(RDM) 		8-97377-741-0 01 1 0507-0606 ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-741-0 01 1 0507-0606 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
(E) 3P & 3P 		1-82698-170-0 03 1 0607- ● ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
(G) 10P BLUE 		1-82699-598-0 01 1 0607- ● ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
(F) 10P BROWN 		1-82699-601-0 01 1 0607- ● ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 6P 		8-97381-428-0 01 1 0606-0606 ● ● ●
431 02.530 CONNECTOR; JOINT
4JJ1 ENG(LFB) (D) 6P 		8-97381-428-0 02 1 0607- ● ●
431 02.530 CONNECTOR; JOINT
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 6P 		8-97381-428-0 02 1 0607- ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (C) 10P GREEN 		1-82699-599-0 04 1 0507-0606 ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) 10P GREEN 		1-82699-599-0 04 1 0507-0606 ●
431 02.530 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 02 1 0607- ● ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (A) 4P 		8-97077-939-0 02 1 0507-0606 ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 4P 		8-97077-939-0 02 1 0507-0606 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 0607- ● ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (B) 6P 		8-97077-941-0 02 1 0507-0606 ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 6P 		8-97077-941-0 02 1 0507-0606 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 0607- ● ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 6P 		8-97381-428-0 01 1 0607- ●
431 02.530 CONNECTOR; JOINT
4HK1-TCC ENG(RDV) (D) 6P 		8-97381-428-0 01 1 0607- ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0302-0506 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0507- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97093-668-1 01 1 0302-0407 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> (C) 		8-97093-668-1 01 1 0408-0506 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) (C) 		8-97093-668-1 01 1 0408-0506 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (C) 		8-97093-668-1 01 1 0408-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (C) 		8-97093-668-1 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97093-668-1 01 1 0507-0606 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (D) 		8-97062-169-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97062-169-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97062-169-0 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCC ENG(RDV) (D) 		8-97062-169-0 01 1 0607- ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-591-1 01 1 0302-0407 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> (A) 		8-97120-591-1 01 1 0408-0506 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) (A) 		8-97120-591-1 01 1 0408-0506 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (A) 		8-97120-591-1 01 1 0408-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (A) 		8-97120-591-1 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97120-591-1 01 1 0507-0606 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6F(RSR) (D) 		8-97062-169-0 01 1 0302-0407 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> (D) 		8-97062-169-0 01 1 0408-0506 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) (D) 		8-97062-169-0 01 1 0408-0506 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-97062-169-0 01 1 0507-0606 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97120-591-1 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCC ENG(RDV) (A) 		8-97120-591-1 01 1 0607- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (E) 		8-94417-716-0 01 1 0302-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (E) 		8-94417-716-0 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (E) 		8-94417-716-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-94417-716-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (F) 		8-94482-169-0 01 1 0302-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (F) 		8-94482-169-0 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (F) 		8-94482-169-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-94482-169-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (G) 		8-97088-615-0 01 1 0509-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) EXC. HYDRO BRAKE BOOSTER<7QQ> (G) 		8-97088-615-0 01 1 0509-0606 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-97088-615-0 01 1 0607- ● ● ● ● ● ●
çizim 55530
204 18 18 434 204 85 195
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> FRONT DOOR 		8-97226-669-0 01 1 1011- ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1011- ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0302-0506 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0507- ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0302-0506 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0507-1009 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-820-0 01 1 1010-1010 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-820-0 01 1 1011- ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0302-0506 ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0507- ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0302-0506 ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0507-1009 ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1011- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 0302- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-760-3 01 1 0302- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-761-2 01 1 0302- ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-758-2 01 1 0302- ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-759-2 01 1 0302- ● ●
85 06.495 HARNESS; ROOM LAMP 8-97307-518-0 01 1 0302-0302 ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-161-0 01 1 0303-0506 ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-161-0 01 1 0507- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97312-297-0 01 1 0302-0302 ● ●
85 06.495 HARNESS; ROOM LAMP
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97364-163-0 01 1 0303- ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 		8-97309-727-0 01 1 0302-0302 ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 		8-97364-162-0 01 1 0303- ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) (A) 		8-97306-681-0 01 1 0302-0506 ● ● ● ● ● ● ●
195 01.150 HARNESS; EXT
TACHOGRAPH DIGITAL<EBB> (B) 		8-98034-981-0 01 1 0601-0606 ● ● ● ● ● ●
195 01.150 HARNESS; EXT
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98034-981-0 01 1 0607- ● ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0302-0302 ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 0303-0506 ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MYY5T(RSM) 		8-97364-140-0 01 1 0507-0606 ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-140-0 01 1 0507-0606 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-140-0 01 1 0607- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97162-631-2 01 1 0302-0302 ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97364-145-0 01 1 0303-0506 ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-145-0 01 1 0507-0606 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-145-0 01 1 0507-0606 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-145-0 01 1 0607- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-145-0 01 1 0607- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-874-2 01 1 0507-0606 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-874-2 01 1 0607- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-626-4 01 1 0302-0302 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-143-0 01 1 0303-0506 ● ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-143-0 01 1 0507-0606 ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MYY5T(RSM),M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-143-0 01 1 0507-0606 ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MYY5T(RSM),M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-143-0 01 1 0607- ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-143-0 01 1 0607- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 0302-0302 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-146-0 01 1 0303- ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-875-2 01 1 0507- ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97388-449-0 01 1 0507-0606 ● ● ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> 		8-97388-449-0 01 1 0607- ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCC ENG(RDV) 		8-97388-449-0 01 1 0607- ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97388-448-0 01 1 0507-0606 ● ● ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ) 		8-97388-448-0 01 1 0507-0606 ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4JJ1 ENG(LFB) 		8-97388-448-0 01 1 0607- ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97388-448-0 01 1 0607- ● ●
çizim 55819
1 36 36 456 2 2 2 453 4 41 4 5 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 		8-97377-849-1 01 1 0408-0506 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97377-849-1 01 1 0408-0506 ● ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) 		8-97331-676-2 01 1 0302-0506 ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-612-1 01 1 0507-0606 ● ● ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-360-3 01 1 0607-0610 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-360-3 01 1 0607-0610 ● ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-360-3 01 1 0607-0610 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-115-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-115-0 01 1 0611- ● ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-115-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97323-316-2 01 1 0302-0310 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97374-125-1 01 1 0311-0407 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> 		8-97374-125-1 01 1 0408-0506 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ>, VEHICLECATEGORY NQR<7NQ> 		8-97374-125-1 01 1 0408-0506 ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-98017-023-2 01 1 0507-0512 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-98017-023-2 01 1 0507-0512 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-98035-287-0 01 1 0601-0606 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-98035-287-0 01 1 0601-0606 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> VEHICLE CATEGORY NQR<7NQ> 		8-97377-851-1 01 1 0408-0506 ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 		8-97377-851-1 01 1 0408-0506 ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) VEHICLE CATEGORY NQR<7NQ> 		8-97323-317-2 01 1 0302-0310 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) VEHICLE CATEGORY NQR<7NQ> 		8-97374-127-1 01 1 0311-0407 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) VEHICLE CATEGORY NQR<7NQ> EXC. SPEED LIMITER 90KM<NMJ> 		8-97374-127-1 01 1 0408-0506 ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> 		8-97374-127-1 01 1 0408-0506 ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-611-1 01 1 0507-0606 ● ● ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-359-3 01 1 0607-0609 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-359-3 01 1 0607-0609 ● ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-359-3 01 1 0607-0609 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98059-512-0 01 1 0610-0610 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98059-512-0 01 1 0610-0610 ● ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98059-512-0 01 1 0610-0610 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-114-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-114-0 01 1 0611- ● ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-114-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 		8-97310-066-3 01 1 0302-0310 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 		8-97374-126-1 01 1 0311-0407 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> 		8-97374-126-1 01 1 0408-0506 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-98017-024-2 01 1 0507-0512 ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-98035-288-0 01 1 0601-0606 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 		8-97377-850-1 01 1 0408-0506 ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) 		8-97331-677-2 01 1 0302-0506 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-614-1 01 1 0507-0606 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-614-1 01 1 0507-0606 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-119-3 01 1 0607-0610 ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-119-3 01 1 0607-0610 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-117-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-117-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 		8-97310-068-3 01 1 0302-0310 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 		8-97374-128-1 01 1 0311-0407 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> 		8-97374-128-1 01 1 0408-0506 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-613-1 01 1 0507-0606 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-613-1 01 1 0507-0606 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-361-3 01 1 0607-0610 ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-361-3 01 1 0607-0610 ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-116-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-116-0 01 1 0611- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> 		8-97377-852-1 01 1 0408-0506 ●
2 02.483 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 AR 1 0302-0506 ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0302-0506 ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0302-0506 ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 AR 1 0507- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0507- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0507- ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
(A) 		8-97214-415-0 01 1 0302-0506 ● ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
(A) 		8-97187-921-1 01 1 0507- ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> (B) 		8-94364-546-0 01 1 0408-0506 ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 0302-0506 ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 0302-0506 ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A CLEAR 		5-82516-005-0 AR 1 0302-0506 ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 0507- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 0507- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW 		8-97062-024-0 AR 1 0507- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 30A PINK 		8-97183-643-0 AR 1 0507- ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0302-0506 ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0507-0604 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102- ● ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 0302-0506 ● ● ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97187-918-1 01 1 0507- ● ● ● ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-1 01 1 0302-0506 ● ● ● ● ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-2 01 1 0507- ● ● ● ● ● ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0302-0506 ● ● ● ● ● ● ●
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 0507- ● ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0302-0506 ● ● ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0507- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0302-0506 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0507- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97093-668-1 01 1 0302-0407 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> (C) 		8-97093-668-1 01 1 0408-0506 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) (C) 		8-97093-668-1 01 1 0408-0506 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (C) 		8-97093-668-1 01 1 0408-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (C) 		8-97093-668-1 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97093-668-1 01 1 0507-0606 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (D) 		8-97062-169-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97062-169-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97062-169-0 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCC ENG(RDV) (D) 		8-97062-169-0 01 1 0607- ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-591-1 01 1 0302-0407 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> (A) 		8-97120-591-1 01 1 0408-0506 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) (A) 		8-97120-591-1 01 1 0408-0506 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (A) 		8-97120-591-1 01 1 0408-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (A) 		8-97120-591-1 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97120-591-1 01 1 0507-0606 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6F(RSR) (D) 		8-97062-169-0 01 1 0302-0407 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6F(RSR) GENERATOR 24V80A(7YN) EXC. SPEED LIMITER 90KM<NMJ> (D) 		8-97062-169-0 01 1 0408-0506 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. GENERATOR 24V80A(7YN) (D) 		8-97062-169-0 01 1 0408-0506 ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-97062-169-0 01 1 0507-0606 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97120-591-1 01 1 0607- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCC ENG(RDV) (A) 		8-97120-591-1 01 1 0607- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (E) 		8-94417-716-0 01 1 0302-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (E) 		8-94417-716-0 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (E) 		8-94417-716-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-94417-716-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (F) 		8-94482-169-0 01 1 0302-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (F) 		8-94482-169-0 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (F) 		8-94482-169-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-94482-169-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (G) 		8-97088-615-0 01 1 0509-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) EXC. HYDRO BRAKE BOOSTER<7QQ> (G) 		8-97088-615-0 01 1 0509-0606 ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-97088-615-0 01 1 0607- ● ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0302-0506 ● ● ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0507- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
