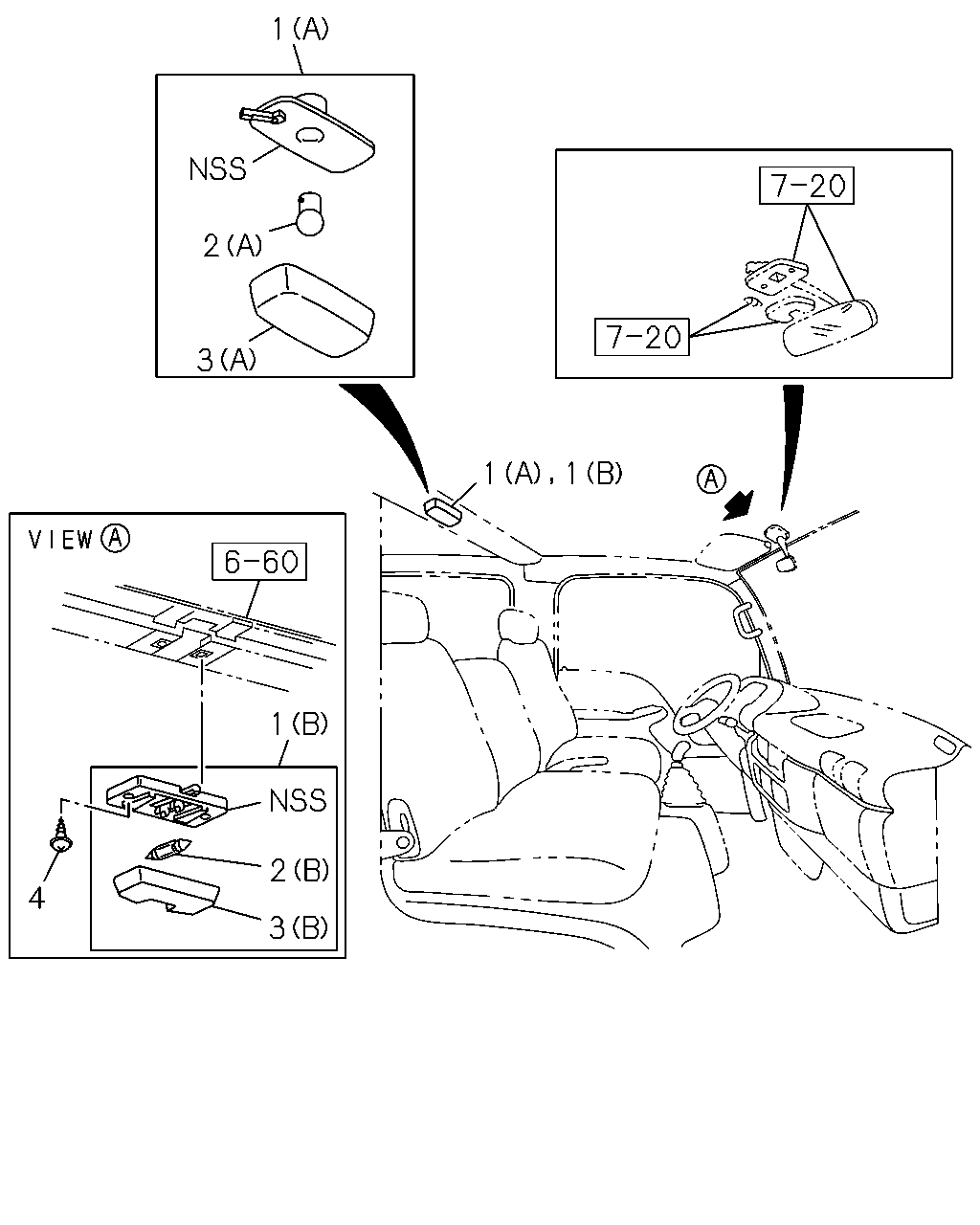

8-05 — INTERIOR LAMP (#46604) — 14 parça

1 2 3 1 1 1 2 4 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.494 LAMP ASM; ROOM EXC. ROOM LAMP W/ALL DOORS SW(SDF), VOLTAGE 24V<7AE> (A) 12V 10W	8-97080-774-1	01	1	0302-0606	●
1	16.494 LAMP ASM; ROOM ROOM LAMP W/ALL DOORS SW(SDF) (B) 24V 10W LIGHT GRAY	8-97898-451-0	01	1	0302-0708	●	●
1	16.494 LAMP ASM; ROOM ROOM LAMP W/ALL DOORS SW(SDF) (B) DARK GRAY	8-97406-371-0	01	1	0709-	●	●
1	16.494 LAMP ASM; ROOM VOLTAGE 24V<7AE> EXC. ROOM LAMP W/ALL DOORS SW(SDF) (A) 24V 12W	8-97080-775-0	01	1	0302-0606	●	●
1	16.494 LAMP ASM; ROOM EXC. ROOM LAMP W/ALL DOORS SW(SDF) (A) 24V 12W	8-97080-775-0	01	1	0607-	●	●
2	08.991 BULB; ROOM LAMP EXC. ROOM LAMP W/ALL DOORS SW(SDF), VOLTAGE 24V<7AE> (A) 12V 10W	9-82691-303-0	01	1	0302-0606	●
2	08.991 BULB; ROOM LAMP ROOM LAMP W/ALL DOORS SW(SDF) (B) 24V 10W	5-82194-030-0	01	1	0302-	●	●
2	08.991 BULB; ROOM LAMP VOLTAGE 24V<7AE> EXC. ROOM LAMP W/ALL DOORS SW(SDF) (A) 24V 12W	9-82691-302-0	01	1	0302-0606	●	●
2	08.991 BULB; ROOM LAMP EXC. ROOM LAMP W/ALL DOORS SW(SDF) (A) 24V 12W	9-82691-302-0	01	1	0607-	●	●
3	16.495 LENS; ROOM LAMP ROOM LAMP W/ALL DOORS SW(SDF) 16.068 (B)	5-73117-108-0	01	1	0302-	●	●
3	16.495 LENS; ROOM LAMP EXC. ROOM LAMP W/ALL DOORS SW(SDF) (A)	5-82145-002-0	01	1	0302-	●	●
4	16.495 SCREW; ROOM LAMP ROOM LAMP W/ALL DOORS SW(SDF) 03.671 M5X20	5-09981-059-0	02	1	0302-0612	●	●
4	16.495 SCREW; ROOM LAMP ROOM LAMP W/ALL DOORS SW(SDF) 09.647 T25 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	0701-1101	●	●
4	16.495 SCREW; ROOM LAMP ROOM LAMP W/ALL DOORS SW(SDF) 16.100 M5X20 HEXALOBULAR SOCKET	8-98177-743-0	02	1	1102-	●	●
