8-01 — LAMP; FRONT AND FRONT SIDE (#46602) — 729 parça

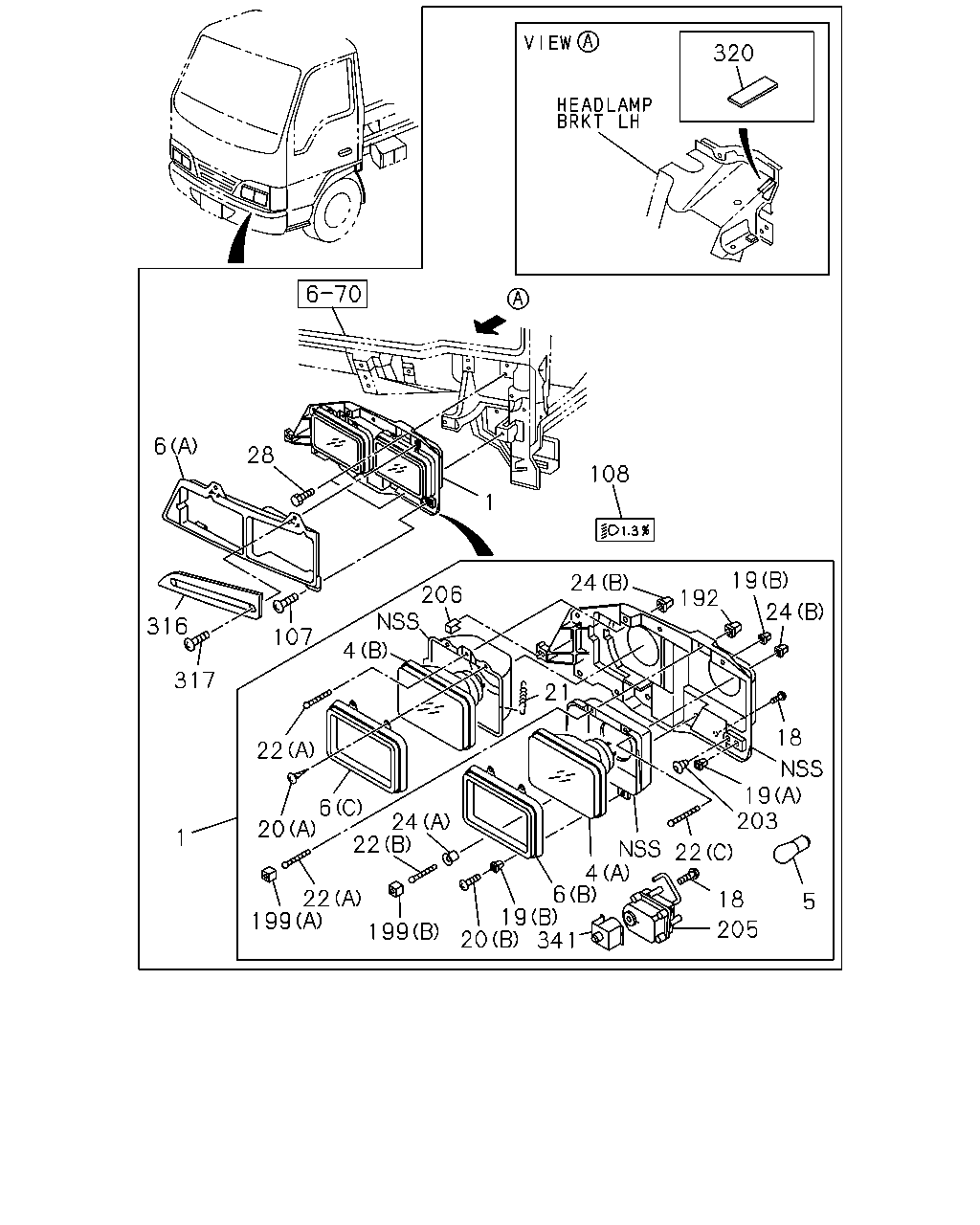

çizim 13458
320 6 28 108 1 19 24 206 192 24 316 107 21 4 317 18 22 19 203 6 24 22 20 1 4 6 19 22 22 199 18 5 205 199 341 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 		8-97261-570-0 01 1 0302-0506 ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 		8-97376-902-3 01 1 0507-0606 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-97376-902-3 01 1 0607-0701 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-98053-918-0 01 1 0702- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 		8-97261-569-0 01 1 0302-0506 ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 		8-97376-901-3 01 1 0507-0606 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-97376-901-3 01 1 0607-0701 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-98053-917-0 01 1 0702- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> 		8-97160-103-0 01 1 0302-0506 ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> 		8-97376-898-2 01 1 0507-0606 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-97376-898-2 01 1 0607-0701 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-98053-914-0 01 1 0702- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> 		8-97160-102-0 01 1 0302-0506 ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> 		8-97376-897-2 01 1 0507-0606 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-97376-897-2 01 1 0607-0701 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-98053-913-0 01 1 0702- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		8-97260-770-0 01 1 0302-0506 ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		8-97376-900-3 01 1 0507-0606 ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		8-97260-769-0 01 1 0302-0506 ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		8-97376-899-3 01 1 0507-0606 ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> 		8-97855-046-4 01 1 0302-0506 ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> 		8-97369-571-3 01 1 0507-0606 ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> 		8-97855-045-4 01 1 0302-0506 ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> 		8-97369-570-3 01 1 0507-0606 ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (A) 12V 55/60W 		8-97855-198-0 02 1 0302-0506 ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (C) 		8-98009-828-0 01 1 0507-0606 ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (B) 12V 55W 		8-97855-201-0 02 1 0302-0506 ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (C) 		8-98009-829-0 01 1 0507-0606 ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> (A) 12V 65/60W 		8-97855-199-0 02 1 0302-0506 ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> (C) 		8-98009-824-0 01 1 0507-0606 ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> (B) 12V 55W 		8-97855-203-0 02 1 0302-0506 ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> (C) 		8-98009-825-0 01 1 0507-0606 ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> (B) TYPE 1 24V 70W 		1-82191-032-0 02 1 0302-0506 ● ● ●
4 02.727 HEADLAMP UNIT
(B) TYPE 1 24V 70W 		1-82191-032-0 02 1 0302-0506 ● ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> (C) 		8-98009-826-0 01 1 0507-0606 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (C) 		8-98009-826-0 01 1 0607- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> (A) TYPE 2 24V 75/70W 		1-82191-037-0 02 1 0302-0506 ● ● ●
4 02.727 HEADLAMP UNIT
(A) TYPE 2 24V 75/70W 		1-82191-037-0 02 1 0302-0506 ● ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> (C) 		8-98009-827-0 01 1 0507-0606 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (C) 		8-98009-827-0 01 1 0607- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-823-0 01 1 0507-0606 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-823-0 01 1 0607- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-822-0 01 1 0507-0606 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-822-0 01 1 0607- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> 24V 75/70W 		8-94405-657-0 02 1 0302-0506 ● ● ●
5 02.727 BULB; HEADLAMP
24V 75/70W 		8-94405-657-0 02 1 0302-0506 ● ● ● ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> 24V 75/70W 		1-82194-063-0 02 1 0507-0606 ● ●
5 02.727 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0507-0606 ● ● ●
5 02.727 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0607- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> 24V 70W 		8-94405-658-0 02 1 0302-0506 ● ● ●
5 02.727 BULB; HEADLAMP
24V 70W 		8-94405-658-0 02 1 0302-0506 ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 55W 		5-82195-001-0 02 1 0302-0506 ● ● ●
5 02.727 BULB; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-94217-817-0 02 1 0302-0506 ● ● ●
5 02.727 BULB; HEADLAMP
12V 60/55W 		8-97106-708-0 02 1 0507-0606 ●
5 02.727 BULB; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97106-708-0 02 1 0507-0606 ● ●
6 02.728 RIM; HEADLAMP
(C) 		1-82114-016-0 02 1 0302-0506 ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
(B) 		8-97855-211-0 02 1 0302-0506 ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
(A) 		8-97581-089-0 01 1 0302-0506 ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
(A) 		8-97581-088-0 01 1 0302-0506 ● ● ● ● ● ● ●
18 02.726 SCREW; GEAR CASE
ADJUST HEADLAMP<6RC> 		1-82119-086-0 06 1 0302-0506 ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
(A) 		8-97044-618-0 08 1 0302-0506 ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
(B) 		8-97044-623-0 08 1 0302-0506 ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
(A) M4X8 		8-94165-886-0 08 1 0302-0506 ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
(C) 		8-97378-871-0 02 1 0507- ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
(B) 		8-97228-675-0 08 1 0302-0506 ● ● ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP 1-82119-021-0 02 1 0302-0506 ● ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(A) 		8-97855-205-0 04 1 0302-0506 ● ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(C) 		8-97855-207-0 02 1 0302-0506 ● ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. ADJUST HEADLAMP<6RC> (B) 		8-97855-206-0 02 1 0302-0506 ● ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
(B) 		8-94387-097-0 06 1 0302-0506 ● ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
EXC. ADJUST HEADLAMP<6RC> (A) 		8-97855-208-0 02 1 0302-0506 ● ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0302-0506 ● ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0507-0607 ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0608- ● ● ● ● ● ●
107 02.729 SCREW; RIM,HEADLAMP
M4X20 TAPPING 		8-97326-998-0 04 1 0302-0506 ● ● ● ● ● ● ●
108 02.729 SEAL; HEADLAMP RIM
ADJUST HEADLAMP<6RC> 		8-97049-114-0 01 1 0302-0506 ● ● ● ● ● ● ●
192 02.765 PIVOT; HEADLAMP
02.737 		8-94381-595-0 02 1 0302-0506 ● ● ● ● ● ● ●
199 02.737 BUSHING
(A) 		8-94381-605-0 04 1 0302-0506 ● ● ● ● ● ● ●
199 02.737 BUSHING
(B) 		8-97855-212-0 02 1 0302-0506 ● ● ● ● ● ● ●
203 02.726 FASTENER; HEADLAMP 8-94382-231-0 04 1 0302-0506 ● ● ● ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 		8-97309-103-0 02 1 0302-0506 ● ● ● ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		8-97309-102-0 02 1 0302-0506 ● ● ●
206 02.727 HOLDER; HEADLAMP 8-97868-156-0 02 1 0302-0506 ● ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
EXTERIOR ORNAMENTATION DELUXE<B57> 		8-97580-592-0 01 1 0302-0406 ● ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
EXTERIOR ORNAMENTATION DELUXE<B57> 		8-97994-793-0 01 1 0407-0506 ● ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
EXTERIOR ORNAMENTATION DELUXE<B57> 		8-97580-591-0 01 1 0302-0506 ● ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
EXC. EXTERIOR ORNAMENTATION DELUXE<B57> 		8-97867-775-0 01 1 0302-0506 ● ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
EXC. EXTERIOR ORNAMENTATION DELUXE<B57> 		8-97867-774-0 01 1 0302-0506 ● ● ● ● ● ● ●
317 02.726 SCREW; ORNAMENT
02.729 M4X20 TAPPING 		8-97326-998-0 04 1 0302-0506 ● ● ● ● ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0302-0506 ● ● ● ● ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0507- ● ● ● ● ● ●
341 02.726 BRACKET; ACTUATOR
ADJUST HEADLAMP<6RC> 		8-97855-210-0 02 1 0302-0506 ● ● ● ● ● ● ●
çizim 51565
60 68 68 67 306 75 78 60 272 273 70 241
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97855-113-2 01 1 0302-0506 ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-113-2 01 1 0302-0506 ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-98010-884-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-884-0 01 1 0507-0606 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-884-0 01 1 0607-0701 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98053-941-0 01 1 0702- ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97855-112-2 01 1 0302-0506 ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-112-2 01 1 0302-0506 ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-98010-883-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-883-0 01 1 0507-0606 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-883-0 01 1 0607-0701 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98053-940-0 01 1 0702- ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97855-111-2 01 1 0302-0506 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-882-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-98010-882-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97855-110-2 01 1 0302-0506 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-881-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-98010-881-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97225-925-0 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB 8-97225-925-0 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-98010-888-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-888-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-888-0 01 1 0607- ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97225-924-0 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB 8-97225-924-0 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-98010-887-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-887-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-887-0 01 1 0607- ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97225-923-0 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-98010-886-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97225-922-0 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-98010-885-0 01 1 0507-0606 ●
67 02.590 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 0302-0506 ● ● ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0507- ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (B) 24V 21W 		8-94125-956-0 02 1 0302-0506 ● ● ●
68 08.991 BULB; FRT COMB LAMP
(B) 24V 21W 		8-94125-956-0 02 1 0302-0506 ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(D) 12V 21W 		8-97304-590-0 02 1 0507-0606 ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (D) 12V 21W 		8-97304-590-0 02 1 0507-0606 ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (A) 24V 10W 		8-97094-888-0 02 1 0302-0506 ● ● ●
68 08.991 BULB; FRT COMB LAMP
(A) 24V 10W 		8-97094-888-0 02 1 0302-0506 ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (D) 24V 21W AMBER 		8-97323-806-0 02 1 0507-0606 ● ●
68 08.991 BULB; FRT COMB LAMP
(D) 24V 21W AMBER 		8-97323-806-0 02 1 0507-0606 ● ● ●
68 08.991 BULB; FRT COMB LAMP
(D) 24V 21W AMBER 		8-97323-806-0 02 1 0607- ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (B) 12V 21W 		8-94124-074-0 02 1 0302-0506 ● ● ●
68 08.991 BULB; FRT COMB LAMP
(C) 12V 21/5W 		8-94125-959-0 02 1 0507-0606 ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (C) 12V 21/5W 		8-94125-959-0 02 1 0507-0606 ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (A) 12V 10W 		8-94126-494-0 02 1 0302-0506 ● ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (C) 24V 21/5W 		8-94125-957-0 02 1 0507-0606 ● ●
68 08.991 BULB; FRT COMB LAMP
(C) 24V 21/5W 		8-94125-957-0 02 1 0507-0606 ● ● ●
68 08.991 BULB; FRT COMB LAMP
(C) 24V 21/5W 		8-94125-957-0 02 1 0607- ● ● ● ● ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 0302-0506 ● ● ● ● ● ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP
16.445 		1-09983-081-0 02 1 0507- ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0302-0506 ● ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0507- ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0507- ● ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB 8-97855-133-0 01 1 0302-0506 ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB 8-97855-130-0 01 1 0302-0506 ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB 8-97227-813-0 01 1 0302-0506 ● ●
78 02.589 LENS ASM; FRT COMB 8-97227-809-0 01 1 0302-0506 ● ●
241 02.726 GROMMET; FRT LAMP 8-94452-095-0 04 1 0302-0506 ● ● ● ● ● ● ●
241 02.726 GROMMET; FRT LAMP 8-97380-030-0 02 1 0507- ● ● ● ● ● ●
272 02.726 BRACKET; FRT COMB LAMP 8-97853-237-2 01 1 0302-0506 ● ● ● ● ● ● ●
272 02.726 BRACKET; FRT COMB LAMP 8-97853-236-2 01 1 0302-0506 ● ● ● ● ● ● ●
273 02.726 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.023 (B) M10X30 FLANGE 		0-28691-030-0 01 1 0302-0309 ●
273 02.726 BOLT; BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.023 (B) M10X30 FLANGE 		0-28691-030-0 01 1 0302-0309 ● ● ● ●
273 02.726 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> 03.023 (B) M10X30 FLANGE 		0-28691-030-0 01 1 0310-0506 ●
273 02.726 BOLT; BRKT
EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> 03.023 (B) M10X30 FLANGE 		0-28691-030-0 01 1 0310-0506 ● ● ● ●
273 02.726 BOLT; BRKT
EXC. ISRAEL COUNTRY(CV4) 03.023 (B) M10X30 FLANGE 		0-28691-030-0 01 1 0507-0512 ● ● ●
273 02.726 BOLT; BRKT
EXC. ISRAEL COUNTRY(CV4) 07.068 (B) M10X30 FLANGE 		0-28661-030-0 01 1 0601- ● ● ●
273 02.726 BOLT; BRKT
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0302-0506 ● ● ● ● ● ● ●
306 02.587 PIVOT; FRT COMB LAMP 8-97219-053-0 04 1 0302-0506 ● ● ● ● ● ● ●

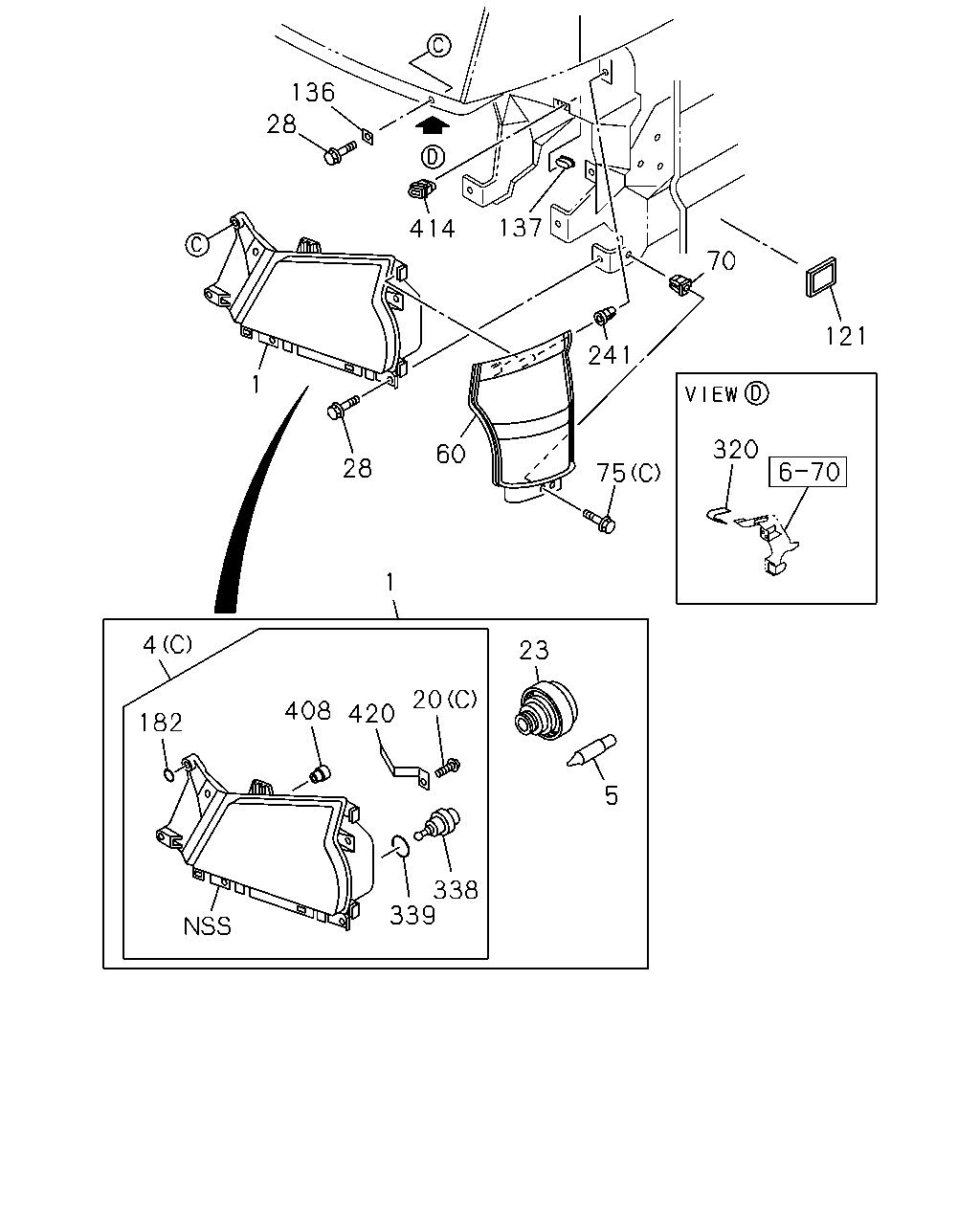

çizim 51692
136 28 137 414 70 121 241 1 320 60 28 75 1 4 23 20 408 420 182 5 338 339
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 		8-97261-570-0 01 1 0302-0506 ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 		8-97376-902-3 01 1 0507-0606 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-97376-902-3 01 1 0607-0701 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-98053-918-0 01 1 0702- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 		8-97261-569-0 01 1 0302-0506 ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 		8-97376-901-3 01 1 0507-0606 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-97376-901-3 01 1 0607-0701 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-98053-917-0 01 1 0702- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> 		8-97160-103-0 01 1 0302-0506 ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> 		8-97376-898-2 01 1 0507-0606 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-97376-898-2 01 1 0607-0701 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-98053-914-0 01 1 0702- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> 		8-97160-102-0 01 1 0302-0506 ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> 		8-97376-897-2 01 1 0507-0606 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-97376-897-2 01 1 0607-0701 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-98053-913-0 01 1 0702- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		8-97260-770-0 01 1 0302-0506 ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		8-97376-900-3 01 1 0507-0606 ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		8-97260-769-0 01 1 0302-0506 ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		8-97376-899-3 01 1 0507-0606 ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> 		8-97855-046-4 01 1 0302-0506 ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> 		8-97369-571-3 01 1 0507-0606 ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> 		8-97855-045-4 01 1 0302-0506 ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> 		8-97369-570-3 01 1 0507-0606 ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (A) 12V 55/60W 		8-97855-198-0 02 1 0302-0506 ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (C) 		8-98009-828-0 01 1 0507-0606 ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (B) 12V 55W 		8-97855-201-0 02 1 0302-0506 ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (C) 		8-98009-829-0 01 1 0507-0606 ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> (A) 12V 65/60W 		8-97855-199-0 02 1 0302-0506 ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> (C) 		8-98009-824-0 01 1 0507-0606 ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> (B) 12V 55W 		8-97855-203-0 02 1 0302-0506 ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> (C) 		8-98009-825-0 01 1 0507-0606 ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> (B) TYPE 1 24V 70W 		1-82191-032-0 02 1 0302-0506 ● ● ●
4 02.727 HEADLAMP UNIT
(B) TYPE 1 24V 70W 		1-82191-032-0 02 1 0302-0506 ● ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> (C) 		8-98009-826-0 01 1 0507-0606 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (C) 		8-98009-826-0 01 1 0607- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> (A) TYPE 2 24V 75/70W 		1-82191-037-0 02 1 0302-0506 ● ● ●
4 02.727 HEADLAMP UNIT
(A) TYPE 2 24V 75/70W 		1-82191-037-0 02 1 0302-0506 ● ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> (C) 		8-98009-827-0 01 1 0507-0606 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (C) 		8-98009-827-0 01 1 0607- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-823-0 01 1 0507-0606 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-823-0 01 1 0607- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-822-0 01 1 0507-0606 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-822-0 01 1 0607- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> 24V 75/70W 		8-94405-657-0 02 1 0302-0506 ● ● ●
5 02.727 BULB; HEADLAMP
24V 75/70W 		8-94405-657-0 02 1 0302-0506 ● ● ● ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> 24V 75/70W 		1-82194-063-0 02 1 0507-0606 ● ●
5 02.727 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0507-0606 ● ● ●
5 02.727 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0607- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> 24V 70W 		8-94405-658-0 02 1 0302-0506 ● ● ●
5 02.727 BULB; HEADLAMP
24V 70W 		8-94405-658-0 02 1 0302-0506 ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 55W 		5-82195-001-0 02 1 0302-0506 ● ● ●
5 02.727 BULB; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-94217-817-0 02 1 0302-0506 ● ● ●
5 02.727 BULB; HEADLAMP
12V 60/55W 		8-97106-708-0 02 1 0507-0606 ●
5 02.727 BULB; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97106-708-0 02 1 0507-0606 ● ●
20 02.736 SCREW; HEADLAMP
(A) M4X8 		8-94165-886-0 08 1 0302-0506 ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
(C) 		8-97378-871-0 02 1 0507- ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
(B) 		8-97228-675-0 08 1 0302-0506 ● ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0507- ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0302-0506 ● ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0507-0607 ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0608- ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97855-113-2 01 1 0302-0506 ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-113-2 01 1 0302-0506 ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-98010-884-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-884-0 01 1 0507-0606 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-884-0 01 1 0607-0701 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98053-941-0 01 1 0702- ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97855-112-2 01 1 0302-0506 ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-112-2 01 1 0302-0506 ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-98010-883-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-883-0 01 1 0507-0606 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-883-0 01 1 0607-0701 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98053-940-0 01 1 0702- ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97855-111-2 01 1 0302-0506 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-882-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-98010-882-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97855-110-2 01 1 0302-0506 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-881-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-98010-881-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97225-925-0 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB 8-97225-925-0 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-98010-888-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-888-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-888-0 01 1 0607- ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97225-924-0 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB 8-97225-924-0 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-98010-887-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-887-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-887-0 01 1 0607- ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97225-923-0 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-98010-886-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97225-922-0 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-98010-885-0 01 1 0507-0606 ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 0302-0506 ● ● ● ● ● ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP
16.445 		1-09983-081-0 02 1 0507- ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0302-0506 ● ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0507- ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0507- ● ● ● ● ● ●
121 02.575 REFLECTOR; REFLEX 8-98013-990-1 02 1 0507- ● ● ● ● ● ●
136 02.726 SEAL; HEADLAMP
03.602 25X25 		8-94272-533-0 02 1 0507- ● ● ● ● ● ●
137 02.726 GROMMET; HEADLAMP 8-97581-666-0 02 1 0507- ● ● ● ● ● ●
182 02.722 GASKET; HEADLAMP 8-97378-869-0 02 1 0507- ● ● ● ● ● ●
241 02.726 GROMMET; FRT LAMP 8-94452-095-0 04 1 0302-0506 ● ● ● ● ● ● ●
241 02.726 GROMMET; FRT LAMP 8-97380-030-0 02 1 0507- ● ● ● ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0302-0506 ● ● ● ● ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0507- ● ● ● ● ● ●
338 02.727 LEVELING; HEADLAMP
ADJUST HEADLAMP<6RC> 		8-98010-256-0 02 1 0507- ● ● ● ● ● ●
339 02.587 GASKET; LEVELING
ADJUST HEADLAMP<6RC> 		8-97378-870-0 02 1 0507- ● ● ● ● ● ●
408 02.727 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0507- ● ● ● ● ● ●
414 02.736 PIN; HEADLAMP,RIM 8-97581-667-0 02 1 0507- ● ● ● ● ● ●
420 02.737 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0507- ● ● ● ● ● ●

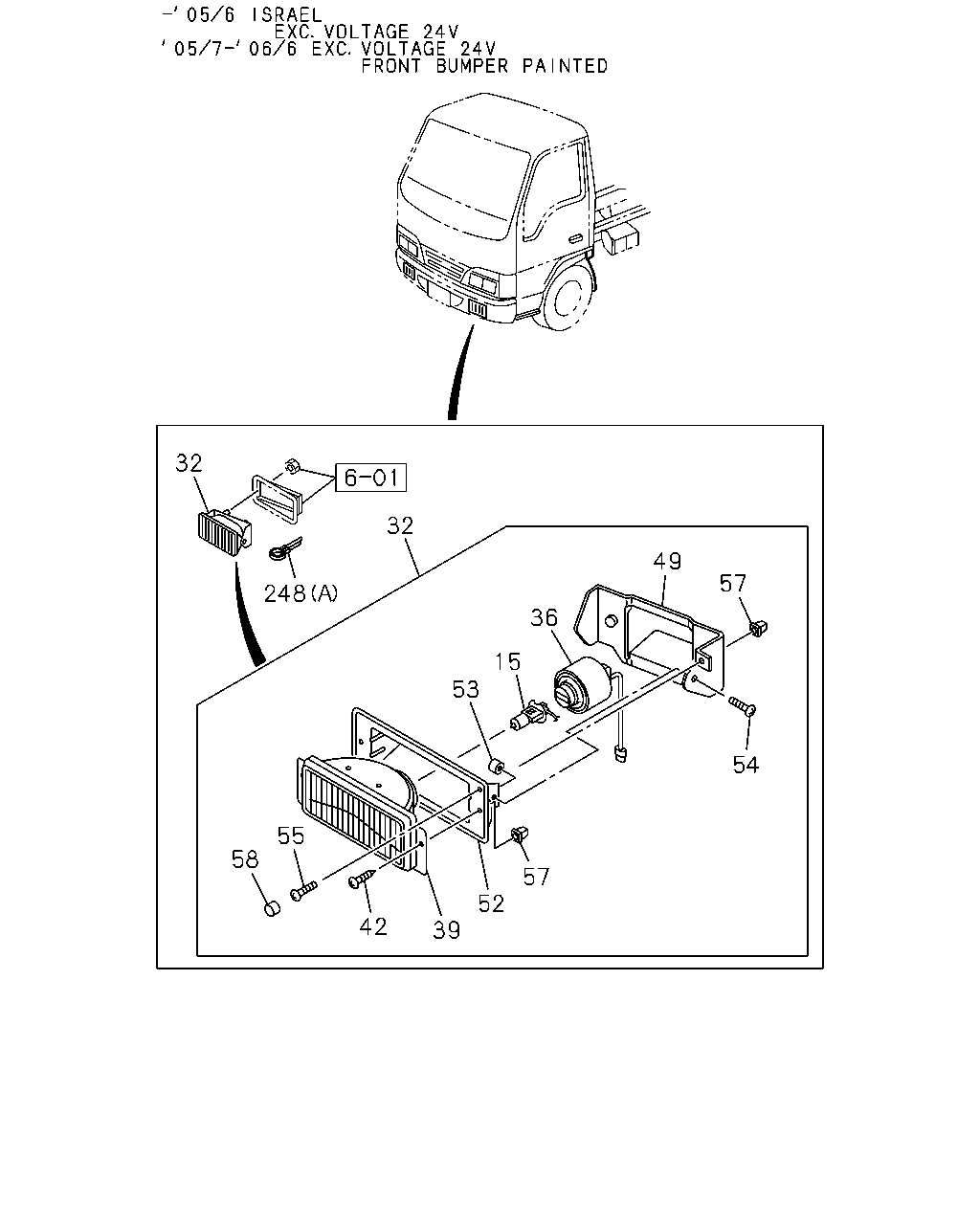

çizim 51862
32 32 49 57 248 36 15 53 54 55 58 57 52 42 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
15 08.991 BULB; FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> VOLTAGE 24V<7AE> 24V 70W 		8-97203-926-0 02 1 0302-0506 ● ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
VOLTAGE 24V<7AE> 24V 70W 		8-97203-926-0 02 1 0507-0606 ● ●
15 08.991 BULB; FOG LAMP
24V 70W 		8-97203-926-0 02 1 0507-0606 ● ● ●
15 08.991 BULB; FOG LAMP
24V 70W 		8-97203-926-0 02 1 0607- ● ● ● ●
15 08.991 BULB; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) 24V 70W 		8-97203-926-0 02 1 0607- ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4),VOLTAGE 24V<7AE> 12V 55W 		8-94458-282-0 02 1 0302-0506 ● ● ●
15 08.991 BULB; FOG LAMP
12V 55W 		8-94458-282-0 02 1 0507-0606 ●
15 08.991 BULB; FOG LAMP
FRONT BUMPER PAINTED<VB5> EXC. VOLTAGE 24V<7AE> 12V 55W 		8-94458-282-0 02 1 0507-0606 ● ●
15 08.991 BULB; FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 12V 55W 		8-97093-859-0 02 1 0302-0506 ● ● ●
15 08.991 BULB; FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 12V 55W 		8-97093-859-0 02 1 0507-0606 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. ISRAEL COUNTRY(CV4) 		8-97353-955-1 01 1 0302-0308 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
ISRAEL COUNTRY(CV4) FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97353-955-1 01 1 0309-0506 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FRONT BUMPER PAINTED<VB5> VOLTAGE 24V<7AE> 		8-97353-955-1 01 1 0507-0606 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FRONT BUMPER PAINTED<VB5> 		8-97353-955-1 01 1 0607-0701 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG 8-97353-955-1 01 1 0702- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. ISRAEL COUNTRY(CV4) 		8-97353-954-1 01 1 0302-0308 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
ISRAEL COUNTRY(CV4) FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97353-954-1 01 1 0309-0506 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FRONT BUMPER PAINTED<VB5> VOLTAGE 24V<7AE> 		8-97353-954-1 01 1 0507-0606 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FRONT BUMPER PAINTED<VB5> 		8-97353-954-1 01 1 0607-0701 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG 8-97353-954-1 01 1 0702- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
ISRAEL COUNTRY(CV4) FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97181-942-0 01 1 0302-0308 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
ISRAEL COUNTRY(CV4) FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97181-940-0 01 1 0302-0308 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4),VOLTAGE 24V<7AE> 		8-97353-953-1 01 1 0302-0506 ● ● ●
32 02.725 LAMP ASM; FOG 8-97353-953-1 01 1 0507-0606 ●
32 02.725 LAMP ASM; FOG
FRONT BUMPER PAINTED<VB5> EXC. VOLTAGE 24V<7AE> 		8-97353-953-1 01 1 0507-0606 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4),VOLTAGE 24V<7AE> 		8-97353-952-1 01 1 0302-0506 ● ● ●
32 02.725 LAMP ASM; FOG 8-97353-952-1 01 1 0507-0606 ●
32 02.725 LAMP ASM; FOG
FRONT BUMPER PAINTED<VB5> EXC. VOLTAGE 24V<7AE> 		8-97353-952-1 01 1 0507-0606 ● ●
32 02.725 LAMP ASM; FOG
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97248-544-0 01 1 0302-0506 ● ● ●
32 02.725 LAMP ASM; FOG
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97248-544-0 01 1 0507-0606 ● ●
32 02.725 LAMP ASM; FOG
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97248-543-0 01 1 0302-0506 ● ● ●
32 02.725 LAMP ASM; FOG
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97248-543-0 01 1 0507-0606 ● ●
32 02.725 LAMP ASM; FOG
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-98022-409-0 01 1 0507-0606 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
EXC. FRONT BUMPER PAINTED<VB5> 		8-98022-409-0 01 1 0607-0701 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-98022-408-0 01 1 0507-0606 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
EXC. FRONT BUMPER PAINTED<VB5> 		8-98022-408-0 01 1 0607-0701 ● ● ● ● ● ●
36 02.727 CORD; FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97095-518-0 02 1 0302-0506 ● ● ●
36 02.727 CORD; FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97095-518-0 02 1 0507-0606 ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97357-929-0 02 1 0302-0506 ● ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4),VOLTAGE 24V<7AE> 		8-97357-929-0 02 1 0302-0506 ● ● ●
39 02.727 UNIT; FOG LAMP 8-97357-929-0 02 1 0507-0606 ●
39 02.727 UNIT; FOG LAMP
FRONT BUMPER PAINTED<VB5> 		8-97357-929-0 02 1 0507-0606 ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FRONT BUMPER PAINTED<VB5> 		8-97357-929-0 02 1 0607-0701 ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP 8-97357-929-0 02 1 0702- ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97119-300-0 01 1 0302-0506 ● ● ●
39 02.727 UNIT; FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97119-300-0 01 1 0507-0606 ● ●
39 02.727 UNIT; FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-060-0 01 1 0302-0506 ● ● ●
39 02.727 UNIT; FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97104-060-0 01 1 0507-0606 ● ●
39 02.727 UNIT; FOG LAMP
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-98020-463-0 02 1 0507-0606 ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5> 		8-98020-463-0 02 1 0607-0701 ● ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97357-931-0 04 1 0302-0506 ● ● ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4),VOLTAGE 24V<7AE> 		8-97357-931-0 04 1 0302-0506 ● ● ●
42 02.575 SCREW; LENS,FOG LAMP 8-97357-931-0 04 1 0507-0606 ●
42 02.575 SCREW; LENS,FOG LAMP
FRONT BUMPER PAINTED<VB5> 		8-97357-931-0 04 1 0507-0606 ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FRONT BUMPER PAINTED<VB5> 		8-97357-931-0 04 1 0607-0701 ● ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP 8-97357-931-0 04 1 0702- ● ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-089-0 04 1 0302-0506 ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97104-089-0 04 1 0507-0606 ● ●
42 02.575 SCREW; LENS,FOG LAMP
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-977-0 08 1 0507-0606 ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-977-0 08 1 0607-0701 ● ● ● ● ● ●
49 02.726 BRACKET; LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-095-0 01 1 0302-0506 ● ● ●
49 02.726 BRACKET; LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97104-095-0 01 1 0507-0606 ● ●
49 02.726 BRACKET; LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-094-0 01 1 0302-0506 ● ● ●
49 02.726 BRACKET; LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97104-094-0 01 1 0507-0606 ● ●
49 02.726 BRACKET; LAMP
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-97379-141-0 01 1 0507-0606 ● ● ● ● ●
49 02.726 BRACKET; LAMP
EXC. FRONT BUMPER PAINTED<VB5> 		8-97379-141-0 01 1 0607-0701 ● ● ● ● ● ●
49 02.726 BRACKET; LAMP
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-985-0 01 1 0507-0606 ● ● ● ● ●
49 02.726 BRACKET; LAMP
EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-985-0 01 1 0607-0701 ● ● ● ● ● ●
52 02.726 RING; MTG,FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-062-0 02 1 0302-0506 ● ● ●
52 02.726 RING; MTG,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97104-062-0 02 1 0507-0606 ● ●
53 02.726 NUT; MTG RING,FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-94379-802-0 04 1 0302-0506 ● ● ●
53 02.726 NUT; MTG RING,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-94379-802-0 04 1 0507-0606 ● ●
54 02.726 BOLT; MTG RING,FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> M5X12 		8-94379-803-0 04 1 0302-0506 ● ● ●
54 02.726 BOLT; MTG RING,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> M5X12 		8-94379-803-0 04 1 0507-0606 ● ●
55 02.737 SCREW; ADJ,FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-087-0 02 1 0302-0506 ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97104-087-0 02 1 0507-0606 ● ●
55 02.737 SCREW; ADJ,FOG LAMP
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-978-0 02 1 0507-0606 ● ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-978-0 02 1 0607-0701 ● ● ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-94379-806-0 06 1 0302-0506 ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-94379-806-0 06 1 0507-0606 ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-981-0 02 1 0507-0606 ● ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-981-0 02 1 0607-0701 ● ● ● ● ● ●
58 02.726 HOLDER; FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-088-0 02 1 0302-0506 ● ● ●
58 02.726 HOLDER; FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97104-088-0 02 1 0507-0606 ● ●
248 02.727 CLIP; HARNESS
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) 02.559 (B) L=170.3 		1-09987-182-0 02 1 0302-0506 ● ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
02.559 (B) L=170.3 		1-09987-182-0 02 1 0507-0606 ●
248 02.727 CLIP; HARNESS
FRONT BUMPER PAINTED<VB5> 02.559 (B) L=170.3 		1-09987-182-0 02 1 0507-0606 ● ● ● ● ●
248 02.727 CLIP; HARNESS
FRONT BUMPER PAINTED<VB5> 02.559 (B) L=170.3 		1-09987-182-0 02 1 0607-0701 ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
02.559 (B) L=170.3 		1-09987-182-0 02 1 0702- ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
ISRAEL COUNTRY(CV4) FOG LAMP<T96> 02.559 (A) ID=20 		5-09700-321-0 02 1 0302-0506 ● ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 02.559 (A) ID=20 		5-09700-321-0 04 1 0507-0606 ● ● ● ● ●
248 02.727 CLIP; HARNESS
EXC. FRONT BUMPER PAINTED<VB5> 02.559 (A) ID=20 		5-09700-321-0 04 1 0607-0701 ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 02.559 (A) ID=20 		5-09700-321-0 02 1 0507-0606 ● ●

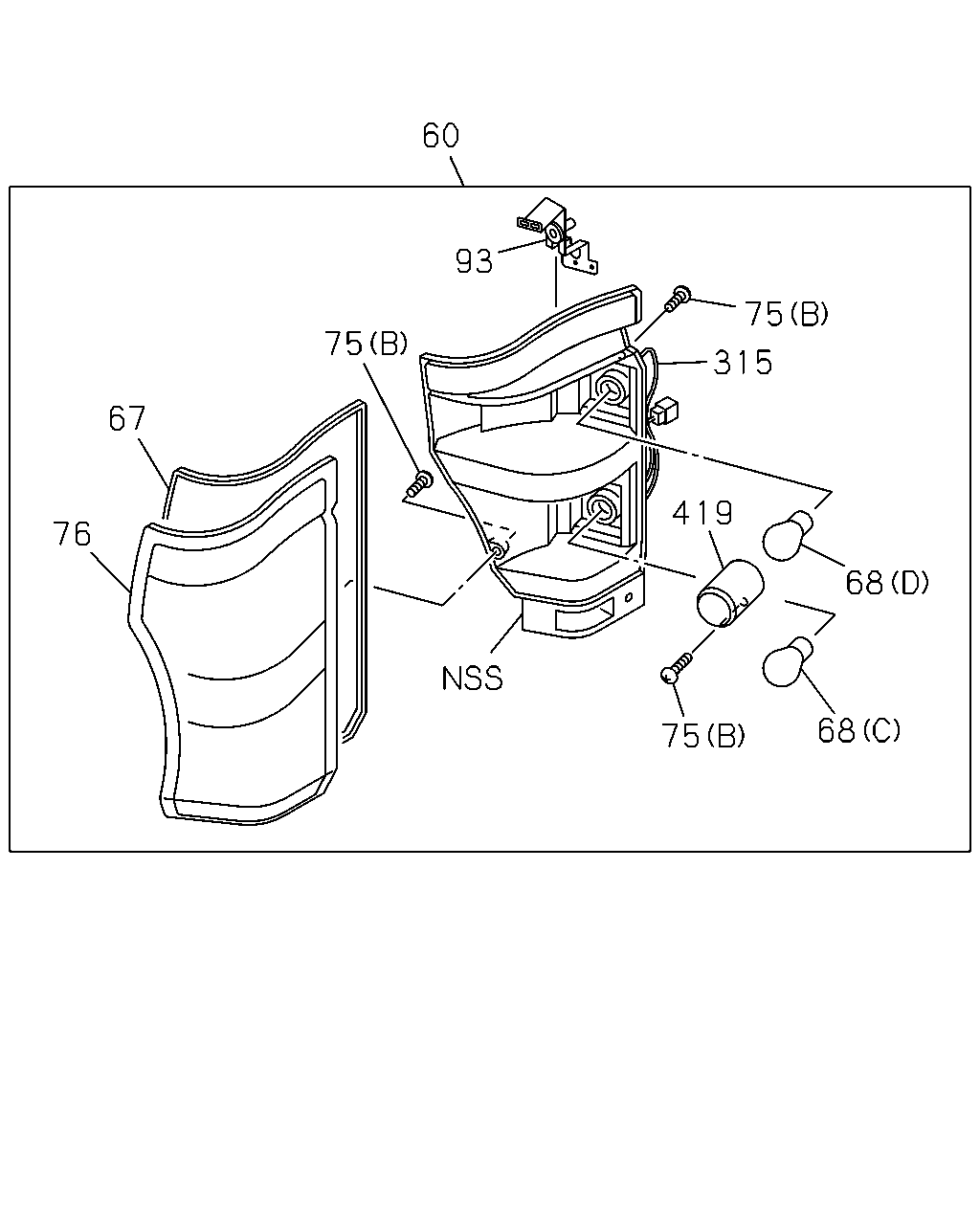

çizim 51903
60 93 75 75 315 67 419 76 68 68 75
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97855-113-2 01 1 0302-0506 ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-113-2 01 1 0302-0506 ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-98010-884-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-884-0 01 1 0507-0606 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-884-0 01 1 0607-0701 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98053-941-0 01 1 0702- ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97855-112-2 01 1 0302-0506 ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-112-2 01 1 0302-0506 ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-98010-883-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-883-0 01 1 0507-0606 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-883-0 01 1 0607-0701 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98053-940-0 01 1 0702- ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97855-111-2 01 1 0302-0506 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-882-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-98010-882-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97855-110-2 01 1 0302-0506 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-881-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-98010-881-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97225-925-0 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB 8-97225-925-0 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-98010-888-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-888-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-888-0 01 1 0607- ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97225-924-0 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB 8-97225-924-0 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-98010-887-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-887-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-887-0 01 1 0607- ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97225-923-0 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-98010-886-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97225-922-0 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-98010-885-0 01 1 0507-0606 ●
67 02.590 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 0302-0506 ● ● ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0507- ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (B) 24V 21W 		8-94125-956-0 02 1 0302-0506 ● ● ●
68 08.991 BULB; FRT COMB LAMP
(B) 24V 21W 		8-94125-956-0 02 1 0302-0506 ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(D) 12V 21W 		8-97304-590-0 02 1 0507-0606 ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (D) 12V 21W 		8-97304-590-0 02 1 0507-0606 ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (A) 24V 10W 		8-97094-888-0 02 1 0302-0506 ● ● ●
68 08.991 BULB; FRT COMB LAMP
(A) 24V 10W 		8-97094-888-0 02 1 0302-0506 ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (D) 24V 21W AMBER 		8-97323-806-0 02 1 0507-0606 ● ●
68 08.991 BULB; FRT COMB LAMP
(D) 24V 21W AMBER 		8-97323-806-0 02 1 0507-0606 ● ● ●
68 08.991 BULB; FRT COMB LAMP
(D) 24V 21W AMBER 		8-97323-806-0 02 1 0607- ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (B) 12V 21W 		8-94124-074-0 02 1 0302-0506 ● ● ●
68 08.991 BULB; FRT COMB LAMP
(C) 12V 21/5W 		8-94125-959-0 02 1 0507-0606 ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (C) 12V 21/5W 		8-94125-959-0 02 1 0507-0606 ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (A) 12V 10W 		8-94126-494-0 02 1 0302-0506 ● ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (C) 24V 21/5W 		8-94125-957-0 02 1 0507-0606 ● ●
68 08.991 BULB; FRT COMB LAMP
(C) 24V 21/5W 		8-94125-957-0 02 1 0507-0606 ● ● ●
68 08.991 BULB; FRT COMB LAMP
(C) 24V 21/5W 		8-94125-957-0 02 1 0607- ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0302-0506 ● ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0507- ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0507- ● ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-97378-962-0 01 1 0507- ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-97378-961-0 01 1 0507- ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-97378-964-0 01 1 0507- ● ●
76 02.589 LENS; FRT COMB LAMP 8-97378-963-0 01 1 0507- ● ●
93 02.892 BRACKET; SIDE COMB LAMP 8-97378-945-0 01 1 0507- ● ● ● ● ● ●
93 02.892 BRACKET; SIDE COMB LAMP 8-97378-943-0 01 1 0507- ● ● ● ● ● ●
315 02.596 HARNESS; FRT COMB LAMP 8-98010-917-0 02 1 0507- ● ● ● ● ● ●
419 02.589 LENS; INNER,FRT COMB LAMP 8-97378-947-0 01 1 0507- ● ● ● ● ● ●
419 02.589 LENS; INNER,FRT COMB LAMP 8-97378-946-0 01 1 0507- ● ● ● ● ● ●

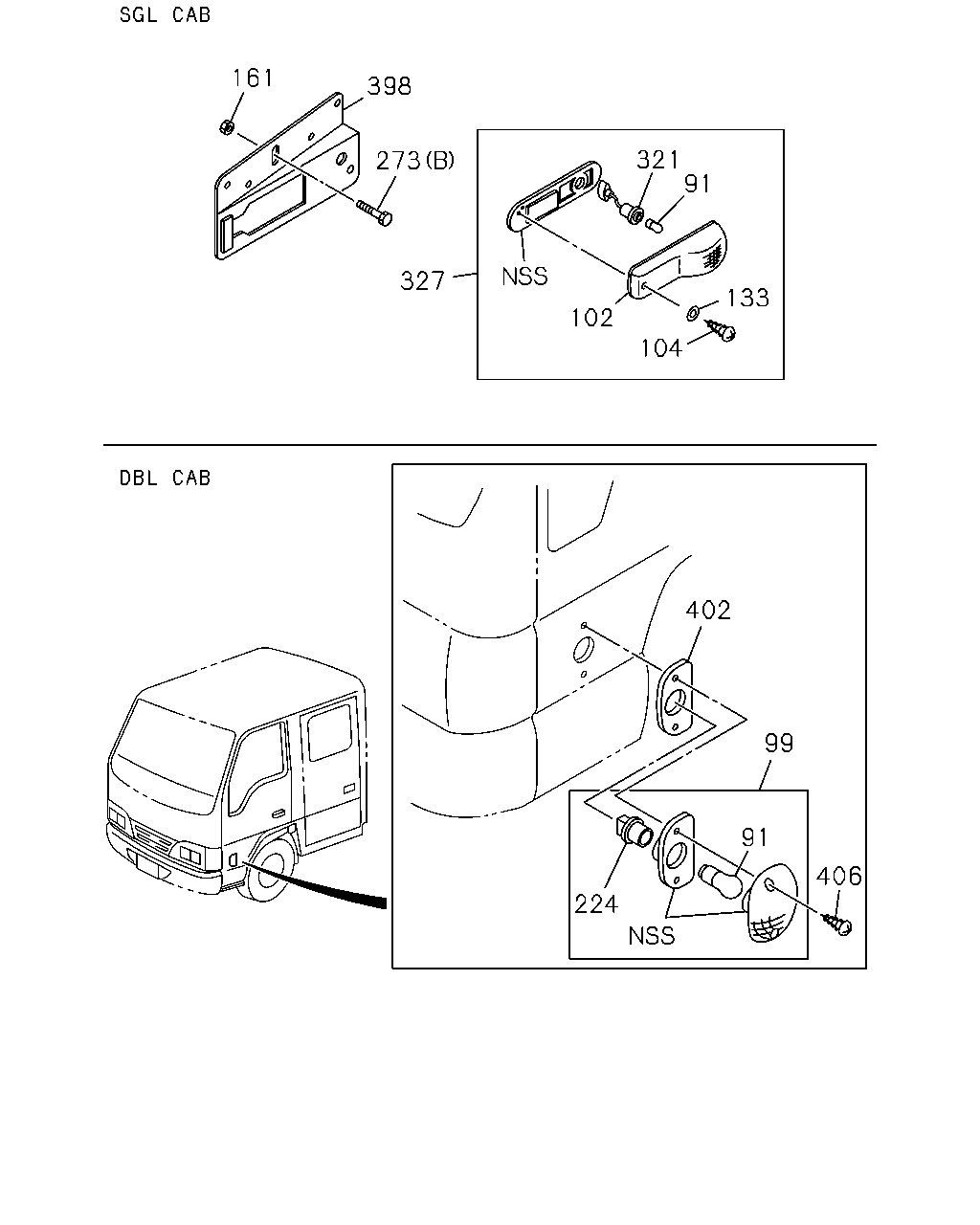

çizim 52293
161 398 321 91 273 327 102 133 104 402 99 91 406 224
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
91 08.991 BULB; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 24V 21W 		1-82194-036-0 02 1 0302-0309 ●
91 08.991 BULB; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> 24V 21W 		1-82194-036-0 02 1 0302-0309 ● ●
91 08.991 BULB; SIDE TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0302-0309 ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. ISRAEL COUNTRY(CV4) 24V 21W 		1-82194-036-0 02 1 0310-0506 ●
91 08.991 BULB; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> EXC. ISRAEL COUNTRY(CV4) 24V 21W 		1-82194-036-0 02 1 0310-0506 ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> 24V 21W 		1-82194-036-0 02 1 0310-0506 ● ●
91 08.991 BULB; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> EXC. ISRAEL COUNTRY(CV4) 24V 21W 		1-82194-036-0 02 1 0507-0606 ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> 24V 21W 		1-82194-036-0 02 1 0507-0606 ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. ISRAEL COUNTRY(CV4) 24V 21W 		1-82194-036-0 02 1 0607- ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0607- ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. VOLTAGE 24V<7AE> 12V 21W 		8-94124-074-0 02 1 0302-0309 ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. ISRAEL COUNTRY(CV4),VOLTAGE 24V<7AE> 12V 21W 		8-94124-074-0 02 1 0310-0606 ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. VOLTAGE 24V<7AE> 12V 21W 		8-94124-074-0 02 1 0310-0606 ●
99 02.585 LAMP; SIDE FLASHER
VOLTAGE 24V<7AE> 		8-97227-173-0 02 1 0302-0606 ●
99 02.585 LAMP; SIDE FLASHER 8-97227-173-0 02 1 0302-0606 ●
99 02.585 LAMP; SIDE FLASHER 8-97227-173-0 02 1 0607- ● ●
99 02.585 LAMP; SIDE FLASHER
EXC. VOLTAGE 24V<7AE> 		8-97262-228-0 02 1 0302-0606 ●
102 02.589 LENS; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 02.682 		1-82213-021-0 01 1 0302-0309 ●
102 02.589 LENS; SIDE TURN SIGNAL
02.682 		1-82213-021-0 01 1 0302-0309 ● ● ● ●
102 02.589 LENS; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. ISRAEL COUNTRY(CV4) 02.682 		1-82213-021-0 01 1 0310-0506 ●
102 02.589 LENS; SIDE TURN SIGNAL
EXC. ISRAEL COUNTRY(CV4) 02.682 		1-82213-021-0 01 1 0310-0506 ● ● ● ●
102 02.589 LENS; SIDE TURN SIGNAL
EXC. ISRAEL COUNTRY(CV4) 02.682 		1-82213-021-0 01 1 0507- ● ● ●
102 02.589 LENS; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 02.682 		1-82213-020-0 01 1 0302-0309 ●
102 02.589 LENS; SIDE TURN SIGNAL
02.682 		1-82213-020-0 01 1 0302-0309 ● ● ● ●
102 02.589 LENS; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. ISRAEL COUNTRY(CV4) 02.682 		1-82213-020-0 01 1 0310-0506 ●
102 02.589 LENS; SIDE TURN SIGNAL
EXC. ISRAEL COUNTRY(CV4) 02.682 		1-82213-020-0 01 1 0310-0506 ● ● ● ●
102 02.589 LENS; SIDE TURN SIGNAL
EXC. ISRAEL COUNTRY(CV4) 02.682 		1-82213-020-0 01 1 0507- ● ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 02.688 		8-97224-571-0 02 1 0302-0309 ●
104 02.587 SCREW; SIDE TURN SIGNAL
02.688 		8-97224-571-0 02 1 0302-0309 ● ● ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. ISRAEL COUNTRY(CV4) 02.688 		8-97224-571-0 02 1 0310-0506 ●
104 02.587 SCREW; SIDE TURN SIGNAL
EXC. ISRAEL COUNTRY(CV4) 02.688 		8-97224-571-0 02 1 0310-0506 ● ● ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
EXC. ISRAEL COUNTRY(CV4) 02.688 		8-97224-571-0 02 1 0507- ● ● ●
133 02.587 WASHER; PL,SIDE FLASHER LAMP
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		1-86830-150-0 02 1 0302-0309 ●
133 02.587 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0302-0309 ● ● ● ●
133 02.587 WASHER; PL,SIDE FLASHER LAMP
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. ISRAEL COUNTRY(CV4) 		1-86830-150-0 02 1 0310-0506 ●
133 02.587 WASHER; PL,SIDE FLASHER LAMP
EXC. ISRAEL COUNTRY(CV4) 		1-86830-150-0 02 1 0310-0506 ● ● ● ●
133 02.587 WASHER; PL,SIDE FLASHER LAMP
EXC. ISRAEL COUNTRY(CV4) 		1-86830-150-0 02 1 0507- ● ● ●
161 02.726 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.917 M10 FLANGE 		0-91150-210-0 01 1 0302-0309 ●
161 02.726 NUT; BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.917 M10 FLANGE 		0-91150-210-0 01 1 0302-0309 ● ● ● ●
161 02.726 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> 08.917 M10 FLANGE 		0-91150-210-0 01 1 0310-0506 ●
161 02.726 NUT; BRKT
EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> 08.917 M10 FLANGE 		0-91150-210-0 01 1 0310-0506 ● ● ● ●
161 02.726 NUT; BRKT
EXC. ISRAEL COUNTRY(CV4) 08.917 M10 FLANGE 		0-91150-210-0 01 1 0507-0602 ● ● ●
161 02.726 NUT; BRKT
EXC. ISRAEL COUNTRY(CV4) 04.085 M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97239-224-0 02 1 0302- ● ●
273 02.726 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.023 (B) M10X30 FLANGE 		0-28691-030-0 01 1 0302-0309 ●
273 02.726 BOLT; BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.023 (B) M10X30 FLANGE 		0-28691-030-0 01 1 0302-0309 ● ● ● ●
273 02.726 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> 03.023 (B) M10X30 FLANGE 		0-28691-030-0 01 1 0310-0506 ●
273 02.726 BOLT; BRKT
EXC. ISRAEL COUNTRY(CV4), IDENTIFICATION LABEL FOR KD<6UT> 03.023 (B) M10X30 FLANGE 		0-28691-030-0 01 1 0310-0506 ● ● ● ●
273 02.726 BOLT; BRKT
EXC. ISRAEL COUNTRY(CV4) 03.023 (B) M10X30 FLANGE 		0-28691-030-0 01 1 0507-0512 ● ● ●
273 02.726 BOLT; BRKT
EXC. ISRAEL COUNTRY(CV4) 07.068 (B) M10X30 FLANGE 		0-28661-030-0 01 1 0601- ● ● ●
273 02.726 BOLT; BRKT
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0302-0506 ● ● ● ● ● ● ●
321 02.596 HARNESS; SIDE FLASHER LAMP
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 02.664 		8-97224-569-0 02 1 0302-0309 ●
321 02.596 HARNESS; SIDE FLASHER LAMP
02.664 		8-97224-569-0 02 1 0302-0309 ● ● ● ●
321 02.596 HARNESS; SIDE FLASHER LAMP
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. ISRAEL COUNTRY(CV4) 02.664 		8-97224-569-0 02 1 0310-0506 ●
321 02.596 HARNESS; SIDE FLASHER LAMP
EXC. ISRAEL COUNTRY(CV4) 02.664 		8-97224-569-0 02 1 0310-0506 ● ● ● ●
321 02.596 HARNESS; SIDE FLASHER LAMP
EXC. ISRAEL COUNTRY(CV4) 02.664 		8-97224-569-0 02 1 0507- ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 02.679 		8-97221-814-0 01 1 0302-0309 ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> 02.679 		8-97221-814-0 01 1 0302-0309 ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
02.679 		8-97221-814-0 01 1 0302-0309 ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. ISRAEL COUNTRY(CV4) 02.679 		8-97221-814-0 01 1 0310-0506 ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> EXC. ISRAEL COUNTRY(CV4) 02.679 		8-97221-814-0 01 1 0310-0506 ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. ISRAEL COUNTRY(CV4) 02.679 		8-97221-814-0 01 1 0310-0506 ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> EXC. ISRAEL COUNTRY(CV4) 02.679 		8-97221-814-0 01 1 0507-0606 ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. ISRAEL COUNTRY(CV4) 02.679 		8-97221-814-0 01 1 0507-0606 ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. ISRAEL COUNTRY(CV4) 02.679 		8-97221-814-0 01 1 0607- ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 02.679 		8-97221-813-0 01 1 0302-0309 ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> 02.679 		8-97221-813-0 01 1 0302-0309 ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
02.679 		8-97221-813-0 01 1 0302-0309 ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. ISRAEL COUNTRY(CV4) 02.679 		8-97221-813-0 01 1 0310-0506 ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> EXC. ISRAEL COUNTRY(CV4) 02.679 		8-97221-813-0 01 1 0310-0506 ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. ISRAEL COUNTRY(CV4) 02.679 		8-97221-813-0 01 1 0310-0506 ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> EXC. ISRAEL COUNTRY(CV4) 02.679 		8-97221-813-0 01 1 0507-0606 ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. ISRAEL COUNTRY(CV4) 02.679 		8-97221-813-0 01 1 0507-0606 ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. ISRAEL COUNTRY(CV4) 02.679 		8-97221-813-0 01 1 0607- ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. VOLTAGE 24V<7AE> 02.679 		8-97221-277-0 01 1 0302-0309 ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. ISRAEL COUNTRY(CV4),VOLTAGE 24V<7AE> 02.679 		8-97221-277-0 01 1 0310-0606 ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. VOLTAGE 24V<7AE> 02.679 		8-97221-276-0 01 1 0302-0309 ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. ISRAEL COUNTRY(CV4),VOLTAGE 24V<7AE> 02.679 		8-97221-276-0 01 1 0310-0606 ●
398 02.726 BRACKET; TURN SIGNAL
FRAME STRAIGHT TYPE<7KJ> 		8-97222-071-0 01 1 0302-0309 ●
398 02.726 BRACKET; TURN SIGNAL 8-97222-071-0 01 1 0302-0309 ● ● ● ●
398 02.726 BRACKET; TURN SIGNAL
FRAME STRAIGHT TYPE<7KJ> EXC. ISRAEL COUNTRY(CV4) 		8-97222-071-0 01 1 0310-0506 ●
398 02.726 BRACKET; TURN SIGNAL
EXC. ISRAEL COUNTRY(CV4) 		8-97222-071-0 01 1 0310-0506 ● ● ● ●
398 02.726 BRACKET; TURN SIGNAL
EXC. ISRAEL COUNTRY(CV4) 		8-97222-071-0 01 1 0507- ● ● ●
398 02.726 BRACKET; TURN SIGNAL
FRAME STRAIGHT TYPE<7KJ> 		8-97222-070-0 01 1 0302-0309 ●
398 02.726 BRACKET; TURN SIGNAL 8-97222-070-0 01 1 0302-0309 ● ● ● ●
398 02.726 BRACKET; TURN SIGNAL
FRAME STRAIGHT TYPE<7KJ> EXC. ISRAEL COUNTRY(CV4) 		8-97222-070-0 01 1 0310-0506 ●
398 02.726 BRACKET; TURN SIGNAL
EXC. ISRAEL COUNTRY(CV4) 		8-97222-070-0 01 1 0310-0506 ● ● ● ●
398 02.726 BRACKET; TURN SIGNAL
EXC. ISRAEL COUNTRY(CV4) 		8-97222-070-0 01 1 0507- ● ● ●
402 02.585 SPACER; LAMP,SIDE FLASHER 8-97227-174-1 02 1 0302- ● ●
406 02.594 SCREW; SIDE FLASHER LAMP 8-97230-653-0 04 1 0302- ● ●
çizim 52404
32 248 44 32 277 15 39 277 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
15 08.991 BULB; FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> VOLTAGE 24V<7AE> 24V 70W 		8-97203-926-0 02 1 0302-0506 ● ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
VOLTAGE 24V<7AE> 24V 70W 		8-97203-926-0 02 1 0507-0606 ● ●
15 08.991 BULB; FOG LAMP
24V 70W 		8-97203-926-0 02 1 0507-0606 ● ● ●
15 08.991 BULB; FOG LAMP
24V 70W 		8-97203-926-0 02 1 0607- ● ● ● ●
15 08.991 BULB; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) 24V 70W 		8-97203-926-0 02 1 0607- ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4),VOLTAGE 24V<7AE> 12V 55W 		8-94458-282-0 02 1 0302-0506 ● ● ●
15 08.991 BULB; FOG LAMP
12V 55W 		8-94458-282-0 02 1 0507-0606 ●
15 08.991 BULB; FOG LAMP
FRONT BUMPER PAINTED<VB5> EXC. VOLTAGE 24V<7AE> 12V 55W 		8-94458-282-0 02 1 0507-0606 ● ●
15 08.991 BULB; FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 12V 55W 		8-97093-859-0 02 1 0302-0506 ● ● ●
15 08.991 BULB; FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 12V 55W 		8-97093-859-0 02 1 0507-0606 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. ISRAEL COUNTRY(CV4) 		8-97353-955-1 01 1 0302-0308 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
ISRAEL COUNTRY(CV4) FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97353-955-1 01 1 0309-0506 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FRONT BUMPER PAINTED<VB5> VOLTAGE 24V<7AE> 		8-97353-955-1 01 1 0507-0606 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FRONT BUMPER PAINTED<VB5> 		8-97353-955-1 01 1 0607-0701 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG 8-97353-955-1 01 1 0702- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. ISRAEL COUNTRY(CV4) 		8-97353-954-1 01 1 0302-0308 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
ISRAEL COUNTRY(CV4) FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97353-954-1 01 1 0309-0506 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FRONT BUMPER PAINTED<VB5> VOLTAGE 24V<7AE> 		8-97353-954-1 01 1 0507-0606 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FRONT BUMPER PAINTED<VB5> 		8-97353-954-1 01 1 0607-0701 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG 8-97353-954-1 01 1 0702- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
ISRAEL COUNTRY(CV4) FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97181-942-0 01 1 0302-0308 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
ISRAEL COUNTRY(CV4) FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97181-940-0 01 1 0302-0308 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4),VOLTAGE 24V<7AE> 		8-97353-953-1 01 1 0302-0506 ● ● ●
32 02.725 LAMP ASM; FOG 8-97353-953-1 01 1 0507-0606 ●
32 02.725 LAMP ASM; FOG
FRONT BUMPER PAINTED<VB5> EXC. VOLTAGE 24V<7AE> 		8-97353-953-1 01 1 0507-0606 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4),VOLTAGE 24V<7AE> 		8-97353-952-1 01 1 0302-0506 ● ● ●
32 02.725 LAMP ASM; FOG 8-97353-952-1 01 1 0507-0606 ●
32 02.725 LAMP ASM; FOG
FRONT BUMPER PAINTED<VB5> EXC. VOLTAGE 24V<7AE> 		8-97353-952-1 01 1 0507-0606 ● ●
32 02.725 LAMP ASM; FOG
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97248-544-0 01 1 0302-0506 ● ● ●
32 02.725 LAMP ASM; FOG
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97248-544-0 01 1 0507-0606 ● ●
32 02.725 LAMP ASM; FOG
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97248-543-0 01 1 0302-0506 ● ● ●
32 02.725 LAMP ASM; FOG
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97248-543-0 01 1 0507-0606 ● ●
32 02.725 LAMP ASM; FOG
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-98022-409-0 01 1 0507-0606 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
EXC. FRONT BUMPER PAINTED<VB5> 		8-98022-409-0 01 1 0607-0701 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-98022-408-0 01 1 0507-0606 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
EXC. FRONT BUMPER PAINTED<VB5> 		8-98022-408-0 01 1 0607-0701 ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97357-929-0 02 1 0302-0506 ● ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4),VOLTAGE 24V<7AE> 		8-97357-929-0 02 1 0302-0506 ● ● ●
39 02.727 UNIT; FOG LAMP 8-97357-929-0 02 1 0507-0606 ●
39 02.727 UNIT; FOG LAMP
FRONT BUMPER PAINTED<VB5> 		8-97357-929-0 02 1 0507-0606 ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FRONT BUMPER PAINTED<VB5> 		8-97357-929-0 02 1 0607-0701 ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP 8-97357-929-0 02 1 0702- ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97119-300-0 01 1 0302-0506 ● ● ●
39 02.727 UNIT; FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97119-300-0 01 1 0507-0606 ● ●
39 02.727 UNIT; FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-060-0 01 1 0302-0506 ● ● ●
39 02.727 UNIT; FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97104-060-0 01 1 0507-0606 ● ●
39 02.727 UNIT; FOG LAMP
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-98020-463-0 02 1 0507-0606 ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5> 		8-98020-463-0 02 1 0607-0701 ● ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97357-931-0 04 1 0302-0506 ● ● ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4),VOLTAGE 24V<7AE> 		8-97357-931-0 04 1 0302-0506 ● ● ●
42 02.575 SCREW; LENS,FOG LAMP 8-97357-931-0 04 1 0507-0606 ●
42 02.575 SCREW; LENS,FOG LAMP
FRONT BUMPER PAINTED<VB5> 		8-97357-931-0 04 1 0507-0606 ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FRONT BUMPER PAINTED<VB5> 		8-97357-931-0 04 1 0607-0701 ● ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP 8-97357-931-0 04 1 0702- ● ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-089-0 04 1 0302-0506 ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97104-089-0 04 1 0507-0606 ● ●
42 02.575 SCREW; LENS,FOG LAMP
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-977-0 08 1 0507-0606 ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-977-0 08 1 0607-0701 ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) 04.012 M8 FLANGE 		1-09464-018-1 04 1 0302-0506 ● ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
04.012 M8 FLANGE 		1-09464-018-1 04 1 0507-0606 ●
44 02.737 NUT; FOG LAMP
FRONT BUMPER PAINTED<VB5> 04.012 M8 FLANGE 		1-09464-018-1 04 1 0507-0606 ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FRONT BUMPER PAINTED<VB5> 04.012 M8 FLANGE 		1-09464-018-1 04 1 0607-0701 ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
04.012 M8 FLANGE 		1-09464-018-1 04 1 0702- ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) 02.559 (B) L=170.3 		1-09987-182-0 02 1 0302-0506 ● ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
02.559 (B) L=170.3 		1-09987-182-0 02 1 0507-0606 ●
248 02.727 CLIP; HARNESS
FRONT BUMPER PAINTED<VB5> 02.559 (B) L=170.3 		1-09987-182-0 02 1 0507-0606 ● ● ● ● ●
248 02.727 CLIP; HARNESS
FRONT BUMPER PAINTED<VB5> 02.559 (B) L=170.3 		1-09987-182-0 02 1 0607-0701 ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
02.559 (B) L=170.3 		1-09987-182-0 02 1 0702- ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
ISRAEL COUNTRY(CV4) FOG LAMP<T96> 02.559 (A) ID=20 		5-09700-321-0 02 1 0302-0506 ● ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 02.559 (A) ID=20 		5-09700-321-0 04 1 0507-0606 ● ● ● ● ●
248 02.727 CLIP; HARNESS
EXC. FRONT BUMPER PAINTED<VB5> 02.559 (A) ID=20 		5-09700-321-0 04 1 0607-0701 ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 02.559 (A) ID=20 		5-09700-321-0 02 1 0507-0606 ● ●
277 02.575 CLIP; LENS,FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97357-930-0 04 1 0302-0506 ● ● ● ● ● ● ●
277 02.575 CLIP; LENS,FOG LAMP
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4),VOLTAGE 24V<7AE> 		8-97357-930-0 04 1 0302-0506 ● ● ●
277 02.575 CLIP; LENS,FOG LAMP 8-97357-930-0 04 1 0507-0606 ●
277 02.575 CLIP; LENS,FOG LAMP
FRONT BUMPER PAINTED<VB5> 		8-97357-930-0 04 1 0507-0606 ● ● ● ● ●
277 02.575 CLIP; LENS,FOG LAMP
FRONT BUMPER PAINTED<VB5> 		8-97357-930-0 04 1 0607-0701 ● ● ● ● ● ●
277 02.575 CLIP; LENS,FOG LAMP 8-97357-930-0 04 1 0702- ● ● ● ● ● ●
çizim 53373
248 32 32 57 56 49 55 421 417 35 39 418 416 42 15 41 416
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
15 08.991 BULB; FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> VOLTAGE 24V<7AE> 24V 70W 		8-97203-926-0 02 1 0302-0506 ● ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
VOLTAGE 24V<7AE> 24V 70W 		8-97203-926-0 02 1 0507-0606 ● ●
15 08.991 BULB; FOG LAMP
24V 70W 		8-97203-926-0 02 1 0507-0606 ● ● ●
15 08.991 BULB; FOG LAMP
24V 70W 		8-97203-926-0 02 1 0607- ● ● ● ●
15 08.991 BULB; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) 24V 70W 		8-97203-926-0 02 1 0607- ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4),VOLTAGE 24V<7AE> 12V 55W 		8-94458-282-0 02 1 0302-0506 ● ● ●
15 08.991 BULB; FOG LAMP
12V 55W 		8-94458-282-0 02 1 0507-0606 ●
15 08.991 BULB; FOG LAMP
FRONT BUMPER PAINTED<VB5> EXC. VOLTAGE 24V<7AE> 12V 55W 		8-94458-282-0 02 1 0507-0606 ● ●
15 08.991 BULB; FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 12V 55W 		8-97093-859-0 02 1 0302-0506 ● ● ●
15 08.991 BULB; FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 12V 55W 		8-97093-859-0 02 1 0507-0606 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. ISRAEL COUNTRY(CV4) 		8-97353-955-1 01 1 0302-0308 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
ISRAEL COUNTRY(CV4) FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97353-955-1 01 1 0309-0506 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FRONT BUMPER PAINTED<VB5> VOLTAGE 24V<7AE> 		8-97353-955-1 01 1 0507-0606 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FRONT BUMPER PAINTED<VB5> 		8-97353-955-1 01 1 0607-0701 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG 8-97353-955-1 01 1 0702- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. ISRAEL COUNTRY(CV4) 		8-97353-954-1 01 1 0302-0308 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
ISRAEL COUNTRY(CV4) FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97353-954-1 01 1 0309-0506 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FRONT BUMPER PAINTED<VB5> VOLTAGE 24V<7AE> 		8-97353-954-1 01 1 0507-0606 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FRONT BUMPER PAINTED<VB5> 		8-97353-954-1 01 1 0607-0701 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG 8-97353-954-1 01 1 0702- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
ISRAEL COUNTRY(CV4) FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97181-942-0 01 1 0302-0308 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
ISRAEL COUNTRY(CV4) FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97181-940-0 01 1 0302-0308 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4),VOLTAGE 24V<7AE> 		8-97353-953-1 01 1 0302-0506 ● ● ●
32 02.725 LAMP ASM; FOG 8-97353-953-1 01 1 0507-0606 ●
32 02.725 LAMP ASM; FOG
FRONT BUMPER PAINTED<VB5> EXC. VOLTAGE 24V<7AE> 		8-97353-953-1 01 1 0507-0606 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4),VOLTAGE 24V<7AE> 		8-97353-952-1 01 1 0302-0506 ● ● ●
32 02.725 LAMP ASM; FOG 8-97353-952-1 01 1 0507-0606 ●
32 02.725 LAMP ASM; FOG
FRONT BUMPER PAINTED<VB5> EXC. VOLTAGE 24V<7AE> 		8-97353-952-1 01 1 0507-0606 ● ●
32 02.725 LAMP ASM; FOG
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97248-544-0 01 1 0302-0506 ● ● ●
32 02.725 LAMP ASM; FOG
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97248-544-0 01 1 0507-0606 ● ●
32 02.725 LAMP ASM; FOG
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97248-543-0 01 1 0302-0506 ● ● ●
32 02.725 LAMP ASM; FOG
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97248-543-0 01 1 0507-0606 ● ●
32 02.725 LAMP ASM; FOG
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-98022-409-0 01 1 0507-0606 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
EXC. FRONT BUMPER PAINTED<VB5> 		8-98022-409-0 01 1 0607-0701 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-98022-408-0 01 1 0507-0606 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
EXC. FRONT BUMPER PAINTED<VB5> 		8-98022-408-0 01 1 0607-0701 ● ● ● ● ● ●
35 02.726 SCREW; RIM,FOG LAMP
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-979-0 04 1 0507-0606 ● ● ● ● ●
35 02.726 SCREW; RIM,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-979-0 04 1 0607-0701 ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97357-929-0 02 1 0302-0506 ● ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4),VOLTAGE 24V<7AE> 		8-97357-929-0 02 1 0302-0506 ● ● ●
39 02.727 UNIT; FOG LAMP 8-97357-929-0 02 1 0507-0606 ●
39 02.727 UNIT; FOG LAMP
FRONT BUMPER PAINTED<VB5> 		8-97357-929-0 02 1 0507-0606 ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FRONT BUMPER PAINTED<VB5> 		8-97357-929-0 02 1 0607-0701 ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP 8-97357-929-0 02 1 0702- ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97119-300-0 01 1 0302-0506 ● ● ●
39 02.727 UNIT; FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97119-300-0 01 1 0507-0606 ● ●
39 02.727 UNIT; FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-060-0 01 1 0302-0506 ● ● ●
39 02.727 UNIT; FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97104-060-0 01 1 0507-0606 ● ●
39 02.727 UNIT; FOG LAMP
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-98020-463-0 02 1 0507-0606 ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5> 		8-98020-463-0 02 1 0607-0701 ● ● ● ● ● ●
41 02.575 GASKET; LENS,FOG LAMP
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-986-0 02 1 0507-0606 ● ● ● ● ●
41 02.575 GASKET; LENS,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-986-0 02 1 0607-0701 ● ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97357-931-0 04 1 0302-0506 ● ● ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4),VOLTAGE 24V<7AE> 		8-97357-931-0 04 1 0302-0506 ● ● ●
42 02.575 SCREW; LENS,FOG LAMP 8-97357-931-0 04 1 0507-0606 ●
42 02.575 SCREW; LENS,FOG LAMP
FRONT BUMPER PAINTED<VB5> 		8-97357-931-0 04 1 0507-0606 ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FRONT BUMPER PAINTED<VB5> 		8-97357-931-0 04 1 0607-0701 ● ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP 8-97357-931-0 04 1 0702- ● ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-089-0 04 1 0302-0506 ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97104-089-0 04 1 0507-0606 ● ●
42 02.575 SCREW; LENS,FOG LAMP
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-977-0 08 1 0507-0606 ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-977-0 08 1 0607-0701 ● ● ● ● ● ●
49 02.726 BRACKET; LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-095-0 01 1 0302-0506 ● ● ●
49 02.726 BRACKET; LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97104-095-0 01 1 0507-0606 ● ●
49 02.726 BRACKET; LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-094-0 01 1 0302-0506 ● ● ●
49 02.726 BRACKET; LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97104-094-0 01 1 0507-0606 ● ●
49 02.726 BRACKET; LAMP
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-97379-141-0 01 1 0507-0606 ● ● ● ● ●
49 02.726 BRACKET; LAMP
EXC. FRONT BUMPER PAINTED<VB5> 		8-97379-141-0 01 1 0607-0701 ● ● ● ● ● ●
49 02.726 BRACKET; LAMP
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-985-0 01 1 0507-0606 ● ● ● ● ●
49 02.726 BRACKET; LAMP
EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-985-0 01 1 0607-0701 ● ● ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-087-0 02 1 0302-0506 ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-97104-087-0 02 1 0507-0606 ● ●
55 02.737 SCREW; ADJ,FOG LAMP
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-978-0 02 1 0507-0606 ● ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-978-0 02 1 0607-0701 ● ● ● ● ● ●
56 02.737 SPRING; COIL,FOG LAMP
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-980-0 02 1 0507-0606 ● ● ● ● ●
56 02.737 SPRING; COIL,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-980-0 02 1 0607-0701 ● ● ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-94379-806-0 06 1 0302-0506 ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 		8-94379-806-0 06 1 0507-0606 ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-981-0 02 1 0507-0606 ● ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-981-0 02 1 0607-0701 ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) 02.559 (B) L=170.3 		1-09987-182-0 02 1 0302-0506 ● ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
02.559 (B) L=170.3 		1-09987-182-0 02 1 0507-0606 ●
248 02.727 CLIP; HARNESS
FRONT BUMPER PAINTED<VB5> 02.559 (B) L=170.3 		1-09987-182-0 02 1 0507-0606 ● ● ● ● ●
248 02.727 CLIP; HARNESS
FRONT BUMPER PAINTED<VB5> 02.559 (B) L=170.3 		1-09987-182-0 02 1 0607-0701 ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
02.559 (B) L=170.3 		1-09987-182-0 02 1 0702- ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
ISRAEL COUNTRY(CV4) FOG LAMP<T96> 02.559 (A) ID=20 		5-09700-321-0 02 1 0302-0506 ● ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 02.559 (A) ID=20 		5-09700-321-0 04 1 0507-0606 ● ● ● ● ●
248 02.727 CLIP; HARNESS
EXC. FRONT BUMPER PAINTED<VB5> 02.559 (A) ID=20 		5-09700-321-0 04 1 0607-0701 ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> 02.559 (A) ID=20 		5-09700-321-0 02 1 0507-0606 ● ●
416 02.587 CLAMP; LENS,FOG LAMP
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-976-0 04 1 0507-0606 ● ● ● ● ●
416 02.587 CLAMP; LENS,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-976-0 04 1 0607-0701 ● ● ● ● ● ●
417 02.596 FILTER; BREATHER,LAMP
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-983-0 04 1 0507-0606 ● ● ● ● ●
417 02.596 FILTER; BREATHER,LAMP
EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-983-0 04 1 0607-0701 ● ● ● ● ● ●
418 02.737 SPRING; BULB,FOG LAMP
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-982-0 02 1 0507-0606 ● ● ● ● ●
418 02.737 SPRING; BULB,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-982-0 02 1 0607-0701 ● ● ● ● ● ●
421 02.593 TUBE; BREATHER,FOG LAMP
VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-984-0 04 1 0507-0606 ● ● ● ● ●
421 02.593 TUBE; BREATHER,FOG LAMP
EXC. FRONT BUMPER PAINTED<VB5> 		8-97378-984-0 04 1 0607-0701 ● ● ● ● ● ●
çizim 54478
82 81 256 83 80 82 413 82 81 256 83 80 82 413
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
80 08.991 BULB; MARKER LAMP
VOLTAGE 24V<7AE> 24V 5W 		8-94135-397-0 02 1 0302-0506 ● ● ●
80 08.991 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0302-0506 ● ● ● ●
80 08.991 BULB; MARKER LAMP
VOLTAGE 24V<7AE> 24V 5W 		8-94135-397-0 02 1 0507-0606 ● ●
80 08.991 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0507-0606 ● ● ●
80 08.991 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0607- ● ● ● ● ● ●
80 08.991 BULB; MARKER LAMP
EXC. VOLTAGE 24V<7AE> 12V 5W 		1-82194-053-0 02 1 0302-0506 ● ● ●
80 08.991 BULB; MARKER LAMP
12V 5W 		1-82194-053-0 02 1 0507-0606 ●
80 08.991 BULB; MARKER LAMP
EXC. VOLTAGE 24V<7AE> 12V 5W 		1-82194-053-0 02 1 0507-0606 ● ●
81 02.587 SEAT; SCREW 1-82219-012-0 04 1 0302-0506 ● ● ● ● ● ● ●
81 02.587 SEAT; SCREW 1-82219-012-0 04 1 0507- ● ● ● ● ● ●
82 02.587 SCREW; MARKER LAMP
(B) 		1-82219-011-0 04 1 0302-0506 ● ● ● ● ● ● ●
82 02.587 SCREW; MARKER LAMP
(B) 		1-82219-011-0 04 1 0507- ● ● ● ● ● ●
82 02.587 SCREW; MARKER LAMP
16.716 (A) M6X25 TAPPING 		9-07067-625-0 04 1 0302-0506 ● ● ● ● ● ● ●
82 02.587 SCREW; MARKER LAMP
16.716 (A) M6X25 TAPPING 		9-07067-625-0 04 1 0507- ● ● ● ● ● ●
83 02.589 LENS; MARKER LAMP 8-97318-299-0 02 1 0302-0506 ● ● ● ● ● ● ●
83 02.589 LENS; MARKER LAMP 8-97318-299-0 02 1 0507- ● ● ● ● ● ●
256 02.589 LAMP; MARKER
VOLTAGE 24V<7AE> 		8-97307-626-0 01 1 0302-0506 ● ● ●
256 02.589 LAMP; MARKER 8-97307-626-0 01 1 0302-0506 ● ● ● ●
256 02.589 LAMP; MARKER
VOLTAGE 24V<7AE> 		8-97307-626-0 01 1 0507-0606 ● ●
256 02.589 LAMP; MARKER 8-97307-626-0 01 1 0507-0606 ● ● ●
256 02.589 LAMP; MARKER 8-97307-626-0 01 1 0607- ● ● ● ● ● ●
256 02.589 LAMP; MARKER
VOLTAGE 24V<7AE> 		8-97307-625-0 01 1 0302-0506 ● ● ●
256 02.589 LAMP; MARKER 8-97307-625-0 01 1 0302-0506 ● ● ● ●
256 02.589 LAMP; MARKER
VOLTAGE 24V<7AE> 		8-97307-625-0 01 1 0507-0606 ● ●
256 02.589 LAMP; MARKER 8-97307-625-0 01 1 0507-0606 ● ● ●
256 02.589 LAMP; MARKER 8-97307-625-0 01 1 0607- ● ● ● ● ● ●
256 02.589 LAMP; MARKER
EXC. VOLTAGE 24V<7AE> 		8-97307-628-0 01 1 0302-0506 ● ● ●
256 02.589 LAMP; MARKER 8-97307-628-0 01 1 0507-0606 ●
256 02.589 LAMP; MARKER
EXC. VOLTAGE 24V<7AE> 		8-97307-628-0 01 1 0507-0606 ● ●
256 02.589 LAMP; MARKER
EXC. VOLTAGE 24V<7AE> 		8-97307-627-0 01 1 0302-0506 ● ● ●
256 02.589 LAMP; MARKER 8-97307-627-0 01 1 0507-0606 ●
256 02.589 LAMP; MARKER
EXC. VOLTAGE 24V<7AE> 		8-97307-627-0 01 1 0507-0606 ● ●
413 02.575 GROMMET; SCREW,MARKER LAMP FIX 8-97289-492-0 04 1 0302-0506 ● ● ● ● ● ● ●
413 02.575 GROMMET; SCREW,MARKER LAMP FIX 8-97289-492-0 04 1 0507- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
