1 |

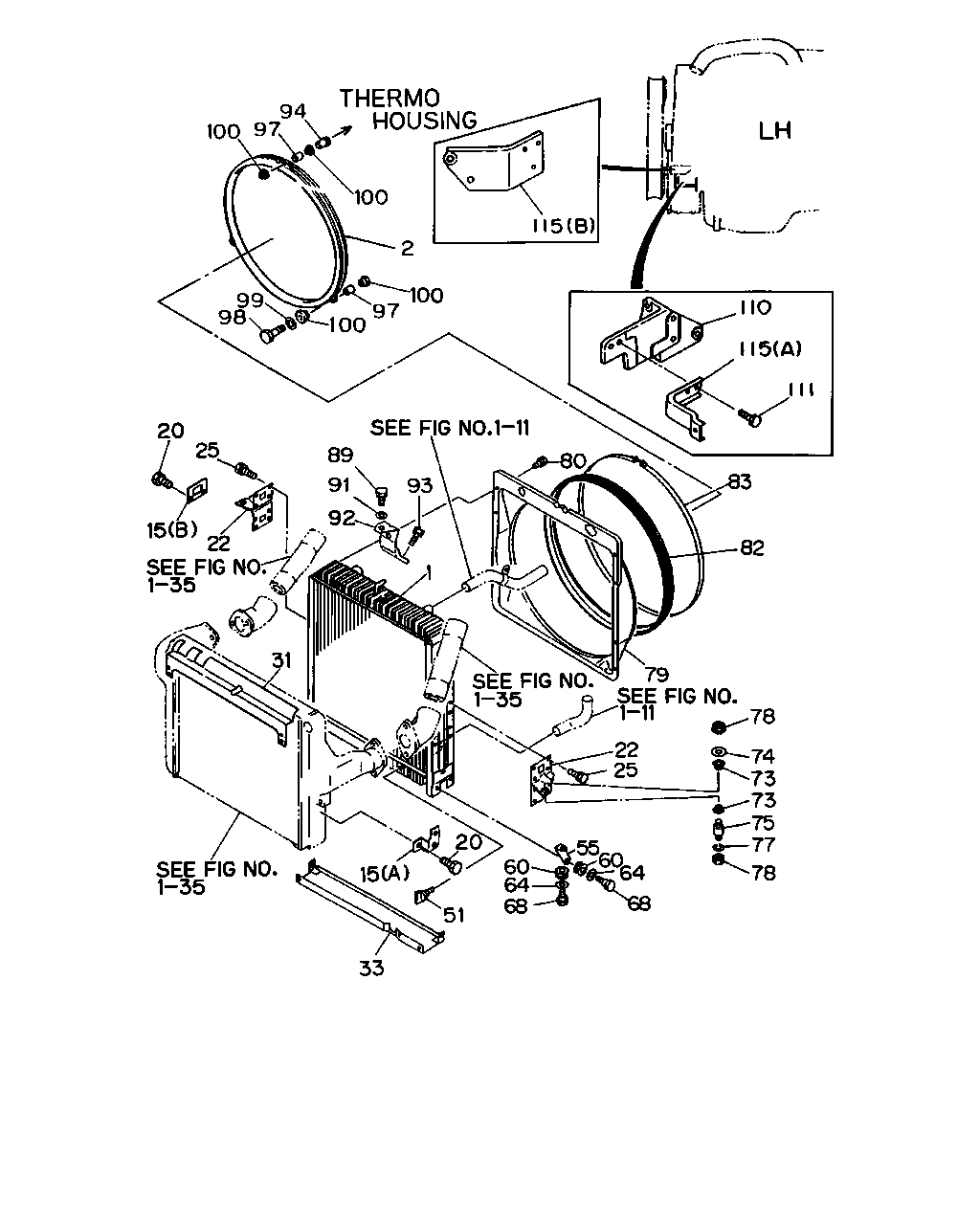

RADIATOR ASM
|
1-21410-503-1 |
01 |
1 |
8712-9001 |
● |
|
|
| |
1 |
RADIATOR ASM
|
1-21410-533-1 |
01 |
1 |
8712-9001 |
|
● |
|
| |
1 |
RADIATOR ASM
|
1-21410-577-1 |
01 |
1 |
9002- |
|
● |
|
| |
1 |
RADIATOR ASM
|
1-21410-532-0 |
01 |
1 |
8712-9001 |
|
|
● |
| |
1 |
RADIATOR ASM
|
1-21410-635-0 |
01 |
1 |
9002-9306 |
|
|
● |
| |
2 |
GUIDE; FAN
|
1-21551-235-3 |
01 |
1 |
8712- |
● |
● |
● |
| |
15 |
BRACKET; PIPE,RAD
(B)
|
1-21464-242-0 |
02 |
1 |
8712- |
● |
● |
● |
| |
15 |
BRACKET; PIPE,RAD
(A)
|
1-21464-211-0 |
01 |
1 |
8712- |
|
● |
|
| |
20 |
BOLT; PIPE BRKT,RAD
M10X16
|
9-02041-016-0 |
04 |
1 |
8712-9001 |
● |
|
|
| |
20 |
BOLT; PIPE BRKT,RAD
M10X22
|
9-02041-022-0 |
01 |
1 |
8712- |
|
● |
|
| |
20 |
BOLT; PIPE BRKT,RAD
M10X16
|
9-02041-016-0 |
02 |
1 |
8712- |
|
● |
● |
| |
22 |
BRACKET; RAD MTG
|
1-21464-114-1 |
01 |
1 |
8712-9001 |
● |
|
|
| |
22 |
BRACKET; RAD MTG
|
1-21464-115-1 |
01 |
1 |
8712-9001 |
● |
|
|
| |
22 |
BRACKET; RAD MTG
|
1-21464-181-0 |
01 |
1 |
8712- |
|
● |
● |
| |
22 |
BRACKET; RAD MTG
|
1-21464-182-0 |
01 |
1 |
8712- |
|
● |
● |
| |
25 |
BOLT; BRKT
M8X18 W/LK&PL WASHER
|
9-01960-818-0 |
16 |
1 |
8712-9001 |
● |
|
|
| |
25 |
BOLT; BRKT
M8X20 W/LK&PL WASHER
|
9-01960-820-0 |
14 |
1 |
8712- |
|
● |
|
| |
25 |
BOLT; BRKT
M8X25 W/LK&PL WASHER
|
9-01960-825-0 |
02 |
1 |
8712- |
|
● |
|
| |
25 |
BOLT; BRKT
M8X20 W/LK&PL WASHER
|
9-01960-820-0 |
16 |
1 |
8712-9306 |
|
|
● |
| |
31 |
BRACKET; UPR,RAD
|
1-21460-083-0 |
01 |
1 |
8712-9001 |
● |
|
|
| |
31 |
BRACKET; UPR,RAD
|
1-21460-072-2 |
01 |
1 |
8712-9306 |
|
|
● |
| |
31 |
BRACKET; UPR,RAD
|
1-21460-081-0 |
01 |
1 |
8712- |
|
● |
|
| |
33 |
PROTECTOR; RAD
L=120
|
1-21419-030-2 |
01 |
1 |
8712- |
● |
● |
● |
| |
51 |
PLUG; DRAIN
W/GASKET
|
1-09609-009-0 |
01 |
1 |
8712- |
● |
● |
● |
| |
55 |
STAY; RAD TO UPR MBR
|
1-21464-081-1 |
01 |
1 |
8712- |
● |
● |
● |
| |
55 |
STAY; RAD TO UPR MBR
|
1-21464-080-1 |
01 |
1 |
8712- |
● |
● |
● |
| |
60 |
GROMMET
|
9-09575-512-0 |
04 |
1 |
8712-8901 |
● |
● |
● |
| |
60 |
GROMMET
|
1-09332-117-0 |
04 |
1 |
8902- |
● |
● |
● |
| |
64 |
WASHER; STAY TO RAD
ID=12.5 OD=26
|
9-09160-612-0 |
04 |
1 |
8712- |
● |
● |
● |
| |
68 |
BOLT; STAY TO BRKT
M8X30
|
1-09009-020-1 |
04 |
1 |
8712- |
● |
● |
● |
| |
73 |
RUBBER; CUSHION,RAD MTG
T=14
|
1-21467-004-0 |
04 |
1 |
8712- |
● |
● |
● |
| |
74 |
WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22
|
1-09503-154-1 |
02 |
1 |
8712- |
● |
● |
● |
| |
75 |
BOLT; CUSHION RUBBER,RAD MTG
|
1-21466-001-0 |
02 |
1 |
8712-8812 |
● |
● |
● |
| |
75 |
BOLT; CUSHION RUBBER,RAD MTG
|
1-21466-005-0 |
02 |
1 |
8901-9001 |
● |
● |
● |
| |
75 |
BOLT; CUSHION RUBBER,RAD MTG
|
1-21466-006-0 |
02 |
1 |
9002- |
|
● |
● |
| |
77 |
WASHER; LK,CUSHION RUBBER
ID=12.2
|
9-09150-512-0 |
02 |
1 |
8712- |
● |
● |
● |
| |
78 |
NUT; CUSHION RUBBER
M10
|
9-09110-410-0 |
02 |
1 |
8712-9001 |
● |
● |
● |
| |
78 |
NUT; CUSHION RUBBER
M10 FLANGE
|
5-09440-006-0 |
02 |
1 |
9002- |
|
● |
● |
| |
78 |
NUT; CUSHION RUBBER
M12
|
9-99110-512-0 |
02 |
1 |
8712- |
● |
● |
● |
| |
79 |
GUIDE; FAN,RAD
|
1-21551-276-0 |
01 |
1 |
8712-9001 |
● |
|
|
| |
79 |
GUIDE; FAN,RAD
|
1-21551-294-1 |
01 |
1 |
8712- |
|
● |
● |
| |
80 |
BOLT; FAN GUIDE
RADIATOR CURTAIN<SK7>
M8X16 W/LK&PL WASHER
|
9-01960-816-0 |
19 |
1 |
8712-9001 |
● |
|
|
| |
80 |
BOLT; FAN GUIDE
EXC. RADIATOR CURTAIN<SK7>
M8X16 W/LK&PL WASHER
|
9-01960-816-0 |
14 |
1 |
8712-9001 |
● |
|
|
| |
80 |
BOLT; FAN GUIDE
M8X16 W/LK&PL WASHER
|
9-01960-816-0 |
16 |
1 |
8712- |
|
● |
|
| |
80 |
BOLT; FAN GUIDE
M8X18 W/LK&PL WASHER
|
9-01960-818-0 |
08 |
1 |
8712-9306 |
|
|
● |
| |
80 |
BOLT; FAN GUIDE
M8X16 W/LK&PL WASHER
|
9-01960-816-0 |
08 |
1 |
9002-9306 |
|
|
● |
| |
82 |
COVER; FAN,RAD
|
1-21559-134-1 |
01 |
1 |
8712- |
● |
● |
● |
| |
83 |
CLIP; FAN COVER
|
1-09707-127-1 |
01 |
1 |
8712- |
● |
● |
● |
| |
89 |
BOLT
M8X20 W/LK WASHER
|
9-01910-820-0 |
01 |
1 |
8712-9005 |
● |
● |
● |
| |
89 |
BOLT
M8X20 W/LK WASHER
|
0-50040-820-0 |
01 |
1 |
9006-9302 |
|
● |
● |
| |
89 |
BOLT
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9303- |
|
● |
● |
| |
91 |
WASHER; PL
ID=8.4 OD=22
|
9-09164-708-0 |
02 |
1 |
8712- |
● |
● |
● |
| |
92 |
BRACKET; FAN GUIDE
|
1-21559-220-1 |
01 |
1 |
8712- |
● |
● |
● |
| |
93 |
BOLT; BRKT FIX
M8X20 W/LK WASHER
|
9-01910-820-0 |
02 |
1 |
8712-9005 |
● |
● |
● |
| |
93 |
BOLT; BRKT FIX
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
9006-9302 |
|
● |
● |
| |
93 |
BOLT; BRKT FIX
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9303- |
|
● |
● |
| |
93 |
BOLT; BRKT FIX
M8X25 W/LK WASHER
|
9-01910-825-0 |
01 |
1 |
8712-9005 |
● |
● |
● |
| |
93 |
BOLT; BRKT FIX
M8X25 W/LK WASHER
|
0-50040-825-0 |
01 |
1 |
9006-9302 |
|
● |
● |
| |
93 |
BOLT; BRKT FIX
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9303- |
|
● |
● |
| |
94 |
TUBE; DIST
|
1-11369-113-2 |
01 |
1 |
8712- |
● |
● |
● |
| |
97 |
TUBE; DIST,FAN GUIDE
|
1-21559-183-0 |
03 |
1 |
8712- |
● |
● |
● |
| |
98 |
BOLT; RAD FAN GUIDE
M8X60
|
9-01055-860-0 |
02 |
1 |
8712-9005 |
● |
● |
● |
| |
98 |
BOLT; RAD FAN GUIDE
M8X60
|
0-10805-860-0 |
02 |
1 |
9006- |
|
● |
● |
| |
98 |
BOLT; RAD FAN GUIDE
M8X105
|
9-09801-346-1 |
01 |
1 |
8712- |
● |
● |
● |
| |
99 |
WASHER; PL
ID=8.4 OD=26
|
9-09164-808-0 |
03 |
1 |
8712-9310 |
● |
● |
● |
| |
99 |
WASHER; PL
ID=8.4 OD=26
|
9-09164-808-0 |
03 |
1 |
9311- |
|
● |
|
| |
100 |
RUBBER; MTG
|
1-09337-017-0 |
06 |
1 |
8712- |
● |
● |
● |
| |
110 |
STAY; FAN GUIDE
|
1-83571-391-0 |
01 |
1 |
8712- |
● |
● |
● |
| |
111 |
BOLT; BRKT
M10X20 W/LK WASHER
|
9-01931-020-0 |
02 |
1 |
8712-9002 |
● |
● |
● |
| |
111 |
BOLT; BRKT
M10X20 W/LK WASHER
|
0-50051-020-0 |
02 |
1 |
9003- |
|
● |
● |
| |
115 |
BRACKET; FAN GUIDE
(A)
|
1-21559-210-0 |
01 |
1 |
8712- |
● |
● |
● |
| |
115 |
BRACKET; FAN GUIDE
(B)
|
1-21559-219-1 |
01 |
1 |
8712- |
● |
● |
● |
