3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#46597) — 26 parça
çizim 55422
1 17 16 24 15 12 11 23 3
BalonParca AdiParca NoAdetTipApplied Date
1 MASTER VAC ASM; BRK 8-97162-800-1 01 1 0401-0910
1 MASTER VAC ASM; BRK
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97162-800-1 01 1 0911-
3 RETAINER; FRT SHELL,M/VAC 9-83315-319-0 01 1 0401-0910
3 RETAINER; FRT SHELL,M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> 		9-83315-319-0 01 1 0911-
11 FILTER; M/VAC 8-97205-576-0 01 1 0401-0910
11 FILTER; M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97205-576-0 01 1 0911-
12 SILENCER; M/VAC 8-97205-577-0 01 1 0401-0910
12 SILENCER; M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97205-577-0 01 1 0911-
15 RETAINER; GUARD,M/VAC 8-94375-083-0 01 1 0401-0910
15 RETAINER; GUARD,M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-94375-083-0 01 1 0911-
16 NUT; VLV ROD,M/VAC
M10 		1-52139-008-0 01 1 0401-0910
16 NUT; VLV ROD,M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> M10 		1-52139-008-0 01 1 0911-
17 CLEVIS; YOKE,M/VAC 8-97224-610-0 01 1 0401-0910
17 CLEVIS; YOKE,M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97224-610-0 01 1 0911-
23 SEAL; M/VAC 8-97079-350-0 01 1 0401-0910
23 SEAL; M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97079-350-0 01 1 0911-
24 GUARD; VLV BODY,M/VAC 8-97205-578-0 01 1 0401-0910
24 GUARD; VLV BODY,M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97205-578-0 01 1 0911-

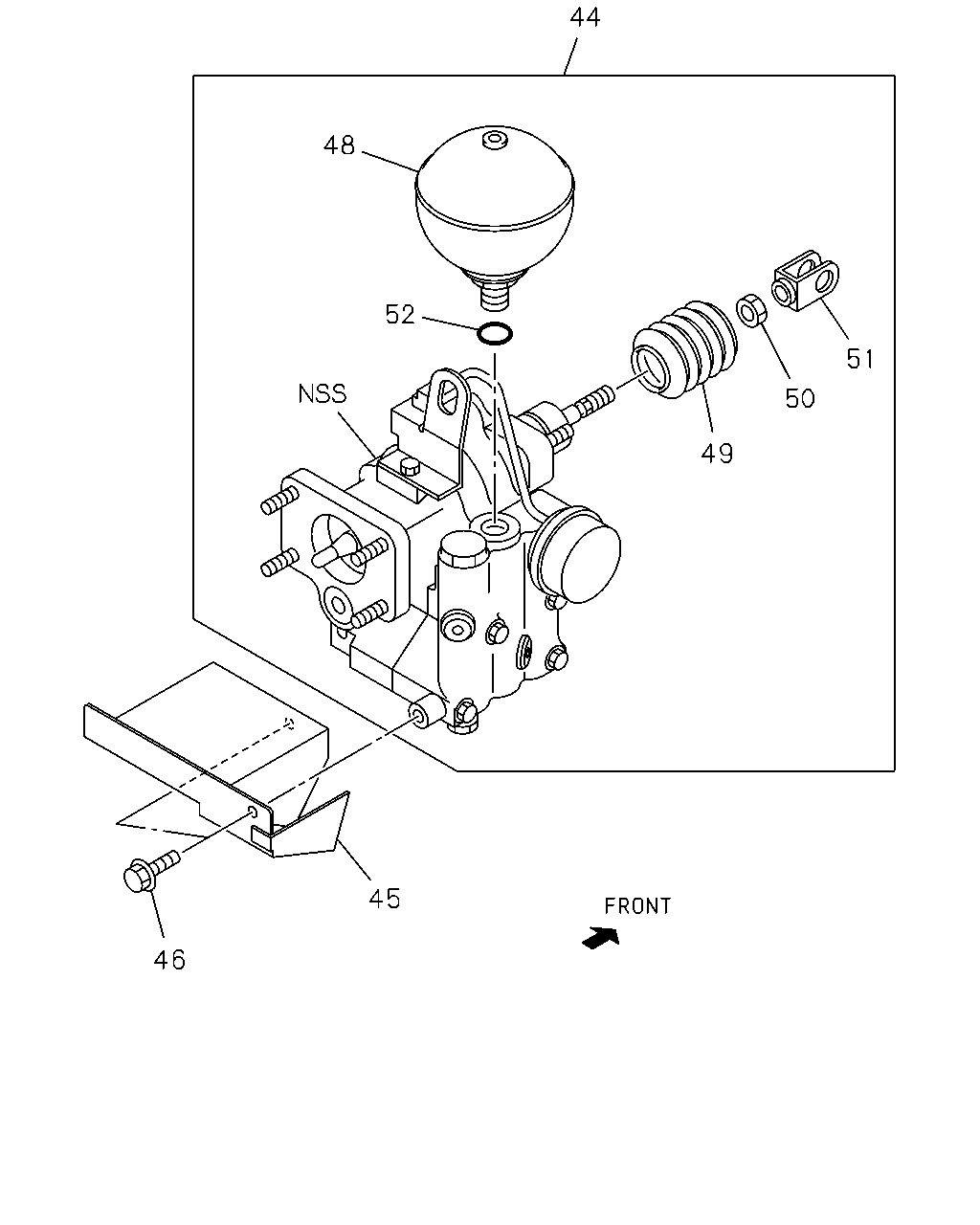

çizim 100828
44 48 52 51 50 49 45 46
BalonParca AdiParca NoAdetTipApplied Date
44 BOOSTER; HYDRAULIC BRK
HYDRO BRAKE BOOSTER<7QQ> 		8-98031-414-0 01 1 0911-
45 PROTECTOR; HEAT
HYDRO BRAKE BOOSTER<7QQ> 		8-97182-354-1 01 1 0911-
46 BOLT; HEAT PROTECTOR
HYDRO BRAKE BOOSTER<7QQ> M6X10 FLANGE 		0-28050-610-0 02 1 0911-
48 ACCUMULATOR; HYDRO BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-98038-346-0 01 1 0911-
49 GUARD; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97191-043-0 01 1 0911-
50 NUT; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-98038-349-0 01 1 0911-
51 CLEVIS; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-98038-347-0 01 1 0911-
52 GASKET; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97191-038-0 01 1 0911-
