Sayfa 8-80 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶

8-80 — WINDSHIELD WIPER AND WASHER (#46592) — 173 parça

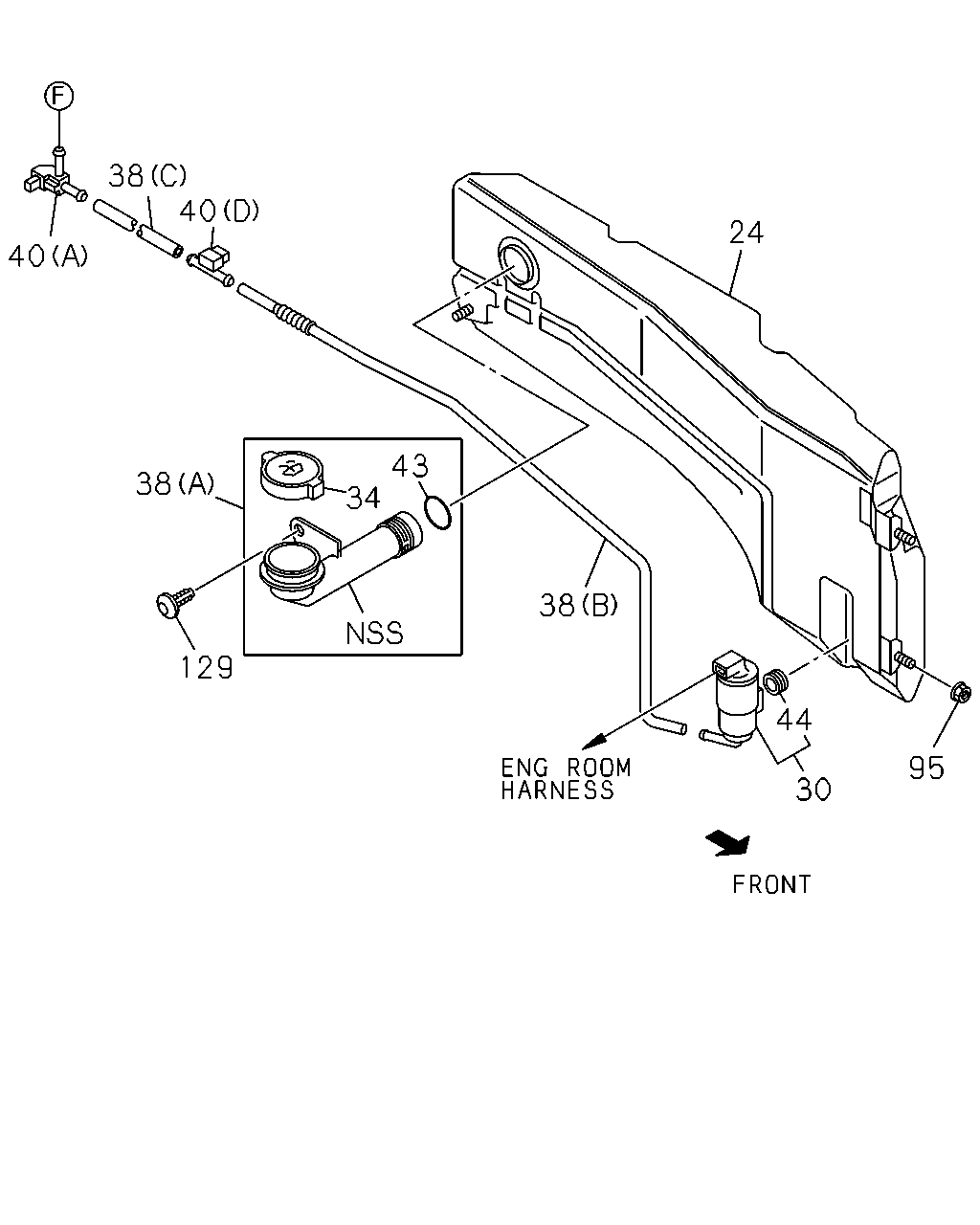

38 40 24 40 43 34 38 38 129 44 95 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	TANK ASM; WASHER THA	8-97314-347-0	01	1	0303-0612	●	●
24	TANK ASM; WASHER THA	8-98057-609-0	01	1	0701-	●	●
30	MOTOR ASM; FRT WASHER TANK THA	8-97314-350-0	01	1	0303-	●	●
34	CAP; WASHER TANK THA	8-97349-905-0	01	1	0303-	●	●
38	HOSE; JOINT,TANK (A) THA	8-97310-064-1	01	1	0303-	●	●
38	HOSE; JOINT,TANK (B) THA	8-97314-351-0	01	1	0303-0305	●	●
38	HOSE; JOINT,TANK (B) THA	8-97361-901-0	01	1	0306-0504	●	●
38	HOSE; JOINT,TANK (B) THA	8-98011-321-0	01	1	0505-	●	●
38	HOSE; JOINT,TANK (C) THA	8-98051-635-0	01	1	0607-0710	●	●
40	JOINT; WASHER HOSE (A) THA	8-94335-627-0	01	1	0303-0710	●	●
40	JOINT; WASHER HOSE (B) IMA	8-97178-847-0	02	1	0303-	●	●
40	JOINT; WASHER HOSE (C) THA	8-97215-337-0	01	1	0303-	●	●
40	JOINT; WASHER HOSE (D) THA	8-97314-270-0	01	1	0303-0710	●	●
43	RUBBER; GASKET,TANK THA	8-97349-906-0	01	1	0303-	●	●
44	GASKET; MOTOR TO TANK IMA	8-94352-050-0	01	1	0303-	●	●
95	NUT; WASHER TANK M6 W/DISHED WASHER THA	8-94170-192-0	03	1	0303-0610	●	●
95	NUT; WASHER TANK M6 W/DISHED WASHER THA	8-98049-368-0	03	1	0611-	●	●
129	CLIP; JOINT HOSE L=19 BLACK IMA	8-94363-776-0	01	1	0303-	●	●

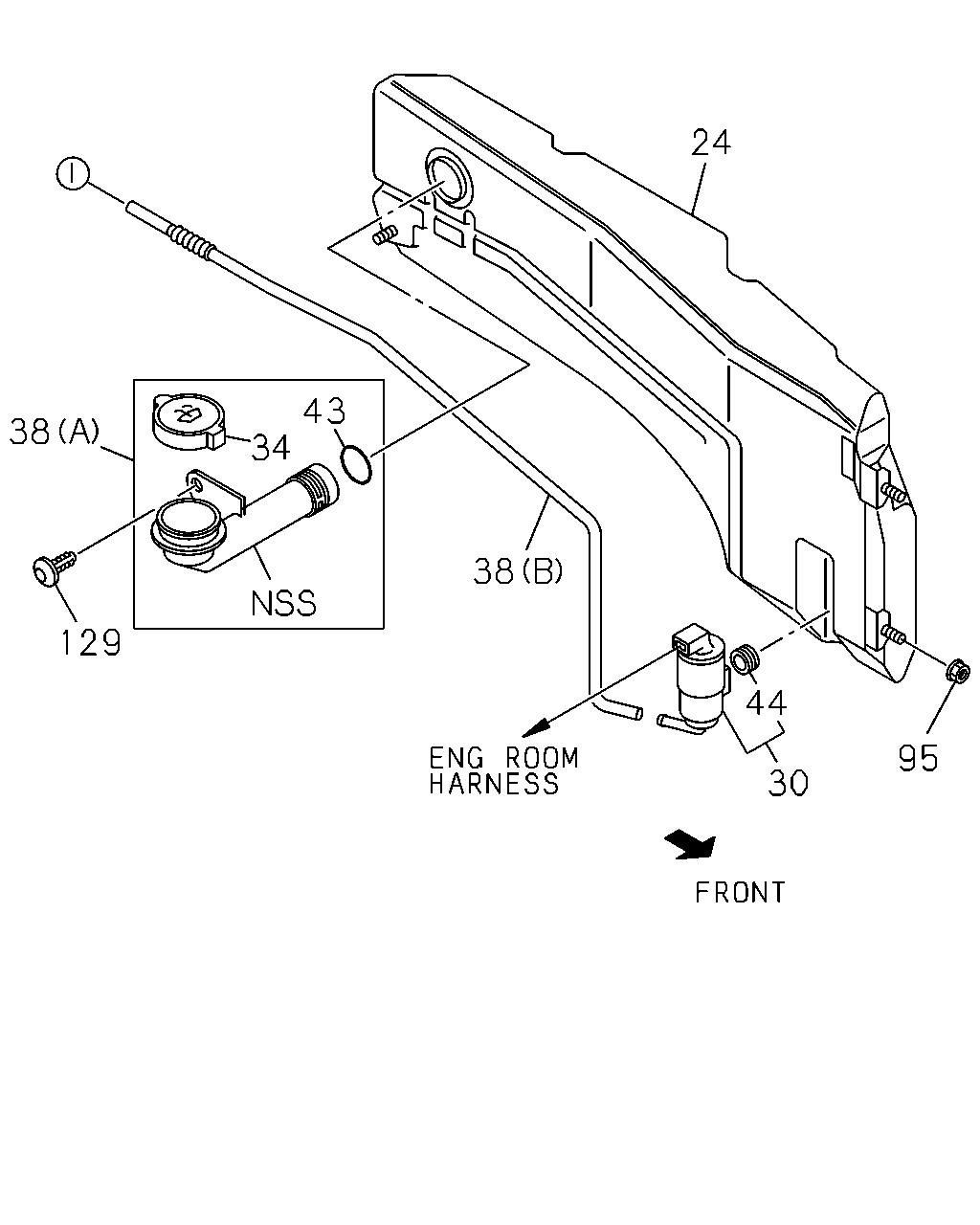

24 43 34 38 38 129 44 95 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	TANK ASM; WASHER THA	8-97314-347-0	01	1	0303-0612	●	●
24	TANK ASM; WASHER THA	8-98057-609-0	01	1	0701-	●	●
30	MOTOR ASM; FRT WASHER TANK THA	8-97314-350-0	01	1	0303-	●	●
34	CAP; WASHER TANK THA	8-97349-905-0	01	1	0303-	●	●
38	HOSE; JOINT,TANK (A) THA	8-97310-064-1	01	1	0303-	●	●
38	HOSE; JOINT,TANK (B) THA	8-97314-351-0	01	1	0303-0305	●	●
38	HOSE; JOINT,TANK (B) THA	8-97361-901-0	01	1	0306-0504	●	●
38	HOSE; JOINT,TANK (B) THA	8-98011-321-0	01	1	0505-	●	●
38	HOSE; JOINT,TANK (C) THA	8-98051-635-0	01	1	0607-0710	●	●
43	RUBBER; GASKET,TANK THA	8-97349-906-0	01	1	0303-	●	●
44	GASKET; MOTOR TO TANK IMA	8-94352-050-0	01	1	0303-	●	●
95	NUT; WASHER TANK M6 W/DISHED WASHER THA	8-94170-192-0	03	1	0303-0610	●	●
95	NUT; WASHER TANK M6 W/DISHED WASHER THA	8-98049-368-0	03	1	0611-	●	●
129	CLIP; JOINT HOSE L=19 BLACK IMA	8-94363-776-0	01	1	0303-	●	●

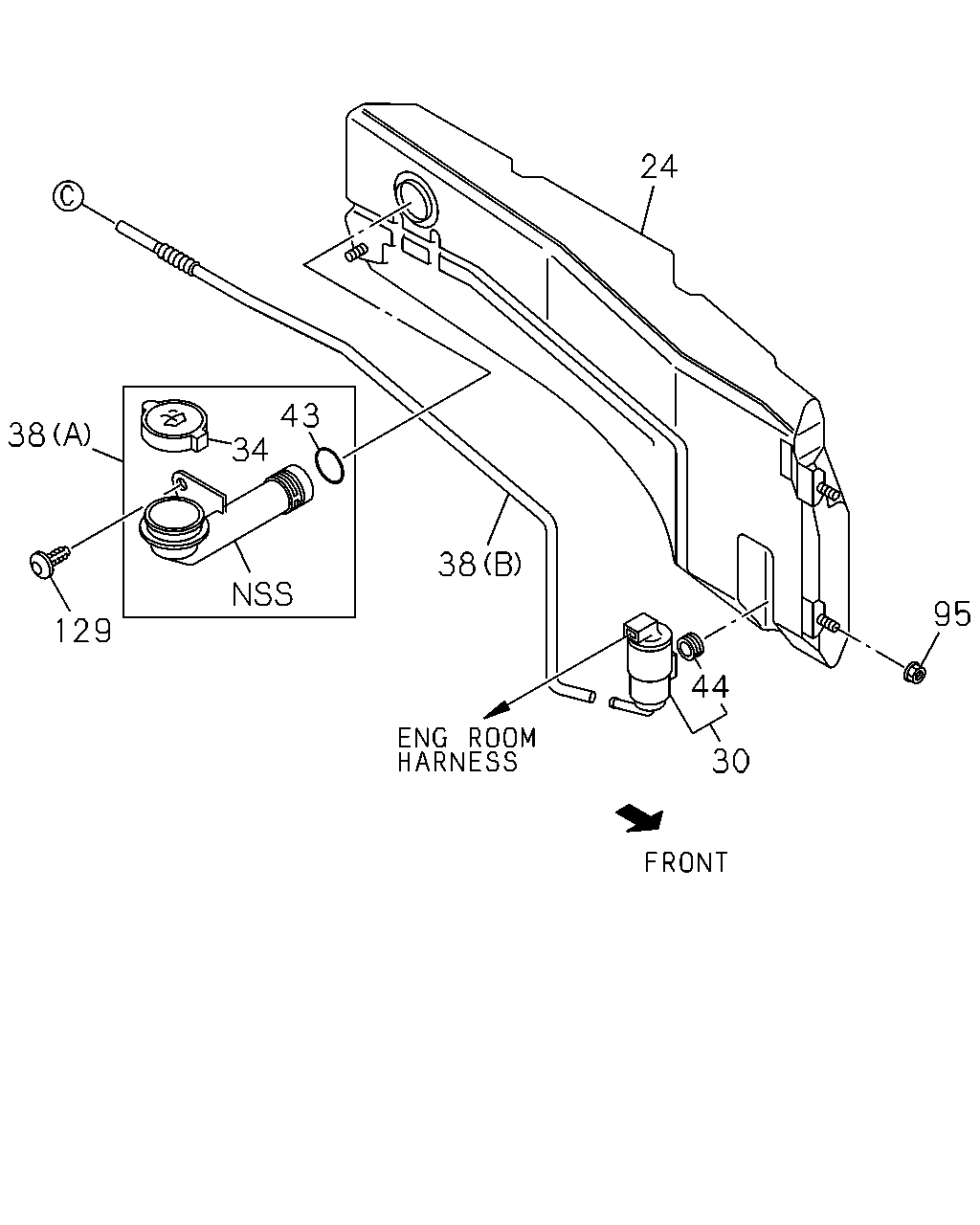

24 43 34 38 38 95 129 44 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	TANK ASM; WASHER THA	8-97314-347-0	01	1	0303-0612	●	●
24	TANK ASM; WASHER THA	8-98057-609-0	01	1	0701-	●	●
30	MOTOR ASM; FRT WASHER TANK THA	8-97314-350-0	01	1	0303-	●	●
34	CAP; WASHER TANK THA	8-97349-905-0	01	1	0303-	●	●
38	HOSE; JOINT,TANK (A) THA	8-97310-064-1	01	1	0303-	●	●
38	HOSE; JOINT,TANK (B) THA	8-97314-351-0	01	1	0303-0305	●	●
38	HOSE; JOINT,TANK (B) THA	8-97361-901-0	01	1	0306-0504	●	●
38	HOSE; JOINT,TANK (B) THA	8-98011-321-0	01	1	0505-	●	●
38	HOSE; JOINT,TANK (C) THA	8-98051-635-0	01	1	0607-0710	●	●
43	RUBBER; GASKET,TANK THA	8-97349-906-0	01	1	0303-	●	●
44	GASKET; MOTOR TO TANK IMA	8-94352-050-0	01	1	0303-	●	●
95	NUT; WASHER TANK M6 W/DISHED WASHER THA	8-94170-192-0	03	1	0303-0610	●	●
95	NUT; WASHER TANK M6 W/DISHED WASHER THA	8-98049-368-0	03	1	0611-	●	●
129	CLIP; JOINT HOSE L=19 BLACK IMA	8-94363-776-0	01	1	0303-	●	●

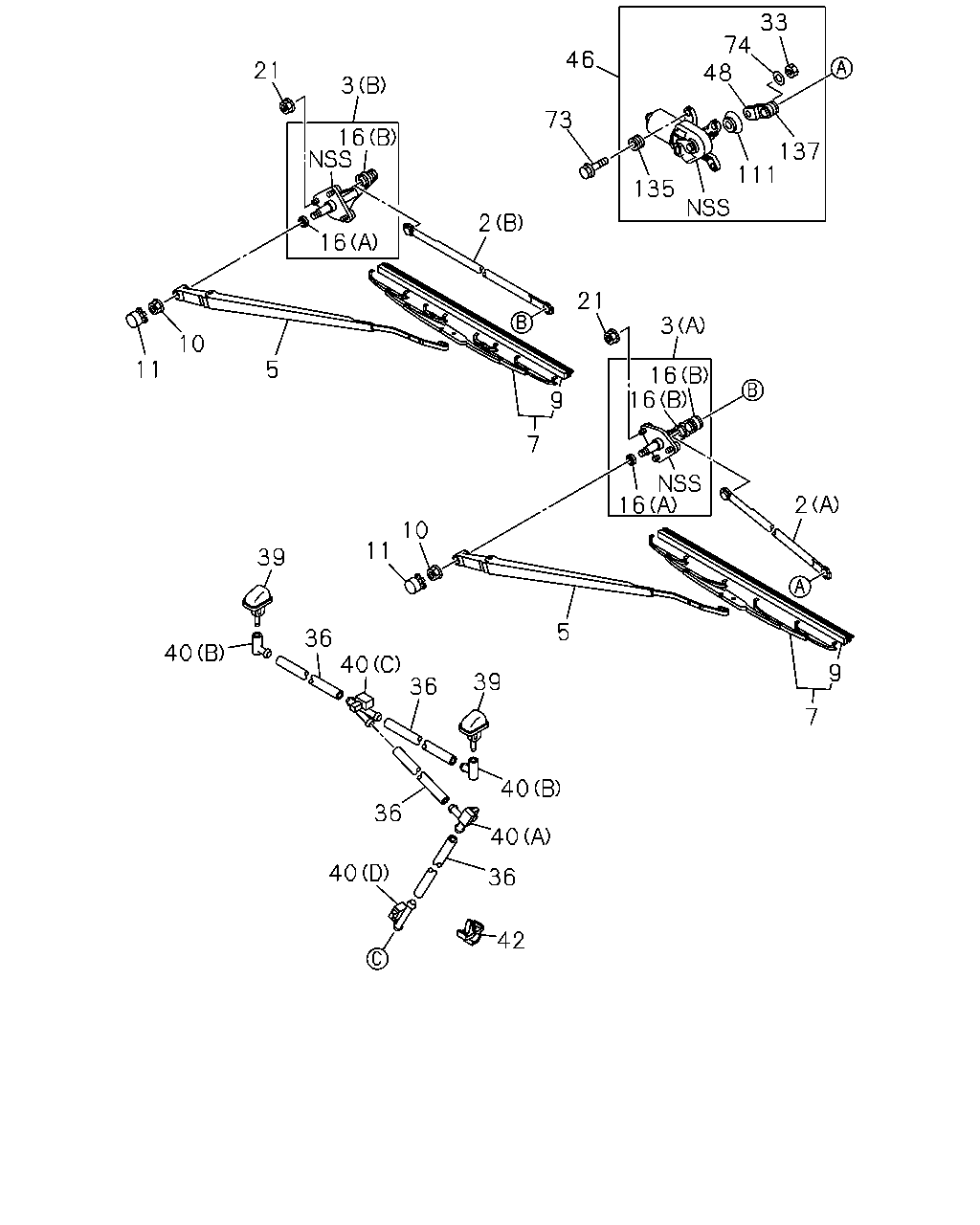

33 74 48 46 21 3 73 16 137 111 135 2 16 21 3 10 11 5 16 16 9 7 16 39 2 10 11 36 40 40 36 5 9 39 7 36 40 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINK; FRT WIPER (A) THA	8-97349-892-0	01	1	0303-	●	●
2	LINK; FRT WIPER (B) THA	8-97349-893-0	01	1	0303-	●	●
3	PIVOT ASM; FRT WIPER (A) THA	8-97349-890-0	01	1	0303-0612	●	●
3	PIVOT ASM; FRT WIPER (A) THA	8-98057-712-0	01	1	0701-	●	●
3	PIVOT ASM; FRT WIPER (B) THA	8-97349-891-0	01	1	0303-0612	●	●
3	PIVOT ASM; FRT WIPER (B) THA	8-98057-714-0	01	1	0701-	●	●
5	ARM; WIPER THA	8-97349-902-0	01	1	0303-	●	●
5	ARM; WIPER THA	8-97349-899-0	01	1	0303-	●	●
7	BLADE; WIPER L=475 THA	8-97349-903-0	01	1	0303-	●	●
7	BLADE; WIPER L=550 THA	8-97349-900-0	01	1	0303-	●	●
9	RUBBER; FRT WIPER BLADE L=475 THA	8-97349-904-0	01	1	0303-	●	●
9	RUBBER; FRT WIPER BLADE L=550 THA	8-97349-901-0	01	1	0303-	●	●
10	NUT; WIPER ARM TO WIPER PIVOT M10 FLANGE THA	8-94144-220-0	02	1	0303-0610	●	●
10	NUT; WIPER ARM TO WIPER PIVOT M10 FLANGE THA	8-98049-367-0	02	1	0611-	●	●
11	COVER; WIPER ARM THA	8-94367-999-0	02	1	0303-	●	●
16	SEAL; BALL JOINT (B) THA	8-97025-889-0	03	1	0303-	●	●
16	SEAL; BALL JOINT (A) THA	8-97349-894-0	02	1	0303-	●	●
21	NUT; WIPER LINK PIVOT M6 W/DISHED WASHER THA	8-94423-325-0	06	1	0303-0509	●	●
21	NUT; WIPER LINK PIVOT M6 FLANGE THA	0-91150-106-0	06	1	0510-0603	●	●
21	NUT; WIPER LINK PIVOT M6 FLANGE THA	0-91180-106-0	06	1	0604-	●	●
33	NUT; MOTOR TO ARM THA	8-97349-898-0	01	1	0303-	●	●
36	HOSE; WASHER SERVICED BY L=10000 THA	8-97349-607-0	01	1	0303-	●	●
39	NOZZLE; WINDSHIELD WASHER THA	8-97238-519-0	02	1	0303-0606	●	●
39	NOZZLE; WINDSHIELD WASHER THA	8-98008-112-0	02	1	0607-	●	●
40	JOINT; WASHER HOSE (A) THA	8-94335-627-0	01	1	0303-0710	●	●
40	JOINT; WASHER HOSE (B) IMA	8-97178-847-0	02	1	0303-	●	●
40	JOINT; WASHER HOSE (C) THA	8-97215-337-0	01	1	0303-	●	●
40	JOINT; WASHER HOSE (D) THA	8-97314-270-0	01	1	0303-0710	●	●
42	CLIP; WASHER HOSE ID=5.8 L=8 THA	8-94155-681-0	01	1	0303-0606	●	●
42	CLIP; WASHER HOSE ID=5.8 L=8 THA	8-94155-681-0	03	1	0607-	●	●
46	MOTOR ASM; FRT WINDSHIELD WIPER THA	8-97302-102-1	01	1	0303-0305	●	●
46	MOTOR ASM; FRT WINDSHIELD WIPER THA	8-97364-369-0	01	1	0306-0612	●	●
46	MOTOR ASM; FRT WINDSHIELD WIPER THA	8-98057-621-0	01	1	0701-	●	●
48	ARM; WIPER MOTOR THA	8-97349-895-0	01	1	0303-0612	●	●
48	ARM; WIPER MOTOR THA	8-98057-654-0	01	1	0701-	●	●
73	BOLT M6X33 W/PL WASHER THA	8-97164-266-0	04	1	0303-0609	●	●
73	BOLT M6X33 W/PL WASHER THA	8-98048-997-0	04	1	0610-	●	●
74	WASHER; ARM TO MOTOR THA	8-97349-897-0	01	1	0303-	●	●
111	SEAL; FRT WIPER MOTOR TO BRKT THA	8-97349-896-0	01	1	0303-	●	●
135	RUBBER; CUSHION,WIPER MOTOR THA	8-94387-088-0	04	1	0303-0612	●	●
135	RUBBER; CUSHION,WIPER MOTOR THA	8-98057-655-0	04	1	0701-	●	●
137	SEAL; JOINT,WIPER MOTOR THA	8-97025-889-0	01	1	0303-	●	●

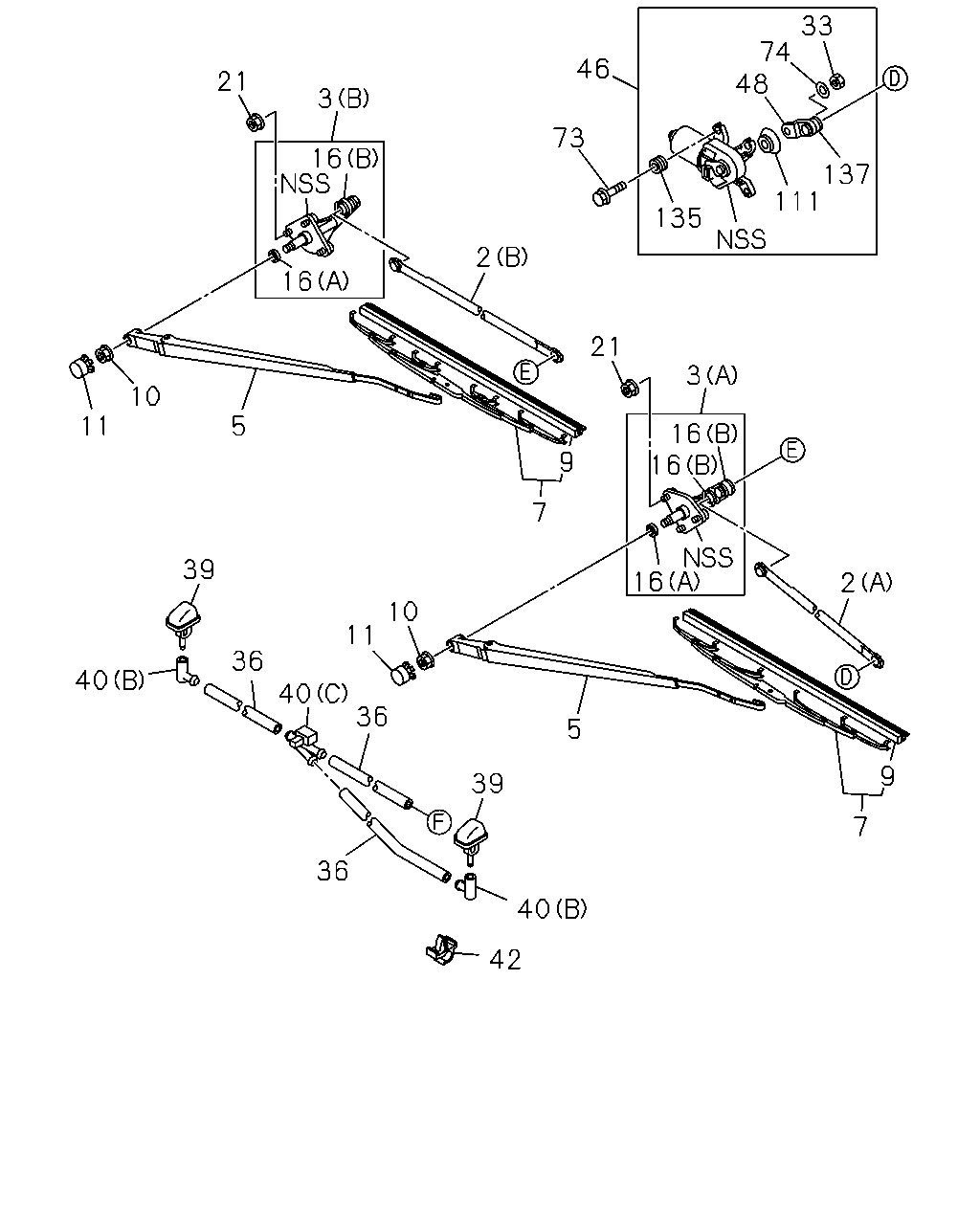

33 74 48 46 21 3 73 16 137 111 135 2 16 21 3 10 11 5 16 16 9 7 16 2 10 11 39 5 36 40 36 40 9 39 7 40 36 40 40 36 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINK; FRT WIPER (A) THA	8-97349-892-0	01	1	0303-	●	●
2	LINK; FRT WIPER (B) THA	8-97349-893-0	01	1	0303-	●	●
3	PIVOT ASM; FRT WIPER (A) THA	8-97349-890-0	01	1	0303-0612	●	●
3	PIVOT ASM; FRT WIPER (A) THA	8-98057-712-0	01	1	0701-	●	●
3	PIVOT ASM; FRT WIPER (B) THA	8-97349-891-0	01	1	0303-0612	●	●
3	PIVOT ASM; FRT WIPER (B) THA	8-98057-714-0	01	1	0701-	●	●
5	ARM; WIPER THA	8-97349-902-0	01	1	0303-	●	●
5	ARM; WIPER THA	8-97349-899-0	01	1	0303-	●	●
7	BLADE; WIPER L=475 THA	8-97349-903-0	01	1	0303-	●	●
7	BLADE; WIPER L=550 THA	8-97349-900-0	01	1	0303-	●	●
9	RUBBER; FRT WIPER BLADE L=475 THA	8-97349-904-0	01	1	0303-	●	●
9	RUBBER; FRT WIPER BLADE L=550 THA	8-97349-901-0	01	1	0303-	●	●
10	NUT; WIPER ARM TO WIPER PIVOT M10 FLANGE THA	8-94144-220-0	02	1	0303-0610	●	●
10	NUT; WIPER ARM TO WIPER PIVOT M10 FLANGE THA	8-98049-367-0	02	1	0611-	●	●
11	COVER; WIPER ARM THA	8-94367-999-0	02	1	0303-	●	●
16	SEAL; BALL JOINT (B) THA	8-97025-889-0	03	1	0303-	●	●
16	SEAL; BALL JOINT (A) THA	8-97349-894-0	02	1	0303-	●	●
21	NUT; WIPER LINK PIVOT M6 W/DISHED WASHER THA	8-94423-325-0	06	1	0303-0509	●	●
21	NUT; WIPER LINK PIVOT M6 FLANGE THA	0-91150-106-0	06	1	0510-0603	●	●
21	NUT; WIPER LINK PIVOT M6 FLANGE THA	0-91180-106-0	06	1	0604-	●	●
33	NUT; MOTOR TO ARM THA	8-97349-898-0	01	1	0303-	●	●
36	HOSE; WASHER SERVICED BY L=10000 THA	8-97349-607-0	01	1	0303-	●	●
39	NOZZLE; WINDSHIELD WASHER THA	8-97238-519-0	02	1	0303-0606	●	●
39	NOZZLE; WINDSHIELD WASHER THA	8-98008-112-0	02	1	0607-	●	●
40	JOINT; WASHER HOSE (A) THA	8-94335-627-0	01	1	0303-0710	●	●
40	JOINT; WASHER HOSE (B) IMA	8-97178-847-0	02	1	0303-	●	●
40	JOINT; WASHER HOSE (C) THA	8-97215-337-0	01	1	0303-	●	●
40	JOINT; WASHER HOSE (D) THA	8-97314-270-0	01	1	0303-0710	●	●
42	CLIP; WASHER HOSE ID=5.8 L=8 THA	8-94155-681-0	01	1	0303-0606	●	●
42	CLIP; WASHER HOSE ID=5.8 L=8 THA	8-94155-681-0	03	1	0607-	●	●
46	MOTOR ASM; FRT WINDSHIELD WIPER THA	8-97302-102-1	01	1	0303-0305	●	●
46	MOTOR ASM; FRT WINDSHIELD WIPER THA	8-97364-369-0	01	1	0306-0612	●	●
46	MOTOR ASM; FRT WINDSHIELD WIPER THA	8-98057-621-0	01	1	0701-	●	●
48	ARM; WIPER MOTOR THA	8-97349-895-0	01	1	0303-0612	●	●
48	ARM; WIPER MOTOR THA	8-98057-654-0	01	1	0701-	●	●
73	BOLT M6X33 W/PL WASHER THA	8-97164-266-0	04	1	0303-0609	●	●
73	BOLT M6X33 W/PL WASHER THA	8-98048-997-0	04	1	0610-	●	●
74	WASHER; ARM TO MOTOR THA	8-97349-897-0	01	1	0303-	●	●
111	SEAL; FRT WIPER MOTOR TO BRKT THA	8-97349-896-0	01	1	0303-	●	●
135	RUBBER; CUSHION,WIPER MOTOR THA	8-94387-088-0	04	1	0303-0612	●	●
135	RUBBER; CUSHION,WIPER MOTOR THA	8-98057-655-0	04	1	0701-	●	●
137	SEAL; JOINT,WIPER MOTOR THA	8-97025-889-0	01	1	0303-	●	●

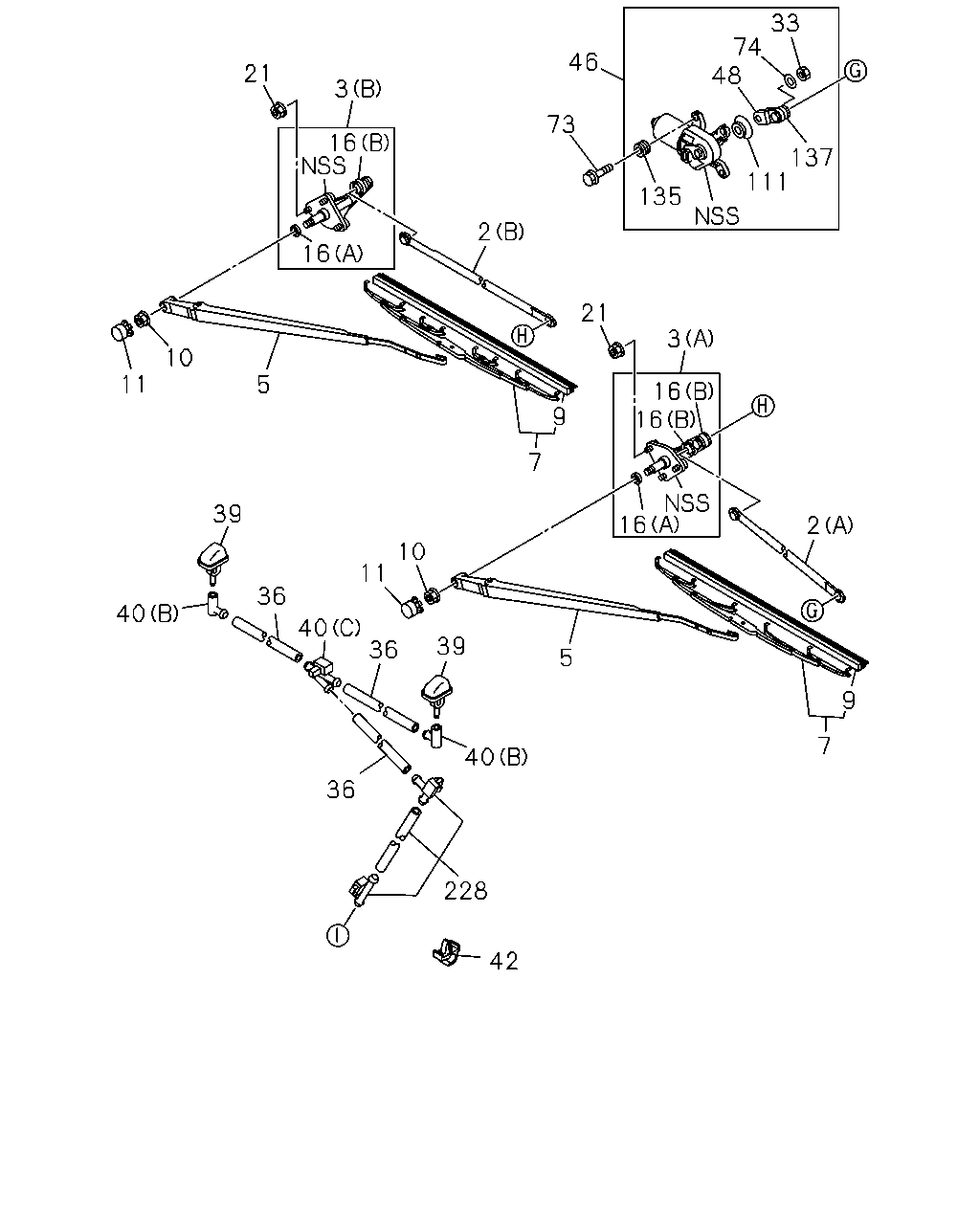

33 74 48 46 21 3 73 16 137 111 135 2 16 21 3 10 11 5 16 16 9 7 16 39 2 10 11 36 40 40 36 39 5 9 7 40 36 228 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINK; FRT WIPER (A) THA	8-97349-892-0	01	1	0303-	●	●
2	LINK; FRT WIPER (B) THA	8-97349-893-0	01	1	0303-	●	●
3	PIVOT ASM; FRT WIPER (A) THA	8-97349-890-0	01	1	0303-0612	●	●
3	PIVOT ASM; FRT WIPER (A) THA	8-98057-712-0	01	1	0701-	●	●
3	PIVOT ASM; FRT WIPER (B) THA	8-97349-891-0	01	1	0303-0612	●	●
3	PIVOT ASM; FRT WIPER (B) THA	8-98057-714-0	01	1	0701-	●	●
5	ARM; WIPER THA	8-97349-902-0	01	1	0303-	●	●
5	ARM; WIPER THA	8-97349-899-0	01	1	0303-	●	●
7	BLADE; WIPER L=475 THA	8-97349-903-0	01	1	0303-	●	●
7	BLADE; WIPER L=550 THA	8-97349-900-0	01	1	0303-	●	●
9	RUBBER; FRT WIPER BLADE L=475 THA	8-97349-904-0	01	1	0303-	●	●
9	RUBBER; FRT WIPER BLADE L=550 THA	8-97349-901-0	01	1	0303-	●	●
10	NUT; WIPER ARM TO WIPER PIVOT M10 FLANGE THA	8-94144-220-0	02	1	0303-0610	●	●
10	NUT; WIPER ARM TO WIPER PIVOT M10 FLANGE THA	8-98049-367-0	02	1	0611-	●	●
11	COVER; WIPER ARM THA	8-94367-999-0	02	1	0303-	●	●
16	SEAL; BALL JOINT (B) THA	8-97025-889-0	03	1	0303-	●	●
16	SEAL; BALL JOINT (A) THA	8-97349-894-0	02	1	0303-	●	●
21	NUT; WIPER LINK PIVOT M6 W/DISHED WASHER THA	8-94423-325-0	06	1	0303-0509	●	●
21	NUT; WIPER LINK PIVOT M6 FLANGE THA	0-91150-106-0	06	1	0510-0603	●	●
21	NUT; WIPER LINK PIVOT M6 FLANGE THA	0-91180-106-0	06	1	0604-	●	●
33	NUT; MOTOR TO ARM THA	8-97349-898-0	01	1	0303-	●	●
36	HOSE; WASHER SERVICED BY L=10000 THA	8-97349-607-0	01	1	0303-	●	●
39	NOZZLE; WINDSHIELD WASHER THA	8-97238-519-0	02	1	0303-0606	●	●
39	NOZZLE; WINDSHIELD WASHER THA	8-98008-112-0	02	1	0607-	●	●
40	JOINT; WASHER HOSE (A) THA	8-94335-627-0	01	1	0303-0710	●	●
40	JOINT; WASHER HOSE (B) IMA	8-97178-847-0	02	1	0303-	●	●
40	JOINT; WASHER HOSE (C) THA	8-97215-337-0	01	1	0303-	●	●
40	JOINT; WASHER HOSE (D) THA	8-97314-270-0	01	1	0303-0710	●	●
42	CLIP; WASHER HOSE ID=5.8 L=8 THA	8-94155-681-0	01	1	0303-0606	●	●
42	CLIP; WASHER HOSE ID=5.8 L=8 THA	8-94155-681-0	03	1	0607-	●	●
46	MOTOR ASM; FRT WINDSHIELD WIPER THA	8-97302-102-1	01	1	0303-0305	●	●
46	MOTOR ASM; FRT WINDSHIELD WIPER THA	8-97364-369-0	01	1	0306-0612	●	●
46	MOTOR ASM; FRT WINDSHIELD WIPER THA	8-98057-621-0	01	1	0701-	●	●
48	ARM; WIPER MOTOR THA	8-97349-895-0	01	1	0303-0612	●	●
48	ARM; WIPER MOTOR THA	8-98057-654-0	01	1	0701-	●	●
73	BOLT M6X33 W/PL WASHER THA	8-97164-266-0	04	1	0303-0609	●	●
73	BOLT M6X33 W/PL WASHER THA	8-98048-997-0	04	1	0610-	●	●
74	WASHER; ARM TO MOTOR THA	8-97349-897-0	01	1	0303-	●	●
111	SEAL; FRT WIPER MOTOR TO BRKT THA	8-97349-896-0	01	1	0303-	●	●
135	RUBBER; CUSHION,WIPER MOTOR THA	8-94387-088-0	04	1	0303-0612	●	●
135	RUBBER; CUSHION,WIPER MOTOR THA	8-98057-655-0	04	1	0701-	●	●
137	SEAL; JOINT,WIPER MOTOR THA	8-97025-889-0	01	1	0303-	●	●
228	HOSE ASM; WASHER THA	8-98115-892-0	01	1	0711-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
