◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-74 - EVAPORATOR ▶

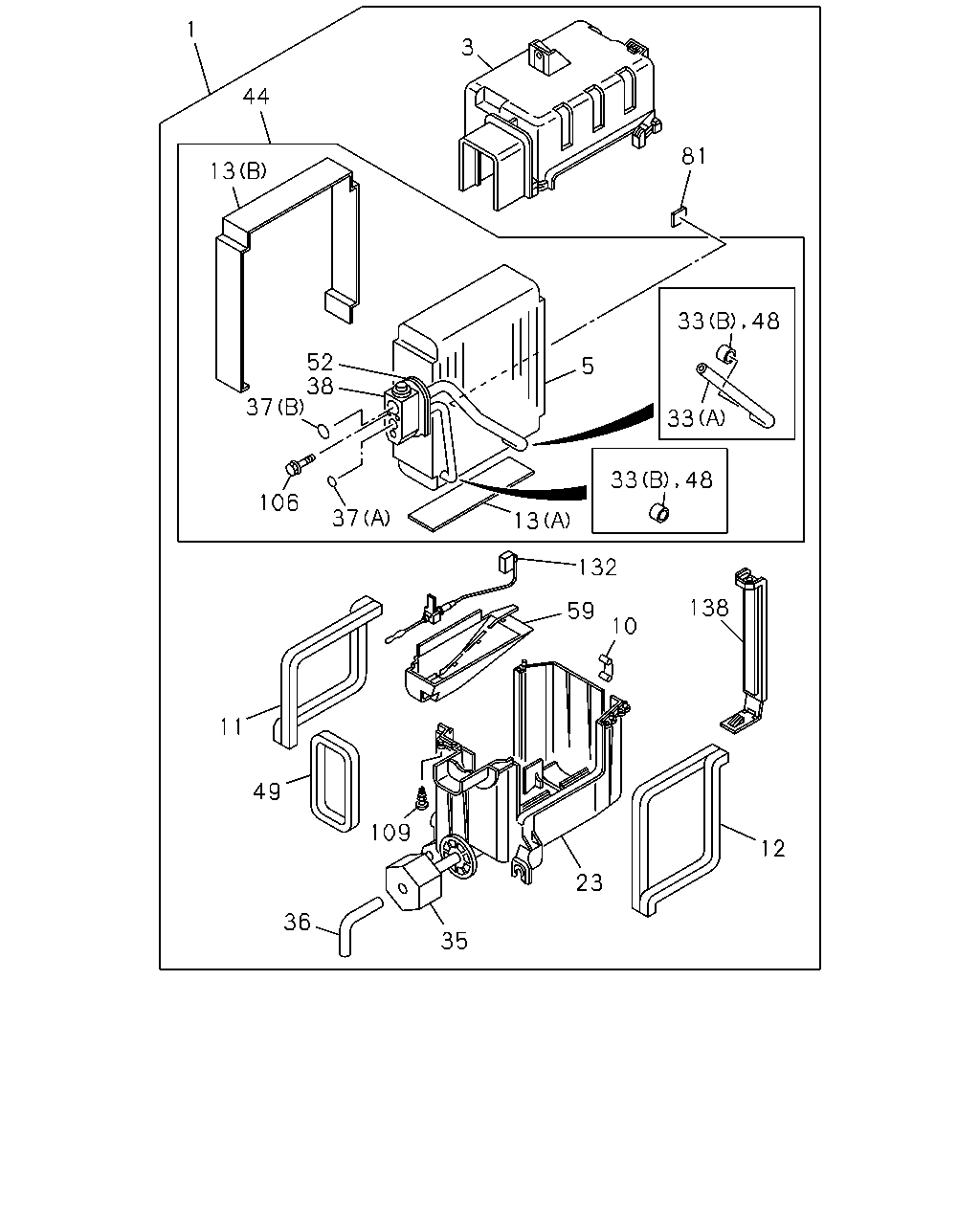

8-74 — EVAPORATOR (#46590) — 124 parça
çizim 46291
1 3 44 81 13 52 38 37 5 33 106 37 13 132 138 59 10 11 49 109 12 23 36 35 33 48 48 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 EVAPORATOR ASM
THA 		8-97248-946-2 01 1 0303-0404 ● ●
1 EVAPORATOR ASM
THA 		8-97365-295-0 01 1 0405-0408 ● ●
1 EVAPORATOR ASM
4JJ1 ENG<LFB> THA 		8-97388-776-0 01 1 0409-0412 ● ●
1 EVAPORATOR ASM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-97388-776-0 01 1 0501-0503 ● ●
1 EVAPORATOR ASM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-98000-724-0 01 1 0504-0508 ● ●
1 EVAPORATOR ASM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98000-724-0 01 1 0509-0606 ● ●
1 EVAPORATOR ASM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98045-303-0 01 1 0607-0701 ● ●
1 EVAPORATOR ASM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98063-494-0 01 1 0702-0710 ● ●
1 EVAPORATOR ASM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98086-166-0 01 1 0711- ● ●
3 CASE; EVAP,UPR
THA 		8-97321-144-0 01 1 0303-0408 ● ●
3 CASE; EVAP,UPR
4JJ1 ENG<LFB> THA 		8-97321-144-0 01 1 0409-0412 ● ●
3 CASE; EVAP,UPR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-97321-144-0 01 1 0501-0508 ● ●
3 CASE; EVAP,UPR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97321-144-0 01 1 0509-0606 ● ●
3 CASE; EVAP,UPR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98055-332-0 01 1 0607- ● ●
5 EVAPORATOR
THA 		8-97321-148-0 01 1 0303-0408 ● ●
5 EVAPORATOR
4JJ1 ENG<LFB> THA 		8-97321-148-0 01 1 0409-0412 ● ●
5 EVAPORATOR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-97321-148-0 01 1 0501-0508 ● ●
5 EVAPORATOR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97321-148-0 01 1 0509-0606 ● ●
5 EVAPORATOR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98055-342-0 01 1 0607-0701 ● ●
5 EVAPORATOR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98063-687-0 01 1 0702- ● ●
10 CLIP; EVAP CASE
THA 		8-97321-166-0 01 1 0303-0408 ● ●
10 CLIP; EVAP CASE
4JJ1 ENG<LFB> THA 		8-97321-166-0 01 1 0409-0412 ● ●
10 CLIP; EVAP CASE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-97321-166-0 01 1 0501-0508 ● ●
10 CLIP; EVAP CASE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97321-166-0 01 1 0509-0710 ● ●
10 CLIP; EVAP CASE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98088-089-0 01 1 0711- ● ●
11 LINING; EVAP A/C
THA 		8-97321-159-0 01 1 0303-0408 ● ●
11 LINING; EVAP A/C
4JJ1 ENG<LFB> THA 		8-97321-159-0 01 1 0409-0412 ● ●
11 LINING; EVAP A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-97321-159-0 01 1 0501-0508 ● ●
11 LINING; EVAP A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97321-159-0 01 1 0509- ● ●
12 LINING; EVAP
THA 		8-97321-160-0 01 1 0303-0408 ● ●
12 LINING; EVAP
4JJ1 ENG<LFB> THA 		8-97321-160-0 01 1 0409-0412 ● ●
12 LINING; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-97321-160-0 01 1 0501-0508 ● ●
12 LINING; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97321-160-0 01 1 0509-0701 ● ●
12 LINING; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98063-684-0 01 1 0702- ● ●
13 SEAL; EVAP
(A) THA 		8-97321-150-0 01 1 0303-0408 ● ●
13 SEAL; EVAP
4JJ1 ENG<LFB> (A) THA 		8-97370-355-0 01 1 0409-0412 ● ●
13 SEAL; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> (A) THA 		8-97370-355-0 01 1 0501-0508 ● ●
13 SEAL; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) THA 		8-97370-355-0 01 1 0509-0606 ● ●
13 SEAL; EVAP
(B) THA 		8-97321-151-0 01 1 0303-0408 ● ●
13 SEAL; EVAP
4JJ1 ENG<LFB> (B) THA 		8-97321-151-0 01 1 0409-0412 ● ●
13 SEAL; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> (B) THA 		8-97321-151-0 01 1 0501-0508 ● ●
13 SEAL; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) THA 		8-97321-151-0 01 1 0509-0606 ● ●
13 SEAL; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) THA 		8-98055-345-0 01 1 0607- ● ●
23 CASE; EVAP,LWR
THA 		8-97321-145-0 01 1 0303-0408 ● ●
23 CASE; EVAP,LWR
4JJ1 ENG<LFB> THA 		8-97321-145-0 01 1 0409-0412 ● ●
23 CASE; EVAP,LWR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-97321-145-0 01 1 0501-0508 ● ●
23 CASE; EVAP,LWR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97321-145-0 01 1 0509-0606 ● ●
23 CASE; EVAP,LWR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98055-336-0 01 1 0607- ● ●
33 LINING; EVAP
4JJ1 ENG<LFB> (A) THA 		8-97368-626-0 01 1 0409-0412 ● ●
33 LINING; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> (A) THA 		8-97368-626-0 01 1 0501-0508 ● ●
33 LINING; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) THA 		8-97368-626-0 01 1 0509-0606 ● ●
33 LINING; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> (B) THA 		8-98018-524-0 02 1 0504-0508 ● ●
33 LINING; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) THA 		8-98018-524-0 02 1 0509-0606 ● ●
35 GROMMET; EVAP,LOW
THA 		8-97321-157-0 01 1 0303-0408 ● ●
35 GROMMET; EVAP,LOW
4JJ1 ENG<LFB> THA 		8-97321-157-0 01 1 0409-0412 ● ●
35 GROMMET; EVAP,LOW
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-97321-157-0 01 1 0501-0508 ● ●
35 GROMMET; EVAP,LOW
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97321-157-0 01 1 0509- ● ●
36 HOSE; DRAIN EVAP
THA 		8-97324-579-0 01 1 0303-0408 ● ●
36 HOSE; DRAIN EVAP
4JJ1 ENG<LFB> THA 		8-97324-579-0 01 1 0409-0412 ● ●
36 HOSE; DRAIN EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-97324-579-0 01 1 0501-0508 ● ●
36 HOSE; DRAIN EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97324-579-0 01 1 0509- ● ●
37 GASKET; EVAP
(A) THA 		8-97321-154-0 01 1 0303-0408 ● ●
37 GASKET; EVAP
4JJ1 ENG<LFB> (A) THA 		8-97321-154-0 01 1 0409-0412 ● ●
37 GASKET; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> (A) THA 		8-97321-154-0 01 1 0501-0508 ● ●
37 GASKET; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) THA 		8-97321-154-0 01 1 0509- ● ●
37 GASKET; EVAP
(B) THA 		8-97321-155-0 01 1 0303-0408 ● ●
37 GASKET; EVAP
4JJ1 ENG<LFB> (B) THA 		8-97321-155-0 01 1 0409-0412 ● ●
37 GASKET; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> (B) THA 		8-97321-155-0 01 1 0501-0508 ● ●
37 GASKET; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) THA 		8-97321-155-0 01 1 0509- ● ●
38 VALVE; EXPANSION
THA 		8-97321-149-0 01 1 0303-0404 ● ●
38 VALVE; EXPANSION
THA 		8-97381-265-0 01 1 0405-0408 ● ●
38 VALVE; EXPANSION
4JJ1 ENG<LFB> THA 		8-97381-265-0 01 1 0409-0412 ● ●
38 VALVE; EXPANSION
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-97381-265-0 01 1 0501-0503 ● ●
38 VALVE; EXPANSION
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-97370-353-0 01 1 0504-0508 ● ●
38 VALVE; EXPANSION
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97370-353-0 01 1 0509-0606 ● ●
38 VALVE; EXPANSION
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98055-344-0 01 1 0607-0701 ● ●
38 VALVE; EXPANSION
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98063-690-0 01 1 0702- ● ●
44 EVAPORATOR ASM; A/C
THA 		8-97321-147-0 01 1 0303-0408 ● ●
44 EVAPORATOR ASM; A/C
4JJ1 ENG<LFB> THA 		8-97381-618-0 01 1 0409-0412 ● ●
44 EVAPORATOR ASM; A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-97381-618-0 01 1 0501-0503 ● ●
44 EVAPORATOR ASM; A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-98018-520-0 01 1 0504-0508 ● ●
44 EVAPORATOR ASM; A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98018-520-0 01 1 0509-0606 ● ●
44 EVAPORATOR ASM; A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98055-340-0 01 1 0607-0701 ● ●
44 EVAPORATOR ASM; A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98063-685-0 01 1 0702-0710 ● ●
44 EVAPORATOR ASM; A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98090-235-0 01 1 0711- ● ●
48 INSULATOR; EVAP
4JJ1 ENG<LFB> THA 		8-98000-432-0 01 1 0409-0412 ● ●
48 INSULATOR; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-98000-432-0 01 1 0501-0503 ● ●
48 INSULATOR; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98055-347-0 01 1 0607-0710 ● ●
48 INSULATOR; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98090-228-0 01 1 0711- ● ●
49 GROMMET; EVAP
THA 		8-97321-158-1 01 1 0303-0408 ● ●
49 GROMMET; EVAP
4JJ1 ENG<LFB> THA 		8-97321-158-1 01 1 0409-0412 ● ●
49 GROMMET; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-97321-158-1 01 1 0501-0508 ● ●
49 GROMMET; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97321-158-1 01 1 0509- ● ●
52 GROMMET; EVAP,A/C
THA 		8-97321-152-0 01 1 0303-0408 ● ●
52 GROMMET; EVAP,A/C
4JJ1 ENG<LFB> THA 		8-97321-152-0 01 1 0409-0412 ● ●
52 GROMMET; EVAP,A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-97321-152-0 01 1 0501-0508 ● ●
52 GROMMET; EVAP,A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97321-152-0 01 1 0509- ● ●
59 LINING; EVAP,LWR
THA 		8-97321-146-0 01 1 0303-0408 ● ●
59 LINING; EVAP,LWR
4JJ1 ENG<LFB> THA 		8-97321-146-0 01 1 0409-0412 ● ●
59 LINING; EVAP,LWR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-97321-146-0 01 1 0501-0508 ● ●
59 LINING; EVAP,LWR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97321-146-0 01 1 0509- ● ●
81 CLIP; THERMOSTAT A/C
THA 		8-97321-161-0 01 1 0303-0408 ● ●
81 CLIP; THERMOSTAT A/C
4JJ1 ENG<LFB> THA 		8-97321-161-0 01 1 0409-0412 ● ●
81 CLIP; THERMOSTAT A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-97321-161-0 01 1 0501-0508 ● ●
81 CLIP; THERMOSTAT A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97321-161-0 01 1 0509- ● ●
106 BOLT; EXPANSION VLV
THA 		8-97321-153-0 02 1 0303-0408 ● ●
106 BOLT; EXPANSION VLV
4JJ1 ENG<LFB> THA 		8-97321-153-0 02 1 0409-0412 ● ●
106 BOLT; EXPANSION VLV
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-97321-153-0 02 1 0501-0508 ● ●
106 BOLT; EXPANSION VLV
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97321-153-0 02 1 0509-0701 ● ●
106 BOLT; EXPANSION VLV
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98072-395-0 02 1 0702- ● ●
109 BOLT; EVAP
THA 		8-97321-165-0 05 1 0303-0404 ● ●
109 BOLT; EVAP
THA 		8-97321-165-0 04 1 0405-0408 ● ●
109 BOLT; EVAP
4JJ1 ENG<LFB> THA 		8-97321-165-0 04 1 0409-0412 ● ●
109 BOLT; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-97321-165-0 04 1 0501-0508 ● ●
109 BOLT; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97321-165-0 04 1 0509-0701 ● ●
109 BOLT; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98071-323-0 04 1 0702- ● ●
132 AMPLIFIER; EVAP
THA 		8-97321-163-0 01 1 0303-0408 ● ●
132 AMPLIFIER; EVAP
4JJ1 ENG<LFB> THA 		8-97321-163-0 01 1 0409-0412 ● ●
132 AMPLIFIER; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-97321-163-0 01 1 0501-0508 ● ●
132 AMPLIFIER; EVAP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97321-163-0 01 1 0509- ● ●
138 COVER; CASE
THA 		8-97321-156-0 01 1 0303-0408 ● ●
138 COVER; CASE
4JJ1 ENG<LFB> THA 		8-97321-156-0 01 1 0409-0412 ● ●
138 COVER; CASE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA 		8-97321-156-0 01 1 0501-0508 ● ●
138 COVER; CASE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97321-156-0 01 1 0509-0606 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
