◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#46589) — 28 parça

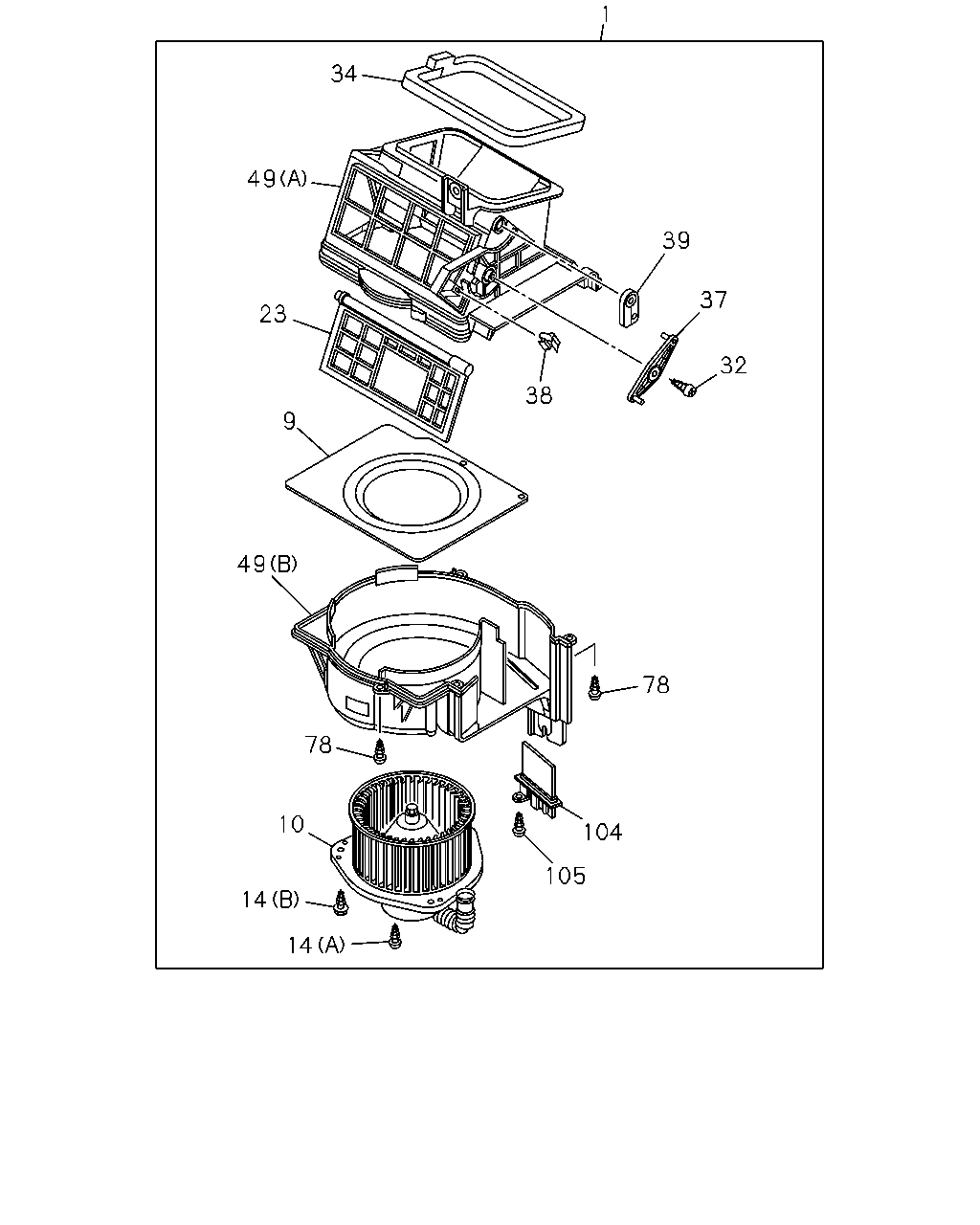

çizim 50951
1 34 49 39 37 23 32 38 9 49 78 78 10 104 105 14 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
THA 		8-97234-549-1 01 1 0303-0308 ● ●
1 BLOWER ASM
THA 		8-97369-321-1 01 1 0309-0412 ● ●
1 BLOWER ASM
THA 		8-98000-785-0 01 1 0501-0606 ● ●
1 BLOWER ASM
THA 		8-98034-543-0 01 1 0607-0703 ● ●
1 BLOWER ASM
THA 		8-98070-131-0 01 1 0704- ● ●
9 GUIDE; BELL MOUTH HTR
THA 		8-97321-265-0 01 1 0303-0703 ● ●
9 GUIDE; BELL MOUTH HTR
THA 		8-98072-803-0 01 1 0704- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
THA 		8-97321-270-0 01 1 0303-0412 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
THA 		8-98008-893-0 01 1 0501- ● ●
14 SCREW; COVER TO CASE
(A) THA 		8-97321-165-0 01 1 0303-0703 ● ●
14 SCREW; COVER TO CASE
(A) THA 		8-98070-135-0 01 1 0704- ● ●
14 SCREW; COVER TO CASE
(B) THA 		8-97321-275-0 03 1 0303-0703 ● ●
14 SCREW; COVER TO CASE
(B) THA 		8-98070-134-0 03 1 0704- ● ●
23 SHUTTER; BLOWER UNIT
THA 		8-97321-266-1 01 1 0303- ● ●
32 SCREW; LEVER
THA 		8-97321-276-0 01 1 0303-0703 ● ●
32 SCREW; LEVER
THA 		8-98070-136-0 01 1 0704- ● ●
34 LINING; BLOWER UNIT
THA 		8-97321-269-0 01 1 0303- ● ●
37 LEVER; MODE LEVER
THA 		8-97321-268-0 01 1 0303- ● ●
38 CLIP; BLOWER UNIT
THA 		8-97321-274-0 01 1 0303- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
THA 		8-97321-267-0 01 1 0303- ● ●
49 CASE; BLOWER UNIT
(A) THA 		8-97321-263-0 01 1 0303- ● ●
49 CASE; BLOWER UNIT
(B) THA 		8-97321-264-0 01 1 0303- ● ●
78 SCREW; CASE TO CASE
THA 		8-97321-165-0 05 1 0303-0703 ● ●
78 SCREW; CASE TO CASE
THA 		8-98070-135-0 05 1 0704- ● ●
104 RESISTOR; BLOWER UNIT
THA 		8-97321-273-0 01 1 0303-0606 ● ●
104 RESISTOR; BLOWER UNIT
THA 		8-98049-394-0 01 1 0607- ● ●
105 SCREW; RESISTOR
THA 		8-97321-165-0 02 1 0303-0703 ● ●
105 SCREW; RESISTOR
THA 		8-98070-135-0 02 1 0704- ● ●
