◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#46588) — 20 parça

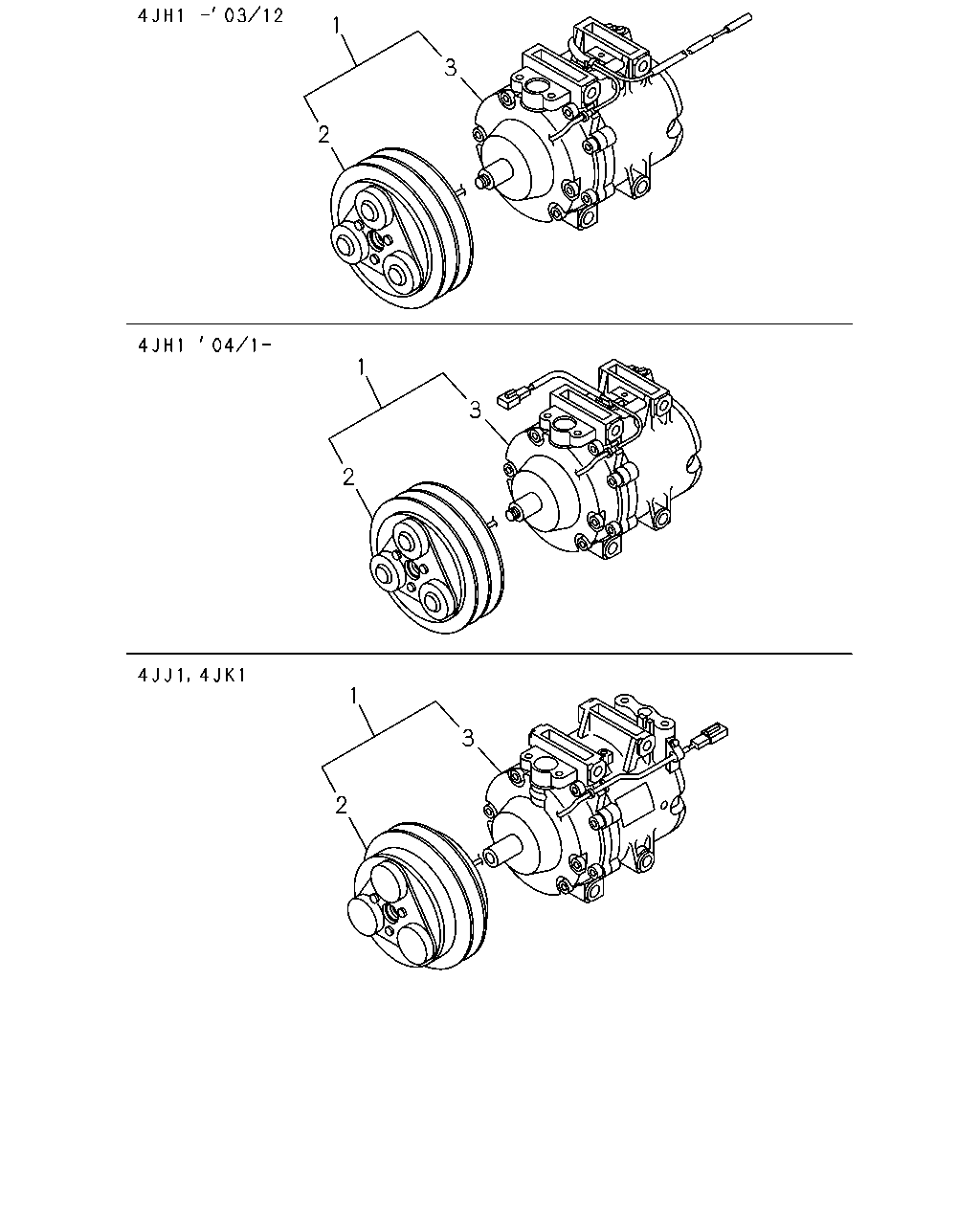

çizim 100630
1 3 2 1 3 2 1 3 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; A/C
4JH1 ENG<RJX> THA 		8-97236-637-1 01 1 0303-0312 ● ●
1 COMPRESSOR ASM; A/C
4JH1 ENG<RJX> THA 		8-97369-415-0 01 1 0401-0408 ● ●
1 COMPRESSOR ASM; A/C
4JJ1 ENG<LFB> THA 		8-97370-661-3 01 1 0409-0412 ● ●
1 COMPRESSOR ASM; A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA 		8-97370-661-3 01 1 0501-0508 ● ●
1 COMPRESSOR ASM; A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97370-661-3 01 1 0509-1109 ● ●
1 COMPRESSOR ASM; A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98199-292-1 01 1 1110- ● ●
2 CLUTCH; MAGNET,A/C
4JH1 ENG<RJX> THA 		8-97333-324-0 01 1 0303-0312 ● ●
2 CLUTCH; MAGNET,A/C
4JH1 ENG<RJX> THA 		8-97371-580-0 01 1 0401-0408 ● ●
2 CLUTCH; MAGNET,A/C
4JJ1 ENG<LFB> THA 		8-97372-920-0 01 1 0409-0412 ● ●
2 CLUTCH; MAGNET,A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA 		8-97372-920-0 01 1 0501-0508 ● ●
2 CLUTCH; MAGNET,A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97372-920-0 01 1 0509-1402 ● ●
2 CLUTCH; MAGNET,A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98252-777-0 01 1 1403- ● ●
3 COMPRESSOR ASM; A/C
4JH1 ENG<RJX> THA 		8-97333-322-0 01 1 0303-0312 ● ●
3 COMPRESSOR ASM; A/C
4JH1 ENG<RJX> THA 		8-97371-576-0 01 1 0401-0408 ● ●
3 COMPRESSOR ASM; A/C
4JJ1 ENG<LFB> THA 		8-97372-919-0 01 1 0409-0412 ● ●
3 COMPRESSOR ASM; A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA 		8-97372-919-0 01 1 0501-0508 ● ●
3 COMPRESSOR ASM; A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97372-919-0 01 1 0509-0606 ● ●
3 COMPRESSOR ASM; A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98070-188-0 01 1 0607-1109 ● ●
3 COMPRESSOR ASM; A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98204-874-0 01 1 1110-1402 ● ●
3 COMPRESSOR ASM; A/C
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98258-533-0 01 1 1403- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
