◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶
8-65 — CONTROL LEVER; HEATER AND AIR CON (#46587) — 31 parça

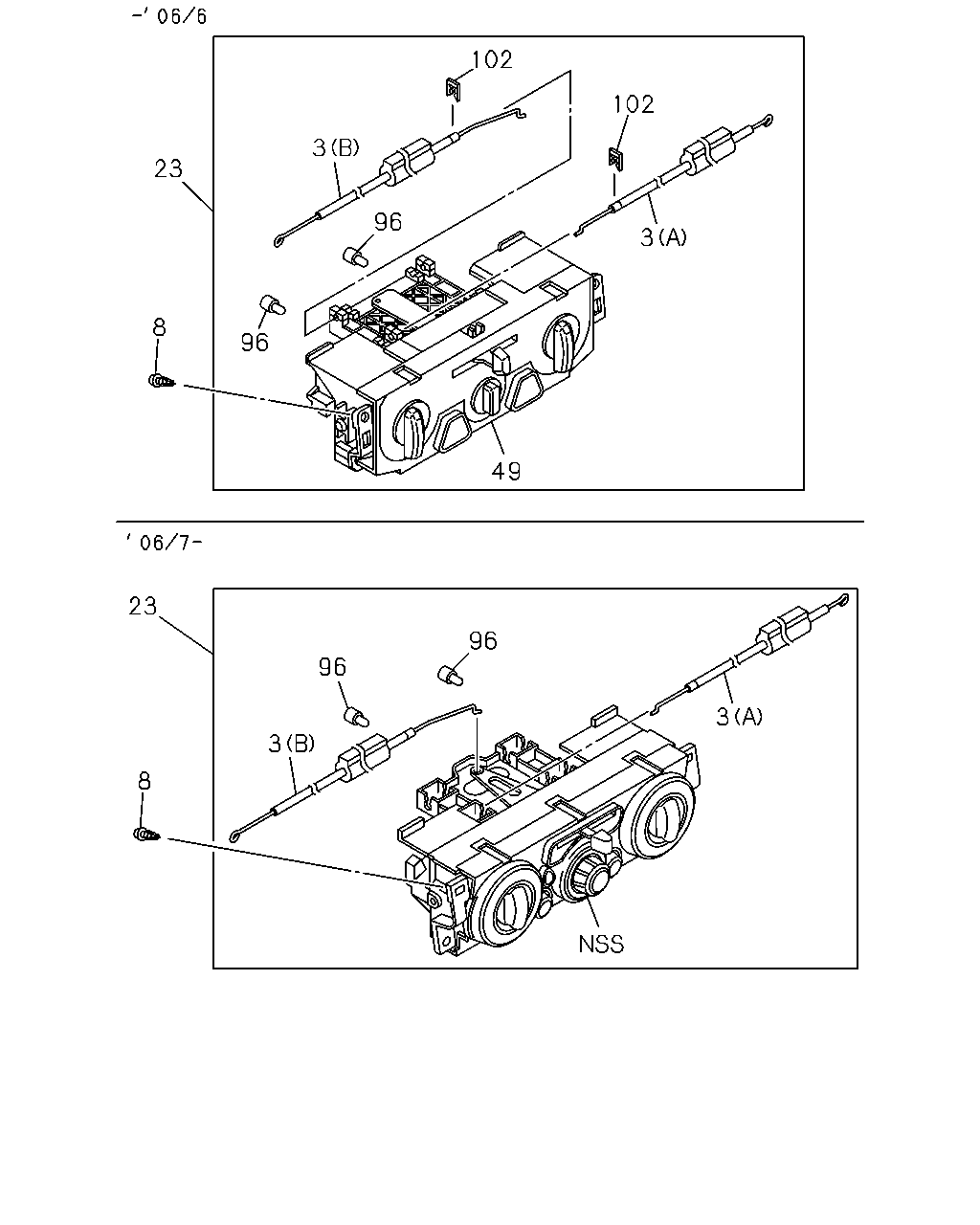

çizim 46252
102 102 3 23 96 3 8 96 49 23 96 96 3 3 8
BalonParca AdiParca NoAdetTipApplied Date A B
3 CABLE; HTR CONT LVR
(A) MODE THA 		8-97321-478-0 01 1 0303-0307 ● ●
3 CABLE; HTR CONT LVR
REAR DEFOGGER<C49> (A) MODE THA 		8-97321-478-0 01 1 0308-0408 ● ●
3 CABLE; HTR CONT LVR
(A) MODE THA 		8-97321-478-0 01 1 0409-0606 ● ●
3 CABLE; HTR CONT LVR
(A) MODE THA 		8-98029-143-0 01 1 0607- ● ●
3 CABLE; HTR CONT LVR
(B) INTAKE THA 		8-97321-479-0 01 1 0303-0307 ● ●
3 CABLE; HTR CONT LVR
REAR DEFOGGER<C49> (B) INTAKE THA 		8-97321-479-0 01 1 0308-0408 ● ●
3 CABLE; HTR CONT LVR
(B) INTAKE THA 		8-97321-479-0 01 1 0409-0606 ● ●
3 CABLE; HTR CONT LVR
(B) INTAKE THA 		8-98029-145-0 01 1 0607- ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING THA 		9-09829-323-1 02 1 0303-0702 ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING THA 		8-98061-685-0 02 1 0703-1005 ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING THA 		8-98167-449-0 02 1 1006- ● ●
23 BEZEL; CONT LEVER
THA 		8-97234-571-4 01 1 0303-0307 ● ●
23 BEZEL; CONT LEVER
REAR DEFOGGER<C49> THA 		8-97234-571-4 01 1 0308-0408 ● ●
23 BEZEL; CONT LEVER
THA 		8-97234-571-4 01 1 0409-0501 ● ●
23 BEZEL; CONT LEVER
THA 		8-98006-169-0 01 1 0502-0508 ● ●
23 BEZEL; CONT LEVER
THA 		8-98004-356-0 01 1 0509-0606 ● ●
23 BEZEL; CONT LEVER
THA 		8-98038-131-0 01 1 0607-0908 ● ●
23 BEZEL; CONT LEVER
THA 		8-98151-009-0 01 1 0909- ● ●
49 PANEL; CONT
THA 		8-97321-468-0 01 1 0303-0307 ● ●
49 PANEL; CONT
REAR DEFOGGER<C49> THA 		8-97321-468-0 01 1 0308-0408 ● ●
49 PANEL; CONT
THA 		8-97321-468-0 01 1 0409-0501 ● ●
49 PANEL; CONT
THA 		8-98013-438-0 01 1 0502-0508 ● ●
49 PANEL; CONT
THA 		8-98013-379-0 01 1 0509-0606 ● ●
96 BULB ASM; BEZEL
THA 		8-97332-276-0 02 1 0303-0307 ● ●
96 BULB ASM; BEZEL
REAR DEFOGGER<C49> THA 		8-97332-276-0 02 1 0308-0408 ● ●
96 BULB ASM; BEZEL
THA 		8-97332-276-0 02 1 0409-0501 ● ●
96 BULB ASM; BEZEL
THA 		8-98006-462-0 02 1 0502-0606 ● ●
96 BULB ASM; BEZEL
THA 		8-98029-142-0 02 1 0607- ● ●
102 RING; SNAP,CABLE
THA 		8-97321-480-0 02 1 0303-0307 ● ●
102 RING; SNAP,CABLE
REAR DEFOGGER<C49> THA 		8-97321-480-0 02 1 0308-0408 ● ●
102 RING; SNAP,CABLE
THA 		8-97321-480-0 02 1 0409-0606 ● ●
