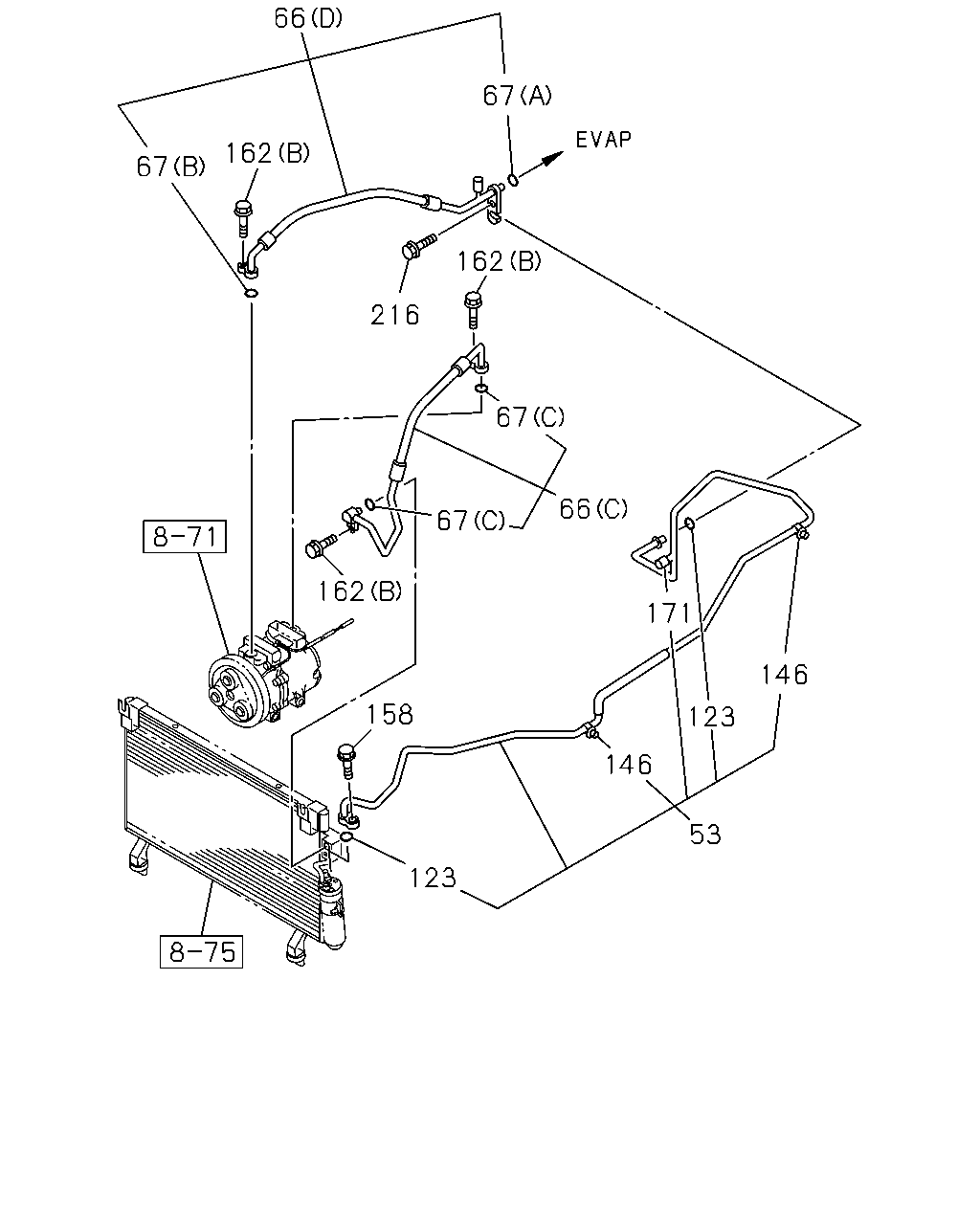

8-52 — PIPING; AIR CONDITIONING (#46585) — 60 parça

66 67 162 67 162 216 67 66 67 162 171 146 158 123 146 53 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	PIPE; RECEIVER TANK TO EVAP 4JH1 ENG<RJX> THA	8-97361-332-0	01	1	0303-0408	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1 ENG<LFB> THA	8-97370-700-1	01	1	0409-0410	●	●
66	HOSE; FLEX,A/C 4JK1 ENG<LKZ> (C) THA	8-98020-686-0	01	1	0506-0606	●
66	HOSE; FLEX,A/C 4JH1 ENG<RJX> (A) THA	8-97234-781-0	01	1	0303-0408	●	●
66	HOSE; FLEX,A/C 4JJ1 ENG<LFB> (C) THA	8-97363-903-0	01	1	0409-0412	●	●
66	HOSE; FLEX,A/C 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) THA	8-97363-903-0	01	1	0501-0505	●	●
66	HOSE; FLEX,A/C 4JJ1 ENG<LFB> (C) THA	8-97363-903-0	01	1	0506-0508	●
66	HOSE; FLEX,A/C (C) THA	8-97363-903-0	01	1	0506-0508		●
66	HOSE; FLEX,A/C 4JJ1 ENG<LFB> (C) THA	8-97363-903-0	01	1	0509-0606	●	●
66	HOSE; FLEX,A/C 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) THA	8-97363-903-0	01	1	0607-	●	●
66	HOSE; FLEX,A/C 4JH1 ENG<RJX> (B) THA	8-97234-785-4	01	1	0303-0408	●	●
66	HOSE; FLEX,A/C 4JJ1 ENG<LFB> (D) THA	8-97363-904-1	01	1	0409-0410	●	●
67	GASKET; FLEX HOSE 4JH1 ENG<RJX> (A) THA	8-97321-351-0	01	1	0303-0408	●	●
67	GASKET; FLEX HOSE 4JJ1 ENG<LFB> (A) THA	8-97321-351-0	01	1	0409-0410	●	●
67	GASKET; FLEX HOSE 4JH1 ENG<RJX> (B) THA	8-97321-352-0	01	1	0303-0408	●	●
67	GASKET; FLEX HOSE 4JJ1 ENG<LFB> (B) THA	8-97321-352-0	01	1	0409-0410	●	●
67	GASKET; FLEX HOSE 4JH1 ENG<RJX> (C) THA	8-97321-353-0	02	1	0303-0408	●	●
67	GASKET; FLEX HOSE 4JJ1 ENG<LFB> (C) THA	8-97321-353-0	02	1	0409-0412	●	●
67	GASKET; FLEX HOSE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) THA	8-97321-353-0	02	1	0501-0508	●	●
67	GASKET; FLEX HOSE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) THA	8-97321-353-0	02	1	0509-	●	●
123	GASKET; RECEIVER PIPE 4JH1 ENG<RJX> SCAL THA	8-97919-270-0	02	1	0303-0408	●	●
123	GASKET; RECEIVER PIPE 4JJ1 ENG<LFB> SCAL THA	8-97919-270-0	02	1	0409-0410	●	●
146	CLIP; RECEIVER PIPE 4JH1 ENG<RJX> THA	8-97355-792-0	02	1	0303-0408	●	●
146	CLIP; RECEIVER PIPE 4JJ1 ENG<LFB> THA	8-97354-058-0	02	1	0409-0410	●	●
158	BOLT; PIPE FIX M6X25 FLANGE THA	0-28650-625-0	01	1	0409-	●	●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX> (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0303-0408	●	●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX> (B) M8X25 FLANGE THA	0-28650-825-0	03	1	0303-0408	●	●
162	BOLT; FLEX HOSE (B) M8X25 FLANGE THA	0-28650-825-0	03	1	0409-	●	●
171	CAP; PIPE 4JJ1 ENG<LFB> THA	8-97376-622-0	01	1	0409-0410	●	●
216	BOLT; HOSE FIX M6X20 FLANGE THA	0-28650-620-0	01	1	0303-	●	●

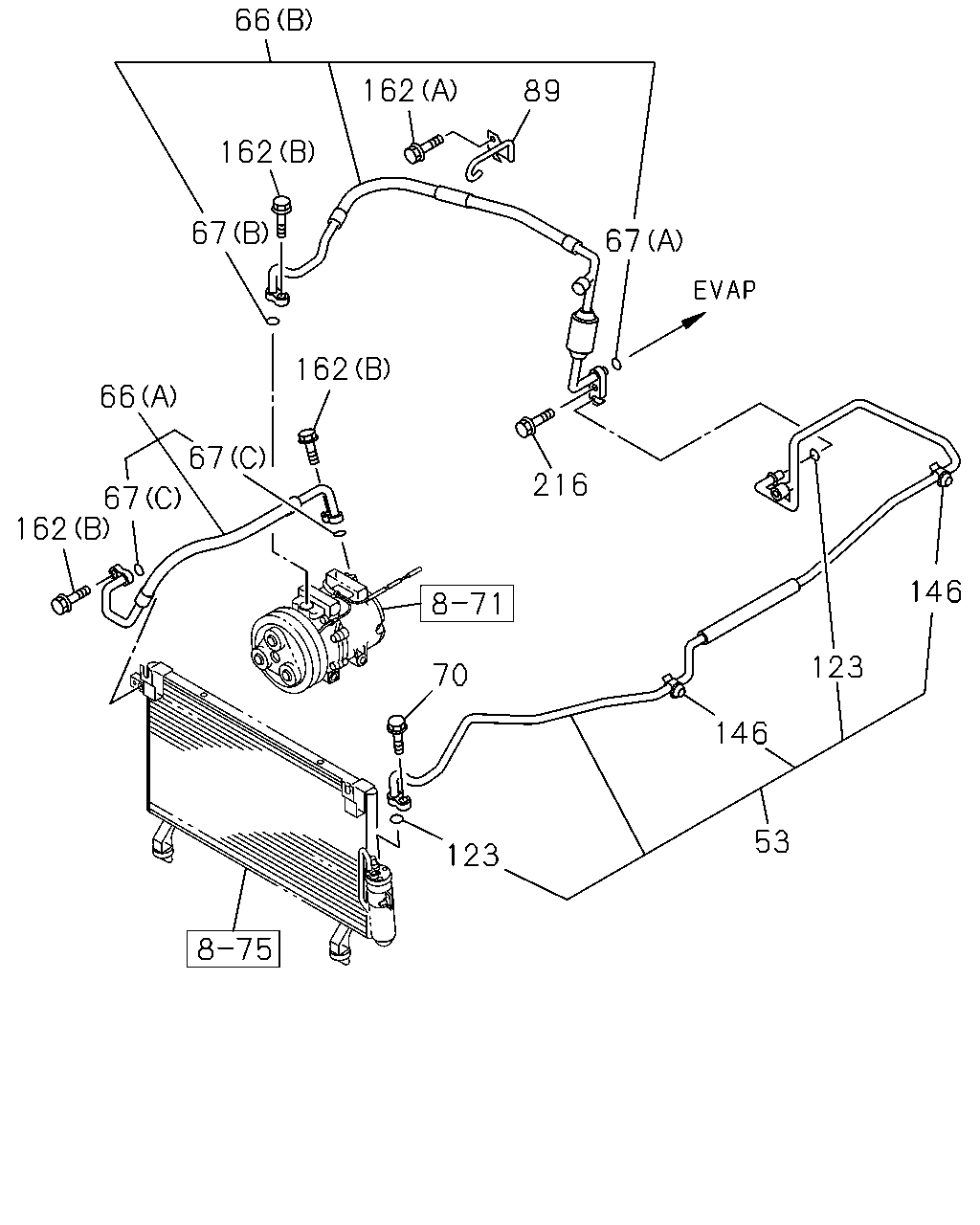

66 162 89 162 67 67 162 66 67 216 67 162 146 123 70 146 53 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	PIPE; RECEIVER TANK TO EVAP 4JH1 ENG<RJX> THA	8-97361-332-0	01	1	0303-0408	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1 ENG<LFB> THA	8-97370-700-1	01	1	0409-0410	●	●
66	HOSE; FLEX,A/C 4JK1 ENG<LKZ> (C) THA	8-98020-686-0	01	1	0506-0606	●
66	HOSE; FLEX,A/C 4JH1 ENG<RJX> (A) THA	8-97234-781-0	01	1	0303-0408	●	●
66	HOSE; FLEX,A/C 4JJ1 ENG<LFB> (C) THA	8-97363-903-0	01	1	0409-0412	●	●
66	HOSE; FLEX,A/C 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) THA	8-97363-903-0	01	1	0501-0505	●	●
66	HOSE; FLEX,A/C 4JJ1 ENG<LFB> (C) THA	8-97363-903-0	01	1	0506-0508	●
66	HOSE; FLEX,A/C (C) THA	8-97363-903-0	01	1	0506-0508		●
66	HOSE; FLEX,A/C 4JJ1 ENG<LFB> (C) THA	8-97363-903-0	01	1	0509-0606	●	●
66	HOSE; FLEX,A/C 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) THA	8-97363-903-0	01	1	0607-	●	●
66	HOSE; FLEX,A/C 4JH1 ENG<RJX> (B) THA	8-97234-785-4	01	1	0303-0408	●	●
66	HOSE; FLEX,A/C 4JJ1 ENG<LFB> (D) THA	8-97363-904-1	01	1	0409-0410	●	●
67	GASKET; FLEX HOSE 4JH1 ENG<RJX> (A) THA	8-97321-351-0	01	1	0303-0408	●	●
67	GASKET; FLEX HOSE 4JJ1 ENG<LFB> (A) THA	8-97321-351-0	01	1	0409-0410	●	●
67	GASKET; FLEX HOSE 4JH1 ENG<RJX> (B) THA	8-97321-352-0	01	1	0303-0408	●	●
67	GASKET; FLEX HOSE 4JJ1 ENG<LFB> (B) THA	8-97321-352-0	01	1	0409-0410	●	●
67	GASKET; FLEX HOSE 4JH1 ENG<RJX> (C) THA	8-97321-353-0	02	1	0303-0408	●	●
67	GASKET; FLEX HOSE 4JJ1 ENG<LFB> (C) THA	8-97321-353-0	02	1	0409-0412	●	●
67	GASKET; FLEX HOSE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) THA	8-97321-353-0	02	1	0501-0508	●	●
67	GASKET; FLEX HOSE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) THA	8-97321-353-0	02	1	0509-	●	●
70	BOLT; PIPE TO BODY M6X25 FLANGE THA	0-28650-625-0	01	1	0303-0408	●	●
89	BRACKET; A/C PIPE 4JH1 ENG<RJX> THA	8-97327-938-2	01	1	0303-0408	●	●
123	GASKET; RECEIVER PIPE 4JH1 ENG<RJX> SCAL THA	8-97919-270-0	02	1	0303-0408	●	●
123	GASKET; RECEIVER PIPE 4JJ1 ENG<LFB> SCAL THA	8-97919-270-0	02	1	0409-0410	●	●
146	CLIP; RECEIVER PIPE 4JH1 ENG<RJX> THA	8-97355-792-0	02	1	0303-0408	●	●
146	CLIP; RECEIVER PIPE 4JJ1 ENG<LFB> THA	8-97354-058-0	02	1	0409-0410	●	●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX> (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0303-0408	●	●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX> (B) M8X25 FLANGE THA	0-28650-825-0	03	1	0303-0408	●	●
162	BOLT; FLEX HOSE (B) M8X25 FLANGE THA	0-28650-825-0	03	1	0409-	●	●
216	BOLT; HOSE FIX M6X20 FLANGE THA	0-28650-620-0	01	1	0303-	●	●
