8-50 — AIR CONDITIONING SYSTEM; FRONT (#46584) — 64 parça

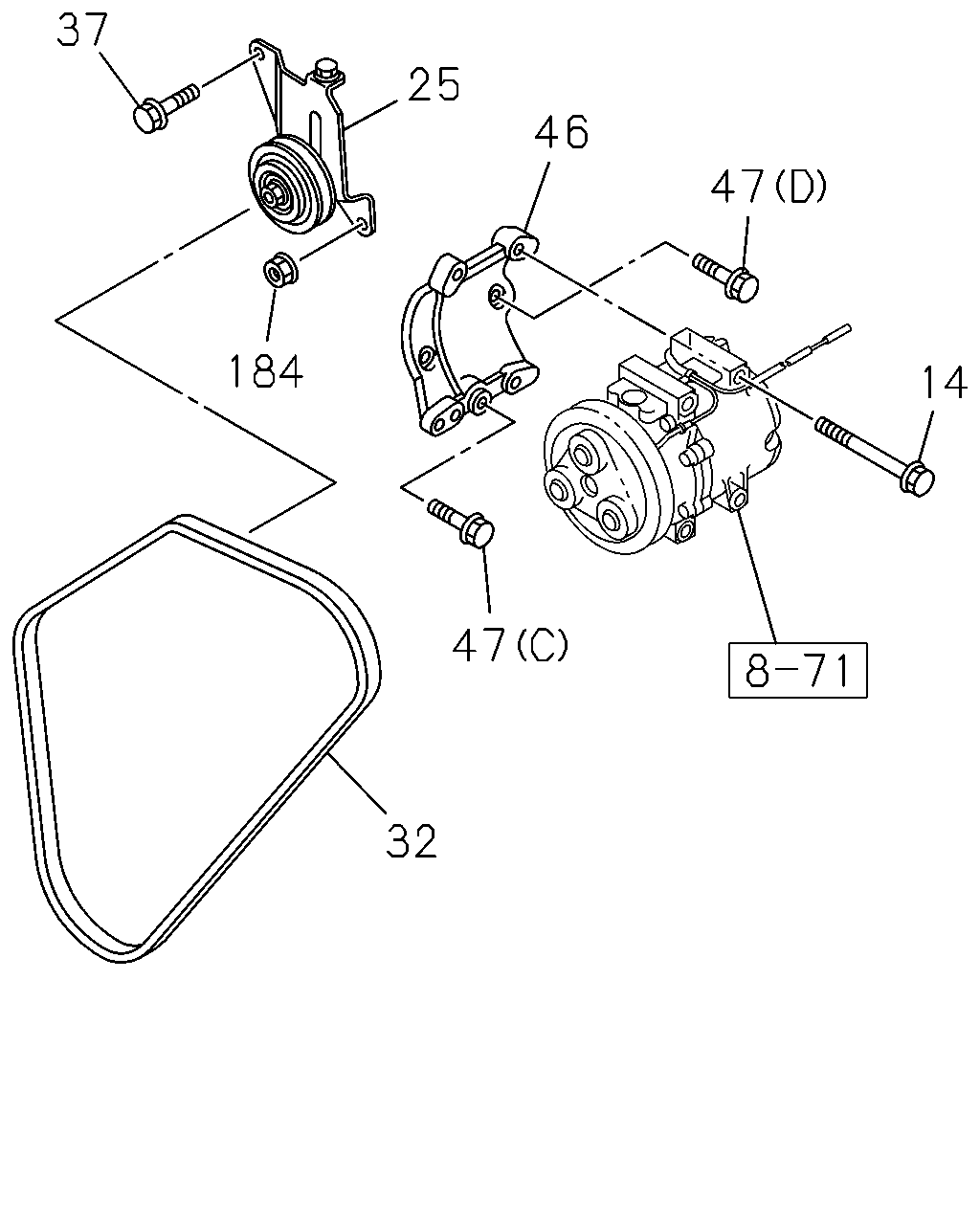

37 25 46 47 184 14 47 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	BOLT; CMPR 4JH1 ENG<RJX> M10X100 FLANGE THA	0-28151-000-0	04	1	0303-0408	●	●
14	BOLT; CMPR 4JJ1 ENG<LFB> M10X100 FLANGE THA	0-28151-000-0	04	1	0409-0412	●	●
14	BOLT; CMPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> M10X100 FLANGE THA	0-28151-000-0	04	1	0501-0508	●	●
14	BOLT; CMPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M10X100 FLANGE THA	0-28151-000-0	04	1	0509-	●	●
25	PULLEY ASM; IDLER,CMPR 4JJ1 ENG<LFB> THA	8-97363-476-3	01	1	0409-0412	●	●
25	PULLEY ASM; IDLER,CMPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97363-476-3	01	1	0501-0508	●	●
25	PULLEY ASM; IDLER,CMPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97945-065-0	01	1	0509-0610	●	●
25	PULLEY ASM; IDLER,CMPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> 1-GROOVE THA	8-98051-011-0	01	1	0611-	●	●
32	BELT; A/C CMPR 4JH1 ENG<RJX> B=12.5 L=1537 1 SET=2 PIECE BANDO THA	8-97942-725-0	01	1	0303-0408	●	●
32	BELT; A/C CMPR 4JJ1 ENG<LFB> L=1369 B=13.3 MITSUBOSHI THA	8-97944-104-0	01	1	0409-0412	●	●
32	BELT; A/C CMPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> L=1369 B=13.3 MITSUBOSHI THA	8-97944-104-0	01	1	0501-0508	●	●
32	BELT; A/C CMPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> L=1369 B=13.3 MITSUBOSHI THA	8-97944-104-0	01	1	0509-0711	●	●
32	BELT; A/C CMPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> L=1355 MITSUBOSHI THA	8-98088-385-0	01	1	0712-	●	●
32	BELT; A/C CMPR 4JH1 ENG<RJX> L=1537 B=13.3 1 SET=2 PIECE(8979427240) MITSUBOSHI THA	8-97942-729-0	01	1	0303-0408	●	●
32	BELT; A/C CMPR 4JJ1 ENG<LFB> L=1355 B=12.5 BANDO THA	8-97944-138-0	01	1	0409-0412	●	●
32	BELT; A/C CMPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> L=1355 B=12.5 BANDO THA	8-97944-138-0	01	1	0501-0508	●	●
32	BELT; A/C CMPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> L=1355 B=12.5 BANDO THA	8-97944-138-0	01	1	0509-	●	●
37	BOLT; PULLEY BRKT 4JJ1 ENG<LFB> M8X20 FLANGE THA	0-28650-820-0	01	1	0409-0412	●	●
37	BOLT; PULLEY BRKT 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> M8X20 FLANGE THA	0-28650-820-0	01	1	0501-0508	●	●
37	BOLT; PULLEY BRKT 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X20 FLANGE THA	0-28650-820-0	01	1	0509-	●	●
46	BRACKET; CMPR 4JH1 ENG<RJX> SCAL THA	8-97920-583-1	01	1	0303-0408	●	●
46	BRACKET; CMPR 4JJ1 ENG<LFB> THA	8-97371-258-0	01	1	0409-0412	●	●
46	BRACKET; CMPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97371-258-0	01	1	0501-0508	●	●
46	BRACKET; CMPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97371-258-0	01	1	0509-	●	●
47	BOLT; BRKT TO BODY 4JH1 ENG<RJX> (B) M8X45 FLANGE THA	0-28050-845-0	02	1	0303-0408	●	●
47	BOLT; BRKT TO BODY 4JJ1 ENG<LFB> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	0409-0412	●	●
47	BOLT; BRKT TO BODY 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	0501-0508	●	●
47	BOLT; BRKT TO BODY 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	0509-0606	●	●
47	BOLT; BRKT TO BODY 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) M8X35 FLANGE THA	8-98049-562-0	01	1	0607-	●	●
47	BOLT; BRKT TO BODY 4JH1 ENG<RJX> (A) M10X50 FLANGE THA	0-28051-050-0	02	1	0303-0408	●	●
47	BOLT; BRKT TO BODY 4JJ1 ENG<LFB> (D) M8X25 FLANGE THA	0-28680-825-0	03	1	0409-0412	●	●
47	BOLT; BRKT TO BODY 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (D) M8X25 FLANGE THA	0-28680-825-0	03	1	0501-0508	●	●
47	BOLT; BRKT TO BODY 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (D) M8X25 FLANGE THA	0-28680-825-0	03	1	0509-0601	●	●
47	BOLT; BRKT TO BODY 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (D) M8X25 FLANGE THA	0-28650-825-0	03	1	0602-	●	●
184	NUT; A/C PIPE BRKT 4JJ1 ENG<LFB> M8 FLANGE THA	0-91180-208-0	01	1	0409-0412	●	●
184	NUT; A/C PIPE BRKT 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> M8 FLANGE THA	0-91180-208-0	01	1	0501-0508	●	●
184	NUT; A/C PIPE BRKT 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8 FLANGE THA	0-91180-208-0	01	1	0509-	●	●

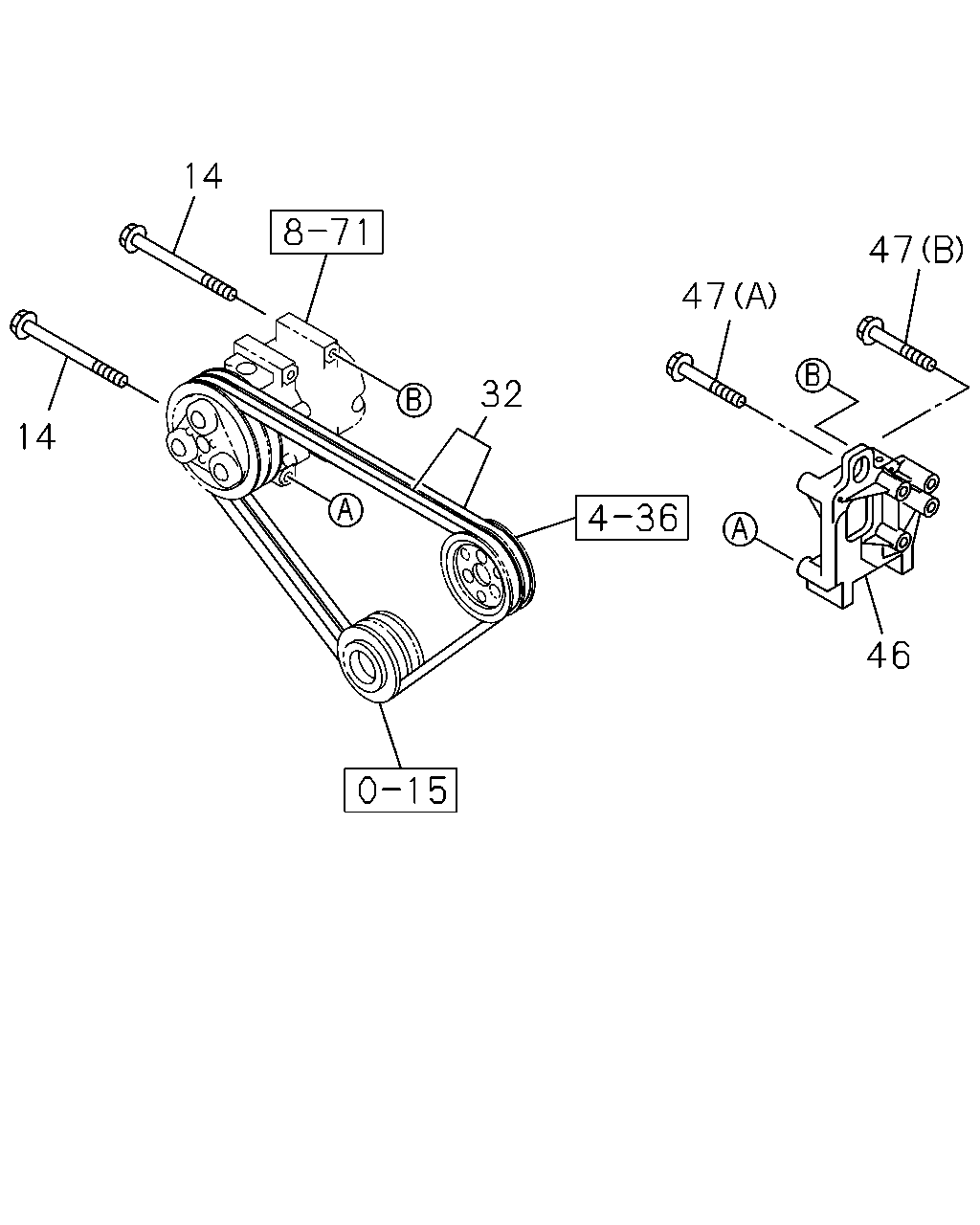

14 47 47 32 14 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	BOLT; CMPR 4JH1 ENG<RJX> M10X100 FLANGE THA	0-28151-000-0	04	1	0303-0408	●	●
14	BOLT; CMPR 4JJ1 ENG<LFB> M10X100 FLANGE THA	0-28151-000-0	04	1	0409-0412	●	●
14	BOLT; CMPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> M10X100 FLANGE THA	0-28151-000-0	04	1	0501-0508	●	●
14	BOLT; CMPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M10X100 FLANGE THA	0-28151-000-0	04	1	0509-	●	●
32	BELT; A/C CMPR 4JH1 ENG<RJX> B=12.5 L=1537 1 SET=2 PIECE BANDO THA	8-97942-725-0	01	1	0303-0408	●	●
32	BELT; A/C CMPR 4JJ1 ENG<LFB> L=1369 B=13.3 MITSUBOSHI THA	8-97944-104-0	01	1	0409-0412	●	●
32	BELT; A/C CMPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> L=1369 B=13.3 MITSUBOSHI THA	8-97944-104-0	01	1	0501-0508	●	●
32	BELT; A/C CMPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> L=1369 B=13.3 MITSUBOSHI THA	8-97944-104-0	01	1	0509-0711	●	●
32	BELT; A/C CMPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> L=1355 MITSUBOSHI THA	8-98088-385-0	01	1	0712-	●	●
32	BELT; A/C CMPR 4JH1 ENG<RJX> L=1537 B=13.3 1 SET=2 PIECE(8979427240) MITSUBOSHI THA	8-97942-729-0	01	1	0303-0408	●	●
32	BELT; A/C CMPR 4JJ1 ENG<LFB> L=1355 B=12.5 BANDO THA	8-97944-138-0	01	1	0409-0412	●	●
32	BELT; A/C CMPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> L=1355 B=12.5 BANDO THA	8-97944-138-0	01	1	0501-0508	●	●
32	BELT; A/C CMPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> L=1355 B=12.5 BANDO THA	8-97944-138-0	01	1	0509-	●	●
46	BRACKET; CMPR 4JH1 ENG<RJX> SCAL THA	8-97920-583-1	01	1	0303-0408	●	●
46	BRACKET; CMPR 4JJ1 ENG<LFB> THA	8-97371-258-0	01	1	0409-0412	●	●
46	BRACKET; CMPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97371-258-0	01	1	0501-0508	●	●
46	BRACKET; CMPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97371-258-0	01	1	0509-	●	●
47	BOLT; BRKT TO BODY 4JH1 ENG<RJX> (B) M8X45 FLANGE THA	0-28050-845-0	02	1	0303-0408	●	●
47	BOLT; BRKT TO BODY 4JJ1 ENG<LFB> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	0409-0412	●	●
47	BOLT; BRKT TO BODY 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	0501-0508	●	●
47	BOLT; BRKT TO BODY 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	0509-0606	●	●
47	BOLT; BRKT TO BODY 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) M8X35 FLANGE THA	8-98049-562-0	01	1	0607-	●	●
47	BOLT; BRKT TO BODY 4JH1 ENG<RJX> (A) M10X50 FLANGE THA	0-28051-050-0	02	1	0303-0408	●	●
47	BOLT; BRKT TO BODY 4JJ1 ENG<LFB> (D) M8X25 FLANGE THA	0-28680-825-0	03	1	0409-0412	●	●
47	BOLT; BRKT TO BODY 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (D) M8X25 FLANGE THA	0-28680-825-0	03	1	0501-0508	●	●
47	BOLT; BRKT TO BODY 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (D) M8X25 FLANGE THA	0-28680-825-0	03	1	0509-0601	●	●
47	BOLT; BRKT TO BODY 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (D) M8X25 FLANGE THA	0-28650-825-0	03	1	0602-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
