8-45 — HEATER PIPING (#46583) — 41 parça

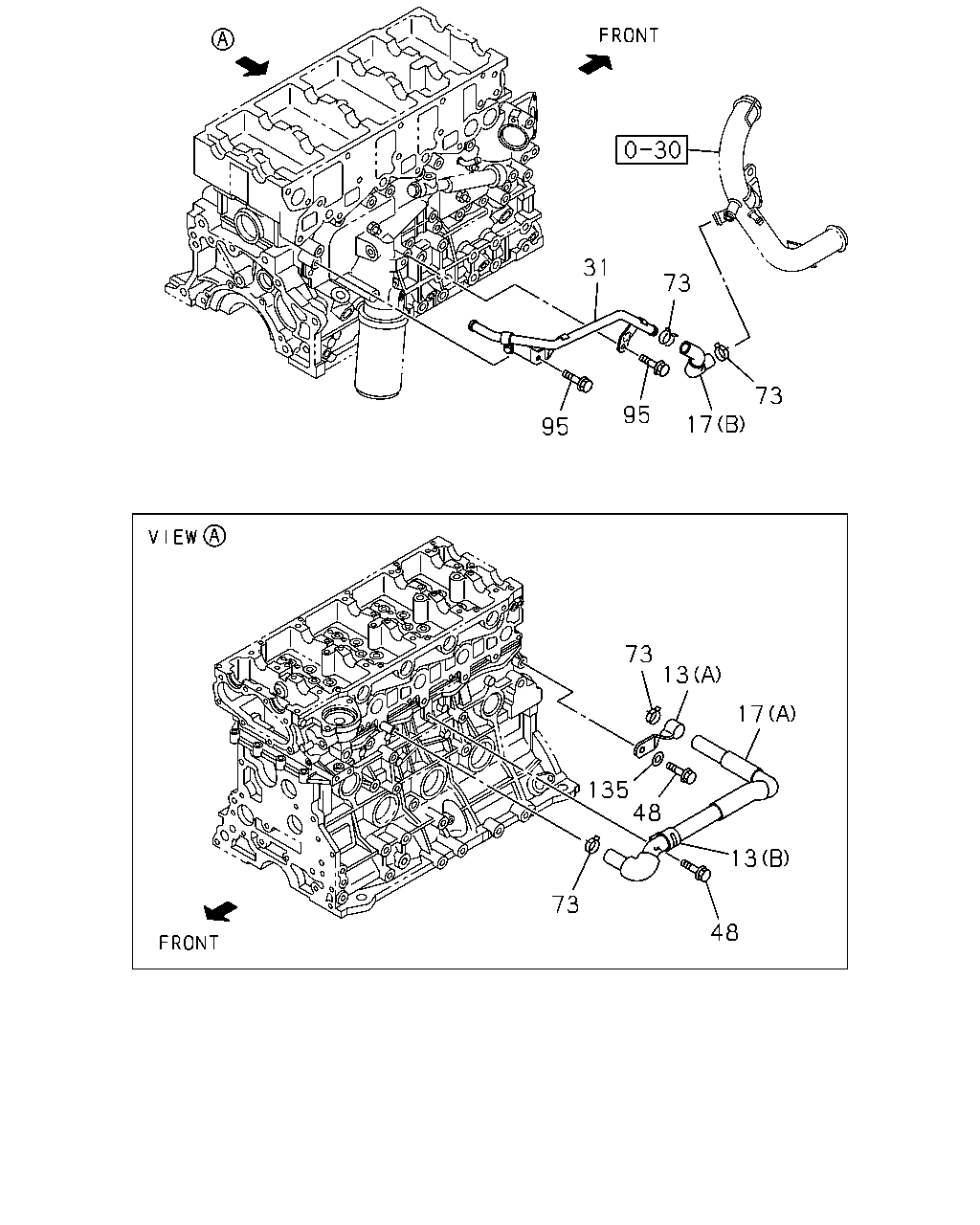

çizim 46851
31 73 73 17 95 95 73 13 17 135 48 13 73 48
BalonParca AdiParca NoAdetTipApplied Date A B
13 CLIP; HTR HOSE
4JJ1 ENG<LFB> (A) ID=25 L=54 THA 		1-09700-392-0 01 1 0409-0412 ● ●
13 CLIP; HTR HOSE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (A) ID=25 L=54 THA 		1-09700-392-0 01 1 0501-0508 ● ●
13 CLIP; HTR HOSE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) ID=25 L=54 THA 		1-09700-392-0 01 1 0509-0606 ● ●
13 CLIP; HTR HOSE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (A) ID=25 L=54 IMA 		1-09700-392-1 01 1 0607- ● ●
13 CLIP; HTR HOSE
4JJ1 ENG<LFB> (B) ID=24 H=40 L=24 THA 		1-09701-243-0 01 1 0409-0412 ● ●
13 CLIP; HTR HOSE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (B) ID=24 H=40 L=24 THA 		1-09701-243-0 01 1 0501-0508 ● ●
13 CLIP; HTR HOSE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) ID=24 H=40 L=24 THA 		1-09701-243-0 01 1 0509-0606 ● ●
13 CLIP; HTR HOSE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) ID=24 H=40 L=24 THA 		1-09701-243-1 01 1 0607- ● ●
17 HOSE; WATER,BYPASS
4JJ1 ENG<LFB> (B) THA 		8-97375-189-1 01 1 0409-0412 ● ●
17 HOSE; WATER,BYPASS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (B) THA 		8-97375-189-1 01 1 0501-0508 ● ●
17 HOSE; WATER,BYPASS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) THA 		8-97375-189-1 01 1 0509-0606 ● ●
17 HOSE; WATER,BYPASS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) THA 		8-98031-860-0 01 1 0607- ● ●
17 HOSE; WATER,BYPASS
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> (A) THA 		8-97383-552-0 01 1 0409-0412 ● ●
17 HOSE; WATER,BYPASS
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> (A) THA 		8-97383-552-0 01 1 0501-0606 ● ●
17 HOSE; WATER,BYPASS
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> (A) THA 		8-98036-953-0 01 1 0607- ● ●
17 HOSE; WATER,BYPASS
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> (A) THA 		8-97375-188-1 01 1 0409-0412 ● ●
17 HOSE; WATER,BYPASS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> POWER STEERING<N40> (A) THA 		8-97375-188-1 01 1 0501-0508 ● ●
17 HOSE; WATER,BYPASS
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> (A) THA 		8-97375-188-1 01 1 0509-0606 ● ●
17 HOSE; WATER,BYPASS
4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-97375-188-1 01 1 0509-0606 ●
17 HOSE; WATER,BYPASS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-98036-848-0 01 1 0607- ●
17 HOSE; WATER,BYPASS
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-98036-848-0 01 1 0607- ●
31 PIPE; BYPASS,HTR
4JJ1 ENG<LFB> THA 		8-97375-042-0 01 1 0409-0412 ● ●
31 PIPE; BYPASS,HTR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> THA 		8-97375-042-0 01 1 0501-0508 ● ●
31 PIPE; BYPASS,HTR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97375-042-0 01 1 0509-0606 ● ●
31 PIPE; BYPASS,HTR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-98025-351-0 01 1 0607- ● ●
48 BOLT; CLIP FIX
4JJ1 ENG<LFB> M8X12 FLANGE THA 		0-28050-812-0 02 1 0409-0412 ● ●
48 BOLT; CLIP FIX
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> M8X12 FLANGE THA 		0-28050-812-0 02 1 0501-0508 ● ●
48 BOLT; CLIP FIX
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X12 FLANGE THA 		0-28050-812-0 02 1 0509-0606 ● ●
48 BOLT; CLIP FIX
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> M8X12 FLANGE THA 		0-28050-812-0 02 1 0607- ● ●
73 CLIP; HTR HOSE
4JJ1 ENG<LFB> ID=20.8 THA 		8-97944-127-0 04 1 0409-0412 ● ●
73 CLIP; HTR HOSE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> ID=20.8 THA 		8-97944-127-0 04 1 0501-0508 ● ●
73 CLIP; HTR HOSE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ID=20.8 THA 		8-97944-127-0 04 1 0509-0606 ● ●
73 CLIP; HTR HOSE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> ID=20.8 THA 		8-97944-127-0 04 1 0607- ● ●
95 BOLT; BYPASS PIPE
4JJ1 ENG<LFB> M8X16 FLANGE THA 		0-28050-816-0 02 1 0409-0412 ● ●
95 BOLT; BYPASS PIPE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> M8X16 FLANGE THA 		0-28050-816-0 02 1 0501-0508 ● ●
95 BOLT; BYPASS PIPE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X16 FLANGE THA 		0-28050-816-0 02 1 0509-0606 ● ●
95 BOLT; BYPASS PIPE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> M8X16 FLANGE THA 		0-28050-816-0 02 1 0607- ● ●
135 WASHER; PL
4JJ1 ENG<LFB> ID=8.4 OD=16 THA 		0-91610-508-0 01 1 0409-0412 ● ●
135 WASHER; PL
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> ID=8.4 OD=16 THA 		0-91610-508-0 01 1 0501-0508 ● ●
135 WASHER; PL
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ID=8.4 OD=16 THA 		0-91610-508-0 01 1 0509-0606 ● ●
135 WASHER; PL
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> ID=8.4 OD=16 THA 		0-91610-508-0 01 1 0607- ● ●
