◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#46582) — 27 parça

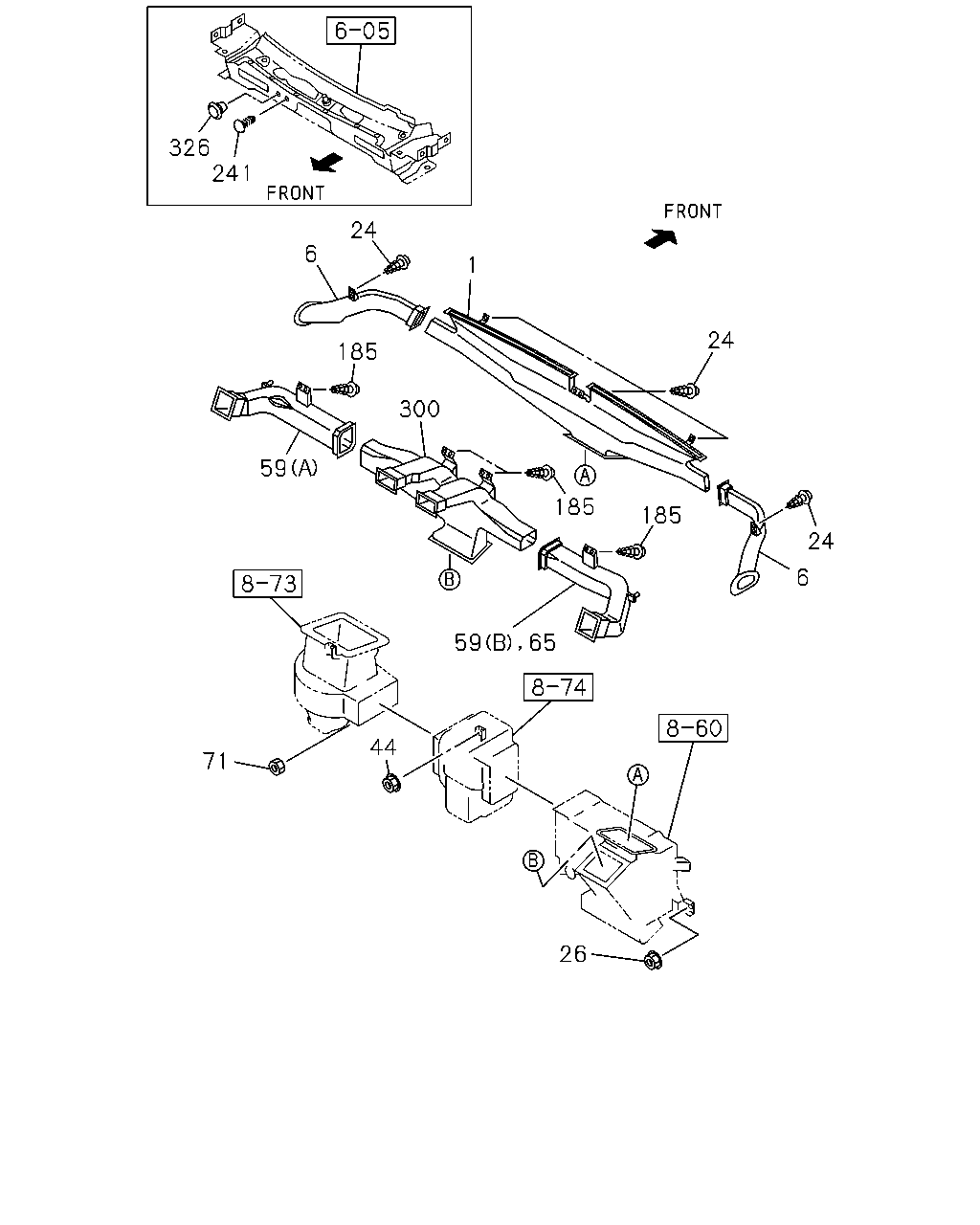

çizim 50948
326 241 24 6 1 24 185 300 59 185 185 24 6 44 71 26 59 65
BalonParca AdiParca NoAdetTipApplied Date A B
1 NOZZLE; DEFROSTER,INST PNL
THA 		8-97235-773-1 01 1 0303- ● ●
6 DUCT; SIDE DEFROSTER
THA 		8-97235-878-0 01 1 0303- ● ●
6 DUCT; SIDE DEFROSTER
THA 		8-97235-874-0 01 1 0303- ● ●
24 SCREW; NOZZLE TO INST PNL
M5X16 TAPPING THA 		9-09829-323-1 05 1 0303-0702 ● ●
24 SCREW; NOZZLE TO INST PNL
M5X16 TAPPING THA 		8-98061-685-0 05 1 0703-1005 ● ●
24 SCREW; NOZZLE TO INST PNL
M5X16 TAPPING THA 		8-98167-449-0 05 1 1006- ● ●
26 NUT; HTR
M6 FLANGE THA 		8-97063-399-0 04 1 0303-0702 ● ●
26 NUT; HTR
M6 FLANGE IMA 		8-98055-704-0 04 1 0703- ● ●
44 NUT; EVAP
M6 FLANGE THA 		8-97063-399-0 02 1 0303-0702 ● ●
44 NUT; EVAP
M6 FLANGE IMA 		8-98055-704-0 02 1 0703- ● ●
59 DUCT; VENT,ASSIST SIDE
(A) THA 		8-97235-884-1 01 1 0303-0606 ● ●
59 DUCT; VENT,ASSIST SIDE
(A) THA 		8-98007-083-0 01 1 0607- ● ●
59 DUCT; VENT,ASSIST SIDE
(B) THA 		8-98007-084-0 01 1 0607- ● ●
65 DUCT; VENT,DRIVER SIDE
THA 		8-97235-886-1 01 1 0303-0606 ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE THA 		8-97063-399-0 03 1 0303-0702 ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE IMA 		8-98055-704-0 03 1 0703- ● ●
185 SCREW; VENT DUCT
M5X16 TAPPING THA 		9-09829-323-1 04 1 0303-0702 ● ●
185 SCREW; VENT DUCT
M5X16 TAPPING THA 		8-98061-685-0 04 1 0703-1005 ● ●
185 SCREW; VENT DUCT
M5X16 TAPPING THA 		8-98167-449-0 04 1 1006- ● ●
241 PLUG; RUBBER,EVAP DRAIN HOLE
THA 		8-94279-922-0 01 1 0303-0408 ● ●
241 PLUG; RUBBER,EVAP DRAIN HOLE
4JJ1 ENG<LFB> THA 		8-94279-922-0 02 1 0409-0412 ● ●
241 PLUG; RUBBER,EVAP DRAIN HOLE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-94279-922-0 02 1 0501-0606 ● ●
300 DUCT; VENT,CENTER
THA 		8-97235-881-0 01 1 0303-0606 ● ●
300 DUCT; VENT,CENTER
THA 		8-98007-074-0 01 1 0607- ● ●
326 GROMMET; DRAIN HOSE
OD=12 THA 		9-09956-122-0 02 1 0303-0408 ● ●
326 GROMMET; DRAIN HOSE
4JJ1 ENG<LFB> OD=12 THA 		9-09956-122-0 02 1 0409-0412 ● ●
326 GROMMET; DRAIN HOSE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> OD=12 THA 		9-09956-122-0 02 1 0501- ● ●
