Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#46580) — 469 parça

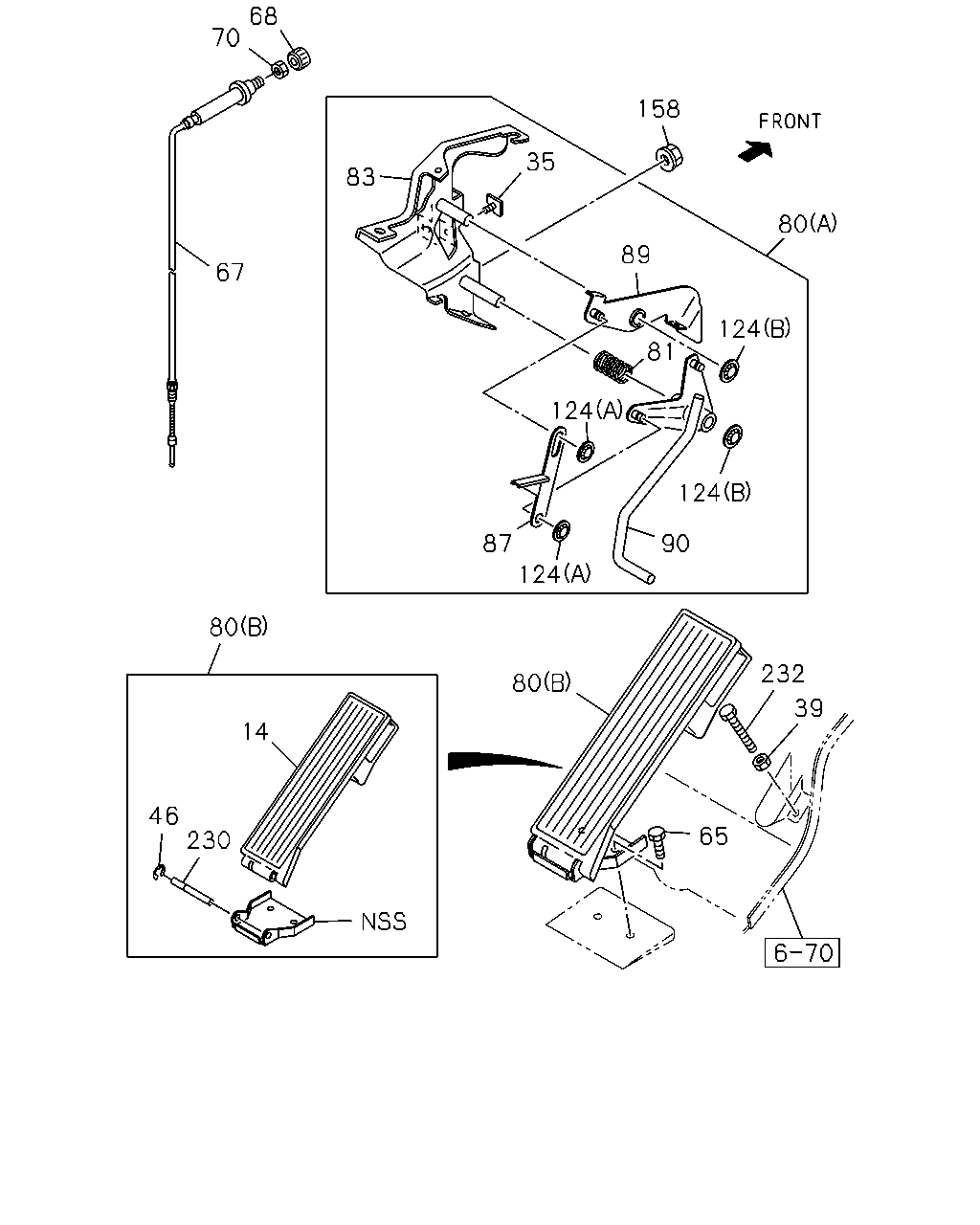

68 70 158 35 83 80 89 67 124 81 124 124 87 90 124 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0211-0501	●	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0502-	●		●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS)	8-97302-305-0	01	1	0211-0501	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-97302-305-0	01	1	0502-0609	●		●	●	●
35	03.459 STOPPER; ACCEL PEDAL 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-97302-305-0	01	1	0610-	●		●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0211-0501	●	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0502-0512	●		●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0601-	●		●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0211-0501	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0502-0604	●		●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●		●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0211-0501	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0502-	●		●	●	●	●
67	03.480 CABLE ASM; IDLE CONT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) L=439	8-97853-058-1	01	1	0211-0501	●	●	●	●	●	●
67	03.480 CABLE ASM; IDLE CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) L=439	8-97853-058-1	01	1	0502-0609	●		●	●	●
67	03.480 CABLE ASM; IDLE CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) L=439	8-97853-058-1	01	1	0610-	●		●	●	●
68	03.480 KNOB; IDLE CONT 4JB1 ENG(RLF),4HF1-S ENG(RLS)	8-97853-765-1	01	1	0211-0501	●		●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	0211-0501		●			●
68	03.480 KNOB; IDLE CONT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS)	8-97853-765-1	01	1	0211-0501				●
68	03.480 KNOB; IDLE CONT 4JB1 ENG(RLF)	8-97853-765-1	01	1	0211-0501						●
68	03.480 KNOB; IDLE CONT 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-97853-765-1	01	1	0502-0609	●		●
68	03.480 KNOB; IDLE CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-97853-765-1	01	1	0502-0609				●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	0502-0609					●
68	03.480 KNOB; IDLE CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-97853-765-1	01	1	0610-	●		●	●	●
70	03.483 NUT; CONT CABLE 4JB1 ENG(RLF),4HF1-S ENG(RLS) M18	8-97853-233-0	01	1	0211-0501	●		●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	0211-0501		●			●
70	03.483 NUT; CONT CABLE 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) M18	8-97853-233-0	01	1	0211-0501				●
70	03.483 NUT; CONT CABLE 4JB1 ENG(RLF) M18	8-97853-233-0	01	1	0211-0501						●
70	03.483 NUT; CONT CABLE 4HF1-N ENG(RJZ),4JB1 ENG(RLF) M18	8-97853-233-0	01	1	0502-0609	●		●
70	03.483 NUT; CONT CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) M18	8-97853-233-0	01	1	0502-0609				●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	0502-0609					●
70	03.483 NUT; CONT CABLE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) M18	8-97853-233-0	01	1	0610-	●		●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0211-0501	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0502-	●		●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) (A)	8-97853-057-9	01	1	0211-0501	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) (A)	8-97853-057-9	01	1	0502-0609	●		●	●	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) (A)	8-97853-057-9	01	1	0610-	●		●	●	●
80	03.452 LINK ASM; ENG CONT 4JH1 ENG(RJX) (C)	8-97892-195-8	01	1	0211-0501	●		●	●		●
80	03.452 LINK ASM; ENG CONT 4JH1-TC ENG(RDM) (C)	8-97892-195-9	01	1	0502-1205			●	●
80	03.452 LINK ASM; ENG CONT (C)	8-97892-195-9	01	1	0502-1205						●
80	03.452 LINK ASM; ENG CONT 4JH1-TC ENG(RDM) (C)	8-98216-821-0	01	1	1206-			●	●
80	03.452 LINK ASM; ENG CONT (C)	8-98216-821-0	01	1	1206-						●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS)	8-97853-205-1	01	1	0211-0501	●		●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0211-0501		●			●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS)	8-97853-205-1	01	1	0211-0501				●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1 ENG(RJX),4JB1 ENG(RLF)	8-97853-205-1	01	1	0211-0501						●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-97853-205-1	01	1	0502-0609	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF)	8-97853-205-1	01	1	0502-0609			●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ),4JB1 ENG(RLF)	8-97853-205-1	01	1	0502-0609				●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0502-0609					●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-97853-205-1	01	1	0610-	●		●	●	●	●
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS)	8-97853-201-4	01	1	0211-0501	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-97853-201-4	01	1	0502-0609	●		●	●	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-97853-201-4	01	1	0610-	●		●	●	●
83	03.452 BRACKET; CONT LINK 4JH1 ENG(RJX)	8-97892-196-3	01	1	0211-0501	●		●	●		●
83	03.452 BRACKET; CONT LINK 4JH1-TC ENG(RDM)	8-97892-196-4	01	1	0502-			●	●
83	03.452 BRACKET; CONT LINK	8-97892-196-4	01	1	0502-						●
87	03.454 LINK; ENG CONT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS)	8-97853-204-1	01	1	0211-0501	●	●	●	●	●	●
87	03.454 LINK; ENG CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-97853-204-1	01	1	0502-0609	●		●	●	●
87	03.454 LINK; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-97853-204-1	01	1	0610-	●		●	●	●
89	03.454 LEVER; RELAY 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS)	8-97868-042-0	01	1	0211-0501	●	●	●	●	●	●
89	03.454 LEVER; RELAY 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-97868-042-0	01	1	0502-0609	●		●	●	●
89	03.454 LEVER; RELAY 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-97868-042-0	01	1	0610-	●		●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS)	8-97868-039-0	01	1	0211-0501	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-97868-039-0	01	1	0502-0609	●		●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-97868-039-0	01	1	0610-	●		●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JH1 ENG(RJX)	8-97892-197-3	01	1	0211-0501	●		●	●		●
90	03.454 LEVER; RELAY,ENG CONT 4JH1-TC ENG(RDM)	8-97892-197-5	01	1	0502-			●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97892-197-5	01	1	0502-						●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0211-0501	●	●	●	●	●	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0502-0609	●		●	●	●
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0610-	●		●	●	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0211-0501	●	●	●	●	●	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0502-0609	●		●	●	●
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0610-	●		●	●	●
124	03.463 NUT; LEVER 4JH1 ENG(RJX) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	01	1	0211-0501	●		●	●		●
124	03.463 NUT; LEVER 4JH1-TC ENG(RDM) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	01	1	0502-			●	●
124	03.463 NUT; LEVER 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	01	1	0502-						●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0211-0501	●	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0502-	●		●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0211-0501	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0502-	●		●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	0211-0404	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0405-0501	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0502-	●		●	●	●	●

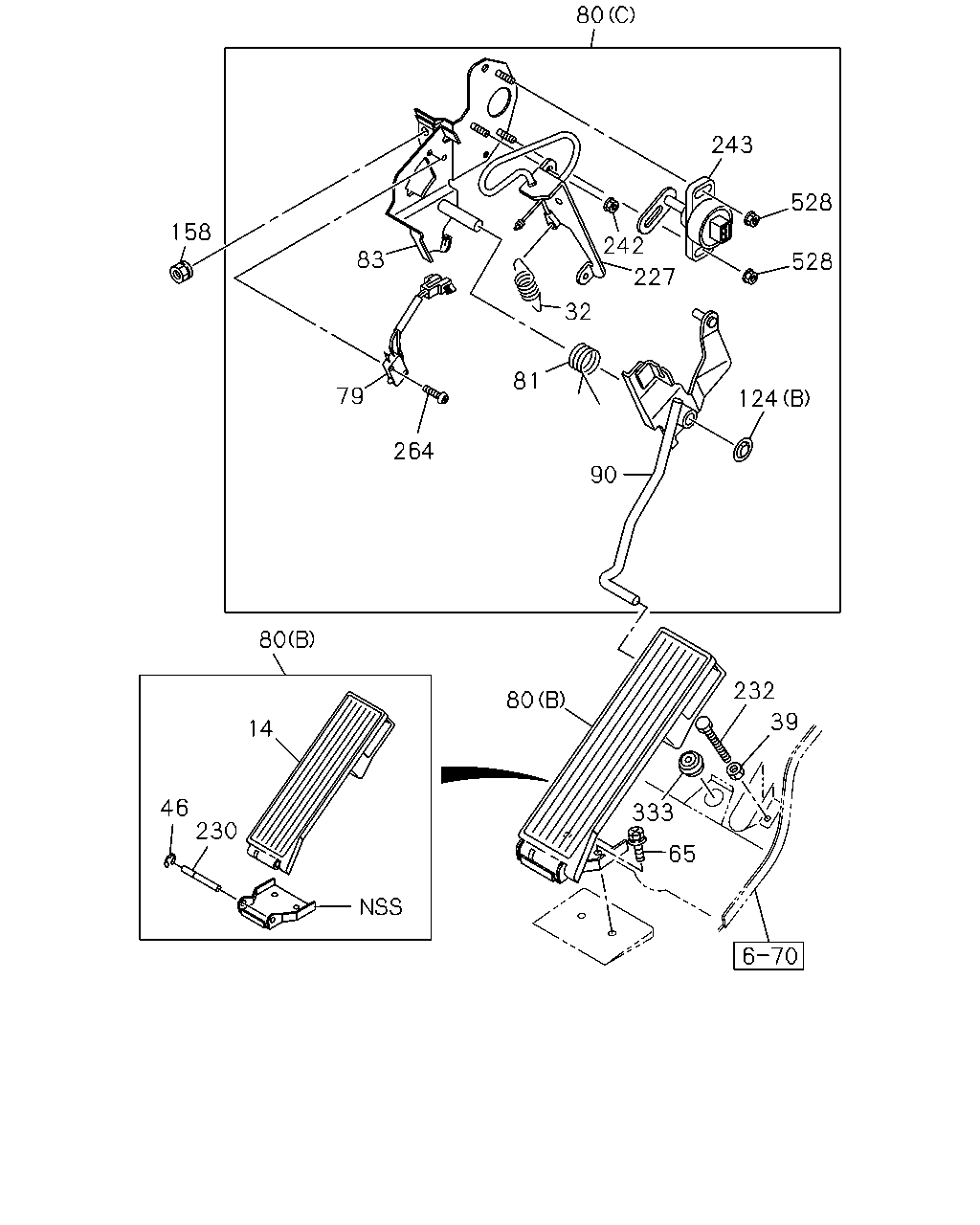

80 243 528 158 242 83 528 227 32 81 79 124 264 90 80 232 80 39 14 46 230 333 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0211-0501	●	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0502-	●		●	●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	8-97997-917-0	01	1	0211-0501	●		●	●		●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JH1-TC ENG(RDM)	8-97997-917-0	01	1	0502-			●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-97997-917-0	01	1	0502-						●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0211-0501	●	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0502-0512	●		●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0601-	●		●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0211-0501	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0502-0604	●		●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●		●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0211-0501	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0502-	●		●	●	●	●
79	03.451 SWITCH; ACCEL PEDAL 4JH1 ENG(RJX)	8-97224-056-0	01	1	0211-0501	●		●	●		●
79	03.451 SWITCH; ACCEL PEDAL 4JH1-TC ENG(RDM)	8-97224-056-0	01	1	0502-			●	●
79	03.451 SWITCH; ACCEL PEDAL	8-97224-056-0	01	1	0502-						●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0211-0501	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0502-	●		●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) (A)	8-97853-057-9	01	1	0211-0501	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) (A)	8-97853-057-9	01	1	0502-0609	●		●	●	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) (A)	8-97853-057-9	01	1	0610-	●		●	●	●
80	03.452 LINK ASM; ENG CONT 4JH1 ENG(RJX) (C)	8-97892-195-8	01	1	0211-0501	●		●	●		●
80	03.452 LINK ASM; ENG CONT 4JH1-TC ENG(RDM) (C)	8-97892-195-9	01	1	0502-1205			●	●
80	03.452 LINK ASM; ENG CONT (C)	8-97892-195-9	01	1	0502-1205						●
80	03.452 LINK ASM; ENG CONT 4JH1-TC ENG(RDM) (C)	8-98216-821-0	01	1	1206-			●	●
80	03.452 LINK ASM; ENG CONT (C)	8-98216-821-0	01	1	1206-						●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS)	8-97853-205-1	01	1	0211-0501	●		●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0211-0501		●			●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS)	8-97853-205-1	01	1	0211-0501				●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1 ENG(RJX),4JB1 ENG(RLF)	8-97853-205-1	01	1	0211-0501						●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-97853-205-1	01	1	0502-0609	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF)	8-97853-205-1	01	1	0502-0609			●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ),4JB1 ENG(RLF)	8-97853-205-1	01	1	0502-0609				●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0502-0609					●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-97853-205-1	01	1	0610-	●		●	●	●	●
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS)	8-97853-201-4	01	1	0211-0501	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-97853-201-4	01	1	0502-0609	●		●	●	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-97853-201-4	01	1	0610-	●		●	●	●
83	03.452 BRACKET; CONT LINK 4JH1 ENG(RJX)	8-97892-196-3	01	1	0211-0501	●		●	●		●
83	03.452 BRACKET; CONT LINK 4JH1-TC ENG(RDM)	8-97892-196-4	01	1	0502-			●	●
83	03.452 BRACKET; CONT LINK	8-97892-196-4	01	1	0502-						●
90	03.454 LEVER; RELAY,ENG CONT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS)	8-97868-039-0	01	1	0211-0501	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-97868-039-0	01	1	0502-0609	●		●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-97868-039-0	01	1	0610-	●		●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JH1 ENG(RJX)	8-97892-197-3	01	1	0211-0501	●		●	●		●
90	03.454 LEVER; RELAY,ENG CONT 4JH1-TC ENG(RDM)	8-97892-197-5	01	1	0502-			●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97892-197-5	01	1	0502-						●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0211-0501	●	●	●	●	●	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0502-0609	●		●	●	●
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0610-	●		●	●	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0211-0501	●	●	●	●	●	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0502-0609	●		●	●	●
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0610-	●		●	●	●
124	03.463 NUT; LEVER 4JH1 ENG(RJX) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	01	1	0211-0501	●		●	●		●
124	03.463 NUT; LEVER 4JH1-TC ENG(RDM) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	01	1	0502-			●	●
124	03.463 NUT; LEVER 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	01	1	0502-						●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0211-0501	●	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0502-	●		●	●	●	●
227	03.430 CABLE ASM; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	8-97892-203-5	01	1	0211-0501	●		●	●		●
227	03.430 CABLE ASM; RETURN,ACCEL PEDAL 4JH1-TC ENG(RDM)	8-97892-203-5	01	1	0502-			●	●
227	03.430 CABLE ASM; RETURN,ACCEL PEDAL	8-97892-203-5	01	1	0502-						●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0211-0501	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0502-	●		●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	0211-0404	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0405-0501	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0502-	●		●	●	●	●
242	03.483 NUT; ACCEL PEDAL 4JH1 ENG(RJX) 10.147 M6 W/DISHED WASHER	8-94423-325-0	01	1	0211-0501	●		●	●		●
242	03.483 NUT; ACCEL PEDAL 4JH1-TC ENG(RDM) 10.147 M6 W/DISHED WASHER	8-94423-325-0	01	1	0502-0805			●	●
242	03.483 NUT; ACCEL PEDAL 10.147 M6 W/DISHED WASHER	8-94423-325-0	01	1	0502-0805						●
242	03.483 NUT; ACCEL PEDAL 4JH1-TC ENG(RDM) 04.115 M6 W/DISHED WASHER	8-98029-921-0	01	1	0806-			●	●
242	03.483 NUT; ACCEL PEDAL 04.115 M6 W/DISHED WASHER	8-98029-921-0	01	1	0806-						●
243	03.425 SENSOR; ACCEL 4JH1 ENG(RJX)	8-97200-308-0	01	1	0211-0501	●		●	●		●
243	03.425 SENSOR; ACCEL 4JH1-TC ENG(RDM)	8-97200-308-0	01	1	0502-			●	●
243	03.425 SENSOR; ACCEL	8-97200-308-0	01	1	0502-						●
264	03.425 SCREW; ACCEL SW 4JH1 ENG(RJX) 03.451 M3X16 TAPPING	0-71280-316-0	02	1	0211-0501	●		●	●		●
264	03.425 SCREW; ACCEL SW 4JH1-TC ENG(RDM) 03.451 M3X16 TAPPING	0-71280-316-0	02	1	0502-0603			●	●
264	03.425 SCREW; ACCEL SW 03.451 M3X16 TAPPING	0-71280-316-0	02	1	0502-0603						●
264	03.425 SCREW; ACCEL SW 4JH1-TC ENG(RDM) M3X16 TAPPING	0-71340-316-0	02	1	0604-			●	●
264	03.425 SCREW; ACCEL SW M3X16 TAPPING	0-71340-316-0	02	1	0604-						●
333	03.671 GROMMET; HOLE,CABLE 4JH1 ENG(RJX) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0211-0501	●		●	●		●
333	03.671 GROMMET; HOLE,CABLE 4JH1-TC ENG(RDM) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0502-			●	●
333	03.671 GROMMET; HOLE,CABLE 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0502-						●
528	03.463 NUT; ACCEL SENSOR 4JH1 ENG(RJX) 10.147 M6 W/DISHED WASHER	8-94423-325-0	02	1	0211-0501	●		●	●		●
528	03.463 NUT; ACCEL SENSOR 4JH1-TC ENG(RDM) 10.147 M6 W/DISHED WASHER	8-94423-325-0	02	1	0502-0805			●	●
528	03.463 NUT; ACCEL SENSOR 10.147 M6 W/DISHED WASHER	8-94423-325-0	02	1	0502-0805						●
528	03.463 NUT; ACCEL SENSOR 4JH1-TC ENG(RDM) 04.115 M6 W/DISHED WASHER	8-98029-921-0	02	1	0806-			●	●
528	03.463 NUT; ACCEL SENSOR 04.115 M6 W/DISHED WASHER	8-98029-921-0	02	1	0806-						●

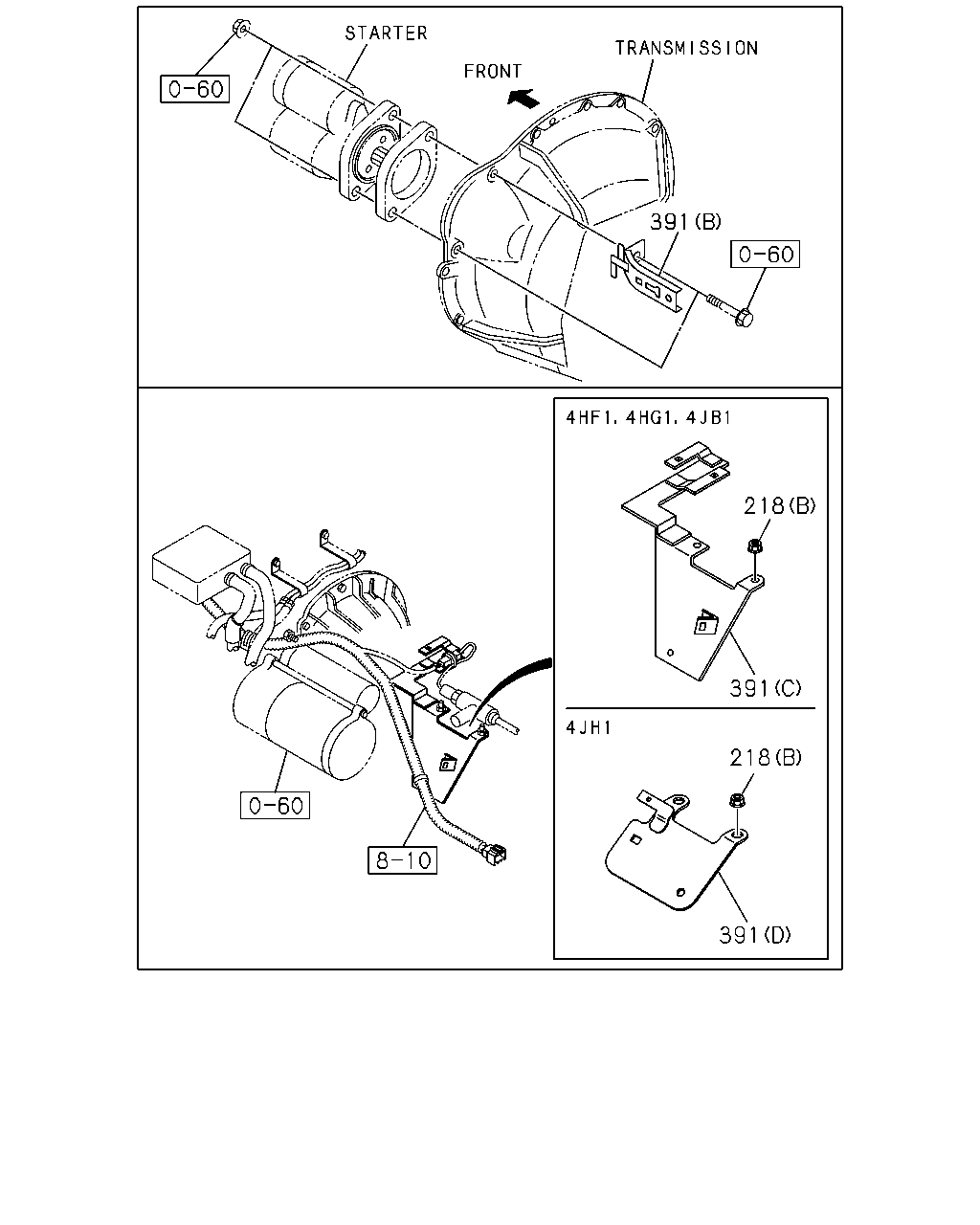

391 218 391 218 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
218	03.452 NUT; BRKT 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0211-0211	●	●	●	●	●	●
218	03.452 NUT; BRKT M/T MYY5T(RSM) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0212-0501	●		●	●		●
218	03.452 NUT; BRKT 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0212-0501					●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0502-0602	●		●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0502-0602				●
218	03.452 NUT; BRKT 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0502-0602					●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-0609	●		●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-0609				●
218	03.452 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-0609					●
218	03.452 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0610-	●		●	●	●
218	03.452 NUT; BRKT 4HF1-S ENG(RLS) 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0501	●		●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0501				●
218	03.452 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0501					●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0502-0602	●
218	03.452 NUT; BRKT 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0502-0602			●
218	03.452 NUT; BRKT 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0502-0602				●
218	03.452 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0502-0602					●	●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-0609	●
218	03.452 NUT; BRKT 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-0609			●
218	03.452 NUT; BRKT 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-0609				●
218	03.452 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-0609					●	●
218	03.452 NUT; BRKT 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0610-	●		●	●	●	●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 02.483 (B)	8-97068-801-1	01	1	0211-0501	●
391	03.452 BRACKET; ENG CONT 02.483 (B)	8-97068-801-1	01	1	0211-0501		●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 02.483 (B)	8-97068-801-1	01	1	0211-0501			●	●		●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) 02.483 (B)	8-97068-801-1	01	1	0502-	●		●	●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS) (A)	8-97172-882-0	01	1	0211-0501	●		●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97172-882-0	01	1	0211-0501				●
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0211-0501					●
391	03.452 BRACKET; ENG CONT 4HF1-N ENG(RJZ) (A)	8-97172-882-0	01	1	0502-0609	●		●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97172-882-0	01	1	0502-0609				●
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0502-0609					●
391	03.452 BRACKET; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97172-882-0	01	1	0610-	●		●	●	●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF),4HF1-S ENG(RLS) (C)	8-97357-141-0	01	1	0211-0211	●		●
391	03.452 BRACKET; ENG CONT (C)	8-97357-141-0	01	1	0211-0211		●			●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) (C)	8-97357-141-0	01	1	0211-0211				●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) (C)	8-97357-141-0	01	1	0211-0211						●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS) (C)	8-97357-141-0	01	1	0212-0501	●		●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (C)	8-97357-141-0	01	1	0212-0501				●
391	03.452 BRACKET; ENG CONT (C)	8-97357-141-0	01	1	0212-0501					●
391	03.452 BRACKET; ENG CONT 4HF1-N ENG(RJZ) (C)	8-97357-141-0	01	1	0502-0609	●		●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C)	8-97357-141-0	01	1	0502-0609				●
391	03.452 BRACKET; ENG CONT (C)	8-97357-141-0	01	1	0502-0609					●
391	03.452 BRACKET; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C)	8-97357-141-0	01	1	0610-	●		●	●	●
391	03.452 BRACKET; ENG CONT 4JH1 ENG(RJX) (D)	8-97352-772-0	01	1	0211-0501	●		●	●		●
391	03.452 BRACKET; ENG CONT 4JH1-TC ENG(RDM) (D)	8-97352-772-0	01	1	0502-			●	●
391	03.452 BRACKET; ENG CONT (D)	8-97352-772-0	01	1	0502-						●

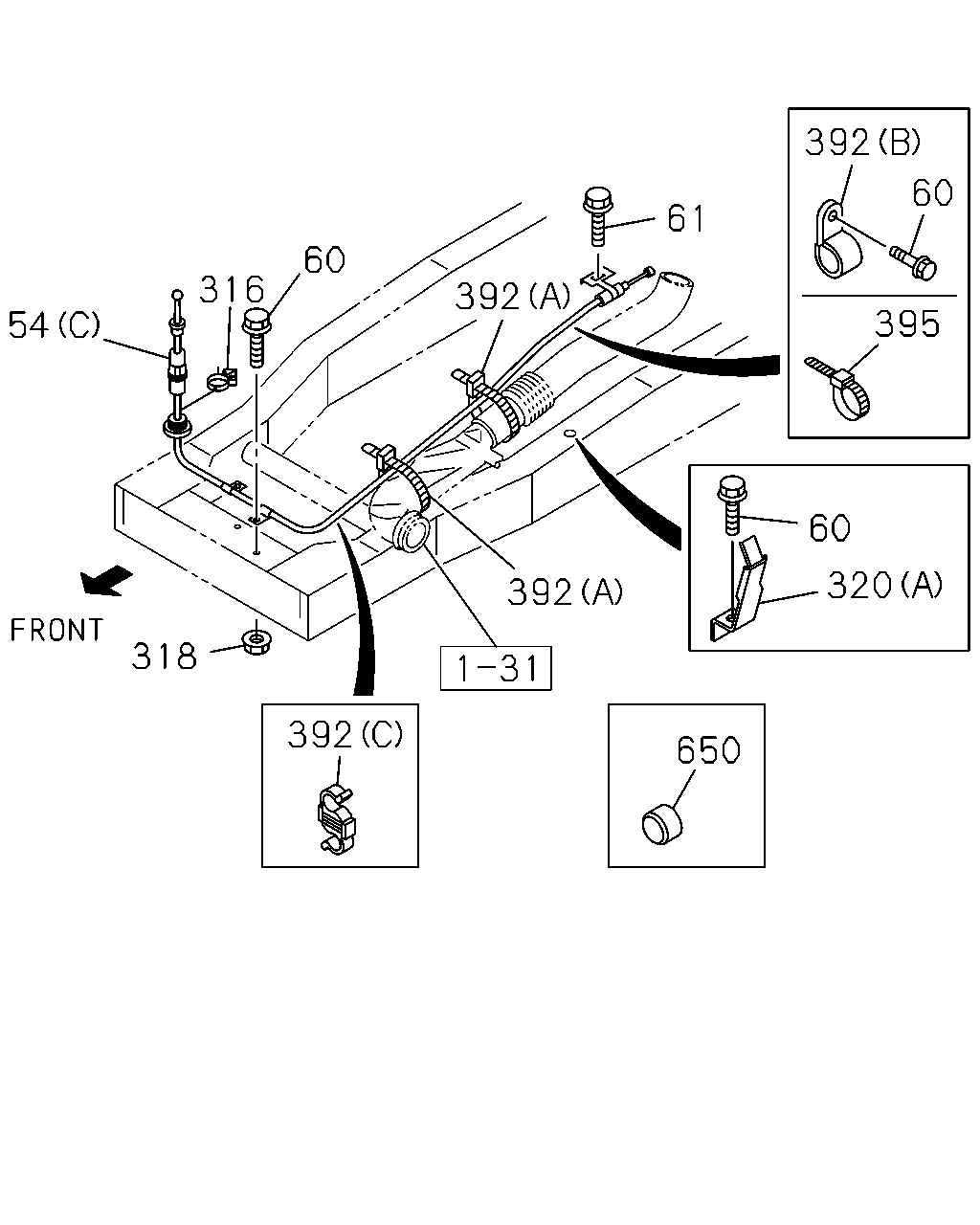

392 60 316 54 318 392 392 650 320 60 395 60 392 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT) (C) L=2330	8-97387-019-0	01	1	0610-0712	●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT) (C) L=2330	8-97387-019-0	01	1	0801-	●			●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (A) L=2703	8-97071-711-5	01	1	0211-0501	●		●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (A) L=2703	8-97071-711-5	01	1	0211-0501				●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (A) L=2703	8-97071-711-5	01	1	0502-0609				●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) L=2703	8-97071-711-5	01	1	0610-				●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0211-0501	●		●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0211-0501				●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	0502-0609				●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	0610-				●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) L=2600	8-97118-865-2	01	1	0211-0501	●		●	●
54	03.430 CABLE; ENG CONT (A) L=2600	8-97118-865-2	01	1	0211-0501					●
54	03.430 CABLE; ENG CONT 4HF1-N ENG(RJZ) (A) L=2600	8-97118-865-2	01	1	0502-	●		●	●
54	03.430 CABLE; ENG CONT (A) L=2600	8-97118-865-2	01	1	0502-					●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (C) L=2330	8-97208-002-1	01	1	0211-0407	●		●	●		●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (C) L=2330	8-97387-019-0	01	1	0408-0501	●		●	●		●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (C) L=2300	8-97046-362-4	01	1	0211-0407	●		●	●		●
54	03.430 CABLE; ENG CONT (C) L=2300	8-97046-362-4	01	1	0211-0407		●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (C) L=2300	8-97386-872-0	01	1	0408-0501	●		●	●		●
54	03.430 CABLE; ENG CONT (C) L=2300	8-97386-872-0	01	1	0408-0501		●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) (C) L=2300	8-97386-872-0	01	1	0502-	●		●	●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0610-0712	●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0801-	●			●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●		●	●	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0609	●		●	●	●
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0610-	●		●	●	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0501	●		●	●	●
60	08.155 BOLT; CABLE 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0501	●		●	●		●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512	●		●	●	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. HEATER & DEFROSTER(C41) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-0609	●		●	●	●
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. HEATER & DEFROSTER(C41) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0610-	●		●	●	●
60	08.155 BOLT; CABLE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●		●	●		●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JB1 ENG(RLF) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●		●	●		●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501		●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JB1 ENG(RLF) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0512	●		●	●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JB1 ENG(RLF) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-0609	●		●	●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0610-	●		●	●
316	03.425 CLIP; LAMP BRKT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) 16.065 ID=9	5-09707-027-0	01	1	0211-0501	●	●	●	●	●	●
316	03.425 CLIP; LAMP BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 16.065 ID=9	5-09707-027-0	01	1	0502-0609	●		●	●	●
316	03.425 CLIP; LAMP BRKT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 16.065 ID=9	5-09707-027-0	01	1	0610-	●		●	●	●
318	03.275 NUT; LAMP BRKT 4JB1 ENG(RLF),4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0211-0501	●
318	03.275 NUT; LAMP BRKT 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0211-0501		●			●
318	03.275 NUT; LAMP BRKT 4JB1 ENG(RLF),4HF1-S ENG(RLS) 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0211-0501			●
318	03.275 NUT; LAMP BRKT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0211-0501				●
318	03.275 NUT; LAMP BRKT 4JB1 ENG(RLF) 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0211-0501						●
318	03.275 NUT; LAMP BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0502-0609	●		●	●	●
318	03.275 NUT; LAMP BRKT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0610-0805	●		●	●	●
318	03.275 NUT; LAMP BRKT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 03.417 M8 W/LK WASHER	8-97581-234-0	02	1	0806-	●		●	●	●
320	03.483 CLIP; FRAME 4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	0211-0501	●		●
320	03.483 CLIP; FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	0211-0501				●
320	03.483 CLIP; FRAME EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	0211-0501					●
320	03.483 CLIP; FRAME 4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	0502-0609	●		●
320	03.483 CLIP; FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	0502-0609				●
320	03.483 CLIP; FRAME EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	0502-0609					●
320	03.483 CLIP; FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	0610-	●		●	●	●
320	03.483 CLIP; FRAME 4JB1 ENG(RLF) EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> (A)	8-94167-969-2	01	1	0211-0501	●		●	●
320	03.483 CLIP; FRAME 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> (A)	8-94167-969-2	01	1	0211-0501						●
320	03.483 CLIP; FRAME 4JB1 ENG(RLF) EXC. HEATER & DEFROSTER(C41) (A)	8-94167-969-2	01	1	0502-	●		●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL> (C) ID=6 & 10.5	1-09709-218-0	01	1	0211-0501	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 04.785 (B) ID=16 L=28	0-95235-552-0	01	1	0610-0712	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 04.785 (B) ID=16 L=28	0-95235-552-0	01	1	0801-	●			●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.334 (B) ID=16	9-09525-552-0	01	1	0211-0501	●		●	●		●
392	03.483 CLIP; ACCEL CONT CABLE 03.008 (A) L=330	5-09709-118-0	02	1	0211-0501		●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.008 (A) L=330	5-09709-118-0	02	1	0211-0501						●
392	03.483 CLIP; ACCEL CONT CABLE EXC. HEATER & DEFROSTER(C41) 08.852 (D) L=350	8-94152-256-1	01	1	0211-					●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	02	1	0211-0501	●		●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	02	1	0211-0501				●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	02	1	0211-0501					●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	02	1	0502-	●		●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	02	1	0502-				●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	02	1	0502-					●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> 03.162 L=140	5-09707-031-1	01	1	0211-0501	●		●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.162 L=140	5-09707-031-1	01	1	0211-0501						●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	01	1	0502-	●		●	●
650	06.672 PROTECTOR; ACCEL CABLE IDENTIFICATION LABEL FOR KD<6UT>	8-98185-066-0	01	1	1209-	●		●	●	●

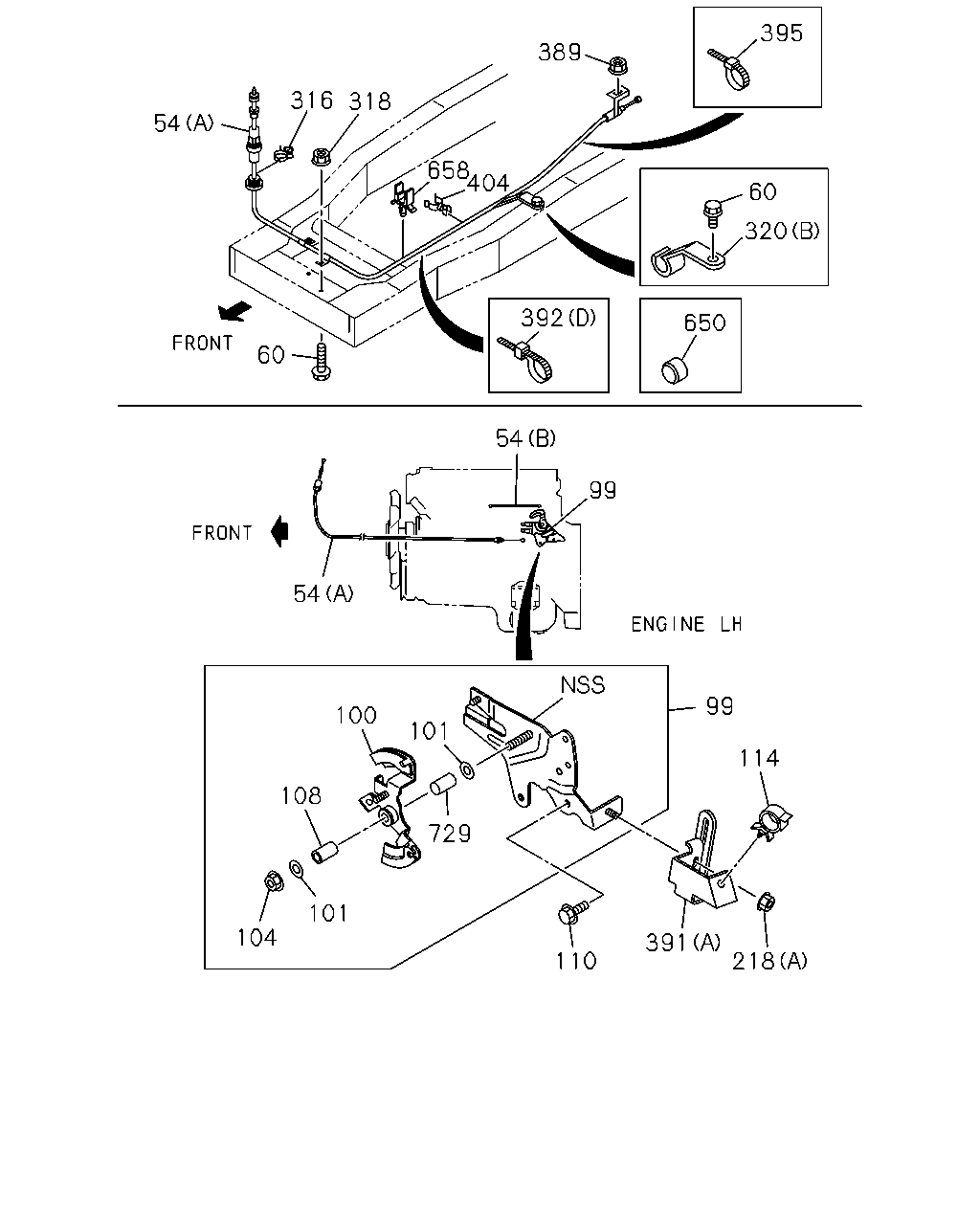

54 316 318 389 404 658 392 650 60 320 54 99 54 100 101 108 729 101 104 110 391 218 114 99 395 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT) (C) L=2330	8-97387-019-0	01	1	0610-0712	●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT) (C) L=2330	8-97387-019-0	01	1	0801-	●			●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (A) L=2703	8-97071-711-5	01	1	0211-0501	●		●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (A) L=2703	8-97071-711-5	01	1	0211-0501				●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (A) L=2703	8-97071-711-5	01	1	0502-0609				●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) L=2703	8-97071-711-5	01	1	0610-				●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0211-0501	●		●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0211-0501				●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	0502-0609				●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	0610-				●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) L=2600	8-97118-865-2	01	1	0211-0501	●		●	●
54	03.430 CABLE; ENG CONT (A) L=2600	8-97118-865-2	01	1	0211-0501					●
54	03.430 CABLE; ENG CONT 4HF1-N ENG(RJZ) (A) L=2600	8-97118-865-2	01	1	0502-	●		●	●
54	03.430 CABLE; ENG CONT (A) L=2600	8-97118-865-2	01	1	0502-					●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (C) L=2330	8-97208-002-1	01	1	0211-0407	●		●	●		●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (C) L=2330	8-97387-019-0	01	1	0408-0501	●		●	●		●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (C) L=2300	8-97046-362-4	01	1	0211-0407	●		●	●		●
54	03.430 CABLE; ENG CONT (C) L=2300	8-97046-362-4	01	1	0211-0407		●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (C) L=2300	8-97386-872-0	01	1	0408-0501	●		●	●		●
54	03.430 CABLE; ENG CONT (C) L=2300	8-97386-872-0	01	1	0408-0501		●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) (C) L=2300	8-97386-872-0	01	1	0502-	●		●	●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0610-0712	●
60	08.155 BOLT; CABLE 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0801-	●			●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●		●	●	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0609	●		●	●	●
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0610-	●		●	●	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0501	●		●	●	●
60	08.155 BOLT; CABLE 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0501	●		●	●		●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512	●		●	●	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. HEATER & DEFROSTER(C41) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-0609	●		●	●	●
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. HEATER & DEFROSTER(C41) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0610-	●		●	●	●
60	08.155 BOLT; CABLE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●		●	●		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97118-729-0	01	1	0211-0501	●		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97118-729-0	01	1	0211-0501				●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH)	8-97118-729-0	01	1	0502-0609				●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97118-729-0	01	1	0610-				●
100	03.463 SHAFT ASM; ENG CONT 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97118-737-0	01	1	0211-0501	●		●
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97118-737-0	01	1	0211-0501				●
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH)	8-97118-737-0	01	1	0502-0609				●
100	03.463 SHAFT ASM; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97118-737-0	01	1	0610-				●
101	03.463 WASHER; ENG CONT 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	0211-0501	●		●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	0211-0501				●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH) 01.276	8-94142-117-0	02	1	0502-0609				●
101	03.463 WASHER; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.276	8-94142-117-0	02	1	0610-				●
104	03.463 NUT; ENG CONT 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●		●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501				●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602				●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0609				●
104	03.463 NUT; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-				●
108	03.463 BUSHING; ENG CONT 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97120-004-0	01	1	0211-0501	●		●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97120-004-0	01	1	0211-0501				●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH)	8-97120-004-0	01	1	0502-0609				●
108	03.463 BUSHING; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97120-004-0	01	1	0610-				●
110	03.463 BOLT; BRKT TO HANGER 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0211-0501	●		●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0211-0501				●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0502-0512				●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0601-0609				●
110	03.463 BOLT; BRKT TO HANGER 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0610-				●
114	03.483 CLIP; HARNESS CONNECTOR 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 02.559 ID=7-10	8-94472-578-0	01	1	0211-0501	●		●
114	03.483 CLIP; HARNESS CONNECTOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 02.559 ID=7-10	8-94472-578-0	01	1	0211-0501				●
114	03.483 CLIP; HARNESS CONNECTOR 4HG1 ENG(RJH) 02.559 ID=7-10	8-94472-578-0	01	1	0502-0609				●
114	03.483 CLIP; HARNESS CONNECTOR 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.559 ID=7-10	8-94472-578-0	01	1	0610-				●
218	03.452 NUT; BRKT 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0211-0211	●	●	●	●	●	●
218	03.452 NUT; BRKT M/T MYY5T(RSM) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0212-0501	●		●	●		●
218	03.452 NUT; BRKT 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0212-0501					●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0502-0602	●		●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0502-0602				●
218	03.452 NUT; BRKT 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0502-0602					●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-0609	●		●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-0609				●
218	03.452 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-0609					●
218	03.452 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0610-	●		●	●	●
218	03.452 NUT; BRKT 4HF1-S ENG(RLS) 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0501	●		●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0501				●
218	03.452 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0501					●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0502-0602	●
218	03.452 NUT; BRKT 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0502-0602			●
218	03.452 NUT; BRKT 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0502-0602				●
218	03.452 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0502-0602					●	●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-0609	●
218	03.452 NUT; BRKT 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-0609			●
218	03.452 NUT; BRKT 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-0609				●
218	03.452 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-0609					●	●
218	03.452 NUT; BRKT 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0610-	●		●	●	●	●
316	03.425 CLIP; LAMP BRKT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) 16.065 ID=9	5-09707-027-0	01	1	0211-0501	●	●	●	●	●	●
316	03.425 CLIP; LAMP BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 16.065 ID=9	5-09707-027-0	01	1	0502-0609	●		●	●	●
316	03.425 CLIP; LAMP BRKT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 16.065 ID=9	5-09707-027-0	01	1	0610-	●		●	●	●
318	03.275 NUT; LAMP BRKT 4JB1 ENG(RLF),4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0211-0501	●
318	03.275 NUT; LAMP BRKT 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0211-0501		●			●
318	03.275 NUT; LAMP BRKT 4JB1 ENG(RLF),4HF1-S ENG(RLS) 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0211-0501			●
318	03.275 NUT; LAMP BRKT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0211-0501				●
318	03.275 NUT; LAMP BRKT 4JB1 ENG(RLF) 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0211-0501						●
318	03.275 NUT; LAMP BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0502-0609	●		●	●	●
318	03.275 NUT; LAMP BRKT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0610-0805	●		●	●	●
318	03.275 NUT; LAMP BRKT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 03.417 M8 W/LK WASHER	8-97581-234-0	02	1	0806-	●		●	●	●
320	03.483 CLIP; FRAME 4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	0211-0501	●		●
320	03.483 CLIP; FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	0211-0501				●
320	03.483 CLIP; FRAME EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	0211-0501					●
320	03.483 CLIP; FRAME 4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	0502-0609	●		●
320	03.483 CLIP; FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	0502-0609				●
320	03.483 CLIP; FRAME EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	0502-0609					●
320	03.483 CLIP; FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	0610-	●		●	●	●
320	03.483 CLIP; FRAME 4JB1 ENG(RLF) EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> (A)	8-94167-969-2	01	1	0211-0501	●		●	●
320	03.483 CLIP; FRAME 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> (A)	8-94167-969-2	01	1	0211-0501						●
320	03.483 CLIP; FRAME 4JB1 ENG(RLF) EXC. HEATER & DEFROSTER(C41) (A)	8-94167-969-2	01	1	0502-	●		●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1-S ENG(RLS) 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0501	●		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0501				●
389	03.483 NUT; ACCEL CONT CABLE FIX 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0501					●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1-N ENG(RJZ) 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602	●		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602				●
389	03.483 NUT; ACCEL CONT CABLE FIX 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602					●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1-N ENG(RJZ) 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0609	●		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0609				●
389	03.483 NUT; ACCEL CONT CABLE FIX 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0609					●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M6 FLANGE	0-91180-106-0	01	1	0610-	●		●	●	●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 02.483 (B)	8-97068-801-1	01	1	0211-0501	●
391	03.452 BRACKET; ENG CONT 02.483 (B)	8-97068-801-1	01	1	0211-0501		●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 02.483 (B)	8-97068-801-1	01	1	0211-0501			●	●		●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) 02.483 (B)	8-97068-801-1	01	1	0502-	●		●	●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS) (A)	8-97172-882-0	01	1	0211-0501	●		●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97172-882-0	01	1	0211-0501				●
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0211-0501					●
391	03.452 BRACKET; ENG CONT 4HF1-N ENG(RJZ) (A)	8-97172-882-0	01	1	0502-0609	●		●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97172-882-0	01	1	0502-0609				●
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0502-0609					●
391	03.452 BRACKET; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97172-882-0	01	1	0610-	●		●	●	●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF),4HF1-S ENG(RLS) (C)	8-97357-141-0	01	1	0211-0211	●		●
391	03.452 BRACKET; ENG CONT (C)	8-97357-141-0	01	1	0211-0211		●			●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) (C)	8-97357-141-0	01	1	0211-0211				●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) (C)	8-97357-141-0	01	1	0211-0211						●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS) (C)	8-97357-141-0	01	1	0212-0501	●		●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (C)	8-97357-141-0	01	1	0212-0501				●
391	03.452 BRACKET; ENG CONT (C)	8-97357-141-0	01	1	0212-0501					●
391	03.452 BRACKET; ENG CONT 4HF1-N ENG(RJZ) (C)	8-97357-141-0	01	1	0502-0609	●		●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C)	8-97357-141-0	01	1	0502-0609				●
391	03.452 BRACKET; ENG CONT (C)	8-97357-141-0	01	1	0502-0609					●
391	03.452 BRACKET; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C)	8-97357-141-0	01	1	0610-	●		●	●	●
391	03.452 BRACKET; ENG CONT 4JH1 ENG(RJX) (D)	8-97352-772-0	01	1	0211-0501	●		●	●		●
391	03.452 BRACKET; ENG CONT 4JH1-TC ENG(RDM) (D)	8-97352-772-0	01	1	0502-			●	●
391	03.452 BRACKET; ENG CONT (D)	8-97352-772-0	01	1	0502-						●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL> (C) ID=6 & 10.5	1-09709-218-0	01	1	0211-0501	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 04.785 (B) ID=16 L=28	0-95235-552-0	01	1	0610-0712	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 04.785 (B) ID=16 L=28	0-95235-552-0	01	1	0801-	●			●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.334 (B) ID=16	9-09525-552-0	01	1	0211-0501	●		●	●		●
392	03.483 CLIP; ACCEL CONT CABLE 03.008 (A) L=330	5-09709-118-0	02	1	0211-0501		●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.008 (A) L=330	5-09709-118-0	02	1	0211-0501						●
392	03.483 CLIP; ACCEL CONT CABLE EXC. HEATER & DEFROSTER(C41) 08.852 (D) L=350	8-94152-256-1	01	1	0211-					●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	02	1	0211-0501	●		●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	02	1	0211-0501				●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	02	1	0211-0501					●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	02	1	0502-	●		●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	02	1	0502-				●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	02	1	0502-					●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> 03.162 L=140	5-09707-031-1	01	1	0211-0501	●		●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.162 L=140	5-09707-031-1	01	1	0211-0501						●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	01	1	0502-	●		●	●
404	03.483 CLIP; CABLE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) ID=20.2 & 6	8-94472-577-0	01	1	0211-0501	●		●
404	03.483 CLIP; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) ID=20.2 & 6	8-94472-577-0	01	1	0211-0501				●
404	03.483 CLIP; CABLE HEATER & DEFROSTER(C41) ID=20.2 & 6	8-94472-577-0	01	1	0211-0501					●
404	03.483 CLIP; CABLE 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) ID=20.2 & 6	8-94472-577-0	01	1	0502-	●		●
404	03.483 CLIP; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) ID=20.2 & 6	8-94472-577-0	01	1	0502-				●
404	03.483 CLIP; CABLE HEATER & DEFROSTER(C41) ID=20.2 & 6	8-94472-577-0	01	1	0502-					●
650	06.672 PROTECTOR; ACCEL CABLE IDENTIFICATION LABEL FOR KD<6UT>	8-98185-066-0	01	1	1209-	●		●	●	●
658	03.430 CLIP; ENG CONT CABLE 4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41) 04.930 ID=10 H=40	8-94462-219-0	01	1	0211-0501	●		●
658	03.430 CLIP; ENG CONT CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41) 04.930 ID=10 H=40	8-94462-219-0	01	1	0211-0501				●
658	03.430 CLIP; ENG CONT CABLE 4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41) 04.930 ID=10 H=40	8-94462-219-0	01	1	0502-0609	●		●
658	03.430 CLIP; ENG CONT CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41) 04.930 ID=10 H=40	8-94462-219-0	01	1	0502-0609				●
658	03.430 CLIP; ENG CONT CABLE 4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41) 04.930 ID=10 H=40	8-94462-219-0	01	1	0610-	●		●
658	03.430 CLIP; ENG CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41) 04.930 ID=10 H=40	8-94462-219-0	01	1	0610-				●
729	03.451 COLLAR; JOINT 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	0211-0501	●		●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	0211-0501				●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH)	8-97118-760-0	01	1	0502-0609				●
729	03.451 COLLAR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97118-760-0	01	1	0610-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
