9-01 — TOOLS (#4658) — 156 parça

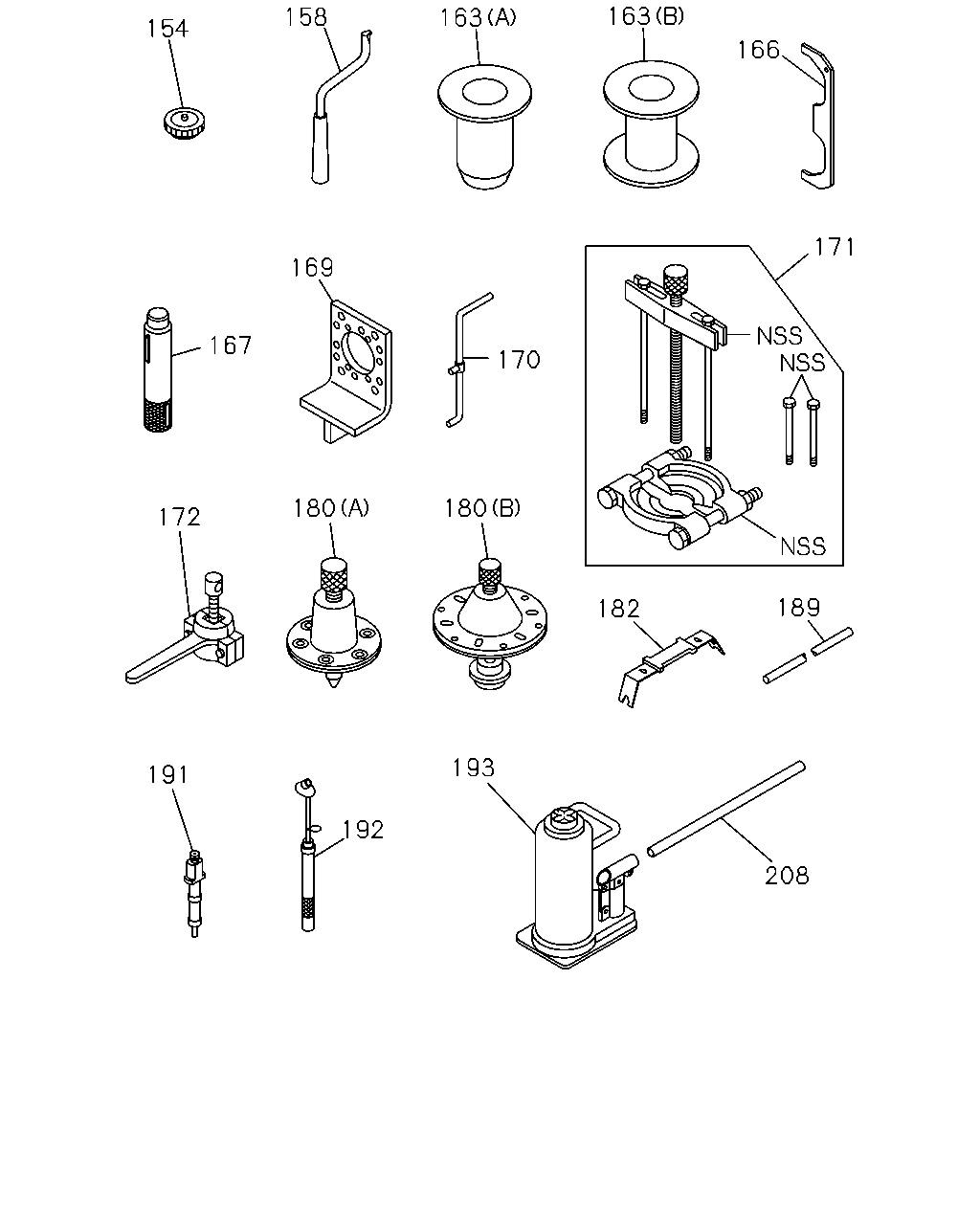

163 158 163 154 166 171 169 167 170 180 180 172 189 182 193 191 192 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
154	SLEEPER; KING PIN	1-85238-003-0	01	1	9603-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	9603-
163	TOOL; SETTING ISUZU M/T<X9A> (A) L=195	1-85221-162-1	01	1	9603-
163	TOOL; SETTING ISUZU M/T<X9A> (B) L=150	1-85221-163-0	01	1	9603-
166	ALIGNER; CLU RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=57.5	1-85253-015-0	01	1	9603-
166	ALIGNER; CLU RELEASE LEVER EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=17.5	1-85253-010-0	01	1	9603-
167	ALIGNER; CLU PILOT L=300 OD=41.1	1-85253-020-0	01	1	9603-
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	9603-
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9603-
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	9603-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	9603-
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	9603-
180	PULLER; FRT & RR HUB (B)	1-85210-003-0	01	1	9603-
182	REMOVER ASM	1-85239-008-0	01	1	9603-
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	9603-
191	ADAPTER V TYPE ENG<91L>	1-85317-002-0	01	1	9603-
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-001-0	01	1	9603-9912
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-002-0	01	1	0001-
193	JACK ASM 15TON	1-85510-019-0	01	1	9603-9608
193	JACK ASM 15TON	1-85510-021-0	01	1	9709-9709
193	JACK ASM 15TON	1-85510-019-1	01	1	9710-
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9603-0105
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0106-

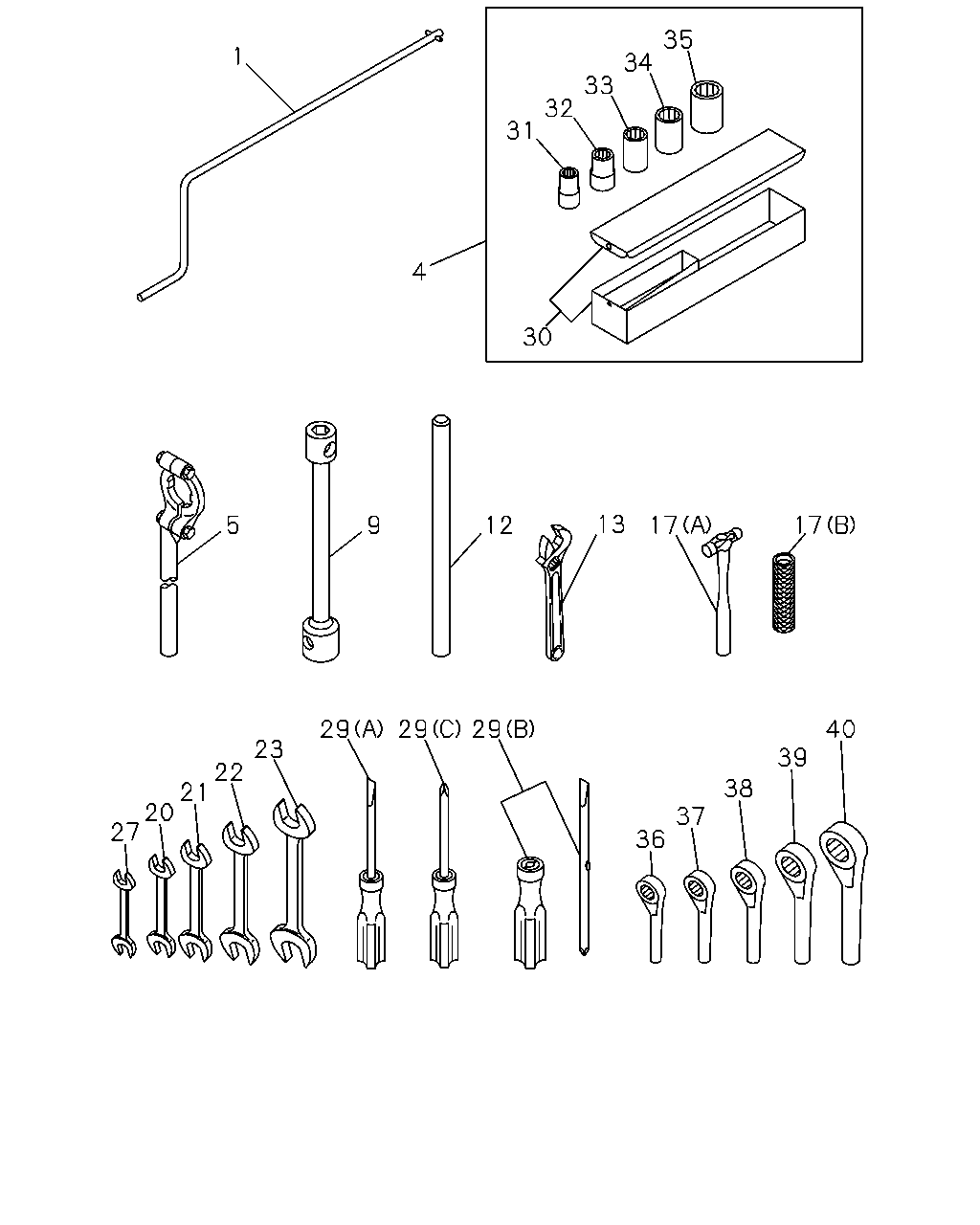

35 34 33 32 1 31 4 30 13 5 9 12 17 17 29 40 23 22 21 20 27 39 38 37 36 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	9603-
4	WRENCH KIT; SOCKET	9-85110-012-0	01	1	9603-
5	WRENCH ASM; NUT,MAINSHAFT	1-85110-010-0	01	1	9603-
9	WRENCH; WHEEL PIN WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> B=41X21 L=440	1-85113-015-1	01	1	9603-9904
9	WRENCH; WHEEL PIN EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> B=33X30 L=450	1-85111-033-1	01	1	9603-9904
9	WRENCH; WHEEL PIN B=33X30 L=450	1-85111-033-1	01	1	9905-
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	9603-
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	9603-
17	HAMMER (A)	9-85121-406-0	01	1	9603-
17	HAMMER V TYPE ENG<91L> (B)	1-85220-021-0	01	1	9603-
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	9603-
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	9603-
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	9603-
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	9603-
27	WRENCH; OPEN END 5.5X7 8X10	9-99592-108-0	01	1	9603-9904
29	DRIVER; SCREW (A) <-> L=285	1-85151-004-0	01	1	9603-
29	DRIVER; SCREW (B) <+>,<-> L=160	8-94242-798-1	01	1	9603-
29	DRIVER; SCREW (C) <+> L=275	9-09595-023-0	01	1	9603-
30	BOX; SOCKET WRENCH	9-85581-260-0	01	1	9603-
31	WRENCH; 12	9-09590-012-0	01	1	9603-
32	WRENCH; 14	9-09590-014-0	01	1	9603-
33	WRENCH; 17	9-09590-017-0	01	1	9603-
34	WRENCH; 19	9-09590-019-0	01	1	9603-
35	WRENCH; 22	9-09590-022-0	01	1	9603-
36	WRENCH; 24	9-85111-377-0	01	1	9603-
37	WRENCH; 27	9-85111-375-0	01	1	9603-
38	WRENCH; 32	9-85111-358-0	01	1	9603-
39	WRENCH; 36	9-85111-374-0	01	1	9603-
40	WRENCH; 41	9-85111-356-0	01	1	9603-

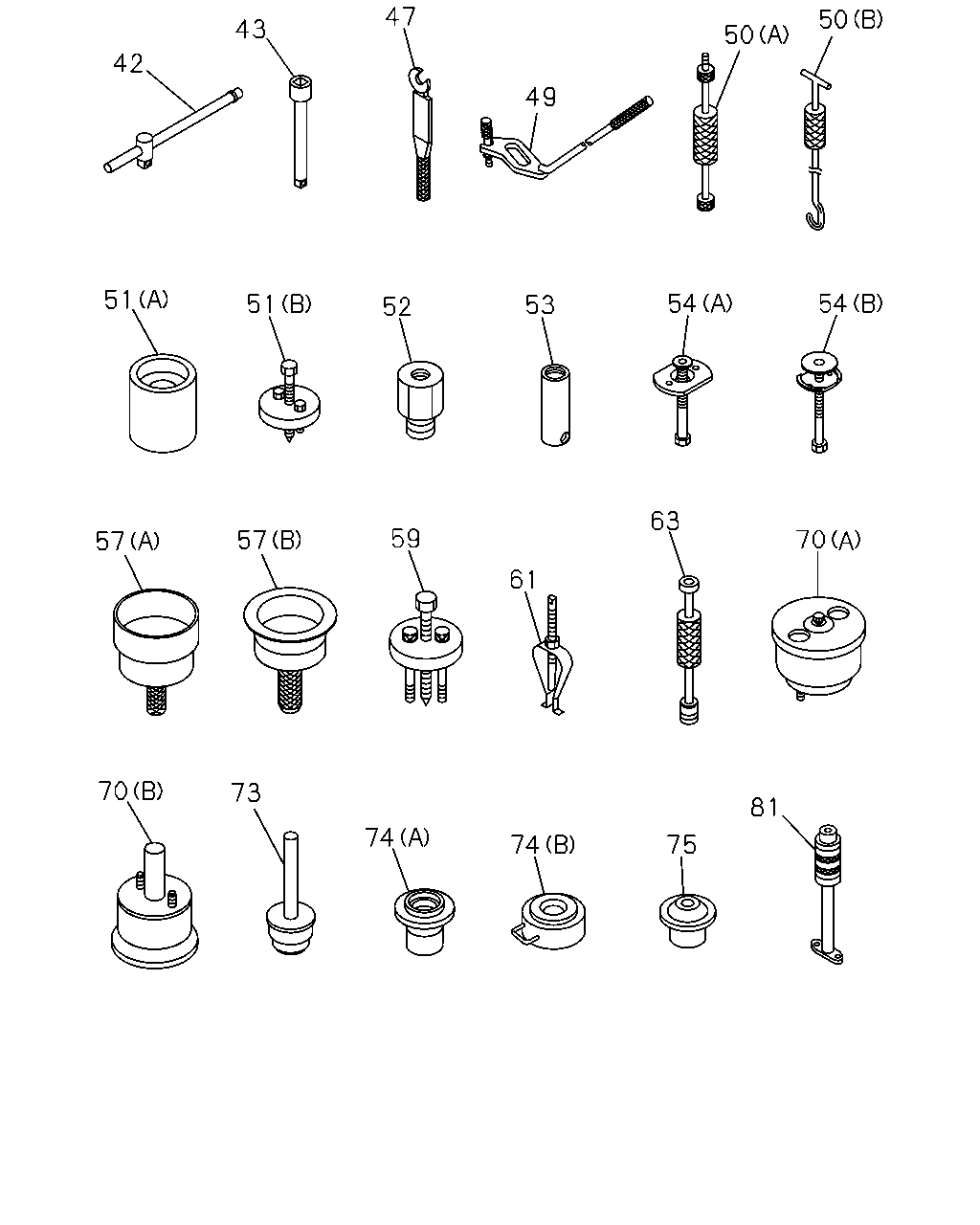

47 50 43 50 42 49 51 54 54 51 53 52 63 59 70 57 57 61 70 73 81 74 74 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	HANDLE; SLIDING	9-09590-512-0	01	1	9603-
43	BAR; EXTENSION,SOCKET WRENCH	9-09590-812-0	01	1	9603-
47	WRENCH ASM; UNIVERSAL,INJ PUMP V TYPE ENG<91L>	1-85220-018-0	01	1	9603-
49	REPLACER ASM; VALVE V TYPE ENG<91L>	1-85235-001-0	01	1	9603-
50	REPLACER; NOZZLE HOLDER L TYPE ENG<90L> (A) L=300	1-85230-013-0	01	1	9603-
50	REPLACER; NOZZLE HOLDER V TYPE ENG<91L> (B) L=500	1-85230-007-0	01	1	9603-
51	PULLER ASM; WATER PUMP L TYPE ENG<90L> (B)	1-85210-028-0	01	1	9603-9904
51	PULLER ASM; WATER PUMP V TYPE ENG<91L> (B)	1-85210-028-0	01	1	9905-
51	PULLER ASM; WATER PUMP V TYPE ENG<91L> (A)	1-85220-047-0	01	1	9603-9904
51	PULLER ASM; WATER PUMP L TYPE ENG<90L> (A)	1-85220-047-0	01	1	9905-
52	REMOVER; WATER PUMP L TYPE ENG<90L>	1-85210-062-0	01	1	9603-
53	PULLER; TAPER BUSHING L TYPE ENG<90L>	1-85210-063-0	01	1	9603-
54	PULLER; THERMOSTAT SEAL L TYPE ENG<90L> (B)	1-85210-067-0	01	1	9603-
54	PULLER; THERMOSTAT SEAL V TYPE ENG<91L> (A)	1-85210-029-0	01	1	9603-
57	TOOL; SETTING CRANK GEAR L TYPE ENG<90L> (A) OD=162	1-85220-045-0	01	1	9603-
57	TOOL; SETTING CRANK GEAR V TYPE ENG<91L> (B) OD=175	1-85221-028-0	01	1	9603-
59	PULLER ASM; TIMING GEAR L TYPE ENG<90L>	1-85210-065-0	01	1	9603-
61	PULLER ASM; PILOT BRG L TYPE ENG<90L>	9-85210-157-0	01	1	9603-
61	PULLER ASM; PILOT BRG V TYPE ENG<91L>	9-85210-157-0	01	1	9603-
63	PULLER; NOZZLE SLEEVE V TYPE ENG<91L>	1-85210-026-0	01	1	9603-
70	TOOL; SETTING,OIL SEAL L TYPE ENG<90L> (A)	1-85220-043-0	01	1	9603-
70	TOOL; SETTING,OIL SEAL V TYPE ENG<91L> (B) FOR OIL SEAL	1-85220-051-0	01	1	9603-
70	TOOL; SETTING,OIL SEAL V TYPE ENG<91L> (B) FOR OIL THROWER	1-85220-053-0	01	1	9603-
73	TOOL; SETTING,THERMOSTAT SEAL L TYPE ENG<90L>	1-85221-034-0	01	1	9603-
73	TOOL; SETTING,THERMOSTAT SEAL V TYPE ENG<91L>	1-85221-034-0	01	1	9603-
74	TOOL; SETTING,INJ PUMP BRG V TYPE ENG<91L> (A)	1-85220-019-0	01	1	9603-
74	TOOL; SETTING,INJ PUMP BRG V TYPE ENG<91L> (B)	1-85220-020-1	01	1	9603-
75	TOOL; SETTING,OIL SEAL L TYPE ENG<90L>	1-85220-049-0	01	1	9603-
81	PULLER; BRG CAP V TYPE ENG<91L>	1-85210-015-0	01	1	9603-

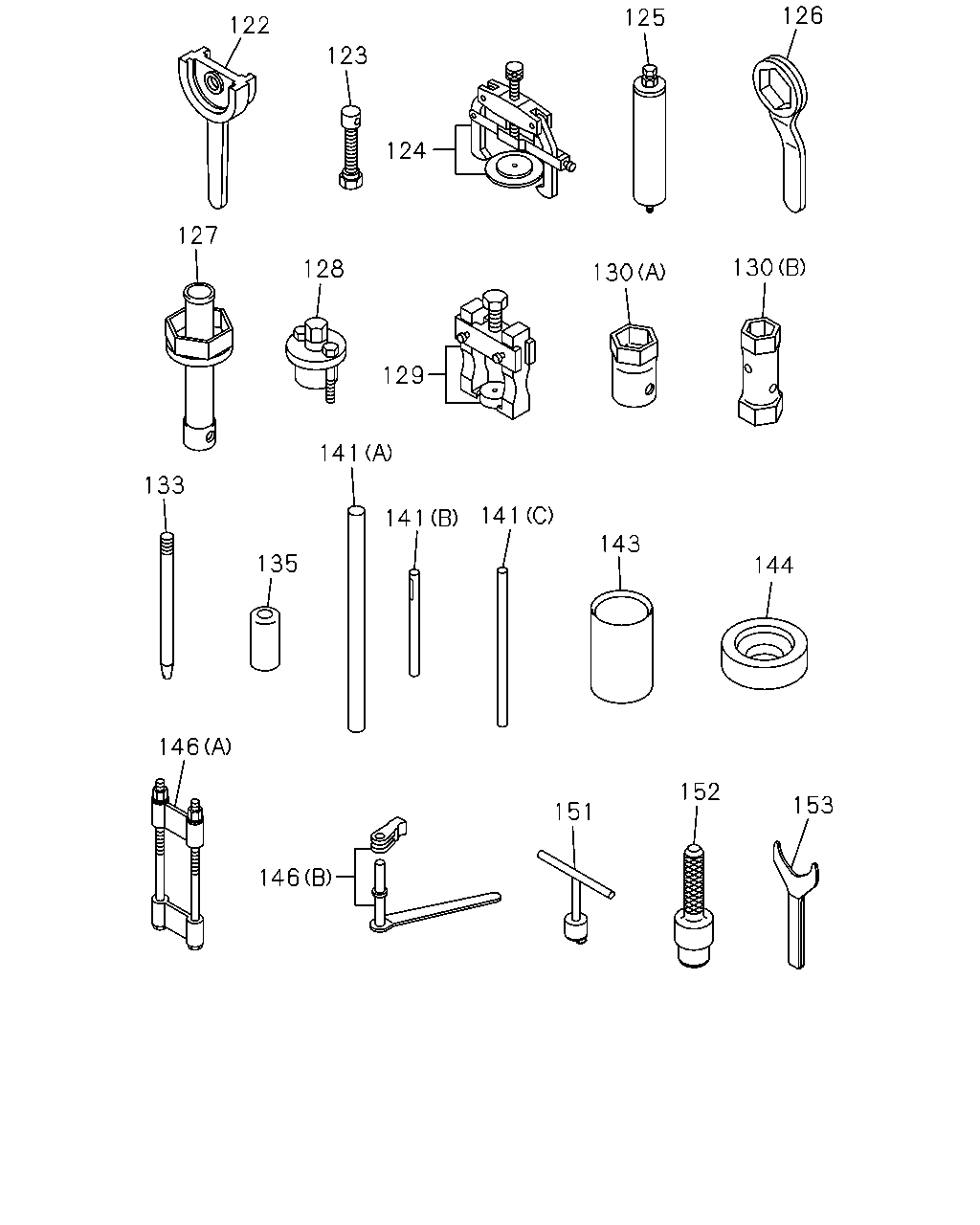

126 125 122 123 124 127 130 128 130 129 141 133 141 141 143 135 144 146 152 153 151 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
122	PULLER ASM; COUNTER FRT ISUZU M/T<X9A>	9-85210-129-1	01	1	9603-
123	PULLER; SPEEDOMETER BUSHING ISUZU M/T<X9A>	9-85210-091-0	01	1	9603-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	9603-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	9603-
126	WRENCH; FRT HUB BRG NUT L=257 B=63	9-85111-373-0	01	1	9603-
127	WRENCH ASM; HUB BRG NUT L=400 B=116	9-85113-524-0	01	1	9603-
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	9603-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	9603-
130	WRENCH; BOX (A) B=63	9-85111-368-0	01	1	9603-
130	WRENCH; BOX (B) B=46 & 54 L=165	9-85112-320-0	01	1	9603-
130	WRENCH; BOX (B) B=32 & 41 L=150	9-85112-322-0	01	1	9603-
130	WRENCH; BOX (B) B=36 & 41 L=200	9-85112-330-0	01	1	9603-
130	WRENCH; BOX (B) B=41 & 46 L=165	9-85113-401-0	01	1	9603-
133	WRENCH; NUT STARTER V TYPE ENG<91L>	1-85221-030-0	02	1	9603-
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	9603-
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	9603-
141	HANDLE; WRENCH (B) OD=16 L=200	9-85111-934-0	01	1	9603-
141	HANDLE; WRENCH (C) OD=19 L=400	9-85114-306-0	01	1	9603-
141	HANDLE; WRENCH (C) OD=16 L=300	9-85114-307-0	01	1	9603-
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	9603-
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	9603-
146	REPLACER KIT; LEAF SPR (A)	9-85231-556-0	01	1	9603-
146	REPLACER KIT; LEAF SPR TAIWAN EQUIPMENT(WW5) (B)	1-85237-016-0	01	1	9603-9904
146	REPLACER KIT; LEAF SPR EXC. TAIWAN EQUIPMENT(WW5) (B)	1-85237-017-0	01	1	9603-9904
146	REPLACER KIT; LEAF SPR (B)	1-85237-017-0	01	1	9905-
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	9603-
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	9603-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	9603-

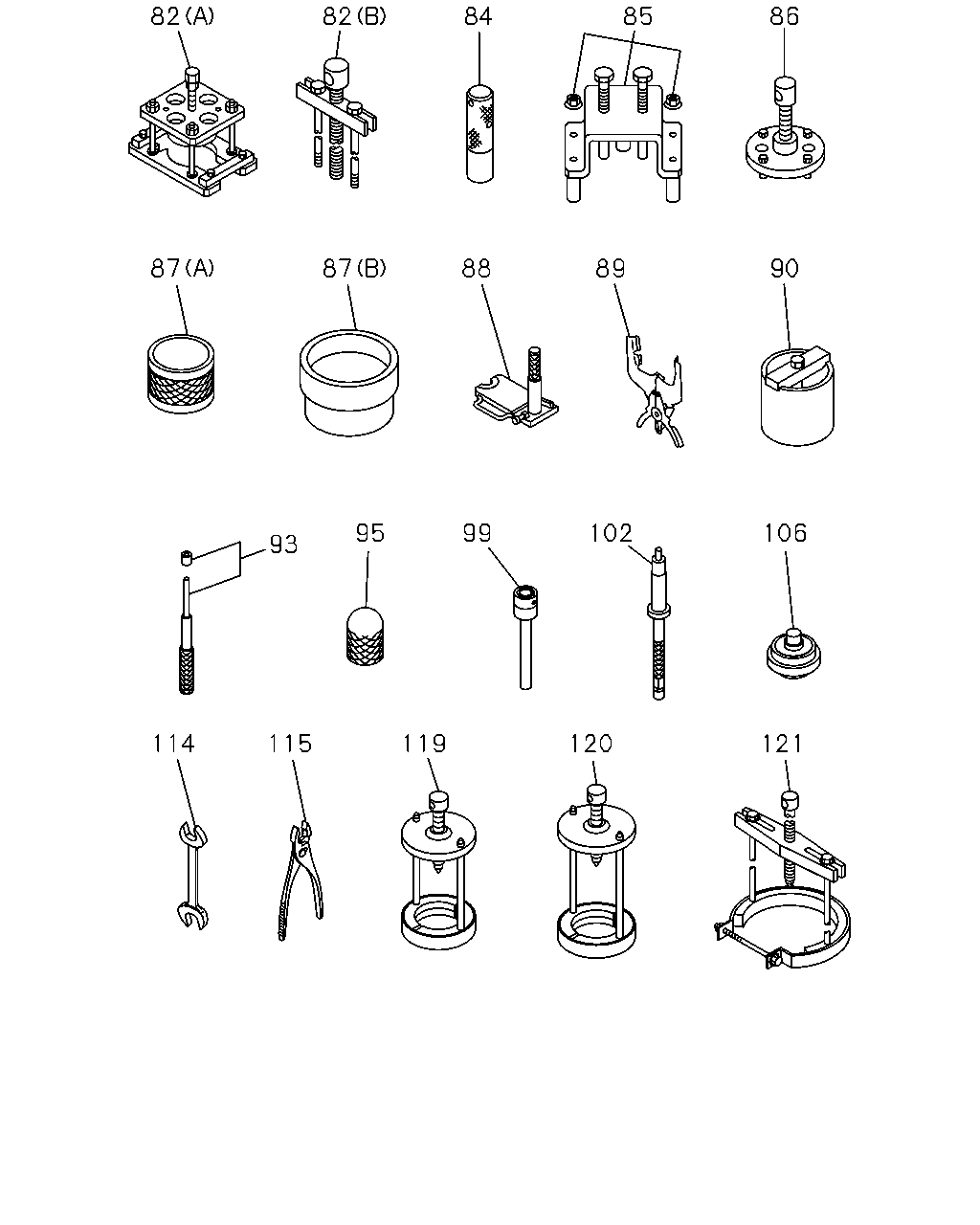

82 82 84 85 86 87 87 88 89 90 95 99 102 106 93 115 119 120 121 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	PULLER ASM; CR/SHF GEAR L TYPE ENG<90L> (A)	1-85210-064-0	01	1	9603-
82	PULLER ASM; CR/SHF GEAR V TYPE ENG<91L> (B)	9-85211-139-0	01	1	9603-
84	REPLACER; VALVE SEAL L TYPE ENG<90L> INLET	1-85221-136-0	01	1	9603-9609
84	REPLACER; VALVE SEAL L TYPE ENG<90L> EXHAUST	1-85221-184-0	01	1	9701-
84	REPLACER; VALVE SEAL L TYPE ENG<90L> EXHAUST	1-85221-140-1	01	1	9603-9612
84	REPLACER; VALVE SEAL L TYPE ENG<90L> INLET	1-85221-187-0	01	1	9610-
85	REPLACER ASM; VALVE SPR L TYPE ENG<90L>	1-85235-010-0	01	1	9603-9609
85	REPLACER ASM; VALVE SPR L TYPE ENG<90L>	1-85235-013-0	01	1	9610-
86	REPLACER; FLYWHEEL V TYPE ENG<91L>	1-85230-006-0	01	1	9603-
87	TOOL; PISTON L TYPE ENG<90L> (B)	1-85220-046-0	01	1	9603-
87	TOOL; PISTON V TYPE ENG<91L> (A)	1-85220-058-0	01	1	9603-9806
87	TOOL; PISTON V TYPE ENG<91L> (A)	1-85220-082-0	01	1	9807-
88	TOOL; CONNROD BUSHING V TYPE ENG<91L>	1-85220-002-0	01	1	9603-
89	TOOL; PISTON RING L TYPE ENG<90L>	1-85221-029-0	01	1	9603-
89	TOOL; PISTON RING V TYPE ENG<91L>	1-85221-029-0	01	1	9603-
90	PULLER; INJ PUMP BRG V TYPE ENG<91L>	1-85210-039-0	01	1	9603-
93	SETTING KIT; VALVE GUIDE L TYPE ENG<90L> L=260	9-85231-202-0	01	1	9603-
93	SETTING KIT; VALVE GUIDE V TYPE ENG<91L> L=260	9-85231-202-0	01	1	9603-
95	SETTING TOOL; BRIDGE GUIDE L TYPE ENG<90L>	9-85221-324-0	01	1	9603-
99	WRENCH; CYL HD BOLT V TYPE ENG<91L>	1-85115-013-0	01	1	9603-
102	ADAPTER; COMP GAGE L TYPE ENG<90L>	1-85317-019-0	01	1	9603-
106	TOOL; SETTING PILOT BRG L TYPE ENG<90L>	1-85221-057-0	01	1	9603-
106	TOOL; SETTING PILOT BRG V TYPE ENG<91L>	1-85221-057-0	01	1	9603-
114	WRENCH; INJ PUMP V TYPE ENG<91L>	1-85220-027-0	01	1	9603-
115	PLIER	5-85171-001-0	01	1	9603-
119	PULLER ASM; TOP GEAR BRG ISUZU M/T<X9A> L=235	9-85210-190-0	01	1	9603-
120	PULLER ASM; MAIN REAR BRG ISUZU M/T<X9A> L=285	9-85210-184-0	01	1	9603-
121	PULLER ASM; COUNTER REAR ISUZU M/T<X9A>	1-85210-069-0	01	1	9603-

227 232 218 219 230 363 237 296 299 329 247 248 249 250 245 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
218	PLUG V TYPE ENG<91L>	1-15629-043-0	01	1	9603-
219	GASKET V TYPE ENG<91L>	9-09720-555-0	01	1	9603-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	9603-
230	PUMP; GREASE	1-85556-007-2	01	1	9603-
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<W47>	1-09360-628-1	01	1	9603-
237	BAG; TOOL	8-97130-902-0	01	1	9603-
245	CHAIN; TIRE,SINGLE 9.00-20 SINGLE TYPE	9-85591-254-0	01	1	9603-
246	CHAIN; TIRE,1000-20,SINGLE 10.00-20 SINGLE TYPE	9-85591-239-0	01	1	9603-
246	CHAIN; TIRE,1000-20,SINGLE 11.00-20 SINGLE TYPE	9-85591-259-0	01	1	9603-
247	CHAIN; TIRE,750-20,DOUBLE 9.00-20 DOUBLE TYPE	9-85591-255-0	01	1	9603-
248	CHAIN; TIRE,1000-20,DOUBLE 10.00-20 DOUBLE TYPE	9-85591-240-0	01	1	9603-
248	CHAIN; TIRE,1000-20,DOUBLE 11.00-20 DOUBLE TYPE	9-85591-260-0	01	1	9603-
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	01	1	9603-
250	CHAIN; TIRE,1000-20,TRIPLE 10.00-20 TRIPLE TYPE	9-85591-241-0	01	1	9603-
250	CHAIN; TIRE,1000-20,TRIPLE 11.00-20 TRIPLE TYPE	9-85591-261-0	01	1	9603-
296	REPLACER; SLINGER L TYPE ENG<90L>	1-85210-027-0	01	1	9603-
299	PULLER ASM; TRANS CONTROL ZF M/T<X9E>	1-85210-081-0	01	1	9603-
329	PULLER ASM; SLINGER V TYPE ENG<91L> ID=124	1-85220-052-0	01	1	9603-
363	WRENCH; OPEN END 8X10 8X10	9-99592-108-0	01	1	9905-
