Sayfa 0-86 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-86 - MISCELLANEOUS PARTS; INJECTION PUMP ▶

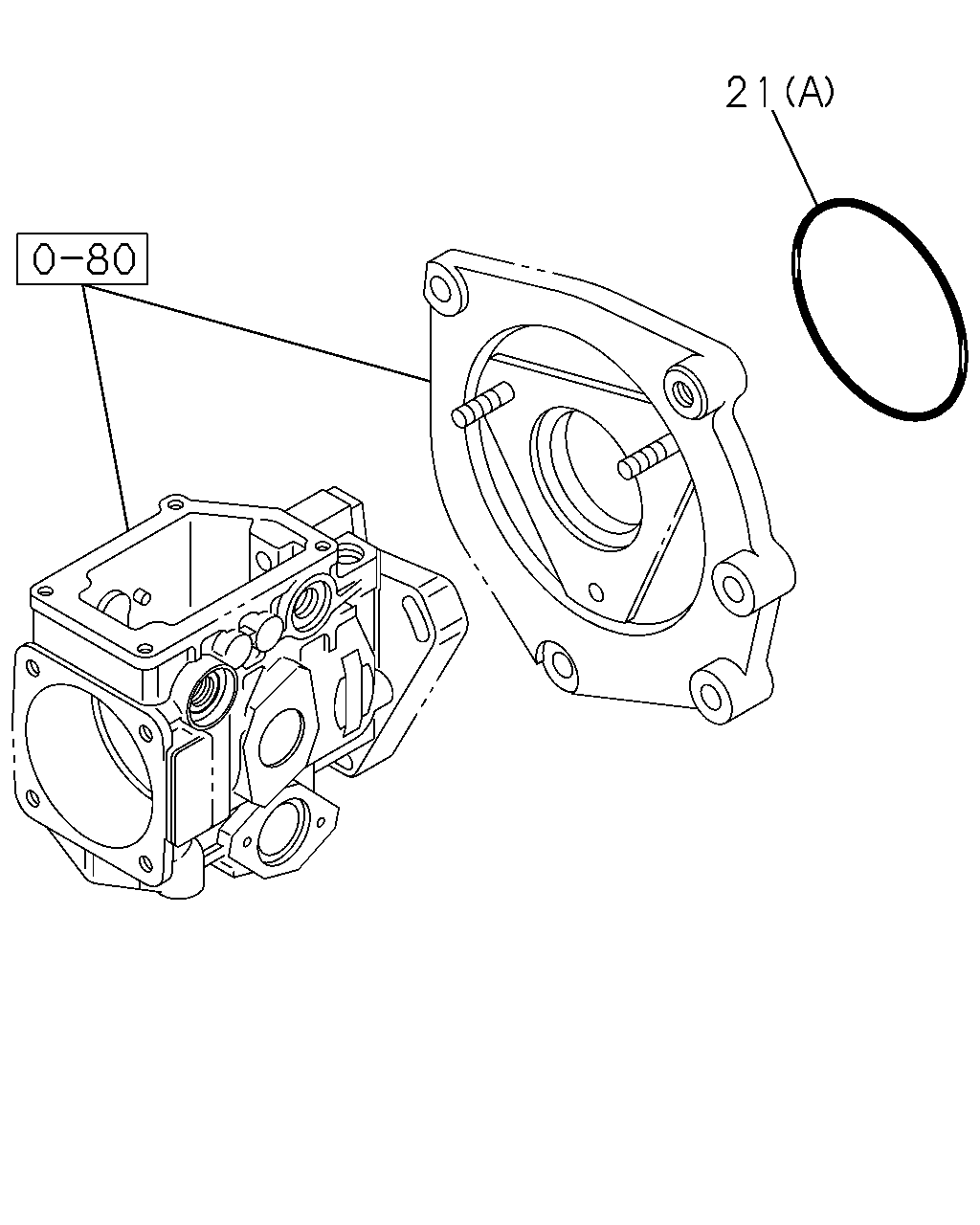

0-86 — MISCELLANEOUS PARTS; INJECTION PUMP (#46579) — 36 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. ENGINE POWER N-SPEC(7QV) . 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	0211-0501	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE) . 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	0211-0501		●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE) . 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	0502-		●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE) . (A)	8-97039-200-1	01	1	0211-0501	●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE) . (A)	8-97039-200-1	01	1	0502-0609		●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE) . (A)	8-97039-200-1	01	1	0610-		●	●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE) . 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	02	1	0610-				●

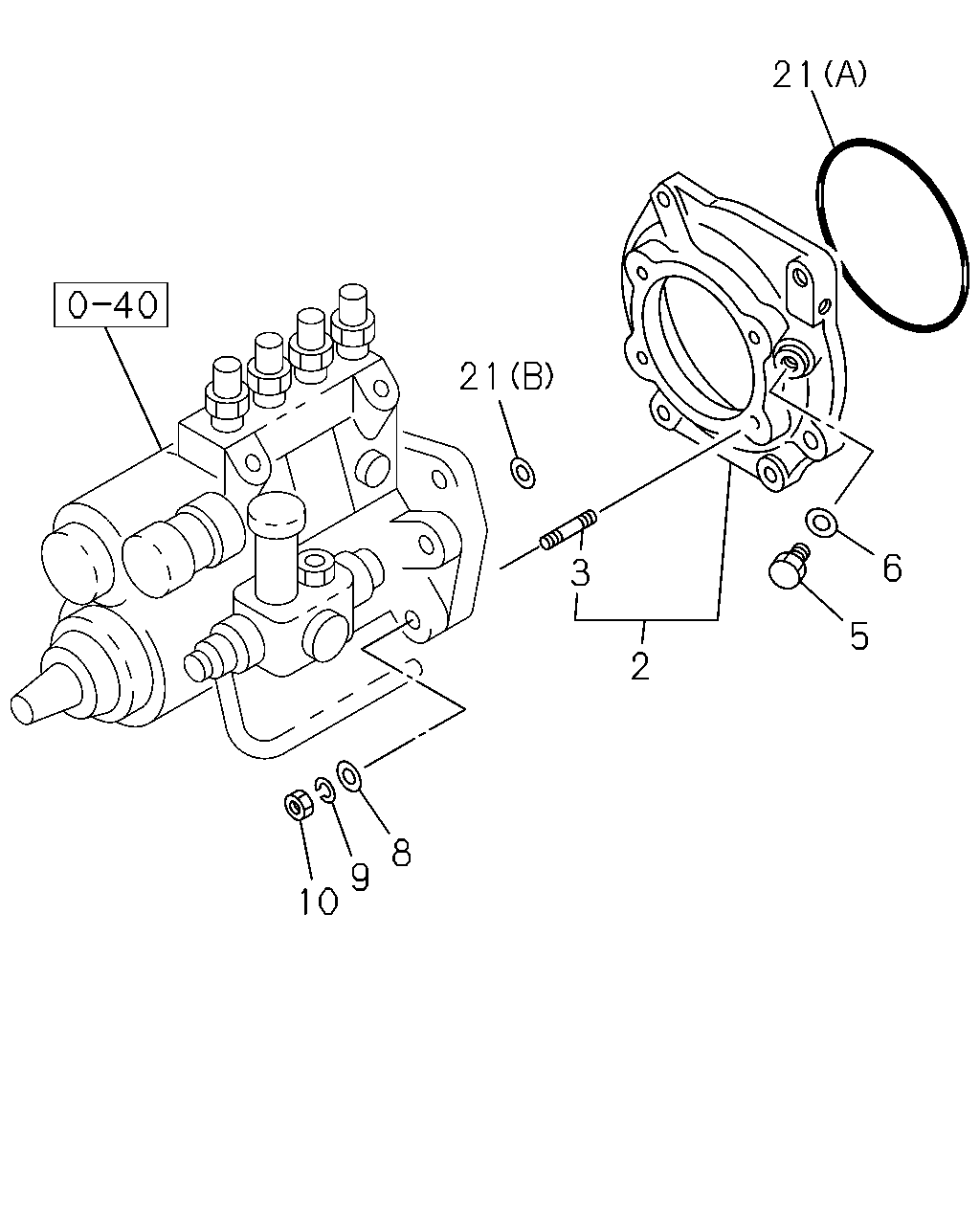

21 21 6 3 5 2 8 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.306 BRACKET; HSG & TIMER,INJ PUMP EXC. AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV)	8-97121-616-0	01	1	0211-0501	●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97123-609-0	01	1	0211-0609		●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97123-609-0	01	1	0610-		●		●
3	03.330 STUD; HSG BRKT,INJ PUMP EXC. AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 08.981 M10X30 L=45	9-04101-030-0	04	1	0211-0501	●
5	03.306 PLUG; HSG BRKT,INJ PUMP EXC. AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV)	8-97026-919-0	01	1	0211-0501	●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	0211-0501		●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	0502-0609		●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	0610-		●		●
6	03.306 GASKET; PLUG,INJ PUMP BRKT EXC. AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 03.308	1-15729-787-0	01	1	0211-0501	●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	0211-0501		●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	0502-0609		●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	0610-		●		●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP EXC. AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 06.896 ID=10.5	9-09164-510-0	04	1	0211-0501	●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	0211-0501		●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	0502-0609		●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	0610-		●		●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	0211-0609		●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	0610-		●		●
10	03.306 NUT; HSG BRKT,INJ PUMP EXC. AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV)	5-15639-002-0	04	1	0211-0501	●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	0211-0501		●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	0502-0609		●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	0610-		●		●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. ENGINE POWER N-SPEC(7QV) . 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	0211-0501	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE) . 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	0211-0501		●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE) . 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	0502-		●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE) . (A)	8-97039-200-1	01	1	0211-0501	●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE) . (A)	8-97039-200-1	01	1	0502-0609		●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE) . (A)	8-97039-200-1	01	1	0610-		●	●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE) . 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	02	1	0610-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
