0-85A — AUTO TIMER; INJECTION PUMP (#46576) — 46 parça

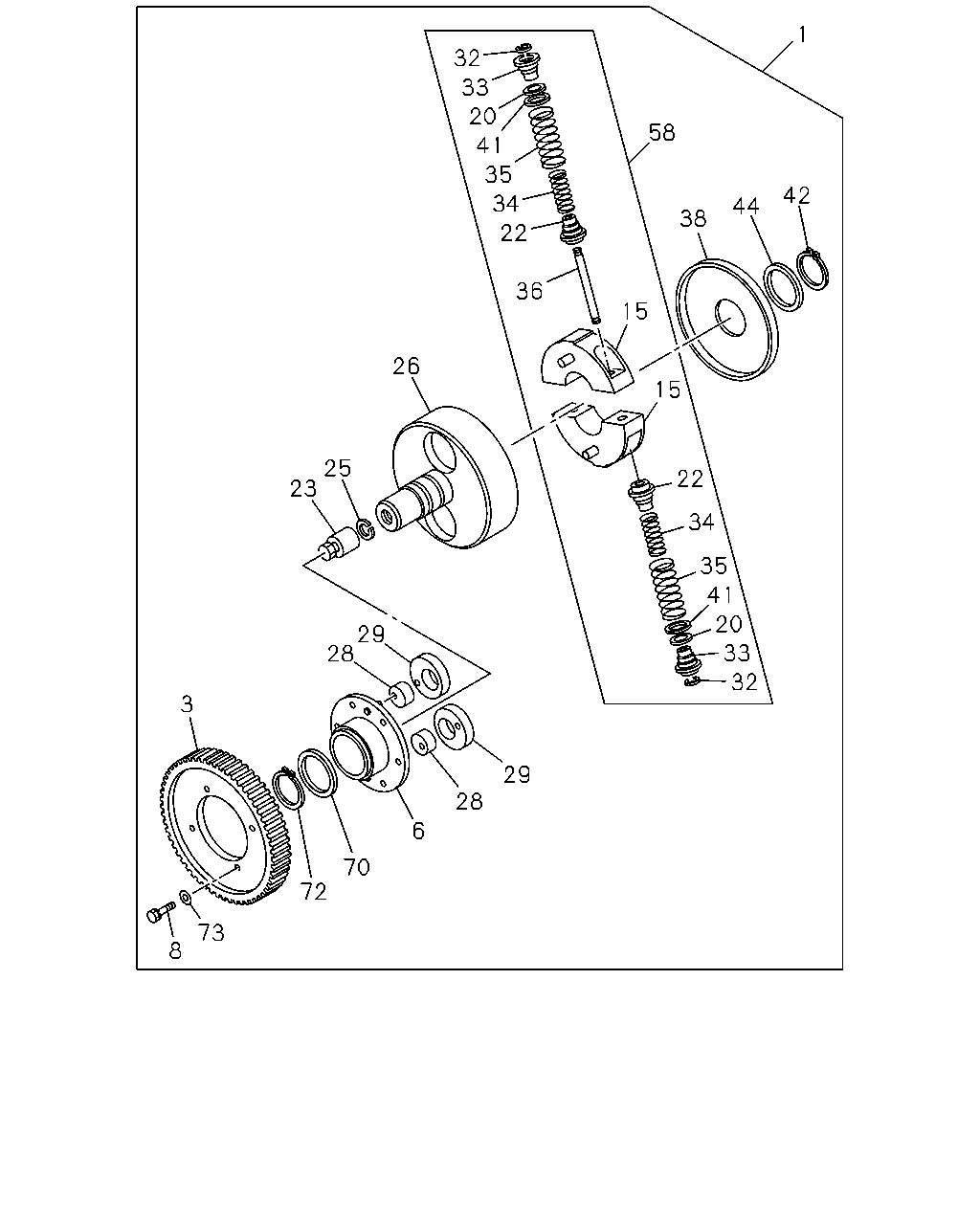

1 32 33 20 58 41 35 42 34 44 38 22 36 15 26 15 25 23 22 34 35 41 20 29 28 33 32 3 29 28 6 70 72 73 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM ASM PART: H = 8-98253-290-0, 98253290	8-94174-746-0	01	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086	8-94227-495-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-500-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366	8-94473-120-0	01	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM 03.320, T=2.40 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94121-620-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-495-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.70 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-496-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.90 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-497-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.00 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-498-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.20 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-499-0	AR	1	-

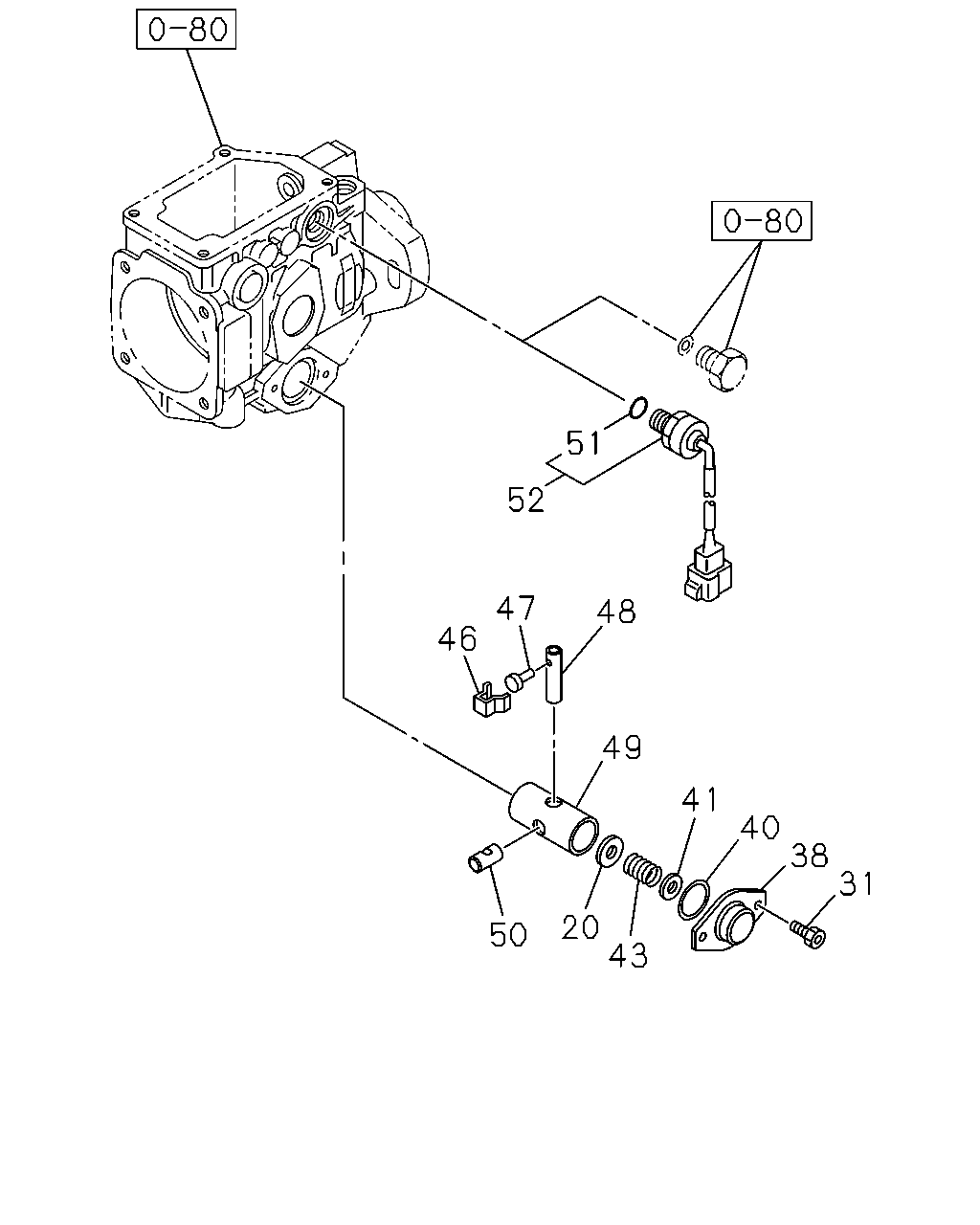

51 52 47 48 46 49 41 40 38 31 20 43 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM ASM PART: H = 8-98253-290-0, 98253290	8-94174-746-0	01	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086	8-94227-495-0	01	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366	8-94313-276-0	02	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97231-933-0	02	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-500-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366	8-94473-120-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP 03.306 ASM PART: E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366	8-94227-491-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94433-763-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP 03.306 ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97383-765-0	01	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM 03.320, T=2.40 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94121-620-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-495-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.70 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-496-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.90 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-497-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.00 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-498-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.20 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-499-0	AR	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=40.0 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-97045-508-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=40.2 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-97047-719-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=39.8 ASM PART: E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366	8-97125-521-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=42.7 ASM PART: E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366	8-97125-522-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=41.3 ASM PART: E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366	8-97125-523-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=40.6 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-97125-524-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=44.0 ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97231-929-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=41.7 ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97231-930-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=42.0 ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97231-931-0	01	1	-
46	03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-488-0	01	1	-
47	03.340 PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-487-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366	8-94227-486-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97214-493-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94174-739-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366	8-94426-069-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97231-928-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366	8-94227-493-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-97119-163-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-97218-961-0	01	1	-
51	03.340 GASKET; TIMING SENSOR,INJ PUMP 03.306 ASM PART: B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94227-671-0	01	1	-
52	03.340 SENSOR; TIMING,TACHOMETER,INJ PU ASM PART: B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290	8-94343-307-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
