Sayfa 0-82B - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-82B - BOOST COMPENSATOR; INJECTION GOVERNOR ▶

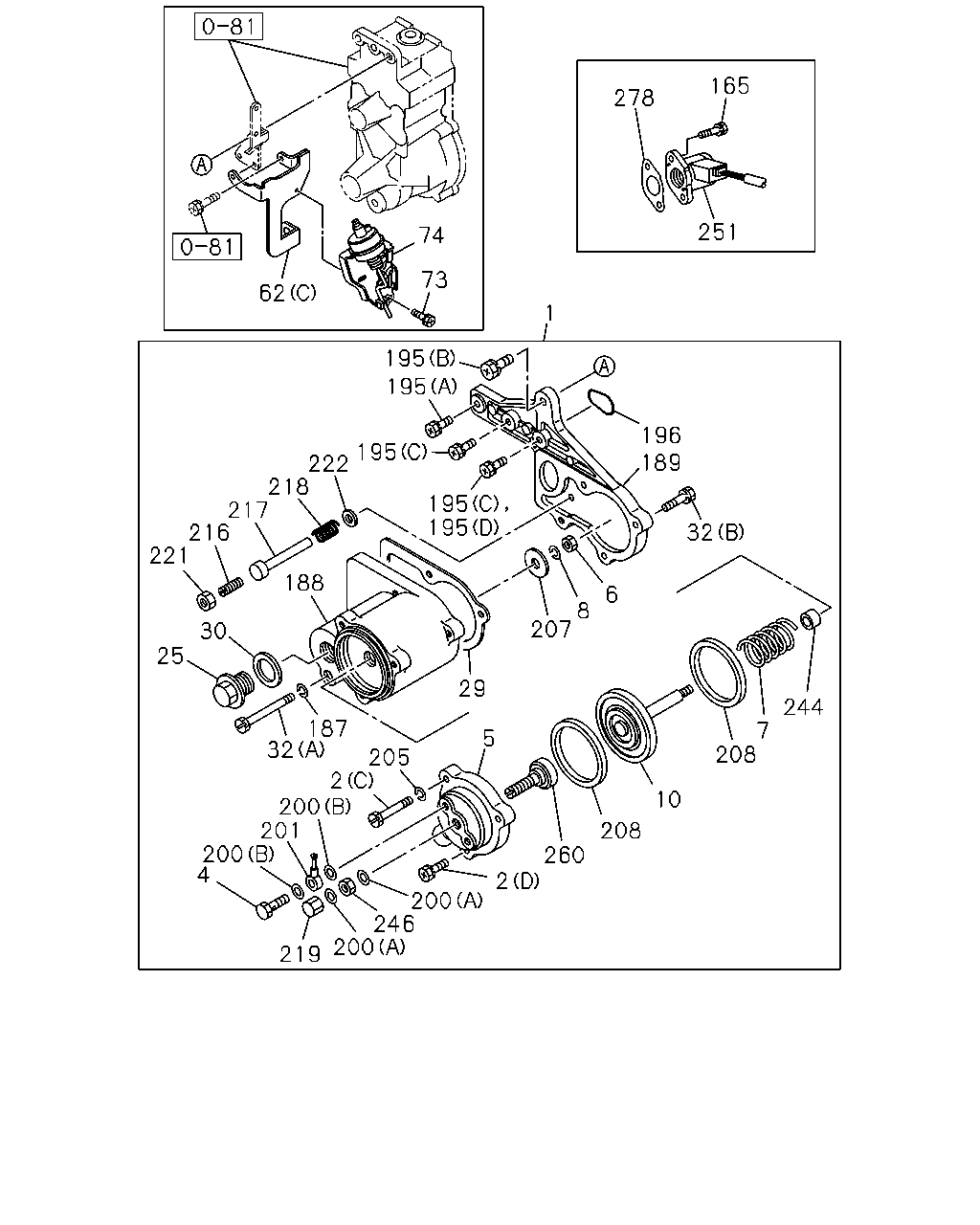

0-82B — BOOST COMPENSATOR; INJECTION GOVERNOR (#46567) — 71 parça

62 74 73 1 278 165 251 195 195 196 189 32 244 7 208 10 208 6 8 207 195 195 195 222 218 217 216 221 30 25 187 32 205 2 200 201 200 4 219 200 246 200 2 260 5 29 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.485 COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485	8-97214-459-1	01	1	-
1	03.485 COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: B = 8-98192-953-0, 98192953	8-98206-822-0	01	1	-
2	03.306 BOLT; COVER FIX,BOOST COMPENSATO (C) ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	1-15779-202-0	02	1	-
2	03.306 BOLT; COVER FIX,BOOST COMPENSATO 03.485, (D) ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	9-81325-187-0	01	1	-
4	03.485 BOLT; EYE,BOOST PIPE,COMPENSATOR ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	1-15729-325-0	01	1	-
5	03.306 COVER; HSG,BOOST COMPENSATOR,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	1-15619-283-0	01	1	-
6	03.320 NUT; DIAPH,BOOST COMPENSATOR 08.845 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	9-88410-525-0	01	1	-
7	03.320 SPRING; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-97085-017-0	01	1	-
8	03.318 WASHER; LK,DIAPH,BOOST COMPENSAT 00.206, ID=6.1 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	9-09150-506-0	01	1	-
10	03.320 DIAPHRAGM; BOOST COMPENSATOR,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	1-15712-004-0	01	1	-
25	03.306 PLUG; HSG,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	1-15729-254-0	01	1	-
29	03.306 GASKET; HSG,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-97085-018-0	01	1	-
30	03.306 GASKET; HSG PLUG,BOOST COMPENSAT ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	1-15729-850-0	01	1	-
32	03.485 BOLT; BOOST COMPENSATOR FIX,INJ (A) ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	1-15729-251-0	01	1	-
32	03.485 BOLT; BOOST COMPENSATOR FIX,INJ 03.306, (B) ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	9-88410-094-0	03	1	-
62	03.314 BRACKET; ACTUATOR (C) ASM PART: A = 8-97178-485-5, 97178485	8-97085-019-0	01	1	-
73	03.330 BOLT; ACTUATOR 03.314 ASM PART: A = 8-97178-485-5, 97178485	8-94121-627-0	02	1	-
74	03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ ASM PART: A = 8-97178-485-5, 97178485	8-97037-274-4	01	1	-
165	03.320 BOLT; SENSOR ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	1-83579-438-0	02	1	-
187	03.485 WASHER; LK,BOOST COMPENSATOR FIX 03.302 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94128-928-0	01	1	-
188	03.485 HOUSING; BOOST COMPENSATOR,INJ P ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	1-15721-163-0	01	1	-
189	03.485 SPACER; BOOST COMPENSATOR HSG ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	1-15729-851-0	01	1	-
195	03.306 BOLT; SPACER FIX,BOOST COMPENSAT 03.485, (C) ASM PART: A = 8-97178-485-5, 97178485	1-15729-242-0	01	1	-
195	03.306 BOLT; SPACER FIX,BOOST COMPENSAT 03.485, (C) ASM PART: B = 8-98192-953-0, 98192953	1-15729-242-0	02	1	-
195	03.306 BOLT; SPACER FIX,BOOST COMPENSAT (B), M8X30 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	1-15729-243-0	01	1	-
195	03.306 BOLT; SPACER FIX,BOOST COMPENSAT (D) ASM PART: A = 8-97178-485-5, 97178485	9-81325-321-0	01	1	-
195	03.306 BOLT; SPACER FIX,BOOST COMPENSAT (A) ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	9-88410-094-0	01	1	-
196	03.306 GASKET; SPACER,BOOST COMPENSATOR 03.485 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94424-220-0	01	1	-
200	03.306 GASKET; EYE BOLT,BOOST COMPENSAT (B) ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	1-15729-849-0	02	1	-
200	03.306 GASKET; EYE BOLT,BOOST COMPENSAT (A) ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	1-15729-868-0	02	1	-
201	03.306 JOINT; HOSE 03.326 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94171-178-0	01	1	-
205	03.308 WASHER; LK,COVER FIX,BOOST COMPE 00.206, ID=6.1 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	9-09150-506-0	02	1	-
207	03.320 DISC; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	1-15729-248-0	01	1	-
208	03.320 GASKET; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	1-15779-129-0	02	1	-
216	03.320 SCREW; ADJ,DIAPH,BOOST COMPENSAT ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94171-179-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=125.0 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	1-15729-245-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR 03.308, L=127.5 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94172-282-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=128.0 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94172-283-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=127.0 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94172-284-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=126.0 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94172-285-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=129.0 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94172-286-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=128.5 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94172-287-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=125.5 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94172-288-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=126.5 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94172-289-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=119.5 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94172-290-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=120.0 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94172-291-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=120.5 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94172-292-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=121.0 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94172-293-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=121.5 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94172-294-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=122.0 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94172-295-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=122.5 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94172-296-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=123.0 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94172-297-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=123.5 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94172-298-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=129.5 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94443-435-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=130.0 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94443-436-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=130.5 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94443-437-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=131.0 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94443-438-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=131.5 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94443-439-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=132.0 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94443-440-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=132.5 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94443-441-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=133.0 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94443-442-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=133.5 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94443-443-0	01	1	-
218	03.320 SPRING; PUSH ROD,BOOST COMPENSAT ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-94171-176-0	01	1	-
219	03.485 NUT; CAP,ADJ SCREW,BOOST COMPENS 03.330, CAP NUT ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	1-15729-093-0	01	1	-
221	03.330 NUT; ADJ SCREW LOCK,BOOST COMPEN 08.845 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	9-88410-525-0	01	1	-
222	03.330 WASHER; PUSH ROD,BOOST COMPENSAT 09.190 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	1-83539-045-0	01	1	-
244	03.680 COLLAR; BOOST COMPENSATOR ASM PART: B = 8-98192-953-0, 98192953	1-15779-174-0	01	1	-
246	03.306 NUT; SET BOLT 08.845 ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	9-88410-525-0	01	1	-
251	03.320 SENSOR; RACK,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-97129-636-0	01	1	-
260	03.320 SCREW; DIAPHRAGM ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	1-15729-386-0	01	1	-
278	03.320 GASKET; SENSOR ASM PART: A = 8-97178-485-5, 97178485, B = 8-98192-953-0, 98192953	8-97121-637-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
