0-33 — FAN AND FAN BELT (#46553) — 309 parça

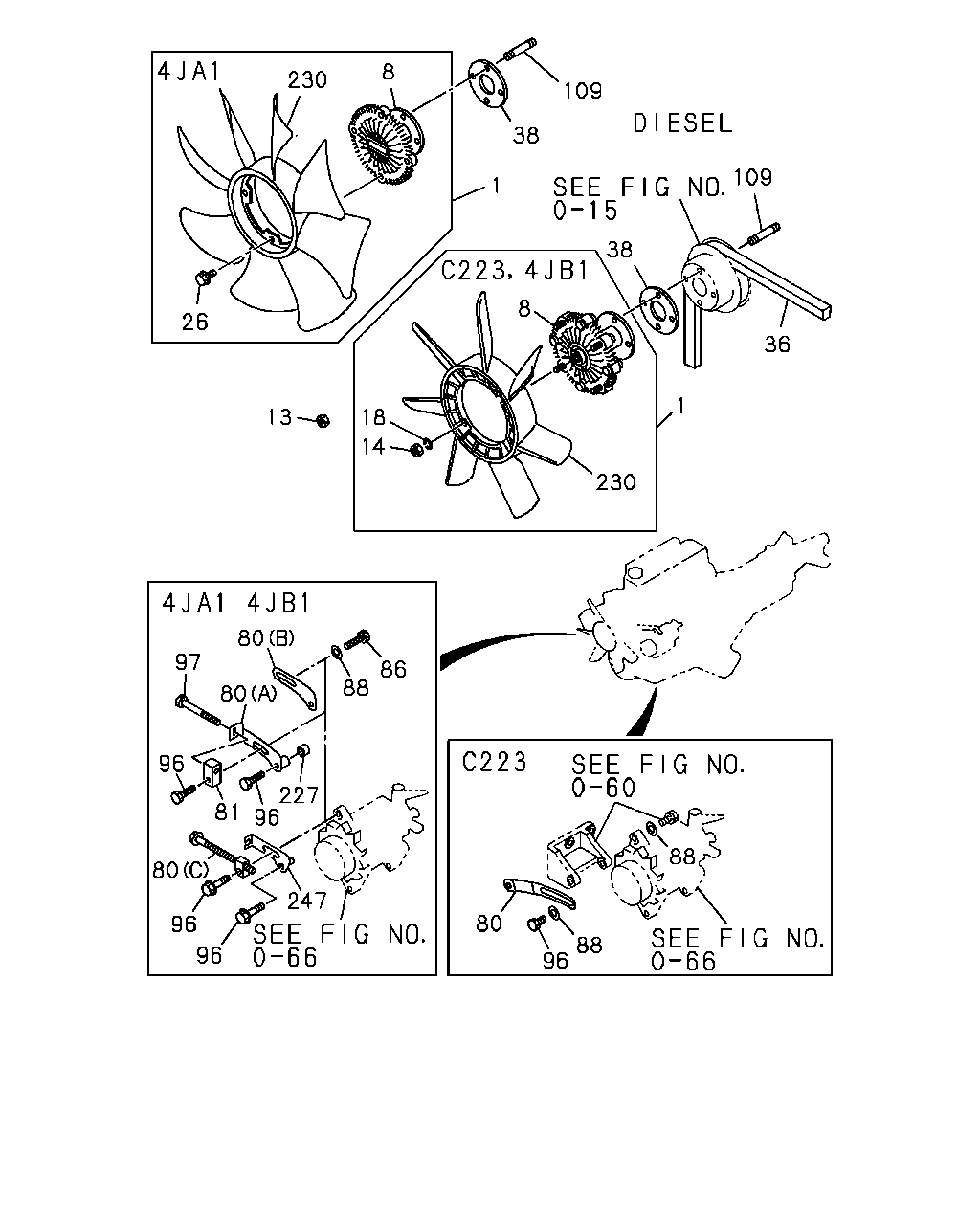

çizim 65098
230 8 1 38 109 109 36 38 8 1 230 18 14 13 26 97 80 80 88 86 227 96 81 96 80 96 96 247 80 96 88
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.064 FAN; COOLING
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) OD=390 		8-94171-813-0 01 1 9210-9308 ● ●
1 01.064 FAN; COOLING
CHILE EQUIPMENT(6KB) OD=390 		8-94171-813-0 01 1 9210-9308 ●
1 01.064 FAN; COOLING
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) OD=390 		8-94171-813-0 01 1 9309- ● ●
1 01.064 FAN; COOLING
CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) OD=390 		8-94171-813-0 01 1 9309- ●
1 01.064 FAN; COOLING
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1),CHINA EQUIPMENT(YT2), CHILEEQUIPMENT(6KB) OD=330 		8-94158-764-1 01 1 9210- ● ●
1 01.064 FAN; COOLING
AIR CONDITIONER(C60) OD=410 		8-94454-187-0 01 1 9210- ●
1 01.064 FAN; COOLING
EXC. AIR CONDITIONER(C60) OD=410 		8-94436-150-0 01 1 9210- ●
1 01.064 FAN; COOLING
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) OD=410 		8-94103-469-0 01 1 9210-9308 ●
1 01.064 FAN; COOLING
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) OD=390 		8-94239-651-0 01 1 9210-9308 ●
1 01.064 FAN; COOLING
OD=390 		8-94175-331-0 01 1 9210- ●
1 01.064 FAN; COOLING
4X2 CREW CAB(TFB*W*) CHINA CHONGQING EQUIPMENT<R5B> OD=390 		8-94239-651-0 01 1 9605- ●
1 01.064 FAN; COOLING
4X4 LONG(TFS**F) TURBOCHARGER(K51) OD=410 		8-94103-469-0 01 1 9510- ●
8 01.064 CLUTCH; COOLING FAN
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.066 		8-94412-030-0 01 1 9210-9308 ● ●
8 01.064 CLUTCH; COOLING FAN
CHILE EQUIPMENT(6KB) 01.066 		8-94412-030-0 01 1 9210-9308 ●
8 01.064 CLUTCH; COOLING FAN
AIR CONDITIONER(C60) 01.066 		8-94412-030-0 01 1 9210-9308 ●
8 01.064 CLUTCH; COOLING FAN
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.066 		8-94412-030-0 01 1 9309- ● ●
8 01.064 CLUTCH; COOLING FAN
CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 01.066 		8-94412-030-0 01 1 9309- ●
8 01.064 CLUTCH; COOLING FAN
AIR CONDITIONER(C60) 01.066 		8-94412-030-0 01 1 9309- ●
8 01.064 CLUTCH; COOLING FAN
EXC. AIR CONDITIONER(C60) 		8-94311-252-0 01 1 9210- ●
8 01.064 CLUTCH; COOLING FAN 8-94244-409-0 01 1 9210-9308 ●
8 01.064 CLUTCH; COOLING FAN 8-94311-257-0 01 1 9210- ●
8 01.064 CLUTCH; COOLING FAN 8-94244-409-0 01 1 9510- ●
13 01.062 NUT; COOLING FAN
07.829 M6 FLANGE 		5-09440-004-0 04 1 9210-9210 ● ●
13 01.062 NUT; COOLING FAN
07.829 M6 FLANGE 		5-09440-004-0 04 1 9211-9308 ●
14 01.062 NUT; FAN TO CLU
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.413 M6 		9-09110-506-0 04 1 9210-9308 ● ●
14 01.062 NUT; FAN TO CLU
CHILE EQUIPMENT(6KB) 00.413 M6 		9-09110-506-0 04 1 9210-9308 ●
14 01.062 NUT; FAN TO CLU
AIR CONDITIONER(C60) 00.413 M6 		9-09110-506-0 04 1 9210-9308 ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 9210-9308 ●
14 01.062 NUT; FAN TO CLU
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.413 M6 		9-09110-506-0 04 1 9309-9509 ● ●
14 01.062 NUT; FAN TO CLU
CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 00.413 M6 		9-09110-506-0 04 1 9309-9509 ●
14 01.062 NUT; FAN TO CLU
AIR CONDITIONER(C60) 00.413 M6 		9-09110-506-0 04 1 9309-9509 ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 9510- ● ● ●
14 01.062 NUT; FAN TO CLU
AIR CONDITIONER(C60) 00.413 M6 		9-09110-506-0 04 1 9510- ●
14 01.062 NUT; FAN TO CLU
EXC. AIR CONDITIONER(C60) 		8-94311-253-0 04 1 9210- ●
18 01.062 WASHER; FAN TO CLU
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.206 ID=6.1 		9-09150-506-0 04 1 9210-9308 ● ●
18 01.062 WASHER; FAN TO CLU
CHILE EQUIPMENT(6KB) 00.206 ID=6.1 		9-09150-506-0 04 1 9210-9308 ●
18 01.062 WASHER; FAN TO CLU
AIR CONDITIONER(C60) 00.206 ID=6.1 		9-09150-506-0 04 1 9210-9308 ●
18 01.062 WASHER; FAN TO CLU
00.206 ID=6.1 		9-09150-506-0 04 1 9210-9308 ●
18 01.062 WASHER; FAN TO CLU
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.206 ID=6.1 		9-09150-506-0 04 1 9309-9509 ● ●
18 01.062 WASHER; FAN TO CLU
CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 00.206 ID=6.1 		9-09150-506-0 04 1 9309-9509 ●
18 01.062 WASHER; FAN TO CLU
AIR CONDITIONER(C60) 00.206 ID=6.1 		9-09150-506-0 04 1 9309-9509 ●
18 01.062 WASHER; FAN TO CLU
00.206 ID=6.1 		9-09150-506-0 04 1 9510- ● ● ●
18 01.062 WASHER; FAN TO CLU
AIR CONDITIONER(C60) 00.206 ID=6.1 		9-09150-506-0 04 1 9510- ●
18 01.062 WASHER; FAN TO CLU
EXC. AIR CONDITIONER(C60) 		8-94311-254-0 04 1 9210- ●
26 01.062 BOLT; FAN TO CLU
03.671 M6X20 		0-28020-620-0 04 1 9210- ●
36 01.066 BELT; COOLING FAN 8-94131-629-0 01 1 9210- ●
36 01.066 BELT; COOLING FAN
CHILE EQUIPMENT(6KB) 		8-94111-687-0 01 1 9210-9304 ●
36 01.066 BELT; COOLING FAN
CHILE EQUIPMENT(6KB) L=875 		8-97100-606-0 01 1 9305-9403 ●
36 01.066 BELT; COOLING FAN
L=875 		8-97100-606-0 01 1 9305-9403 ●
36 01.066 BELT; COOLING FAN
CHILE EQUIPMENT(6KB) L=875 		8-97100-606-0 01 1 9404-9411 ●
36 01.066 BELT; COOLING FAN
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> L=875 		8-97100-606-0 01 1 9404-9411 ●
36 01.066 BELT; COOLING FAN
L=875 		8-97100-606-0 01 1 9404-9411 ●
36 01.066 BELT; COOLING FAN
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) L=875 		8-97100-606-0 01 1 9412- ●
36 01.066 BELT; COOLING FAN
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> L=875 		8-97100-606-0 01 1 9412- ●
36 01.066 BELT; COOLING FAN
L=875 		8-97100-606-0 01 1 9412- ●
36 01.066 BELT; COOLING FAN
EXC. CHILE EQUIPMENT(6KB) L=894 		8-94175-170-0 01 1 9210-9406 ●
36 01.066 BELT; COOLING FAN
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ> L=894 		8-94175-170-0 01 1 9407-9411 ●
36 01.066 BELT; COOLING FAN
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) L=894 		8-94175-170-0 01 1 9412- ●
36 01.066 BELT; COOLING FAN 8-94472-378-0 01 1 9210-9304 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-94256-800-0 01 1 9210-9308 ●
36 01.066 BELT; COOLING FAN
L=1051 		8-94161-841-0 01 1 9210-9509 ●
36 01.066 BELT; COOLING FAN
L=1051 		8-94161-841-0 01 1 9510- ● ●
38 01.062 SPACER; FAN
POWER STEERING<N40> 01.060 		8-94438-717-0 01 1 9210-9408 ●
38 01.062 SPACER; FAN
01.060 		8-94438-717-0 01 1 9409- ●
38 01.062 SPACER; FAN 8-94441-848-0 01 1 9210-9308 ● ●
38 01.062 SPACER; FAN 8-94441-848-0 01 1 9309- ● ●
80 02.317 PLATE; ADJ
GENERATOR 35A(K83) 		8-94450-240-1 01 1 9210-9308 ●
80 02.317 PLATE; ADJ
4X2(TFB***) GENERATOR 35A(K83) 		8-94450-240-1 01 1 9210-9308 ● ● ●
80 02.317 PLATE; ADJ
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) GENERATOR 35A(K83) 		8-94450-240-1 01 1 9210-9308 ●
80 02.317 PLATE; ADJ
GENERATOR 35A(K83) 		8-94450-240-1 01 1 9309-9411 ●
80 02.317 PLATE; ADJ
GENERATOR 40A(K78),GENERATOR 50A(RN9) 		8-94450-241-1 01 1 9210-9509 ●
80 02.317 PLATE; ADJ
EXC. POWER STEERING<N40> 		8-97135-379-0 01 1 9510- ●
80 02.317 PLATE; ADJ
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 		8-97115-746-0 01 1 9404-9509 ●
80 02.317 PLATE; ADJ
ELECTRIC FUEL INJECTION<6GG> 		8-97115-746-0 01 1 9510- ●
80 02.317 PLATE; ADJ
SAUDI ARABIA EQUIPMENT(EU2) 		8-94475-026-0 01 1 9210-9403 ●
80 02.317 PLATE; ADJ
POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94475-026-0 01 1 9210-9403 ●
80 02.317 PLATE; ADJ
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 		8-94475-026-0 01 1 9404-9411 ●
80 02.317 PLATE; ADJ
POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94475-026-0 01 1 9404-9411 ●
80 02.317 PLATE; ADJ
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 		8-94475-026-0 01 1 9404-9411 ●
80 02.317 PLATE; ADJ
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94475-026-0 01 1 9412-9603 ●
80 02.317 PLATE; ADJ
POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94475-026-0 01 1 9412-9603 ●
80 02.317 PLATE; ADJ
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 		8-94475-026-0 01 1 9412-9603 ●
80 02.317 PLATE; ADJ
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94475-026-0 01 1 9604- ●
80 02.317 PLATE; ADJ
POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94475-026-0 01 1 9604- ●
80 02.317 PLATE; ADJ
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 		8-94475-026-0 01 1 9604- ●
80 02.317 PLATE; ADJ
EXC. SAUDI ARABIA EQUIPMENT(EU2), POWER STEERING<N40> 		8-94475-025-0 01 1 9210-9410 ●
80 02.317 PLATE; ADJ
EXC. SAUDI ARABIA EQUIPMENT(EU2), POWER STEERING<N40>,CHILE EQUIPMENT(6KB), CATALYSIS CONTROL<6MZ>, GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94475-025-0 01 1 9411-9509 ●
80 02.317 PLATE; ADJ 8-94475-025-0 01 1 9510- ●
80 02.317 PLATE; ADJ
EXC. SAUDI ARABIA EQUIPMENT(EU2), POWER STEERING<N40>,CHINA EQUIPMENT(YT2), CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT (7LD) 		8-94475-025-0 01 1 9510- ●
80 02.317 PLATE; ADJ
GENERATOR 45A(K88) 		8-94460-846-1 01 1 9210-9509 ●
80 02.317 PLATE; ADJ
GENERATOR 55A(K96) 		8-94436-178-2 01 1 9210-9509 ●
80 02.317 PLATE; ADJ
POWER STEERING<N40> 		8-97123-738-1 01 1 9510- ●
80 02.317 PLATE; ADJ 8-94240-446-0 01 1 9210-9308 ●
80 02.317 PLATE; ADJ
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A) 		8-94367-300-0 01 1 9210-9509 ●
80 02.317 PLATE; ADJ
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A) 		8-94367-300-0 01 1 9510-9512 ● ●
80 02.317 PLATE; ADJ
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B) 		8-94438-403-0 01 1 9210-9509 ●
80 02.317 PLATE; ADJ
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B) 		8-94438-403-0 01 1 9510-9512 ● ●
80 02.317 PLATE; ADJ
(C) 		8-97132-049-0 01 1 9601- ● ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-94453-774-0 01 1 9210-9509 ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-94453-774-0 01 1 9510-9512 ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 02 1 9210-9308 ● ● ● ●
88 02.317 WASHER; PL,ADJ PLATE
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 07.633 ID=8.4 OD=22 		9-09164-708-0 02 1 9210-9308 ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9309-9509 ● ● ●
88 02.317 WASHER; PL,ADJ PLATE
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9309-9509 ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9510- ● ● ●
88 02.317 WASHER; PL,ADJ PLATE
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9510- ● ●
96 02.317 BOLT; ADJ PLATE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9210-9406 ● ● ●
96 02.317 BOLT; ADJ PLATE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9407-9410 ● ● ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9407-9410 ●
96 02.317 BOLT; ADJ PLATE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9410-9505 ● ● ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9410-9505 ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 02 1 9506-9509 ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 02 1 9510-9603 ● ●
96 02.317 BOLT; ADJ PLATE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9506-9604 ● ● ●
96 02.317 BOLT; ADJ PLATE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9604-9604 ● ● ●
96 02.317 BOLT; ADJ PLATE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9605- ● ● ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9605- ● ●
96 02.317 BOLT; ADJ PLATE
POWER STEERING<N40> ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9404-9406 ●
96 02.317 BOLT; ADJ PLATE
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9407-9412 ●
96 02.317 BOLT; ADJ PLATE
04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9501-9603 ●
96 02.317 BOLT; ADJ PLATE
04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9604- ●
96 02.317 BOLT; ADJ PLATE
EXC. POWER STEERING<N40> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9604- ●
96 02.317 BOLT; ADJ PLATE
SAUDI ARABIA EQUIPMENT(EU2) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9210-9403 ●
96 02.317 BOLT; ADJ PLATE
POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9210-9403 ●
96 02.317 BOLT; ADJ PLATE
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9404-9411 ●
96 02.317 BOLT; ADJ PLATE
POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9404-9411 ●
96 02.317 BOLT; ADJ PLATE
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9404-9411 ●
96 02.317 BOLT; ADJ PLATE
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9412-9412 ●
96 02.317 BOLT; ADJ PLATE
POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9412-9412 ●
96 02.317 BOLT; ADJ PLATE
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9412-9412 ●
96 02.317 BOLT; ADJ PLATE
POWER STEERING<N40> 00.780 M8X30 W/LK WASHER 		0-50040-830-0 01 1 9510- ●
96 02.317 BOLT; ADJ PLATE
00.727 M8X22 W/LK WASHER 		0-50040-822-0 01 1 9210-9308 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 9210-9308 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 9309-9406 ● ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 02 1 9210-9406 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9407-9505 ● ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 9506-9509 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 9510-9603 ● ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9604- ● ●
97 02.317 SCREW; ADJ PLATE
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-94126-866-0 01 1 9210-9308 ●
97 02.317 SCREW; ADJ PLATE
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-94126-866-0 01 1 9309-9512 ● ●
109 01.062 STUD; FAN CLU
M6X25 L=33 		8-94340-628-0 04 1 9210-9308 ● ●
109 01.062 STUD; FAN CLU
M6X25 L=33 		8-94340-628-0 04 1 9309- ● ●
227 02.317 PIECE; DIST
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-94367-309-0 01 1 9210-9509 ●
227 02.317 PIECE; DIST
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-94367-309-0 01 1 9510-9512 ● ●
230 01.055 FAN; COOLING
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.064 		8-94412-033-0 01 1 9210-9308 ● ●
230 01.055 FAN; COOLING
CHILE EQUIPMENT(6KB) 01.064 		8-94412-033-0 01 1 9210-9308 ●
230 01.055 FAN; COOLING
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.064 		8-94412-033-0 01 1 9309- ● ●
230 01.055 FAN; COOLING
CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 01.064 		8-94412-033-0 01 1 9309- ●
230 01.055 FAN; COOLING
AIR CONDITIONER(C60) 01.604 		8-94310-517-0 01 1 9210- ●
230 01.055 FAN; COOLING
EXC. AIR CONDITIONER(C60) 01.604 		8-94311-255-0 01 1 9210- ●
230 01.055 FAN; COOLING
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.064 OD=410 7-BLADE 		8-94117-866-0 01 1 9210-9308 ●
230 01.055 FAN; COOLING
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.064 		5-13660-300-0 01 1 9210-9308 ●
230 01.055 FAN; COOLING
01.604 		8-94311-258-0 01 1 9210- ●
230 01.055 FAN; COOLING
TURBOCHARGER(K51) 01.064 OD=410 7-BLADE 		8-94117-866-0 01 1 9510- ●
230 01.055 FAN; COOLING
4X2 CREW CAB(TFB*W*) CHINA CHONGQING EQUIPMENT<R5B> 01.064 		5-13660-300-0 01 1 9605- ●
247 02.317 SLIDER
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-97132-048-0 01 1 9601- ● ●

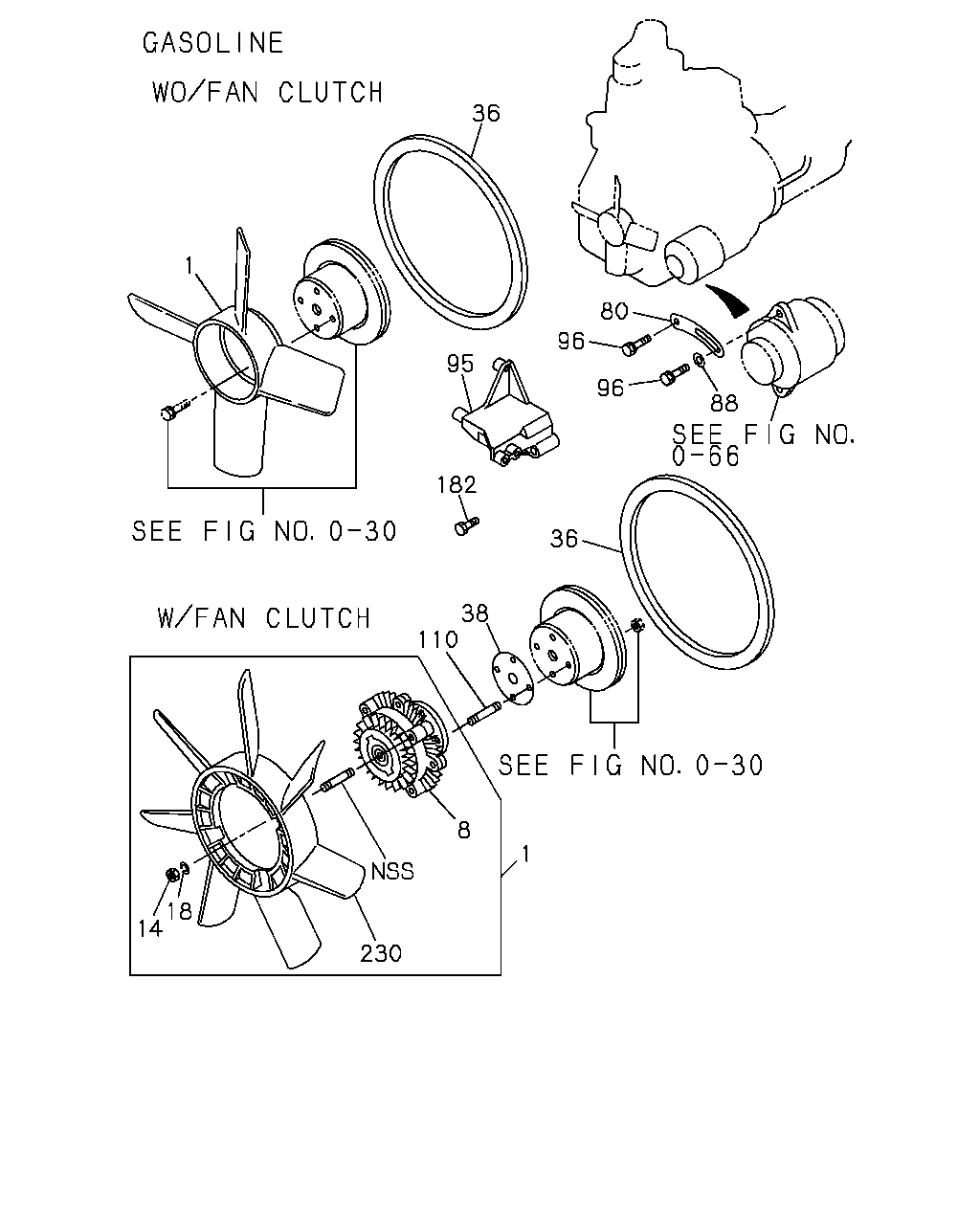

çizim 66683
14 230 18 8 1 110 38 36 182 95 96 88 96 80 36 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.064 FAN; COOLING
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) OD=390 		8-94171-813-0 01 1 9210-9308 ● ●
1 01.064 FAN; COOLING
CHILE EQUIPMENT(6KB) OD=390 		8-94171-813-0 01 1 9210-9308 ●
1 01.064 FAN; COOLING
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) OD=390 		8-94171-813-0 01 1 9309- ● ●
1 01.064 FAN; COOLING
CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) OD=390 		8-94171-813-0 01 1 9309- ●
1 01.064 FAN; COOLING
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1),CHINA EQUIPMENT(YT2), CHILEEQUIPMENT(6KB) OD=330 		8-94158-764-1 01 1 9210- ● ●
1 01.064 FAN; COOLING
AIR CONDITIONER(C60) OD=410 		8-94454-187-0 01 1 9210- ●
1 01.064 FAN; COOLING
EXC. AIR CONDITIONER(C60) OD=410 		8-94436-150-0 01 1 9210- ●
1 01.064 FAN; COOLING
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) OD=410 		8-94103-469-0 01 1 9210-9308 ●
1 01.064 FAN; COOLING
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) OD=390 		8-94239-651-0 01 1 9210-9308 ●
1 01.064 FAN; COOLING
OD=390 		8-94175-331-0 01 1 9210- ●
1 01.064 FAN; COOLING
4X2 CREW CAB(TFB*W*) CHINA CHONGQING EQUIPMENT<R5B> OD=390 		8-94239-651-0 01 1 9605- ●
1 01.064 FAN; COOLING
4X4 LONG(TFS**F) TURBOCHARGER(K51) OD=410 		8-94103-469-0 01 1 9510- ●
8 01.064 CLUTCH; COOLING FAN
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.066 		8-94412-030-0 01 1 9210-9308 ● ●
8 01.064 CLUTCH; COOLING FAN
CHILE EQUIPMENT(6KB) 01.066 		8-94412-030-0 01 1 9210-9308 ●
8 01.064 CLUTCH; COOLING FAN
AIR CONDITIONER(C60) 01.066 		8-94412-030-0 01 1 9210-9308 ●
8 01.064 CLUTCH; COOLING FAN
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.066 		8-94412-030-0 01 1 9309- ● ●
8 01.064 CLUTCH; COOLING FAN
CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 01.066 		8-94412-030-0 01 1 9309- ●
8 01.064 CLUTCH; COOLING FAN
AIR CONDITIONER(C60) 01.066 		8-94412-030-0 01 1 9309- ●
8 01.064 CLUTCH; COOLING FAN
EXC. AIR CONDITIONER(C60) 		8-94311-252-0 01 1 9210- ●
8 01.064 CLUTCH; COOLING FAN 8-94244-409-0 01 1 9210-9308 ●
8 01.064 CLUTCH; COOLING FAN 8-94311-257-0 01 1 9210- ●
8 01.064 CLUTCH; COOLING FAN 8-94244-409-0 01 1 9510- ●
14 01.062 NUT; FAN TO CLU
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.413 M6 		9-09110-506-0 04 1 9210-9308 ● ●
14 01.062 NUT; FAN TO CLU
CHILE EQUIPMENT(6KB) 00.413 M6 		9-09110-506-0 04 1 9210-9308 ●
14 01.062 NUT; FAN TO CLU
AIR CONDITIONER(C60) 00.413 M6 		9-09110-506-0 04 1 9210-9308 ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 9210-9308 ●
14 01.062 NUT; FAN TO CLU
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.413 M6 		9-09110-506-0 04 1 9309-9509 ● ●
14 01.062 NUT; FAN TO CLU
CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 00.413 M6 		9-09110-506-0 04 1 9309-9509 ●
14 01.062 NUT; FAN TO CLU
AIR CONDITIONER(C60) 00.413 M6 		9-09110-506-0 04 1 9309-9509 ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 9510- ● ● ●
14 01.062 NUT; FAN TO CLU
AIR CONDITIONER(C60) 00.413 M6 		9-09110-506-0 04 1 9510- ●
14 01.062 NUT; FAN TO CLU
EXC. AIR CONDITIONER(C60) 		8-94311-253-0 04 1 9210- ●
18 01.062 WASHER; FAN TO CLU
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.206 ID=6.1 		9-09150-506-0 04 1 9210-9308 ● ●
18 01.062 WASHER; FAN TO CLU
CHILE EQUIPMENT(6KB) 00.206 ID=6.1 		9-09150-506-0 04 1 9210-9308 ●
18 01.062 WASHER; FAN TO CLU
AIR CONDITIONER(C60) 00.206 ID=6.1 		9-09150-506-0 04 1 9210-9308 ●
18 01.062 WASHER; FAN TO CLU
00.206 ID=6.1 		9-09150-506-0 04 1 9210-9308 ●
18 01.062 WASHER; FAN TO CLU
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.206 ID=6.1 		9-09150-506-0 04 1 9309-9509 ● ●
18 01.062 WASHER; FAN TO CLU
CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 00.206 ID=6.1 		9-09150-506-0 04 1 9309-9509 ●
18 01.062 WASHER; FAN TO CLU
AIR CONDITIONER(C60) 00.206 ID=6.1 		9-09150-506-0 04 1 9309-9509 ●
18 01.062 WASHER; FAN TO CLU
00.206 ID=6.1 		9-09150-506-0 04 1 9510- ● ● ●
18 01.062 WASHER; FAN TO CLU
AIR CONDITIONER(C60) 00.206 ID=6.1 		9-09150-506-0 04 1 9510- ●
18 01.062 WASHER; FAN TO CLU
EXC. AIR CONDITIONER(C60) 		8-94311-254-0 04 1 9210- ●
36 01.066 BELT; COOLING FAN 8-94131-629-0 01 1 9210- ●
36 01.066 BELT; COOLING FAN
CHILE EQUIPMENT(6KB) 		8-94111-687-0 01 1 9210-9304 ●
36 01.066 BELT; COOLING FAN
CHILE EQUIPMENT(6KB) L=875 		8-97100-606-0 01 1 9305-9403 ●
36 01.066 BELT; COOLING FAN
L=875 		8-97100-606-0 01 1 9305-9403 ●
36 01.066 BELT; COOLING FAN
CHILE EQUIPMENT(6KB) L=875 		8-97100-606-0 01 1 9404-9411 ●
36 01.066 BELT; COOLING FAN
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> L=875 		8-97100-606-0 01 1 9404-9411 ●
36 01.066 BELT; COOLING FAN
L=875 		8-97100-606-0 01 1 9404-9411 ●
36 01.066 BELT; COOLING FAN
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) L=875 		8-97100-606-0 01 1 9412- ●
36 01.066 BELT; COOLING FAN
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> L=875 		8-97100-606-0 01 1 9412- ●
36 01.066 BELT; COOLING FAN
L=875 		8-97100-606-0 01 1 9412- ●
36 01.066 BELT; COOLING FAN
EXC. CHILE EQUIPMENT(6KB) L=894 		8-94175-170-0 01 1 9210-9406 ●
36 01.066 BELT; COOLING FAN
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ> L=894 		8-94175-170-0 01 1 9407-9411 ●
36 01.066 BELT; COOLING FAN
EXC. CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) L=894 		8-94175-170-0 01 1 9412- ●
36 01.066 BELT; COOLING FAN 8-94472-378-0 01 1 9210-9304 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-94256-800-0 01 1 9210-9308 ●
36 01.066 BELT; COOLING FAN
L=1051 		8-94161-841-0 01 1 9210-9509 ●
36 01.066 BELT; COOLING FAN
L=1051 		8-94161-841-0 01 1 9510- ● ●
38 01.062 SPACER; FAN
POWER STEERING<N40> 01.060 		8-94438-717-0 01 1 9210-9408 ●
38 01.062 SPACER; FAN
01.060 		8-94438-717-0 01 1 9409- ●
38 01.062 SPACER; FAN 8-94441-848-0 01 1 9210-9308 ● ●
38 01.062 SPACER; FAN 8-94441-848-0 01 1 9309- ● ●
80 02.317 PLATE; ADJ
GENERATOR 35A(K83) 		8-94450-240-1 01 1 9210-9308 ●
80 02.317 PLATE; ADJ
4X2(TFB***) GENERATOR 35A(K83) 		8-94450-240-1 01 1 9210-9308 ● ● ●
80 02.317 PLATE; ADJ
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) GENERATOR 35A(K83) 		8-94450-240-1 01 1 9210-9308 ●
80 02.317 PLATE; ADJ
GENERATOR 35A(K83) 		8-94450-240-1 01 1 9309-9411 ●
80 02.317 PLATE; ADJ
GENERATOR 40A(K78),GENERATOR 50A(RN9) 		8-94450-241-1 01 1 9210-9509 ●
80 02.317 PLATE; ADJ
EXC. POWER STEERING<N40> 		8-97135-379-0 01 1 9510- ●
80 02.317 PLATE; ADJ
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 		8-97115-746-0 01 1 9404-9509 ●
80 02.317 PLATE; ADJ
ELECTRIC FUEL INJECTION<6GG> 		8-97115-746-0 01 1 9510- ●
80 02.317 PLATE; ADJ
SAUDI ARABIA EQUIPMENT(EU2) 		8-94475-026-0 01 1 9210-9403 ●
80 02.317 PLATE; ADJ
POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94475-026-0 01 1 9210-9403 ●
80 02.317 PLATE; ADJ
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 		8-94475-026-0 01 1 9404-9411 ●
80 02.317 PLATE; ADJ
POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94475-026-0 01 1 9404-9411 ●
80 02.317 PLATE; ADJ
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 		8-94475-026-0 01 1 9404-9411 ●
80 02.317 PLATE; ADJ
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94475-026-0 01 1 9412-9603 ●
80 02.317 PLATE; ADJ
POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94475-026-0 01 1 9412-9603 ●
80 02.317 PLATE; ADJ
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 		8-94475-026-0 01 1 9412-9603 ●
80 02.317 PLATE; ADJ
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94475-026-0 01 1 9604- ●
80 02.317 PLATE; ADJ
POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94475-026-0 01 1 9604- ●
80 02.317 PLATE; ADJ
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 		8-94475-026-0 01 1 9604- ●
80 02.317 PLATE; ADJ
EXC. SAUDI ARABIA EQUIPMENT(EU2), POWER STEERING<N40> 		8-94475-025-0 01 1 9210-9410 ●
80 02.317 PLATE; ADJ
EXC. SAUDI ARABIA EQUIPMENT(EU2), POWER STEERING<N40>,CHILE EQUIPMENT(6KB), CATALYSIS CONTROL<6MZ>, GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94475-025-0 01 1 9411-9509 ●
80 02.317 PLATE; ADJ 8-94475-025-0 01 1 9510- ●
80 02.317 PLATE; ADJ
EXC. SAUDI ARABIA EQUIPMENT(EU2), POWER STEERING<N40>,CHINA EQUIPMENT(YT2), CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT (7LD) 		8-94475-025-0 01 1 9510- ●
80 02.317 PLATE; ADJ
GENERATOR 45A(K88) 		8-94460-846-1 01 1 9210-9509 ●
80 02.317 PLATE; ADJ
GENERATOR 55A(K96) 		8-94436-178-2 01 1 9210-9509 ●
80 02.317 PLATE; ADJ
POWER STEERING<N40> 		8-97123-738-1 01 1 9510- ●
80 02.317 PLATE; ADJ 8-94240-446-0 01 1 9210-9308 ●
80 02.317 PLATE; ADJ
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A) 		8-94367-300-0 01 1 9210-9509 ●
80 02.317 PLATE; ADJ
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A) 		8-94367-300-0 01 1 9510-9512 ● ●
80 02.317 PLATE; ADJ
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B) 		8-94438-403-0 01 1 9210-9509 ●
80 02.317 PLATE; ADJ
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B) 		8-94438-403-0 01 1 9510-9512 ● ●
80 02.317 PLATE; ADJ
(C) 		8-97132-049-0 01 1 9601- ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 02 1 9210-9308 ● ● ● ●
88 02.317 WASHER; PL,ADJ PLATE
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 07.633 ID=8.4 OD=22 		9-09164-708-0 02 1 9210-9308 ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9309-9509 ● ● ●
88 02.317 WASHER; PL,ADJ PLATE
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9309-9509 ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9510- ● ● ●
88 02.317 WASHER; PL,ADJ PLATE
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9510- ● ●
95 02.317 BRACKET; ADJ PLATE
ELECTRIC FUEL INJECTION<6GG> 		8-97115-745-0 01 1 9404- ●
96 02.317 BOLT; ADJ PLATE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9210-9406 ● ● ●
96 02.317 BOLT; ADJ PLATE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9407-9410 ● ● ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9407-9410 ●
96 02.317 BOLT; ADJ PLATE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9410-9505 ● ● ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9410-9505 ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 02 1 9506-9509 ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 02 1 9510-9603 ● ●
96 02.317 BOLT; ADJ PLATE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9506-9604 ● ● ●
96 02.317 BOLT; ADJ PLATE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9604-9604 ● ● ●
96 02.317 BOLT; ADJ PLATE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9605- ● ● ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9605- ● ●
96 02.317 BOLT; ADJ PLATE
POWER STEERING<N40> ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9404-9406 ●
96 02.317 BOLT; ADJ PLATE
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9407-9412 ●
96 02.317 BOLT; ADJ PLATE
04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9501-9603 ●
96 02.317 BOLT; ADJ PLATE
04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9604- ●
96 02.317 BOLT; ADJ PLATE
EXC. POWER STEERING<N40> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9604- ●
96 02.317 BOLT; ADJ PLATE
SAUDI ARABIA EQUIPMENT(EU2) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9210-9403 ●
96 02.317 BOLT; ADJ PLATE
POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9210-9403 ●
96 02.317 BOLT; ADJ PLATE
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9404-9411 ●
96 02.317 BOLT; ADJ PLATE
POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9404-9411 ●
96 02.317 BOLT; ADJ PLATE
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9404-9411 ●
96 02.317 BOLT; ADJ PLATE
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9412-9412 ●
96 02.317 BOLT; ADJ PLATE
POWER STEERING<N40> EXC. SAUDI ARABIA EQUIPMENT(EU2) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9412-9412 ●
96 02.317 BOLT; ADJ PLATE
COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 01 1 9412-9412 ●
96 02.317 BOLT; ADJ PLATE
POWER STEERING<N40> 00.780 M8X30 W/LK WASHER 		0-50040-830-0 01 1 9510- ●
96 02.317 BOLT; ADJ PLATE
00.727 M8X22 W/LK WASHER 		0-50040-822-0 01 1 9210-9308 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 9210-9308 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 9309-9406 ● ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 02 1 9210-9406 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9407-9505 ● ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 9506-9509 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 9510-9603 ● ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9604- ● ●
110 01.064 SCREW; PULLEY
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.428 M8X20 L=32 		9-04110-820-0 04 1 9210-9402 ● ●
110 01.064 SCREW; PULLEY
01.428 M8X20 L=32 		9-04110-820-0 04 1 9210-9402 ●
110 01.064 SCREW; PULLEY
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.428 M8X20 L=32 		9-04110-820-0 04 1 9403- ●
110 01.064 SCREW; PULLEY
01.428 M8X20 L=32 		9-04110-820-0 04 1 9403- ● ●
182 01.062 BOLT; BRKT
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 00.685 M10X50 FLANGE 		0-28081-050-0 02 1 9404-9509 ●
182 01.062 BOLT; BRKT
ELECTRIC FUEL INJECTION<6GG> 00.685 M10X50 FLANGE 		0-28081-050-0 02 1 9510- ●
230 01.055 FAN; COOLING
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.064 		8-94412-033-0 01 1 9210-9308 ● ●
230 01.055 FAN; COOLING
CHILE EQUIPMENT(6KB) 01.064 		8-94412-033-0 01 1 9210-9308 ●
230 01.055 FAN; COOLING
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.064 		8-94412-033-0 01 1 9309- ● ●
230 01.055 FAN; COOLING
CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 01.064 		8-94412-033-0 01 1 9309- ●
230 01.055 FAN; COOLING
AIR CONDITIONER(C60) 01.604 		8-94310-517-0 01 1 9210- ●
230 01.055 FAN; COOLING
EXC. AIR CONDITIONER(C60) 01.604 		8-94311-255-0 01 1 9210- ●
230 01.055 FAN; COOLING
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.064 OD=410 7-BLADE 		8-94117-866-0 01 1 9210-9308 ●
230 01.055 FAN; COOLING
EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.064 		5-13660-300-0 01 1 9210-9308 ●
230 01.055 FAN; COOLING
01.604 		8-94311-258-0 01 1 9210- ●
230 01.055 FAN; COOLING
TURBOCHARGER(K51) 01.064 OD=410 7-BLADE 		8-94117-866-0 01 1 9510- ●
230 01.055 FAN; COOLING
4X2 CREW CAB(TFB*W*) CHINA CHONGQING EQUIPMENT<R5B> 01.064 		5-13660-300-0 01 1 9605- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
