Sayfa 0-32 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶

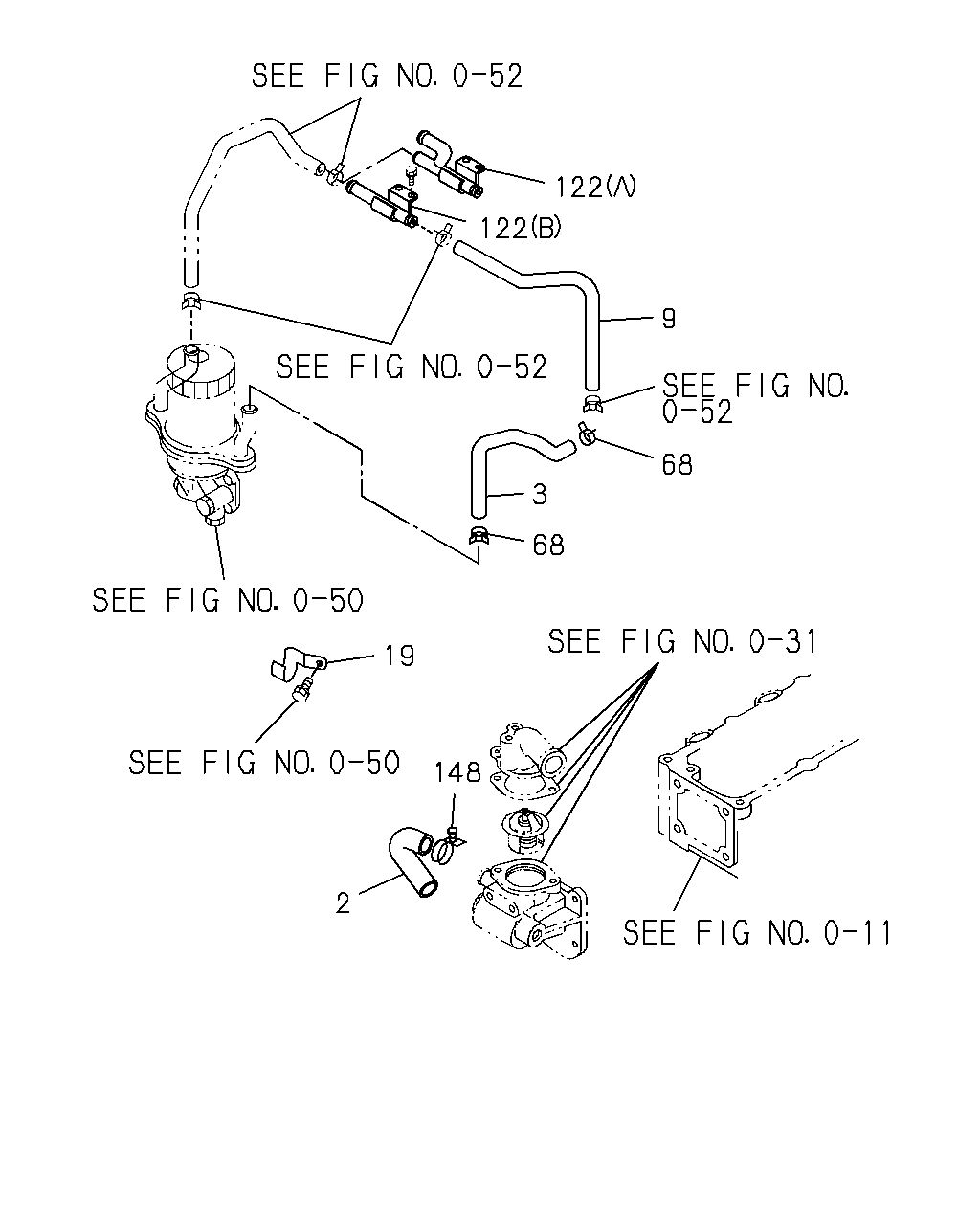

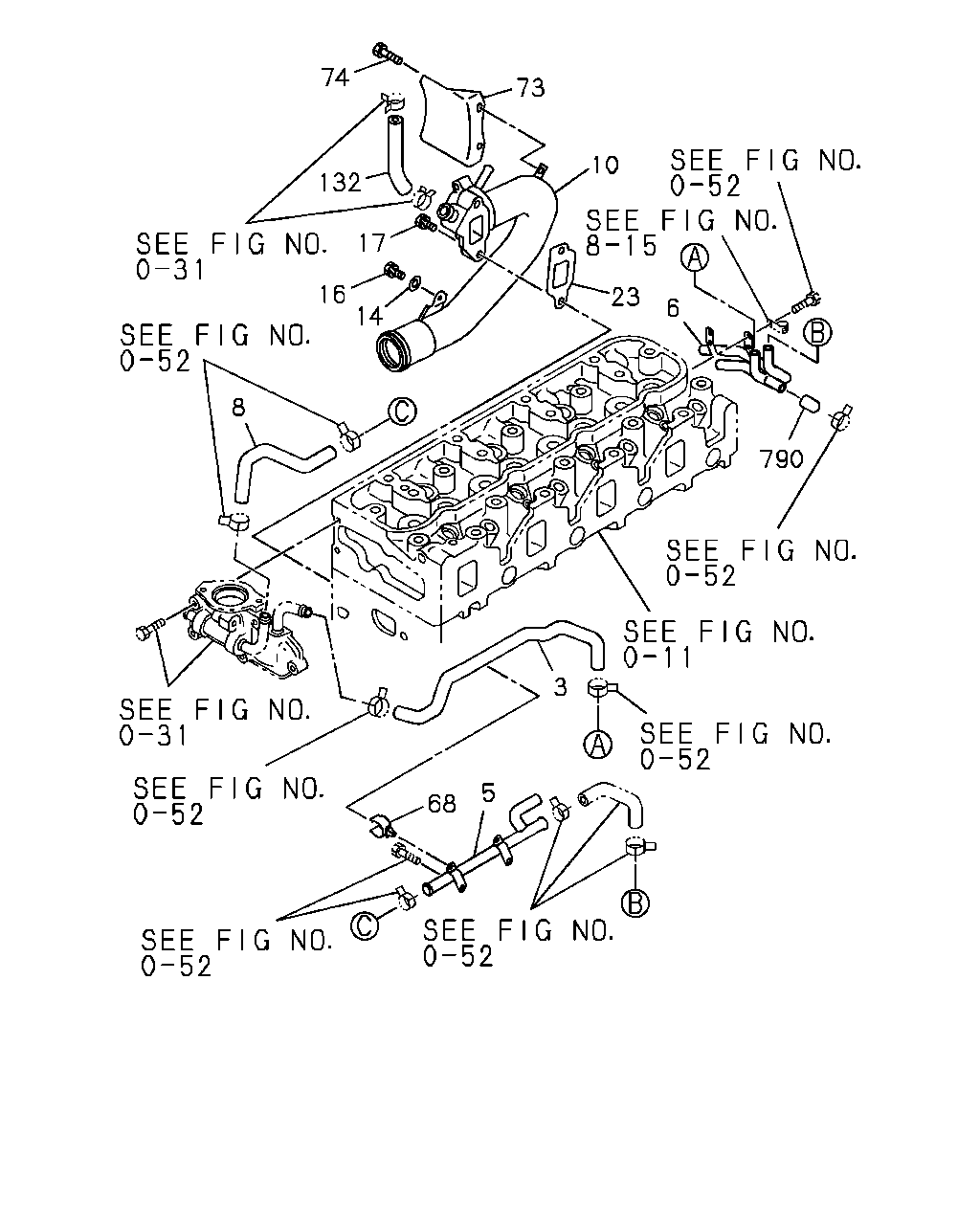

0-32 — WATER PIPING; ENGINE (#46552) — 101 parça

122 122 9 68 3 68 19 148 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.097 HOSE; WATER,BY-PASS CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG>	8-97037-774-0	01	1	9407-9509	●
2	01.097 HOSE; WATER,BY-PASS ELECTRIC FUEL INJECTION<6GG>	8-97108-079-0	01	1	9510-	●
2	01.097 HOSE; WATER,BY-PASS SAUDI ARABIA EQUIPMENT(EU2)	8-94156-663-2	01	1	9210-	●
2	01.097 HOSE; WATER,BY-PASS	5-09361-024-0	01	1	9210-9308		●
3	01.540 HOSE; WATER,OIL COOLER 01.855	8-94326-753-0	01	1	9210-9308		●
3	01.540 HOSE; WATER,OIL COOLER 01.855	8-94475-205-1	01	1	9210-			●
3	01.540 HOSE; WATER,OIL COOLER TURBOCHARGER(K51)	8-97119-517-0	01	1	9510-				●
3	01.540 HOSE; WATER,OIL COOLER EXC. TURBOCHARGER(K51)	8-97038-808-1	01	1	9605-				●
9	01.855 HOSE; RUBBER,PIPE TO WATER PUMP 01.519	5-09360-934-1	01	1	9210-9308		●
19	01.540 CLIP; OIL COOLER HOSE	5-09709-072-0	01	1	9210-9308		●
68	01.166 CLIP; WATER HOSE,OIL COOLER 01.150 ID=21.7	8-94413-822-0	02	1	9210-9308		●
68	01.166 CLIP; WATER HOSE,OIL COOLER TURBOCHARGER(K51) ID=21 BLACK	8-94422-733-0	02	1	9510-				●
122	01.540 CONNECTOR; OIL COOLER HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 03.278 (A) 3WAY	5-09660-030-2	01	1	9210-9308		●
122	01.540 CONNECTOR; OIL COOLER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (B) 3WAY	5-09660-031-2	01	1	9210-9308		●
148	01.097 CLIP; BYPASS HOSE CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 01.540 ID=18.9	8-94478-875-0	02	1	9407-9509	●
148	01.097 CLIP; BYPASS HOSE ELECTRIC FUEL INJECTION<6GG> 01.540 ID=18.9	8-94478-875-0	01	1	9510-	●
148	01.097 CLIP; BYPASS HOSE ELECTRIC FUEL INJECTION<6GG> 01.166 ID=20.8	8-94125-862-0	01	1	9510-	●
148	01.097 CLIP; BYPASS HOSE SAUDI ARABIA EQUIPMENT(EU2) ID=11	8-94238-925-0	02	1	9210-	●
148	01.097 CLIP; BYPASS HOSE 01.150	8-94341-837-0	02	1	9210-9308		●

74 73 10 23 6 132 17 16 14 8 790 3 5 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
3	01.540 HOSE; WATER,OIL COOLER 01.855	8-94326-753-0	01	1	9210-9308	●
3	01.540 HOSE; WATER,OIL COOLER 01.855	8-94475-205-1	01	1	9210-		●
3	01.540 HOSE; WATER,OIL COOLER TURBOCHARGER(K51)	8-97119-517-0	01	1	9510-			●
3	01.540 HOSE; WATER,OIL COOLER EXC. TURBOCHARGER(K51)	8-97038-808-1	01	1	9605-			●
5	01.540 PIPE ASM; OIL COOLER RETURN TURBOCHARGER(K51)	8-94475-314-4	01	1	9510-			●
6	09.190 CONNECTOR; HTR & COOLER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94475-203-1	01	1	9210-		●
6	09.190 CONNECTOR; HTR & COOLER HOSE M/T MSG 5 SPEED(M75) EXC. COLD START DEVICE<7LY>	8-97038-114-1	01	1	9605-			●
6	09.190 CONNECTOR; HTR & COOLER HOSE TURBOCHARGER(K51)	8-94445-805-2	01	1	9510-			●
6	09.190 CONNECTOR; HTR & COOLER HOSE M/T MSG 5 SPEED(M75) COLD START DEVICE<7LY>	8-97160-414-0	01	1	9605-			●
8	01.855 HOSE; RUBBER,HSG TO PIPE TURBOCHARGER(K51)	8-94478-884-2	01	1	9510-			●
10	01.153 PIPE; SUCTION	8-94340-787-3	01	1	9210-9604		●
10	01.153 PIPE; SUCTION	8-94340-787-3	01	1	9605-		●
10	01.153 PIPE; SUCTION M/T MSG 5 SPEED(M75)	8-94340-787-3	01	1	9605-			●
10	01.153 PIPE; SUCTION TURBOCHARGER(K51)	8-94340-786-3	01	1	9510-			●
14	01.159 WASHER; PL,INL PIPE TO BRKT 16.716 ID=8.4 OD=18	9-09160-608-0	01	1	9210-9211		●
14	01.159 WASHER; PL,INL PIPE TO BRKT 03.613 ID=8 OD=18 T=3	8-94174-537-0	01	1	9212-9308		●
14	01.159 WASHER; PL,INL PIPE TO BRKT 03.613 ID=8 OD=18 T=3	8-94174-537-0	01	1	9309-		●	●
16	01.097 BOLT; INL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9210-9308		●
16	01.097 BOLT; INL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9309-		●	●
17	01.153 BOLT; SUCTION PIPE 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9210-9509		●
17	01.153 BOLT; SUCTION PIPE 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9510-		●	●
17	01.153 BOLT; SUCTION PIPE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9210-9509		●
17	01.153 BOLT; SUCTION PIPE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9510-		●	●
17	01.153 BOLT; SUCTION PIPE TURBOCHARGER(K51) 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9510-			●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9210-9509		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9510-		●	●
68	01.166 CLIP; WATER HOSE,OIL COOLER 01.150 ID=21.7	8-94413-822-0	02	1	9210-9308	●
68	01.166 CLIP; WATER HOSE,OIL COOLER TURBOCHARGER(K51) ID=21 BLACK	8-94422-733-0	02	1	9510-			●
73	01.097 PROTECTOR; HEAT,WATER PIPE TURBOCHARGER(K51)	8-94470-560-1	01	1	9510-			●
74	01.097 BOLT; HEAT PROTECTOR FIX TURBOCHARGER(K51) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9510-			●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-246-0	01	1	9210-		●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-247-1	01	1	9510-			●
790	01.097 CAP TURBOCHARGER(K51) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94414-688-0	02	1	9510-			●

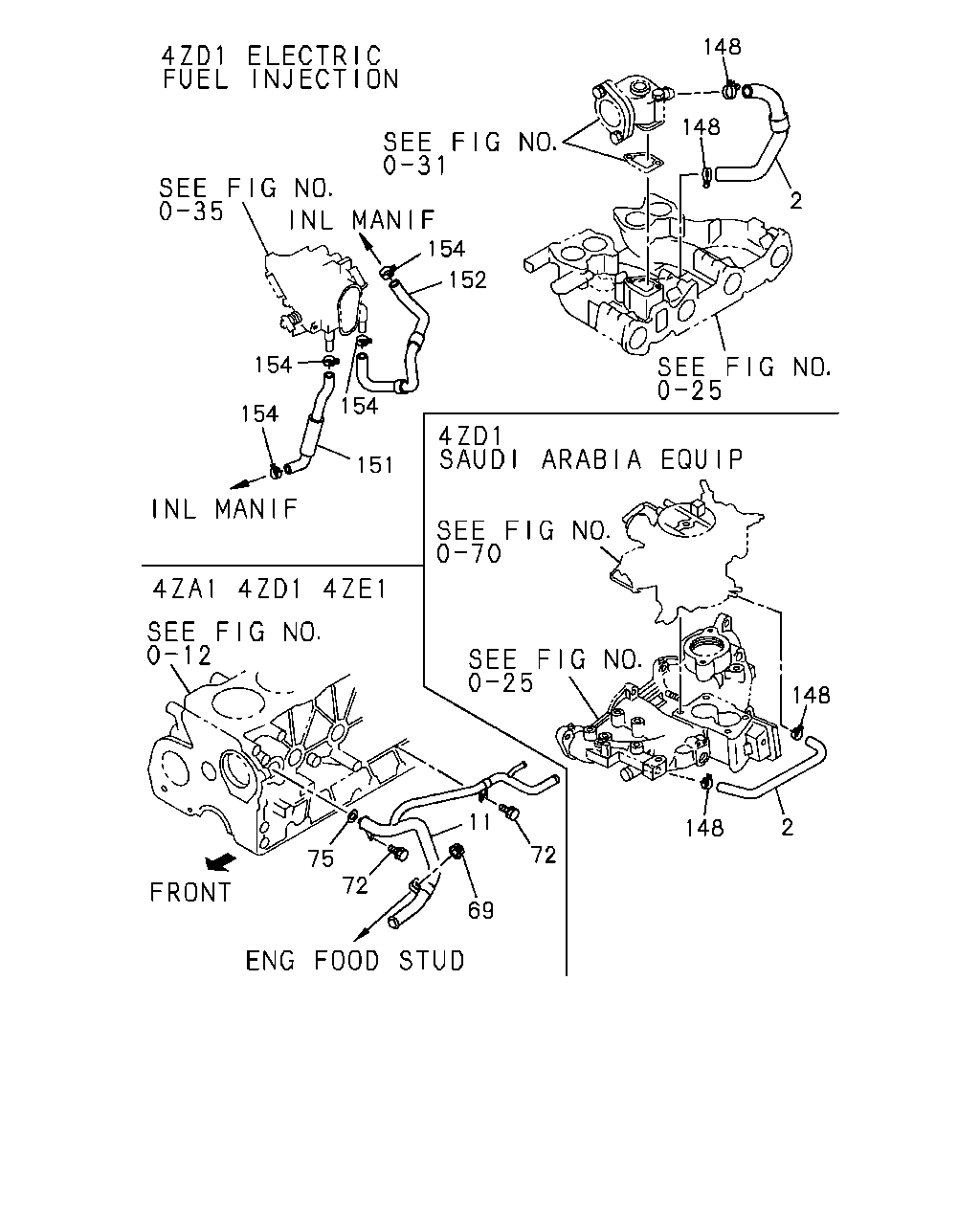

75 72 69 11 72 148 2 148 151 154 154 154 152 154 2 148 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	E	F
2	01.097 HOSE; WATER,BY-PASS CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG>	8-97037-774-0	01	1	9407-9509	●
2	01.097 HOSE; WATER,BY-PASS ELECTRIC FUEL INJECTION<6GG>	8-97108-079-0	01	1	9510-	●
2	01.097 HOSE; WATER,BY-PASS SAUDI ARABIA EQUIPMENT(EU2)	8-94156-663-2	01	1	9210-	●
2	01.097 HOSE; WATER,BY-PASS	5-09361-024-0	01	1	9210-9308		●
11	01.097 PIPE; INL,WATER PUMP	8-94474-078-3	01	1	9210-	●		●	●
69	01.153 NUT; WATER PIPE 07.829 M6 FLANGE	5-09440-004-0	01	1	9411-	●		●	●
72	00.206 BOLT; WATER PIPE M8X14 W/LK WASHER	0-50040-814-0	02	1	9210-	●		●	●
75	01.097 GASKET; INL PIPE TO WATER PUMP 01.154	8-94235-013-0	01	1	9210-	●		●	●
148	01.097 CLIP; BYPASS HOSE CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 01.540 ID=18.9	8-94478-875-0	02	1	9407-9509	●
148	01.097 CLIP; BYPASS HOSE ELECTRIC FUEL INJECTION<6GG> 01.540 ID=18.9	8-94478-875-0	01	1	9510-	●
148	01.097 CLIP; BYPASS HOSE ELECTRIC FUEL INJECTION<6GG> 01.166 ID=20.8	8-94125-862-0	01	1	9510-	●
148	01.097 CLIP; BYPASS HOSE SAUDI ARABIA EQUIPMENT(EU2) ID=11	8-94238-925-0	02	1	9210-	●
148	01.097 CLIP; BYPASS HOSE 01.150	8-94341-837-0	02	1	9210-9308		●
151	01.153 HOSE; WATER OUTLET ELECTRIC FUEL INJECTION<6GG>	8-97037-869-0	01	1	9407-	●
152	01.153 HOSE; WATER INL ELECTRIC FUEL INJECTION<6GG>	8-97037-868-0	01	1	9407-	●
154	01.153 CLIP; WATER HOSE ELECTRIC FUEL INJECTION<6GG> 03.162 ID=15.5	8-94221-519-0	04	1	9407-	●

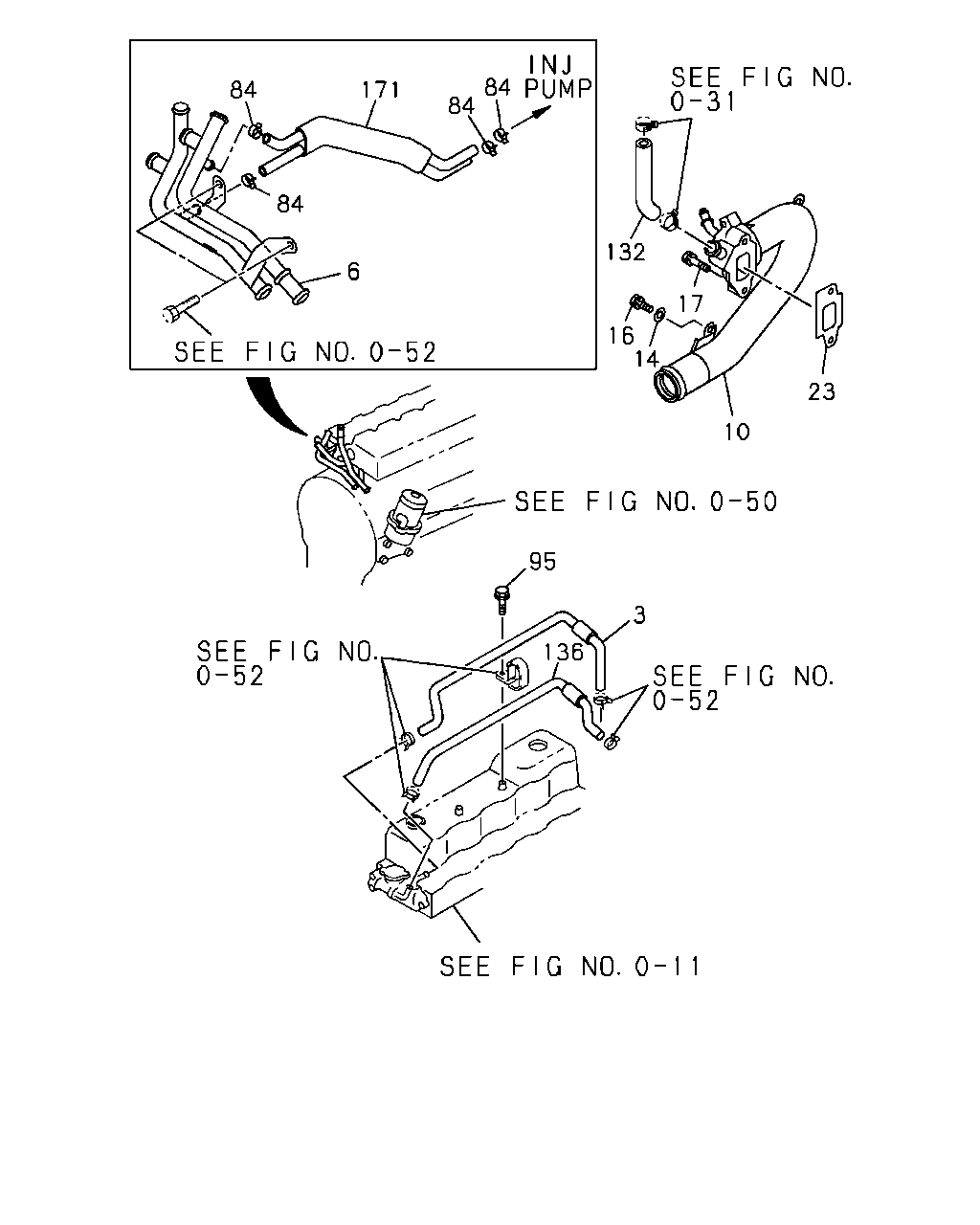

84 171 84 84 84 6 132 16 17 14 23 10 95 3 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
3	01.540 HOSE; WATER,OIL COOLER 01.855	8-94326-753-0	01	1	9210-9308	●
3	01.540 HOSE; WATER,OIL COOLER 01.855	8-94475-205-1	01	1	9210-		●
3	01.540 HOSE; WATER,OIL COOLER TURBOCHARGER(K51)	8-97119-517-0	01	1	9510-			●
3	01.540 HOSE; WATER,OIL COOLER EXC. TURBOCHARGER(K51)	8-97038-808-1	01	1	9605-			●
6	09.190 CONNECTOR; HTR & COOLER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94475-203-1	01	1	9210-		●
6	09.190 CONNECTOR; HTR & COOLER HOSE M/T MSG 5 SPEED(M75) EXC. COLD START DEVICE<7LY>	8-97038-114-1	01	1	9605-			●
6	09.190 CONNECTOR; HTR & COOLER HOSE TURBOCHARGER(K51)	8-94445-805-2	01	1	9510-			●
6	09.190 CONNECTOR; HTR & COOLER HOSE M/T MSG 5 SPEED(M75) COLD START DEVICE<7LY>	8-97160-414-0	01	1	9605-			●
10	01.153 PIPE; SUCTION	8-94340-787-3	01	1	9210-9604		●
10	01.153 PIPE; SUCTION	8-94340-787-3	01	1	9605-		●
10	01.153 PIPE; SUCTION M/T MSG 5 SPEED(M75)	8-94340-787-3	01	1	9605-			●
10	01.153 PIPE; SUCTION TURBOCHARGER(K51)	8-94340-786-3	01	1	9510-			●
14	01.159 WASHER; PL,INL PIPE TO BRKT 16.716 ID=8.4 OD=18	9-09160-608-0	01	1	9210-9211		●
14	01.159 WASHER; PL,INL PIPE TO BRKT 03.613 ID=8 OD=18 T=3	8-94174-537-0	01	1	9212-9308		●
14	01.159 WASHER; PL,INL PIPE TO BRKT 03.613 ID=8 OD=18 T=3	8-94174-537-0	01	1	9309-		●	●
16	01.097 BOLT; INL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9210-9308		●
16	01.097 BOLT; INL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9309-		●	●
17	01.153 BOLT; SUCTION PIPE 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9210-9509		●
17	01.153 BOLT; SUCTION PIPE 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9510-		●	●
17	01.153 BOLT; SUCTION PIPE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9210-9509		●
17	01.153 BOLT; SUCTION PIPE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9510-		●	●
17	01.153 BOLT; SUCTION PIPE TURBOCHARGER(K51) 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9510-			●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9210-9509		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9510-		●	●
84	01.240 CLIP; HOSE,W/CSD M/T MSG 5 SPEED(M75) COLD START DEVICE<7LY> 03.162 ID=15.5	8-94221-519-0	04	1	9605-			●
95	01.240 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9407-9604		●
95	01.240 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9605-		●
95	01.240 BOLT; CLIP M/T MSG 5 SPEED(M75) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9605-			●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-246-0	01	1	9210-		●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-247-1	01	1	9510-			●
136	01.540 HOSE; OIL COOLER,RETURN	8-94475-206-2	01	1	9210-		●
136	01.540 HOSE; OIL COOLER,RETURN EXC. TURBOCHARGER(K51)	8-97038-809-1	01	1	9605-			●
171	01.240 HOSE; RUBBER,WAX CSD M/T MSG 5 SPEED(M75) COLD START DEVICE<7LY>	8-97160-431-0	01	1	9605-			●
