0-31 — THERMOSTAT AND HOUSING (#46551) — 116 parça

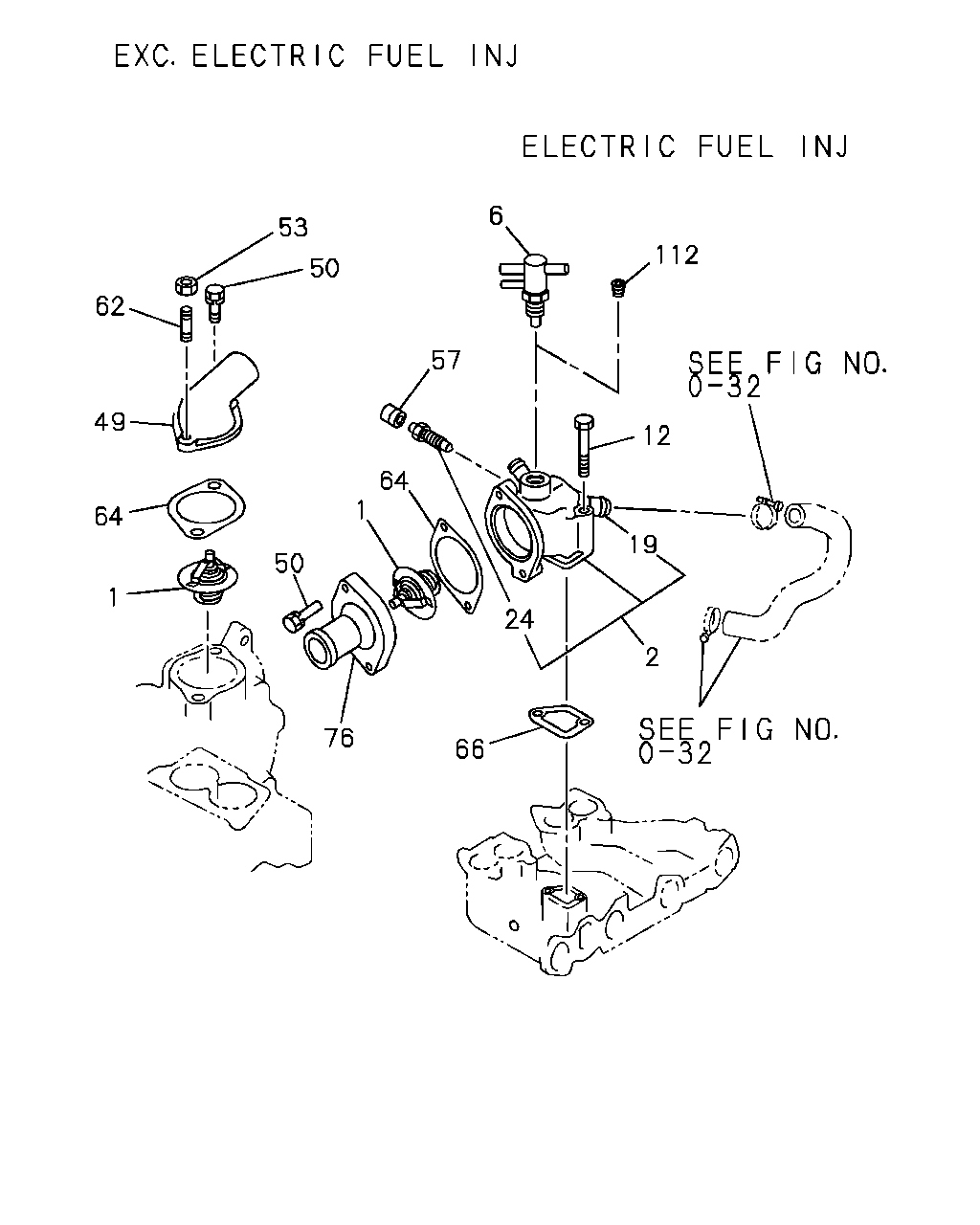

çizim 65977
1 64 49 62 53 50 57 64 1 50 76 24 66 2 19 12 112 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.246 THERMOSTAT
82 CELSIUS 		8-94336-069-0 01 1 9210- ● ●
1 01.246 THERMOSTAT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 82 CELSIUS 		8-94336-069-0 01 1 9210- ●
1 01.246 THERMOSTAT
SAUDI ARABIA EQUIPMENT(EU2) 01.252 76.5 CELSIUS 		8-94336-068-0 01 1 9210- ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94214-962-0 01 1 9210-9308 ● ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94214-962-0 01 1 9309-9404 ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 9405-9509 ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 9510- ● ●
2 01.251 HOUSING; THERMOSTAT
ELECTRIC FUEL INJECTION<6GG> 		8-97029-305-0 01 1 9407-9509 ●
2 01.251 HOUSING; THERMOSTAT
ELECTRIC FUEL INJECTION<6GG> 		8-97108-158-0 01 1 9510- ●
2 01.251 HOUSING; THERMOSTAT
01.252 		8-94254-603-1 01 1 9210-9308 ●
2 01.251 HOUSING; THERMOSTAT 8-94382-202-0 01 1 9210-9307 ●
2 01.251 HOUSING; THERMOSTAT 8-97104-440-1 01 1 9308-9508 ●
2 01.251 HOUSING; THERMOSTAT 8-97117-243-0 01 1 9509-9509 ●
2 01.251 HOUSING; THERMOSTAT 8-97117-243-0 01 1 9510- ● ●
6 01.240 VALVE; THERMAL,ENG WATER
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 		8-94454-580-0 01 1 9407-9506 ●
12 01.252 BOLT; HSG
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> M8X45 W/LK WASHER 		0-50040-845-0 01 1 9407-9509 ●
12 01.252 BOLT; HSG
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> M8X60 W/LK WASHER 		0-50040-860-0 01 1 9407-9509 ●
12 01.252 BOLT; HSG
ELECTRIC FUEL INJECTION<6GG> M8X60 W/LK WASHER 		0-50040-860-0 02 1 9510- ●
19 01.252 PIPE; HSG TO HTR
ELECTRIC FUEL INJECTION<6GG> 03.602 OD=15 L=41 		8-94442-052-0 01 1 9407-9510 ●
19 01.252 PIPE; HSG TO HTR 8-94478-870-1 01 1 9210-9509 ●
19 01.252 PIPE; HSG TO HTR 8-94478-870-1 01 1 9510- ● ●
24 01.252 PLUG; AIR BLEED
ELECTRIC FUEL INJECTION<6GG> 04.666 L=27 		8-94133-684-0 01 1 9407- ●
49 01.153 PIPE; WATER OUTLET 8-94172-420-1 01 1 9210-9403 ● ● ●
49 01.153 PIPE; WATER OUTLET
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94172-420-1 01 1 9404- ● ● ●
49 01.153 PIPE; WATER OUTLET 8-94254-601-1 01 1 9210-9308 ●
49 01.153 PIPE; WATER OUTLET 8-94368-589-0 01 1 9210-9604 ●
49 01.153 PIPE; WATER OUTLET 8-94368-589-0 01 1 9605-9606 ●
49 01.153 PIPE; WATER OUTLET
M/T MSG 5 SPEED(M75) 		8-94368-589-0 01 1 9605-9606 ●
49 01.153 PIPE; WATER OUTLET 8-97139-712-0 01 1 9607- ●
49 01.153 PIPE; WATER OUTLET
M/T MSG 5 SPEED(M75) 		8-97139-712-0 01 1 9607- ●
49 01.153 PIPE; WATER OUTLET
TURBOCHARGER(K51) 		8-94368-587-0 01 1 9510- ●
50 01.252 BOLT; OUTLET PIPE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9210-9406 ● ● ●
50 01.252 BOLT; OUTLET PIPE
EXC. ELECTRIC FUEL INJECTION<6GG> 01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9407- ● ● ●
50 01.252 BOLT; OUTLET PIPE
ELECTRIC FUEL INJECTION<6GG> 01.073 M8X25 W/LK WASHER 		0-50040-825-0 02 1 9407- ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9210-9308 ● ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9309- ● ●
53 01.153 NUT; OUTLET PIPE
00.854 M8 FLANGE 		5-09440-005-0 01 1 9210-9406 ● ● ●
53 01.153 NUT; OUTLET PIPE
EXC. ELECTRIC FUEL INJECTION<6GG> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9407- ● ● ●
57 01.252 CAP
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 04.666 		8-94202-898-0 01 1 9404-9404 ●
62 01.153 STUD; OUTLET PIPE TO INL MANIF
EXC. ELECTRIC FUEL INJECTION<6GG> 09.173 M8X22 L=34 		9-04110-822-0 01 1 9210- ● ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-197-0 01 1 9210- ● ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.252 		8-94365-674-0 01 1 9210-9308 ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.252 		8-94365-674-0 01 1 9309-9509 ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.252 		8-94365-674-1 01 1 9510- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ELECTRIC FUEL INJECTION<6GG> 		8-94324-198-1 01 1 9407- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94365-681-0 01 1 9210-9308 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94365-675-0 01 1 9210-9509 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94365-675-1 01 1 9510- ● ●
76 01.251 JOINT; WATER DUCT
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 01.153 		8-94449-490-0 01 1 9404-9405 ●
76 01.251 JOINT; WATER DUCT
ELECTRIC FUEL INJECTION<6GG> 		8-97108-164-0 01 1 9406- ●
112 01.251 PLUG
CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 01.073 PT3/8 		5-09605-005-0 01 1 9507-9509 ●
112 01.251 PLUG
ELECTRIC FUEL INJECTION<6GG> 01.073 PT3/8 		5-09605-005-0 01 1 9510- ●

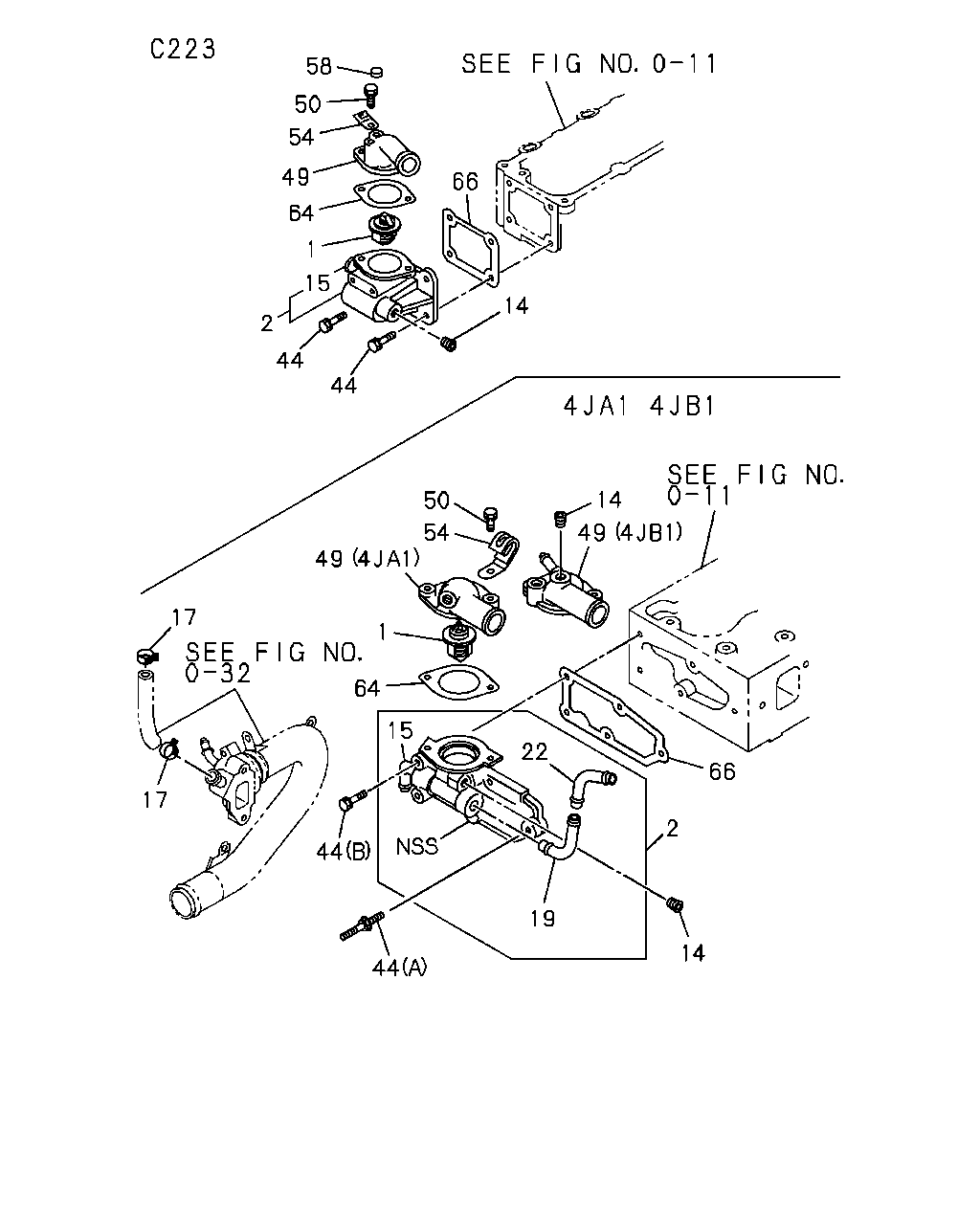

çizim 66427
17 17 64 1 49 50 54 15 44 19 44 14 2 22 66 49 14 14 66 44 44 2 15 1 64 49 54 50 58
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.246 THERMOSTAT
82 CELSIUS 		8-94336-069-0 01 1 9210- ● ●
1 01.246 THERMOSTAT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 82 CELSIUS 		8-94336-069-0 01 1 9210- ●
1 01.246 THERMOSTAT
SAUDI ARABIA EQUIPMENT(EU2) 01.252 76.5 CELSIUS 		8-94336-068-0 01 1 9210- ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94214-962-0 01 1 9210-9308 ● ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94214-962-0 01 1 9309-9404 ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 9405-9509 ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 9510- ● ●
2 01.251 HOUSING; THERMOSTAT
ELECTRIC FUEL INJECTION<6GG> 		8-97029-305-0 01 1 9407-9509 ●
2 01.251 HOUSING; THERMOSTAT
ELECTRIC FUEL INJECTION<6GG> 		8-97108-158-0 01 1 9510- ●
2 01.251 HOUSING; THERMOSTAT
01.252 		8-94254-603-1 01 1 9210-9308 ●
2 01.251 HOUSING; THERMOSTAT 8-94382-202-0 01 1 9210-9307 ●
2 01.251 HOUSING; THERMOSTAT 8-97104-440-1 01 1 9308-9508 ●
2 01.251 HOUSING; THERMOSTAT 8-97117-243-0 01 1 9509-9509 ●
2 01.251 HOUSING; THERMOSTAT 8-97117-243-0 01 1 9510- ● ●
14 01.252 PLUG; SW
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 01.073 PT3/8 		5-09605-005-0 01 1 9210-9308 ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9210-9308 ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9309-9604 ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9605- ●
14 01.252 PLUG; SW
CHINA CHONGQING EQUIPMENT<R5B> 01.073 PT3/8 		5-09605-005-0 01 1 9605- ●
14 01.252 PLUG; SW
TURBOCHARGER(K51) 01.073 PT3/8 		5-09605-005-0 02 1 9510- ●
15 01.251 PIPE; BYPASS
03.602 		5-13719-047-0 01 1 9210-9308 ●
15 01.251 PIPE; BYPASS 8-94343-211-1 01 1 9210-9509 ●
15 01.251 PIPE; BYPASS 8-94343-211-1 01 1 9510- ● ●
17 01.166 CLIP; WATER HOSE
ID=20.8 		8-94125-862-0 02 1 9210-9509 ●
17 01.166 CLIP; WATER HOSE
ID=20.8 		8-94125-862-0 02 1 9510- ● ●
19 01.252 PIPE; HSG TO HTR
ELECTRIC FUEL INJECTION<6GG> 03.602 OD=15 L=41 		8-94442-052-0 01 1 9407-9510 ●
19 01.252 PIPE; HSG TO HTR 8-94478-870-1 01 1 9210-9509 ●
19 01.252 PIPE; HSG TO HTR 8-94478-870-1 01 1 9510- ● ●
22 03.278 PIPE; HTR,RETURN 8-94478-869-1 01 1 9210-9509 ●
22 03.278 PIPE; HTR,RETURN 8-94478-869-1 01 1 9510- ● ●
44 01.252 BOLT; HSG TO HD
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9210-9308 ●
44 01.252 BOLT; HSG TO HD
00.727 M8X22 W/LK WASHER 		0-50040-822-0 02 1 9210-9308 ●
44 01.252 BOLT; HSG TO HD
POWER STEERING<N40> 00.780 (B) M8X30 W/LK WASHER 		0-50040-830-0 04 1 9210-9509 ●
44 01.252 BOLT; HSG TO HD
POWER STEERING<N40> 00.780 (B) M8X30 W/LK WASHER 		0-50040-830-0 04 1 9510- ● ●
44 01.252 BOLT; HSG TO HD
POWER STEERING<N40> (A) M8X28,M8X34 L=69 		8-94479-011-1 01 1 9210-9509 ●
44 01.252 BOLT; HSG TO HD
POWER STEERING<N40> (A) M8X28,M8X34 L=69 		8-94479-011-1 01 1 9510- ● ●
44 01.252 BOLT; HSG TO HD
EXC. POWER STEERING<N40> 00.780 (B) M8X30 W/LK WASHER 		0-50040-830-0 05 1 9210-9509 ●
44 01.252 BOLT; HSG TO HD
EXC. POWER STEERING<N40> 00.780 (B) M8X30 W/LK WASHER 		0-50040-830-0 05 1 9510- ● ●
49 01.153 PIPE; WATER OUTLET 8-94172-420-1 01 1 9210-9403 ● ● ●
49 01.153 PIPE; WATER OUTLET
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94172-420-1 01 1 9404- ● ● ●
49 01.153 PIPE; WATER OUTLET 8-94254-601-1 01 1 9210-9308 ●
49 01.153 PIPE; WATER OUTLET 8-94368-589-0 01 1 9210-9604 ●
49 01.153 PIPE; WATER OUTLET 8-94368-589-0 01 1 9605-9606 ●
49 01.153 PIPE; WATER OUTLET
M/T MSG 5 SPEED(M75) 		8-94368-589-0 01 1 9605-9606 ●
49 01.153 PIPE; WATER OUTLET 8-97139-712-0 01 1 9607- ●
49 01.153 PIPE; WATER OUTLET
M/T MSG 5 SPEED(M75) 		8-97139-712-0 01 1 9607- ●
49 01.153 PIPE; WATER OUTLET
TURBOCHARGER(K51) 		8-94368-587-0 01 1 9510- ●
50 01.252 BOLT; OUTLET PIPE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9210-9406 ● ● ●
50 01.252 BOLT; OUTLET PIPE
EXC. ELECTRIC FUEL INJECTION<6GG> 01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9407- ● ● ●
50 01.252 BOLT; OUTLET PIPE
ELECTRIC FUEL INJECTION<6GG> 01.073 M8X25 W/LK WASHER 		0-50040-825-0 02 1 9407- ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9210-9308 ● ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9309- ● ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
ID=8.5 		5-09700-275-0 01 1 9210-9308 ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=12 		5-09700-331-0 01 1 9210-9406 ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=12 		5-09700-331-0 01 1 9407- ● ●
58 00.073 PLUG; WATER OUTLET PIPE
01.073 PT3/8 		5-09605-005-0 01 1 9210-9308 ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-197-0 01 1 9210- ● ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.252 		8-94365-674-0 01 1 9210-9308 ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.252 		8-94365-674-0 01 1 9309-9509 ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.252 		8-94365-674-1 01 1 9510- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ELECTRIC FUEL INJECTION<6GG> 		8-94324-198-1 01 1 9407- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94365-681-0 01 1 9210-9308 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94365-675-0 01 1 9210-9509 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94365-675-1 01 1 9510- ● ●
