Sayfa 0-27 - Isuzu EPC

0-27 — EXHAUST MANIFOLD (#46548) — 229 parça

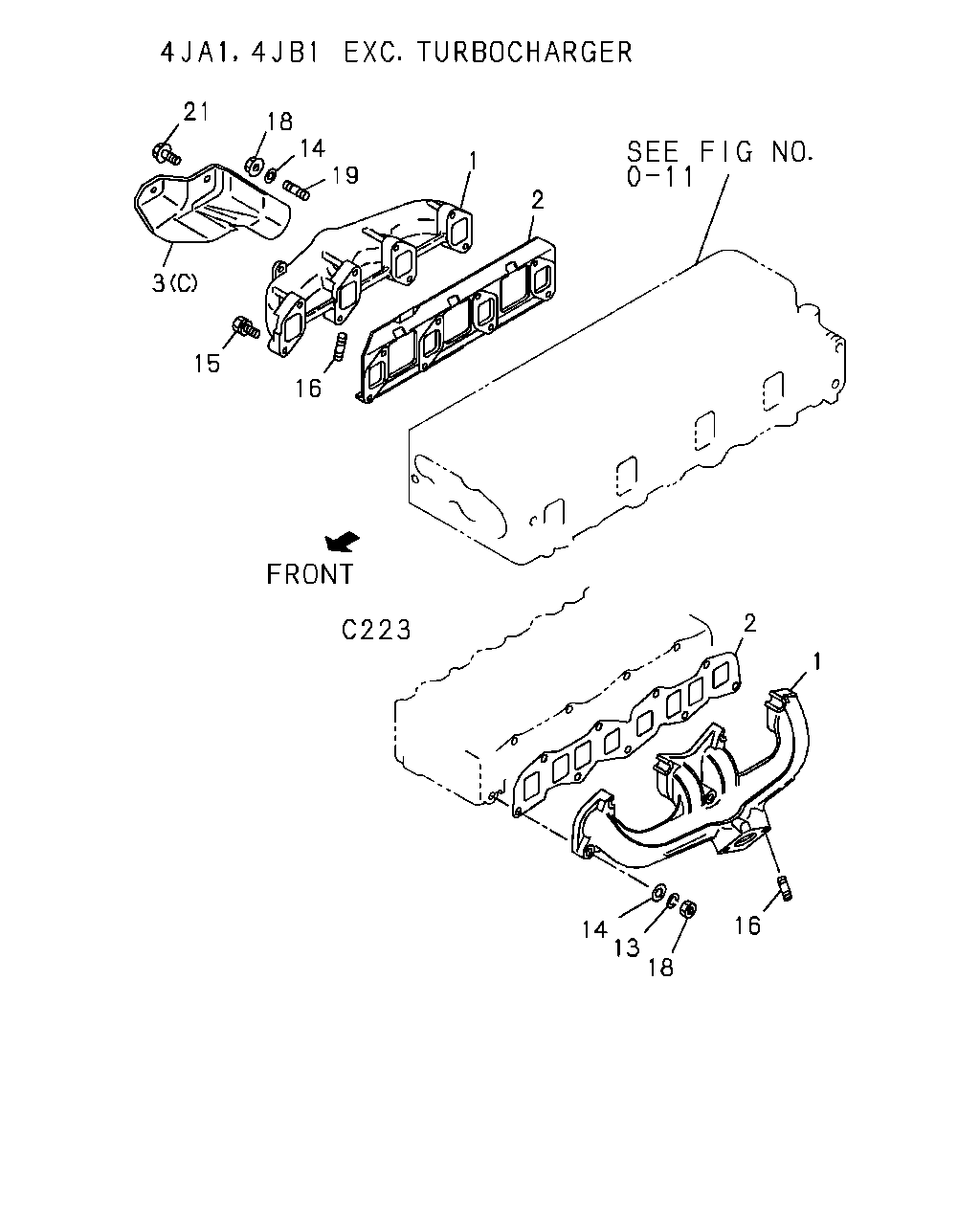

14 13 18 16 1 2 2 1 19 14 18 21 3 15 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94453-406-0	01	1	9210-9212	●
1	03.601 MANIFOLD; EXHAUST SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) W/EGR	8-94136-788-2	01	1	9210-9403	●	●
1	03.601 MANIFOLD; EXHAUST SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> W/EGR	8-94136-788-2	01	1	9404-9503	●	●
1	03.601 MANIFOLD; EXHAUST COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> W/EGR	8-94136-788-2	01	1	9404-9503		●
1	03.601 MANIFOLD; EXHAUST SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> W/EGR	8-94136-788-2	01	1	9504-	●	●
1	03.601 MANIFOLD; EXHAUST COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> W/EGR	8-94136-788-2	01	1	9504-		●
1	03.601 MANIFOLD; EXHAUST CHINA EQUIPMENT(YT2)	8-97127-546-0	01	1	9510-		●
1	03.601 MANIFOLD; EXHAUST ELECTRIC FUEL INJECTION<6GG>	8-97041-990-1	01	1	9407-		●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB) WO/EGR	8-94159-205-1	01	1	9210-9212		●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2) WO/EGR	8-94159-205-1	01	1	9301-9406	●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB) WO/EGR	8-94159-205-1	01	1	9301-9406		●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2) WO/EGR	8-94159-205-1	01	1	9407-9411	●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ> WO/EGR	8-94159-205-1	01	1	9407-9411		●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2) WO/EGR	8-94159-205-1	01	1	9412-9509	●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) WO/EGR	8-94159-205-1	01	1	9412-9509		●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2) WO/EGR	8-94159-205-1	01	1	9510-9603	●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) ,CATALYSIS CONTROL<6MZ>, GUATEMALA/COSTA RICA EQUIPMENT(7LD) WO/EGR	8-94159-205-1	01	1	9510-9603		●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2) WO/EGR	8-94159-205-1	01	1	9604-	●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPM ENT(7LD) WO/EGR	8-94159-205-1	01	1	9604-		●
1	03.601 MANIFOLD; EXHAUST	8-97083-579-0	01	1	9210-			●
1	03.601 MANIFOLD; EXHAUST	5-14141-092-0	01	1	9210-9308				●
1	03.601 MANIFOLD; EXHAUST	8-94259-880-2	01	1	9210-9305					●
1	03.601 MANIFOLD; EXHAUST	8-97065-960-1	01	1	9306-9604					●
1	03.601 MANIFOLD; EXHAUST	8-97065-960-1	01	1	9605-					●
1	03.601 MANIFOLD; EXHAUST M/T MSG 5 SPEED(M75)	8-97065-960-1	01	1	9605-						●
1	03.601 MANIFOLD; EXHAUST TURBOCHARGER(K51)	8-97039-473-3	01	1	9510-						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-054-0	01	1	9210-9406	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97117-182-0	01	1	9407-9501	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97117-183-0	01	1	9502-9502	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-054-0	01	1	9503-	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	5-14146-018-0	01	1	9210-9308				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97020-591-0	01	1	9210-9408					●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-1	01	1	9409-9509					●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-1	01	1	9510-					●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-94472-396-0	01	1	9210-					●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER(K51) (A)	8-97038-107-1	01	1	9510-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER(K51) (B)	8-97066-757-1	01	1	9510-9511						●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER(K51) (B)	8-97133-936-0	01	1	9512-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. TURBOCHARGER(K51) (C)	8-97131-704-0	01	1	9605-						●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	07	1	9210-9308	●	●	●	●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	07	1	9309-	●	●	●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	02	1	9210-9308					●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	02	1	9309-9606					●	●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9210-9403			●
14	03.604 WASHER; PL,EXH MANIF CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9404-9509		●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9404-9509			●
14	03.604 WASHER; PL,EXH MANIF CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> EXC. AIR CONDITIONER(C60) 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9510-		●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9510-			●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	05	1	9210-9308				●
14	03.604 WASHER; PL,EXH MANIF TURBOCHARGER(K51) 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9510-9606						●
14	03.604 WASHER; PL,EXH MANIF 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9607-					●	●
15	03.604 BOLT; EXH MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	9210-	●		●
15	03.604 BOLT; EXH MANIF M8X35	8-97045-441-0	06	1	9210-9509					●
15	03.604 BOLT; EXH MANIF M8X35	8-97045-441-0	06	1	9510-9606					●	●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9607-					●	●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 M10X25 L=40	9-04411-025-0	02	1	9210-9306	●	●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 M10X25 L=40	9-04411-025-0	02	1	9307-9406	●	●	●
16	03.604 STUD; EXH PIPE TO MANIF EXC. ELECTRIC FUEL INJECTION<6GG> 03.275 M10X25 L=40	9-04411-025-0	02	1	9407-	●	●	●
16	03.604 STUD; EXH PIPE TO MANIF ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) M8X18 L=29	8-97061-377-1	02	1	9407-		●
16	03.604 STUD; EXH PIPE TO MANIF ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 03.275 M10X25 L=40	9-04411-025-0	03	1	9407-9509		●
16	03.604 STUD; EXH PIPE TO MANIF ELECTRIC FUEL INJECTION<6GG> 03.275 M10X25 L=40	9-04411-025-0	03	1	9510-		●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 M10X25 L=40	9-04411-025-0	03	1	9210-9306			●
16	03.604 STUD; EXH PIPE TO MANIF 03.613 M10X33 L=48	5-09302-002-0	02	1	9210-9308				●
16	03.604 STUD; EXH PIPE TO MANIF M10X45 L=60 STAINLESS	8-97032-977-0	02	1	9210-9210					●
16	03.604 STUD; EXH PIPE TO MANIF 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9211-9604					●
16	03.604 STUD; EXH PIPE TO MANIF 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9605-					●
16	03.604 STUD; EXH PIPE TO MANIF CHINA CHONGQING EQUIPMENT<R5B> 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9605-						●
18	03.604 NUT; EXH MANIF 02.559 M8	9-09110-408-0	07	1	9210-9308	●	●	●	●
18	03.604 NUT; EXH MANIF 02.559 M8	9-09110-408-0	07	1	9309-	●	●	●
18	03.604 NUT; EXH MANIF 00.002 M8	9-09110-508-0	02	1	9210-9509					●
18	03.604 NUT; EXH MANIF 00.002 M8	9-09110-508-0	02	1	9510-9606					●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9607-					●	●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-0	02	1	9210-9509					●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	9510-					●	●
21	03.604 BOLT; HEAT PROTECTOR 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9210-9301					●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9302-9509					●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9510-					●	●
21	03.604 BOLT; HEAT PROTECTOR TURBOCHARGER(K51) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	01	1	9510-						●

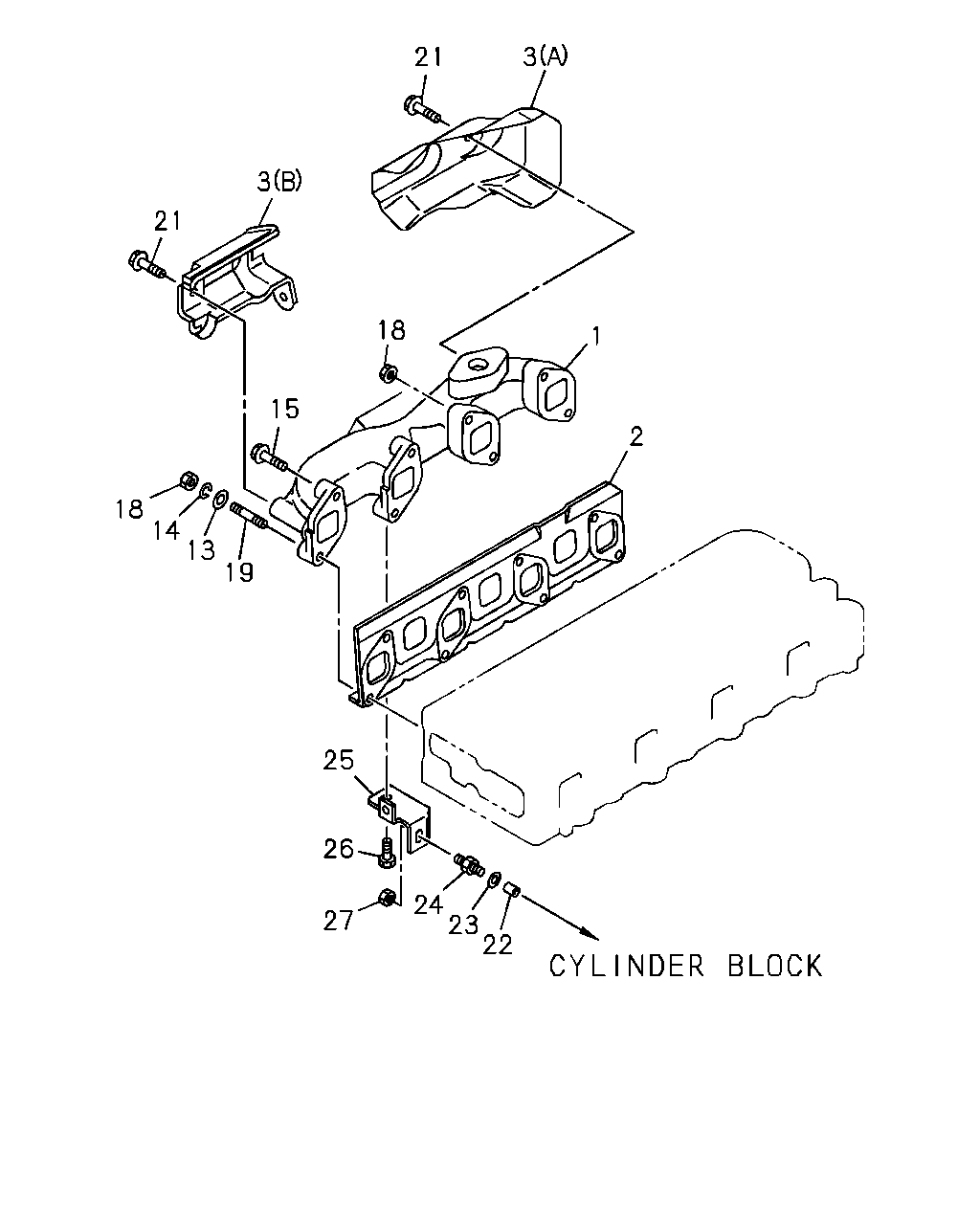

22 23 24 27 26 25 19 13 14 18 15 18 2 1 3 21 3 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94453-406-0	01	1	9210-9212	●
1	03.601 MANIFOLD; EXHAUST SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) W/EGR	8-94136-788-2	01	1	9210-9403	●	●
1	03.601 MANIFOLD; EXHAUST SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> W/EGR	8-94136-788-2	01	1	9404-9503	●	●
1	03.601 MANIFOLD; EXHAUST COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> W/EGR	8-94136-788-2	01	1	9404-9503		●
1	03.601 MANIFOLD; EXHAUST SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> W/EGR	8-94136-788-2	01	1	9504-	●	●
1	03.601 MANIFOLD; EXHAUST COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> W/EGR	8-94136-788-2	01	1	9504-		●
1	03.601 MANIFOLD; EXHAUST CHINA EQUIPMENT(YT2)	8-97127-546-0	01	1	9510-		●
1	03.601 MANIFOLD; EXHAUST ELECTRIC FUEL INJECTION<6GG>	8-97041-990-1	01	1	9407-		●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB) WO/EGR	8-94159-205-1	01	1	9210-9212		●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2) WO/EGR	8-94159-205-1	01	1	9301-9406	●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB) WO/EGR	8-94159-205-1	01	1	9301-9406		●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2) WO/EGR	8-94159-205-1	01	1	9407-9411	●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ> WO/EGR	8-94159-205-1	01	1	9407-9411		●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2) WO/EGR	8-94159-205-1	01	1	9412-9509	●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) WO/EGR	8-94159-205-1	01	1	9412-9509		●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2) WO/EGR	8-94159-205-1	01	1	9510-9603	●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) ,CATALYSIS CONTROL<6MZ>, GUATEMALA/COSTA RICA EQUIPMENT(7LD) WO/EGR	8-94159-205-1	01	1	9510-9603		●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2) WO/EGR	8-94159-205-1	01	1	9604-	●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPM ENT(7LD) WO/EGR	8-94159-205-1	01	1	9604-		●
1	03.601 MANIFOLD; EXHAUST	8-97083-579-0	01	1	9210-			●
1	03.601 MANIFOLD; EXHAUST	5-14141-092-0	01	1	9210-9308				●
1	03.601 MANIFOLD; EXHAUST	8-94259-880-2	01	1	9210-9305					●
1	03.601 MANIFOLD; EXHAUST	8-97065-960-1	01	1	9306-9604					●
1	03.601 MANIFOLD; EXHAUST	8-97065-960-1	01	1	9605-					●
1	03.601 MANIFOLD; EXHAUST M/T MSG 5 SPEED(M75)	8-97065-960-1	01	1	9605-						●
1	03.601 MANIFOLD; EXHAUST TURBOCHARGER(K51)	8-97039-473-3	01	1	9510-						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-054-0	01	1	9210-9406	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97117-182-0	01	1	9407-9501	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97117-183-0	01	1	9502-9502	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-054-0	01	1	9503-	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	5-14146-018-0	01	1	9210-9308				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97020-591-0	01	1	9210-9408					●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-1	01	1	9409-9509					●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-1	01	1	9510-					●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-94472-396-0	01	1	9210-					●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER(K51) (A)	8-97038-107-1	01	1	9510-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER(K51) (B)	8-97066-757-1	01	1	9510-9511						●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER(K51) (B)	8-97133-936-0	01	1	9512-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. TURBOCHARGER(K51) (C)	8-97131-704-0	01	1	9605-						●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	07	1	9210-9308	●	●	●	●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	07	1	9309-	●	●	●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	02	1	9210-9308					●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	02	1	9309-9606					●	●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9210-9403			●
14	03.604 WASHER; PL,EXH MANIF CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9404-9509		●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9404-9509			●
14	03.604 WASHER; PL,EXH MANIF CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> EXC. AIR CONDITIONER(C60) 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9510-		●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9510-			●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	05	1	9210-9308				●
14	03.604 WASHER; PL,EXH MANIF TURBOCHARGER(K51) 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9510-9606						●
14	03.604 WASHER; PL,EXH MANIF 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9607-					●	●
15	03.604 BOLT; EXH MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	9210-	●		●
15	03.604 BOLT; EXH MANIF M8X35	8-97045-441-0	06	1	9210-9509					●
15	03.604 BOLT; EXH MANIF M8X35	8-97045-441-0	06	1	9510-9606					●	●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9607-					●	●
18	03.604 NUT; EXH MANIF 02.559 M8	9-09110-408-0	07	1	9210-9308	●	●	●	●
18	03.604 NUT; EXH MANIF 02.559 M8	9-09110-408-0	07	1	9309-	●	●	●
18	03.604 NUT; EXH MANIF 00.002 M8	9-09110-508-0	02	1	9210-9509					●
18	03.604 NUT; EXH MANIF 00.002 M8	9-09110-508-0	02	1	9510-9606					●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9607-					●	●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-0	02	1	9210-9509					●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	9510-					●	●
21	03.604 BOLT; HEAT PROTECTOR 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9210-9301					●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9302-9509					●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9510-					●	●
21	03.604 BOLT; HEAT PROTECTOR TURBOCHARGER(K51) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	01	1	9510-						●
22	03.613 SPACER; EXH MANIF BRKT TURBOCHARGER(K51) 00.034 OD=13 T=9.5	8-94140-427-1	01	1	9510-						●
23	03.613 WASHER; PL EXH MANIF BRKT TURBOCHARGER(K51) 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9510-						●
24	03.613 BOLT; BRKT,EXH MANIF TURBOCHARGER(K51) 00.034 M8X14.5,M8X20 L=40	8-94450-173-0	01	1	9510-						●
25	03.602 BRACKET; EXH MANIF TURBOCHARGER(K51)	8-94449-945-3	01	1	9510-						●
26	03.602 BOLT; BRKT TO EXH MANIF TURBOCHARGER(K51) 03.604 M8X14 FLANGE	8-94312-699-1	01	1	9510-						●
27	03.602 NUT; BRKT,EXH MANIF TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	01	1	9510-						●

2 1 14 13 18 18 28 11 16 15 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94453-406-0	01	1	9210-9212	●
1	03.601 MANIFOLD; EXHAUST SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) W/EGR	8-94136-788-2	01	1	9210-9403	●	●
1	03.601 MANIFOLD; EXHAUST SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> W/EGR	8-94136-788-2	01	1	9404-9503	●	●
1	03.601 MANIFOLD; EXHAUST COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> W/EGR	8-94136-788-2	01	1	9404-9503		●
1	03.601 MANIFOLD; EXHAUST SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> W/EGR	8-94136-788-2	01	1	9504-	●	●
1	03.601 MANIFOLD; EXHAUST COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> W/EGR	8-94136-788-2	01	1	9504-		●
1	03.601 MANIFOLD; EXHAUST CHINA EQUIPMENT(YT2)	8-97127-546-0	01	1	9510-		●
1	03.601 MANIFOLD; EXHAUST ELECTRIC FUEL INJECTION<6GG>	8-97041-990-1	01	1	9407-		●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB) WO/EGR	8-94159-205-1	01	1	9210-9212		●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2) WO/EGR	8-94159-205-1	01	1	9301-9406	●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB) WO/EGR	8-94159-205-1	01	1	9301-9406		●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2) WO/EGR	8-94159-205-1	01	1	9407-9411	●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ> WO/EGR	8-94159-205-1	01	1	9407-9411		●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2) WO/EGR	8-94159-205-1	01	1	9412-9509	●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2), CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) WO/EGR	8-94159-205-1	01	1	9412-9509		●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2) WO/EGR	8-94159-205-1	01	1	9510-9603	●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) ,CATALYSIS CONTROL<6MZ>, GUATEMALA/COSTA RICA EQUIPMENT(7LD) WO/EGR	8-94159-205-1	01	1	9510-9603		●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2) WO/EGR	8-94159-205-1	01	1	9604-	●
1	03.601 MANIFOLD; EXHAUST EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA/COSTA RICA EQUIPM ENT(7LD) WO/EGR	8-94159-205-1	01	1	9604-		●
1	03.601 MANIFOLD; EXHAUST	8-97083-579-0	01	1	9210-			●
1	03.601 MANIFOLD; EXHAUST	5-14141-092-0	01	1	9210-9308				●
1	03.601 MANIFOLD; EXHAUST	8-94259-880-2	01	1	9210-9305					●
1	03.601 MANIFOLD; EXHAUST	8-97065-960-1	01	1	9306-9604					●
1	03.601 MANIFOLD; EXHAUST	8-97065-960-1	01	1	9605-					●
1	03.601 MANIFOLD; EXHAUST M/T MSG 5 SPEED(M75)	8-97065-960-1	01	1	9605-						●
1	03.601 MANIFOLD; EXHAUST TURBOCHARGER(K51)	8-97039-473-3	01	1	9510-						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-054-0	01	1	9210-9406	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97117-182-0	01	1	9407-9501	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97117-183-0	01	1	9502-9502	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-054-0	01	1	9503-	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	5-14146-018-0	01	1	9210-9308				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97020-591-0	01	1	9210-9408					●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-1	01	1	9409-9509					●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-1	01	1	9510-					●	●
11	03.901 PROTECTOR; HEAT,FUEL PUMP SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB)	8-97072-441-0	01	1	9210-9403	●	●
11	03.901 PROTECTOR; HEAT,FUEL PUMP SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG>	8-97072-441-0	01	1	9404-9503	●	●
11	03.901 PROTECTOR; HEAT,FUEL PUMP COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ>	8-97072-441-0	01	1	9404-9503		●
11	03.901 PROTECTOR; HEAT,FUEL PUMP SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-97072-441-0	01	1	9504-9509	●	●
11	03.901 PROTECTOR; HEAT,FUEL PUMP COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ>	8-97072-441-0	01	1	9504-9509		●
11	03.901 PROTECTOR; HEAT,FUEL PUMP SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG>	8-97072-441-0	01	1	9510-	●	●
11	03.901 PROTECTOR; HEAT,FUEL PUMP COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ>	8-97072-441-0	01	1	9510-		●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	07	1	9210-9308	●	●	●	●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	07	1	9309-	●	●	●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	02	1	9210-9308					●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	02	1	9309-9606					●	●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9210-9403			●
14	03.604 WASHER; PL,EXH MANIF CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9404-9509		●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9404-9509			●
14	03.604 WASHER; PL,EXH MANIF CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> EXC. AIR CONDITIONER(C60) 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9510-		●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9510-			●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	05	1	9210-9308				●
14	03.604 WASHER; PL,EXH MANIF TURBOCHARGER(K51) 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9510-9606						●
14	03.604 WASHER; PL,EXH MANIF 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9607-					●	●
15	03.604 BOLT; EXH MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	9210-	●		●
15	03.604 BOLT; EXH MANIF M8X35	8-97045-441-0	06	1	9210-9509					●
15	03.604 BOLT; EXH MANIF M8X35	8-97045-441-0	06	1	9510-9606					●	●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9607-					●	●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 M10X25 L=40	9-04411-025-0	02	1	9210-9306	●	●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 M10X25 L=40	9-04411-025-0	02	1	9307-9406	●	●	●
16	03.604 STUD; EXH PIPE TO MANIF EXC. ELECTRIC FUEL INJECTION<6GG> 03.275 M10X25 L=40	9-04411-025-0	02	1	9407-	●	●	●
16	03.604 STUD; EXH PIPE TO MANIF ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) M8X18 L=29	8-97061-377-1	02	1	9407-		●
16	03.604 STUD; EXH PIPE TO MANIF ELECTRIC FUEL INJECTION<6GG> CHILE EQUIPMENT(6KB) 03.275 M10X25 L=40	9-04411-025-0	03	1	9407-9509		●
16	03.604 STUD; EXH PIPE TO MANIF ELECTRIC FUEL INJECTION<6GG> 03.275 M10X25 L=40	9-04411-025-0	03	1	9510-		●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 M10X25 L=40	9-04411-025-0	03	1	9210-9306			●
16	03.604 STUD; EXH PIPE TO MANIF 03.613 M10X33 L=48	5-09302-002-0	02	1	9210-9308				●
16	03.604 STUD; EXH PIPE TO MANIF M10X45 L=60 STAINLESS	8-97032-977-0	02	1	9210-9210					●
16	03.604 STUD; EXH PIPE TO MANIF 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9211-9604					●
16	03.604 STUD; EXH PIPE TO MANIF 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9605-					●
16	03.604 STUD; EXH PIPE TO MANIF CHINA CHONGQING EQUIPMENT<R5B> 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9605-						●
18	03.604 NUT; EXH MANIF 02.559 M8	9-09110-408-0	07	1	9210-9308	●	●	●	●
18	03.604 NUT; EXH MANIF 02.559 M8	9-09110-408-0	07	1	9309-	●	●	●
18	03.604 NUT; EXH MANIF 00.002 M8	9-09110-508-0	02	1	9210-9509					●
18	03.604 NUT; EXH MANIF 00.002 M8	9-09110-508-0	02	1	9510-9606					●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9607-					●	●
28	03.907 BOLT; HEAT PROTECTOR,FUEL PUMP SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9210-9403	●	●
28	03.907 BOLT; HEAT PROTECTOR,FUEL PUMP SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9404-9411	●	●
28	03.907 BOLT; HEAT PROTECTOR,FUEL PUMP COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9404-9411		●
28	03.907 BOLT; HEAT PROTECTOR,FUEL PUMP SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9412-	●	●
28	03.907 BOLT; HEAT PROTECTOR,FUEL PUMP COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9412-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
