Sayfa 0-22 - Isuzu EPC

0-22 — ENGINE MOUNTING (#46546) — 208 parça

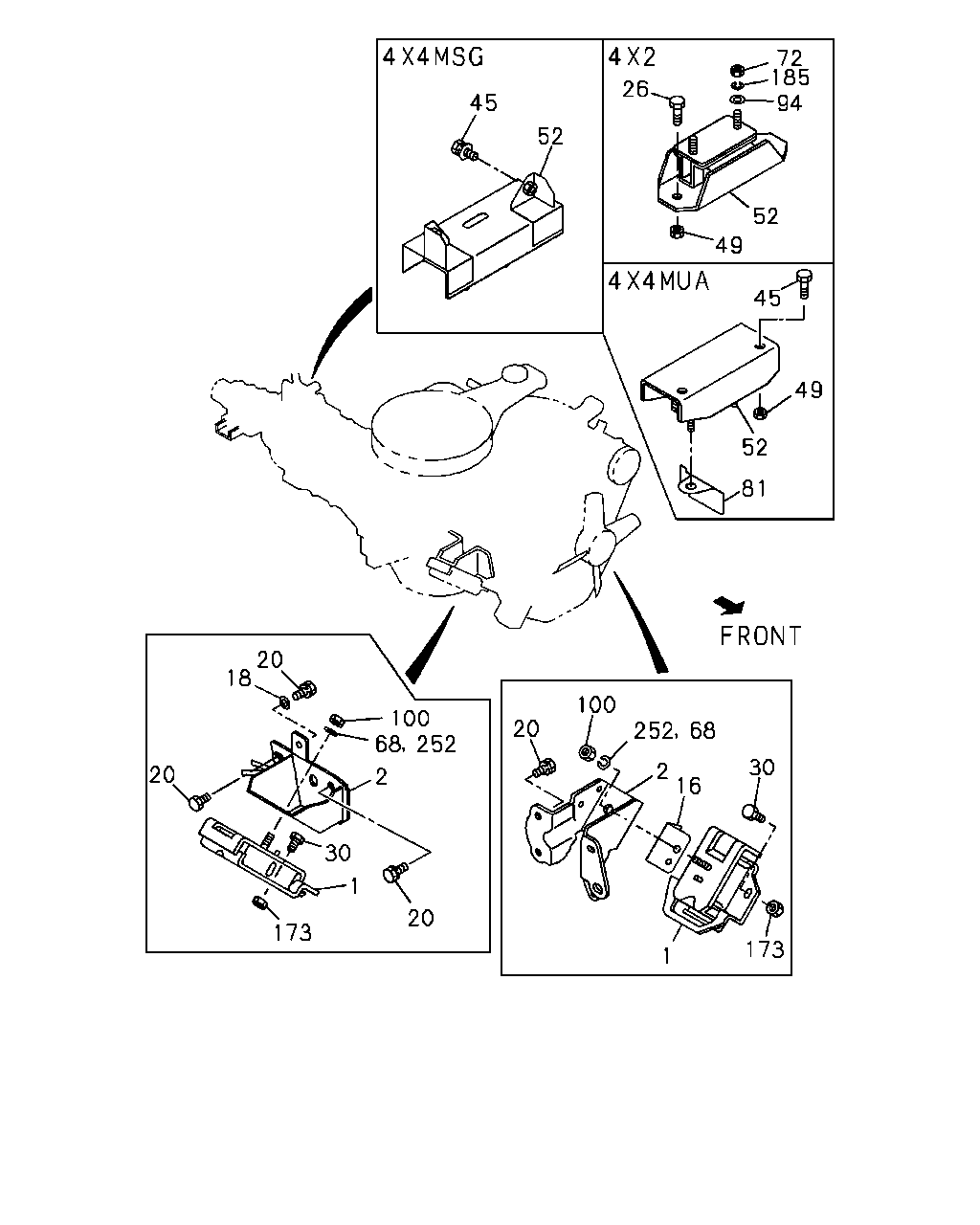

45 52 26 72 185 94 52 49 45 49 52 81 20 18 20 173 30 20 1 2 68 252 100 20 252 100 68 30 16 2 1 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.027 RUBBER; ENG FOOT,FRT	8-94422-868-2	01	1	9210-	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-94422-868-2	01	1	9210-		●
1	00.027 RUBBER; ENG FOOT,FRT	8-94422-867-2	01	1	9210-	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-94422-867-2	01	1	9210-		●
1	00.027 RUBBER; ENG FOOT,FRT 4X4(TFS***)	8-97066-800-0	01	1	9210-		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97066-800-0	01	1	9210-			●
1	00.027 RUBBER; ENG FOOT,FRT 4X4(TFS***)	8-94325-597-2	01	1	9210-		●	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97066-799-0	01	1	9210-			●
1	00.027 RUBBER; ENG FOOT,FRT	8-94334-159-0	01	1	9210-9308				●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-94334-159-0	01	1	9309-9509					●
1	00.027 RUBBER; ENG FOOT,FRT	8-94334-159-0	01	1	9510-					●
1	00.027 RUBBER; ENG FOOT,FRT TURBOCHARGER(K51)	8-94334-159-0	01	1	9510-						●
1	00.027 RUBBER; ENG FOOT,FRT 00.029	8-94334-158-0	01	1	9210-9308				●	●
1	00.027 RUBBER; ENG FOOT,FRT 00.029	8-94334-158-0	01	1	9309-9509					●
1	00.027 RUBBER; ENG FOOT,FRT 00.029	8-94334-158-0	01	1	9510-					●
1	00.027 RUBBER; ENG FOOT,FRT TURBOCHARGER(K51) 00.029	8-94334-158-0	01	1	9510-						●
1	00.027 RUBBER; ENG FOOT,FRT EXC. TURBOCHARGER(K51)	8-97039-190-3	01	1	9605-						●
1	00.027 RUBBER; ENG FOOT,FRT EXC. TURBOCHARGER(K51)	8-97039-189-3	01	1	9605-						●
2	00.029 FOOT; ENG	8-94449-473-3	01	1	9210-	●	●	●
2	00.029 FOOT; ENG	8-94449-474-3	01	1	9210-	●	●	●
2	00.029 FOOT; ENG	8-94104-693-0	01	1	9210-9308				●
2	00.029 FOOT; ENG	8-94453-547-1	01	1	9210-9308				●	●
2	00.029 FOOT; ENG	8-94453-547-1	01	1	9309-9509					●
2	00.029 FOOT; ENG	8-94453-547-1	01	1	9510-					●	●
2	00.029 FOOT; ENG	8-94175-341-1	01	1	9210-9308				●	●
2	00.029 FOOT; ENG	8-94175-341-1	01	1	9309-9509					●
2	00.029 FOOT; ENG	8-94175-341-1	01	1	9510-					●	●
2	00.029 FOOT; ENG EXC. TURBOCHARGER(K51)	8-97038-196-1	01	1	9605-						●
2	00.029 FOOT; ENG EXC. TURBOCHARGER(K51)	8-97038-195-1	01	1	9605-						●
16	07.039 PROTECTOR; HEAT,ENG MTG,FRT	8-94317-740-0	01	1	9210-9509	●	●	●
18	00.002 WASHER; PL,ENG FOOT 00.206 ID=8.4	9-09164-508-0	01	1	9210-	●	●	●
20	00.029 BOLT; ENG FOOT 00.002 M14X22	0-20801-422-0	01	1	9210-9303	●	●	●
20	00.029 BOLT; ENG FOOT M14X25 W/LK&PL WASHER	0-50141-425-0	01	1	9304-	●	●	●
20	00.029 BOLT; ENG FOOT 03.704 BRKT FIX M8X16 W/LK WASHER	0-50040-816-0	01	1	9210-	●	●	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	01	1	9210-	●	●	●
20	00.029 BOLT; ENG FOOT 00.002 M12X25 W/LK WASHER	0-50041-225-0	05	1	9210-	●	●	●
20	00.029 BOLT; ENG FOOT 11.377 M10X20 W/LK WASHER	0-50041-020-0	02	1	9210-9308				●
20	00.029 BOLT; ENG FOOT 08.900 M10X25	9-02061-025-0	02	1	9210-9308				●
20	00.029 BOLT; ENG FOOT 03.280 M10X30	9-02061-030-0	02	1	9210-9308				●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	06	1	9210-9308				●	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	06	1	9309-					●	●
20	00.029 BOLT; ENG FOOT 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9210-9308				●	●
20	00.029 BOLT; ENG FOOT 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9309-					●	●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	9210-9308				●	●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	9309-					●	●
26	00.029 BOLT; CUSHION RUBBER TO MTG BRKT 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9210-9308	●
26	00.029 BOLT; CUSHION RUBBER TO MTG BRKT 4X2(TFB***) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9210-9308		●	●		●
26	00.029 BOLT; CUSHION RUBBER TO MTG BRKT 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9210-9308				●
26	00.029 BOLT; CUSHION RUBBER TO MTG BRKT 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9309-	●
26	00.029 BOLT; CUSHION RUBBER TO MTG BRKT 4X2(TFB***) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9309-		●	●		●
30	00.002 BOLT; BRKT TO FRAME M10X28 W/LK WASHER	8-94325-415-1	04	1	9210-9406	●	●	●	●	●
30	00.002 BOLT; BRKT TO FRAME M10X28 W/LK WASHER	8-94325-415-1	04	1	9407-9509	●	●	●		●
30	00.002 BOLT; BRKT TO FRAME M10X28 W/LK WASHER	8-94325-415-1	04	1	9510-	●	●	●		●	●
45	00.002 BOLT; CUSHION RUBBER TO FRAME 4X4(TFS***) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) M12X50 W/LK&PL WASHER	0-50141-250-0	02	1	9210-9308		●	●		●
45	00.002 BOLT; CUSHION RUBBER TO FRAME 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) M12X50 W/LK&PL WASHER	0-50141-250-0	02	1	9210-9308				●
45	00.002 BOLT; CUSHION RUBBER TO FRAME 4X4(TFS***) M/T MSG 5 SPEED(M75) M12X50 W/LK&PL WASHER	0-50141-250-0	02	1	9309-		●	●		●
45	00.002 BOLT; CUSHION RUBBER TO FRAME 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9210-9308		●	●		●
45	00.002 BOLT; CUSHION RUBBER TO FRAME 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) M/T MUA 5 SPEED(RMN) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9210-9308				●
45	00.002 BOLT; CUSHION RUBBER TO FRAME 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9309-		●	●		●
49	00.002 NUT; CUSHION RUBBER TO FRAME 04.085 M10 FLANGE	8-94126-973-0	02	1	9210-9308	●	●	●	●	●
49	00.002 NUT; CUSHION RUBBER TO FRAME 04.085 M10 FLANGE	8-94126-973-0	02	1	9309-	●	●	●		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94434-208-1	01	1	9210-9308	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***)	8-94434-208-1	01	1	9210-9308		●	●		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	8-94434-208-1	01	1	9210-9308				●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94434-208-1	01	1	9309-	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***)	8-94434-208-1	01	1	9309-		●	●		●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	8-94434-208-1	01	1	9309-				●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MSG 5 SPEED(M75)	8-94441-510-0	01	1	9210-		●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-94441-572-1	01	1	9210-		●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75)	8-94472-973-0	01	1	9210-9308				●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75)	8-94472-973-0	01	1	9210-9308					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MSG 5 SPEED(M75)	8-94472-973-0	01	1	9309-					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-94458-384-2	01	1	9210-9509					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-94458-384-2	01	1	9510-					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4 LONG(TFS**F) M/T MUA 5 SPEED(RMN)	8-94458-384-2	01	1	9510-						●
68	00.002 WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-812-0	02	1	9210-	●	●	●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 09.011 M10	9-09110-410-0	02	1	9210-9308	●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 4X2(TFB***) 09.011 M10	9-09110-410-0	02	1	9210-9308		●	●		●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 09.011 M10	9-09110-410-0	02	1	9210-9308				●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 09.011 M10	9-09110-410-0	02	1	9309-	●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 4X2(TFB***) 09.011 M10	9-09110-410-0	02	1	9309-		●	●		●
81	00.029 PROTECTOR; HEAT,ENG MTG 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-94441-573-0	01	1	9210-		●	●
81	00.029 PROTECTOR; HEAT,ENG MTG 07.039	8-94422-871-0	01	1	9210-9308				●
81	00.029 PROTECTOR; HEAT,ENG MTG 07.039	8-94422-869-1	01	1	9210-9509					●
81	00.029 PROTECTOR; HEAT,ENG MTG 07.039	8-94422-869-1	01	1	9510-					●	●
94	00.029 WASHER; PL,BRKT 06.896 ID=10.5	9-09164-510-0	02	1	9210-9308	●
94	00.029 WASHER; PL,BRKT 4X2(TFB***) 06.896 ID=10.5	9-09164-510-0	02	1	9210-9308		●	●		●
94	00.029 WASHER; PL,BRKT 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 06.896 ID=10.5	9-09164-510-0	02	1	9210-9308				●
94	00.029 WASHER; PL,BRKT 06.896 ID=10.5	9-09164-510-0	02	1	9309-	●
94	00.029 WASHER; PL,BRKT 4X2(TFB***) 06.896 ID=10.5	9-09164-510-0	02	1	9309-		●	●		●
100	00.002 NUT; CUSHION RUBBER 05.816 M12	9-99110-412-0	02	1	9210-	●	●	●
173	00.002 NUT; ENG MTG RR TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9210-9406	●	●	●	●	●
173	00.002 NUT; ENG MTG RR TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9407-9509	●	●	●		●
173	00.002 NUT; ENG MTG RR TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9510-	●	●	●		●	●
185	00.002 WASHER; LK,BRKT 08.929 ID=10.2	9-09150-810-0	02	1	9210-9308	●
185	00.002 WASHER; LK,BRKT 4X2(TFB***) 08.929 ID=10.2	9-09150-810-0	02	1	9210-9308		●	●		●
185	00.002 WASHER; LK,BRKT 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 08.929 ID=10.2	9-09150-810-0	02	1	9210-9308				●
185	00.002 WASHER; LK,BRKT 08.929 ID=10.2	9-09150-810-0	02	1	9309-	●
185	00.002 WASHER; LK,BRKT 4X2(TFB***) 08.929 ID=10.2	9-09150-810-0	02	1	9309-		●	●		●
252	00.002 WASHER; LK,SUPPORT RUBBER 00.796 ID=14.2	9-09150-514-0	01	1	9210-9303	●	●	●
252	00.002 WASHER; LK,SUPPORT RUBBER ID=12.2	9-09150-812-0	01	1	9210-9502	●	●	●
252	00.002 WASHER; LK,SUPPORT RUBBER 08.929 ID=10.2	9-09150-810-0	04	1	9210-9308				●	●
252	00.002 WASHER; LK,SUPPORT RUBBER 08.929 ID=10.2	9-09150-810-0	04	1	9309-					●	●

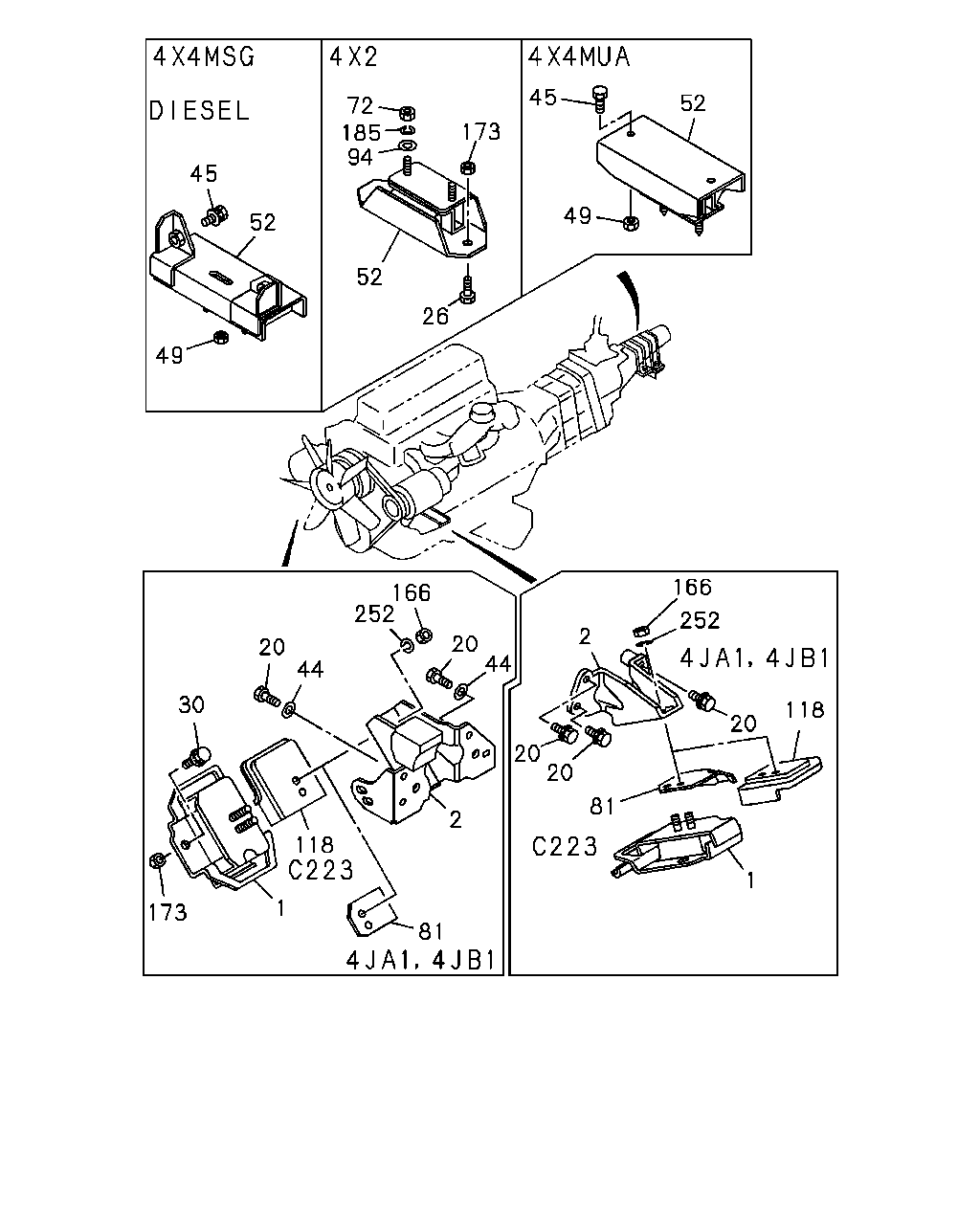

173 1 118 2 81 44 20 166 252 44 20 30 20 20 81 1 118 20 252 166 2 49 52 45 173 72 185 94 52 26 49 52 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.027 RUBBER; ENG FOOT,FRT	8-94422-868-2	01	1	9210-	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-94422-868-2	01	1	9210-		●
1	00.027 RUBBER; ENG FOOT,FRT	8-94422-867-2	01	1	9210-	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-94422-867-2	01	1	9210-		●
1	00.027 RUBBER; ENG FOOT,FRT 4X4(TFS***)	8-97066-800-0	01	1	9210-		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97066-800-0	01	1	9210-			●
1	00.027 RUBBER; ENG FOOT,FRT 4X4(TFS***)	8-94325-597-2	01	1	9210-		●	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-97066-799-0	01	1	9210-			●
1	00.027 RUBBER; ENG FOOT,FRT	8-94334-159-0	01	1	9210-9308				●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-94334-159-0	01	1	9309-9509					●
1	00.027 RUBBER; ENG FOOT,FRT	8-94334-159-0	01	1	9510-					●
1	00.027 RUBBER; ENG FOOT,FRT TURBOCHARGER(K51)	8-94334-159-0	01	1	9510-						●
1	00.027 RUBBER; ENG FOOT,FRT 00.029	8-94334-158-0	01	1	9210-9308				●	●
1	00.027 RUBBER; ENG FOOT,FRT 00.029	8-94334-158-0	01	1	9309-9509					●
1	00.027 RUBBER; ENG FOOT,FRT 00.029	8-94334-158-0	01	1	9510-					●
1	00.027 RUBBER; ENG FOOT,FRT TURBOCHARGER(K51) 00.029	8-94334-158-0	01	1	9510-						●
1	00.027 RUBBER; ENG FOOT,FRT EXC. TURBOCHARGER(K51)	8-97039-190-3	01	1	9605-						●
1	00.027 RUBBER; ENG FOOT,FRT EXC. TURBOCHARGER(K51)	8-97039-189-3	01	1	9605-						●
2	00.029 FOOT; ENG	8-94449-473-3	01	1	9210-	●	●	●
2	00.029 FOOT; ENG	8-94449-474-3	01	1	9210-	●	●	●
2	00.029 FOOT; ENG	8-94104-693-0	01	1	9210-9308				●
2	00.029 FOOT; ENG	8-94453-547-1	01	1	9210-9308				●	●
2	00.029 FOOT; ENG	8-94453-547-1	01	1	9309-9509					●
2	00.029 FOOT; ENG	8-94453-547-1	01	1	9510-					●	●
2	00.029 FOOT; ENG	8-94175-341-1	01	1	9210-9308				●	●
2	00.029 FOOT; ENG	8-94175-341-1	01	1	9309-9509					●
2	00.029 FOOT; ENG	8-94175-341-1	01	1	9510-					●	●
2	00.029 FOOT; ENG EXC. TURBOCHARGER(K51)	8-97038-196-1	01	1	9605-						●
2	00.029 FOOT; ENG EXC. TURBOCHARGER(K51)	8-97038-195-1	01	1	9605-						●
20	00.029 BOLT; ENG FOOT 00.002 M14X22	0-20801-422-0	01	1	9210-9303	●	●	●
20	00.029 BOLT; ENG FOOT M14X25 W/LK&PL WASHER	0-50141-425-0	01	1	9304-	●	●	●
20	00.029 BOLT; ENG FOOT 03.704 BRKT FIX M8X16 W/LK WASHER	0-50040-816-0	01	1	9210-	●	●	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	01	1	9210-	●	●	●
20	00.029 BOLT; ENG FOOT 00.002 M12X25 W/LK WASHER	0-50041-225-0	05	1	9210-	●	●	●
20	00.029 BOLT; ENG FOOT 11.377 M10X20 W/LK WASHER	0-50041-020-0	02	1	9210-9308				●
20	00.029 BOLT; ENG FOOT 08.900 M10X25	9-02061-025-0	02	1	9210-9308				●
20	00.029 BOLT; ENG FOOT 03.280 M10X30	9-02061-030-0	02	1	9210-9308				●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	06	1	9210-9308				●	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	06	1	9309-					●	●
20	00.029 BOLT; ENG FOOT 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9210-9308				●	●
20	00.029 BOLT; ENG FOOT 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9309-					●	●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	9210-9308				●	●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	9309-					●	●
26	00.029 BOLT; CUSHION RUBBER TO MTG BRKT 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9210-9308	●
26	00.029 BOLT; CUSHION RUBBER TO MTG BRKT 4X2(TFB***) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9210-9308		●	●		●
26	00.029 BOLT; CUSHION RUBBER TO MTG BRKT 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9210-9308				●
26	00.029 BOLT; CUSHION RUBBER TO MTG BRKT 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9309-	●
26	00.029 BOLT; CUSHION RUBBER TO MTG BRKT 4X2(TFB***) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9309-		●	●		●
30	00.002 BOLT; BRKT TO FRAME M10X28 W/LK WASHER	8-94325-415-1	04	1	9210-9406	●	●	●	●	●
30	00.002 BOLT; BRKT TO FRAME M10X28 W/LK WASHER	8-94325-415-1	04	1	9407-9509	●	●	●		●
30	00.002 BOLT; BRKT TO FRAME M10X28 W/LK WASHER	8-94325-415-1	04	1	9510-	●	●	●		●	●
44	00.002 WASHER; LK,ENG FOOT 00.029 ID=10.5 OD=22 T=4	1-09503-045-0	04	1	9210-9308				●
45	00.002 BOLT; CUSHION RUBBER TO FRAME 4X4(TFS***) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) M12X50 W/LK&PL WASHER	0-50141-250-0	02	1	9210-9308		●	●		●
45	00.002 BOLT; CUSHION RUBBER TO FRAME 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) M12X50 W/LK&PL WASHER	0-50141-250-0	02	1	9210-9308				●
45	00.002 BOLT; CUSHION RUBBER TO FRAME 4X4(TFS***) M/T MSG 5 SPEED(M75) M12X50 W/LK&PL WASHER	0-50141-250-0	02	1	9309-		●	●		●
45	00.002 BOLT; CUSHION RUBBER TO FRAME 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9210-9308		●	●		●
45	00.002 BOLT; CUSHION RUBBER TO FRAME 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) M/T MUA 5 SPEED(RMN) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9210-9308				●
45	00.002 BOLT; CUSHION RUBBER TO FRAME 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9309-		●	●		●
49	00.002 NUT; CUSHION RUBBER TO FRAME 04.085 M10 FLANGE	8-94126-973-0	02	1	9210-9308	●	●	●	●	●
49	00.002 NUT; CUSHION RUBBER TO FRAME 04.085 M10 FLANGE	8-94126-973-0	02	1	9309-	●	●	●		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94434-208-1	01	1	9210-9308	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***)	8-94434-208-1	01	1	9210-9308		●	●		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	8-94434-208-1	01	1	9210-9308				●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94434-208-1	01	1	9309-	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***)	8-94434-208-1	01	1	9309-		●	●		●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	8-94434-208-1	01	1	9309-				●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MSG 5 SPEED(M75)	8-94441-510-0	01	1	9210-		●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-94441-572-1	01	1	9210-		●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75)	8-94472-973-0	01	1	9210-9308				●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75)	8-94472-973-0	01	1	9210-9308					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MSG 5 SPEED(M75)	8-94472-973-0	01	1	9309-					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-94458-384-2	01	1	9210-9509					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-94458-384-2	01	1	9510-					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4 LONG(TFS**F) M/T MUA 5 SPEED(RMN)	8-94458-384-2	01	1	9510-						●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 09.011 M10	9-09110-410-0	02	1	9210-9308	●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 4X2(TFB***) 09.011 M10	9-09110-410-0	02	1	9210-9308		●	●		●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 09.011 M10	9-09110-410-0	02	1	9210-9308				●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 09.011 M10	9-09110-410-0	02	1	9309-	●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 4X2(TFB***) 09.011 M10	9-09110-410-0	02	1	9309-		●	●		●
81	00.029 PROTECTOR; HEAT,ENG MTG 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-94441-573-0	01	1	9210-		●	●
81	00.029 PROTECTOR; HEAT,ENG MTG 07.039	8-94422-871-0	01	1	9210-9308				●
81	00.029 PROTECTOR; HEAT,ENG MTG 07.039	8-94422-869-1	01	1	9210-9509					●
81	00.029 PROTECTOR; HEAT,ENG MTG 07.039	8-94422-869-1	01	1	9510-					●	●
94	00.029 WASHER; PL,BRKT 06.896 ID=10.5	9-09164-510-0	02	1	9210-9308	●
94	00.029 WASHER; PL,BRKT 4X2(TFB***) 06.896 ID=10.5	9-09164-510-0	02	1	9210-9308		●	●		●
94	00.029 WASHER; PL,BRKT 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 06.896 ID=10.5	9-09164-510-0	02	1	9210-9308				●
94	00.029 WASHER; PL,BRKT 06.896 ID=10.5	9-09164-510-0	02	1	9309-	●
94	00.029 WASHER; PL,BRKT 4X2(TFB***) 06.896 ID=10.5	9-09164-510-0	02	1	9309-		●	●		●
118	00.029 COVER; SUPPORT RUBBER,ENG FOOT 00.027	8-94422-873-0	01	1	9210-9308				●
118	00.029 COVER; SUPPORT RUBBER,ENG FOOT 00.027	8-94422-872-0	01	1	9210-9509					●
118	00.029 COVER; SUPPORT RUBBER,ENG FOOT 00.027	8-94422-872-0	01	1	9510-					●	●
166	00.002 NUT; SUPPORT RUBBER 09.011 M10	9-09110-410-0	04	1	9210-9308				●	●
166	00.002 NUT; SUPPORT RUBBER 09.011 M10	9-09110-410-0	04	1	9309-					●	●
173	00.002 NUT; ENG MTG RR TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9210-9406	●	●	●	●	●
173	00.002 NUT; ENG MTG RR TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9407-9509	●	●	●		●
173	00.002 NUT; ENG MTG RR TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9510-	●	●	●		●	●
185	00.002 WASHER; LK,BRKT 08.929 ID=10.2	9-09150-810-0	02	1	9210-9308	●
185	00.002 WASHER; LK,BRKT 4X2(TFB***) 08.929 ID=10.2	9-09150-810-0	02	1	9210-9308		●	●		●
185	00.002 WASHER; LK,BRKT 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 08.929 ID=10.2	9-09150-810-0	02	1	9210-9308				●
185	00.002 WASHER; LK,BRKT 08.929 ID=10.2	9-09150-810-0	02	1	9309-	●
185	00.002 WASHER; LK,BRKT 4X2(TFB***) 08.929 ID=10.2	9-09150-810-0	02	1	9309-		●	●		●
252	00.002 WASHER; LK,SUPPORT RUBBER 00.796 ID=14.2	9-09150-514-0	01	1	9210-9303	●	●	●
252	00.002 WASHER; LK,SUPPORT RUBBER ID=12.2	9-09150-812-0	01	1	9210-9502	●	●	●
252	00.002 WASHER; LK,SUPPORT RUBBER 08.929 ID=10.2	9-09150-810-0	04	1	9210-9308				●	●
252	00.002 WASHER; LK,SUPPORT RUBBER 08.929 ID=10.2	9-09150-810-0	04	1	9309-					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
