Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#46545) — 204 parça

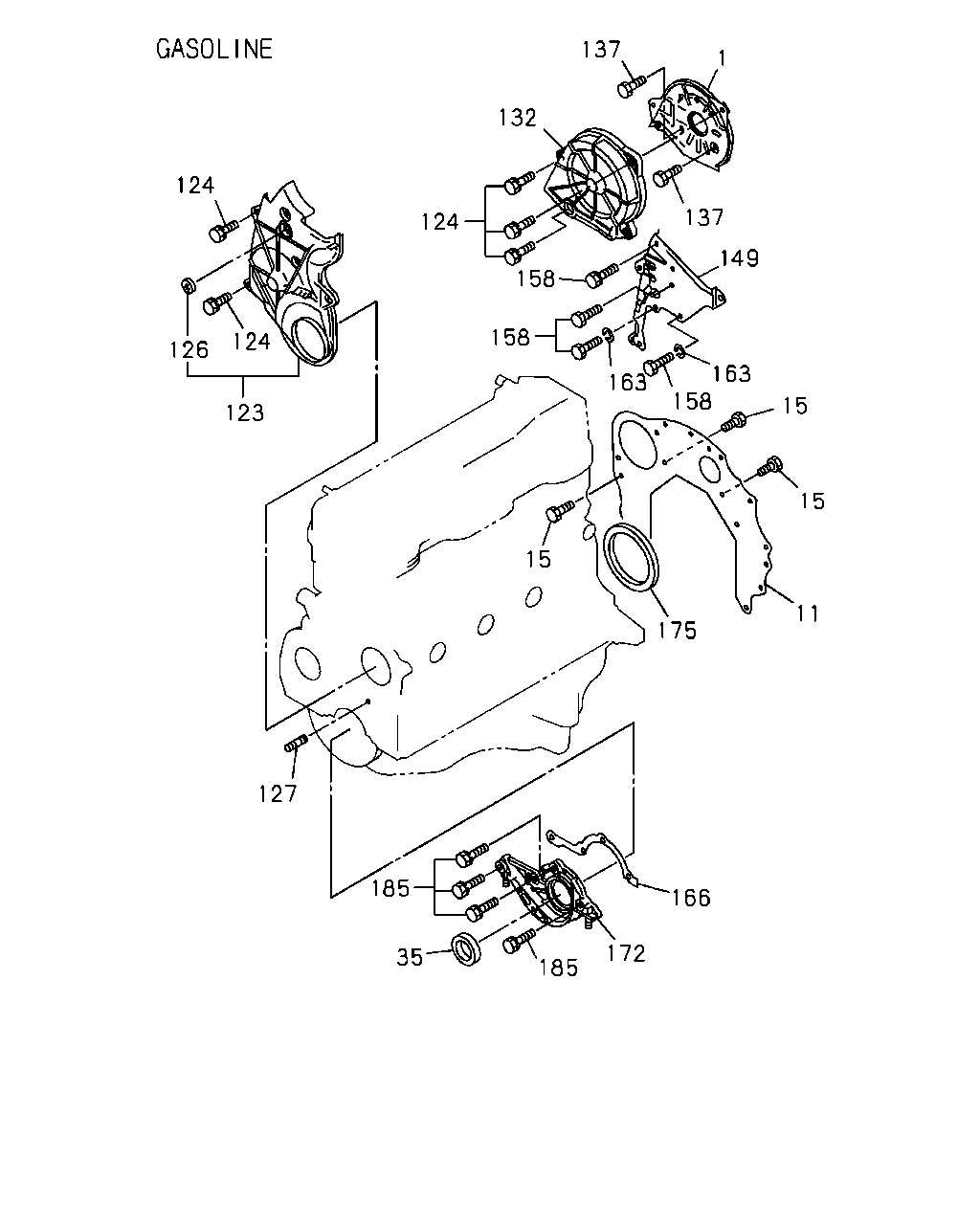

35 185 172 166 185 127 123 124 126 124 124 132 158 158 137 1 137 163 163 158 15 175 11 15 15 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.206 CASE; TIMING GEAR	8-94220-548-1	01	1	9210-	●	●
1	00.206 CASE; TIMING GEAR	8-94405-608-3	01	1	9210-			●
1	00.206 CASE; TIMING GEAR	5-11311-067-2	01	1	9210-9308				●
1	00.206 CASE; TIMING GEAR	8-94155-361-3	01	1	9210-9506					●
1	00.206 CASE; TIMING GEAR	8-97129-982-0	01	1	9507-9509					●
1	00.206 CASE; TIMING GEAR	8-97129-982-1	01	1	9510-					●	●
11	00.683 PLATE; RR,C/BL	8-94218-559-3	01	1	9210-	●	●
11	00.683 PLATE; RR,C/BL	8-94443-574-2	01	1	9210-			●
11	00.683 PLATE; RR,C/BL	8-94329-551-0	01	1	9210-9308				●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9210-9308					●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9309-					●	●
15	00.683 BOLT; RR PLATE TO C/BL M10X18	8-94214-903-1	02	1	9210-	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M10X50 REAMER	8-94215-044-1	01	1	9210-	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9210-9308				●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9309-					●	●
35	00.213 SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=56 T=6.5	8-94339-997-0	01	1	9210-	●	●	●
123	00.206 COVER; TIMING,LWR	8-94452-869-0	01	1	9210-	●
123	00.206 COVER; TIMING,LWR	8-94452-871-0	01	1	9210-9210		●
123	00.206 COVER; TIMING,LWR	8-94449-471-2	01	1	9210-9210			●
123	00.206 COVER; TIMING,LWR	8-94449-471-4	01	1	9211-		●	●
124	00.206 BOLT; TIMING COVER 04.686 M6X16 W/LK WASHER	0-50040-616-0	07	1	9210-	●	●
124	00.206 BOLT; TIMING COVER 01.062 M6X45 W/LK WASHER	0-50040-645-0	01	1	9210-	●	●
124	00.206 BOLT; TIMING COVER 01.153 M6X50 FLANGE	0-28080-650-0	01	1	9210-			●
124	00.206 BOLT; TIMING COVER 04.686 M6X16 W/LK WASHER	0-50040-616-0	06	1	9210-			●
124	00.206 BOLT; TIMING COVER 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9210-			●
126	00.206 GROMMET; TIMING COVER,LWR	8-94150-996-0	01	1	9210-	●	●	●
127	00.206 STUD; TENSIONER 03.613 M8X50 L=62	9-04110-850-0	01	1	9210-	●	●	●
132	00.206 COVER; TIMING,UPR	8-94452-421-1	01	1	9210-	●	●	●
137	00.206 BOLT; FRT PLATE 00.669 M6X12	0-20800-612-0	02	1	9210-	●	●
137	00.206 BOLT; FRT PLATE 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9210-	●	●
137	00.206 BOLT; FRT PLATE 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9510-	●	●
137	00.206 BOLT; FRT PLATE 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	02	1	9210-			●
149	00.206 PLATE; FRT,C/BL	8-94416-148-1	01	1	9210-	●
149	00.206 PLATE; FRT,C/BL	8-94146-325-3	01	1	9210-		●
149	00.206 PLATE; FRT,C/BL	8-94405-609-3	01	1	9210-			●
149	00.206 PLATE; FRT,C/BL	9-11311-153-0	01	1	9210-9308				●
158	00.206 BOLT; FRT PLATE 00.669 M6X12	0-20800-612-0	02	1	9210-	●	●
158	00.206 BOLT; FRT PLATE 04.686 M8X12	0-20800-812-0	01	1	9210-	●	●
158	00.206 BOLT; FRT PLATE 00.669 M6X12	0-20800-612-0	02	1	9510-9603	●	●
158	00.206 BOLT; FRT PLATE 00.669 M6X12	0-20800-612-0	02	1	9604-		●
158	00.206 BOLT; FRT PLATE 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9210-			●
158	00.206 BOLT; FRT PLATE 01.540 M8X18 W/LK&PL WASHER	0-50140-818-0	01	1	9210-			●
158	00.206 BOLT; FRT PLATE 08.900 M8X20 W/LK WASHER	0-50040-820-0	03	1	9210-9308				●
163	00.002 WASHER; LK,PLATE TO CYL HD 00.206 ID=6.1	9-09150-506-0	02	1	9210-	●	●
163	00.002 WASHER; LK,PLATE TO CYL HD ID=8.2	9-09150-508-0	01	1	9210-	●	●
163	00.002 WASHER; LK,PLATE TO CYL HD 00.206 ID=6.1	9-09150-506-0	02	1	9510-9603	●	●
163	00.002 WASHER; LK,PLATE TO CYL HD 00.206 ID=6.1	9-09150-506-0	02	1	9604-		●
166	00.207 GASKET; RET TO C/BL 01.429	8-94214-914-0	01	1	9210-9602	●	●	●
166	00.207 GASKET; RET TO C/BL	8-97143-478-0	01	1	9603-	●	●	●
172	00.137 RETAINER; CR/SHF 01.430	8-94244-646-2	01	1	9210-9403	●
172	00.137 RETAINER; CR/SHF 4X2(TFB***) 01.430	8-94244-646-2	01	1	9210-9403		●
172	00.137 RETAINER; CR/SHF 4X4(TFS***) 01.430	8-94153-864-2	01	1	9210-9403		●
172	00.137 RETAINER; CR/SHF 01.430	8-94153-864-3	01	1	9404-9410	●	●
172	00.137 RETAINER; CR/SHF 01.430	8-94153-864-3	01	1	9410-	●	●
172	00.137 RETAINER; CR/SHF	8-94174-212-3	01	1	9210-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9210-	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	5-09625-036-0	01	1	9210-9308				●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-146-0	01	1	9210-9308					●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9309-					●	●
185	00.727 BOLT; RET TO C/BL 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9210-	●	●	●
185	00.727 BOLT; RET TO C/BL M8X32 W/LK WASHER	0-50040-832-0	02	1	9210-	●	●	●

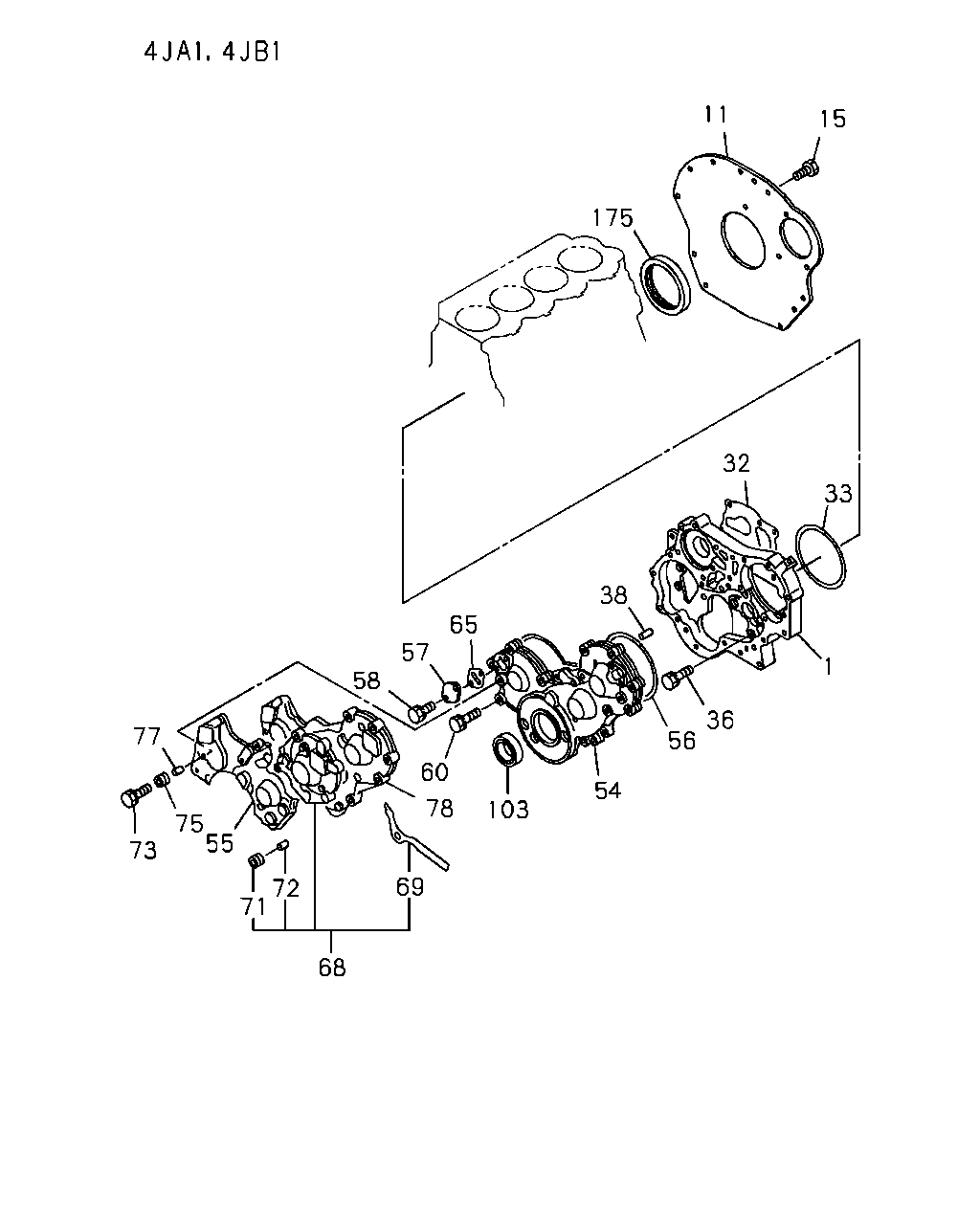

175 11 15 33 32 1 36 38 56 54 103 78 60 65 57 58 77 73 55 75 72 71 68 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.206 CASE; TIMING GEAR	8-94220-548-1	01	1	9210-	●	●
1	00.206 CASE; TIMING GEAR	8-94405-608-3	01	1	9210-			●
1	00.206 CASE; TIMING GEAR	5-11311-067-2	01	1	9210-9308				●
1	00.206 CASE; TIMING GEAR	8-94155-361-3	01	1	9210-9506					●
1	00.206 CASE; TIMING GEAR	8-97129-982-0	01	1	9507-9509					●
1	00.206 CASE; TIMING GEAR	8-97129-982-1	01	1	9510-					●	●
11	00.683 PLATE; RR,C/BL	8-94218-559-3	01	1	9210-	●	●
11	00.683 PLATE; RR,C/BL	8-94443-574-2	01	1	9210-			●
11	00.683 PLATE; RR,C/BL	8-94329-551-0	01	1	9210-9308				●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9210-9308					●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9309-					●	●
15	00.683 BOLT; RR PLATE TO C/BL M10X18	8-94214-903-1	02	1	9210-	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M10X50 REAMER	8-94215-044-1	01	1	9210-	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9210-9308				●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9309-					●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	9-11312-034-0	01	1	9210-9308				●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97066-739-1	01	1	9210-9507					●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-426-0	01	1	9508-					●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	9510-						●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	9210-9509					●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	9510-					●	●
36	00.206 BOLT; GEAR CASE 00.727 M8X32 W/LK WASHER	0-50040-832-0	07	1	9210-9308				●
36	00.206 BOLT; GEAR CASE M8X65 W/LK WASHER	8-94205-986-1	02	1	9210-9308				●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9210-9509					●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9510-					●	●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9210-9509					●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9510-					●	●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	9210-9509					●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	9510-					●	●
54	00.206 COVER; GEAR CASE	9-11321-148-0	01	1	9210-9308				●
54	00.206 COVER; GEAR CASE	8-94155-360-2	01	1	9210-9509					●
54	00.206 COVER; GEAR CASE	8-94155-360-2	01	1	9510-					●	●
55	00.206 COVER; NOISE SHIELD	8-94420-293-3	01	1	9210-9407					●
55	00.206 COVER; NOISE SHIELD	8-94155-721-1	01	1	9408-9509					●
55	00.206 COVER; NOISE SHIELD	8-94155-721-1	01	1	9510-9604					●	●
56	00.207 GASKET; GEAR CASE TO COVER	9-09920-601-0	01	1	9210-9308				●
56	00.207 GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9210-9509					●
56	00.207 GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9510-					●	●
57	00.206 COVER; TIMING CHECK HOLE	5-11321-009-0	02	1	9210-9509					●
57	00.206 COVER; TIMING CHECK HOLE	5-11321-009-0	02	1	9510-					●	●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	9210-9509					●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	9510-					●	●
60	00.206 BOLT; COVER TO CASE M6X14 W/LK WASHER	0-50040-614-0	04	1	9210-9308				●
60	00.206 BOLT; COVER TO CASE 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9210-9509					●
60	00.206 BOLT; COVER TO CASE 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9510-					●	●
60	00.206 BOLT; COVER TO CASE 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9210-9509					●
60	00.206 BOLT; COVER TO CASE 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9510-					●	●
60	00.206 BOLT; COVER TO CASE M8X65 W/LK WASHER	8-94205-986-1	06	1	9210-9509					●
60	00.206 BOLT; COVER TO CASE M8X65 W/LK WASHER	8-94205-986-1	06	1	9510-					●	●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9210-9509					●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9510-					●	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97045-362-1	02	1	9210-9412					●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97118-698-0	02	1	9501-9509					●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97118-698-0	02	1	9510-					●	●
68	00.206 COVER ASM; GEAR CASE COVER	8-94423-518-3	01	1	9210-9407					●
68	00.206 COVER ASM; GEAR CASE COVER	8-94155-721-1	01	1	9605-					●	●
69	00.206 SEAL; RUBBER,COVER TO COVER	8-94423-517-2	01	1	9210-9407					●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	02	1	9210-9509					●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	02	1	9510-9604					●	●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	9605-					●	●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	02	1	9210-9509					●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	02	1	9510-9604					●	●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	9605-					●	●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9210-9509					●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9510-					●	●
75	00.206 RUBBER; NOISE COVER MTG,TIMING G	5-19389-002-0	02	1	9210-9308					●
75	00.206 RUBBER; NOISE COVER MTG,TIMING G	5-19389-002-0	02	1	9309-9407					●	●
77	00.206 BUSHING; MTG RUBBER,NOISE COVER	5-19389-009-0	02	1	9210-9308					●
77	00.206 BUSHING; MTG RUBBER,NOISE COVER	5-19389-009-0	02	1	9309-9407					●	●
78	00.206 SPACER; MTG RUBBER,NOISE COVER	8-94420-559-6	01	1	9210-9407					●
78	00.206 SPACER; MTG RUBBER,NOISE COVER	8-94155-722-3	01	1	9408-9509					●
78	00.206 SPACER; MTG RUBBER,NOISE COVER	8-94155-722-3	01	1	9510-					●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9210-9308				●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9309-9310					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9311-9509					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9510-					●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9210-	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	5-09625-036-0	01	1	9210-9308				●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-146-0	01	1	9210-9308					●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9309-					●	●

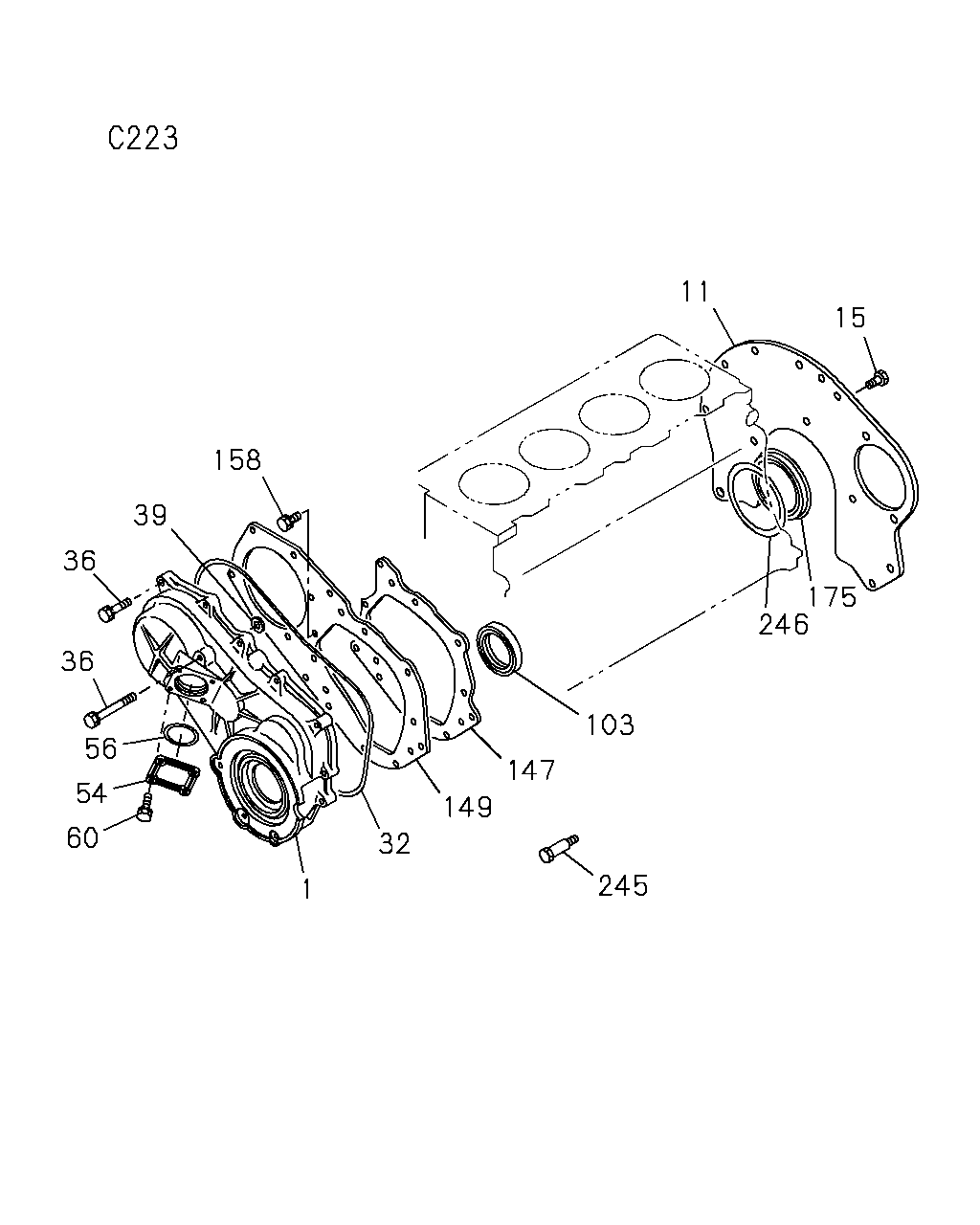

1 60 56 54 36 36 39 158 32 147 149 103 245 246 175 15 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.206 CASE; TIMING GEAR	8-94220-548-1	01	1	9210-	●	●
1	00.206 CASE; TIMING GEAR	8-94405-608-3	01	1	9210-			●
1	00.206 CASE; TIMING GEAR	5-11311-067-2	01	1	9210-9308				●
1	00.206 CASE; TIMING GEAR	8-94155-361-3	01	1	9210-9506					●
1	00.206 CASE; TIMING GEAR	8-97129-982-0	01	1	9507-9509					●
1	00.206 CASE; TIMING GEAR	8-97129-982-1	01	1	9510-					●	●
11	00.683 PLATE; RR,C/BL	8-94218-559-3	01	1	9210-	●	●
11	00.683 PLATE; RR,C/BL	8-94443-574-2	01	1	9210-			●
11	00.683 PLATE; RR,C/BL	8-94329-551-0	01	1	9210-9308				●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9210-9308					●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9309-					●	●
15	00.683 BOLT; RR PLATE TO C/BL M10X18	8-94214-903-1	02	1	9210-	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M10X50 REAMER	8-94215-044-1	01	1	9210-	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9210-9308				●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9309-					●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	9-11312-034-0	01	1	9210-9308				●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97066-739-1	01	1	9210-9507					●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-426-0	01	1	9508-					●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	9510-						●
36	00.206 BOLT; GEAR CASE 00.727 M8X32 W/LK WASHER	0-50040-832-0	07	1	9210-9308				●
36	00.206 BOLT; GEAR CASE M8X65 W/LK WASHER	8-94205-986-1	02	1	9210-9308				●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9210-9509					●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9510-					●	●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9210-9509					●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9510-					●	●
39	00.207 GASKET; TIMING GEAR CASE	9-11312-046-0	02	1	9210-9308				●
54	00.206 COVER; GEAR CASE	9-11321-148-0	01	1	9210-9308				●
54	00.206 COVER; GEAR CASE	8-94155-360-2	01	1	9210-9509					●
54	00.206 COVER; GEAR CASE	8-94155-360-2	01	1	9510-					●	●
56	00.207 GASKET; GEAR CASE TO COVER	9-09920-601-0	01	1	9210-9308				●
56	00.207 GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9210-9509					●
56	00.207 GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9510-					●	●
60	00.206 BOLT; COVER TO CASE M6X14 W/LK WASHER	0-50040-614-0	04	1	9210-9308				●
60	00.206 BOLT; COVER TO CASE 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9210-9509					●
60	00.206 BOLT; COVER TO CASE 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9510-					●	●
60	00.206 BOLT; COVER TO CASE 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9210-9509					●
60	00.206 BOLT; COVER TO CASE 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9510-					●	●
60	00.206 BOLT; COVER TO CASE M8X65 W/LK WASHER	8-94205-986-1	06	1	9210-9509					●
60	00.206 BOLT; COVER TO CASE M8X65 W/LK WASHER	8-94205-986-1	06	1	9510-					●	●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9210-9509					●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9510-					●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9210-9308				●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9309-9310					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9311-9509					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9510-					●	●
147	00.207 GASKET; FRT PLATE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	5-11312-011-0	01	1	9210-9308				●
149	00.206 PLATE; FRT,C/BL	8-94416-148-1	01	1	9210-	●
149	00.206 PLATE; FRT,C/BL	8-94146-325-3	01	1	9210-		●
149	00.206 PLATE; FRT,C/BL	8-94405-609-3	01	1	9210-			●
149	00.206 PLATE; FRT,C/BL	9-11311-153-0	01	1	9210-9308				●
158	00.206 BOLT; FRT PLATE 00.669 M6X12	0-20800-612-0	02	1	9210-	●	●
158	00.206 BOLT; FRT PLATE 04.686 M8X12	0-20800-812-0	01	1	9210-	●	●
158	00.206 BOLT; FRT PLATE 00.669 M6X12	0-20800-612-0	02	1	9510-9603	●	●
158	00.206 BOLT; FRT PLATE 00.669 M6X12	0-20800-612-0	02	1	9604-		●
158	00.206 BOLT; FRT PLATE 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9210-			●
158	00.206 BOLT; FRT PLATE 01.540 M8X18 W/LK&PL WASHER	0-50140-818-0	01	1	9210-			●
158	00.206 BOLT; FRT PLATE 08.900 M8X20 W/LK WASHER	0-50040-820-0	03	1	9210-9308				●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9210-	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	5-09625-036-0	01	1	9210-9308				●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-146-0	01	1	9210-9308					●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9309-					●	●
245	00.683 BOLT; C/BL TO TRANS CASE M10X52	9-09806-020-0	01	1	9210-9308				●
246	00.137 SPACER; OIL SEAL,CR/SHF	9-12363-112-1	01	1	9210-9308				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
