Sayfa 0-14 - Isuzu EPC

0-14 — CAMSHAFT AND VALVE (#46543) — 320 parça

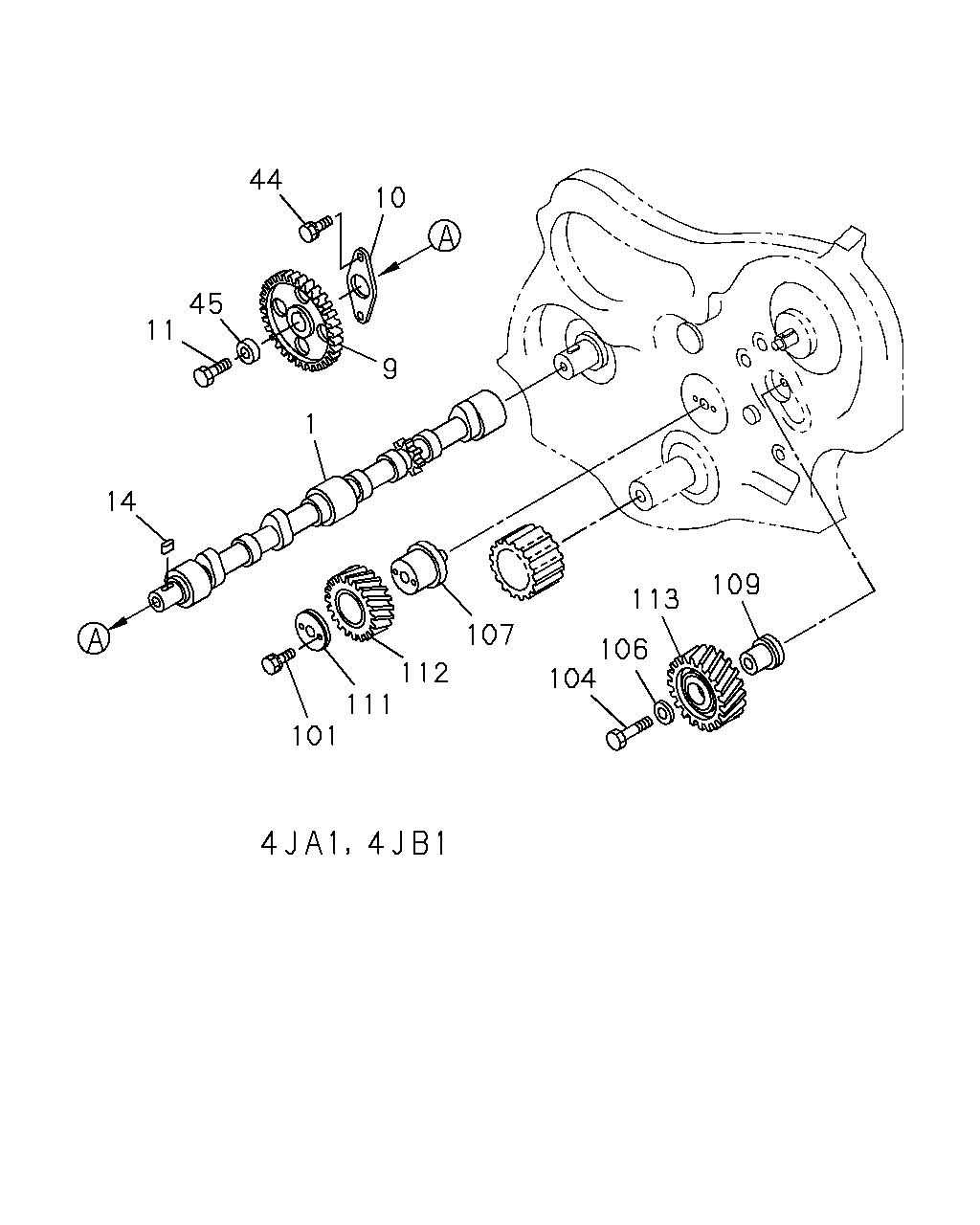

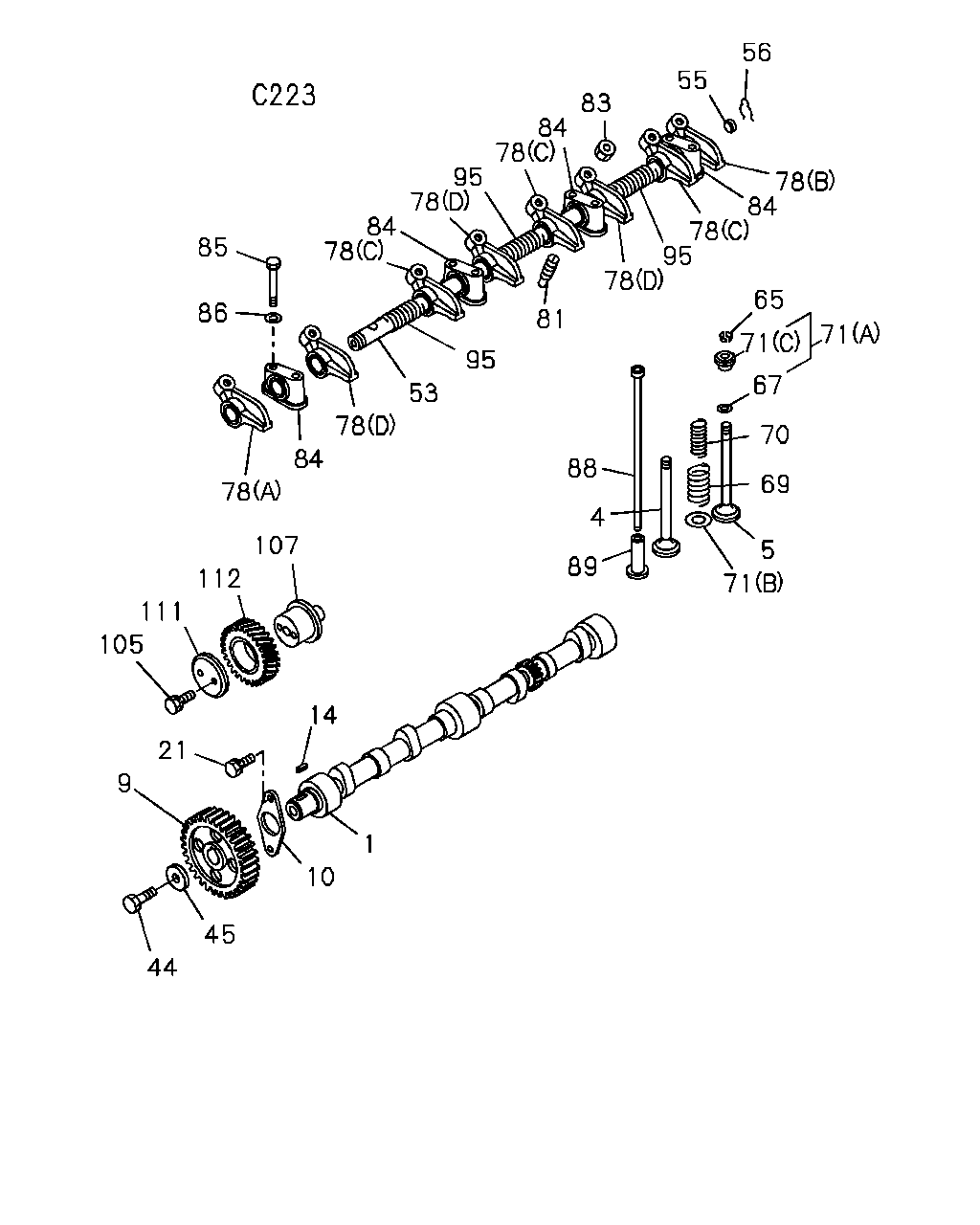

1 10 45 44 9 14 21 105 111 112 107 78 84 78 53 95 89 4 88 71 5 69 70 67 71 65 71 81 78 95 78 84 78 56 55 83 84 78 95 78 84 78 85 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.519 CAMSHAFT	8-94136-784-1	01	1	9210-	●	●	●
1	00.519 CAMSHAFT	5-12511-078-4	01	1	9210-9308				●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9210-					●	●
4	00.296 VALVE; INL	8-94251-273-0	04	1	9210-	●
4	00.296 VALVE; INL	8-94153-969-0	04	1	9210-9406		●
4	00.296 VALVE; INL EXC. ELECTRIC FUEL INJECTION<6GG>	8-94153-969-0	04	1	9407-		●
4	00.296 VALVE; INL ELECTRIC FUEL INJECTION<6GG>	8-94251-275-0	04	1	9407-		●
4	00.296 VALVE; INL	8-94174-222-1	04	1	9210-			●
4	00.296 VALVE; INL	5-12551-030-0	04	1	9210-9308				●
4	00.296 VALVE; INL	8-94133-275-1	04	1	9210-9604					●
4	00.296 VALVE; INL	8-94133-275-1	04	1	9605-					●
4	00.296 VALVE; INL CHINA CHONGQING EQUIPMENT<R5B>	8-94133-275-1	04	1	9605-						●
4	00.296 VALVE; INL TURBOCHARGER(K51)	8-94464-921-0	04	1	9510-						●
5	00.297 VALVE; EXH	8-94460-637-0	04	1	9210-	●
5	00.297 VALVE; EXH	8-94441-074-0	04	1	9210-9411		●
5	00.297 VALVE; EXH	8-97119-751-0	04	1	9412-		●
5	00.297 VALVE; EXH	8-94174-223-1	04	1	9210-9403			●
5	00.297 VALVE; EXH	8-97110-256-0	04	1	9404-			●
5	00.297 VALVE; EXH	5-12552-038-1	04	1	9210-9308				●
5	00.297 VALVE; EXH	8-94247-875-1	04	1	9210-9604					●
5	00.297 VALVE; EXH	8-94247-875-1	04	1	9605-					●
5	00.297 VALVE; EXH CHINA CHONGQING EQUIPMENT<R5B>	8-94247-875-1	04	1	9605-						●
5	00.297 VALVE; EXH TURBOCHARGER(K51)	8-94433-245-0	04	1	9510-						●
9	00.736 GEAR; CM/SHF Z=42	9-12522-144-0	01	1	9210-9308				●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-0	01	1	9210-					●	●
10	00.533 PLATE; THRUST	9-11681-010-1	01	1	9210-9308				●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	9210-					●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9210-9308				●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9309-					●	●
21	00.533 BOLT; CM/SHF METAL,NO 7 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9210-9308				●
44	00.738 BOLT 00.533 M12X47	8-94433-407-0	01	1	9210-9308				●
44	00.738 BOLT 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9210-9509					●
44	00.738 BOLT 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9510-					●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9210-9308				●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9309-					●	●
53	00.353 SHAFT; ROCKER ARM (A) INLET	8-94110-646-1	01	1	9210-	●	●	●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST	8-94129-227-0	01	1	9210-	●	●	●
53	00.353 SHAFT; ROCKER ARM	8-94100-291-0	01	1	9210-9308				●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9210-9308					●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9309-					●	●
53	00.353 SHAFT; ROCKER ARM OR 8-94343-205-0	8-97036-197-0	01	1	9504-					●	●
55	00.356 PLUG; ROCKER SHAFT END (A) INLET	8-94116-940-0	02	1	9210-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END (B) EXHAUST	8-94116-941-0	02	1	9210-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9210-9308				●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9309-					●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9210-9308				●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9309-					●	●
65	00.310 COLLAR; SPLIT	8-94200-714-0	16	1	9210-	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9210-9308				●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9309-					●	●
67	00.308 RING; SEALING VLV	9-12559-008-0	08	1	9210-9308				●
69	00.303 SPRING; VLV,OUTER	5-12561-011-0	08	1	9210-9308				●
70	00.303 SPRING; VLV,INNER	5-12562-007-0	08	1	9210-9308				●
71	00.309 SEAT; SPR LWR OD=34	8-94200-749-0	08	1	9210-	●	●	●
71	00.309 SEAT; SPR UPR OD=32	8-94233-232-1	08	1	9210-	●	●	●
71	00.309 SEAT; SPR (A)	5-12563-016-0	08	1	9210-9308				●
71	00.309 SEAT; SPR (C) UPR OD=22.5	5-12563-017-0	08	1	9210-9308				●
71	00.309 SEAT; SPR 00.303 (B) LWR	9-09851-842-0	08	1	9210-9308				●
71	00.309 SEAT; SPR LWR (B) OD=34	5-12563-001-0	08	1	9210-					●	●
71	00.309 SEAT; SPR UPR (A) OD=32.8	8-94133-731-2	08	1	9210-					●	●
78	00.333 ARM; ROCKER NPR	8-94102-413-0	08	1	9210-	●	●	●
78	00.333 ARM; ROCKER JBK	8-94102-416-0	08	1	9210-	●	●	●
78	00.333 ARM; ROCKER (A)	5-12611-020-1	01	1	9210-9308				●
78	00.333 ARM; ROCKER (B)	5-12611-022-1	01	1	9210-9308				●
78	00.333 ARM; ROCKER (C)	9-12611-347-0	03	1	9210-9308				●
78	00.333 ARM; ROCKER (D)	9-12611-349-0	03	1	9210-9308				●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9210-					●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X27	8-94200-786-0	16	1	9210-	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-0	08	1	9210-9308				●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	9309-					●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	9210-	●	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9210-9308				●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9309-					●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	9-12628-093-0	04	1	9210-9308				●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9210-					●	●
85	00.349 BOLT; BRKT M8X50	0-10810-850-0	08	1	9210-9308				●
85	00.349 BOLT; BRKT (A) M8X15,M10X60 L=82	8-94433-304-0	02	1	9210-9308					●
85	00.349 BOLT; BRKT (A) M8X15,M10X60 L=82	8-94433-304-0	02	1	9309-					●	●
85	00.349 BOLT; BRKT (B) M8X37 & M10X60 L=104	8-94437-493-1	01	1	9210-9308					●
85	00.349 BOLT; BRKT (B) M8X37 & M10X60 L=104	8-94437-493-1	01	1	9309-					●	●
86	00.349 WASHER; ROCKER ARM FIX ID=8.4 D=16	9-09164-008-0	08	1	9210-9308				●
86	00.349 WASHER; ROCKER ARM FIX ID=19	9-09851-931-0	02	1	9210-9308				●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9210-9308					●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9309-					●	●
88	00.426 ROD; PUSH	5-12575-015-0	08	1	9210-9308				●
88	00.426 ROD; PUSH	8-94143-203-0	08	1	9210-					●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9510-						●
89	00.459 TAPPET; VLV	9-12571-801-0	08	1	9210-9308				●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9210-9308					●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9309-					●	●
95	00.376 SPRING; ROCKER SHAFT (A) L=57.0	8-94200-814-1	04	1	9210-	●	●	●
95	00.376 SPRING; ROCKER SHAFT (B) L=38.0	8-94200-815-1	04	1	9210-	●	●	●
95	00.376 SPRING; ROCKER SHAFT	9-09940-607-0	03	1	9210-9308				●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9210-9308					●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9309-					●	●
105	00.724 BOLT; IDLE GEAR SHAFT 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9210-9308				●
107	00.724 SHAFT; IDLE GEAR	9-12531-024-1	01	1	9210-9308				●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9210-9509					●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9510-					●	●
111	00.724 COLLAR; THRUST,IDLE GEAR	5-12535-005-1	01	1	9210-9308				●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9210-9509					●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9510-					●	●
112	00.724 GEAR; IDLE	9-12523-080-0	01	1	9210-9308				●
112	00.724 GEAR; IDLE Z=31	8-94139-759-0	01	1	9210-9509					●
112	00.724 GEAR; IDLE Z=31	8-94139-759-0	01	1	9510-					●	●

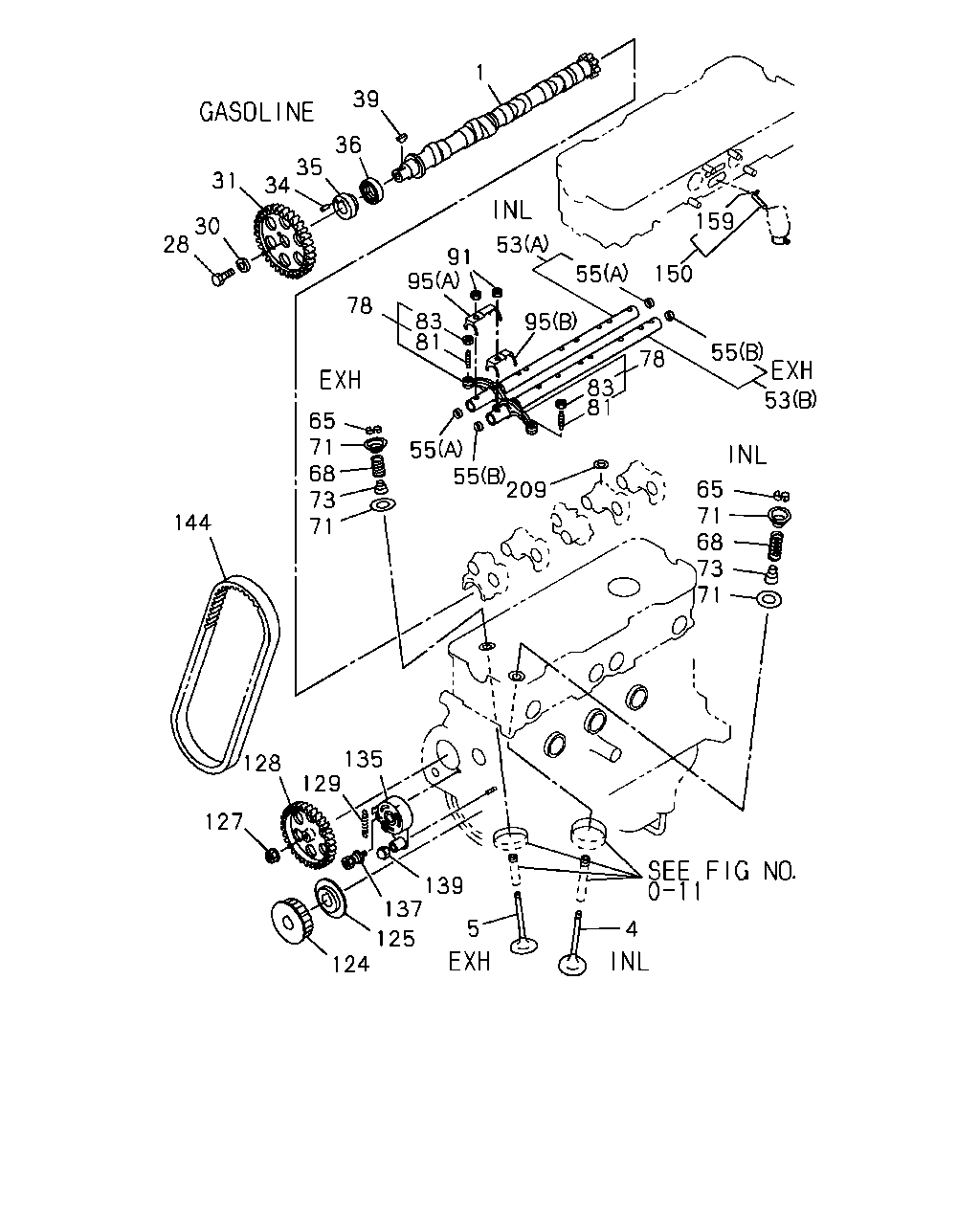

124 125 4 137 5 139 127 128 129 135 144 71 73 68 71 65 55 55 209 71 73 68 71 65 81 83 78 53 55 150 159 55 95 53 91 95 78 83 81 28 30 31 34 35 36 39 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.519 CAMSHAFT	8-94136-784-1	01	1	9210-	●	●	●
1	00.519 CAMSHAFT	5-12511-078-4	01	1	9210-9308				●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9210-					●	●
4	00.296 VALVE; INL	8-94251-273-0	04	1	9210-	●
4	00.296 VALVE; INL	8-94153-969-0	04	1	9210-9406		●
4	00.296 VALVE; INL EXC. ELECTRIC FUEL INJECTION<6GG>	8-94153-969-0	04	1	9407-		●
4	00.296 VALVE; INL ELECTRIC FUEL INJECTION<6GG>	8-94251-275-0	04	1	9407-		●
4	00.296 VALVE; INL	8-94174-222-1	04	1	9210-			●
4	00.296 VALVE; INL	5-12551-030-0	04	1	9210-9308				●
4	00.296 VALVE; INL	8-94133-275-1	04	1	9210-9604					●
4	00.296 VALVE; INL	8-94133-275-1	04	1	9605-					●
4	00.296 VALVE; INL CHINA CHONGQING EQUIPMENT<R5B>	8-94133-275-1	04	1	9605-						●
4	00.296 VALVE; INL TURBOCHARGER(K51)	8-94464-921-0	04	1	9510-						●
5	00.297 VALVE; EXH	8-94460-637-0	04	1	9210-	●
5	00.297 VALVE; EXH	8-94441-074-0	04	1	9210-9411		●
5	00.297 VALVE; EXH	8-97119-751-0	04	1	9412-		●
5	00.297 VALVE; EXH	8-94174-223-1	04	1	9210-9403			●
5	00.297 VALVE; EXH	8-97110-256-0	04	1	9404-			●
5	00.297 VALVE; EXH	5-12552-038-1	04	1	9210-9308				●
5	00.297 VALVE; EXH	8-94247-875-1	04	1	9210-9604					●
5	00.297 VALVE; EXH	8-94247-875-1	04	1	9605-					●
5	00.297 VALVE; EXH CHINA CHONGQING EQUIPMENT<R5B>	8-94247-875-1	04	1	9605-						●
5	00.297 VALVE; EXH TURBOCHARGER(K51)	8-94433-245-0	04	1	9510-						●
28	00.738 BOLT; CAM PULLEY 08.900 M10X35	9-02061-035-0	01	1	9210-	●	●	●
30	00.662 WASHER; PULLEY ID=10.5	8-94174-283-1	01	1	9210-	●	●	●
31	00.736 SPROCKET; CM/SHF Z=44	8-94231-167-4	01	1	9210-9601	●	●
31	00.736 SPROCKET; CM/SHF Z=44	8-97136-107-0	01	1	9602-	●	●
31	00.736 SPROCKET; CM/SHF Z=52	8-94174-282-2	01	1	9210-			●
34	00.533 PIN; CM/SHF 00.662	9-08160-512-0	01	1	9210-	●	●	●
35	00.533 BOSS; CM/SHF	8-94251-272-1	01	1	9210-	●	●	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OD=45	8-94334-845-0	01	1	9210-	●	●	●
39	00.529 KEY; WOODRUFF,BOSS 08.960	9-08055-516-0	01	1	9210-	●	●	●
53	00.353 SHAFT; ROCKER ARM (A) INLET	8-94110-646-1	01	1	9210-	●	●	●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST	8-94129-227-0	01	1	9210-	●	●	●
53	00.353 SHAFT; ROCKER ARM	8-94100-291-0	01	1	9210-9308				●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9210-9308					●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9309-					●	●
53	00.353 SHAFT; ROCKER ARM OR 8-94343-205-0	8-97036-197-0	01	1	9504-					●	●
55	00.356 PLUG; ROCKER SHAFT END (A) INLET	8-94116-940-0	02	1	9210-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END (B) EXHAUST	8-94116-941-0	02	1	9210-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9210-9308				●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9309-					●	●
65	00.310 COLLAR; SPLIT	8-94200-714-0	16	1	9210-	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9210-9308				●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9309-					●	●
68	00.303 SPRING; VLV	8-94259-483-0	08	1	9210-	●	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	9210-					●	●
71	00.309 SEAT; SPR LWR OD=34	8-94200-749-0	08	1	9210-	●	●	●
71	00.309 SEAT; SPR UPR OD=32	8-94233-232-1	08	1	9210-	●	●	●
71	00.309 SEAT; SPR (A)	5-12563-016-0	08	1	9210-9308				●
71	00.309 SEAT; SPR (C) UPR OD=22.5	5-12563-017-0	08	1	9210-9308				●
71	00.309 SEAT; SPR 00.303 (B) LWR	9-09851-842-0	08	1	9210-9308				●
71	00.309 SEAT; SPR LWR (B) OD=34	5-12563-001-0	08	1	9210-					●	●
71	00.309 SEAT; SPR UPR (A) OD=32.8	8-94133-731-2	08	1	9210-					●	●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97033-673-0	08	1	9210-	●	●	●
78	00.333 ARM; ROCKER NPR	8-94102-413-0	08	1	9210-	●	●	●
78	00.333 ARM; ROCKER JBK	8-94102-416-0	08	1	9210-	●	●	●
78	00.333 ARM; ROCKER (A)	5-12611-020-1	01	1	9210-9308				●
78	00.333 ARM; ROCKER (B)	5-12611-022-1	01	1	9210-9308				●
78	00.333 ARM; ROCKER (C)	9-12611-347-0	03	1	9210-9308				●
78	00.333 ARM; ROCKER (D)	9-12611-349-0	03	1	9210-9308				●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9210-					●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X27	8-94200-786-0	16	1	9210-	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-0	08	1	9210-9308				●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	9309-					●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	9210-	●	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9210-9308				●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9309-					●	●
91	00.349 NUT; ROCKER SHAFT 00.002 M8	9-09110-508-0	10	1	9210-	●	●	●
95	00.376 SPRING; ROCKER SHAFT (A) L=57.0	8-94200-814-1	04	1	9210-	●	●	●
95	00.376 SPRING; ROCKER SHAFT (B) L=38.0	8-94200-815-1	04	1	9210-	●	●	●
95	00.376 SPRING; ROCKER SHAFT	9-09940-607-0	03	1	9210-9308				●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9210-9308					●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9309-					●	●
124	00.659 PULLEY; TIMING,CR/SHF 00.724 Z=22	8-94231-165-1	01	1	9210-	●	●
124	00.659 PULLEY; TIMING,CR/SHF Z=26	8-94457-889-0	01	1	9210-			●
125	00.662 PLATE; GUIDE,TIMING BELT 00.724	8-94215-184-0	01	1	9210-	●	●	●
127	00.724 NUT; PULLEY M12	8-94221-051-0	01	1	9210-	●	●	●
128	00.724 PULLEY; TIMING,OIL PUMP 00.659 Z=38	8-94231-166-2	01	1	9210-9601	●	●
128	00.724 PULLEY; TIMING,OIL PUMP Z=38	8-97136-108-0	01	1	9602-	●	●
128	00.724 PULLEY; TIMING,OIL PUMP Z=45	8-94174-224-1	01	1	9210-			●
129	00.724 SPRING; TENSIONER L=47.4	8-94225-389-0	01	1	9210-	●	●
129	00.724 SPRING; TENSIONER L=65	8-94472-329-0	01	1	9210-			●
135	00.724 PULLEY; TENSIONER	8-94215-197-1	01	1	9210-	●	●
135	00.724 PULLEY; TENSIONER	8-94472-349-0	01	1	9210-			●
137	00.724 BOLT; TENSIONER M8 L=46	8-94214-934-2	01	1	9210-	●	●	●
139	00.724 NUT; TENSIONER 00.002 M8	9-09110-508-0	01	1	9210-	●	●	●
144	00.724 BELT; TIMING	8-97042-269-0	01	1	9210-	●
144	00.724 BELT; TIMING	8-97041-784-0	01	1	9210-		●
144	00.724 BELT; TIMING	8-97042-268-0	01	1	9210-			●
150	00.426 ROD ASM; PUSH,FUEL PUMP W/RING	8-94159-290-1	01	1	9210-9509	●	●	●
150	00.426 ROD ASM; PUSH,FUEL PUMP EXC. ELECTRIC FUEL INJECTION<6GG> W/RING	8-94159-290-1	01	1	9510-	●	●	●
159	00.426 RING; SNAP,PUSH ROD,FUEL PUMP	8-94159-292-0	01	1	9210-9509	●	●	●
159	00.426 RING; SNAP,PUSH ROD,FUEL PUMP EXC. ELECTRIC FUEL INJECTION<6GG>	8-94159-292-0	01	1	9510-	●	●	●
209	00.349 WASHER; LK,ROCKER ARM BRKT 16.674 ID=8.4	9-09160-508-0	02	1	9210-	●	●	●

85 87 84 78 86 55 78 86 53 95 86 85 83 81 55 56 78 84 78 54 65 71 68 72 71 4 5 88 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	00.296 VALVE; INL	8-94251-273-0	04	1	9210-	●
4	00.296 VALVE; INL	8-94153-969-0	04	1	9210-9406		●
4	00.296 VALVE; INL EXC. ELECTRIC FUEL INJECTION<6GG>	8-94153-969-0	04	1	9407-		●
4	00.296 VALVE; INL ELECTRIC FUEL INJECTION<6GG>	8-94251-275-0	04	1	9407-		●
4	00.296 VALVE; INL	8-94174-222-1	04	1	9210-			●
4	00.296 VALVE; INL	5-12551-030-0	04	1	9210-9308				●
4	00.296 VALVE; INL	8-94133-275-1	04	1	9210-9604					●
4	00.296 VALVE; INL	8-94133-275-1	04	1	9605-					●
4	00.296 VALVE; INL CHINA CHONGQING EQUIPMENT<R5B>	8-94133-275-1	04	1	9605-						●
4	00.296 VALVE; INL TURBOCHARGER(K51)	8-94464-921-0	04	1	9510-						●
5	00.297 VALVE; EXH	8-94460-637-0	04	1	9210-	●
5	00.297 VALVE; EXH	8-94441-074-0	04	1	9210-9411		●
5	00.297 VALVE; EXH	8-97119-751-0	04	1	9412-		●
5	00.297 VALVE; EXH	8-94174-223-1	04	1	9210-9403			●
5	00.297 VALVE; EXH	8-97110-256-0	04	1	9404-			●
5	00.297 VALVE; EXH	5-12552-038-1	04	1	9210-9308				●
5	00.297 VALVE; EXH	8-94247-875-1	04	1	9210-9604					●
5	00.297 VALVE; EXH	8-94247-875-1	04	1	9605-					●
5	00.297 VALVE; EXH CHINA CHONGQING EQUIPMENT<R5B>	8-94247-875-1	04	1	9605-						●
5	00.297 VALVE; EXH TURBOCHARGER(K51)	8-94433-245-0	04	1	9510-						●
53	00.353 SHAFT; ROCKER ARM (A) INLET	8-94110-646-1	01	1	9210-	●	●	●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST	8-94129-227-0	01	1	9210-	●	●	●
53	00.353 SHAFT; ROCKER ARM	8-94100-291-0	01	1	9210-9308				●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9210-9308					●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9309-					●	●
53	00.353 SHAFT; ROCKER ARM OR 8-94343-205-0	8-97036-197-0	01	1	9504-					●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9210-9308					●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9309-					●	●
55	00.356 PLUG; ROCKER SHAFT END (A) INLET	8-94116-940-0	02	1	9210-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END (B) EXHAUST	8-94116-941-0	02	1	9210-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9210-9308				●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9309-					●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9210-9308				●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9309-					●	●
65	00.310 COLLAR; SPLIT	8-94200-714-0	16	1	9210-	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9210-9308				●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9309-					●	●
68	00.303 SPRING; VLV	8-94259-483-0	08	1	9210-	●	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	9210-					●	●
71	00.309 SEAT; SPR LWR OD=34	8-94200-749-0	08	1	9210-	●	●	●
71	00.309 SEAT; SPR UPR OD=32	8-94233-232-1	08	1	9210-	●	●	●
71	00.309 SEAT; SPR (A)	5-12563-016-0	08	1	9210-9308				●
71	00.309 SEAT; SPR (C) UPR OD=22.5	5-12563-017-0	08	1	9210-9308				●
71	00.309 SEAT; SPR 00.303 (B) LWR	9-09851-842-0	08	1	9210-9308				●
71	00.309 SEAT; SPR LWR (B) OD=34	5-12563-001-0	08	1	9210-					●	●
71	00.309 SEAT; SPR UPR (A) OD=32.8	8-94133-731-2	08	1	9210-					●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 00.283	5-12569-006-0	08	1	9210-9308					●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 00.283	5-12569-006-0	08	1	9309-9604					●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97120-307-0	08	1	9605-					●	●
78	00.333 ARM; ROCKER NPR	8-94102-413-0	08	1	9210-	●	●	●
78	00.333 ARM; ROCKER JBK	8-94102-416-0	08	1	9210-	●	●	●
78	00.333 ARM; ROCKER (A)	5-12611-020-1	01	1	9210-9308				●
78	00.333 ARM; ROCKER (B)	5-12611-022-1	01	1	9210-9308				●
78	00.333 ARM; ROCKER (C)	9-12611-347-0	03	1	9210-9308				●
78	00.333 ARM; ROCKER (D)	9-12611-349-0	03	1	9210-9308				●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9210-					●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X27	8-94200-786-0	16	1	9210-	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-0	08	1	9210-9308				●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	9309-					●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	9210-	●	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9210-9308				●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9309-					●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	9-12628-093-0	04	1	9210-9308				●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9210-					●	●
85	00.349 BOLT; BRKT M8X50	0-10810-850-0	08	1	9210-9308				●
85	00.349 BOLT; BRKT (A) M8X15,M10X60 L=82	8-94433-304-0	02	1	9210-9308					●
85	00.349 BOLT; BRKT (A) M8X15,M10X60 L=82	8-94433-304-0	02	1	9309-					●	●
85	00.349 BOLT; BRKT (B) M8X37 & M10X60 L=104	8-94437-493-1	01	1	9210-9308					●
85	00.349 BOLT; BRKT (B) M8X37 & M10X60 L=104	8-94437-493-1	01	1	9309-					●	●
86	00.349 WASHER; ROCKER ARM FIX ID=8.4 D=16	9-09164-008-0	08	1	9210-9308				●
86	00.349 WASHER; ROCKER ARM FIX ID=19	9-09851-931-0	02	1	9210-9308				●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9210-9308					●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9309-					●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9210-9308					●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9309-					●	●
88	00.426 ROD; PUSH	5-12575-015-0	08	1	9210-9308				●
88	00.426 ROD; PUSH	8-94143-203-0	08	1	9210-					●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9510-						●
89	00.459 TAPPET; VLV	9-12571-801-0	08	1	9210-9308				●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9210-9308					●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9309-					●	●
95	00.376 SPRING; ROCKER SHAFT (A) L=57.0	8-94200-814-1	04	1	9210-	●	●	●
95	00.376 SPRING; ROCKER SHAFT (B) L=38.0	8-94200-815-1	04	1	9210-	●	●	●
95	00.376 SPRING; ROCKER SHAFT	9-09940-607-0	03	1	9210-9308				●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9210-9308					●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9309-					●	●

14 11 45 44 10 9 1 101 112 111 107 104 113 106 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.519 CAMSHAFT	8-94136-784-1	01	1	9210-	●	●	●
1	00.519 CAMSHAFT	5-12511-078-4	01	1	9210-9308				●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9210-					●	●
9	00.736 GEAR; CM/SHF Z=42	9-12522-144-0	01	1	9210-9308				●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-0	01	1	9210-					●	●
10	00.533 PLATE; THRUST	9-11681-010-1	01	1	9210-9308				●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	9210-					●	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9210-					●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9210-9308				●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9309-					●	●
44	00.738 BOLT 00.533 M12X47	8-94433-407-0	01	1	9210-9308				●
44	00.738 BOLT 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9210-9509					●
44	00.738 BOLT 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9510-					●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9210-9308				●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9309-					●	●
101	00.724 BOLT; THRUST COLLAR 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9210-9509					●
101	00.724 BOLT; THRUST COLLAR 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9510-					●	●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	9210-9509					●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	9510-					●	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	9210-9509					●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	9510-					●	●
107	00.724 SHAFT; IDLE GEAR	9-12531-024-1	01	1	9210-9308				●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9210-9509					●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9510-					●	●
109	00.724 SHAFT; IDLE GEAR	8-94109-913-1	01	1	9210-9509					●
109	00.724 SHAFT; IDLE GEAR	8-94109-913-1	01	1	9510-					●	●
111	00.724 COLLAR; THRUST,IDLE GEAR	5-12535-005-1	01	1	9210-9308				●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9210-9509					●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9510-					●	●
112	00.724 GEAR; IDLE	9-12523-080-0	01	1	9210-9308				●
112	00.724 GEAR; IDLE Z=31	8-94139-759-0	01	1	9210-9509					●
112	00.724 GEAR; IDLE Z=31	8-94139-759-0	01	1	9510-					●	●
113	00.724 GEAR; IDLE Z=37	8-94139-761-0	01	1	9210-9509					●
113	00.724 GEAR; IDLE Z=37	8-94139-761-0	01	1	9510-					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
