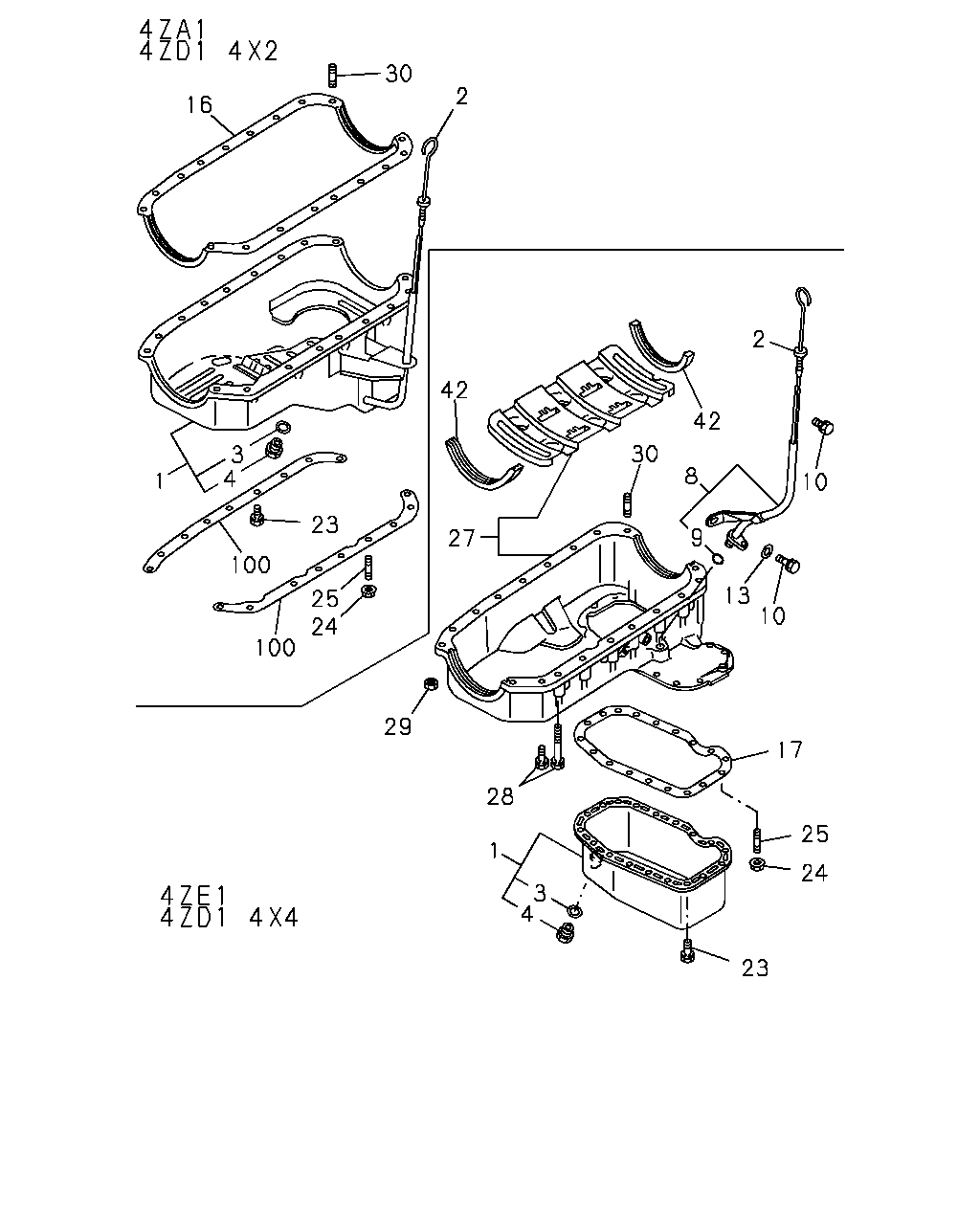

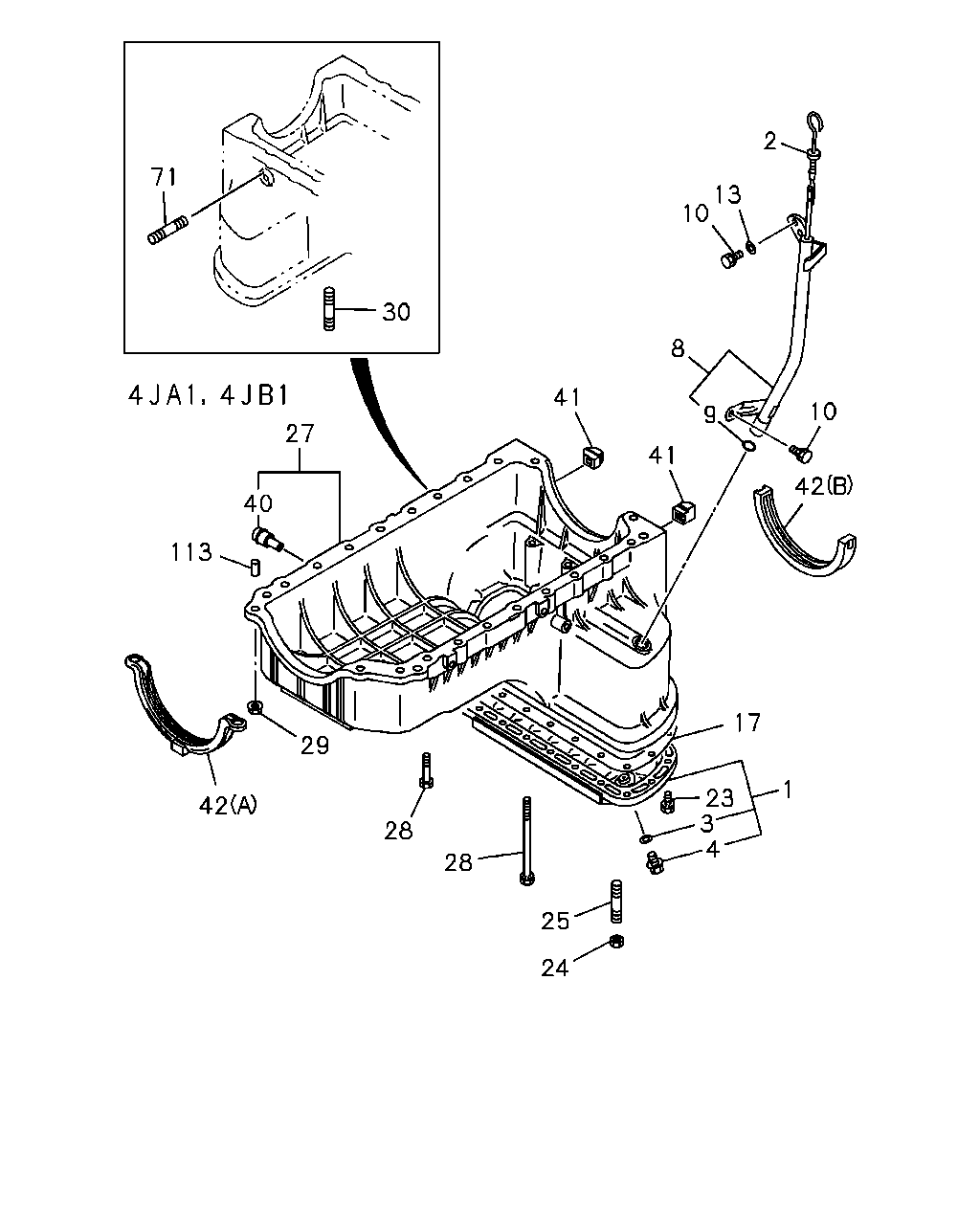

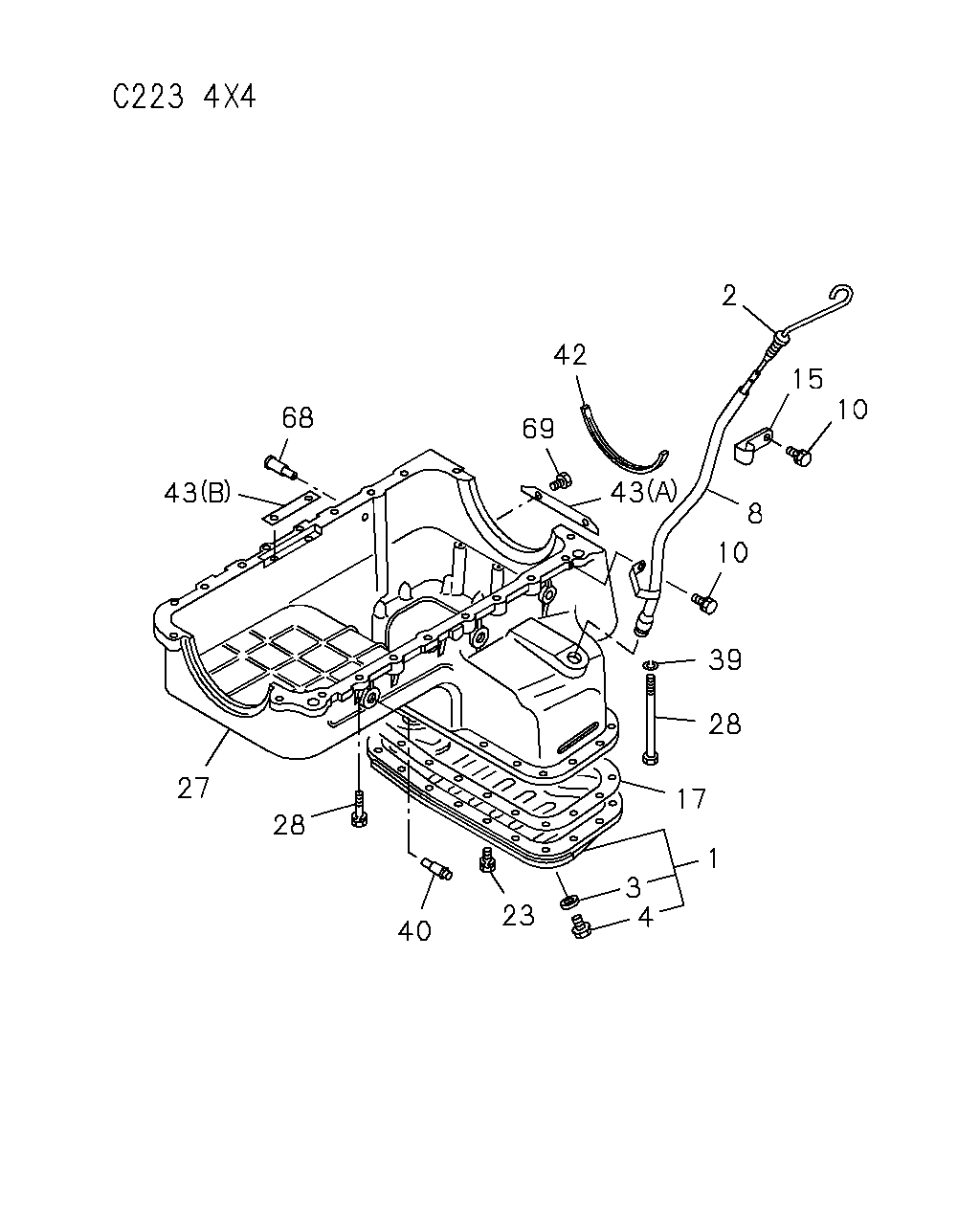

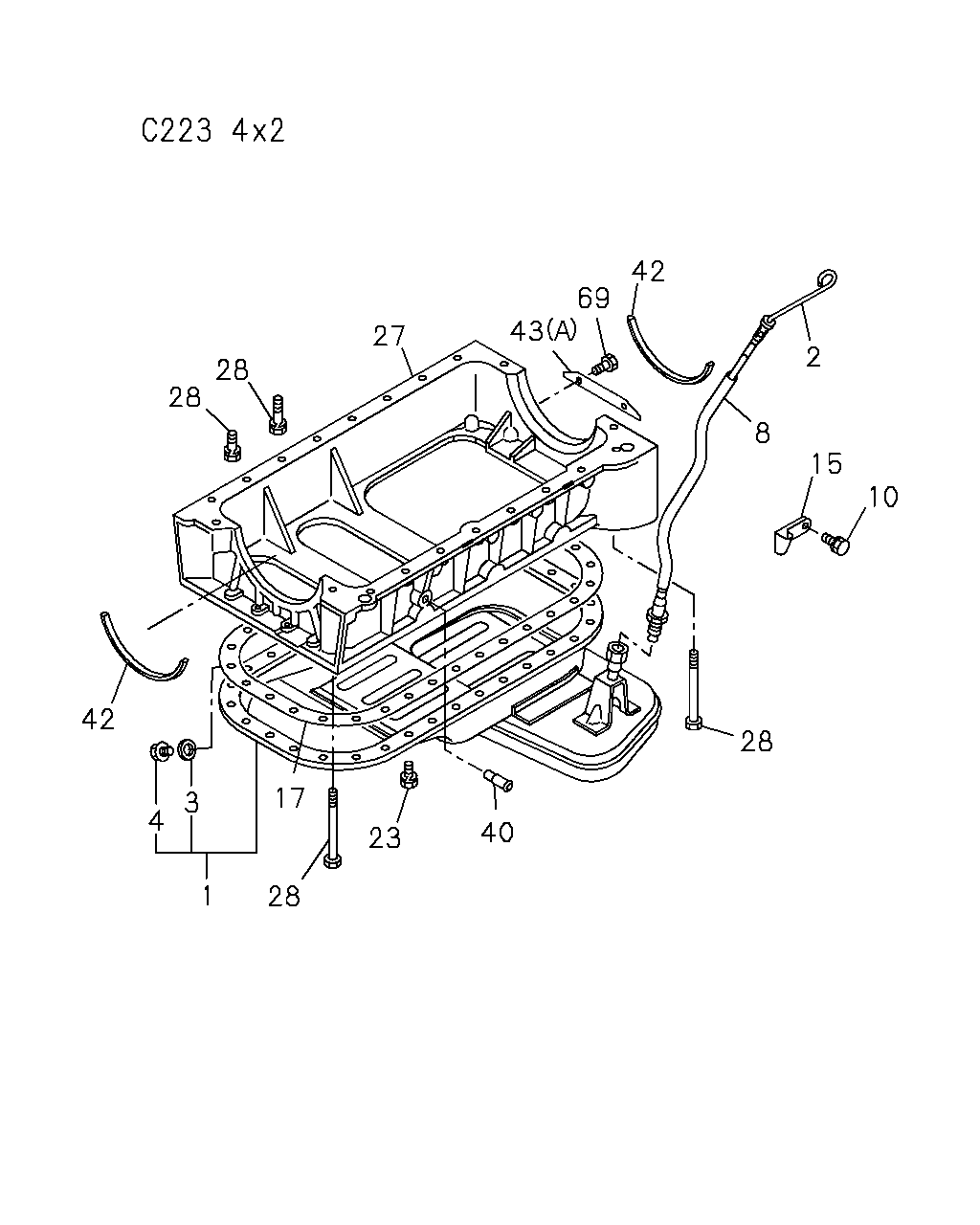

0-13 — OIL PAN AND LEVEL GAUGE (#46542) — 544 parça

42 29 28 28 25 24 4 3 1 23 17 42 10 41 9 2 13 10 8 41 27 40 113 30 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.426 PAN ASM; OIL W/GUIDE TUBE	8-94338-201-0	01	1	9210-	●
1	01.426 PAN ASM; OIL 4X2(TFB***) W/GUIDE TUBE	8-94338-201-0	01	1	9210-		●
1	01.426 PAN ASM; OIL 4X4(TFS***) WO/GUIDE TUBE	8-94174-215-0	01	1	9210-9407		●
1	01.426 PAN ASM; OIL WO/GUIDE TUBE	8-94174-215-0	01	1	9210-9407			●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-97113-545-0	01	1	9408-		●
1	01.426 PAN ASM; OIL	8-97113-545-0	01	1	9408-			●
1	01.426 PAN ASM; OIL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	8-94454-846-0	01	1	9210-9308				●
1	01.426 PAN ASM; OIL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-94454-848-0	01	1	9210-9308				●
1	01.426 PAN ASM; OIL	8-97043-015-3	01	1	9210-9501					●
1	01.426 PAN ASM; OIL	8-97122-568-1	01	1	9502-9509					●
1	01.426 PAN ASM; OIL	8-97122-568-1	01	1	9510-9512					●	●
1	01.426 PAN ASM; OIL	8-97137-921-0	01	1	9601-					●	●
2	01.516 GAUGE; OIL LEVEL	8-94459-561-0	01	1	9210-	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-94459-561-0	01	1	9210-		●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-94481-023-0	01	1	9210-		●
2	01.516 GAUGE; OIL LEVEL	8-94318-740-0	01	1	9210-			●
2	01.516 GAUGE; OIL LEVEL	8-94469-783-0	01	1	9210-9308				●
2	01.516 GAUGE; OIL LEVEL	8-94362-305-0	01	1	9210-9509					●
2	01.516 GAUGE; OIL LEVEL	8-94362-305-0	01	1	9510-					●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER(K51)	8-94362-305-0	01	1	9510-						●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER(K51)	8-97085-167-0	01	1	9510-						●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9210-9509	●	●	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9510-	●	●	●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9210-9308				●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9210-9509	●	●	●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9510-	●	●	●		●	●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	9210-9308				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE 4X4(TFS***)	8-94479-445-0	01	1	9210-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-94479-446-0	01	1	9210-9308			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97088-479-0	01	1	9309-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	8-94477-843-1	01	1	9210-9308				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-94454-855-0	01	1	9210-9308				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97015-686-0	01	1	9210-9403					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97110-315-0	01	1	9404-9603					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97143-693-0	01	1	9604-9604					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97143-693-0	01	1	9605-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE M/T MSG 5 SPEED(M75)	8-97143-693-0	01	1	9605-						●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER(K51)	8-97109-678-0	01	1	9510-						●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9210-9509			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9510-9604			●		●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	02	1	9605-					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). M/T MSG 5 SPEED(M75) ID=11	5-09623-002-0	02	1	9605-						●
10	01.516 BOLT; GUIDE TUBE 4X4(TFS***) 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9210-9407		●
10	01.516 BOLT; GUIDE TUBE 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9210-9407			●
10	01.516 BOLT; GUIDE TUBE 4X4(TFS***) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9408-		●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9408-			●
10	01.516 BOLT; GUIDE TUBE 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9210-9308			●	●
10	01.516 BOLT; GUIDE TUBE 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9309-9407			●
10	01.516 BOLT; GUIDE TUBE 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9210-9308				●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9210-9308					●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9309-9603					●	●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9604-					●	●
10	01.516 BOLT; GUIDE TUBE 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9210-9603					●
10	01.516 BOLT; GUIDE TUBE TURBOCHARGER(K51) 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9510-9603						●
13	01.516 WASHER; PL,GUIDE TUBE,OIL LEVEL 4X4(TFS***) 00.206 ID=8.4	9-09164-508-0	01	1	9210-9407		●
13	01.516 WASHER; PL,GUIDE TUBE,OIL LEVEL 00.206 ID=8.4	9-09164-508-0	01	1	9210-9407			●
13	01.516 WASHER; PL,GUIDE TUBE,OIL LEVEL 02.183 ID=6.4 OD=14	9-09160-606-0	01	1	9210-9603					●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). 4X4(TFS***).	8-94324-200-0	01	1	9210-		●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-200-0	01	1	9210-			●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	8-97045-322-0	01	1	9210-9308				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-97045-323-0	01	1	9210-9308				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97047-397-0	01	1	9210-9405					●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97113-069-0	01	1	9406-9509					●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97113-069-0	01	1	9510-9510					●	●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	14	1	9210-	●
23	01.428 BOLT; OIL PAN 4X2(TFB***) 08.900 M8X20 W/LK WASHER	0-50040-820-0	14	1	9210-		●
23	01.428 BOLT; OIL PAN 4X4(TFS***) M6X12 FLANGE	0-28080-612-0	18	1	9210-9505		●
23	01.428 BOLT; OIL PAN 4X4(TFS***) M6X13 W/PL WASHER	8-97135-141-0	18	1	9506-		●
23	01.428 BOLT; OIL PAN M6X12 FLANGE	0-28080-612-0	16	1	9210-9505			●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	16	1	9506-			●
23	01.428 BOLT; OIL PAN 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) M6X12 FLANGE	0-28080-612-0	30	1	9210-9308				●
23	01.428 BOLT; OIL PAN 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) M6X12 FLANGE	0-28080-612-0	20	1	9210-9308				●
23	01.428 BOLT; OIL PAN M6X12 FLANGE	0-28080-612-0	17	1	9210-9505					●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	17	1	9506-9509					●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	17	1	9510-9604					●	●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	9605-					●	●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	04	1	9210-	●
24	01.453 NUT; OIL PAN 4X2(TFB***) 07.633 M8 FLANGE	0-91150-108-0	04	1	9210-		●
24	01.453 NUT; OIL PAN 04.594 M6 FLANGE	0-91150-106-0	02	1	9210-			●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97137-836-0	02	1	9510-					●	●
25	01.453 STUD; OIL PAN 09.173 M8X22 L=34	9-04110-822-0	02	1	9210-9402	●
25	01.453 STUD; OIL PAN 4X2(TFB***) 09.173 M8X22 L=34	9-04110-822-0	02	1	9210-9402		●
25	01.453 STUD; OIL PAN 00.219 M8X35 L=46	9-09630-034-1	02	1	9403-	●
25	01.453 STUD; OIL PAN 4X2(TFB***) 00.219 M8X35 L=46	9-09630-034-1	02	1	9403-		●
25	01.453 STUD; OIL PAN 01.062 M6X28 L=36	8-94473-319-0	02	1	9210-			●
25	01.453 STUD; OIL PAN 01.428 M6X12 L=21	9-04110-612-0	02	1	9510-					●	●
27	01.426 CRANKCASE 4X4(TFS***)	8-94441-419-0	01	1	9210-		●
27	01.426 CRANKCASE	8-94473-145-3	01	1	9210-9308			●
27	01.426 CRANKCASE	8-97088-488-1	01	1	9309-9510			●
27	01.426 CRANKCASE	8-97135-442-0	01	1	9510-			●
27	01.426 CRANKCASE 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	5-11215-064-4	01	1	9210-9308				●
27	01.426 CRANKCASE 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-94450-052-2	01	1	9210-9308				●
27	01.426 CRANKCASE	8-97021-533-4	01	1	9210-9410					●
27	01.426 CRANKCASE	8-97122-059-0	01	1	9411-9604					●
27	01.426 CRANKCASE	8-97122-059-1	01	1	9605-					●
27	01.426 CRANKCASE CHINA CHONGQING EQUIPMENT<R5B>	8-97122-059-1	01	1	9605-						●
27	01.426 CRANKCASE TURBOCHARGER(K51) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9510-						●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4(TFS***) 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9210-9510		●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9210-9510			●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	10	1	9510-			●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4(TFS***) 03.330 M8X55 W/LK WASHER	5-09000-084-1	06	1	9210-		●
28	01.780 BOLT; CRANKCASE TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	06	1	9210-			●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4(TFS***) 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9510-		●
28	01.780 BOLT; CRANKCASE TO C/BL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 00.727 M8X22 W/LK WASHER	0-50040-822-0	07	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 00.727 M8X32 W/LK WASHER	0-50040-832-0	07	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 01.531 M8X100 W/LK&PL WASHER	0-50140-800-0	04	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) M8X119	8-97015-515-1	02	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 00.727 M8X32 W/LK WASHER	0-50040-832-0	14	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 01.531 M8X45 W/LK&PL WASHER	0-50140-845-0	02	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) M8X125 W/LK WASHER	8-94142-256-1	02	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 00.206 M8X110	9-09801-079-1	02	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	9210-9509					●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	9510-					●	●
28	01.780 BOLT; CRANKCASE TO C/BL M8X125 W/LK WASHER	8-94142-256-1	01	1	9210-9509					●
28	01.780 BOLT; CRANKCASE TO C/BL M8X125 W/LK WASHER	8-94142-256-1	01	1	9510-					●	●
29	01.426 NUT; CRANKCASE 4X4(TFS***) 07.633 M8 FLANGE	0-91150-108-0	04	1	9210-9510		●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	04	1	9210-9510			●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-			●		●	●
29	01.426 NUT; CRANKCASE 06.164 M8 FLANGE	5-09440-010-0	02	1	9210-9303					●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	9304-9308					●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	9309-9510					●	●
29	01.426 NUT; CRANKCASE 4X4(TFS***) 07.633 M8 FLANGE	0-91150-108-0	04	1	9511-		●
30	01.780 STUD; CRANKCASE 09.173 M8X22 L=34	9-04110-822-0	02	1	9210-9403	●
30	01.780 STUD; CRANKCASE 4X2(TFB***) 09.173 M8X22 L=34	9-04110-822-0	02	1	9210-9403		●
30	01.780 STUD; CRANKCASE 00.219 M8X35 L=46	9-09630-034-1	02	1	9404-9510	●	●	●
30	01.780 STUD; CRANKCASE 00.219 M8X35 L=46	9-09630-034-1	02	1	9510-9603	●
30	01.780 STUD; CRANKCASE 4X2(TFB***) 00.219 M8X35 L=46	9-09630-034-1	02	1	9510-9603		●
30	01.780 STUD; CRANKCASE 4X4(TFS***) 00.219 M8X35 L=46	9-09630-034-1	04	1	9604-		●
30	01.780 STUD; CRANKCASE 4X4(TFS***) 08.981 M8X35 L=47	9-04110-835-0	02	1	9210-9403		●
30	01.780 STUD; CRANKCASE 08.981 M8X35 L=47	9-04110-835-0	02	1	9210-9403			●		●
30	01.780 STUD; CRANKCASE 08.981 M8X35 L=47	9-04110-835-0	02	1	9404-9509			●		●
30	01.780 STUD; CRANKCASE 08.981 M8X35 L=47	9-04110-835-0	02	1	9510-			●		●	●
30	01.780 STUD; CRANKCASE 4X4(TFS***) 00.219 M8X35 L=46	9-09630-034-1	02	1	9403-9403		●
30	01.780 STUD; CRANKCASE 00.219 M8X35 L=46	9-09630-034-1	02	1	9403-9403			●
30	01.780 STUD; CRANKCASE 4X4(TFS***) 00.219 M8X35 L=46	9-09630-034-1	04	1	9404-9603		●
30	01.780 STUD; CRANKCASE 00.219 M8X35 L=46	9-09630-034-1	02	1	9604-	●
30	01.780 STUD; CRANKCASE 4X2(TFB***) 00.219 M8X35 L=46	9-09630-034-1	02	1	9604-		●
40	01.426 NIPPLE; OIL RETURN HOSE VAC PUMP 01.531	5-11369-038-0	01	1	9210-9308				●	●
40	01.426 NIPPLE; OIL RETURN HOSE VAC PUMP 01.531	5-11369-038-0	01	1	9309-9509					●
40	01.426 NIPPLE; OIL RETURN HOSE VAC PUMP 01.531	5-11369-038-0	01	1	9510-					●	●
41	00.137 RUBBER; SPACE EXC. TURBOCHARGER(K51)	8-97123-362-0	01	1	9605-						●
41	00.137 RUBBER; SPACE EXC. TURBOCHARGER(K51)	8-97123-363-0	01	1	9605-						●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 4X4(TFS***). FRT	8-94152-790-2	01	1	9210-		●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRT	8-94152-790-2	01	1	9210-			●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 4X4(TFS***). RR	8-94152-791-2	01	1	9210-		●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). RR	8-94152-791-2	01	1	9210-			●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	9-11258-108-0	02	1	9210-9308				●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97074-727-0	01	1	9210-9412					●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97120-933-0	01	1	9501-9509					●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97120-933-0	01	1	9510-					●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97074-728-1	01	1	9210-9410					●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97123-342-0	01	1	9411-9509					●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97123-342-0	01	1	9510-					●	●
71	01.428 STUD; OIL DRAIN PIPE TURBOCHARGER(K51) M8X18 L=30	9-04110-818-0	02	1	9510-						●
113	01.453 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	9407-9510					●	●
113	01.453 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	9511-			●		●	●

1 28 40 23 17 3 4 42 28 28 27 43 69 42 2 8 10 15 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.426 PAN ASM; OIL W/GUIDE TUBE	8-94338-201-0	01	1	9210-	●
1	01.426 PAN ASM; OIL 4X2(TFB***) W/GUIDE TUBE	8-94338-201-0	01	1	9210-		●
1	01.426 PAN ASM; OIL 4X4(TFS***) WO/GUIDE TUBE	8-94174-215-0	01	1	9210-9407		●
1	01.426 PAN ASM; OIL WO/GUIDE TUBE	8-94174-215-0	01	1	9210-9407			●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-97113-545-0	01	1	9408-		●
1	01.426 PAN ASM; OIL	8-97113-545-0	01	1	9408-			●
1	01.426 PAN ASM; OIL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	8-94454-846-0	01	1	9210-9308				●
1	01.426 PAN ASM; OIL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-94454-848-0	01	1	9210-9308				●
1	01.426 PAN ASM; OIL	8-97043-015-3	01	1	9210-9501					●
1	01.426 PAN ASM; OIL	8-97122-568-1	01	1	9502-9509					●
1	01.426 PAN ASM; OIL	8-97122-568-1	01	1	9510-9512					●	●
1	01.426 PAN ASM; OIL	8-97137-921-0	01	1	9601-					●	●
2	01.516 GAUGE; OIL LEVEL	8-94459-561-0	01	1	9210-	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-94459-561-0	01	1	9210-		●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-94481-023-0	01	1	9210-		●
2	01.516 GAUGE; OIL LEVEL	8-94318-740-0	01	1	9210-			●
2	01.516 GAUGE; OIL LEVEL	8-94469-783-0	01	1	9210-9308				●
2	01.516 GAUGE; OIL LEVEL	8-94362-305-0	01	1	9210-9509					●
2	01.516 GAUGE; OIL LEVEL	8-94362-305-0	01	1	9510-					●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER(K51)	8-94362-305-0	01	1	9510-						●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER(K51)	8-97085-167-0	01	1	9510-						●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9210-9509	●	●	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9510-	●	●	●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9210-9308				●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9210-9509	●	●	●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9510-	●	●	●		●	●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	9210-9308				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE 4X4(TFS***)	8-94479-445-0	01	1	9210-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-94479-446-0	01	1	9210-9308			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97088-479-0	01	1	9309-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	8-94477-843-1	01	1	9210-9308				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-94454-855-0	01	1	9210-9308				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97015-686-0	01	1	9210-9403					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97110-315-0	01	1	9404-9603					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97143-693-0	01	1	9604-9604					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97143-693-0	01	1	9605-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE M/T MSG 5 SPEED(M75)	8-97143-693-0	01	1	9605-						●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER(K51)	8-97109-678-0	01	1	9510-						●
10	01.516 BOLT; GUIDE TUBE 4X4(TFS***) 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9210-9407		●
10	01.516 BOLT; GUIDE TUBE 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9210-9407			●
10	01.516 BOLT; GUIDE TUBE 4X4(TFS***) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9408-		●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9408-			●
10	01.516 BOLT; GUIDE TUBE 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9210-9308			●	●
10	01.516 BOLT; GUIDE TUBE 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9309-9407			●
10	01.516 BOLT; GUIDE TUBE 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9210-9308				●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9210-9308					●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9309-9603					●	●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9604-					●	●
10	01.516 BOLT; GUIDE TUBE 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9210-9603					●
10	01.516 BOLT; GUIDE TUBE TURBOCHARGER(K51) 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9510-9603						●
15	01.516 CLIP; GUIDE TUBE	8-94245-060-0	01	1	9210-9308				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). 4X4(TFS***).	8-94324-200-0	01	1	9210-		●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-200-0	01	1	9210-			●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	8-97045-322-0	01	1	9210-9308				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-97045-323-0	01	1	9210-9308				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97047-397-0	01	1	9210-9405					●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97113-069-0	01	1	9406-9509					●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97113-069-0	01	1	9510-9510					●	●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	14	1	9210-	●
23	01.428 BOLT; OIL PAN 4X2(TFB***) 08.900 M8X20 W/LK WASHER	0-50040-820-0	14	1	9210-		●
23	01.428 BOLT; OIL PAN 4X4(TFS***) M6X12 FLANGE	0-28080-612-0	18	1	9210-9505		●
23	01.428 BOLT; OIL PAN 4X4(TFS***) M6X13 W/PL WASHER	8-97135-141-0	18	1	9506-		●
23	01.428 BOLT; OIL PAN M6X12 FLANGE	0-28080-612-0	16	1	9210-9505			●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	16	1	9506-			●
23	01.428 BOLT; OIL PAN 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) M6X12 FLANGE	0-28080-612-0	30	1	9210-9308				●
23	01.428 BOLT; OIL PAN 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) M6X12 FLANGE	0-28080-612-0	20	1	9210-9308				●
23	01.428 BOLT; OIL PAN M6X12 FLANGE	0-28080-612-0	17	1	9210-9505					●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	17	1	9506-9509					●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	17	1	9510-9604					●	●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	9605-					●	●
27	01.426 CRANKCASE 4X4(TFS***)	8-94441-419-0	01	1	9210-		●
27	01.426 CRANKCASE	8-94473-145-3	01	1	9210-9308			●
27	01.426 CRANKCASE	8-97088-488-1	01	1	9309-9510			●
27	01.426 CRANKCASE	8-97135-442-0	01	1	9510-			●
27	01.426 CRANKCASE 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	5-11215-064-4	01	1	9210-9308				●
27	01.426 CRANKCASE 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-94450-052-2	01	1	9210-9308				●
27	01.426 CRANKCASE	8-97021-533-4	01	1	9210-9410					●
27	01.426 CRANKCASE	8-97122-059-0	01	1	9411-9604					●
27	01.426 CRANKCASE	8-97122-059-1	01	1	9605-					●
27	01.426 CRANKCASE CHINA CHONGQING EQUIPMENT<R5B>	8-97122-059-1	01	1	9605-						●
27	01.426 CRANKCASE TURBOCHARGER(K51) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9510-						●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4(TFS***) 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9210-9510		●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9210-9510			●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	10	1	9510-			●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4(TFS***) 03.330 M8X55 W/LK WASHER	5-09000-084-1	06	1	9210-		●
28	01.780 BOLT; CRANKCASE TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	06	1	9210-			●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4(TFS***) 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9510-		●
28	01.780 BOLT; CRANKCASE TO C/BL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 00.727 M8X22 W/LK WASHER	0-50040-822-0	07	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 00.727 M8X32 W/LK WASHER	0-50040-832-0	07	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 01.531 M8X100 W/LK&PL WASHER	0-50140-800-0	04	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) M8X119	8-97015-515-1	02	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 00.727 M8X32 W/LK WASHER	0-50040-832-0	14	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 01.531 M8X45 W/LK&PL WASHER	0-50140-845-0	02	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) M8X125 W/LK WASHER	8-94142-256-1	02	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 00.206 M8X110	9-09801-079-1	02	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	9210-9509					●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	9510-					●	●
28	01.780 BOLT; CRANKCASE TO C/BL M8X125 W/LK WASHER	8-94142-256-1	01	1	9210-9509					●
28	01.780 BOLT; CRANKCASE TO C/BL M8X125 W/LK WASHER	8-94142-256-1	01	1	9510-					●	●
40	01.426 NIPPLE; OIL RETURN HOSE VAC PUMP 01.531	5-11369-038-0	01	1	9210-9308				●	●
40	01.426 NIPPLE; OIL RETURN HOSE VAC PUMP 01.531	5-11369-038-0	01	1	9309-9509					●
40	01.426 NIPPLE; OIL RETURN HOSE VAC PUMP 01.531	5-11369-038-0	01	1	9510-					●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 4X4(TFS***). FRT	8-94152-790-2	01	1	9210-		●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRT	8-94152-790-2	01	1	9210-			●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 4X4(TFS***). RR	8-94152-791-2	01	1	9210-		●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). RR	8-94152-791-2	01	1	9210-			●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	9-11258-108-0	02	1	9210-9308				●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97074-727-0	01	1	9210-9412					●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97120-933-0	01	1	9501-9509					●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97120-933-0	01	1	9510-					●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97074-728-1	01	1	9210-9410					●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97123-342-0	01	1	9411-9509					●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97123-342-0	01	1	9510-					●	●
43	01.780 PLATE; CRANKCASE (A)	9-11219-198-0	01	1	9210-9308				●
43	01.780 PLATE; CRANKCASE 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) (B)	8-94114-724-0	01	1	9210-9308				●
69	01.780 BOLT; PLATE 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9210-9308				●

16 30 2 3 1 4 100 100 24 25 23 42 27 30 42 2 10 8 9 10 13 29 28 1 4 3 23 24 17 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.426 PAN ASM; OIL W/GUIDE TUBE	8-94338-201-0	01	1	9210-	●
1	01.426 PAN ASM; OIL 4X2(TFB***) W/GUIDE TUBE	8-94338-201-0	01	1	9210-		●
1	01.426 PAN ASM; OIL 4X4(TFS***) WO/GUIDE TUBE	8-94174-215-0	01	1	9210-9407		●
1	01.426 PAN ASM; OIL WO/GUIDE TUBE	8-94174-215-0	01	1	9210-9407			●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-97113-545-0	01	1	9408-		●
1	01.426 PAN ASM; OIL	8-97113-545-0	01	1	9408-			●
1	01.426 PAN ASM; OIL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	8-94454-846-0	01	1	9210-9308				●
1	01.426 PAN ASM; OIL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-94454-848-0	01	1	9210-9308				●
1	01.426 PAN ASM; OIL	8-97043-015-3	01	1	9210-9501					●
1	01.426 PAN ASM; OIL	8-97122-568-1	01	1	9502-9509					●
1	01.426 PAN ASM; OIL	8-97122-568-1	01	1	9510-9512					●	●
1	01.426 PAN ASM; OIL	8-97137-921-0	01	1	9601-					●	●
2	01.516 GAUGE; OIL LEVEL	8-94459-561-0	01	1	9210-	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-94459-561-0	01	1	9210-		●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-94481-023-0	01	1	9210-		●
2	01.516 GAUGE; OIL LEVEL	8-94318-740-0	01	1	9210-			●
2	01.516 GAUGE; OIL LEVEL	8-94469-783-0	01	1	9210-9308				●
2	01.516 GAUGE; OIL LEVEL	8-94362-305-0	01	1	9210-9509					●
2	01.516 GAUGE; OIL LEVEL	8-94362-305-0	01	1	9510-					●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER(K51)	8-94362-305-0	01	1	9510-						●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER(K51)	8-97085-167-0	01	1	9510-						●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9210-9509	●	●	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9510-	●	●	●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9210-9308				●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9210-9509	●	●	●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9510-	●	●	●		●	●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	9210-9308				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE 4X4(TFS***)	8-94479-445-0	01	1	9210-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-94479-446-0	01	1	9210-9308			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97088-479-0	01	1	9309-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	8-94477-843-1	01	1	9210-9308				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-94454-855-0	01	1	9210-9308				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97015-686-0	01	1	9210-9403					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97110-315-0	01	1	9404-9603					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97143-693-0	01	1	9604-9604					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97143-693-0	01	1	9605-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE M/T MSG 5 SPEED(M75)	8-97143-693-0	01	1	9605-						●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER(K51)	8-97109-678-0	01	1	9510-						●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9210-9509			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9510-9604			●		●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	02	1	9605-					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). M/T MSG 5 SPEED(M75) ID=11	5-09623-002-0	02	1	9605-						●
10	01.516 BOLT; GUIDE TUBE 4X4(TFS***) 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9210-9407		●
10	01.516 BOLT; GUIDE TUBE 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9210-9407			●
10	01.516 BOLT; GUIDE TUBE 4X4(TFS***) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9408-		●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9408-			●
10	01.516 BOLT; GUIDE TUBE 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9210-9308			●	●
10	01.516 BOLT; GUIDE TUBE 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9309-9407			●
10	01.516 BOLT; GUIDE TUBE 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9210-9308				●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9210-9308					●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9309-9603					●	●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9604-					●	●
10	01.516 BOLT; GUIDE TUBE 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9210-9603					●
10	01.516 BOLT; GUIDE TUBE TURBOCHARGER(K51) 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9510-9603						●
13	01.516 WASHER; PL,GUIDE TUBE,OIL LEVEL 4X4(TFS***) 00.206 ID=8.4	9-09164-508-0	01	1	9210-9407		●
13	01.516 WASHER; PL,GUIDE TUBE,OIL LEVEL 00.206 ID=8.4	9-09164-508-0	01	1	9210-9407			●
13	01.516 WASHER; PL,GUIDE TUBE,OIL LEVEL 02.183 ID=6.4 OD=14	9-09160-606-0	01	1	9210-9603					●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94235-288-1	01	1	9210-	●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 4X2(TFB***)	8-94235-288-1	01	1	9210-		●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). 4X4(TFS***).	8-94324-200-0	01	1	9210-		●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-200-0	01	1	9210-			●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	8-97045-322-0	01	1	9210-9308				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-97045-323-0	01	1	9210-9308				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97047-397-0	01	1	9210-9405					●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97113-069-0	01	1	9406-9509					●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97113-069-0	01	1	9510-9510					●	●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	14	1	9210-	●
23	01.428 BOLT; OIL PAN 4X2(TFB***) 08.900 M8X20 W/LK WASHER	0-50040-820-0	14	1	9210-		●
23	01.428 BOLT; OIL PAN 4X4(TFS***) M6X12 FLANGE	0-28080-612-0	18	1	9210-9505		●
23	01.428 BOLT; OIL PAN 4X4(TFS***) M6X13 W/PL WASHER	8-97135-141-0	18	1	9506-		●
23	01.428 BOLT; OIL PAN M6X12 FLANGE	0-28080-612-0	16	1	9210-9505			●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	16	1	9506-			●
23	01.428 BOLT; OIL PAN 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) M6X12 FLANGE	0-28080-612-0	30	1	9210-9308				●
23	01.428 BOLT; OIL PAN 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) M6X12 FLANGE	0-28080-612-0	20	1	9210-9308				●
23	01.428 BOLT; OIL PAN M6X12 FLANGE	0-28080-612-0	17	1	9210-9505					●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	17	1	9506-9509					●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	17	1	9510-9604					●	●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	9605-					●	●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	04	1	9210-	●
24	01.453 NUT; OIL PAN 4X2(TFB***) 07.633 M8 FLANGE	0-91150-108-0	04	1	9210-		●
24	01.453 NUT; OIL PAN 04.594 M6 FLANGE	0-91150-106-0	02	1	9210-			●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97137-836-0	02	1	9510-					●	●
25	01.453 STUD; OIL PAN 09.173 M8X22 L=34	9-04110-822-0	02	1	9210-9402	●
25	01.453 STUD; OIL PAN 4X2(TFB***) 09.173 M8X22 L=34	9-04110-822-0	02	1	9210-9402		●
25	01.453 STUD; OIL PAN 00.219 M8X35 L=46	9-09630-034-1	02	1	9403-	●
25	01.453 STUD; OIL PAN 4X2(TFB***) 00.219 M8X35 L=46	9-09630-034-1	02	1	9403-		●
25	01.453 STUD; OIL PAN 01.062 M6X28 L=36	8-94473-319-0	02	1	9210-			●
25	01.453 STUD; OIL PAN 01.428 M6X12 L=21	9-04110-612-0	02	1	9510-					●	●
27	01.426 CRANKCASE 4X4(TFS***)	8-94441-419-0	01	1	9210-		●
27	01.426 CRANKCASE	8-94473-145-3	01	1	9210-9308			●
27	01.426 CRANKCASE	8-97088-488-1	01	1	9309-9510			●
27	01.426 CRANKCASE	8-97135-442-0	01	1	9510-			●
27	01.426 CRANKCASE 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	5-11215-064-4	01	1	9210-9308				●
27	01.426 CRANKCASE 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-94450-052-2	01	1	9210-9308				●
27	01.426 CRANKCASE	8-97021-533-4	01	1	9210-9410					●
27	01.426 CRANKCASE	8-97122-059-0	01	1	9411-9604					●
27	01.426 CRANKCASE	8-97122-059-1	01	1	9605-					●
27	01.426 CRANKCASE CHINA CHONGQING EQUIPMENT<R5B>	8-97122-059-1	01	1	9605-						●
27	01.426 CRANKCASE TURBOCHARGER(K51) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9510-						●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4(TFS***) 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9210-9510		●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9210-9510			●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	10	1	9510-			●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4(TFS***) 03.330 M8X55 W/LK WASHER	5-09000-084-1	06	1	9210-		●
28	01.780 BOLT; CRANKCASE TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	06	1	9210-			●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4(TFS***) 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9510-		●
28	01.780 BOLT; CRANKCASE TO C/BL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 00.727 M8X22 W/LK WASHER	0-50040-822-0	07	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 00.727 M8X32 W/LK WASHER	0-50040-832-0	07	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 01.531 M8X100 W/LK&PL WASHER	0-50140-800-0	04	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) M8X119	8-97015-515-1	02	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 00.727 M8X32 W/LK WASHER	0-50040-832-0	14	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 01.531 M8X45 W/LK&PL WASHER	0-50140-845-0	02	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) M8X125 W/LK WASHER	8-94142-256-1	02	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 00.206 M8X110	9-09801-079-1	02	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	9210-9509					●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	9510-					●	●
28	01.780 BOLT; CRANKCASE TO C/BL M8X125 W/LK WASHER	8-94142-256-1	01	1	9210-9509					●
28	01.780 BOLT; CRANKCASE TO C/BL M8X125 W/LK WASHER	8-94142-256-1	01	1	9510-					●	●
29	01.426 NUT; CRANKCASE 4X4(TFS***) 07.633 M8 FLANGE	0-91150-108-0	04	1	9210-9510		●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	04	1	9210-9510			●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-			●		●	●
29	01.426 NUT; CRANKCASE 06.164 M8 FLANGE	5-09440-010-0	02	1	9210-9303					●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	9304-9308					●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	9309-9510					●	●
29	01.426 NUT; CRANKCASE 4X4(TFS***) 07.633 M8 FLANGE	0-91150-108-0	04	1	9511-		●
30	01.780 STUD; CRANKCASE 09.173 M8X22 L=34	9-04110-822-0	02	1	9210-9403	●
30	01.780 STUD; CRANKCASE 4X2(TFB***) 09.173 M8X22 L=34	9-04110-822-0	02	1	9210-9403		●
30	01.780 STUD; CRANKCASE 00.219 M8X35 L=46	9-09630-034-1	02	1	9404-9510	●	●	●
30	01.780 STUD; CRANKCASE 00.219 M8X35 L=46	9-09630-034-1	02	1	9510-9603	●
30	01.780 STUD; CRANKCASE 4X2(TFB***) 00.219 M8X35 L=46	9-09630-034-1	02	1	9510-9603		●
30	01.780 STUD; CRANKCASE 4X4(TFS***) 00.219 M8X35 L=46	9-09630-034-1	04	1	9604-		●
30	01.780 STUD; CRANKCASE 4X4(TFS***) 08.981 M8X35 L=47	9-04110-835-0	02	1	9210-9403		●
30	01.780 STUD; CRANKCASE 08.981 M8X35 L=47	9-04110-835-0	02	1	9210-9403			●		●
30	01.780 STUD; CRANKCASE 08.981 M8X35 L=47	9-04110-835-0	02	1	9404-9509			●		●
30	01.780 STUD; CRANKCASE 08.981 M8X35 L=47	9-04110-835-0	02	1	9510-			●		●	●
30	01.780 STUD; CRANKCASE 4X4(TFS***) 00.219 M8X35 L=46	9-09630-034-1	02	1	9403-9403		●
30	01.780 STUD; CRANKCASE 00.219 M8X35 L=46	9-09630-034-1	02	1	9403-9403			●
30	01.780 STUD; CRANKCASE 4X4(TFS***) 00.219 M8X35 L=46	9-09630-034-1	04	1	9404-9603		●
30	01.780 STUD; CRANKCASE 00.219 M8X35 L=46	9-09630-034-1	02	1	9604-	●
30	01.780 STUD; CRANKCASE 4X2(TFB***) 00.219 M8X35 L=46	9-09630-034-1	02	1	9604-		●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 4X4(TFS***). FRT	8-94152-790-2	01	1	9210-		●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRT	8-94152-790-2	01	1	9210-			●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 4X4(TFS***). RR	8-94152-791-2	01	1	9210-		●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). RR	8-94152-791-2	01	1	9210-			●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	9-11258-108-0	02	1	9210-9308				●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97074-727-0	01	1	9210-9412					●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97120-933-0	01	1	9501-9509					●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97120-933-0	01	1	9510-					●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97074-728-1	01	1	9210-9410					●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97123-342-0	01	1	9411-9509					●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97123-342-0	01	1	9510-					●	●
100	01.453 PLATE; DAMPER,OIL PAN 01.429	8-94245-944-1	01	1	9210-	●
100	01.453 PLATE; DAMPER,OIL PAN 4X2(TFB***) 01.429	8-94245-944-1	01	1	9210-		●
100	01.453 PLATE; DAMPER,OIL PAN 01.429	8-94245-945-1	01	1	9210-	●
100	01.453 PLATE; DAMPER,OIL PAN 4X2(TFB***) 01.429	8-94245-945-1	01	1	9210-		●

4 3 1 23 40 28 27 43 68 69 42 43 17 28 39 10 8 15 10 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.426 PAN ASM; OIL W/GUIDE TUBE	8-94338-201-0	01	1	9210-	●
1	01.426 PAN ASM; OIL 4X2(TFB***) W/GUIDE TUBE	8-94338-201-0	01	1	9210-		●
1	01.426 PAN ASM; OIL 4X4(TFS***) WO/GUIDE TUBE	8-94174-215-0	01	1	9210-9407		●
1	01.426 PAN ASM; OIL WO/GUIDE TUBE	8-94174-215-0	01	1	9210-9407			●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-97113-545-0	01	1	9408-		●
1	01.426 PAN ASM; OIL	8-97113-545-0	01	1	9408-			●
1	01.426 PAN ASM; OIL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	8-94454-846-0	01	1	9210-9308				●
1	01.426 PAN ASM; OIL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-94454-848-0	01	1	9210-9308				●
1	01.426 PAN ASM; OIL	8-97043-015-3	01	1	9210-9501					●
1	01.426 PAN ASM; OIL	8-97122-568-1	01	1	9502-9509					●
1	01.426 PAN ASM; OIL	8-97122-568-1	01	1	9510-9512					●	●
1	01.426 PAN ASM; OIL	8-97137-921-0	01	1	9601-					●	●
2	01.516 GAUGE; OIL LEVEL	8-94459-561-0	01	1	9210-	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-94459-561-0	01	1	9210-		●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-94481-023-0	01	1	9210-		●
2	01.516 GAUGE; OIL LEVEL	8-94318-740-0	01	1	9210-			●
2	01.516 GAUGE; OIL LEVEL	8-94469-783-0	01	1	9210-9308				●
2	01.516 GAUGE; OIL LEVEL	8-94362-305-0	01	1	9210-9509					●
2	01.516 GAUGE; OIL LEVEL	8-94362-305-0	01	1	9510-					●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER(K51)	8-94362-305-0	01	1	9510-						●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER(K51)	8-97085-167-0	01	1	9510-						●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9210-9509	●	●	●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9510-	●	●	●		●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9210-9308				●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9210-9509	●	●	●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9510-	●	●	●		●	●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	9210-9308				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE 4X4(TFS***)	8-94479-445-0	01	1	9210-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-94479-446-0	01	1	9210-9308			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97088-479-0	01	1	9309-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	8-94477-843-1	01	1	9210-9308				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-94454-855-0	01	1	9210-9308				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97015-686-0	01	1	9210-9403					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97110-315-0	01	1	9404-9603					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97143-693-0	01	1	9604-9604					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97143-693-0	01	1	9605-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE M/T MSG 5 SPEED(M75)	8-97143-693-0	01	1	9605-						●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER(K51)	8-97109-678-0	01	1	9510-						●
10	01.516 BOLT; GUIDE TUBE 4X4(TFS***) 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9210-9407		●
10	01.516 BOLT; GUIDE TUBE 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9210-9407			●
10	01.516 BOLT; GUIDE TUBE 4X4(TFS***) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9408-		●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9408-			●
10	01.516 BOLT; GUIDE TUBE 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9210-9308			●	●
10	01.516 BOLT; GUIDE TUBE 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9309-9407			●
10	01.516 BOLT; GUIDE TUBE 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9210-9308				●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9210-9308					●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9309-9603					●	●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9604-					●	●
10	01.516 BOLT; GUIDE TUBE 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9210-9603					●
10	01.516 BOLT; GUIDE TUBE TURBOCHARGER(K51) 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9510-9603						●
15	01.516 CLIP; GUIDE TUBE	8-94245-060-0	01	1	9210-9308				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). 4X4(TFS***).	8-94324-200-0	01	1	9210-		●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-200-0	01	1	9210-			●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	8-97045-322-0	01	1	9210-9308				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-97045-323-0	01	1	9210-9308				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97047-397-0	01	1	9210-9405					●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97113-069-0	01	1	9406-9509					●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97113-069-0	01	1	9510-9510					●	●
23	01.428 BOLT; OIL PAN 08.900 M8X20 W/LK WASHER	0-50040-820-0	14	1	9210-	●
23	01.428 BOLT; OIL PAN 4X2(TFB***) 08.900 M8X20 W/LK WASHER	0-50040-820-0	14	1	9210-		●
23	01.428 BOLT; OIL PAN 4X4(TFS***) M6X12 FLANGE	0-28080-612-0	18	1	9210-9505		●
23	01.428 BOLT; OIL PAN 4X4(TFS***) M6X13 W/PL WASHER	8-97135-141-0	18	1	9506-		●
23	01.428 BOLT; OIL PAN M6X12 FLANGE	0-28080-612-0	16	1	9210-9505			●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	16	1	9506-			●
23	01.428 BOLT; OIL PAN 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) M6X12 FLANGE	0-28080-612-0	30	1	9210-9308				●
23	01.428 BOLT; OIL PAN 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) M6X12 FLANGE	0-28080-612-0	20	1	9210-9308				●
23	01.428 BOLT; OIL PAN M6X12 FLANGE	0-28080-612-0	17	1	9210-9505					●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	17	1	9506-9509					●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	17	1	9510-9604					●	●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	9605-					●	●
27	01.426 CRANKCASE 4X4(TFS***)	8-94441-419-0	01	1	9210-		●
27	01.426 CRANKCASE	8-94473-145-3	01	1	9210-9308			●
27	01.426 CRANKCASE	8-97088-488-1	01	1	9309-9510			●
27	01.426 CRANKCASE	8-97135-442-0	01	1	9510-			●
27	01.426 CRANKCASE 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF)	5-11215-064-4	01	1	9210-9308				●
27	01.426 CRANKCASE 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	8-94450-052-2	01	1	9210-9308				●
27	01.426 CRANKCASE	8-97021-533-4	01	1	9210-9410					●
27	01.426 CRANKCASE	8-97122-059-0	01	1	9411-9604					●
27	01.426 CRANKCASE	8-97122-059-1	01	1	9605-					●
27	01.426 CRANKCASE CHINA CHONGQING EQUIPMENT<R5B>	8-97122-059-1	01	1	9605-						●
27	01.426 CRANKCASE TURBOCHARGER(K51) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9510-						●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4(TFS***) 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9210-9510		●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9210-9510			●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	10	1	9510-			●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4(TFS***) 03.330 M8X55 W/LK WASHER	5-09000-084-1	06	1	9210-		●
28	01.780 BOLT; CRANKCASE TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	06	1	9210-			●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4(TFS***) 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9510-		●
28	01.780 BOLT; CRANKCASE TO C/BL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 00.727 M8X22 W/LK WASHER	0-50040-822-0	07	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 00.727 M8X32 W/LK WASHER	0-50040-832-0	07	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 01.531 M8X100 W/LK&PL WASHER	0-50140-800-0	04	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) M8X119	8-97015-515-1	02	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 00.727 M8X32 W/LK WASHER	0-50040-832-0	14	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 01.531 M8X45 W/LK&PL WASHER	0-50140-845-0	02	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) M8X125 W/LK WASHER	8-94142-256-1	02	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 00.206 M8X110	9-09801-079-1	02	1	9210-9308				●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	9210-9509					●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	9510-					●	●
28	01.780 BOLT; CRANKCASE TO C/BL M8X125 W/LK WASHER	8-94142-256-1	01	1	9210-9509					●
28	01.780 BOLT; CRANKCASE TO C/BL M8X125 W/LK WASHER	8-94142-256-1	01	1	9510-					●	●
39	03.275 WASHER; LK,CRANKCASE TO C/BL 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 00.002 ID=8.2	9-09150-508-0	02	1	9210-9308				●
40	01.426 NIPPLE; OIL RETURN HOSE VAC PUMP 01.531	5-11369-038-0	01	1	9210-9308				●	●
40	01.426 NIPPLE; OIL RETURN HOSE VAC PUMP 01.531	5-11369-038-0	01	1	9309-9509					●
40	01.426 NIPPLE; OIL RETURN HOSE VAC PUMP 01.531	5-11369-038-0	01	1	9510-					●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 4X4(TFS***). FRT	8-94152-790-2	01	1	9210-		●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRT	8-94152-790-2	01	1	9210-			●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 4X4(TFS***). RR	8-94152-791-2	01	1	9210-		●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). RR	8-94152-791-2	01	1	9210-			●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	9-11258-108-0	02	1	9210-9308				●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97074-727-0	01	1	9210-9412					●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97120-933-0	01	1	9501-9509					●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97120-933-0	01	1	9510-					●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97074-728-1	01	1	9210-9410					●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97123-342-0	01	1	9411-9509					●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97123-342-0	01	1	9510-					●	●
43	01.780 PLATE; CRANKCASE (A)	9-11219-198-0	01	1	9210-9308				●
43	01.780 PLATE; CRANKCASE 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) (B)	8-94114-724-0	01	1	9210-9308				●
68	01.531 NIPPLE; BREATHER HOSE 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF)	5-11179-076-0	01	1	9210-9308				●
69	01.780 BOLT; PLATE 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9210-9308				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
