Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#46541) — 277 parça

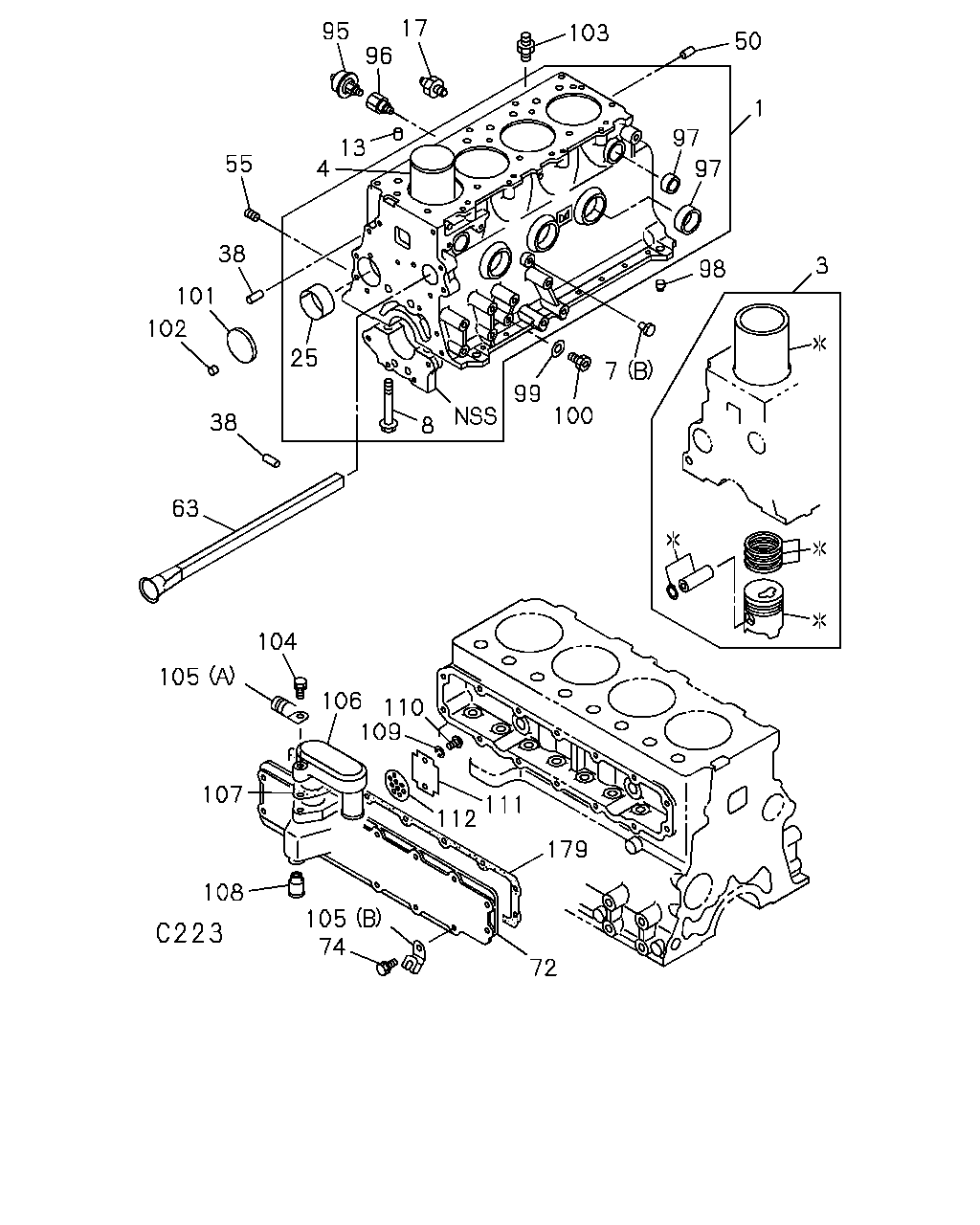

72 74 105 108 107 105 104 106 109 110 111 112 179 3 98 7 100 99 63 38 25 102 101 38 55 4 13 95 17 96 103 50 1 97 97 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.033 BLOCK ASM; CYL	8-94341-810-1	01	1	9210-	●
1	00.033 BLOCK ASM; CYL	8-94341-822-1	01	1	9210-		●
1	00.033 BLOCK ASM; CYL	8-94341-824-2	01	1	9210-			●
1	00.033 BLOCK ASM; CYL	8-94454-835-2	01	1	9210-9308				●
1	00.033 BLOCK ASM; CYL	8-94438-404-4	01	1	9210-					●
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9510-						●
3	00.030 LINER KIT; ENG CYL	5-87810-626-0	01	1	9210-9308				●
3	00.030 LINER KIT; ENG CYL	5-87810-717-0	01	1	9210-					●
3	00.030 LINER KIT; ENG CYL TURBOCHARGER(K51)	5-87810-636-0	01	1	9510-						●
3	00.030 LINER KIT; ENG CYL EXC. TURBOCHARGER(K51)	5-87812-594-0	01	1	9605-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. 00.033	5-11261-015-2	04	1	9210-9308				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET.	8-94462-130-0	04	1	9210-9509					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-691-0	04	1	9510-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-692-0	04	1	9510-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-693-0	04	1	9510-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-694-0	04	1	9510-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-695-0	04	1	9510-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-696-0	04	1	9510-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-697-0	04	1	9510-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-698-0	04	1	9510-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	9510-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	9510-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	9510-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	9510-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	9510-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	9510-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	9510-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	9510-						●
7	00.034 PLUG; WATER DRAIN (B) PT1/4	9-09664-001-0	01	1	9210-9308	●	●	●	●	●
7	00.034 PLUG; WATER DRAIN (B) PT1/4	9-09664-001-0	01	1	9309-9509	●	●	●		●
7	00.034 PLUG; WATER DRAIN (B) PT1/4	9-09664-001-0	01	1	9510-	●	●	●		●	●
7	00.034 PLUG; WATER DRAIN (A) M10X30	9-09809-097-0	01	1	9210-9509					●
7	00.034 PLUG; WATER DRAIN (A) M10X30	9-09809-097-0	01	1	9510-					●	●
8	00.056 BOLT; BRG CAP M12X77	8-94220-076-1	10	1	9210-	●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9210-9308				●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9309-9509					●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9510-					●	●
13	00.293 DOWEL; C/BL TO HD	8-94217-002-0	02	1	9210-	●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9210-9308				●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9309-					●	●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9210-9308	●	●	●	●	●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9309-9406	●	●	●		●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9407-9509	●		●		●
17	01.800 SWITCH; OIL PRESSURE EXC. ELECTRIC FUEL INJECTION<6GG>	9-82720-209-2	01	1	9407-9509		●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9510-	●		●		●	●
17	01.800 SWITCH; OIL PRESSURE EXC. ELECTRIC FUEL INJECTION<6GG>	9-82720-209-2	01	1	9510-		●
17	01.800 SWITCH; OIL PRESSURE ELECTRIC FUEL INJECTION<6GG> WO/ADAPTER	8-94156-643-0	01	1	9407-		●
25	00.539 METAL; CM/SHF FRT	5-11611-008-0	01	1	9210-9308				●
25	00.539 METAL; CM/SHF CENTER	5-11611-009-0	01	1	9210-9308				●
25	00.539 METAL; CM/SHF RR	5-11613-001-0	01	1	9210-9308				●
25	00.539 METAL; CM/SHF CENTER & RR	8-94427-201-1	02	1	9210-9509					●
25	00.539 METAL; CM/SHF CENTER & RR	8-94427-201-2	02	1	9510-					●	●
25	00.539 METAL; CM/SHF FRT	8-94427-206-1	01	1	9210-9509					●
25	00.539 METAL; CM/SHF FRT	8-94427-206-2	01	1	9510-					●	●
38	00.206 PIN; TIMING GEAR CASE	9-08151-024-0	02	1	9210-9308				●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9210-9308				●	●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9309-					●	●
55	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	01	1	9210-		●
55	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	9210-9308				●
63	01.153 DUCT; WATER,C/BL	8-94454-832-0	01	1	9210-9308				●
63	01.153 DUCT; WATER,C/BL	8-94419-436-1	01	1	9210-9509					●
63	01.153 DUCT; WATER,C/BL	8-94419-436-1	01	1	9510-					●	●
72	00.439 COVER; TAPPET CHAMBER	8-94254-652-0	01	1	9210-9308				●
74	00.443 BOLT; COVER TO C/BL 04.785 M8X18 W/LK WASHER	0-50040-818-0	14	1	9210-9308				●
95	01.800 PRESSURE UNIT; OIL TACHOMETER<U16>	8-94232-115-2	01	1	9210-9308		●	●	●	●
95	01.800 PRESSURE UNIT; OIL TACHOMETER<U16>	8-94232-115-2	01	1	9309-9509		●	●		●
95	01.800 PRESSURE UNIT; OIL TACHOMETER<U16>	8-94232-115-2	01	1	9510-		●	●		●	●
96	01.800 ADAPTER; PRESS UNIT & SW TACHOMETER<U16>	8-94454-582-1	01	1	9210-		●	●
96	01.800 ADAPTER; PRESS UNIT & SW TACHOMETER<U16>	8-94203-071-0	01	1	9210-9308				●
97	00.034 CUP; SEALING 00.253 OD=45	1-09600-005-1	03	1	9210-9308				●
97	00.034 CUP; SEALING 00.253 OD=12.3	5-09600-013-0	01	1	9210-9308				●
97	00.034 CUP; SEALING 00.253 OD=18	5-11219-008-0	02	1	9210-9308				●
97	00.034 CUP; SEALING OD=32	5-11219-015-0	02	1	9210-9308				●
97	00.034 CUP; SEALING OD=38	5-11219-017-0	01	1	9210-9308				●
97	00.034 CUP; SEALING OD=36	5-11219-018-0	01	1	9210-9308				●
98	01.428 PIN; C/BL TO CRANKCASE L=31	9-09878-597-0	02	1	9210-9308				●	●
98	01.428 PIN; C/BL TO CRANKCASE L=31	9-09878-597-0	02	1	9309-					●	●
99	01.531 GASKET; OIL PIPE ADAPTER 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9210-9308				●
100	01.800 ADAPTER; OIL FEED PIPE 01.531	5-09650-020-0	01	1	9210-9308				●
101	00.034 CUP; SEALING CAM END 00.253 OD=56	8-94250-514-0	01	1	9210-9308				●
102	00.034 CUP; SEALING OIL GALLERY 00.253 OD=16	5-11129-006-0	02	1	9210-9308				●
103	01.531 NIPPLE; OIL FEED	9-09902-299-0	01	1	9210-9308				●
104	00.413 BOLT; BREATHER PIPE 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9210-9308				●
105	00.446 CLIP; ENG HARNESS,TAPPET COVER 02.559 (A)	5-09700-348-0	01	1	9210-9308				●
105	00.446 CLIP; ENG HARNESS,TAPPET COVER (B)	5-09700-350-0	03	1	9210-9308				●
106	00.413 PIPE; BREATHER TAPPET CHAMBER 01.762	5-11740-115-0	01	1	9210-9308				●
107	00.423 GASKET; BREATHER PIPE,TAPPET CHA	8-97045-360-0	01	1	9210-9308				●
108	00.413 NIPPLE; BREATHER HOSE,TAPPET COV 01.762	5-09666-010-0	01	1	9210-9308				●
109	00.413 WASHER; LK,BAFFLE PLATE,TAPPET C ID=5.1	9-09150-505-0	02	1	9210-9308				●
110	00.413 SCREW; BAFFLE PLATE,TAPPET COVER 02.067 M5X10 PAN-HD	9-93490-510-0	02	1	9210-9308				●
111	00.413 BAFFLE; BREATHER,TAPPET CHAMBER 01.780	8-94254-596-0	01	1	9210-9308				●
112	00.413 BAFFLE; BREATHER,TAPPET CHAMBER 01.780	5-11299-013-0	01	1	9210-9308				●
179	03.278 GASKET; COVER TO BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-328-0	01	1	9210-9308				●

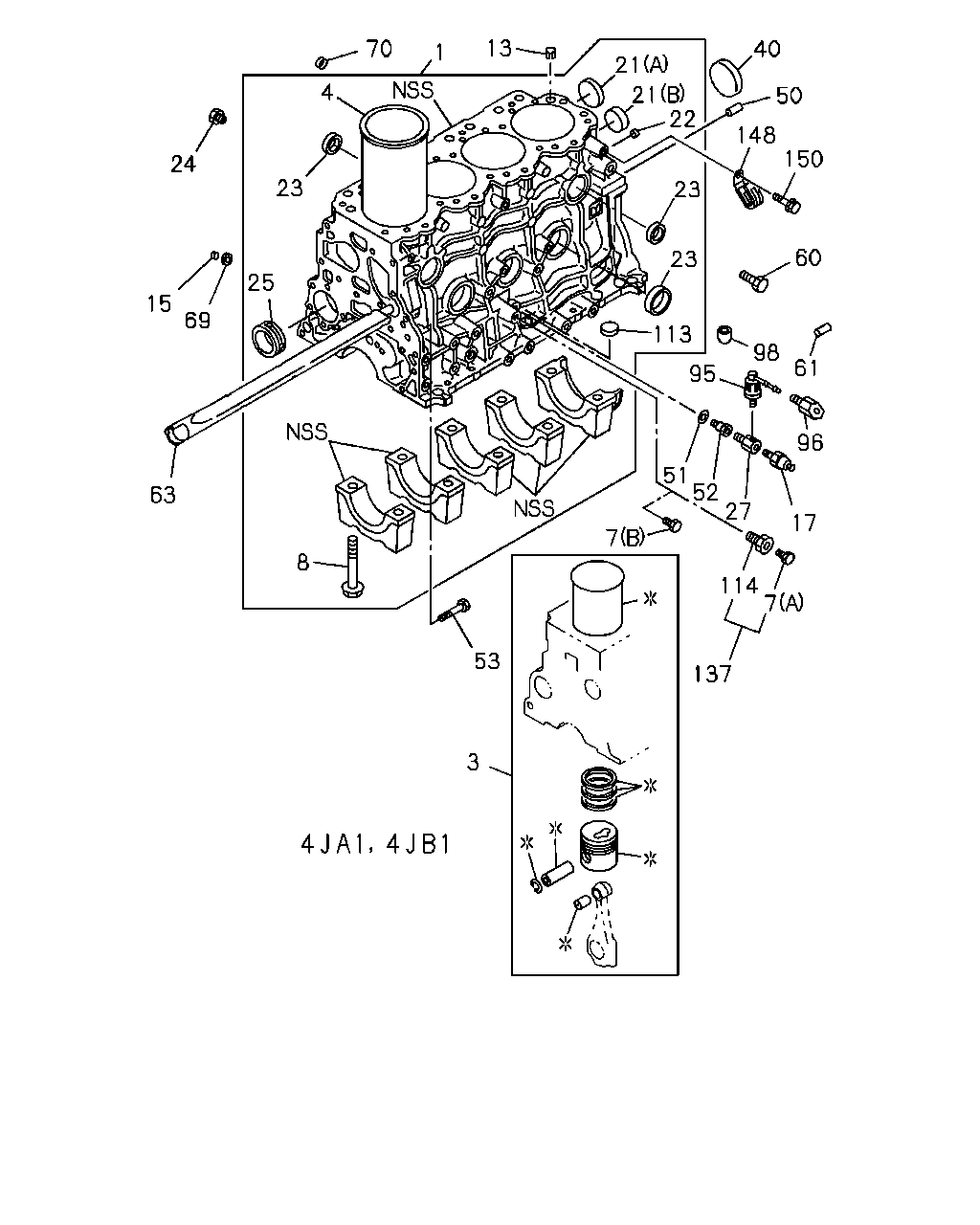

3 53 137 7 114 7 51 52 27 17 96 61 98 95 60 150 148 50 40 21 21 22 23 23 113 8 63 69 25 15 24 23 4 70 1 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.033 BLOCK ASM; CYL	8-94341-810-1	01	1	9210-	●
1	00.033 BLOCK ASM; CYL	8-94341-822-1	01	1	9210-		●
1	00.033 BLOCK ASM; CYL	8-94341-824-2	01	1	9210-			●
1	00.033 BLOCK ASM; CYL	8-94454-835-2	01	1	9210-9308				●
1	00.033 BLOCK ASM; CYL	8-94438-404-4	01	1	9210-					●
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9510-						●
3	00.030 LINER KIT; ENG CYL	5-87810-626-0	01	1	9210-9308				●
3	00.030 LINER KIT; ENG CYL	5-87810-717-0	01	1	9210-					●
3	00.030 LINER KIT; ENG CYL TURBOCHARGER(K51)	5-87810-636-0	01	1	9510-						●
3	00.030 LINER KIT; ENG CYL EXC. TURBOCHARGER(K51)	5-87812-594-0	01	1	9605-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. 00.033	5-11261-015-2	04	1	9210-9308				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET.	8-94462-130-0	04	1	9210-9509					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-691-0	04	1	9510-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-692-0	04	1	9510-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-693-0	04	1	9510-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-694-0	04	1	9510-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-695-0	04	1	9510-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-696-0	04	1	9510-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-697-0	04	1	9510-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-698-0	04	1	9510-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	9510-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	9510-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	9510-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	9510-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	9510-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	9510-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	9510-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	9510-						●
7	00.034 PLUG; WATER DRAIN (B) PT1/4	9-09664-001-0	01	1	9210-9308	●	●	●	●	●
7	00.034 PLUG; WATER DRAIN (B) PT1/4	9-09664-001-0	01	1	9309-9509	●	●	●		●
7	00.034 PLUG; WATER DRAIN (B) PT1/4	9-09664-001-0	01	1	9510-	●	●	●		●	●
7	00.034 PLUG; WATER DRAIN (A) M10X30	9-09809-097-0	01	1	9210-9509					●
7	00.034 PLUG; WATER DRAIN (A) M10X30	9-09809-097-0	01	1	9510-					●	●
8	00.056 BOLT; BRG CAP M12X77	8-94220-076-1	10	1	9210-	●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9210-9308				●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9309-9509					●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9510-					●	●
13	00.293 DOWEL; C/BL TO HD	8-94217-002-0	02	1	9210-	●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9210-9308				●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9309-					●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	9210-	●	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	9210-9308					●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	9309-					●	●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9210-9308	●	●	●	●	●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9309-9406	●	●	●		●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9407-9509	●		●		●
17	01.800 SWITCH; OIL PRESSURE EXC. ELECTRIC FUEL INJECTION<6GG>	9-82720-209-2	01	1	9407-9509		●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9510-	●		●		●	●
17	01.800 SWITCH; OIL PRESSURE EXC. ELECTRIC FUEL INJECTION<6GG>	9-82720-209-2	01	1	9510-		●
17	01.800 SWITCH; OIL PRESSURE ELECTRIC FUEL INJECTION<6GG> WO/ADAPTER	8-94156-643-0	01	1	9407-		●
21	00.034 CUP; SEALING,RR OD=38	9-11219-005-0	01	1	9210-	●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9210-9509					●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9510-					●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9210-9509					●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9510-					●	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	9210-9509					●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	9510-					●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 OD=45	1-09600-005-1	03	1	9210-9509					●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 OD=45	1-09600-005-1	03	1	9510-					●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 OD=18	5-11219-008-0	03	1	9210-9509					●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 OD=18	5-11219-008-0	03	1	9510-					●	●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=36	5-11219-018-0	03	1	9210-9308					●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=36	5-11219-018-0	03	1	9309-					●	●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=32	5-11219-015-0	02	1	9510-						●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94419-728-0	01	1	9210-					●
25	00.539 METAL; CM/SHF FRT	5-11611-008-0	01	1	9210-9308				●
25	00.539 METAL; CM/SHF CENTER	5-11611-009-0	01	1	9210-9308				●
25	00.539 METAL; CM/SHF RR	5-11613-001-0	01	1	9210-9308				●
25	00.539 METAL; CM/SHF CENTER & RR	8-94427-201-1	02	1	9210-9509					●
25	00.539 METAL; CM/SHF CENTER & RR	8-94427-201-2	02	1	9510-					●	●
25	00.539 METAL; CM/SHF FRT	8-94427-206-1	01	1	9210-9509					●
25	00.539 METAL; CM/SHF FRT	8-94427-206-2	01	1	9510-					●	●
27	01.531 NIPPLE; OIL GALLERY TACHOMETER<U16> 01.800 PT1/8 & 2-PS1/8	8-94419-858-1	01	1	9210-9509					●
27	01.531 NIPPLE; OIL GALLERY TACHOMETER<U16> 01.800 PT1/8 & 2-PS1/8	8-94419-858-1	01	1	9510-					●	●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-0	01	1	9210-9308					●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-0	01	1	9309-					●	●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9210-9308				●	●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9309-					●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9210-					●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-1	01	1	9210-9509					●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	9510-					●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B TURBOCHARGER(K51)	8-94167-750-2	01	1	9510-						●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. TURBOCHARGER(K51)	8-94167-749-2	01	1	9605-						●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9210-9509					●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9510-					●	●
60	01.531 BOLT; OIL JET EXC. TURBOCHARGER(K51) 04.105 M16X12	9-99202-316-0	01	1	9605-						●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	9210-9308					●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	9309-					●	●
63	01.153 DUCT; WATER,C/BL	8-94454-832-0	01	1	9210-9308				●
63	01.153 DUCT; WATER,C/BL	8-94419-436-1	01	1	9210-9509					●
63	01.153 DUCT; WATER,C/BL	8-94419-436-1	01	1	9510-					●	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9210-					●
70	00.034 CUP; SEALING,FRT & RR OD=35	8-94200-768-0	06	1	9210-	●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9210-9308					●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9309-					●	●
95	01.800 PRESSURE UNIT; OIL TACHOMETER<U16>	8-94232-115-2	01	1	9210-9308		●	●	●	●
95	01.800 PRESSURE UNIT; OIL TACHOMETER<U16>	8-94232-115-2	01	1	9309-9509		●	●		●
95	01.800 PRESSURE UNIT; OIL TACHOMETER<U16>	8-94232-115-2	01	1	9510-		●	●		●	●
96	01.800 ADAPTER; PRESS UNIT & SW TACHOMETER<U16>	8-94454-582-1	01	1	9210-		●	●
96	01.800 ADAPTER; PRESS UNIT & SW TACHOMETER<U16>	8-94203-071-0	01	1	9210-9308				●
98	01.428 PIN; C/BL TO CRANKCASE L=31	9-09878-597-0	02	1	9210-9308				●	●
98	01.428 PIN; C/BL TO CRANKCASE L=31	9-09878-597-0	02	1	9309-					●	●
113	00.034 CUP; SEALING OD=15.6	5-11129-003-0	01	1	9210-9308					●
113	00.034 CUP; SEALING OD=15.6	5-11129-003-0	01	1	9309-					●	●
114	01.153 NIPPLE; WATER DRAIN	8-94133-968-1	01	1	9210-9509					●
114	01.153 NIPPLE; WATER DRAIN	8-94133-968-1	01	1	9510-					●	●
137	00.034 COCK; DRAIN,WATER	8-94422-600-0	01	1	9210-9509					●
137	00.034 COCK; DRAIN,WATER	8-94422-600-0	01	1	9510-					●	●
148	02.313 CLIP; HARNESS EXC. TURBOCHARGER(K51) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9605-						●
150	02.313 BOLT; CLIP EXC. TURBOCHARGER(K51) 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9605-9608						●
150	02.313 BOLT; CLIP EXC. TURBOCHARGER(K51) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9609-						●

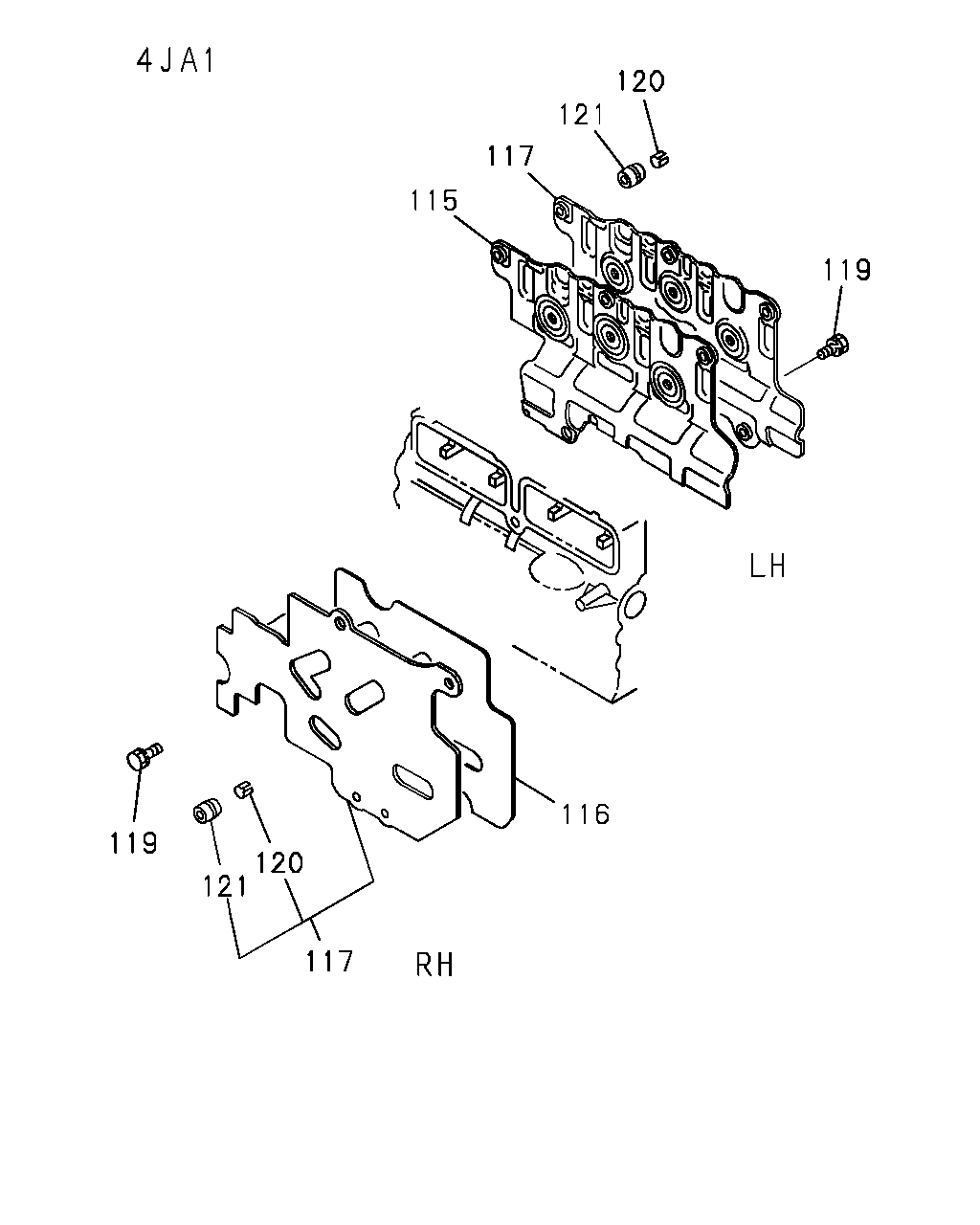

117 120 121 119 116 119 120 121 117 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	E	F
115	00.034 RUBBER; SPACE	8-94460-511-0	01	1	9210-9406	●
115	00.034 RUBBER; SPACE	8-97106-521-1	01	1	9407-9509	●
116	00.034 SEAL; COVER,C/BL	8-94460-822-1	01	1	9210-9511	●
116	00.034 SEAL; COVER,C/BL	8-94460-822-1	01	1	9602-	●
117	00.030 COVER ASM; C/BL	8-94460-820-5	01	1	9210-	●
117	00.030 COVER ASM; C/BL	8-94442-201-3	01	1	9210-9406	●
117	00.030 COVER ASM; C/BL	8-97106-516-1	01	1	9407-	●
119	00.034 BOLT; COVER FIX M10X28	8-94329-952-1	04	1	9210-	●
119	00.034 BOLT; COVER FIX M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9210-9404	●
119	00.034 BOLT; COVER FIX M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9405-9604	●
119	00.034 BOLT; COVER FIX 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9405-9509	●
119	00.034 BOLT; COVER FIX M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	9609-	●
119	00.034 BOLT; COVER FIX M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9609-	●
119	00.034 BOLT; COVER FIX EXC. TURBOCHARGER(K51) M10X28	8-94329-952-1	02	1	9609-		●
120	00.034 BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	09	1	9210-9511	●
120	00.034 BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	05	1	9512-9601	●
120	00.034 BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	09	1	9602-9604	●
120	00.034 BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	04	1	9605-	●
120	00.034 BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	05	1	9605-	●
121	00.034 RUBBER; MTG,COVER OD=22	8-94140-428-1	09	1	9210-9511	●
121	00.034 RUBBER; MTG,COVER OD=22	8-94140-428-1	05	1	9512-9601	●
121	00.034 RUBBER; MTG,COVER OD=22	8-94140-428-1	09	1	9602-9604	●
121	00.034 RUBBER; MTG,COVER OD=22	8-94140-428-1	04	1	9605-	●
121	00.034 RUBBER; MTG,COVER OD=22	8-94140-428-1	05	1	9605-	●

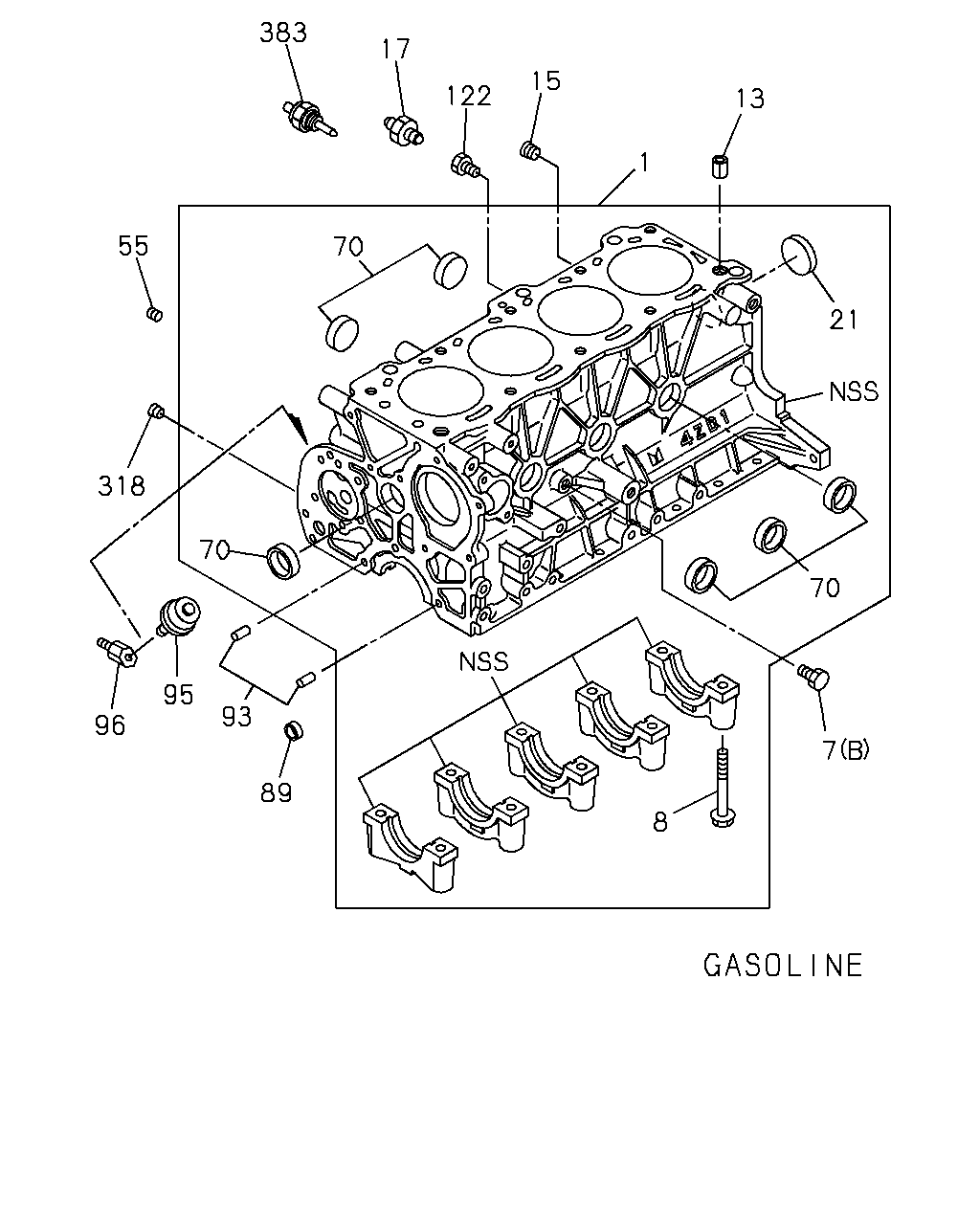

89 93 95 96 70 318 55 383 17 70 122 15 1 13 21 70 7 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.033 BLOCK ASM; CYL	8-94341-810-1	01	1	9210-	●
1	00.033 BLOCK ASM; CYL	8-94341-822-1	01	1	9210-		●
1	00.033 BLOCK ASM; CYL	8-94341-824-2	01	1	9210-			●
1	00.033 BLOCK ASM; CYL	8-94454-835-2	01	1	9210-9308				●
1	00.033 BLOCK ASM; CYL	8-94438-404-4	01	1	9210-					●
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9510-						●
7	00.034 PLUG; WATER DRAIN (B) PT1/4	9-09664-001-0	01	1	9210-9308	●	●	●	●	●
7	00.034 PLUG; WATER DRAIN (B) PT1/4	9-09664-001-0	01	1	9309-9509	●	●	●		●
7	00.034 PLUG; WATER DRAIN (B) PT1/4	9-09664-001-0	01	1	9510-	●	●	●		●	●
7	00.034 PLUG; WATER DRAIN (A) M10X30	9-09809-097-0	01	1	9210-9509					●
7	00.034 PLUG; WATER DRAIN (A) M10X30	9-09809-097-0	01	1	9510-					●	●
8	00.056 BOLT; BRG CAP M12X77	8-94220-076-1	10	1	9210-	●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9210-9308				●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9309-9509					●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9510-					●	●
13	00.293 DOWEL; C/BL TO HD	8-94217-002-0	02	1	9210-	●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9210-9308				●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9309-					●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	9210-	●	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	9210-9308					●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	9309-					●	●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9210-9308	●	●	●	●	●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9309-9406	●	●	●		●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9407-9509	●		●		●
17	01.800 SWITCH; OIL PRESSURE EXC. ELECTRIC FUEL INJECTION<6GG>	9-82720-209-2	01	1	9407-9509		●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9510-	●		●		●	●
17	01.800 SWITCH; OIL PRESSURE EXC. ELECTRIC FUEL INJECTION<6GG>	9-82720-209-2	01	1	9510-		●
17	01.800 SWITCH; OIL PRESSURE ELECTRIC FUEL INJECTION<6GG> WO/ADAPTER	8-94156-643-0	01	1	9407-		●
21	00.034 CUP; SEALING,RR OD=38	9-11219-005-0	01	1	9210-	●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9210-9509					●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9510-					●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9210-9509					●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9510-					●	●
55	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	01	1	9210-		●
55	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	9210-9308				●
70	00.034 CUP; SEALING,FRT & RR OD=35	8-94200-768-0	06	1	9210-	●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9210-9308					●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9309-					●	●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=18	5-11219-008-0	02	1	9210-	●	●	●
93	00.206 DOWEL; RET TO C/BL OD=11 L=8	9-11229-058-1	02	1	9210-	●	●	●
95	01.800 PRESSURE UNIT; OIL TACHOMETER<U16>	8-94232-115-2	01	1	9210-9308		●	●	●	●
95	01.800 PRESSURE UNIT; OIL TACHOMETER<U16>	8-94232-115-2	01	1	9309-9509		●	●		●
95	01.800 PRESSURE UNIT; OIL TACHOMETER<U16>	8-94232-115-2	01	1	9510-		●	●		●	●
96	01.800 ADAPTER; PRESS UNIT & SW TACHOMETER<U16>	8-94454-582-1	01	1	9210-		●	●
96	01.800 ADAPTER; PRESS UNIT & SW TACHOMETER<U16>	8-94203-071-0	01	1	9210-9308				●
122	01.800 ADAPTER; OIL PRESSURE SWITCH PT1/8 STRAIGHT	9-09902-238-0	01	1	9210-	●	●	●
318	01.531 PLUG; OIL FILTER PT1/8	1-09605-050-0	01	1	9210-9308	●	●	●
318	01.531 PLUG; OIL FILTER	9-09864-007-1	01	1	9309-	●	●	●
383	01.800 SENSOR; THERMO,OIL TEMP SAUDI ARABIA EQUIPMENT(EU2)	8-94362-507-0	01	1	9210-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
