9-33 — REAR BODY; GATE AND SIDE GUARD (#46536) — 276 parça

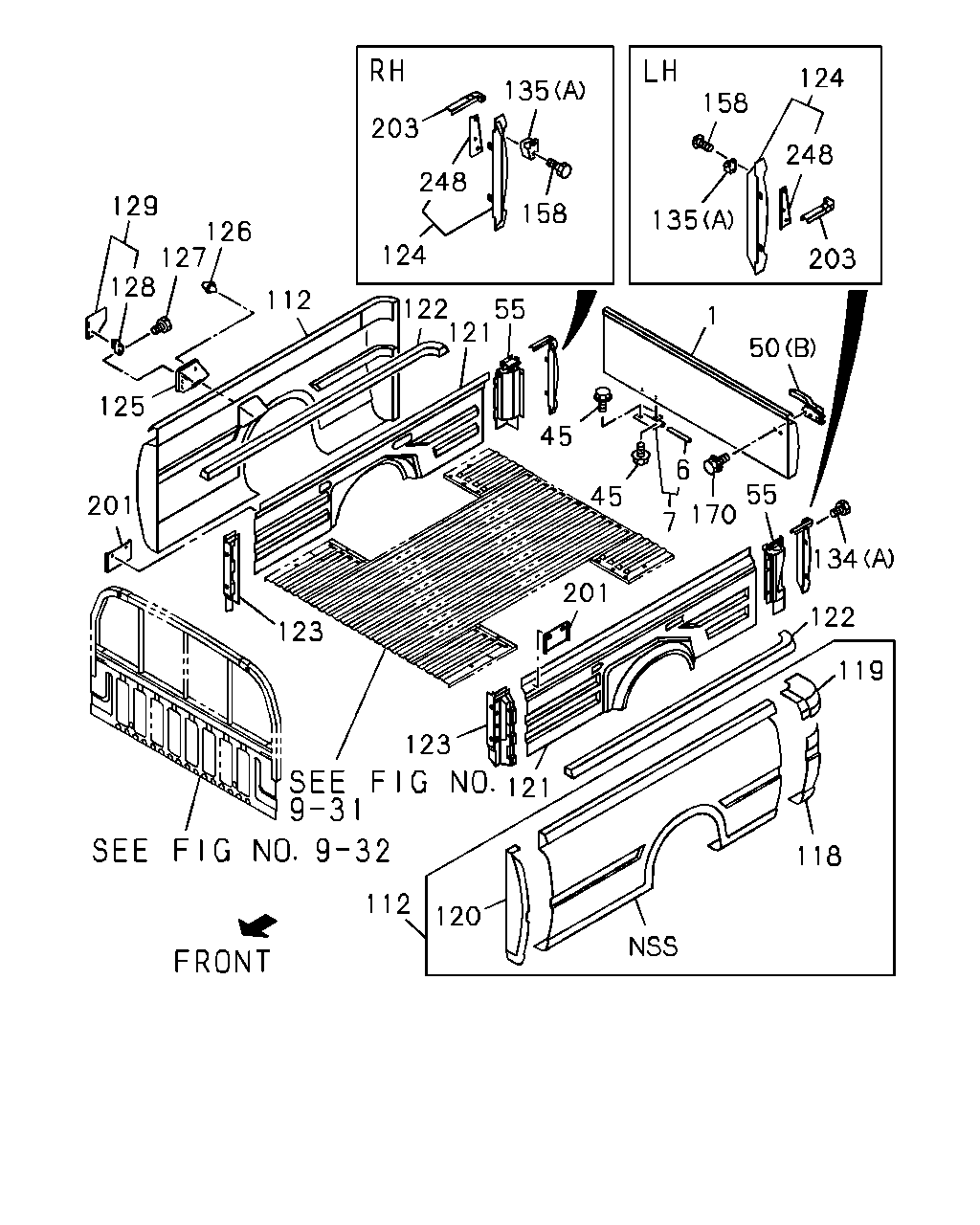

çizim 17818
203 248 124 158 135 158 124 248 203 135 1 50 55 170 7 6 45 45 55 121 122 112 126 127 129 128 125 201 123 201 134 122 119 118 121 123 120 112
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 17.185 GATE ASM; RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97018-748-3 01 1 9210- ● ● ● ● ● ● ● ●
1 17.185 GATE ASM; RR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97013-844-0 01 1 9210- ● ● ● ● ● ● ● ●
1 17.185 GATE ASM; RR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97013-091-0 01 1 9210- ● ● ● ● ● ● ● ●
1 17.185 GATE ASM; RR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97013-845-2 01 1 9210- ● ● ● ●
1 17.185 GATE ASM; RR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97013-845-2 01 1 9210- ● ●
1 17.185 GATE ASM; RR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97045-912-0 01 1 9210-9301 ● ● ● ●
1 17.185 GATE ASM; RR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97045-912-0 01 1 9210-9301 ● ●
1 17.185 GATE ASM; RR
TAIL GATE CENTER PULL TYPE PLAIN(S1P),RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) 		8-97013-092-2 01 1 9302- ● ●
1 17.185 GATE ASM; RR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97045-912-1 01 1 9302- ● ●
1 17.185 GATE ASM; RR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97045-912-1 01 1 9302- ● ●
1 17.185 GATE ASM; RR
RR BODY FLAT BED<RS6> 		8-94198-013-0 01 1 9210- ● ●
6 17.208 PIN; TAIL GATE HINGE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94217-616-0 02 1 9210- ● ● ● ● ● ● ● ●
6 17.208 PIN; TAIL GATE HINGE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94217-616-0 02 1 9210- ● ● ● ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97015-173-0 02 1 9210- ● ● ● ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97015-173-0 02 1 9210- ● ● ● ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
RR BODY FLAT BED<RS6> 		8-94197-074-0 04 1 9210- ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94365-865-0 04 1 9210- ● ● ● ● ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94365-865-0 04 1 9210- ● ● ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B) 		8-97037-420-0 02 1 9210- ● ● ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) (A) 		8-97065-601-0 01 1 9210- ● ● ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) (A) 		8-97065-600-0 01 1 9210- ● ● ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97018-593-2 01 1 9210- ● ● ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97018-593-2 01 1 9210- ● ● ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97018-592-2 01 1 9210- ● ● ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97018-592-2 01 1 9210- ● ● ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97018-595-2 01 1 9210-9301 ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97018-595-2 01 1 9302-9302 ● ● ● ●
55 17.505 PANEL; RR CORNER
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97018-595-2 01 1 9302-9302 ● ●
55 17.505 PANEL; RR CORNER
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97018-594-2 01 1 9210-9301 ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97018-594-2 01 1 9302-9302 ● ● ● ●
55 17.505 PANEL; RR CORNER
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97018-594-2 01 1 9302-9302 ● ●
55 17.505 PANEL; RR CORNER
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97071-915-1 01 1 9210-9302 ● ●
55 17.505 PANEL; RR CORNER
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97071-915-1 01 1 9303-9308 ● ● ● ●
55 17.505 PANEL; RR CORNER
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97071-915-1 01 1 9303-9308 ● ●
55 17.505 PANEL; RR CORNER
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97071-915-1 01 1 9309-9406 ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97071-915-1 01 1 9407- ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97071-914-1 01 1 9210-9302 ● ●
55 17.505 PANEL; RR CORNER
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97071-914-1 01 1 9303-9308 ● ● ● ●
55 17.505 PANEL; RR CORNER
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97071-914-1 01 1 9303-9308 ● ●
55 17.505 PANEL; RR CORNER
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97071-914-1 01 1 9309-9406 ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97071-914-1 01 1 9407- ● ● ● ● ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 17.505 		8-97018-733-0 01 1 9210- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 17.505 		8-97018-732-0 01 1 9210- ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 17.505 		8-97018-310-0 01 1 9210- ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 17.505 		8-97018-309-0 01 1 9210- ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 17.505 		8-97018-318-0 01 1 9210-9301 ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 17.505 		8-97018-318-0 01 1 9302-9302 ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 17.505 		8-97018-317-0 01 1 9210-9301 ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 17.505 		8-97018-317-0 01 1 9302-9302 ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97078-511-0 01 1 9302-9406 ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97078-511-0 01 1 9407- ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97078-510-0 01 1 9302-9406 ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97078-510-0 01 1 9407- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 17.505 		8-97018-735-0 01 1 9210- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 17.505 		8-97018-734-0 01 1 9210- ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 17.505 		8-97018-306-0 01 1 9210- ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 17.505 		8-97018-314-0 01 1 9210-9302 ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97078-507-0 01 1 9303- ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 17.505 		8-97018-305-0 01 1 9210- ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 17.505 		8-97018-313-0 01 1 9210-9302 ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97078-506-0 01 1 9303- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 17.505 		8-97018-731-0 01 1 9210- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 17.505 		8-97018-730-0 01 1 9210- ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 17.505 		8-97018-308-0 01 1 9210- ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 17.505 		8-97018-316-0 01 1 9210-9302 ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97078-509-0 01 1 9303- ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 17.505 		8-97018-307-0 01 1 9210- ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 17.505 		8-97018-315-0 01 1 9210-9302 ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97078-508-0 01 1 9303- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 17.505 		8-97018-737-0 01 1 9210- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 17.505 		8-97018-736-0 01 1 9210- ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 17.505 		8-97018-312-0 01 1 9210- ● ●
112 17.455 PANEL; SIDE GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 17.505 		8-97018-311-0 01 1 9210- ● ●
118 17.185 PANEL; OUTER LWR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94450-409-0 01 1 9210- ● ● ● ● ● ● ● ●
118 17.185 PANEL; OUTER LWR,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94450-409-0 01 1 9210- ● ● ● ● ● ● ● ●
118 17.185 PANEL; OUTER LWR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94450-408-0 01 1 9210- ● ● ● ● ● ● ● ●
118 17.185 PANEL; OUTER LWR,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94450-408-0 01 1 9210- ● ● ● ● ● ● ● ●
119 17.185 PANEL; OUTER UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97018-244-1 01 1 9210- ● ● ● ● ● ● ● ●
119 17.185 PANEL; OUTER UPR,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97018-244-1 01 1 9210- ● ● ● ● ● ● ● ●
119 17.185 PANEL; OUTER UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97018-243-1 01 1 9210- ● ● ● ● ● ● ● ●
119 17.185 PANEL; OUTER UPR,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97018-243-1 01 1 9210- ● ● ● ● ● ● ● ●
120 17.505 PANEL ASM; FRT CORNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94382-378-0 01 1 9210- ● ● ● ● ● ●
120 17.505 PANEL ASM; FRT CORNER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94382-378-0 01 1 9210- ● ● ● ● ● ●
120 17.505 PANEL ASM; FRT CORNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94382-377-0 01 1 9210- ● ● ● ● ● ●
120 17.505 PANEL ASM; FRT CORNER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94382-377-0 01 1 9210- ● ● ● ● ● ●
120 17.505 PANEL ASM; FRT CORNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94389-408-1 01 1 9210- ● ●
120 17.505 PANEL ASM; FRT CORNER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94389-408-1 01 1 9210- ● ●
120 17.505 PANEL ASM; FRT CORNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94389-407-1 01 1 9210- ● ●
120 17.505 PANEL ASM; FRT CORNER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94389-407-1 01 1 9210- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97015-169-1 01 1 9210-9210 ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97015-169-1 01 1 9210-9210 ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97015-169-1 01 1 9211-9406 ● ● ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97015-169-1 01 1 9211-9406 ● ● ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97015-169-1 01 1 9407- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97015-169-1 01 1 9407- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97015-168-1 01 1 9210- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97015-168-1 01 1 9210- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97015-165-1 01 1 9210-9509 ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97015-165-1 01 1 9210-9509 ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97015-165-1 01 1 9510- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97015-165-1 01 1 9510- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97015-164-1 01 1 9210-9509 ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97015-164-1 01 1 9210-9509 ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97015-164-1 01 1 9510- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97015-164-1 01 1 9510- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97015-167-1 01 1 9210- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97015-167-1 01 1 9210- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97015-166-1 01 1 9210- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97015-166-1 01 1 9210- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97038-371-1 01 1 9210- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97038-371-1 01 1 9210- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97038-370-1 01 1 9210- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97038-370-1 01 1 9210- ● ●
122 17.505 PANEL; PATCH,FRT CORNER UPR,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94382-723-4 01 1 9210- ● ●
122 17.505 PANEL; PATCH,FRT CORNER UPR,RR B
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94382-723-4 01 1 9210- ● ●
122 17.505 PANEL; PATCH,FRT CORNER UPR,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94382-722-4 01 1 9210- ● ●
122 17.505 PANEL; PATCH,FRT CORNER UPR,RR B
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94382-722-4 01 1 9210- ● ●
122 17.505 PANEL; PATCH,FRT CORNER UPR,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94382-725-4 01 1 9210- ● ●
122 17.505 PANEL; PATCH,FRT CORNER UPR,RR B
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94382-725-4 01 1 9210- ● ●
122 17.505 PANEL; PATCH,FRT CORNER UPR,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94382-724-4 01 1 9210- ● ●
122 17.505 PANEL; PATCH,FRT CORNER UPR,RR B
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94382-724-4 01 1 9210- ● ●
122 17.505 PANEL; PATCH,FRT CORNER UPR,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94382-721-4 01 1 9210- ● ●
122 17.505 PANEL; PATCH,FRT CORNER UPR,RR B
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94382-721-4 01 1 9210- ● ●
122 17.505 PANEL; PATCH,FRT CORNER UPR,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94382-720-4 01 1 9210- ● ●
122 17.505 PANEL; PATCH,FRT CORNER UPR,RR B
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94382-720-4 01 1 9210- ● ●
122 17.505 PANEL; PATCH,FRT CORNER UPR,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94382-727-4 01 1 9210- ● ●
122 17.505 PANEL; PATCH,FRT CORNER UPR,RR B
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94382-727-4 01 1 9210- ● ●
122 17.505 PANEL; PATCH,FRT CORNER UPR,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94382-726-4 01 1 9210- ● ●
122 17.505 PANEL; PATCH,FRT CORNER UPR,RR B
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94382-726-4 01 1 9210- ● ●
123 17.442 PANEL; EXT,FRT INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94435-792-3 01 1 9210- ● ● ● ● ● ●
123 17.442 PANEL; EXT,FRT INNER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94435-792-3 01 1 9210- ● ● ● ● ● ●
123 17.442 PANEL; EXT,FRT INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94435-791-3 01 1 9210- ● ● ● ● ● ●
123 17.442 PANEL; EXT,FRT INNER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94435-791-3 01 1 9210- ● ● ● ● ● ●
123 17.442 PANEL; EXT,FRT INNER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-94435-837-0 01 1 9210-9406 ● ● ● ● ● ●
123 17.442 PANEL; EXT,FRT INNER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94435-837-0 01 1 9407- ● ● ● ● ● ●
123 17.442 PANEL; EXT,FRT INNER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-94435-836-0 01 1 9210-9406 ● ● ● ● ● ●
123 17.442 PANEL; EXT,FRT INNER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94435-836-0 01 1 9407- ● ● ● ● ● ●
124 17.505 PANEL; EXT,RR CORNER POST,RR BOD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97018-739-0 01 1 9210- ● ● ● ● ● ● ● ●
124 17.505 PANEL; EXT,RR CORNER POST,RR BOD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97018-738-0 01 1 9210- ● ● ● ● ● ● ● ●
124 17.505 PANEL; EXT,RR CORNER POST,RR BOD
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94435-777-2 01 1 9210- ● ● ● ● ● ● ● ●
124 17.505 PANEL; EXT,RR CORNER POST,RR BOD
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94435-776-2 01 1 9210- ● ● ● ● ● ● ● ●
124 17.505 PANEL; EXT,RR CORNER POST,RR BOD
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94435-823-2 01 1 9510- ● ● ● ● ● ● ● ●
124 17.505 PANEL; EXT,RR CORNER POST,RR BOD
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94435-822-2 01 1 9510- ● ● ● ● ● ● ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94435-886-1 01 1 9210- ● ● ● ● ● ● ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94435-886-1 01 1 9210- ● ● ● ● ● ● ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) 		9-09956-829-0 01 1 9210- ● ● ● ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9210- ● ● ● ● ● ● ● ●
128 17.505 HINGE; FUEL FILLER LID,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) 		8-94435-850-0 01 1 9210- ● ● ● ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) 		8-94435-847-0 01 1 9210- ● ● ● ● ● ● ● ●
134 17.507 BOLT; STRIKER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 04.197 (A) M6X10 		8-97020-236-0 02 1 9210- ● ● ● ● ● ● ● ●
134 17.507 BOLT; STRIKER,TAIL GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) (B) M8X22 		8-97037-247-0 04 1 9210-9309 ● ● ● ● ● ● ● ●
134 17.507 BOLT; STRIKER,TAIL GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) (B) M8X22 		8-97104-889-0 04 1 9310- ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) 		8-97018-747-3 01 1 9210- ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) 		8-97018-746-3 01 1 9210- ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) (B) 		8-97064-382-1 02 1 9210- ● ● ● ● ● ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 17.198 		9-03065-816-0 04 1 9210- ● ● ● ● ● ● ● ●
170 17.635 BOLT; TAIL GATE LOCK
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 04.197 M6X10 		8-97020-236-0 04 1 9210-9308 ● ● ● ● ● ● ● ●
170 17.635 BOLT; TAIL GATE LOCK
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 08.015 M6X20 W/WASHER 		8-94112-987-1 04 1 9309- ● ● ● ● ● ● ● ●
201 17.442 REINFORCEMENT; GASSET,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97038-377-0 02 1 9210- ● ●
201 17.442 REINFORCEMENT; GASSET,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97038-377-0 02 1 9210- ● ●
203 17.505 PANEL; EXT,UPR,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-94382-733-4 01 1 9210-9302 ● ●
203 17.505 PANEL; EXT,UPR,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-94382-733-4 01 1 9303-9308 ● ● ● ●
203 17.505 PANEL; EXT,UPR,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-733-4 01 1 9303-9308 ● ●
203 17.505 PANEL; EXT,UPR,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-94382-733-4 01 1 9309-9406 ● ● ● ● ● ●
203 17.505 PANEL; EXT,UPR,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-733-4 01 1 9407- ● ● ● ● ● ●
203 17.505 PANEL; EXT,UPR,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-94382-732-4 01 1 9210-9302 ● ●
203 17.505 PANEL; EXT,UPR,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-94382-732-4 01 1 9303-9308 ● ● ● ●
203 17.505 PANEL; EXT,UPR,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-732-4 01 1 9303-9308 ● ●
203 17.505 PANEL; EXT,UPR,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-94382-732-4 01 1 9309-9406 ● ● ● ● ● ●
203 17.505 PANEL; EXT,UPR,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-732-4 01 1 9407- ● ● ● ● ● ●
248 17.442 PATCH; CARGO RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97018-743-1 01 1 9510- ● ● ● ● ● ● ● ●
248 17.442 PATCH; CARGO RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97018-742-1 01 1 9510- ● ● ● ● ● ● ● ●
248 17.442 PATCH; CARGO RR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94435-779-0 01 1 9510- ● ● ● ● ● ● ● ●
248 17.442 PATCH; CARGO RR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94435-778-0 01 1 9510- ● ● ● ● ● ● ● ●

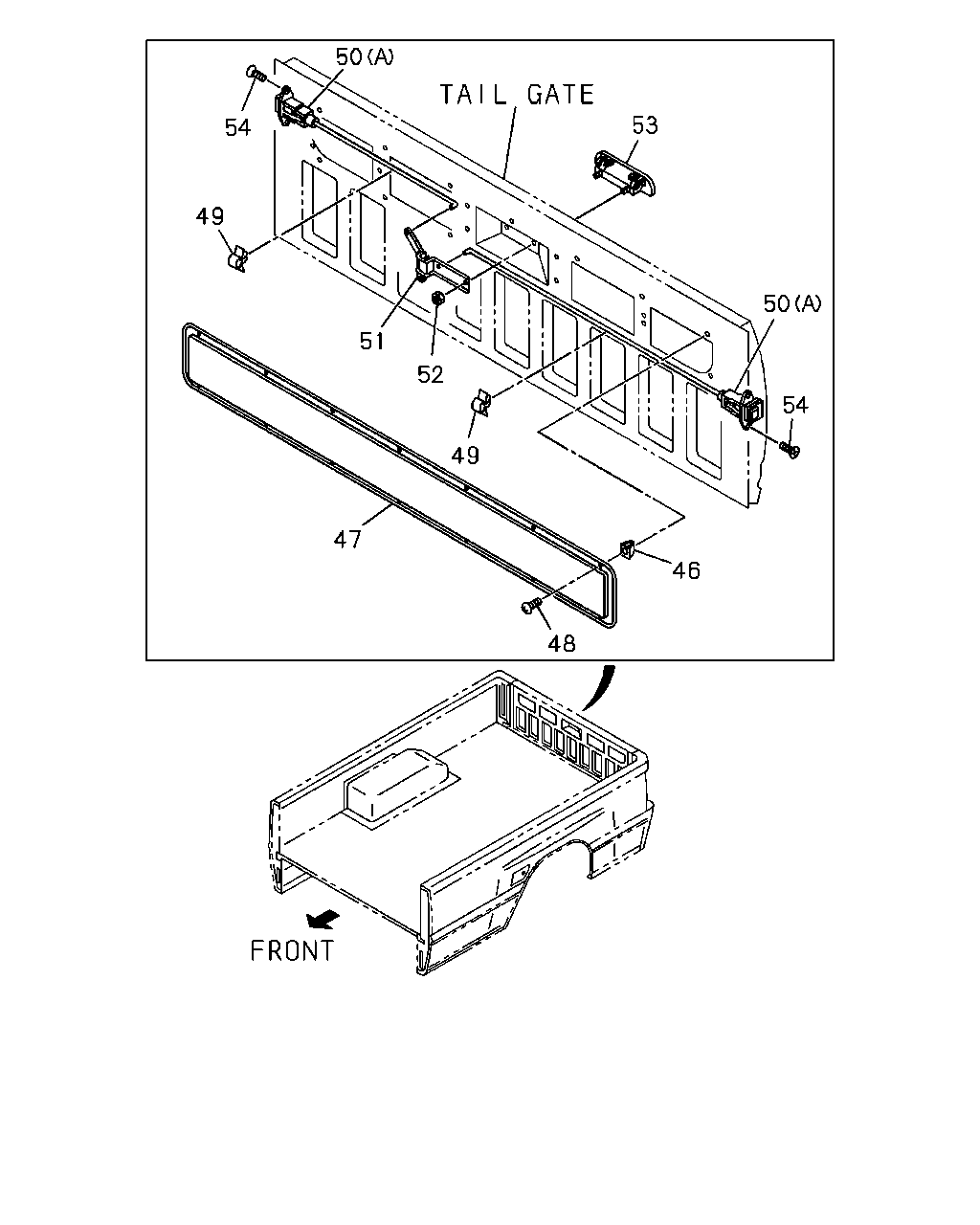

çizim 66289
50 54 49 53 51 52 49 47 48 46 54 50
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
46 17.507 GROMMET; SCREW,TAIL GATE HOLE CO
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 02.708 M4 		5-09470-002-0 14 1 9210- ● ● ● ● ● ● ● ●
46 17.507 GROMMET; SCREW,TAIL GATE HOLE CO
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 02.708 M4 		5-09470-002-0 14 1 9210- ● ● ● ● ● ● ● ●
47 17.507 PLATE; HOLE COVER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97018-763-0 01 1 9210- ● ● ● ● ● ● ● ●
47 17.507 PLATE; HOLE COVER,TAIL GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) 		8-94433-506-0 01 1 9210- ● ● ● ● ● ● ● ●
48 17.185 SCREW; HOLE COVER,TAIL GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) M4X10 		8-97043-528-0 14 1 9210- ● ● ● ● ● ● ● ●
48 17.185 SCREW; HOLE COVER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) M4X10 		8-97043-528-0 14 1 9210- ● ● ● ● ● ● ● ●
49 17.635 ANTIRATTLER; TAIL GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) 16.345 ID=3.8 YELLOW 		8-94329-976-0 02 1 9210-9406 ● ● ● ● ● ● ● ●
49 17.635 ANTIRATTLER; TAIL GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) 16.341 ID=3.8 WHITE 		8-94217-699-0 02 1 9407- ● ● ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B) 		8-97037-420-0 02 1 9210- ● ● ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) (A) 		8-97065-601-0 01 1 9210- ● ● ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) (A) 		8-97065-600-0 01 1 9210- ● ● ● ● ● ● ● ●
51 17.204 LEVER ASM; TAIL GATE LOCK CONT
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) 		8-94445-837-4 01 1 9210- ● ● ● ● ● ● ● ●
52 17.204 NUT; OUTSIDE HANDLE,TAIL GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) 07.829 M6 FLANGE 		5-09440-004-0 02 1 9210- ● ● ● ● ● ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) EXTERIOR CHROME PACKAGE<6CX> 		8-94217-781-1 01 1 9210- ● ● ● ● ● ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94455-479-0 01 1 9210- ● ● ● ● ● ● ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) 		8-94481-018-1 04 1 9210- ● ● ● ● ● ● ● ●

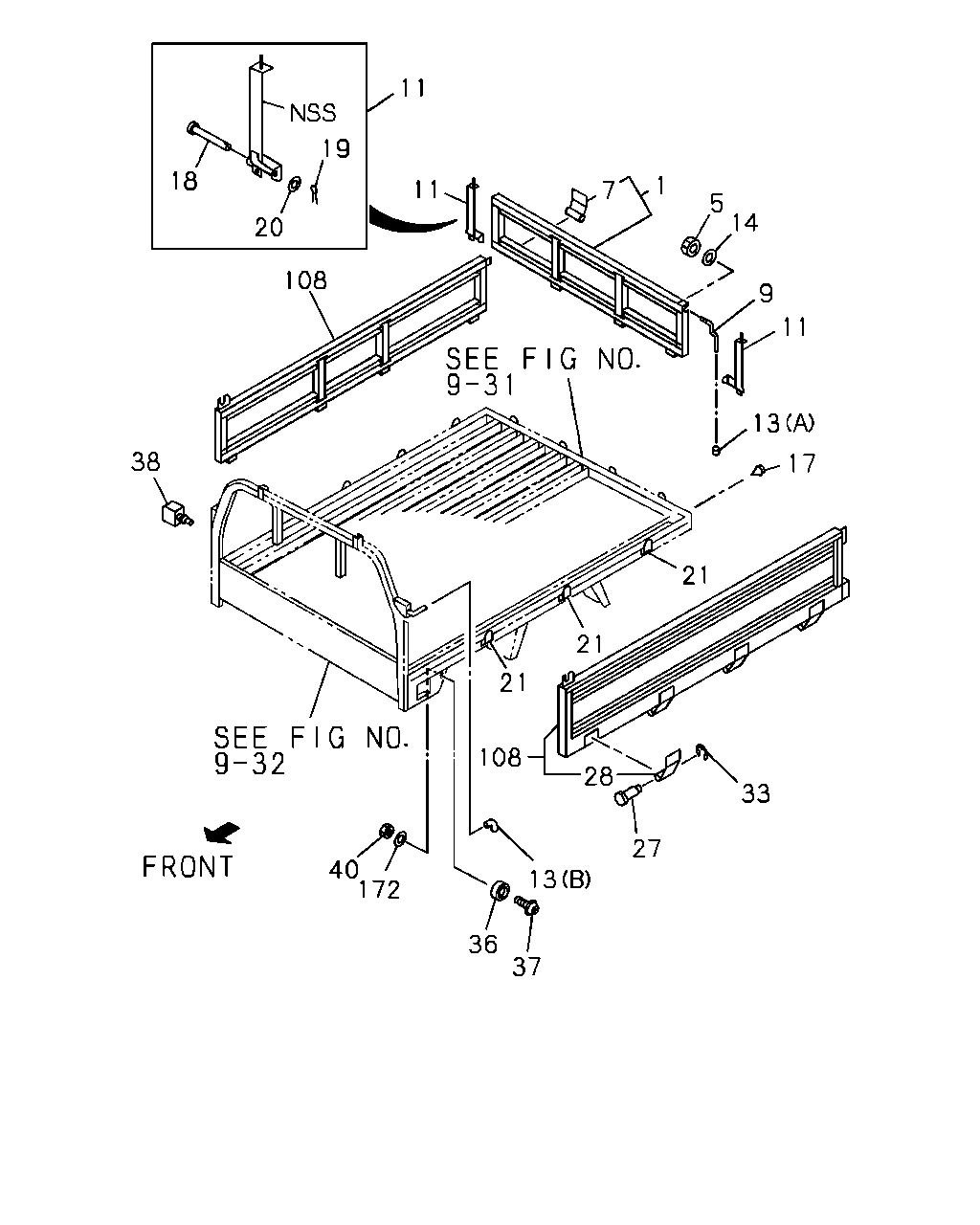

çizim 67073
18 20 19 11 11 108 7 1 5 14 9 11 13 17 21 21 21 108 28 33 27 13 37 36 172 40 38
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 17.185 GATE ASM; RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97018-748-3 01 1 9210- ● ● ● ● ● ● ● ●
1 17.185 GATE ASM; RR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97013-844-0 01 1 9210- ● ● ● ● ● ● ● ●
1 17.185 GATE ASM; RR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97013-091-0 01 1 9210- ● ● ● ● ● ● ● ●
1 17.185 GATE ASM; RR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97013-845-2 01 1 9210- ● ● ● ●
1 17.185 GATE ASM; RR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97013-845-2 01 1 9210- ● ●
1 17.185 GATE ASM; RR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97045-912-0 01 1 9210-9301 ● ● ● ●
1 17.185 GATE ASM; RR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97045-912-0 01 1 9210-9301 ● ●
1 17.185 GATE ASM; RR
TAIL GATE CENTER PULL TYPE PLAIN(S1P),RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) 		8-97013-092-2 01 1 9302- ● ●
1 17.185 GATE ASM; RR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97045-912-1 01 1 9302- ● ●
1 17.185 GATE ASM; RR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97045-912-1 01 1 9302- ● ●
1 17.185 GATE ASM; RR
RR BODY FLAT BED<RS6> 		8-94198-013-0 01 1 9210- ● ●
5 17.204 NUT; LATCH HANDLE
RR BODY FLAT BED<RS6> 07.347 SEE FIG NO.932-22 M12 		9-99111-412-0 08 1 9210- ● ●
7 17.208 HINGE ASM; RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97015-173-0 02 1 9210- ● ● ● ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97015-173-0 02 1 9210- ● ● ● ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
RR BODY FLAT BED<RS6> 		8-94197-074-0 04 1 9210- ● ●
9 17.204 HANDLE; LATCH,RR GATE
RR BODY FLAT BED<RS6> 		8-94197-050-0 01 1 9210- ● ●
9 17.204 HANDLE; LATCH,RR GATE
RR BODY FLAT BED<RS6> 		8-94197-049-0 01 1 9210- ● ●
11 17.198 LOCK ASM; VERTICAL
RR BODY FLAT BED<RS6> 		8-94197-037-1 01 1 9210- ● ●
11 17.198 LOCK ASM; VERTICAL
RR BODY FLAT BED<RS6> 		8-94197-036-1 01 1 9210- ● ●
13 17.615 RUBBER; GATE HANDLE,RR BODY
RR BODY FLAT BED<RS6> (A) ID=12 		9-61203-650-0 02 1 9210- ● ●
13 17.615 RUBBER; GATE HANDLE,RR BODY
RR BODY FLAT BED<RS6> (B) 		9-61203-937-0 02 1 9210- ● ●
14 17.204 WASHER; PL,HANDLE
RR BODY FLAT BED<RS6> 02.334 ID=6.4 OD=22 		9-09164-806-0 04 1 9210- ● ●
17 17.202 RUBBER; BUMPER,VERTICAL LOCK,RR
RR BODY FLAT BED<RS6> 		9-61203-673-0 02 1 9210- ● ●
18 17.198 PIN; VERTICAL LOCK
RR BODY FLAT BED<RS6> 		8-94197-090-0 02 1 9210- ● ●
19 17.198 PIN; SPLIT,VERTICAL LOCK
RR BODY FLAT BED<RS6> 		9-08103-015-0 02 1 9210- ● ●
20 17.198 WASHER; PL,VERTICAL LOCK
RR BODY FLAT BED<RS6> 07.874 ID=10.5 OD=18 		9-09160-510-0 02 1 9210- ● ●
21 17.208 HINGE; LEAF,LWR
RR BODY FLAT BED<RS6> 		8-94197-073-0 12 1 9210- ● ●
27 17.208 PIN; HINGE,SIDE GATE
RR BODY FLAT BED<RS6> 		8-94197-062-0 12 1 9210- ● ●
28 17.208 HINGE; UPR,SIDE GATE
RR BODY FLAT BED<RS6> 		8-94197-074-0 08 1 9210- ● ●
33 17.208 RING; SNAP,HINGE PIN,RR BODY
RR BODY FLAT BED<RS6> ID=6 		9-09185-006-0 12 1 9210- ● ●
36 17.202 RUBBER; STOPPER,RR GATE
RR BODY FLAT BED<RS6> OD=45 H=30 		5-66900-013-1 06 1 9210- ● ●
37 17.202 SCREW
RR BODY FLAT BED<RS6> M6X30 W/PL WASHER 		9-03900-630-0 06 1 9210- ● ●
38 17.507 RUBBER; STOPPER,SIDE GATE
RR BODY FLAT BED<RS6> 		8-94238-211-0 02 1 9210- ● ●
40 17.202 NUT; STOPPER RUBBER
RR BODY FLAT BED<RS6> 16.176 M6 		9-09110-406-0 06 1 9210- ● ●
108 17.505 GATE ASM; SIDE
RR BODY FLAT BED<RS6> 		8-94198-012-0 01 1 9210- ● ●
108 17.505 GATE ASM; SIDE
RR BODY FLAT BED<RS6> 		8-94198-011-0 01 1 9210- ● ●
172 17.447 WASHER; PL,STOPPER,TAIL GATE
RR BODY FLAT BED<RS6> 02.183 ID=6.4 OD=14 		9-09160-606-0 06 1 9210- ● ●

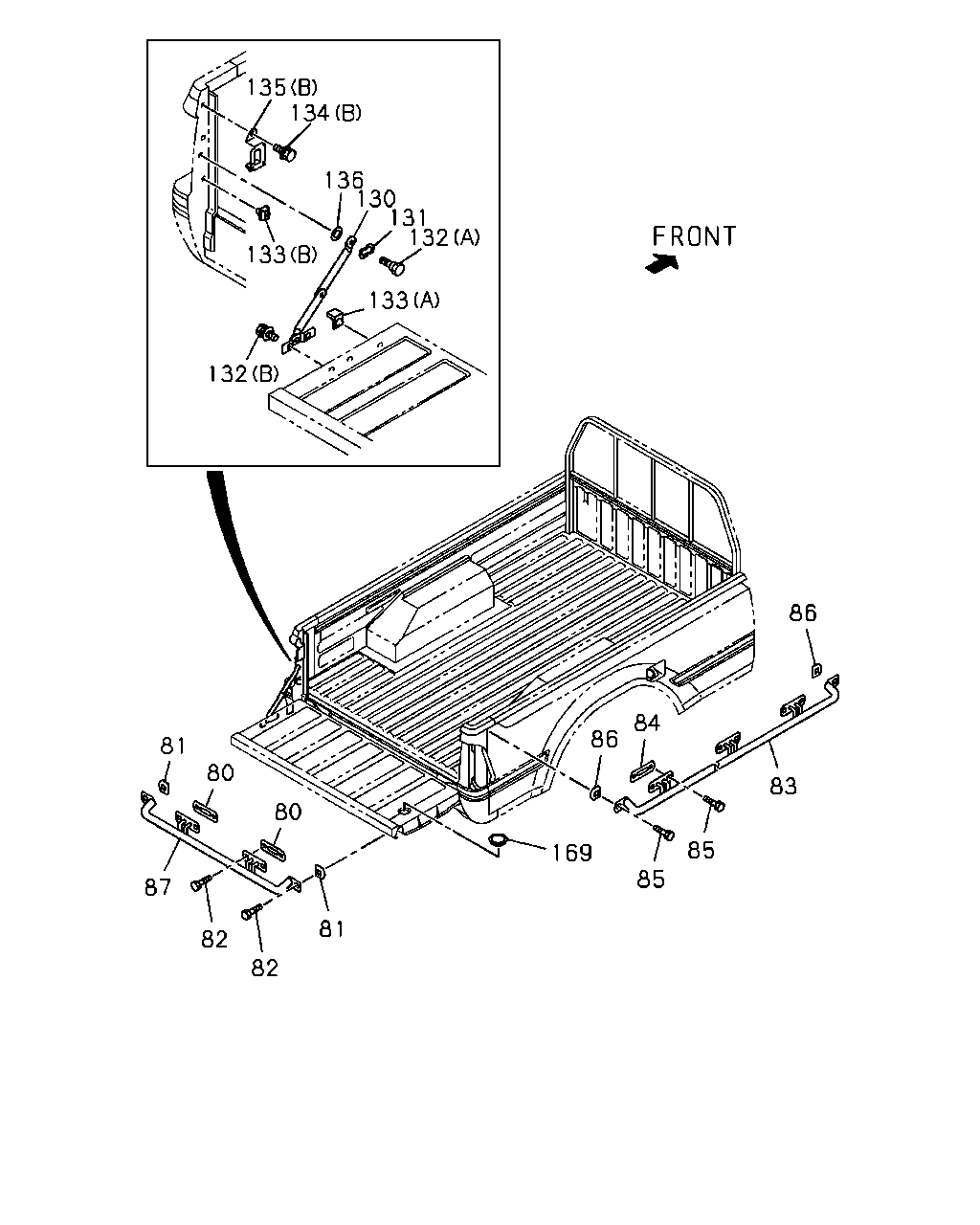

çizim 68375
135 134 136 130 131 132 133 133 132 81 80 80 87 82 82 81 169 86 84 86 83 85 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
80 17.185 SEAT; ROPE HOOK
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94446-393-2 02 1 9210- ● ● ● ● ● ● ● ●
80 17.185 SEAT; ROPE HOOK
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94446-393-2 02 1 9210- ● ● ● ● ● ● ● ●
81 17.185 SEAT; ROPE HOOK,GUARD BAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94446-394-2 02 1 9210- ● ● ● ● ● ● ● ●
81 17.185 SEAT; ROPE HOOK,GUARD BAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94446-394-2 02 1 9210- ● ● ● ● ● ● ● ●
82 17.185 BOLT; ROPE HOOK,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97034-254-0 06 1 9210- ● ● ● ● ● ● ● ●
82 17.185 BOLT; ROPE HOOK,TAIL GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97034-254-0 06 1 9210- ● ● ● ● ● ● ● ●
83 17.185 RAIL; ROPE HOOK,RR BODY SIDE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94443-650-3 02 1 9210- ● ● ● ●
83 17.185 RAIL; ROPE HOOK,RR BODY SIDE
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97062-956-1 02 1 9210- ● ●
83 17.185 RAIL; ROPE HOOK,RR BODY SIDE
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) IRISH EQUIPMENT(6CU) 		8-94433-508-3 02 1 9210- ● ●
83 17.185 RAIL; ROPE HOOK,RR BODY SIDE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94433-508-3 02 1 9210- ● ●
83 17.185 RAIL; ROPE HOOK,RR BODY SIDE
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. IRISH EQUIPMENT(6CU) 		8-97062-955-2 02 1 9210- ● ●
83 17.185 RAIL; ROPE HOOK,RR BODY SIDE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94452-005-3 02 1 9210- ● ●
83 17.185 RAIL; ROPE HOOK,RR BODY SIDE
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97062-957-2 02 1 9210- ● ●
84 17.185 SEAT; ROPE HOOK,OUTER HOOK
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94446-393-2 08 1 9210- ● ● ● ●
84 17.185 SEAT; ROPE HOOK,OUTER HOOK
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94446-393-2 10 1 9210- ● ●
84 17.185 SEAT; ROPE HOOK,OUTER HOOK
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94446-393-2 06 1 9210- ● ●
85 17.185 BOLT; ROPE HOOK,RR BODY SIDE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97034-254-0 20 1 9210- ● ● ● ●
85 17.185 BOLT; ROPE HOOK,RR BODY SIDE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97034-254-0 24 1 9210- ● ●
85 17.185 BOLT; ROPE HOOK,RR BODY SIDE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97034-254-0 16 1 9210- ● ●
86 17.185 SEAT; ROPE HOOK,GUARD BAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94446-394-2 04 1 9210- ● ● ● ● ● ● ● ●
87 17.185 RAIL; ROPE HOOK,TAIL GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94433-507-3 01 1 9210- ● ● ● ● ● ● ● ●
87 17.185 RAIL; ROPE HOOK,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94433-507-3 01 1 9210- ● ● ● ● ● ● ● ●
87 17.185 RAIL; ROPE HOOK,TAIL GATE
UNITED KINGDOM EQUIPMENT(EK3) TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) IRISH EQUIPMENT(6CU) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94433-507-3 01 1 9210- ● ●
87 17.185 RAIL; ROPE HOOK,TAIL GATE
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) IRISH EQUIPMENT(6CU) 		8-94433-507-3 01 1 9210- ● ●
87 17.185 RAIL; ROPE HOOK,TAIL GATE
UNITED KINGDOM EQUIPMENT(EK3) TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) EXC. IRISH EQUIPMENT(6CU) 		8-97062-958-2 01 1 9210- ● ● ● ● ● ●
87 17.185 RAIL; ROPE HOOK,TAIL GATE
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. IRISH EQUIPMENT(6CU) 		8-97062-958-2 01 1 9210- ● ● ● ● ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97063-897-2 02 1 9210- ● ● ● ● ● ● ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97063-897-2 02 1 9210- ● ● ● ● ● ● ● ●
131 17.635 WASHER; WAVE,TAIL GATE LINK,RR B
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94481-020-0 02 1 9210- ● ● ● ● ● ● ● ●
131 17.635 WASHER; WAVE,TAIL GATE LINK,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94481-020-0 02 1 9210- ● ● ● ● ● ● ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) M8X14 		8-94481-021-0 02 1 9210- ● ● ● ● ● ● ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) M8X14 		8-94481-021-0 02 1 9210- ● ● ● ● ● ● ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 17.507 (B) M8X22 		8-97037-247-0 04 1 9210-9309 ● ● ● ● ● ● ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 17.507 (B) M8X22 		8-97037-247-0 04 1 9210-9309 ● ● ● ● ● ● ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 17.507 (B) M8X22 		8-97104-889-0 04 1 9310- ● ● ● ● ● ● ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 17.507 (B) M8X22 		8-97104-889-0 04 1 9310- ● ● ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) 		8-94370-056-0 02 1 9210- ● ● ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) 		8-94370-056-0 02 1 9210- ● ● ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B) 		8-94433-529-1 02 1 9210- ● ● ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B) 		8-94433-529-1 02 1 9210- ● ● ● ● ● ● ● ●
134 17.507 BOLT; STRIKER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 04.197 (A) M6X10 		8-97020-236-0 02 1 9210- ● ● ● ● ● ● ● ●
134 17.507 BOLT; STRIKER,TAIL GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) (B) M8X22 		8-97037-247-0 04 1 9210-9309 ● ● ● ● ● ● ● ●
134 17.507 BOLT; STRIKER,TAIL GATE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) (B) M8X22 		8-97104-889-0 04 1 9310- ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) 		8-97018-747-3 01 1 9210- ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) 		8-97018-746-3 01 1 9210- ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) (B) 		8-97064-382-1 02 1 9210- ● ● ● ● ● ● ● ●
136 17.635 WASHER; PL,TAIL GATE LINK,RR BOD
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 16.674 ID=8.4 		9-09160-508-0 02 1 9210- ● ● ● ● ● ● ● ●
136 17.635 WASHER; PL,TAIL GATE LINK,RR BOD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 16.674 ID=8.4 		9-09160-508-0 02 1 9210- ● ● ● ● ● ● ● ●
169 17.185 GROMMET; TAIL GATE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 09.003 OD=19 		8-94279-055-0 02 1 9210- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
