◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50651 - TFR/TFS-RHD ▶ 9 - Tools ▶ 9-32 - REAR BODY; GUARD FRAME ▶
9-32 — REAR BODY; GUARD FRAME (#46535) — 55 parça
çizim 68468
1 10 5 3 7 56 14 29 34 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 17.455 FRAME; GUARD,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94435-754-5 01 1 9210- ● ● ● ● ● ●
1 17.455 FRAME; GUARD,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94435-754-5 01 1 9210- ● ● ● ● ● ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> 		8-94311-681-0 01 1 9210-9511 ● ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> 		8-97143-137-0 01 1 9512- ● ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97038-364-0 01 1 9210- ● ●
1 17.455 FRAME; GUARD,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97038-364-0 01 1 9210- ● ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94217-998-0 02 1 9210- ● ● ● ● ● ● ● ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
RR BODY FLAT BED<RS6> 		5-66900-284-0 02 1 9210-9509 ● ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
RR BODY FLAT BED<RS6> 		5-66900-284-0 02 1 9510- ●
5 17.447 WASHER; PL,GUARD FRAME STOPPER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94481-019-0 02 1 9210- ● ● ● ● ● ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) M6X45 		8-94481-022-0 02 1 9210- ● ● ● ● ● ● ● ●
10 17.447 NUT; GUARD FRAME STOPPER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) M6 FLANGE 		8-94481-428-0 02 1 9210- ● ● ● ● ● ● ● ●
10 17.447 NUT; GUARD FRAME STOPPER
RR BODY FLAT BED<RS6> M10 		8-94197-072-0 02 1 9210-9509 ● ●
10 17.447 NUT; GUARD FRAME STOPPER
RR BODY FLAT BED<RS6> M10 		8-94197-072-0 02 1 9510- ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 16.325 		8-94235-275-1 06 1 9309-9309 ● ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 16.325 		8-94235-275-1 06 1 9309-9309 ● ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 16.325 		8-94235-275-1 08 1 9309- ● ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 16.325 		8-94235-275-1 08 1 9309- ● ●
29 17.455 COVER; GUARD FRAME
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) 17.447 		8-94430-184-1 02 1 9210- ● ● ● ● ● ● ● ●
34 17.455 PANEL; FRT,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-94435-747-2 01 1 9210-9406 ● ● ● ● ● ●
34 17.455 PANEL; FRT,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94435-747-1 01 1 9407- ● ● ● ● ● ●
34 17.455 PANEL; FRT,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94454-499-3 01 1 9210- ● ●
34 17.455 PANEL; FRT,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94454-499-3 01 1 9210- ● ●
35 17.455 BOLT; FRT PANEL,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 16.325 		8-94235-275-1 08 1 9210-9309 ● ● ● ● ● ● ● ●
35 17.455 BOLT; FRT PANEL,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 16.325 		8-94235-275-1 08 1 9210-9309 ● ● ● ● ● ● ● ●
35 17.455 BOLT; FRT PANEL,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 16.325 '930927- 		8-94235-275-1 08 1 9309- ● ● ● ● ● ●
35 17.455 BOLT; FRT PANEL,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 16.325 '930927- 		8-94235-275-1 08 1 9309- ● ● ● ● ● ●
35 17.455 BOLT; FRT PANEL,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 16.325 		8-94235-275-1 04 1 9210-9406 ● ● ● ● ● ●
35 17.455 BOLT; FRT PANEL,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 16.325 		8-94235-275-1 04 1 9407- ● ● ● ● ● ●
35 17.455 BOLT; FRT PANEL,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 16.325 '930927- 		8-94235-275-1 06 1 9309- ● ●
35 17.455 BOLT; FRT PANEL,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 16.325 '930927- 		8-94235-275-1 06 1 9309- ● ●
56 17.455 GUSSET; GUARD FRAME
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97038-373-1 01 1 9210- ● ●
56 17.455 GUSSET; GUARD FRAME
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97038-373-1 01 1 9210- ● ●
56 17.455 GUSSET; GUARD FRAME
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97038-372-1 01 1 9210- ● ●
56 17.455 GUSSET; GUARD FRAME
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97038-372-1 01 1 9210- ● ●

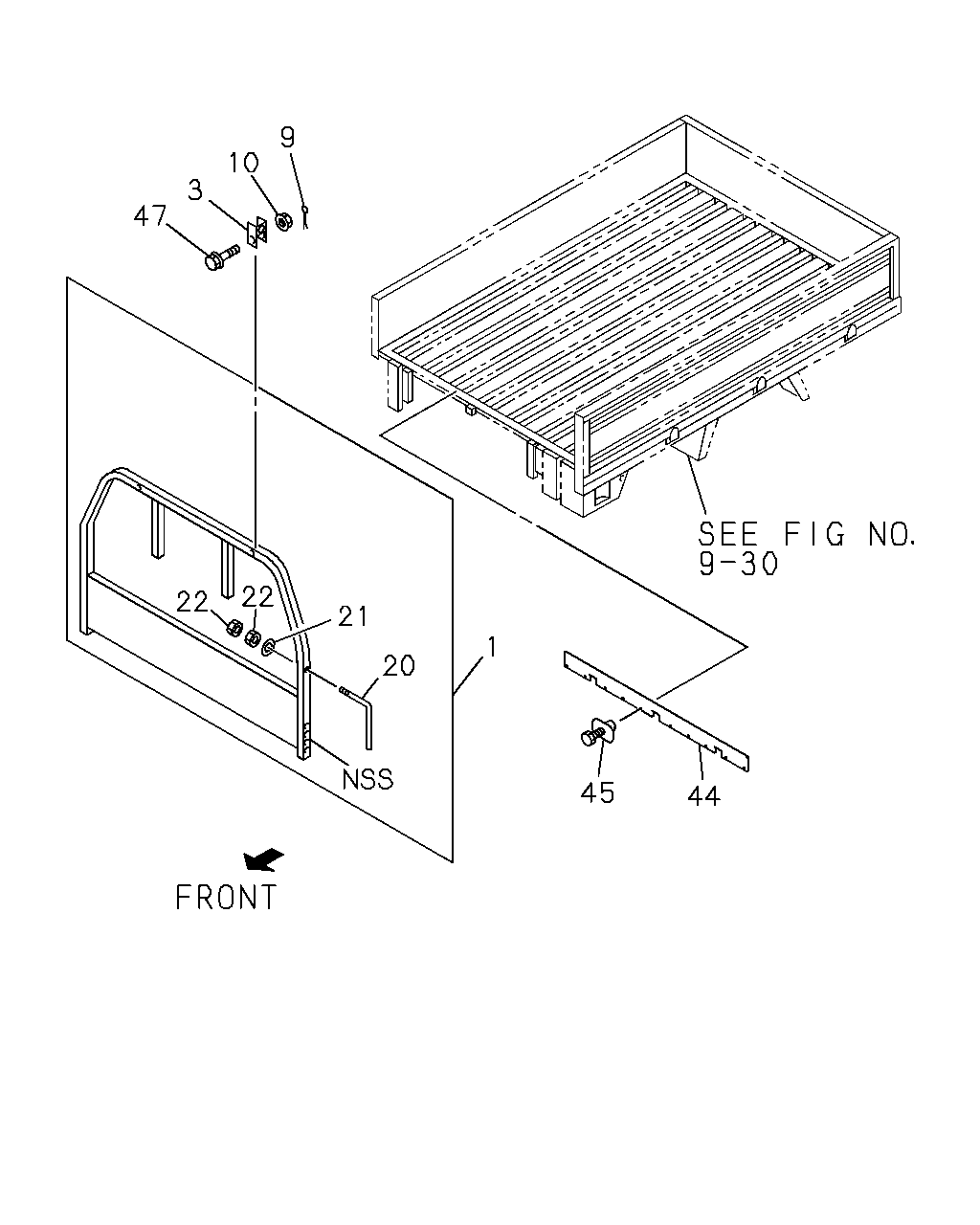

çizim 68498
9 10 3 47 22 22 21 20 1 45 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 17.455 FRAME; GUARD,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94435-754-5 01 1 9210- ● ● ● ● ● ●
1 17.455 FRAME; GUARD,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94435-754-5 01 1 9210- ● ● ● ● ● ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> 		8-94311-681-0 01 1 9210-9511 ● ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> 		8-97143-137-0 01 1 9512- ● ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97038-364-0 01 1 9210- ● ●
1 17.455 FRAME; GUARD,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97038-364-0 01 1 9210- ● ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94217-998-0 02 1 9210- ● ● ● ● ● ● ● ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
RR BODY FLAT BED<RS6> 		5-66900-284-0 02 1 9210-9509 ● ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
RR BODY FLAT BED<RS6> 		5-66900-284-0 02 1 9510- ●
9 17.447 PIN; SPLIT,GUARD FRAME
RR BODY FLAT BED<RS6> 06.234 OD=1.8 L=20 		9-08112-020-0 02 1 9210-9509 ● ●
9 17.447 PIN; SPLIT,GUARD FRAME
RR BODY FLAT BED<RS6> 06.234 OD=1.8 L=20 		9-08112-020-0 02 1 9510- ●
10 17.447 NUT; GUARD FRAME STOPPER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) M6 FLANGE 		8-94481-428-0 02 1 9210- ● ● ● ● ● ● ● ●
10 17.447 NUT; GUARD FRAME STOPPER
RR BODY FLAT BED<RS6> M10 		8-94197-072-0 02 1 9210-9509 ● ●
10 17.447 NUT; GUARD FRAME STOPPER
RR BODY FLAT BED<RS6> M10 		8-94197-072-0 02 1 9510- ●
20 17.455 HANDLE; FRT,RR BODY
RR BODY FLAT BED<RS6> 		8-94197-048-0 02 1 9210- ● ●
21 17.455 WASHER; LK,FRT HANDLE
RR BODY FLAT BED<RS6> 02.334 ID=6.4 OD=22 		9-09164-806-0 02 1 9210- ● ●
22 17.455 NUT; FRT HANDLE
RR BODY FLAT BED<RS6> 07.347 M12 		9-99111-412-0 04 1 9210- ● ●
44 17.507 COVER; DUST SHIELD,FRT PANEL,RR
RR BODY FLAT BED<RS6> 		8-94240-032-0 01 1 9210- ● ●
45 08.131 RIVET; DUST SHIELD COVER,RR BODY
RR BODY FLAT BED<RS6> 08.154 		8-94221-150-0 10 1 9210- ● ●
47 17.447 STOPPER; GUARD FRAME
RR BODY FLAT BED<RS6> M10X60 		8-94197-069-0 02 1 9210- ● ●
