◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50651 - TFR/TFS-RHD ▶ 9 - Tools ▶ 9-31 - REAR BODY; FLOOR AND FENDER ▶
9-31 — REAR BODY; FLOOR AND FENDER (#46534) — 92 parça

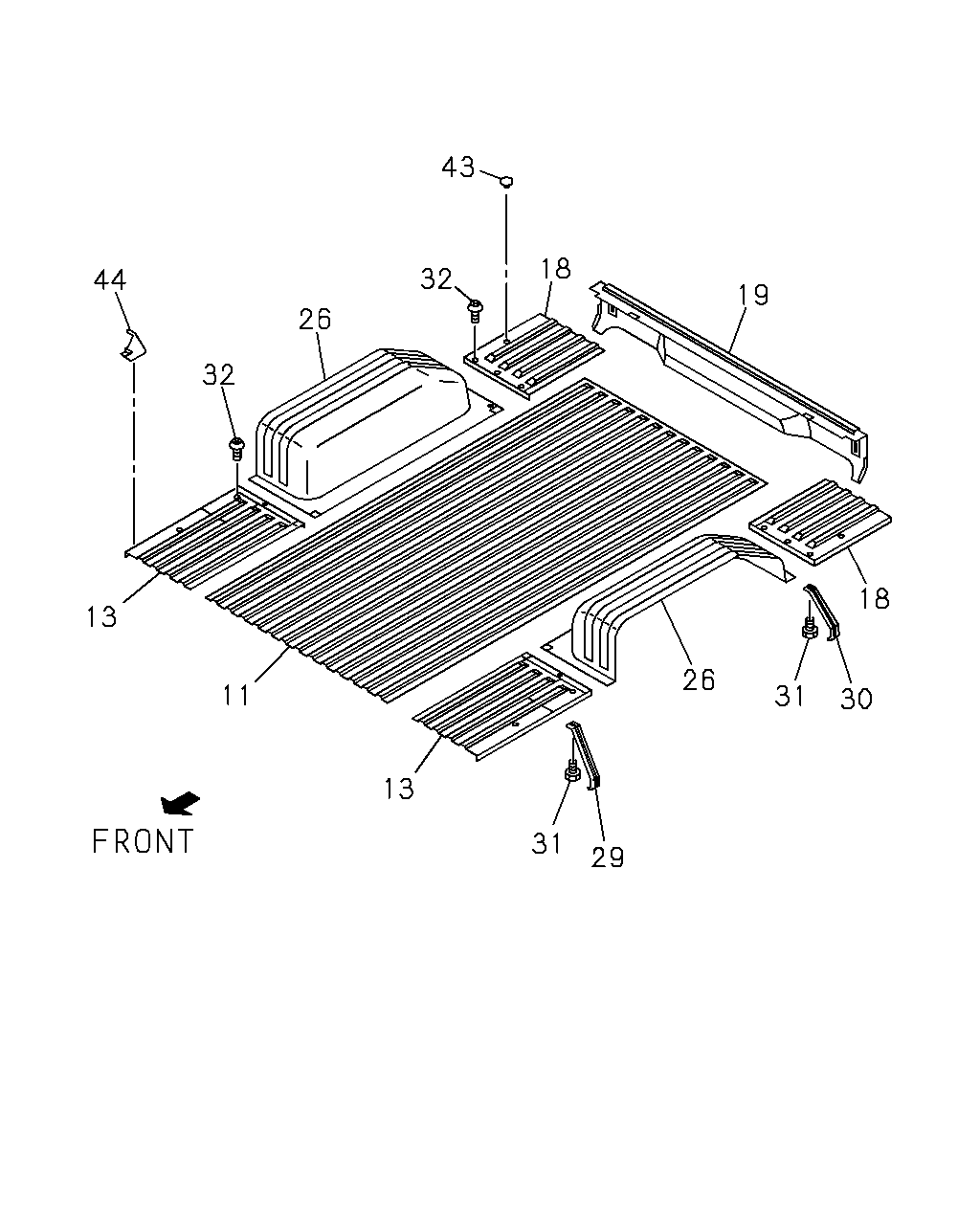

çizim 20045
43 32 26 32 44 13 11 13 31 29 26 31 30 18 19 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
11 17.400 PANEL; FLOOR BOARD,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94454-490-2 01 1 9210- ● ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94454-490-2 01 1 9210- ● ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94435-723-1 01 1 9210- ● ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94435-723-1 01 1 9210- ● ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94435-722-2 01 1 9210- ● ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94435-722-2 01 1 9210- ● ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94454-489-1 01 1 9210- ● ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94454-489-1 01 1 9210- ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94474-323-4 01 1 9210- ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94474-323-4 01 1 9210- ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94474-322-4 01 1 9210- ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94474-322-4 01 1 9210- ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94474-319-3 01 1 9210-9509 ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94474-319-3 01 1 9210-9509 ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94474-319-4 01 1 9510- ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94474-319-4 01 1 9510- ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94474-318-3 01 1 9210-9509 ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94474-318-3 01 1 9210-9509 ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94474-318-4 01 1 9510- ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94474-318-4 01 1 9510- ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94474-321-4 01 1 9210- ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94474-321-4 01 1 9210- ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94474-320-4 01 1 9210- ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94474-320-4 01 1 9210- ● ●
18 17.406 PANEL; FLOOR BOARD,RR SIDE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94463-164-2 01 1 9210- ● ● ● ● ● ●
18 17.406 PANEL; FLOOR BOARD,RR SIDE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94463-164-2 01 1 9210- ● ● ● ● ● ●
18 17.406 PANEL; FLOOR BOARD,RR SIDE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94463-163-2 01 1 9210- ● ● ● ● ● ●
18 17.406 PANEL; FLOOR BOARD,RR SIDE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94463-163-2 01 1 9210- ● ● ● ● ● ●
18 17.406 PANEL; FLOOR BOARD,RR SIDE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94463-200-2 01 1 9210- ● ●
18 17.406 PANEL; FLOOR BOARD,RR SIDE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94463-200-2 01 1 9210- ● ●
18 17.406 PANEL; FLOOR BOARD,RR SIDE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94463-165-2 01 1 9210- ● ●
18 17.406 PANEL; FLOOR BOARD,RR SIDE
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94463-165-2 01 1 9210- ● ●
19 17.208 BOLSTER; RR END,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97040-262-0 01 1 9210- ● ● ● ● ● ● ● ●
19 17.208 BOLSTER; RR END,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97040-262-0 01 1 9210- ● ● ● ● ● ●
19 17.208 BOLSTER; RR END,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97040-262-0 01 1 9210- ● ●
19 17.208 BOLSTER; RR END,RR BODY
UNITED KINGDOM EQUIPMENT(EK3) TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-264-0 01 1 9210- ● ●
26 17.505 PANEL; WHEEL HOUSE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94435-839-7 01 1 9210- ● ● ● ● ● ●
26 17.505 PANEL; WHEEL HOUSE,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94435-839-7 01 1 9210- ● ● ● ● ● ●
26 17.505 PANEL; WHEEL HOUSE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94435-838-7 01 1 9210- ● ● ● ● ● ●
26 17.505 PANEL; WHEEL HOUSE,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94435-838-7 01 1 9210- ● ● ● ● ● ●
26 17.505 PANEL; WHEEL HOUSE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94454-540-0 01 1 9210- ● ●
26 17.505 PANEL; WHEEL HOUSE,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94454-540-0 01 1 9210- ● ●
26 17.505 PANEL; WHEEL HOUSE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94454-539-0 01 1 9210- ● ●
26 17.505 PANEL; WHEEL HOUSE,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-94454-539-0 01 1 9210- ● ●
29 17.510 STAY; SIDE PANEL TO FLOOR,RR BOD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94436-934-1 02 1 9210- ● ● ● ● ● ●
29 17.510 STAY; SIDE PANEL TO FLOOR,RR BOD
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94436-934-1 02 1 9210- ● ● ● ● ● ●
30 17.510 STAY; SIDE PANEL TO FLOOR,RR BOD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94436-937-2 01 1 9210- ● ● ● ● ● ● ● ●
30 17.510 STAY; SIDE PANEL TO FLOOR,RR BOD
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94436-937-2 01 1 9210- ● ● ● ● ● ● ● ●
30 17.510 STAY; SIDE PANEL TO FLOOR,RR BOD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-94436-936-2 01 1 9210- ● ● ● ● ● ● ● ●
30 17.510 STAY; SIDE PANEL TO FLOOR,RR BOD
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94436-936-2 01 1 9210- ● ● ● ● ● ● ● ●
31 17.510 BOLT; SIDE PANEL STAY,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 08.143 M6X16 W/PL WASHER 		8-94204-636-0 04 1 9210- ● ● ● ● ● ●
31 17.510 BOLT; SIDE PANEL STAY,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 08.143 M6X16 W/PL WASHER 		8-94204-636-0 04 1 9210- ● ● ● ● ● ●
31 17.510 BOLT; SIDE PANEL STAY,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 08.143 M6X16 W/PL WASHER 		8-94204-636-0 02 1 9210- ● ●
31 17.510 BOLT; SIDE PANEL STAY,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 08.143 M6X16 W/PL WASHER 		8-94204-636-0 02 1 9210- ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 07.831 		8-94442-971-0 10 1 9302-9303 ● ● ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 07.831 		8-94442-971-0 10 1 9302-9303 ● ● ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 07.832 M6X16 		8-97020-619-0 10 1 9304-9402 ● ● ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 07.832 M6X16 		8-97020-619-0 10 1 9304-9402 ● ● ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) M6X16 W/WASHER (+) 		8-97109-753-1 10 1 9403- ● ● ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) M6X16 W/WASHER (+) 		8-97109-753-1 10 1 9403- ● ● ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 07.831 		8-94442-971-0 12 1 9302-9303 ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 07.831 		8-94442-971-0 12 1 9302-9303 ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 07.832 M6X16 		8-97020-619-0 12 1 9304-9402 ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 07.832 M6X16 		8-97020-619-0 12 1 9304-9402 ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) M6X16 W/WASHER (+) 		8-97109-753-0 12 1 9403-9509 ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) M6X16 W/WASHER (+) 		8-97109-753-0 12 1 9403-9509 ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) M6X16 W/WASHER (+) 		8-97109-753-1 12 1 9510- ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) M6X16 W/WASHER (+) 		8-97109-753-1 12 1 9510- ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 07.832 M6X16 		8-97020-619-0 10 1 9302-9303 ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 07.831 		8-94442-971-0 08 1 9302-9303 ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 07.831 		8-94442-971-0 08 1 9302-9303 ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 07.832 M6X16 		8-97020-619-0 08 1 9304-9402 ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 07.832 M6X16 		8-97020-619-0 08 1 9304-9402 ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) M6X16 W/WASHER (+) 		8-97109-753-1 08 1 9403- ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) M6X16 W/WASHER (+) 		8-97109-753-1 08 1 9403- ● ●
43 17.447 GROMMET; DUMMY HOLE,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) 		8-94478-200-0 02 1 9210- ● ● ● ● ● ● ● ●
44 17.505 SEAL; RR POST,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) 		8-97011-440-0 02 1 9210- ● ● ● ● ● ● ● ●

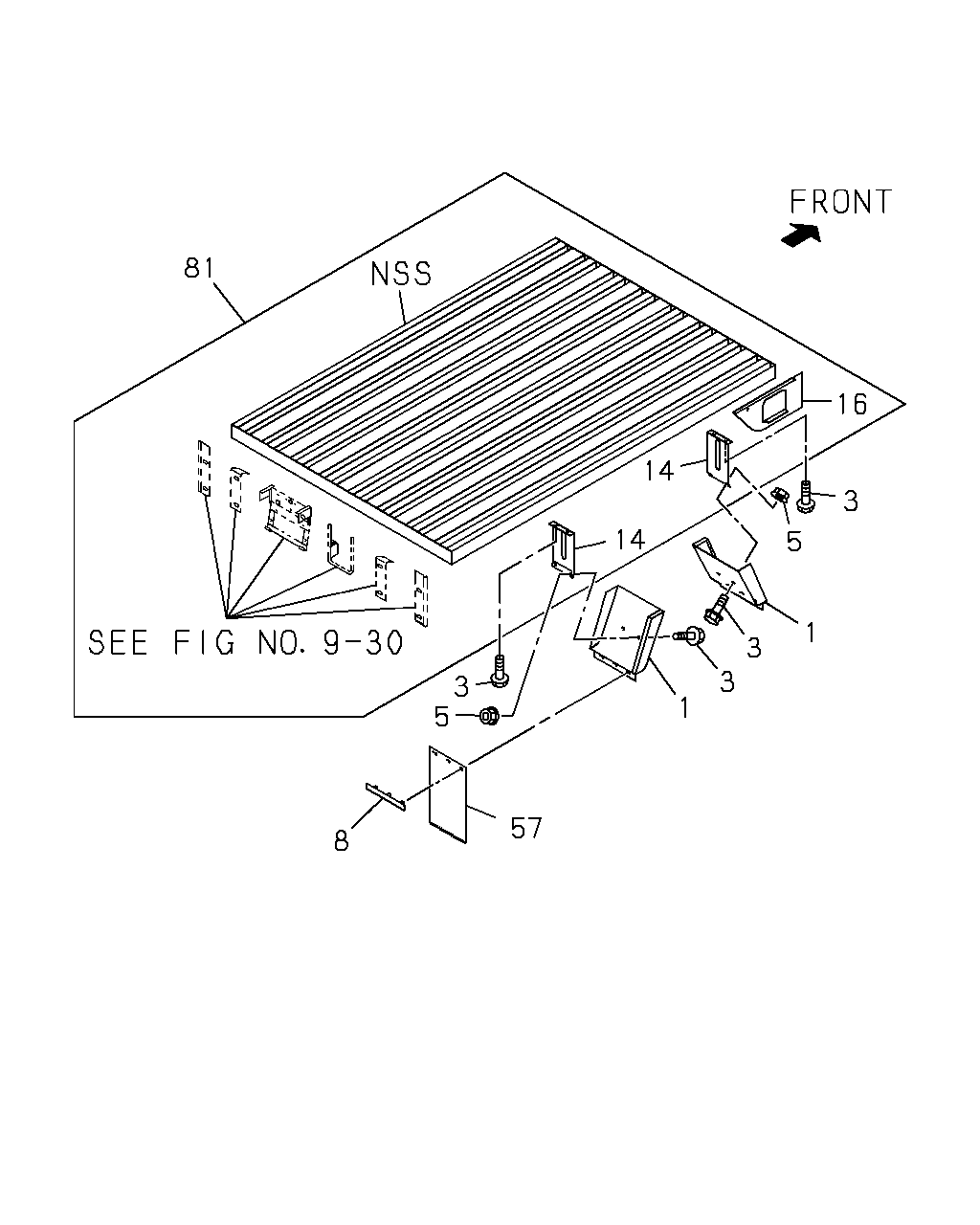

çizim 68330
81 8 57 5 3 14 14 1 3 3 1 5 3 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 08.203 FENDER; RR,RR BODY
RR BODY FLAT BED<RS6> REAR FRT 		8-94232-717-0 01 1 9210- ● ●
1 08.203 FENDER; RR,RR BODY
RR BODY FLAT BED<RS6> REAR RR 		8-94232-719-0 01 1 9210- ● ●
1 08.203 FENDER; RR,RR BODY
RR BODY FLAT BED<RS6> REAR RR 		8-94232-718-0 01 1 9210- ● ●
1 08.203 FENDER; RR,RR BODY
RR BODY FLAT BED<RS6> REAR FRT 		8-94311-682-0 01 1 9210- ● ●
3 08.203 BOLT; FENDER TO RR BODY
RR BODY FLAT BED<RS6> 12.237 		8-94124-894-0 16 1 9210- ● ●
5 17.447 NUT; FENDER TO BRKT
RR BODY FLAT BED<RS6> 		8-94197-054-0 08 1 9210- ● ●
8 08.212 HOLDER; FLAP RUBBER
RR BODY FLAT BED<RS6> MUD FLAP<VH4> 17.110 		9-61202-486-0 02 1 9210-9509 ● ●
8 08.212 HOLDER; FLAP RUBBER
RR BODY FLAT BED<RS6> MUD FLAP<VH4> 17.110 		9-61202-486-0 02 1 9510- ●
14 08.212 SUPPORT; RR FENDER
RR BODY FLAT BED<RS6> 		5-66956-001-0 04 1 9210- ● ●
16 17.455 CONNECTOR; GUARD FRAME
RR BODY FLAT BED<RS6> 		5-79990-040-0 01 1 9210- ● ●
16 17.455 CONNECTOR; GUARD FRAME
RR BODY FLAT BED<RS6> 		5-79990-039-0 01 1 9210- ● ●
57 08.214 RUBBER; FLAP RR
RR BODY FLAT BED<RS6> MUD FLAP<VH4> 17.110 		9-61202-204-0 02 1 9210-9509 ● ●
57 08.214 RUBBER; FLAP RR
RR BODY FLAT BED<RS6> MUD FLAP<VH4> 17.110 		9-61202-204-0 02 1 9510- ●
81 17.400 FLOOR ASM; RR BODY
RR BODY FLAT BED<RS6> 		8-94198-014-1 01 1 9210-9509 ● ●
81 17.400 FLOOR ASM; RR BODY
RR BODY FLAT BED<RS6> 		8-94198-024-0 01 1 9510- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
