◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50651 - TFR/TFS-RHD ▶ 9 - Tools ▶ 9-30 - REAR BODY ASM AND MOUNTING ▶
9-30 — REAR BODY ASM AND MOUNTING (#46533) — 114 parça

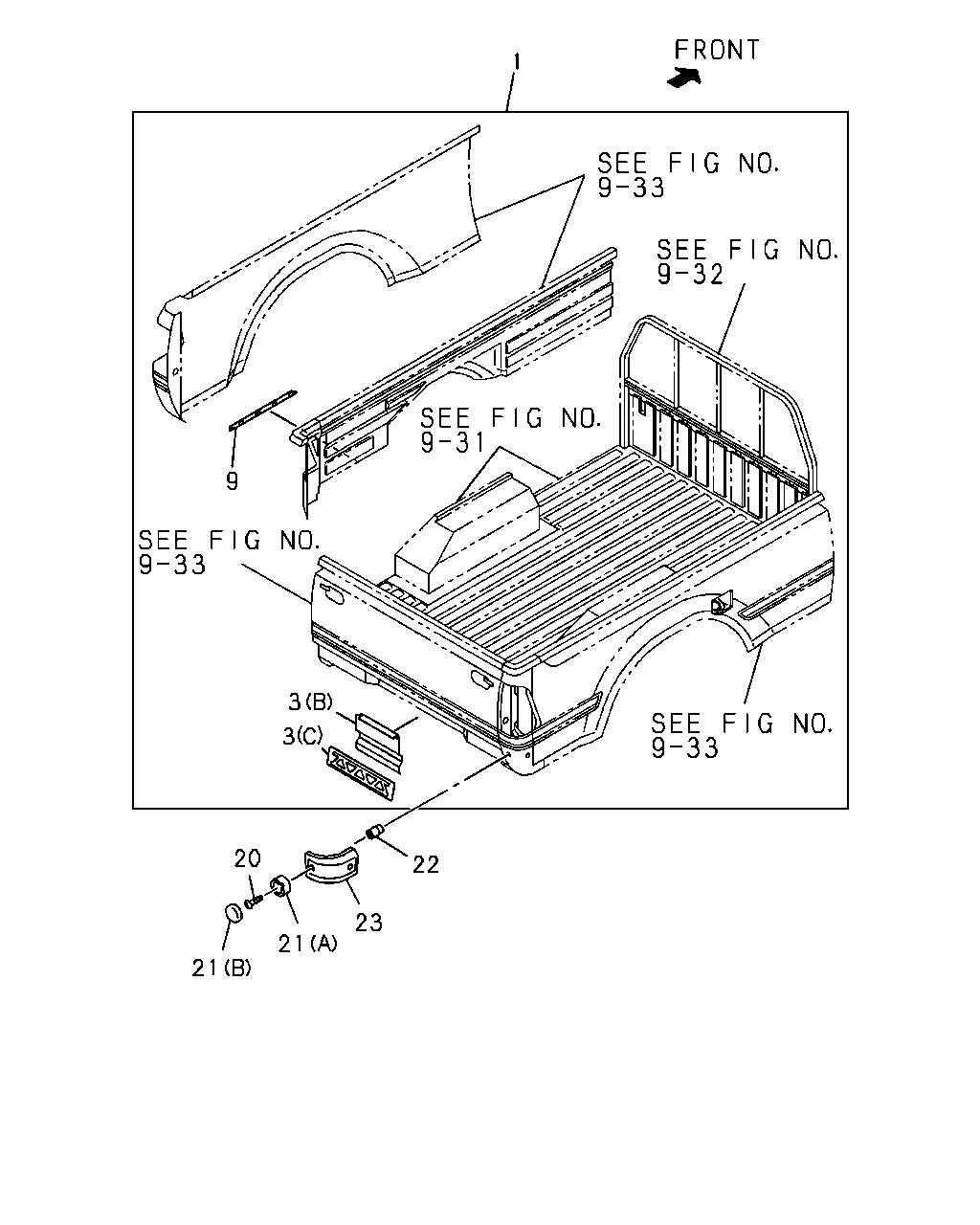

çizim 18418
1 9 3 3 20 21 21 23 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97040-239-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-230-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97040-236-0 01 1 9210-9302 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97078-484-0 01 1 9303- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-229-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97040-233-0 01 1 9210-9301 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97094-294-0 01 1 9302- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97040-240-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-226-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97040-234-0 01 1 9210-9302 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97078-482-0 01 1 9303- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-225-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97040-231-0 01 1 9210-9302 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97078-476-0 01 1 9303- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97040-238-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
RR BODY FLAT BED<RS6> 		8-94198-002-0 01 1 9210-9509 ● ●
1 17.090 BODY ASM; REAR
RR BODY FLAT BED<RS6> 		8-94198-020-0 01 1 9510- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97040-228-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97040-235-0 01 1 9210-9302 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97078-483-0 01 1 9303- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97040-227-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97040-232-0 01 1 9210-9302 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97078-477-0 01 1 9303- ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-222-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-220-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97038-355-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97038-357-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97038-354-0 01 1 9210- ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B) 		8-97040-266-0 01 1 9210- ● ● ● ● ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) (B) 		8-97040-266-0 01 1 9210- ● ● ● ● ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> (A) 		8-94404-323-0 01 1 9210- ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3) TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) (C) 		8-94327-560-1 01 1 9210- ● ●
9 17.505 COVER; MUD,FLOOR SIDE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) L=430 		8-94441-322-0 02 1 9210- ● ● ● ● ● ● ● ●
9 17.505 COVER; MUD,FLOOR SIDE,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) L=430 		8-94441-322-0 02 1 9210- ● ● ● ● ● ● ● ●
20 17.447 SCREW; PROTECTOR,RR BODY
RR BODY CORNER RUBBER<6DP> 		9-03800-635-0 04 1 9210- ● ● ● ● ● ● ● ●
21 17.447 CAP; SCREW,PROTECTOR
RR BODY CORNER RUBBER<6DP> (A) 		8-94422-713-0 04 1 9210- ● ● ● ● ● ● ● ●
21 17.447 CAP; SCREW,PROTECTOR
RR BODY CORNER RUBBER<6DP> (B) 		8-94422-712-1 04 1 9210- ● ● ● ● ● ● ● ●
22 17.447 NUT; CORNER PROTECTOR
RR BODY CORNER RUBBER<6DP> 12.183 		8-94437-508-1 04 1 9210- ● ● ● ● ● ● ● ●
23 08.214 RUBBER; RR BODY CORNER
RR BODY CORNER RUBBER<6DP> 17.447 		8-94459-715-0 01 1 9210- ● ● ● ● ● ● ● ●
23 08.214 RUBBER; RR BODY CORNER
RR BODY CORNER RUBBER<6DP> 17.447 		8-94459-714-0 01 1 9210- ● ● ● ● ● ● ● ●

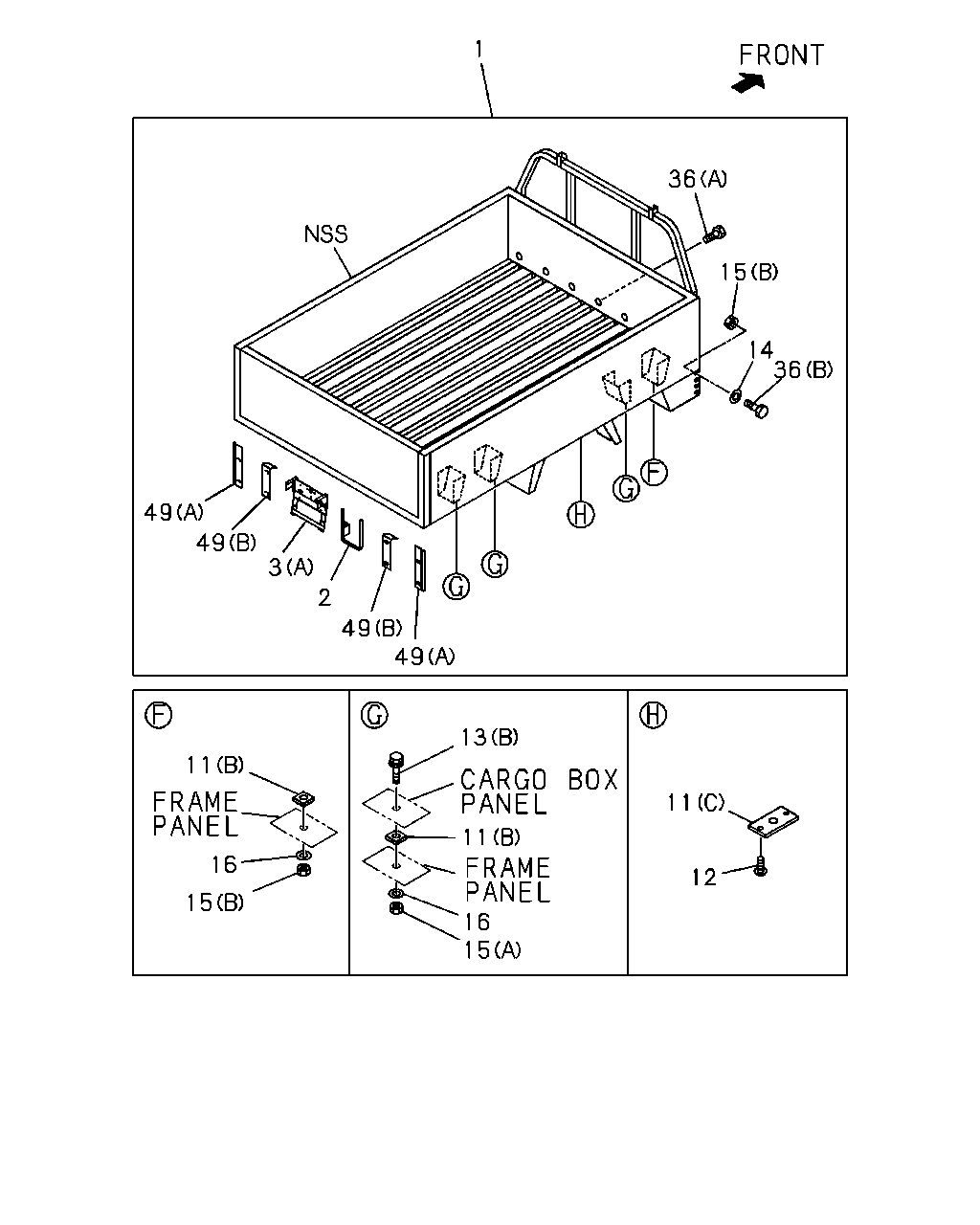

çizim 67378
1 36 15 14 36 49 49 2 3 49 49 11 16 15 13 11 16 15 11 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97040-239-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-230-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97040-236-0 01 1 9210-9302 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97078-484-0 01 1 9303- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-229-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97040-233-0 01 1 9210-9301 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97094-294-0 01 1 9302- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97040-240-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-226-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97040-234-0 01 1 9210-9302 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97078-482-0 01 1 9303- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-225-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97040-231-0 01 1 9210-9302 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97078-476-0 01 1 9303- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97040-238-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
RR BODY FLAT BED<RS6> 		8-94198-002-0 01 1 9210-9509 ● ●
1 17.090 BODY ASM; REAR
RR BODY FLAT BED<RS6> 		8-94198-020-0 01 1 9510- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97040-228-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97040-235-0 01 1 9210-9302 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97078-483-0 01 1 9303- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97040-227-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97040-232-0 01 1 9210-9302 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97078-477-0 01 1 9303- ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-222-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-220-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97038-355-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97038-357-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97038-354-0 01 1 9210- ● ●
2 17.185 STEP; RR
RR BODY FLAT BED<RS6> 		8-94178-853-0 01 1 9210- ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B) 		8-97040-266-0 01 1 9210- ● ● ● ● ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) (B) 		8-97040-266-0 01 1 9210- ● ● ● ● ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> (A) 		8-94404-323-0 01 1 9210- ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3) TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) (C) 		8-94327-560-1 01 1 9210- ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (A) 		8-94331-737-0 04 1 9210- ● ● ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (B) 		8-94331-738-1 06 1 9210- ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODYDOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/ GUARD FRAME(6MW) (B) 		8-94331-738-1 08 1 9210- ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY FLAT BED<RS6> (C) 		8-94331-736-0 02 1 9210- ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) (A) 		8-94331-737-0 02 1 9210- ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) 03.163 M6X20 		9-07077-620-0 08 1 9210- ● ● ● ● ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY FLAT BED<RS6> M5X16 TAPPING CK-HEAD 		9-07006-516-0 02 1 9210- ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 03.163 M6X20 		9-07077-620-0 04 1 9210- ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (B) M12X35 W/PL WASHER 		8-94483-977-0 02 1 9210- ● ● ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (A) 		8-94479-376-1 02 1 9210- ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (A) 		8-94479-376-1 04 1 9210- ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY FLAT BED<RS6> (B) M12X35 W/PL WASHER 		8-94483-977-0 06 1 9210- ● ●
14 09.011 WASHER; PL,RR BODY MTG
RR BODY FLAT BED<RS6> 17.455 		8-97065-438-0 12 1 9510- ● ●
15 09.011 NUT; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (A) M12 FLANGE 		8-97028-764-0 06 1 9210- ● ● ● ●
15 09.011 NUT; RR BODY MTG
RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODYDOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/ GUARD FRAME(6MW) (A) M12 FLANGE 		8-97028-764-0 08 1 9210- ● ● ● ●
15 09.011 NUT; RR BODY MTG
RR BODY FLAT BED<RS6> 17.455 (B) M10 FLANGE 		8-97065-439-0 08 1 9510- ● ●
16 09.011 WASHER; FRAME END,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) 07.874 ID=12.5 		5-09503-093-0 06 1 9210- ● ● ● ●
16 09.011 WASHER; FRAME END,RR BODY
RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODYDOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/ GUARD FRAME(6MW) 07.874 ID=12.5 		5-09503-093-0 08 1 9210- ● ● ● ●
36 17.447 BOLT; FRAME
RR BODY FLAT BED<RS6> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 07 1 9510- ● ●
36 17.447 BOLT; FRAME
RR BODY FLAT BED<RS6> 17.455 (B) M10X22 FLANGE 		8-97065-440-0 12 1 9510- ● ●
49 02.662 BRACKET; RR COMB LAMP
RR BODY FLAT BED<RS6> 17.090 (A) 		8-94232-734-0 01 1 9210- ● ●
49 02.662 BRACKET; RR COMB LAMP
RR BODY FLAT BED<RS6> (B) 		8-94311-685-0 01 1 9210- ● ●
49 02.662 BRACKET; RR COMB LAMP
RR BODY FLAT BED<RS6> 17.090 (A) 		8-94232-733-0 01 1 9210- ● ●
49 02.662 BRACKET; RR COMB LAMP
RR BODY FLAT BED<RS6> (B) 		8-94311-684-0 01 1 9210- ● ●

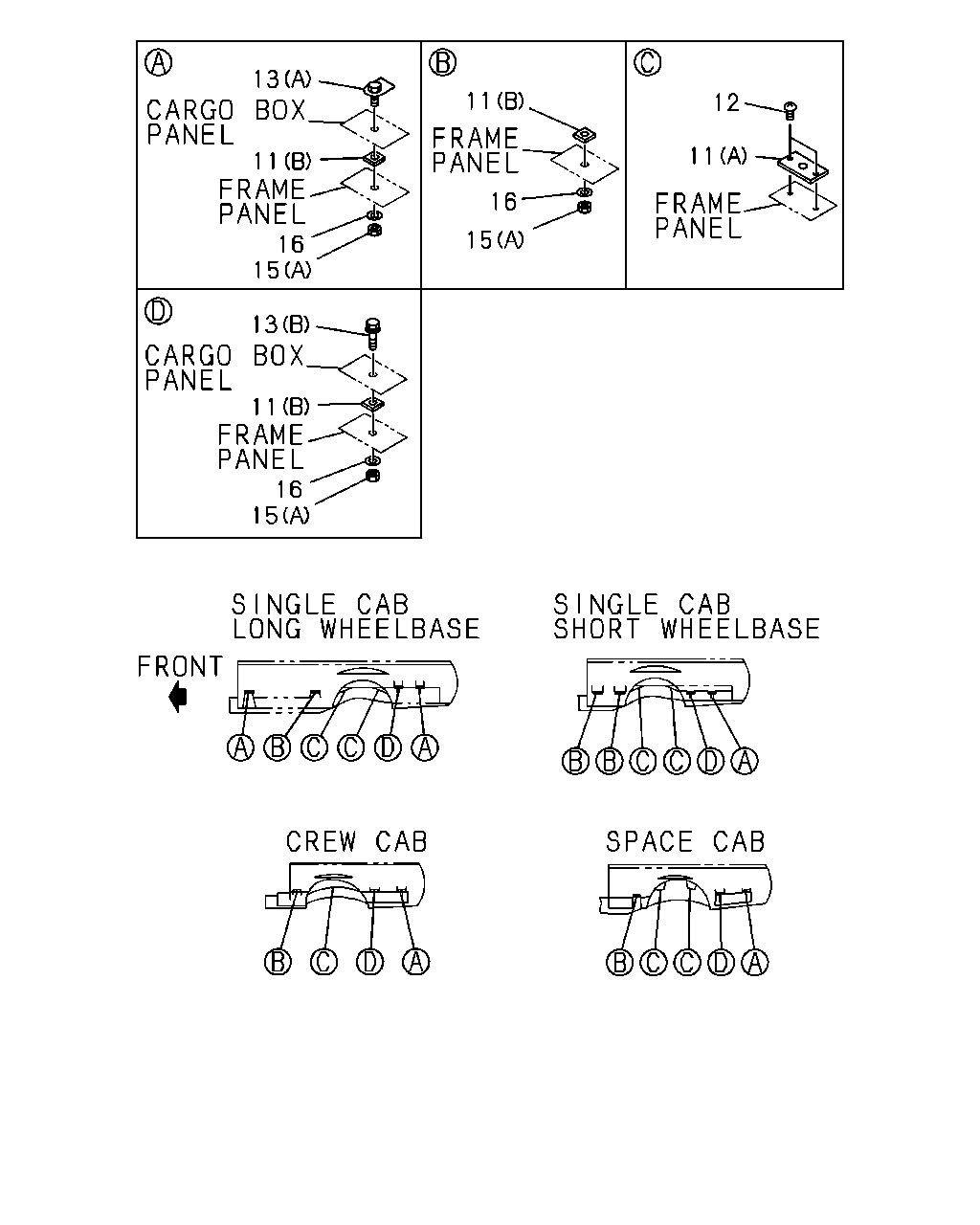

çizim 68511
13 11 16 15 11 16 15 12 11 13 11 16 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (A) 		8-94331-737-0 04 1 9210- ● ● ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (B) 		8-94331-738-1 06 1 9210- ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODYDOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/ GUARD FRAME(6MW) (B) 		8-94331-738-1 08 1 9210- ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY FLAT BED<RS6> (C) 		8-94331-736-0 02 1 9210- ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) (A) 		8-94331-737-0 02 1 9210- ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) 03.163 M6X20 		9-07077-620-0 08 1 9210- ● ● ● ● ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY FLAT BED<RS6> M5X16 TAPPING CK-HEAD 		9-07006-516-0 02 1 9210- ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 03.163 M6X20 		9-07077-620-0 04 1 9210- ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (B) M12X35 W/PL WASHER 		8-94483-977-0 02 1 9210- ● ● ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (A) 		8-94479-376-1 02 1 9210- ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (A) 		8-94479-376-1 04 1 9210- ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY FLAT BED<RS6> (B) M12X35 W/PL WASHER 		8-94483-977-0 06 1 9210- ● ●
15 09.011 NUT; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (A) M12 FLANGE 		8-97028-764-0 06 1 9210- ● ● ● ●
15 09.011 NUT; RR BODY MTG
RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODYDOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/ GUARD FRAME(6MW) (A) M12 FLANGE 		8-97028-764-0 08 1 9210- ● ● ● ●
15 09.011 NUT; RR BODY MTG
RR BODY FLAT BED<RS6> 17.455 (B) M10 FLANGE 		8-97065-439-0 08 1 9510- ● ●
16 09.011 WASHER; FRAME END,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) 07.874 ID=12.5 		5-09503-093-0 06 1 9210- ● ● ● ●
16 09.011 WASHER; FRAME END,RR BODY
RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODYDOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/ GUARD FRAME(6MW) 07.874 ID=12.5 		5-09503-093-0 08 1 9210- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
