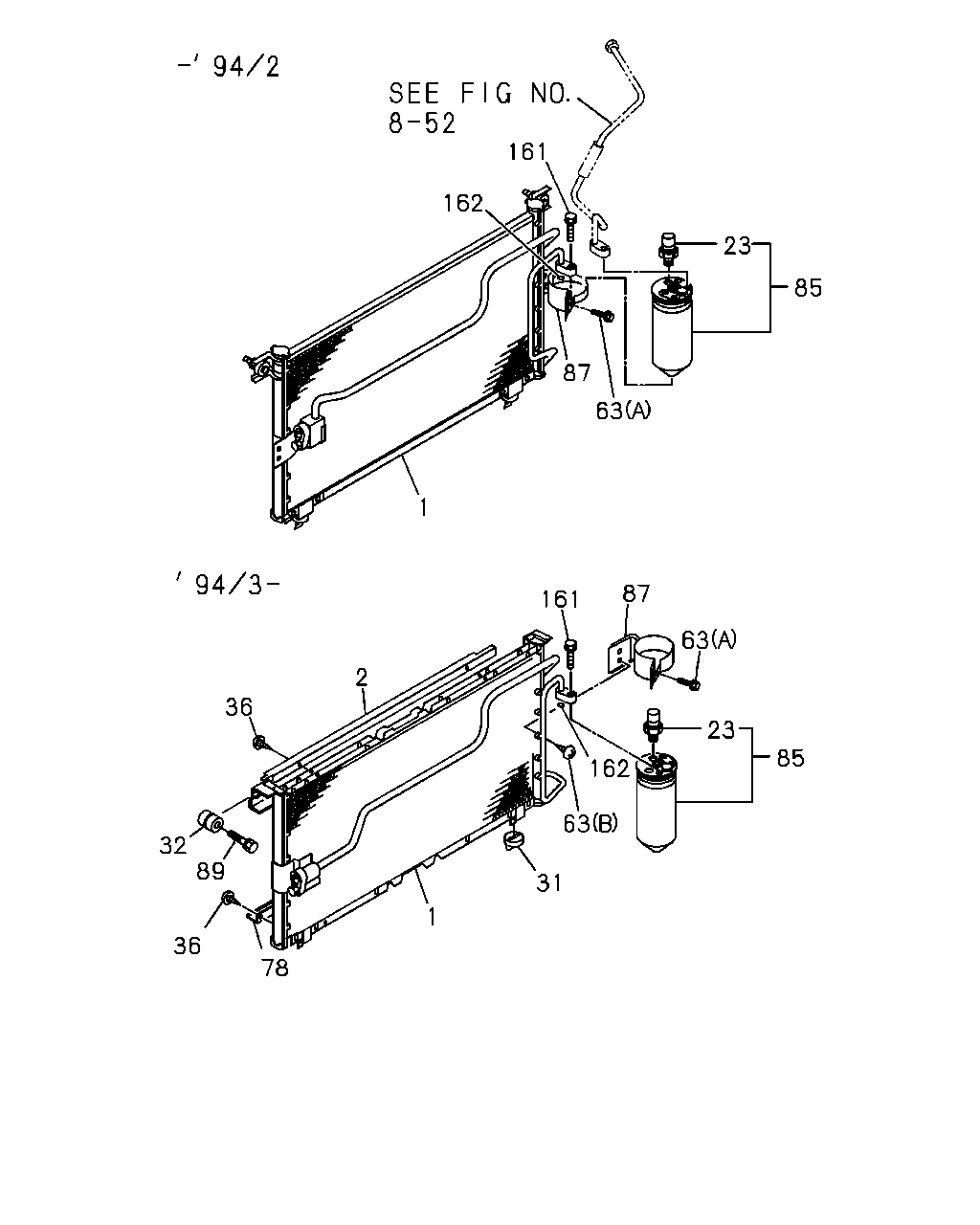

8-75 — CONDENSER (#46529) — 22 parça

161 162 87 63 23 85 1 161 87 63 23 85 162 63 31 1 78 36 89 32 36 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	09.190 CONDENSER; A/C AIR CON(C60),COOLER WO/HEATER(YL1)	8-97076-080-1	01	1	9210-9303	●	●	●	●	●	●	●	●
1	09.190 CONDENSER; A/C AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97096-053-1	01	1	9304-9402	●	●	●	●	●	●	●	●
1	09.190 CONDENSER; A/C AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97115-212-1	01	1	9403-	●	●	●	●	●	●	●	●
2	09.190 PLATE; UPR,CONDENSER AIR CON(C60),COOLER WO/HEATER(YL1)	8-97049-256-0	01	1	9403-	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CON(C60),COOLER WO/HEATER(YL1)	8-97049-271-0	01	1	9210-9303	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97095-659-0	01	1	9304-	●	●	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CON(C60),COOLER WO/HEATER(YL1)	8-97018-673-0	02	1	9403-	●	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER AIR CON(C60),COOLER WO/HEATER(YL1)	8-97096-063-0	02	1	9403-	●	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER AIR CON(C60),COOLER WO/HEATER(YL1) M5X14 TAPPING	8-97049-258-0	04	1	9403-	●	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK AIR CON(C60),COOLER WO/HEATER(YL1) (A) M6X20	8-97049-253-0	01	1	9210-	●	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK AIR CON(C60),COOLER WO/HEATER(YL1) 09.190 (B) M5X14 TAPPING	8-97049-258-0	02	1	9403-	●	●	●	●	●	●	●	●
78	09.190 PLATE; LWR,CONDENSER AIR CON(C60),COOLER WO/HEATER(YL1)	8-97049-257-0	01	1	9403-	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CON(C60),COOLER WO/HEATER(YL1)	8-97049-251-0	01	1	9210-9303	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97095-658-0	01	1	9304-9402	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97115-452-0	01	1	9403-	●	●	●	●	●	●	●	●
87	09.196 BRACKET; RECEIVER DRYER AIR CON(C60),COOLER WO/HEATER(YL1)	8-97091-159-0	01	1	9210-	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY AIR CON(C60),COOLER WO/HEATER(YL1)	8-97049-255-0	02	1	9403-	●	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE AIR CON(C60),COOLER WO/HEATER(YL1)	8-97049-254-0	01	1	9210-9303	●	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE AIR CON(C60),COOLER WO/HEATER(YL1) M6X25	8-97095-660-0	01	1	9304-	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CON(C60),COOLER WO/HEATER(YL1) 09.214 ID=6	8-94481-700-0	01	1	9210-9402	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CON(C60),COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	01	1	9403-9412	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CON(C60),COOLER WO/HEATER(YL1) 09.214 ID=6	8-94481-700-0	01	1	9501-	●	●	●	●	●	●	●	●
