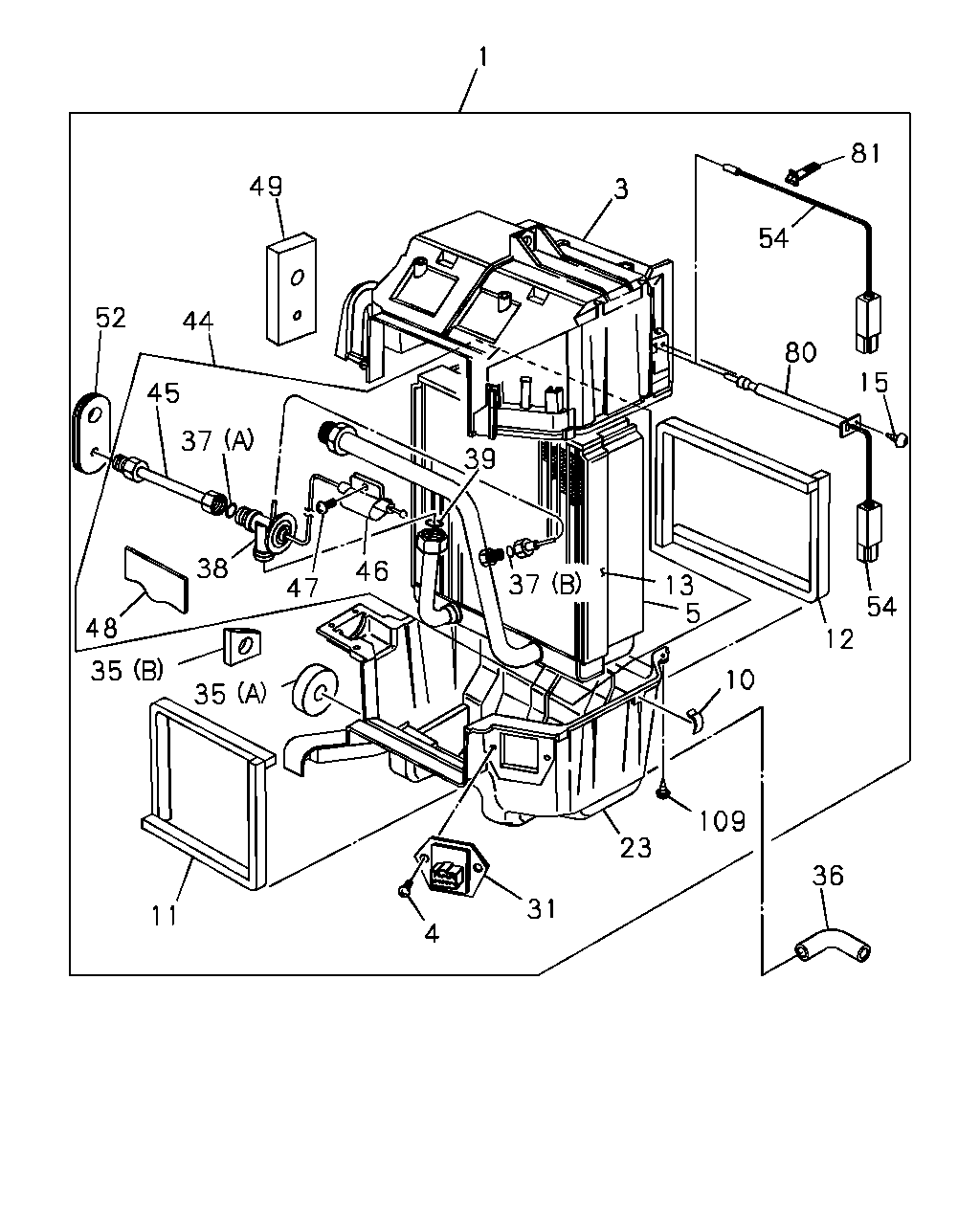

8-74 — EVAPORATOR (#46528) — 46 parça

1 49 44 52 45 37 38 48 35 35 11 47 46 4 31 23 109 36 10 5 13 37 39 3 81 54 80 15 12 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	09.210 EVAPORATOR ASM AIR CON(C60),COOLER WO/HEATER(YL1)	8-94380-198-1	01	1	9210-9303	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-851-1	01	1	9304-9404	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97109-570-2	01	1	9405-	●	●	●	●	●	●	●	●
3	09.211 CASE; EVAP,UPR AIR CON(C60),COOLER WO/HEATER(YL1)	8-97046-498-0	01	1	9210-9404	●	●	●	●	●	●	●	●
3	09.211 CASE; EVAP,UPR AIR CON(C60),COOLER WO/HEATER(YL1)	8-97112-510-1	01	1	9405-	●	●	●	●	●	●	●	●
4	09.211 SCREW; RESISTOR TO CASE AIR CON(C60),COOLER WO/HEATER(YL1) 08.855	8-94248-807-0	02	1	9210-	●	●	●	●	●	●	●	●
5	09.210 EVAPORATOR AIR CON(C60),COOLER WO/HEATER(YL1)	8-97046-501-0	01	1	9210-9511	●	●	●	●	●	●	●	●
5	09.210 EVAPORATOR AIR CON(C60),COOLER WO/HEATER(YL1)	8-97143-243-0	01	1	9512-	●	●	●	●	●	●	●	●
10	09.211 CLIP; EVAP CASE AIR CON(C60),COOLER WO/HEATER(YL1) 08.854	1-83574-148-0	03	1	9210-	●	●	●	●	●	●	●	●
11	09.211 LINING; EVAP A/C AIR CON(C60),COOLER WO/HEATER(YL1)	8-94324-804-0	02	1	9210-9307	●	●	●	●	●	●	●	●
11	09.211 LINING; EVAP A/C AIR CON(C60),COOLER WO/HEATER(YL1)	8-97105-793-0	01	1	9308-9404	●	●	●	●	●	●	●	●
11	09.211 LINING; EVAP A/C AIR CON(C60),COOLER WO/HEATER(YL1)	8-97103-724-0	01	1	9405-	●	●	●	●	●	●	●	●
12	09.211 LINING; EVAP AIR CON(C60),COOLER WO/HEATER(YL1)	8-94324-805-0	02	1	9210-9307	●	●	●	●	●	●	●	●
12	09.211 LINING; EVAP AIR CON(C60),COOLER WO/HEATER(YL1)	8-97105-794-0	01	1	9308-9404	●	●	●	●	●	●	●	●
12	09.211 LINING; EVAP AIR CON(C60),COOLER WO/HEATER(YL1)	8-97103-723-0	01	1	9405-	●	●	●	●	●	●	●	●
13	09.211 SEAL; EVAP AIR CON(C60),COOLER WO/HEATER(YL1) T=5.0	8-97069-402-0	01	1	9210-	●	●	●	●	●	●	●	●
15	09.211 SCREW; BRKT TO CASE AIR CON(C60),COOLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	01	1	9210-9307	●	●	●	●	●	●	●	●
23	09.211 CASE; EVAP,LWR AIR CON(C60),COOLER WO/HEATER(YL1)	8-97046-499-1	01	1	9210-	●	●	●	●	●	●	●	●
31	09.277 RESISTOR; POWER EVAP AIR CON(C60),COOLER WO/HEATER(YL1) 08.855	8-97078-452-1	01	1	9210-	●	●	●	●	●	●	●	●
35	09.211 GROMMET; EVAP,LOW AIR CON(C60),COOLER WO/HEATER(YL1) (A)	8-97069-405-2	01	1	9210-	●	●	●	●	●	●	●	●
35	09.211 GROMMET; EVAP,LOW AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-97069-406-0	01	1	9210-9307	●	●	●	●	●	●	●	●
36	09.211 HOSE; DRAIN EVAP AIR CON(C60),COOLER WO/HEATER(YL1)	8-94446-972-1	01	1	9210-	●	●	●	●	●	●	●	●
37	09.214 GASKET; EVAP AIR CON(C60),COOLER WO/HEATER(YL1) (B) ID=4.5	8-94248-212-0	01	1	9210-9404	●	●	●	●	●	●	●	●
37	09.214 GASKET; EVAP AIR CON(C60),COOLER WO/HEATER(YL1) (A) ID=6	8-94481-700-0	01	1	9210-	●	●	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CON(C60),COOLER WO/HEATER(YL1)	8-94327-421-0	01	1	9210-9303	●	●	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-275-0	01	1	9304-9404	●	●	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97112-753-0	01	1	9405-9511	●	●	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CON(C60),COOLER WO/HEATER(YL1)	8-97143-242-0	01	1	9512-	●	●	●	●	●	●	●	●
39	09.214 GASKET; EVAP AIR CON(C60),COOLER WO/HEATER(YL1)	8-94481-717-0	01	1	9210-	●	●	●	●	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CON(C60),COOLER WO/HEATER(YL1)	8-97046-500-0	01	1	9210-9303	●	●	●	●	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97095-628-1	01	1	9304-9511	●	●	●	●	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CON(C60),COOLER WO/HEATER(YL1)	8-97143-364-0	01	1	9512-	●	●	●	●	●	●	●	●
45	09.220 PIPE; EXPANSION VLV AIR CON(C60),COOLER WO/HEATER(YL1)	8-97046-489-0	01	1	9210-	●	●	●	●	●	●	●	●
46	09.214 CLIP; EXPANSION VLV AIR CON(C60),COOLER WO/HEATER(YL1)	1-83574-124-1	01	1	9210-	●	●	●	●	●	●	●	●
47	09.214 SCREW; EVAP AIR CON(C60),COOLER WO/HEATER(YL1) M5X14	8-94244-002-0	01	1	9210-9511	●	●	●	●	●	●	●	●
47	09.214 SCREW; EVAP AIR CON(C60),COOLER WO/HEATER(YL1)	8-97130-601-0	01	1	9512-	●	●	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP AIR CON(C60),COOLER WO/HEATER(YL1)	5-83579-024-0	01	1	9210-9307	●	●	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP AIR CON(C60),COOLER WO/HEATER(YL1)	8-97105-792-0	01	1	9308-9404	●	●	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP AIR CON(C60),COOLER WO/HEATER(YL1)	8-97103-725-0	01	1	9405-	●	●	●	●	●	●	●	●
49	09.211 GROMMET; EVAP AIR CON(C60),COOLER WO/HEATER(YL1)	8-97069-404-1	01	1	9210-	●	●	●	●	●	●	●	●
52	09.242 GROMMET; EVAP,A/C AIR CON(C60),COOLER WO/HEATER(YL1)	8-94324-801-0	01	1	9210-	●	●	●	●	●	●	●	●
54	09.172 THERMOSTAT; A/C AIR CON(C60),COOLER WO/HEATER(YL1) 09.275	8-97046-491-0	01	1	9210-9303	●	●	●	●	●	●	●	●
54	09.172 THERMOSTAT; A/C AIR CON(C60),COOLER WO/HEATER(YL1) 09.275 "R-134A"	8-97087-577-0	01	1	9304-	●	●	●	●	●	●	●	●
80	09.211 BRACKET AIR CON(C60),COOLER WO/HEATER(YL1)	8-97046-494-0	01	1	9210-9303	●	●	●	●	●	●	●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CON(C60),COOLER WO/HEATER(YL1)	8-94481-724-0	01	1	9304-	●	●	●	●	●	●	●	●
109	09.211 BOLT; EVAP AIR CON(C60),COOLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	04	1	9210-	●	●	●	●	●	●	●	●
