8-73 — BLOWER UNIT (#46527) — 65 parça

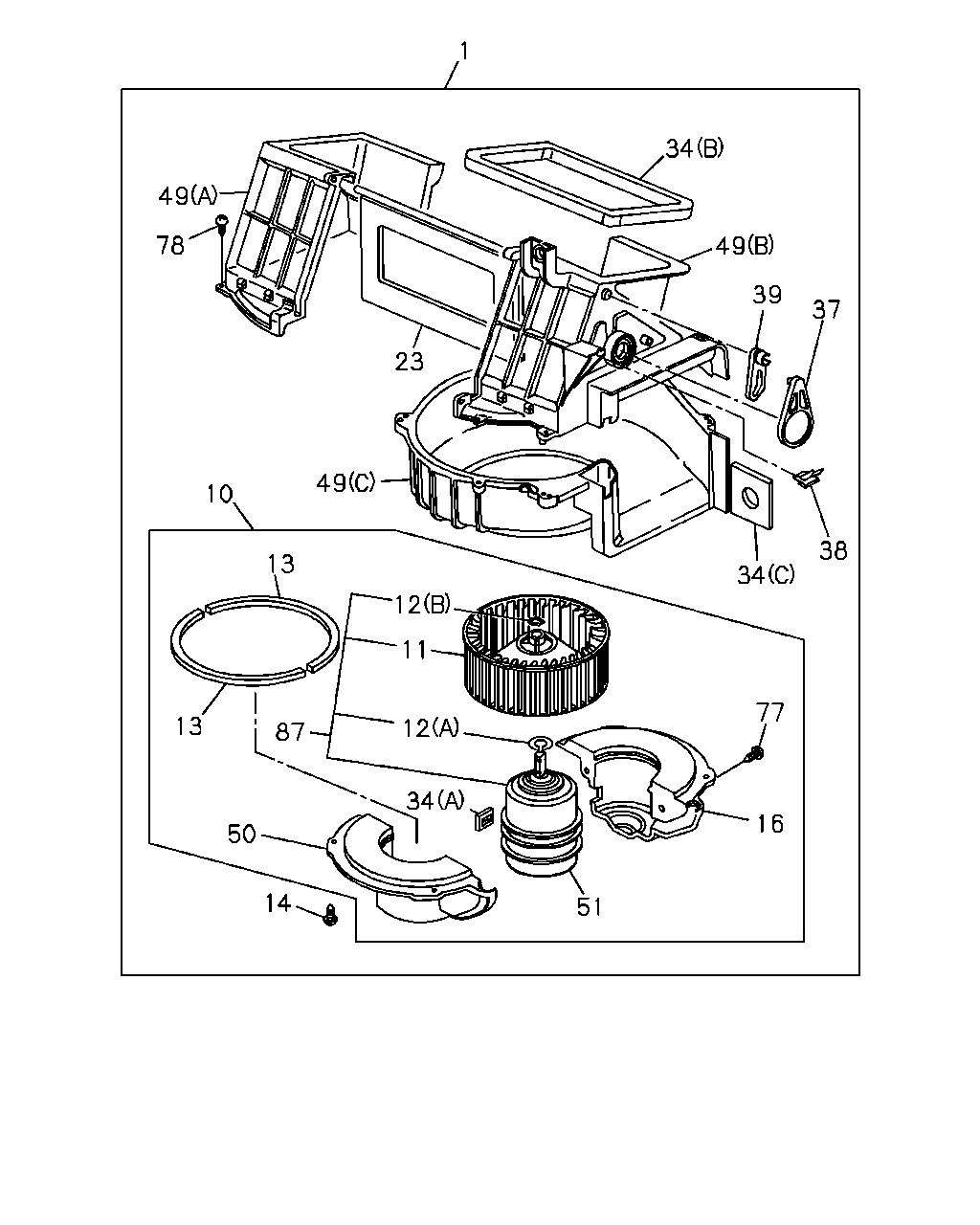

1 34 49 39 37 38 34 23 49 78 49 10 13 13 87 50 14 34 12 11 12 51 16 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	08.855 BLOWER ASM HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-97078-870-2	01	1	9210-9404	●	●	●	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-97109-566-0	01	1	9405-9511	●	●	●	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-97139-526-1	01	1	9512-	●	●	●	●	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94327-433-5	01	1	9210-9404	●	●	●	●	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-97103-726-0	01	1	9405-	●	●	●	●	●	●	●	●
11	08.857 IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94327-434-0	01	1	9210-9303	●	●	●	●	●	●	●	●
11	08.857 IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-97089-700-0	01	1	9304-9406	●	●	●	●	●	●	●	●
11	08.857 IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-97089-700-0	01	1	9407-	●	●	●	●	●	●	●	●
12	08.857 RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (A)	5-83569-088-0	01	1	9210-9404	●	●	●	●	●	●	●	●
12	08.857 RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-94243-962-0	01	1	9210-	●	●	●	●	●	●	●	●
13	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94324-816-0	02	1	9210-	●	●	●	●	●	●	●	●
14	08.857 SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 08.846 M5X16	8-94248-820-0	04	1	9210-9511	●	●	●	●	●	●	●	●
14	08.857 SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 10.240 M5X20	9-09829-324-1	04	1	9512-	●	●	●	●	●	●	●	●
16	08.857 COVER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94324-814-0	01	1	9210-9303	●	●	●	●	●	●	●	●
16	08.857 COVER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94324-813-0	01	1	9304-9308	●	●	●	●	●	●	●	●
16	08.857 COVER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94324-814-0	01	1	9309-9404	●	●	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94324-818-2	01	1	9210-9404	●	●	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-97073-514-0	01	1	9405-9511	●	●	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94324-818-2	01	1	9512-	●	●	●	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (A)	8-97027-786-0	01	1	9210-9404	●	●	●	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-97069-409-0	01	1	9210-9308	●	●	●	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-94327-437-0	01	1	9309-	●	●	●	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (C)	8-97069-410-0	01	1	9210-9308	●	●	●	●	●	●	●	●
37	09.786 LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94327-435-2	01	1	9210-	●	●	●	●	●	●	●	●
38	09.787 CLIP; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94337-654-0	01	1	9210-	●	●	●	●	●	●	●	●
39	09.786 LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94327-436-0	01	1	9210-	●	●	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (A)	8-94327-430-1	01	1	9210-	●	●	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-94327-431-1	01	1	9210-	●	●	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (C)	8-94327-432-1	01	1	9210-	●	●	●	●	●	●	●	●
50	08.857 COVER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94324-813-0	01	1	9210-9303	●	●	●	●	●	●	●	●
50	08.857 COVER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94324-814-0	01	1	9304-9308	●	●	●	●	●	●	●	●
50	08.857 COVER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94324-813-0	01	1	9309-9404	●	●	●	●	●	●	●	●
51	08.855 ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94324-815-0	01	1	9210-9404	●	●	●	●	●	●	●	●
77	08.857 SCREW; COVER TO COVER,BLOWER UNI HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 08.846 M5X16	8-94248-820-0	02	1	9210-9404	●	●	●	●	●	●	●	●
78	08.857 SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	10	1	9210-9511	●	●	●	●	●	●	●	●
78	08.857 SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	08	1	9512-	●	●	●	●	●	●	●	●
87	08.855 MOTOR ASM; FAN HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-97083-138-1	01	1	9210-9404	●	●	●	●	●	●	●	●

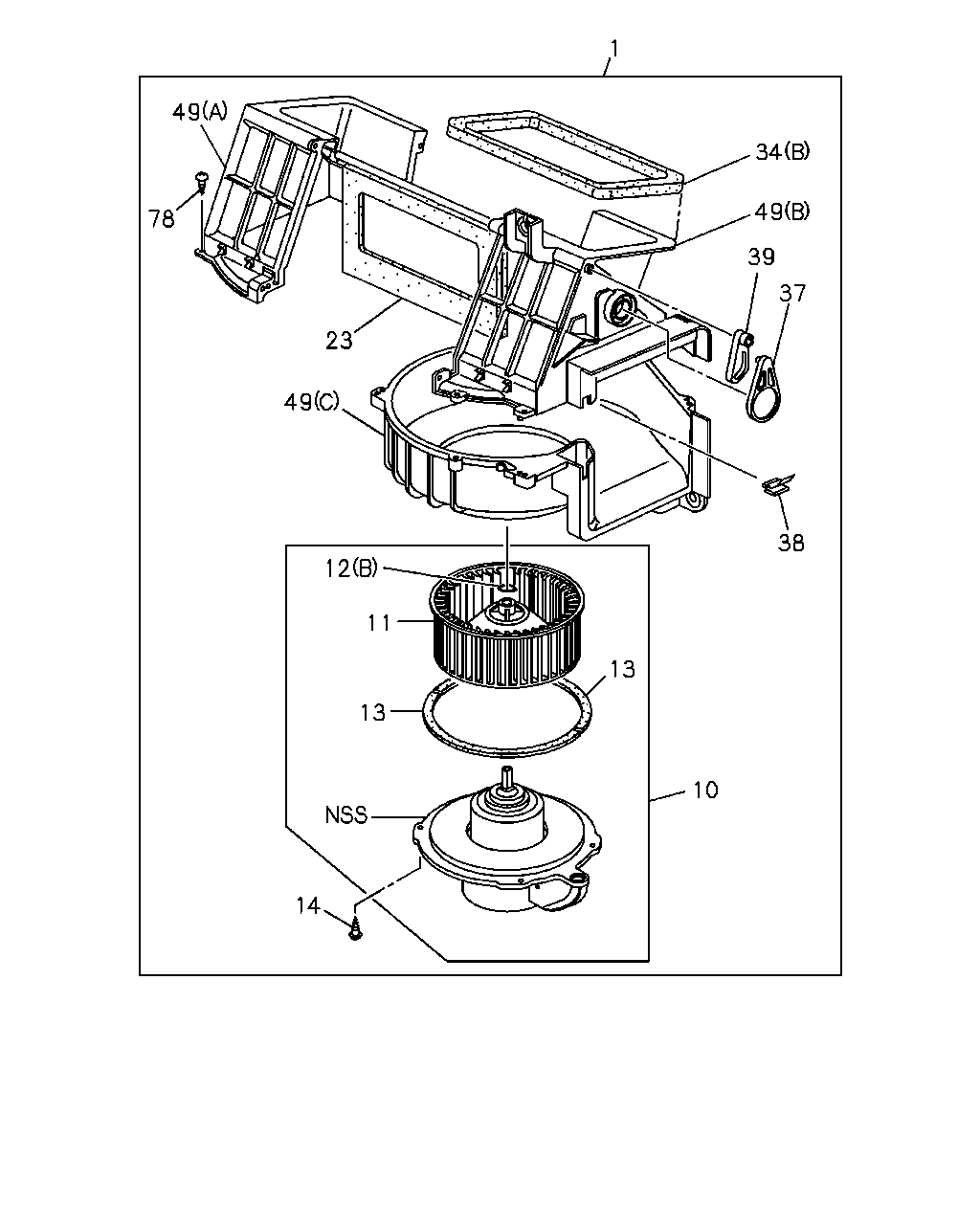

1 49 78 23 49 12 11 13 14 10 13 38 37 39 49 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	08.855 BLOWER ASM HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-97078-870-2	01	1	9210-9404	●	●	●	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-97109-566-0	01	1	9405-9511	●	●	●	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-97139-526-1	01	1	9512-	●	●	●	●	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94327-433-5	01	1	9210-9404	●	●	●	●	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-97103-726-0	01	1	9405-	●	●	●	●	●	●	●	●
11	08.857 IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94327-434-0	01	1	9210-9303	●	●	●	●	●	●	●	●
11	08.857 IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-97089-700-0	01	1	9304-9406	●	●	●	●	●	●	●	●
11	08.857 IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-97089-700-0	01	1	9407-	●	●	●	●	●	●	●	●
12	08.857 RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (A)	5-83569-088-0	01	1	9210-9404	●	●	●	●	●	●	●	●
12	08.857 RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-94243-962-0	01	1	9210-	●	●	●	●	●	●	●	●
13	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94324-816-0	02	1	9210-	●	●	●	●	●	●	●	●
14	08.857 SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 08.846 M5X16	8-94248-820-0	04	1	9210-9511	●	●	●	●	●	●	●	●
14	08.857 SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 10.240 M5X20	9-09829-324-1	04	1	9512-	●	●	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94324-818-2	01	1	9210-9404	●	●	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-97073-514-0	01	1	9405-9511	●	●	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94324-818-2	01	1	9512-	●	●	●	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (A)	8-97027-786-0	01	1	9210-9404	●	●	●	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-97069-409-0	01	1	9210-9308	●	●	●	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-94327-437-0	01	1	9309-	●	●	●	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (C)	8-97069-410-0	01	1	9210-9308	●	●	●	●	●	●	●	●
37	09.786 LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94327-435-2	01	1	9210-	●	●	●	●	●	●	●	●
38	09.787 CLIP; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94337-654-0	01	1	9210-	●	●	●	●	●	●	●	●
39	09.786 LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94327-436-0	01	1	9210-	●	●	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (A)	8-94327-430-1	01	1	9210-	●	●	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-94327-431-1	01	1	9210-	●	●	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) (C)	8-94327-432-1	01	1	9210-	●	●	●	●	●	●	●	●
78	08.857 SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	10	1	9210-9511	●	●	●	●	●	●	●	●
78	08.857 SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	08	1	9512-	●	●	●	●	●	●	●	●
