Sayfa 8-71 - Isuzu EPC

8-71 — COMPRESSOR; AIR CONDITIONING (#46526) — 178 parça

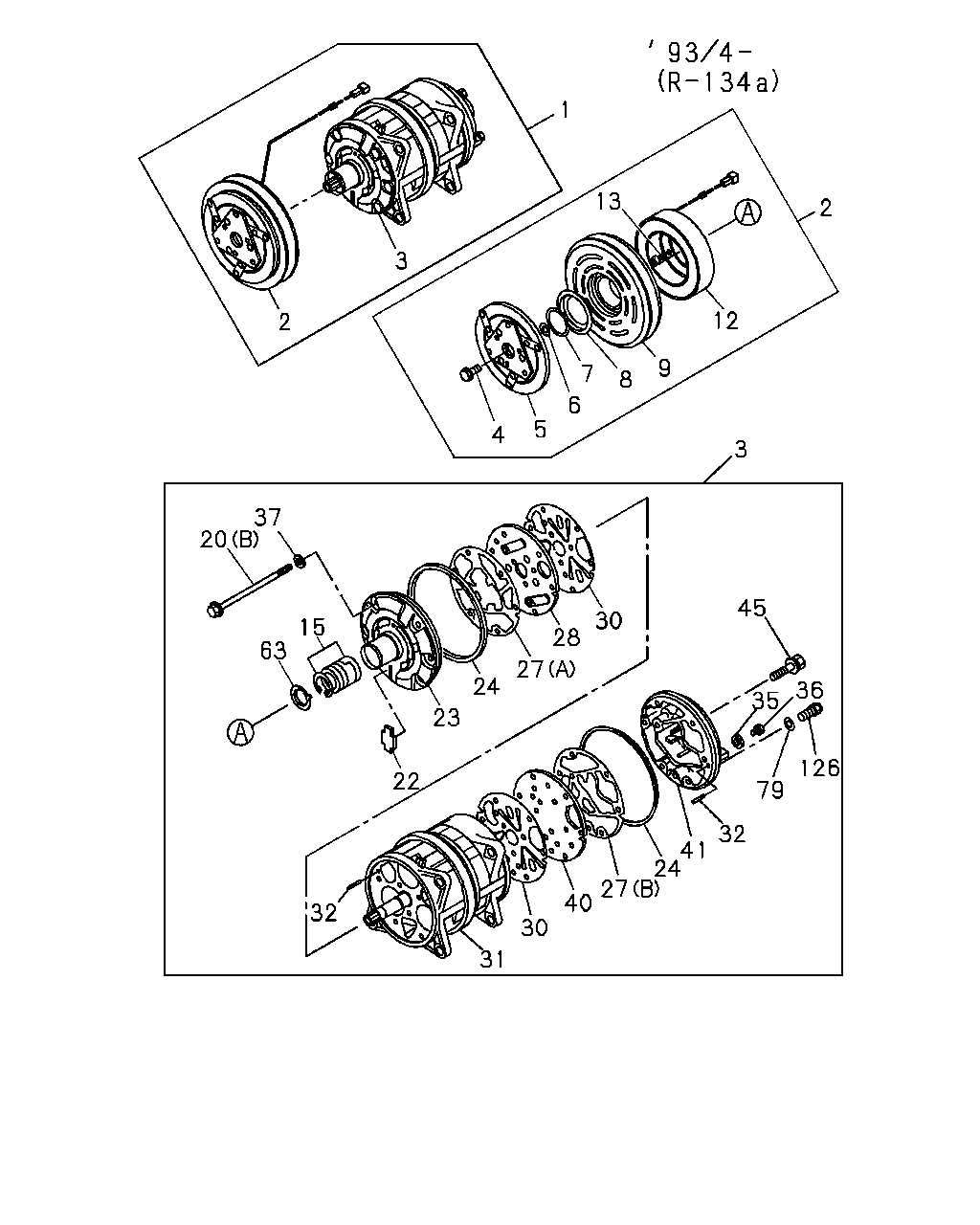

1 3 2 4 5 6 7 8 9 12 13 2 3 30 28 27 24 23 22 37 20 63 15 45 36 35 126 79 32 41 24 27 40 30 31 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	09.170 COMPRESSOR ASM; A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97044-160-0	01	1	9210-9303	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1) VALEO R-134A	8-97068-821-1	01	1	9304-	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97044-161-0	01	1	9210-9303	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) VALEO R-134A	8-97068-820-2	01	1	9304-	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94435-171-1	01	1	9210-9308		●	●	●		●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97045-884-0	01	1	9210-9311	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97114-213-0	01	1	9312-	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97045-873-0	01	1	9210-9311	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97114-212-0	01	1	9312-	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94316-910-0	01	1	9210-9308		●	●	●		●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97095-748-0	01	1	9304-9311	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97114-229-0	01	1	9312-	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97034-775-0	01	1	9210-9303	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97101-654-0	01	1	9304-9311	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97114-228-0	01	1	9312-	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94316-908-0	01	1	9210-9308		●	●	●		●	●	●
4	09.181 BOLT; MAGNET CLU AIR CON(C60),COOLER WO/HEATER(YL1) 09.186	8-94164-439-0	01	1	9210-	●	●	●	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97034-789-0	01	1	9210-	●	●	●	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97034-788-0	01	1	9210-	●	●	●	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94316-913-0	01	1	9210-9308		●	●	●		●	●	●
6	09.181 SHIM; MAGNET CLU 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) T=0.1	8-94120-721-0	AR	1	9210-9308	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) T=0.3	8-94120-722-0	AR	1	9210-9308	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) T=0.5	8-94120-723-0	AR	1	9210-9308	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) T=0.1	8-94120-721-0	AR	1	9309-9509	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU AIR CON(C60),COOLER WO/HEATER(YL1) T=0.1	8-94120-721-0	AR	1	9510-	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) T=0.3	8-94120-722-0	AR	1	9309-9509	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU AIR CON(C60),COOLER WO/HEATER(YL1) T=0.3	8-94120-722-0	AR	1	9510-	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) T=0.5	8-94120-723-0	AR	1	9309-9509	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU AIR CON(C60),COOLER WO/HEATER(YL1) T=0.5	8-94120-723-0	AR	1	9510-	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1) T=0.1	8-94120-721-0	03	1	9210-9308		●	●	●		●	●	●
6	09.181 SHIM; MAGNET CLU C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1) T=0.3	8-94120-722-0	03	1	9210-9308		●	●	●		●	●	●
6	09.181 SHIM; MAGNET CLU C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1) T=0.5	8-94120-723-0	03	1	9210-9308		●	●	●		●	●	●
7	09.181 RING; SNAP,PULLEY AIR CON(C60),COOLER WO/HEATER(YL1)	8-94120-724-0	01	1	9210-	●	●	●	●	●	●	●	●
8	09.181 COVER; PULLEY AIR CON(C60),COOLER WO/HEATER(YL1)	8-94120-725-0	01	1	9210-	●	●	●	●	●	●	●	●
9	09.181 PULLEY; MAGNET CLU 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97044-906-0	01	1	9210-	●	●	●	●	●	●	●	●
9	09.181 PULLEY; MAGNET CLU 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97034-790-0	01	1	9210-	●	●	●	●	●	●	●	●
9	09.181 PULLEY; MAGNET CLU C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94146-804-0	01	1	9210-9308		●	●	●		●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97044-907-0	01	1	9210-	●	●	●	●	●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97045-883-0	01	1	9210-	●	●	●	●	●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94466-702-0	01	1	9210-9308		●	●	●		●	●	●
13	09.186 SCREW; COIL FIELD AIR CON(C60),COOLER WO/HEATER(YL1) 09.188	8-94120-727-0	03	1	9210-	●	●	●	●	●	●	●	●
15	09.175 SEAL; SHAFT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97045-882-0	01	1	9210-9303	●	●	●	●	●	●	●	●
15	09.175 SEAL; SHAFT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97081-397-0	01	1	9304-9311	●	●	●	●	●	●	●	●
15	09.175 SEAL; SHAFT AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97114-217-0	01	1	9312-	●	●	●	●	●	●	●	●
15	09.175 SEAL; SHAFT C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94466-697-0	01	1	9210-9308		●	●	●		●	●	●
20	09.174 BOLT; CMPR 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) 09.173 (A)	8-94164-473-0	01	1	9210-9303	●	●	●	●	●	●	●	●
20	09.174 BOLT; CMPR 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-97034-781-0	06	1	9210-9509	●	●	●	●	●	●	●	●
20	09.174 BOLT; CMPR AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-97034-781-0	06	1	9510-	●	●	●	●	●	●	●	●
20	09.174 BOLT; CMPR C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-94472-868-0	06	1	9210-9308		●	●	●		●	●	●
22	09.172 FELT; CYL HD,FRT AIR CON(C60),COOLER WO/HEATER(YL1)	8-94441-396-0	01	1	9210-9311	●	●	●	●	●	●	●	●
23	09.174 HEAD; CYL,FRT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97034-782-0	01	1	9210-9311	●	●	●	●	●	●	●	●
23	09.174 HEAD; CYL,FRT AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97114-215-0	01	1	9312-	●	●	●	●	●	●	●	●
23	09.174 HEAD; CYL,FRT C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94466-683-0	01	1	9210-9308		●	●	●		●	●	●
24	09.172 GASKET; CMPR AIR CON(C60),COOLER WO/HEATER(YL1)	8-94466-681-0	02	1	9210-9303	●	●	●	●	●	●	●	●
24	09.172 GASKET; CMPR AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97081-396-0	02	1	9304-	●	●	●	●	●	●	●	●
27	09.174 GASKET; CYL HD AIR CON(C60),COOLER WO/HEATER(YL1) (A)	8-94466-685-0	01	1	9210-9303	●	●	●	●	●	●	●	●
27	09.174 GASKET; CYL HD AIR CON(C60),COOLER WO/HEATER(YL1) (A) "R-134A"	8-97085-777-0	01	1	9304-	●	●	●	●	●	●	●	●
27	09.174 GASKET; CYL HD AIR CON(C60),COOLER WO/HEATER(YL1) (B) "R-134A"	8-97085-779-0	01	1	9304-	●	●	●	●	●	●	●	●
27	09.174 GASKET; CYL HD 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-97034-783-0	01	1	9210-9303	●	●	●	●	●	●	●	●
27	09.174 GASKET; CYL HD C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-94466-693-0	01	1	9210-9308		●	●	●		●	●	●
28	09.172 PLATE; VLV,CMPR AIR CON(C60),COOLER WO/HEATER(YL1)	8-94466-687-0	01	1	9210-9311	●	●	●	●	●	●	●	●
28	09.172 PLATE; VLV,CMPR AIR CON(C60),COOLER WO/HEATER(YL1)	8-97114-219-0	01	1	9312-	●	●	●	●	●	●	●	●
30	09.172 VALVE; SUCTION AIR CON(C60),COOLER WO/HEATER(YL1)	8-94466-689-0	02	1	9210-9303	●	●	●	●	●	●	●	●
30	09.172 VALVE; SUCTION C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94466-689-0	02	1	9304-9308		●	●	●		●	●	●
30	09.172 VALVE; SUCTION 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97081-404-0	02	1	9304-9509	●	●	●	●	●	●	●	●
30	09.172 VALVE; SUCTION AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97081-404-0	02	1	9510-	●	●	●	●	●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97034-778-0	01	1	9210-9303	●	●	●	●	●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97095-756-0	01	1	9304-	●	●	●	●	●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94316-909-0	01	1	9210-9308		●	●	●		●	●	●
32	09.174 PIN; CMPR AIR CON(C60),COOLER WO/HEATER(YL1)	8-94154-711-0	04	1	9210-	●	●	●	●	●	●	●	●
35	09.175 GASKET; PLUG,CYL C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) 09.172 ID=7.80	8-94113-333-0	01	1	9210-9303	●	●	●	●	●	●	●	●
35	09.175 GASKET; PLUG,CYL C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1) 09.172 ID=7.80	8-94113-333-0	01	1	9304-9308		●	●	●		●	●	●
35	09.175 GASKET; PLUG,CYL 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97081-395-0	01	1	9304-9509	●	●	●	●	●	●	●	●
35	09.175 GASKET; PLUG,CYL AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97081-395-0	01	1	9510-	●	●	●	●	●	●	●	●
36	09.173 PLUG; CYL C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94164-473-0	01	1	9210-9303		●	●	●		●	●	●
36	09.173 PLUG; CYL AIR CON(C60),COOLER WO/HEATER(YL1)	8-94164-473-0	01	1	9304-	●	●	●	●	●	●	●	●
37	09.172 GASKET; CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1) ID=7.80	8-94113-333-0	01	1	9210-9303	●	●	●	●	●	●	●	●
37	09.172 GASKET; CMPR AIR CON(C60),COOLER WO/HEATER(YL1) 09.174	8-94466-678-0	06	1	9304-	●	●	●	●	●	●	●	●
40	09.172 PLATE; VLV,RR AIR CON(C60),COOLER WO/HEATER(YL1)	8-94466-691-0	01	1	9210-9311	●	●	●	●	●	●	●	●
40	09.172 PLATE; VLV,RR AIR CON(C60),COOLER WO/HEATER(YL1)	8-97114-220-0	01	1	9312-	●	●	●	●	●	●	●	●
41	09.174 HEAD; CYL,RR 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97034-784-0	01	1	9210-9303	●	●	●	●	●	●	●	●
41	09.174 HEAD; CYL,RR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97034-784-0	01	1	9304-	●	●	●	●	●	●	●	●
41	09.174 HEAD; CYL,RR 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97085-778-0	01	1	9304-	●	●	●	●	●	●	●	●
41	09.174 HEAD; CYL,RR C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94466-695-0	01	1	9210-9308		●	●	●		●	●	●
45	09.173 BOLT; PLATE TO CYL HD AIR CON(C60),COOLER WO/HEATER(YL1) 02.277 M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	9210-	●	●	●	●	●	●	●	●
63	09.175 COVER; CMPR 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) 09.172	8-94441-395-0	01	1	9304-9311	●	●	●	●	●	●	●	●
79	09.172 GASKET; VLV,CMPR 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-781-0	01	1	9304-	●	●	●	●	●	●	●	●
126	09.172 VALVE; RELIEF,CMPR 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-780-0	01	1	9304-	●	●	●	●	●	●	●	●

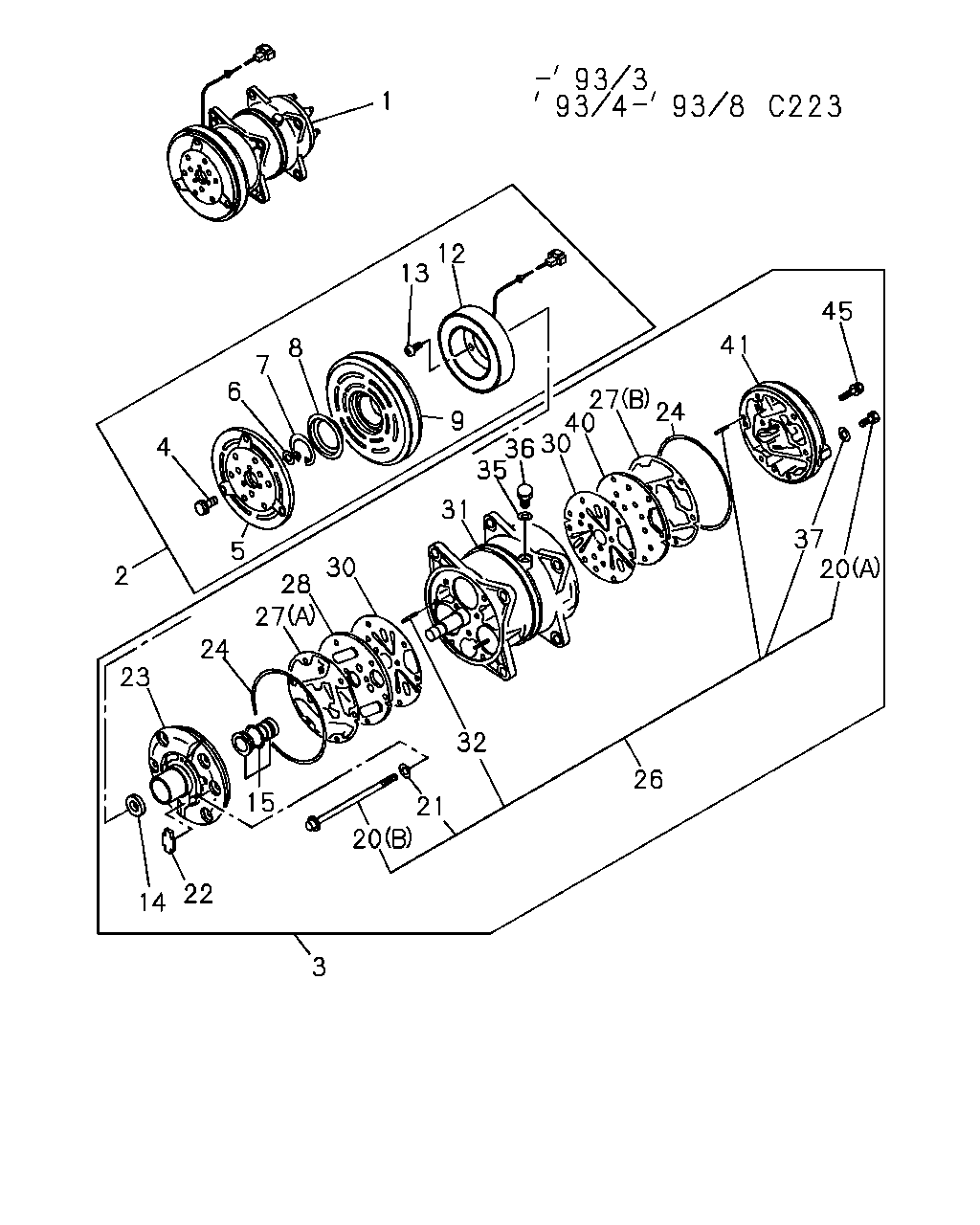

1 12 13 8 7 6 4 2 5 9 45 41 24 27 40 30 36 35 31 30 28 27 24 23 14 22 15 20 3 21 32 26 20 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	09.170 COMPRESSOR ASM; A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97044-160-0	01	1	9210-9303	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1) VALEO R-134A	8-97068-821-1	01	1	9304-	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97044-161-0	01	1	9210-9303	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) VALEO R-134A	8-97068-820-2	01	1	9304-	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94435-171-1	01	1	9210-9308		●	●	●		●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97045-884-0	01	1	9210-9311	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97114-213-0	01	1	9312-	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97045-873-0	01	1	9210-9311	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97114-212-0	01	1	9312-	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94316-910-0	01	1	9210-9308		●	●	●		●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97095-748-0	01	1	9304-9311	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97114-229-0	01	1	9312-	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97034-775-0	01	1	9210-9303	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97101-654-0	01	1	9304-9311	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97114-228-0	01	1	9312-	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94316-908-0	01	1	9210-9308		●	●	●		●	●	●
4	09.181 BOLT; MAGNET CLU AIR CON(C60),COOLER WO/HEATER(YL1) 09.186	8-94164-439-0	01	1	9210-	●	●	●	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97034-789-0	01	1	9210-	●	●	●	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97034-788-0	01	1	9210-	●	●	●	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94316-913-0	01	1	9210-9308		●	●	●		●	●	●
6	09.181 SHIM; MAGNET CLU 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) T=0.1	8-94120-721-0	AR	1	9210-9308	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) T=0.3	8-94120-722-0	AR	1	9210-9308	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) T=0.5	8-94120-723-0	AR	1	9210-9308	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) T=0.1	8-94120-721-0	AR	1	9309-9509	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU AIR CON(C60),COOLER WO/HEATER(YL1) T=0.1	8-94120-721-0	AR	1	9510-	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) T=0.3	8-94120-722-0	AR	1	9309-9509	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU AIR CON(C60),COOLER WO/HEATER(YL1) T=0.3	8-94120-722-0	AR	1	9510-	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) T=0.5	8-94120-723-0	AR	1	9309-9509	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU AIR CON(C60),COOLER WO/HEATER(YL1) T=0.5	8-94120-723-0	AR	1	9510-	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1) T=0.1	8-94120-721-0	03	1	9210-9308		●	●	●		●	●	●
6	09.181 SHIM; MAGNET CLU C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1) T=0.3	8-94120-722-0	03	1	9210-9308		●	●	●		●	●	●
6	09.181 SHIM; MAGNET CLU C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1) T=0.5	8-94120-723-0	03	1	9210-9308		●	●	●		●	●	●
7	09.181 RING; SNAP,PULLEY AIR CON(C60),COOLER WO/HEATER(YL1)	8-94120-724-0	01	1	9210-	●	●	●	●	●	●	●	●
8	09.181 COVER; PULLEY AIR CON(C60),COOLER WO/HEATER(YL1)	8-94120-725-0	01	1	9210-	●	●	●	●	●	●	●	●
9	09.181 PULLEY; MAGNET CLU 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97044-906-0	01	1	9210-	●	●	●	●	●	●	●	●
9	09.181 PULLEY; MAGNET CLU 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97034-790-0	01	1	9210-	●	●	●	●	●	●	●	●
9	09.181 PULLEY; MAGNET CLU C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94146-804-0	01	1	9210-9308		●	●	●		●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97044-907-0	01	1	9210-	●	●	●	●	●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97045-883-0	01	1	9210-	●	●	●	●	●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94466-702-0	01	1	9210-9308		●	●	●		●	●	●
13	09.186 SCREW; COIL FIELD AIR CON(C60),COOLER WO/HEATER(YL1) 09.188	8-94120-727-0	03	1	9210-	●	●	●	●	●	●	●	●
14	09.172 FELT; SHAFT SEAL,CYL HD,FRT AIR CON(C60),COOLER WO/HEATER(YL1)	8-94441-395-0	01	1	9210-9303	●	●	●	●	●	●	●	●
14	09.172 FELT; SHAFT SEAL,CYL HD,FRT C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94441-395-0	01	1	9304-9308		●	●	●		●	●	●
15	09.175 SEAL; SHAFT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97045-882-0	01	1	9210-9303	●	●	●	●	●	●	●	●
15	09.175 SEAL; SHAFT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97081-397-0	01	1	9304-9311	●	●	●	●	●	●	●	●
15	09.175 SEAL; SHAFT AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97114-217-0	01	1	9312-	●	●	●	●	●	●	●	●
15	09.175 SEAL; SHAFT C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94466-697-0	01	1	9210-9308		●	●	●		●	●	●
20	09.174 BOLT; CMPR 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) 09.173 (A)	8-94164-473-0	01	1	9210-9303	●	●	●	●	●	●	●	●
20	09.174 BOLT; CMPR 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-97034-781-0	06	1	9210-9509	●	●	●	●	●	●	●	●
20	09.174 BOLT; CMPR AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-97034-781-0	06	1	9510-	●	●	●	●	●	●	●	●
20	09.174 BOLT; CMPR C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-94472-868-0	06	1	9210-9308		●	●	●		●	●	●
21	09.175 WASHER; COOLER CMPR 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) 09.174	8-94466-678-0	06	1	9210-9303	●	●	●	●	●	●	●	●
22	09.172 FELT; CYL HD,FRT AIR CON(C60),COOLER WO/HEATER(YL1)	8-94441-396-0	01	1	9210-9311	●	●	●	●	●	●	●	●
23	09.174 HEAD; CYL,FRT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97034-782-0	01	1	9210-9311	●	●	●	●	●	●	●	●
23	09.174 HEAD; CYL,FRT AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97114-215-0	01	1	9312-	●	●	●	●	●	●	●	●
23	09.174 HEAD; CYL,FRT C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94466-683-0	01	1	9210-9308		●	●	●		●	●	●
24	09.172 GASKET; CMPR AIR CON(C60),COOLER WO/HEATER(YL1)	8-94466-681-0	02	1	9210-9303	●	●	●	●	●	●	●	●
24	09.172 GASKET; CMPR AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97081-396-0	02	1	9304-	●	●	●	●	●	●	●	●
26	09.174 BOLT & PIN SET; CMPR 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97034-780-0	01	1	9210-9303	●	●	●	●	●	●	●	●
26	09.174 BOLT & PIN SET; CMPR C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94472-867-0	01	1	9210-9308		●	●	●		●	●	●
27	09.174 GASKET; CYL HD AIR CON(C60),COOLER WO/HEATER(YL1) (A)	8-94466-685-0	01	1	9210-9303	●	●	●	●	●	●	●	●
27	09.174 GASKET; CYL HD AIR CON(C60),COOLER WO/HEATER(YL1) (A) "R-134A"	8-97085-777-0	01	1	9304-	●	●	●	●	●	●	●	●
27	09.174 GASKET; CYL HD AIR CON(C60),COOLER WO/HEATER(YL1) (B) "R-134A"	8-97085-779-0	01	1	9304-	●	●	●	●	●	●	●	●
27	09.174 GASKET; CYL HD 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-97034-783-0	01	1	9210-9303	●	●	●	●	●	●	●	●
27	09.174 GASKET; CYL HD C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-94466-693-0	01	1	9210-9308		●	●	●		●	●	●
28	09.172 PLATE; VLV,CMPR AIR CON(C60),COOLER WO/HEATER(YL1)	8-94466-687-0	01	1	9210-9311	●	●	●	●	●	●	●	●
28	09.172 PLATE; VLV,CMPR AIR CON(C60),COOLER WO/HEATER(YL1)	8-97114-219-0	01	1	9312-	●	●	●	●	●	●	●	●
30	09.172 VALVE; SUCTION AIR CON(C60),COOLER WO/HEATER(YL1)	8-94466-689-0	02	1	9210-9303	●	●	●	●	●	●	●	●
30	09.172 VALVE; SUCTION C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94466-689-0	02	1	9304-9308		●	●	●		●	●	●
30	09.172 VALVE; SUCTION 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97081-404-0	02	1	9304-9509	●	●	●	●	●	●	●	●
30	09.172 VALVE; SUCTION AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97081-404-0	02	1	9510-	●	●	●	●	●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97034-778-0	01	1	9210-9303	●	●	●	●	●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97095-756-0	01	1	9304-	●	●	●	●	●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94316-909-0	01	1	9210-9308		●	●	●		●	●	●
32	09.174 PIN; CMPR AIR CON(C60),COOLER WO/HEATER(YL1)	8-94154-711-0	04	1	9210-	●	●	●	●	●	●	●	●
35	09.175 GASKET; PLUG,CYL C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) 09.172 ID=7.80	8-94113-333-0	01	1	9210-9303	●	●	●	●	●	●	●	●
35	09.175 GASKET; PLUG,CYL C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1) 09.172 ID=7.80	8-94113-333-0	01	1	9304-9308		●	●	●		●	●	●
35	09.175 GASKET; PLUG,CYL 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97081-395-0	01	1	9304-9509	●	●	●	●	●	●	●	●
35	09.175 GASKET; PLUG,CYL AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97081-395-0	01	1	9510-	●	●	●	●	●	●	●	●
36	09.173 PLUG; CYL C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94164-473-0	01	1	9210-9303		●	●	●		●	●	●
36	09.173 PLUG; CYL AIR CON(C60),COOLER WO/HEATER(YL1)	8-94164-473-0	01	1	9304-	●	●	●	●	●	●	●	●
37	09.172 GASKET; CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1) ID=7.80	8-94113-333-0	01	1	9210-9303	●	●	●	●	●	●	●	●
37	09.172 GASKET; CMPR AIR CON(C60),COOLER WO/HEATER(YL1) 09.174	8-94466-678-0	06	1	9304-	●	●	●	●	●	●	●	●
40	09.172 PLATE; VLV,RR AIR CON(C60),COOLER WO/HEATER(YL1)	8-94466-691-0	01	1	9210-9311	●	●	●	●	●	●	●	●
40	09.172 PLATE; VLV,RR AIR CON(C60),COOLER WO/HEATER(YL1)	8-97114-220-0	01	1	9312-	●	●	●	●	●	●	●	●
41	09.174 HEAD; CYL,RR 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97034-784-0	01	1	9210-9303	●	●	●	●	●	●	●	●
41	09.174 HEAD; CYL,RR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97034-784-0	01	1	9304-	●	●	●	●	●	●	●	●
41	09.174 HEAD; CYL,RR 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97085-778-0	01	1	9304-	●	●	●	●	●	●	●	●
41	09.174 HEAD; CYL,RR C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1)	8-94466-695-0	01	1	9210-9308		●	●	●		●	●	●
45	09.173 BOLT; PLATE TO CYL HD AIR CON(C60),COOLER WO/HEATER(YL1) 02.277 M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	9210-	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
