0-22 — ENGINE MOUNTING (#46500) — 31 parça

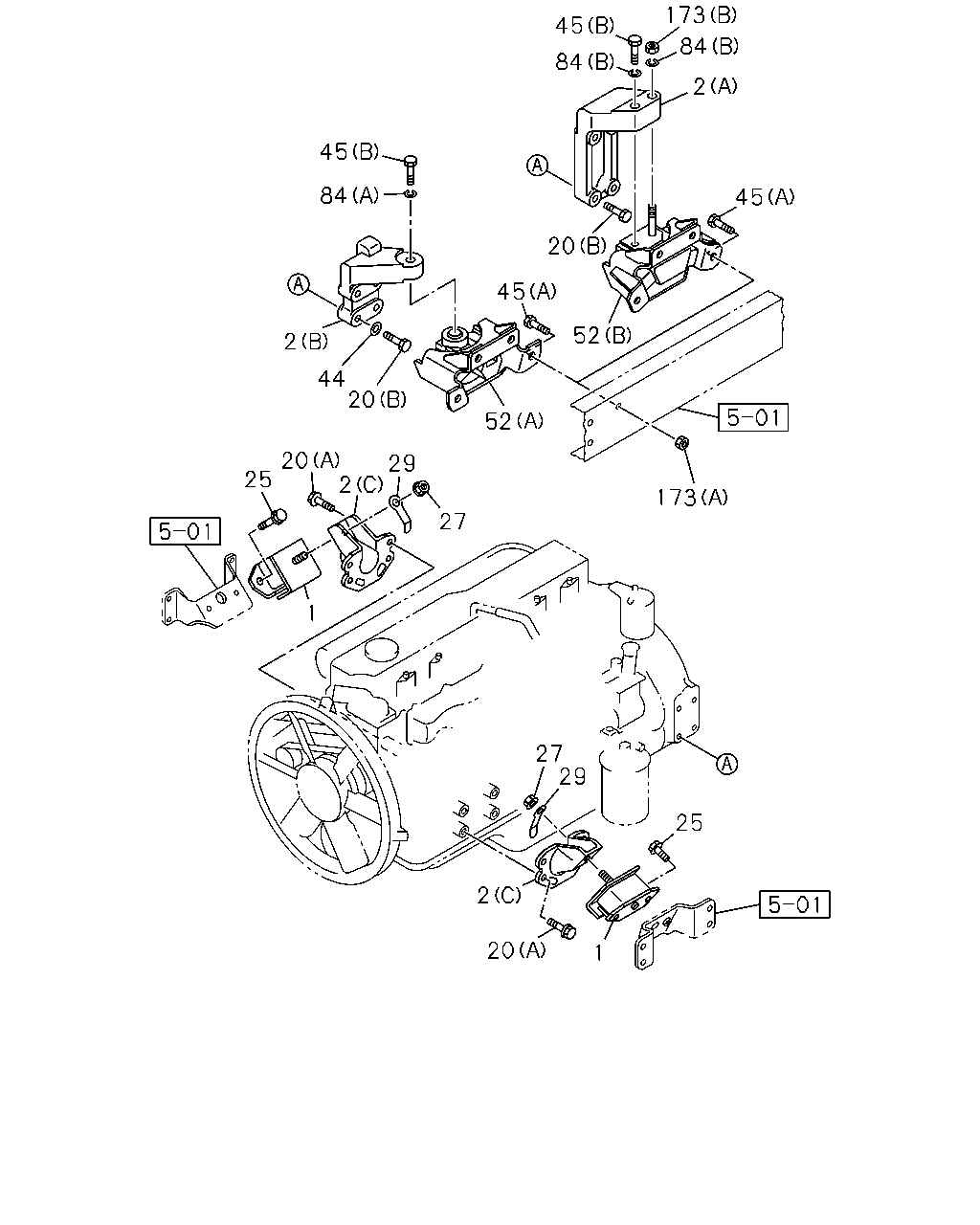

çizim 111587
1 20 2 25 29 27 173 52 52 29 27 2 20 1 25 20 44 2 84 45 45 20 45 2 84 173 45 84
BalonParca AdiParca NoAdetTipApplied Date
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 0809-
2 FOOT; ENG
MZX6P M/T(RSW),MLD6W M/T(Y2C) (B) 		8-97611-988-0 01 1 0809-0906
2 FOOT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B) 		8-97611-988-0 01 1 0907-
2 FOOT; ENG
MZX6P M/T(RSW),MLD6W M/T(Y2C) (B) 		8-97611-989-0 01 1 0809-0906
2 FOOT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B) 		8-97611-989-0 01 1 0907-
2 FOOT; ENG
(C) 		8-94392-141-3 02 1 0809-1008
2 FOOT; ENG
(C) 		8-97602-589-1 02 1 1009-
2 FOOT; ENG
FULLER FSO5206B OD M/T(Y4V) (A) 		8-97611-990-0 01 1 0809-
2 FOOT; ENG
FULLER FSO5206B OD M/T(Y4V) (A) 		8-97611-991-0 01 1 0809-
20 BOLT; ENG FOOT
MZX6P M/T(RSW),MLD6W M/T(Y2C) (B) M12X50 		0-16956-250-0 08 1 0809-0906
20 BOLT; ENG FOOT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B) M12X50 		0-16956-250-0 08 1 0907-
20 BOLT; ENG FOOT
(A) M10X30 		8-97011-732-0 08 1 0809-1008
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 1009-
20 BOLT; ENG FOOT
FULLER FSO5206B OD M/T(Y4V) (B) M12X55 		8-94399-884-1 08 1 0809-
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0809-
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 0809-
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 0809-
44 WASHER; LK,ENG FOOT
MZX6P M/T(RSW),MLD6W M/T(Y2C) ID=12.5 		0-91614-512-0 08 1 0809-0906
44 WASHER; LK,ENG FOOT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.5 		0-91614-512-0 08 1 0907-
45 BOLT; CUSHION RUBBER TO FRAME
MZX6P M/T(RSW),MLD6W M/T(Y2C) (B) M18X65 		8-94393-260-1 02 1 0809-0906
45 BOLT; CUSHION RUBBER TO FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B) M18X65 		8-94393-260-1 02 1 0907-
45 BOLT; CUSHION RUBBER TO FRAME
FULLER FSO5206B OD M/T(Y4V) (B) M16X60 		0-10956-660-0 02 1 0809-
45 BOLT; CUSHION RUBBER TO FRAME
(A) M14X50 		0-29261-450-0 08 1 0809-
52 RUBBER; CUSHION,ENG MTG,RR
MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) 		8-98013-021-1 02 1 0809-0906
52 RUBBER; CUSHION,ENG MTG,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) 		8-98013-021-1 02 1 0907-
52 RUBBER; CUSHION,ENG MTG,RR
FULLER FSO5206B OD M/T(Y4V) (B) 		8-98013-022-1 02 1 0809-
84 WASHER; PL,ENG MTG RR TO FRAME
MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) ID=19 OD=36 		0-91614-618-0 02 1 0809-0906
84 WASHER; PL,ENG MTG RR TO FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) ID=19 OD=36 		0-91614-618-0 02 1 0907-
84 WASHER; PL,ENG MTG RR TO FRAME
FULLER FSO5206B OD M/T(Y4V) (B) ID=17 		9-09164-516-0 04 1 0809-
173 NUT; ENG MTG RR TO FRAME
FULLER FSO5206B OD M/T(Y4V) (B) M16 		0-91110-516-0 02 1 0809-
173 NUT; ENG MTG RR TO FRAME
(A) M14 FLANGE 		0-91180-214-0 08 1 0809-
