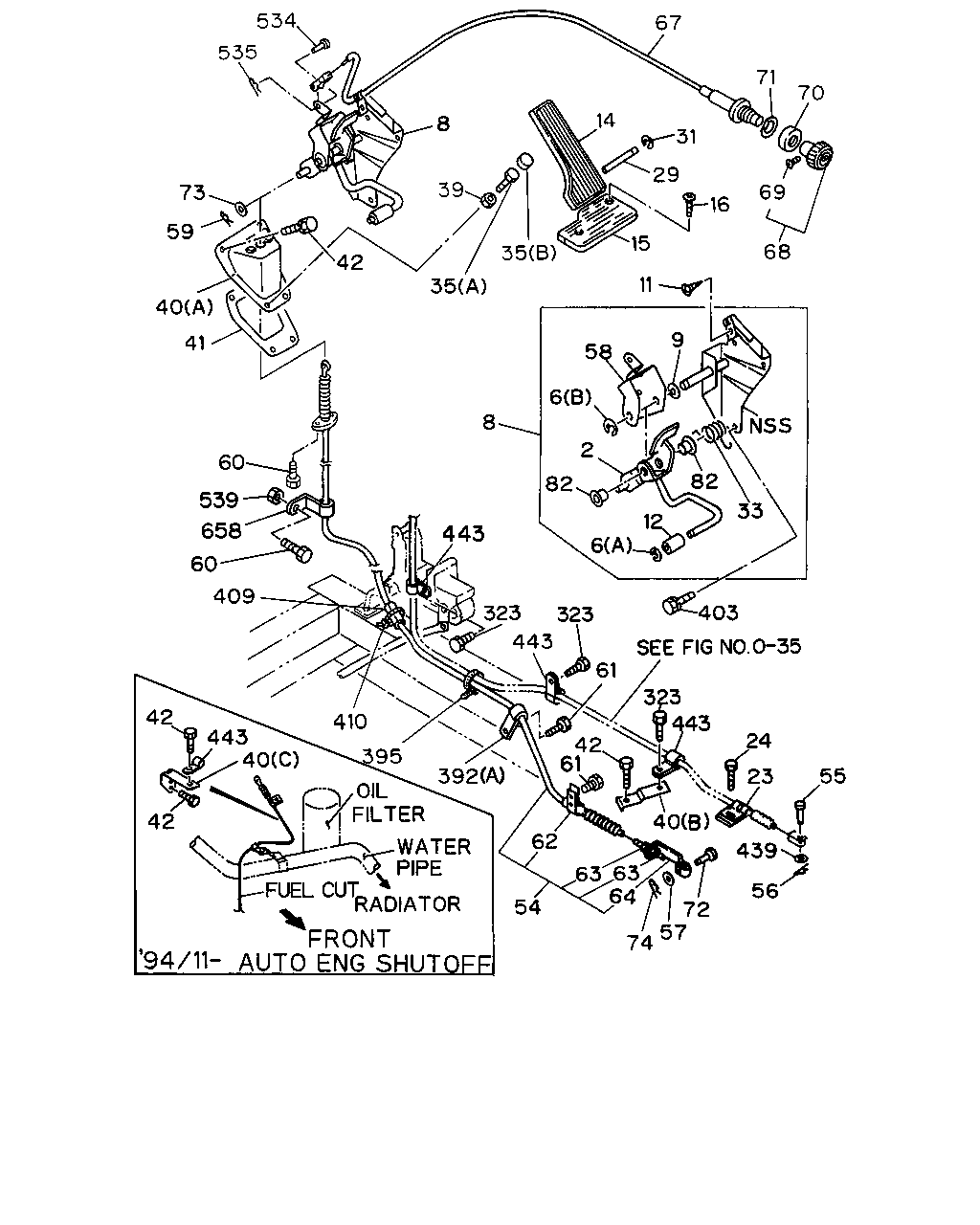

1-01B — ACCELERATOR PEDAL AND CONTROL (#465) — 92 parça

535 534 67 71 70 69 68 16 31 14 29 15 11 35 35 39 8 42 73 59 40 41 60 539 658 60 409 8 6 2 82 6 12 33 82 9 58 443 323 323 443 61 323 443 24 23 55 439 56 72 57 74 64 63 63 54 62 61 42 40 392 395 410 42 443 40 42 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LEVER; ENG CONT	1-73997-904-1	01	1	8712-	●	●
6	RING; SNAP,LINK TO LINK (A) ID=6	9-09185-406-0	01	1	8712-	●	●
6	RING; SNAP,LINK TO LINK (B) ID=9	9-09185-409-0	01	1	8712-9306	●	●
6	RING; SNAP,LINK TO LINK (B) ID=8	9-09185-408-0	01	1	9307-		●
8	LINK ASM; ENG CONT	1-23240-067-2	01	1	8712-	●	●
9	WASHER; PL,CONT LINK ID=10.5 OD=16	9-09855-178-0	01	1	8712-	●	●
11	SCREW; IDLE CONT CABLE M5X12 W/LK&PL WASHER	9-03920-512-0	01	1	8712-	●	●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	8712-	●	●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	8712-	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73997-675-3	01	1	8712-9305	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9306-		●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X24	1-09981-421-0	02	1	8712-8911	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X24 W/PL WASHER	1-09981-504-0	02	1	8912-	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-082-0	01	1	8712-	●	●
24	BOLT; BRKT	5-09030-026-0	01	1	8712-	●	●
29	SHAFT; ACCEL PEDAL	1-23124-001-0	01	1	8712-9001	●
29	SHAFT; ACCEL PEDAL OD=8 L=74	1-09987-206-0	01	1	9002-		●
31	RING; SNAP,ACCEL PEDAL ID=6	9-09185-406-0	01	1	8712-	●	●
33	SPRING; IDLING CONT LEVER	1-73997-906-0	01	1	8712-	●	●
35	STOPPER; ACCEL PEDAL (A)	1-09980-412-0	01	1	8712-9001	●
35	STOPPER; ACCEL PEDAL (B) RUBBER	1-23249-009-0	01	1	8712-	●	●
35	STOPPER; ACCEL PEDAL (A)	1-09980-582-0	01	1	9002-		●
39	NUT; ACCEL PEDAL STOPPER M8 FLANGE	8-94279-060-0	01	1	8712-	●	●
40	BRACKET; ENG CONT CABLE (A)	1-73997-632-1	01	1	8712-	●	●
40	BRACKET; ENG CONT CABLE (B)	1-47476-527-0	01	1	9002-		●
40	BRACKET; ENG CONT CABLE AUTO ENG SHUTOFF<KB6> (C)	1-15779-372-0	01	1	9411-		●
41	SEAL; BRKT,ENG CONT CABLE	1-73998-451-0	01	1	8712-	●	●
42	BOLT; BRKT,ENG CONT CABLE M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	8712-9301	●	●
42	BOLT; BRKT,ENG CONT CABLE M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9302-		●
42	BOLT; BRKT,ENG CONT CABLE M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204		●
42	BOLT; BRKT,ENG CONT CABLE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302		●
42	BOLT; BRKT,ENG CONT CABLE M8X20 FLANGE	0-28080-820-0	01	1	9303-		●
42	BOLT; BRKT,ENG CONT CABLE AUTO ENG SHUTOFF<KB6> M8X20 FLANGE	0-28080-820-0	02	1	9411-		●
54	CABLE; ENG CONT L=2495	1-23210-866-1	01	1	8712-9001	●
54	CABLE; ENG CONT L=1610	1-23210-700-9	01	1	9002-		●
55	PIN; JAW JOINT	9-08223-511-0	01	1	8712-8903	●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	8904-	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	8712-	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	8712-	●	●
58	LEVER; IDLING CONT	1-73997-905-1	01	1	8712-	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	8712-	●	●
60	BOLT; CABLE M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	8712-9301	●	●
60	BOLT; CABLE M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	9302-		●
60	BOLT; CABLE M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	9-01900-816-0	01	1	8712-9001	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	9-01910-816-0	02	1	8712-9005	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	0-50040-816-0	02	1	9006-9302		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	02	1	9303-9306		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9009		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	9303-9306		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	03	1	9307-		●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	8712-	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	8712-9001	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9002-		●
64	BRACKET; ENG CONT CABLE	1-09768-018-1	01	1	8712-	●	●
67	CABLE ASM; IDLE CONT L=422	1-73997-647-0	01	1	8712-	●	●
68	KNOB; IDLE CONT W/SCREW	8-94134-716-0	01	1	8712-	●	●
69	SCREW; KNOB,IDLE CONT	5-09120-004-0	01	1	8712-	●	●
70	NUT; CONT CABLE M18 RING NUT	5-09409-004-1	01	1	8712-	●	●
71	WASHER; WAVE,CONT CABLE ID=18.5	5-09550-005-0	01	1	8712-	●	●
72	PIN; JAW JOINT,CABLE END OD=8 L=17	9-08220-817-0	01	1	8712-	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	8712-	●	●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	8712-	●	●
82	BUSHING; ENG CONT LVR	8-94206-569-0	02	1	8712-	●	●
323	BOLT; CLIP M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204		●
323	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302		●
323	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	02	1	9303-		●
323	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9307-9410		●
323	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9411-		●
323	BOLT; CLIP AUTO ENG SHUTOFF<KB6> M8X20 FLANGE	0-28080-820-0	01	1	9411-		●
392	CLIP; ACCEL CONT CABLE (A) ID=9 L=20	9-09524-835-0	01	1	9307-		●
392	CLIP; ACCEL CONT CABLE (A) ID=11 H=20 L=20	5-09700-351-0	01	1	8712-9001	●
392	CLIP; ACCEL CONT CABLE (A) ID=9 L=20	9-09524-835-0	01	1	9002-9306		●
395	CLIP; BAND,ACCEL CONT CABLE L=100	5-09707-036-0	01	1	9307-		●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	8712-9301	●	●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9302-		●
409	SLEEVE AUTO ENG SHUTOFF<KB6> ID=12.5 OD=15.5 L=30	9-09714-002-0	01	1	9307-9410		●
410	CLIP; BAND AUTO ENG SHUTOFF<KB6> L=100	5-09707-036-0	01	1	9307-9410		●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	8712-	●	●
443	CLIP; CABLE ID=9 L=20	9-09524-835-0	01	1	8712-9001	●
443	CLIP; CABLE ID=9 L=20	9-09524-835-0	02	1	9002-9306		●
443	CLIP; CABLE EXC. AUTO ENG SHUTOFF<KB6> ID=9 L=20	9-09524-835-0	02	1	9307-		●
443	CLIP; CABLE AUTO ENG SHUTOFF<KB6> ID=7 L=20	9-09524-635-0	01	1	9307-		●
443	CLIP; CABLE AUTO ENG SHUTOFF<KB6> ID=7 L=20	9-09524-635-0	02	1	9307-9410		●
443	CLIP; CABLE AUTO ENG SHUTOFF<KB6> ID=7 L=20	9-09524-635-0	03	1	9411-		●
443	CLIP; CABLE EXC. AUTO ENG SHUTOFF<KB6> ID=9 L=20	9-09524-835-0	01	1	9307-		●
534	PIN; JAW JOINT,IDLING CONT CABLE	1-09987-034-1	01	1	8712-	●	●
535	PIN; SNAP,IDLING CONT CABLE L=17.9	1-09747-002-0	01	1	8712-	●	●
539	NUT; CLIP M6 FLANGE	1-09984-141-0	01	1	8712-	●	●
658	CLIP; ENG CONT CABLE ID=13 H=24 L=20	9-09527-012-0	02	1	8712-	●	●
