9-01 — TOOLS (#46490) — 56 parça

9 17 13 12 1 23 22 21 20 29 29 29 193 115 208 230 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	0710-	●	●
9	WRENCH; WHEEL PIN B=33X30 L=450	1-85111-033-1	01	1	0710-	●	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	0710-1409	●	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	8-98257-407-0	01	1	1410-	●	●
13	WRENCH; MONKEY L=247	1-85117-006-0	01	1	0710-1407	●	●
13	WRENCH; MONKEY L=255	8-98270-303-0	01	1	1408-	●	●
17	HAMMER	9-85121-406-0	01	1	0710-	●	●
20	WRENCH; 10X12 10X12	0-95902-510-0	01	1	0710-	●	●
21	WRENCH; 14X17 14X17	0-95902-514-0	01	1	0710-	●	●
22	WRENCH; 19X22 19X22	0-95902-519-0	01	1	0710-	●	●
23	WRENCH; 24X27 24X27	0-95902-524-0	01	1	0710-	●	●
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	0710-	●	●
29	DRIVER; SCREW (B) <-> L=275	8-98061-105-0	01	1	0710-	●	●
29	DRIVER; SCREW (A) <+> L=190	9-09595-522-0	01	1	0710-	●	●
115	PLIER	5-85171-002-0	01	1	0710-	●	●
193	JACK ASM 10TON	8-97607-599-0	01	1	0710-	●	●
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0710-1107	●	●
208	HANDLE; JACK L=600	8-98181-437-0	01	1	1108-	●	●
230	PUMP; GREASE	1-85556-007-5	01	1	0710-	●	●
237	BAG; TOOL	8-97130-902-1	01	1	0710-	●	●

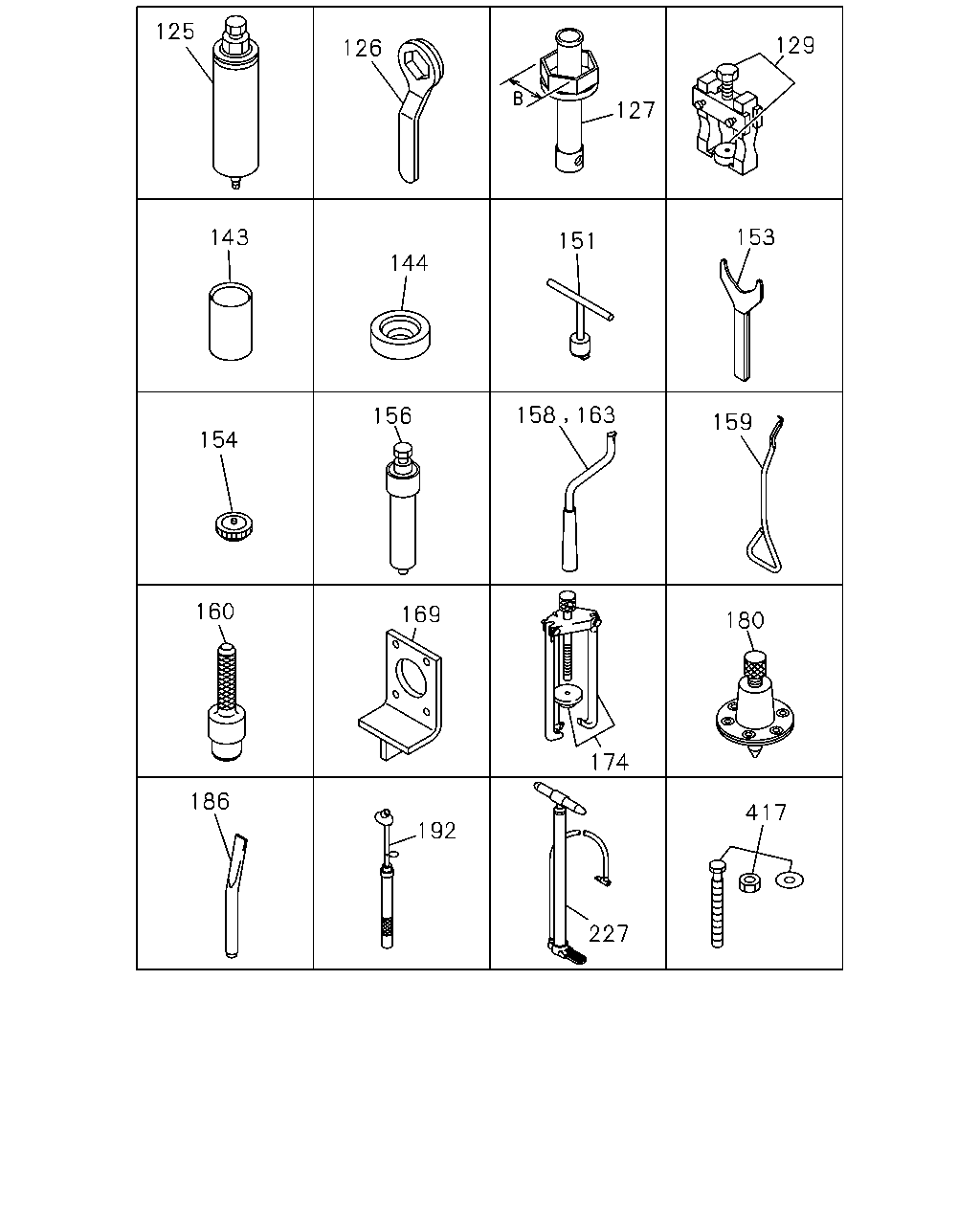

125 129 126 127 153 143 151 144 156 159 154 160 169 180 174 186 417 192 227 158 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	0710-		●
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-1	01	1	0710-		●
127	WRENCH ASM; HUB BRG NUT L=400 B=116	9-85113-524-0	01	1	0710-0808		●
127	WRENCH ASM; HUB BRG NUT L=400 B=116	8-98119-000-1	01	1	0809-		●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0710-	●	●
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	0710-		●
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	0710-		●
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	0710-		●
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0710-		●
154	SLEEPER; KING PIN	1-85238-003-0	01	1	0710-		●
156	PULLER; ANCHOR PIN	1-85210-025-0	01	1	0710-		●
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	0710-1002		●
159	REMOVER; RETURN SPR	1-85237-023-0	01	1	0710-		●
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	0710-		●
163	TOOL; SETTING	9-85221-231-0	01	1	1003-		●
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	0710-	●	●
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	0710-		●
180	PULLER; FRT & RR HUB	1-85210-002-0	01	1	0710-1008		●
186	ADJUSTER; BRAKE	1-85269-008-0	01	1	0710-		●
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0710-	●	●
227	PUMP ASM; TIRE	9-85521-132-0	01	1	0710-	●	●
417	BOLT; CHAMBER RELEASE 1/2-13 UNC L=124 4-SETS	1-85576-331-1	01	1	0710-		●

274 271 268 209 311 285 281 283 282 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
209	CLIP; JACK HANDLE	8-98053-799-0	02	1	0710-	●	●
268	SCREW; CLIP M6X12 HEXALOBULAR SOCKET	0-38050-612-0	02	1	0710-1108	●	●
268	SCREW; CLIP M6X12 HEXALOBULAR SOCKET	8-98177-720-0	02	1	1109-1212	●	●
268	SCREW; CLIP M6X12 HEXALOBULAR SOCKET	0-38050-612-0	02	1	1301-	●	●
271	CLIP; TIRE HANGER	8-98053-800-0	02	1	0710-	●	●
274	SCREW; CLIP M6X12 HEXALOBULAR SOCKET	0-38050-612-0	02	1	0710-1108	●	●
274	SCREW; CLIP M6X12 HEXALOBULAR SOCKET	8-98177-720-0	02	1	1109-1212	●	●
274	SCREW; CLIP M6X12 HEXALOBULAR SOCKET	0-38050-612-0	02	1	1301-	●	●
281	BRACKET; TOOL BOX KEY LOCK TOOL<RC5>	1-53459-665-2	02	1	0710-	●	●
282	NUT; BRKT KEY LOCK TOOL<RC5> M10 FLANGE	0-91180-210-0	04	1	0710-	●	●
283	WASHER; LK,BRKT KEY LOCK TOOL<RC5> ID=10.2	0-91510-510-0	04	1	0710-	●	●
284	BOLT; TOOL BOX KEY LOCK TOOL<RC5> M10X20 FLANGE	0-28651-020-0	04	1	0710-	●	●
285	NUT; TOOL BOX KEY LOCK TOOL<RC5> M10 FLANGE	0-91180-210-0	04	1	0710-	●	●
311	BOX ASM; TOOL KEY LOCK TOOL<RC5>	1-85561-006-3	01	1	0710-	●	●
